Model Accelerated Cooking Products MOC5241A-P2004821M Amana Menumaster MOC5241A – Common Parts & Diagrams

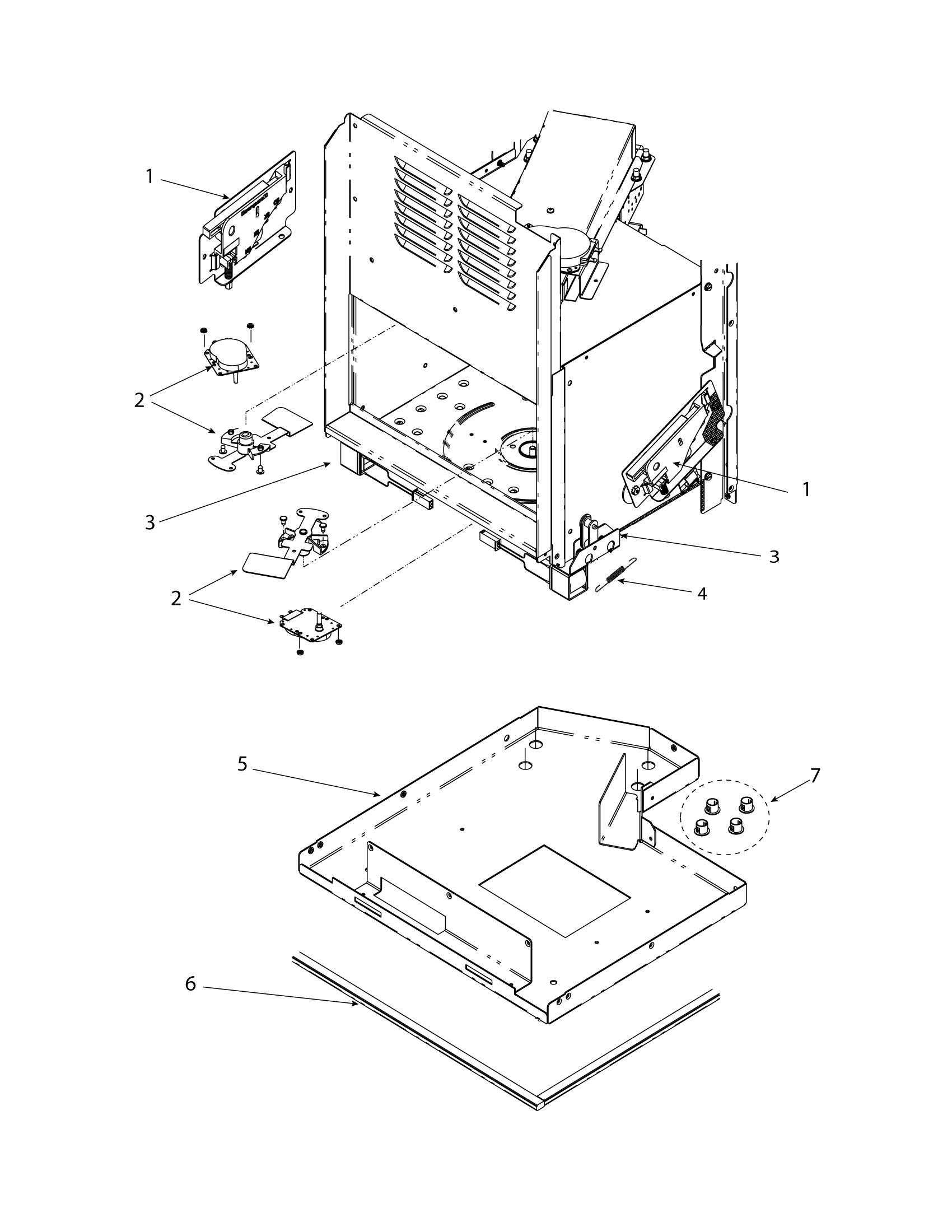

ANTENNA MOTORS / SWITCHES / LH & RH SOLENOIDS / BASEPAN

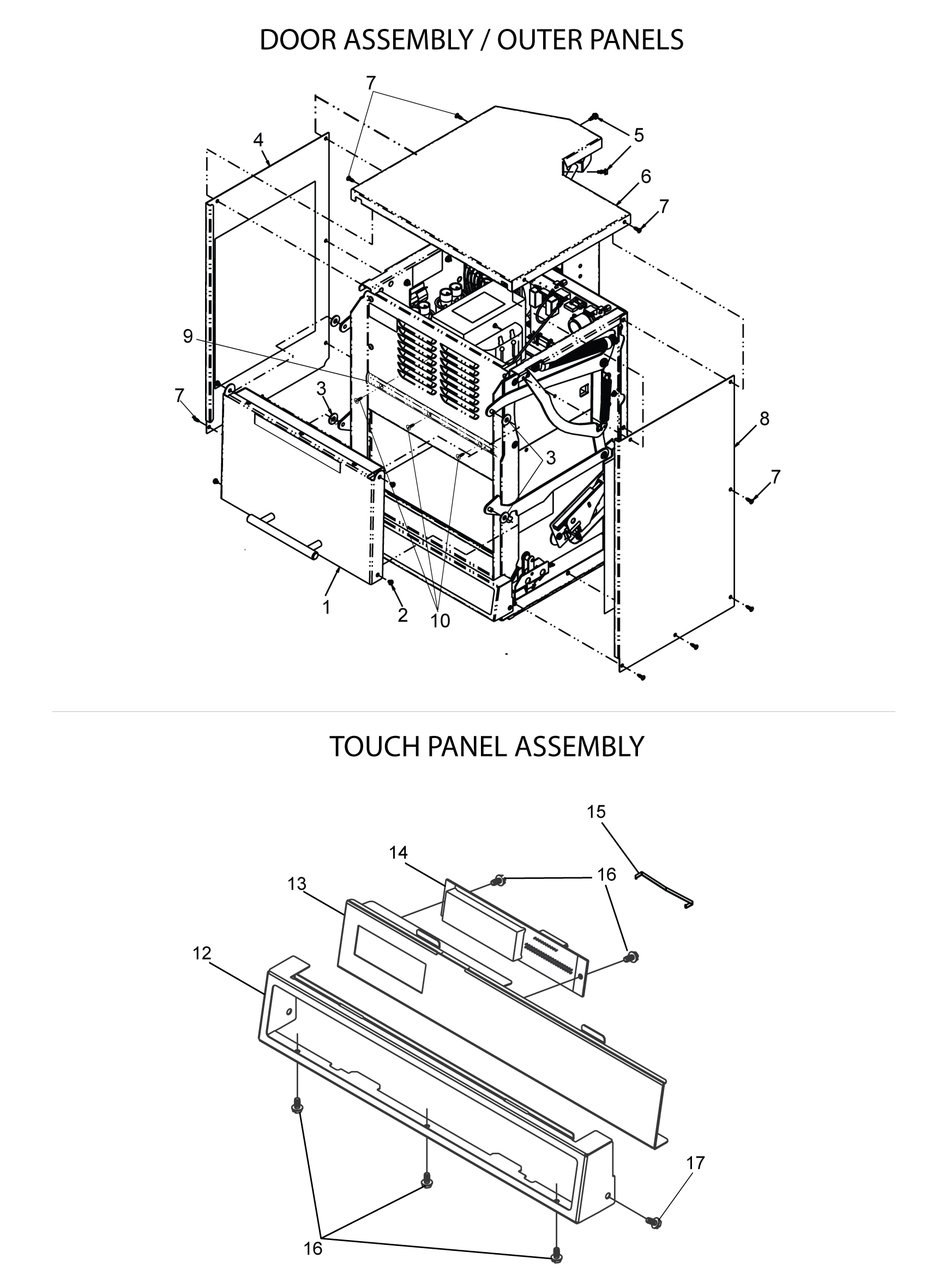

DOOR ASSEMBLY / OUTER PANELS / TOUCH PANEL ASSY

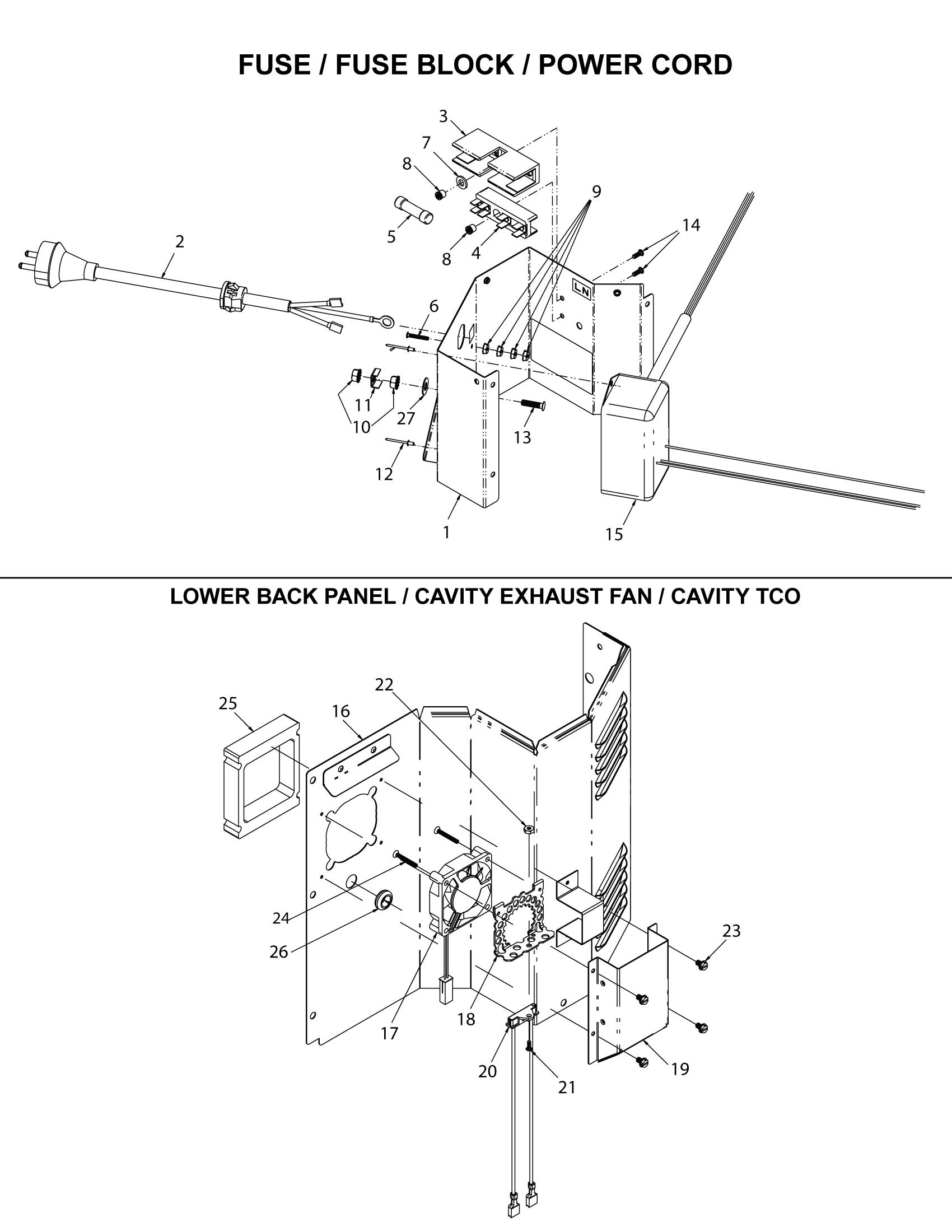

FUSE BLOCK / POWER CORD / LOWER BACK PANEL / EXHAUST / CAVITY TCO

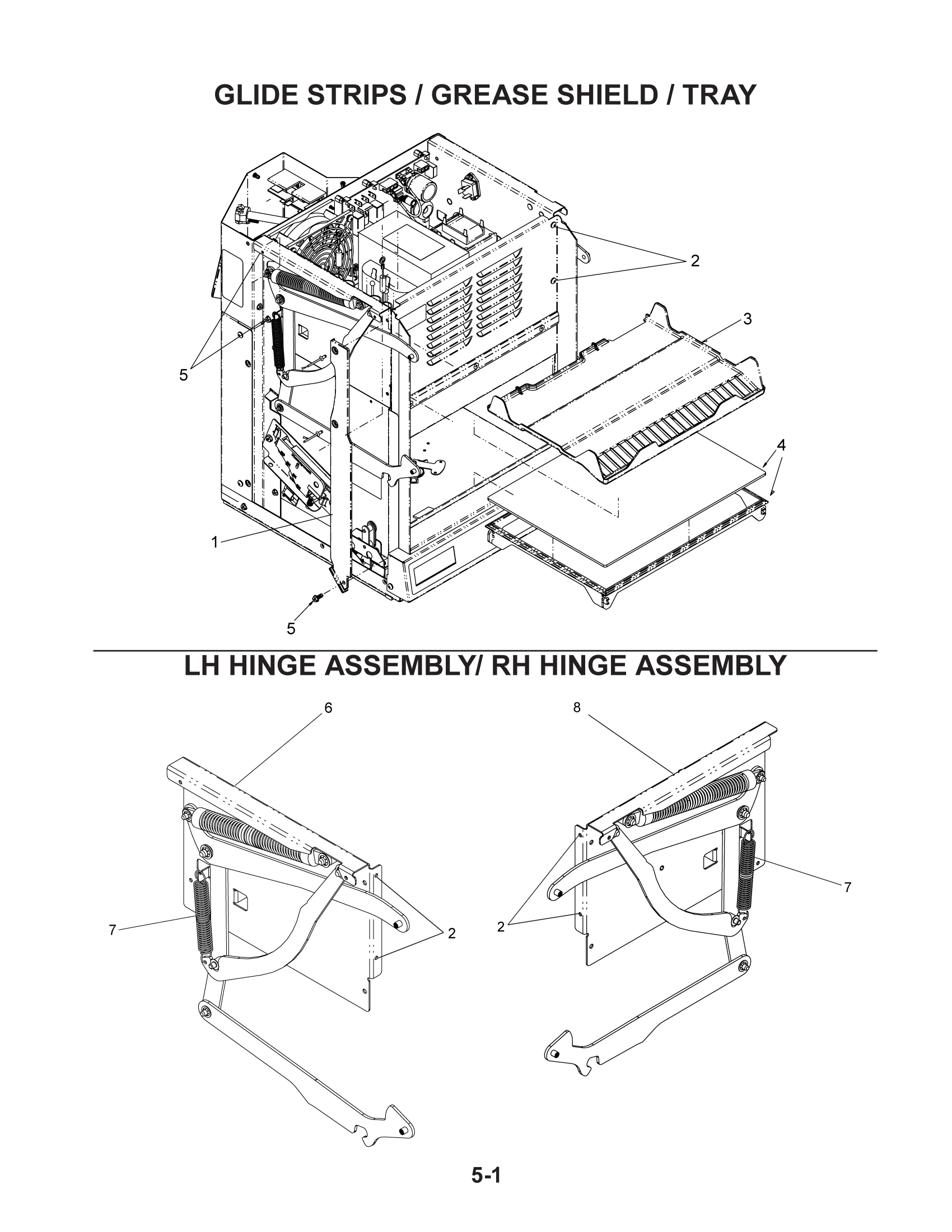

GLIDE STRIPS / ANTENNA SHIELD / TRAY / LH & RH HINGE ASSEMBLY

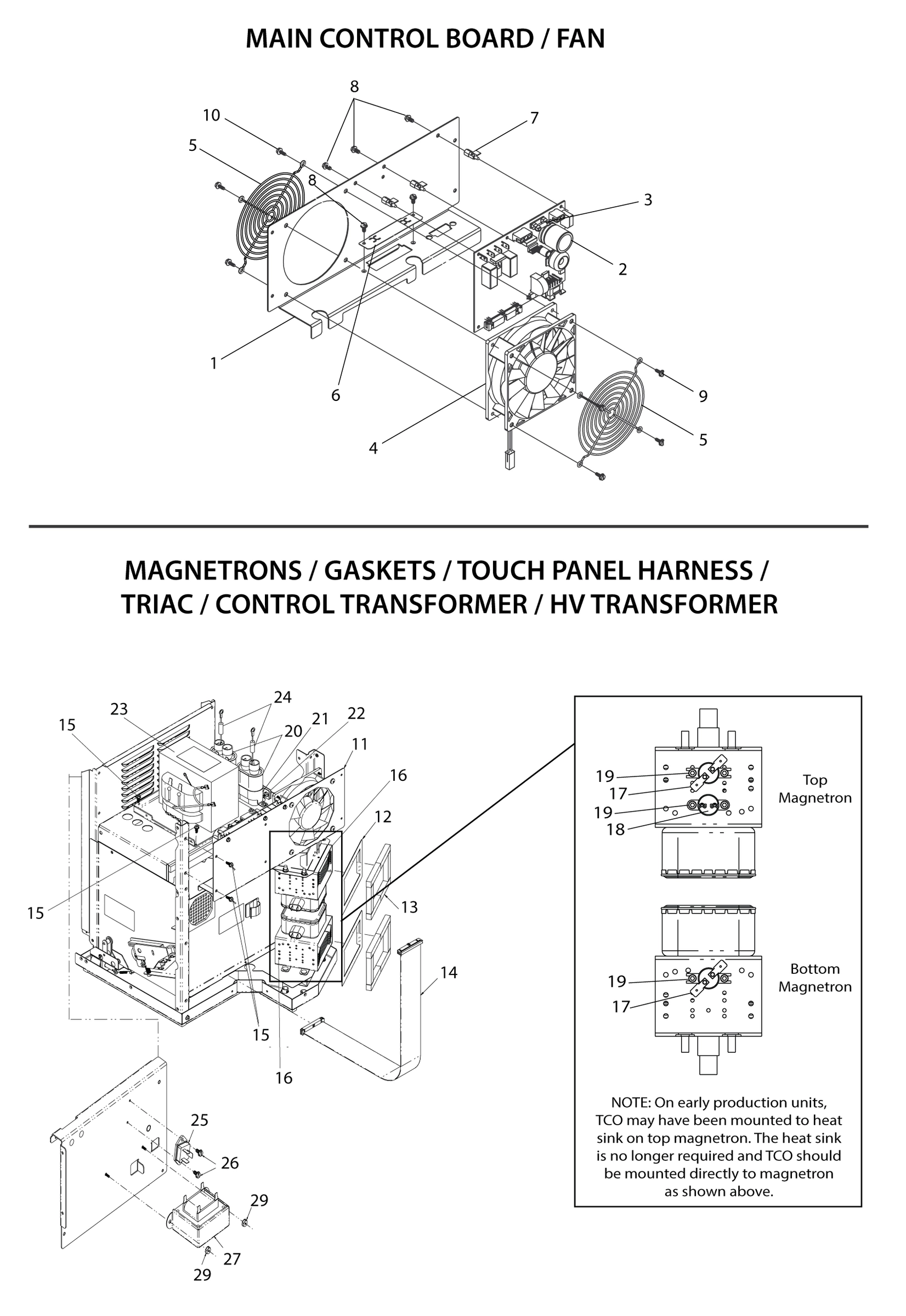

MAIN CONTROL BOARD / FAN / MAGNETRON / GASKETS / TOUCH PANEL
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products MOC5241A-P2004821M Amana Menumaster MOC5241A
1
KIT, SWITCHES & FUSE ACP 14090031 Contact Us For Availability
1
UP MAG SHROUD ACP 20018002Q Contact Us For Availability
1
KIT, GLIDE STRIPS & RIVETS ACP 14090025 Contact Us For Availability
1
WIRE, JUMPER ACP 13017716 Contact Us For Availability
2
KIT, ANTENNA & MOTOR- OC ACP 14189146 Contact Us For Availability
2
BOARD, MAIN CONTROL ACP 59004084 Contact Us For Availability
2
POWER CORD ACP 20076201 Contact Us For Availability
2
SCREW-TC/PAN ACP 13041802 Contact Us For Availability
2
HARNESS, HV ACP 20019401 Contact Us For Availability
3
ANTENNA SHIELD ACP 59184614 Contact Us For Availability
3
BLOCK-FUSE ACP 10091101 Contact Us For Availability
3
FUSE, 2.5A ACP 20031701 Contact Us For Availability
3
HARNESS, MAIN ACP 20216701 Contact Us For Availability
4
BLOCK-TERMINAL ACP B5677203 Contact Us For Availability
4
TRAY, CERAMIC & SUPPORTS ACP 59174521 Contact Us For Availability
4
STRAP-OVEN ACP 21009501 Contact Us For Availability
5
GUARD-FAN ACP 20013701 Contact Us For Availability
5
SEALER, RTV- ALUMINUM ACP 20021804 Contact Us For Availability
6
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
6
SHIELD-CAPACITOR ACP 20209801 Contact Us For Availability
6
KIT, HINGE- LH ACP 14090026 Contact Us For Availability
6
BRKT-40 PIN HEADER ACP 20023501 Contact Us For Availability
7
SPRING, HINGE ACP 20020601 Contact Us For Availability
7
SUPPORT-PCB ACP M0590609 Contact Us For Availability
8
KIT, HINGE- RH ACP 14090027 Contact Us For Availability
10
SCREW ACP 12991611 Contact Us For Availability
11
REAR MC BRKT-E CT ACP 21001503 Contact Us For Availability
12
RIVET-POP RoHS ACP A4539638 Contact Us For Availability
13
GASKET-MAG SEAL ACP 59194708 Contact Us For Availability
14
BOARD, DISPLAY ACP 59004085 Contact Us For Availability
14
KIT, HARNESS- PC BD TO TP ACP 14090028 Contact Us For Availability
15
CLIP, RETAINER ACP 20023301 Contact Us For Availability
15
FILTER, LINE ACP 59001893 Contact Us For Availability
16
LWR OC BACK WELD-E CT ACP 20023608 Contact Us For Availability
17
KIT, CAVITY EXH MOTOR & GASKET ACP 59004092 Contact Us For Availability
17
SCREW-TC/PAN TORX RoHS ACP 13074001 Contact Us For Availability
17
THERMAL CUTOUT- MAG TCO ACP 20241404 Contact Us For Availability
18
GRILLE-EXH FAN ACP 20009701 Contact Us For Availability
18
THERMAL CUTOUT - LATCH TCO ACP B5684135 Contact Us For Availability
19
HOOD-CAVITY FAN ACP 21020302 Contact Us For Availability
19
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
20
THERMAL CUTOUT ASSY- CAVITY ACP 59004115 Contact Us For Availability
20
CAPACITOR- 1.05 ACP 59174543 Contact Us For Availability
21
STUD-#6 SC X .31 ACP 20021601 Contact Us For Availability
21
BRKT- CAPACITOR ACP 13069001 Contact Us For Availability
22
NUT-#8 HEX ACP 20018901 Contact Us For Availability
22
SCREW ACP 12991605 Contact Us For Availability
23
TRANSFORMER, HV ACP 59004117 Contact Us For Availability
24
DIODE ACP 20057401 Contact Us For Availability
24
SCREW-SM/FLAT ACP 20021703 Contact Us For Availability
25
KIT, TRIAC(40A) & SNUBBER ACP 59174520 Contact Us For Availability
25
GASKET-CAV FAN ACP 20095601 Contact Us For Availability
26
SCREW-SM/HEX RoHS ACP 12990522 Contact Us For Availability
26
GROMMET-RUBBER ACP 20095701 Contact Us For Availability
27
WASHER-FLAT ACP 14179138 Contact Us For Availability
27
TRANSFORMER, CONTROL ACP 59004119 Contact Us For Availability
29
NUT-#6 KEPS ACP 13045501 Contact Us For Availability
× ![]()
