Model Accelerated Cooking Products MOC24B-P2004817M Amana Menumaster MOC24B – Common Parts & Diagrams

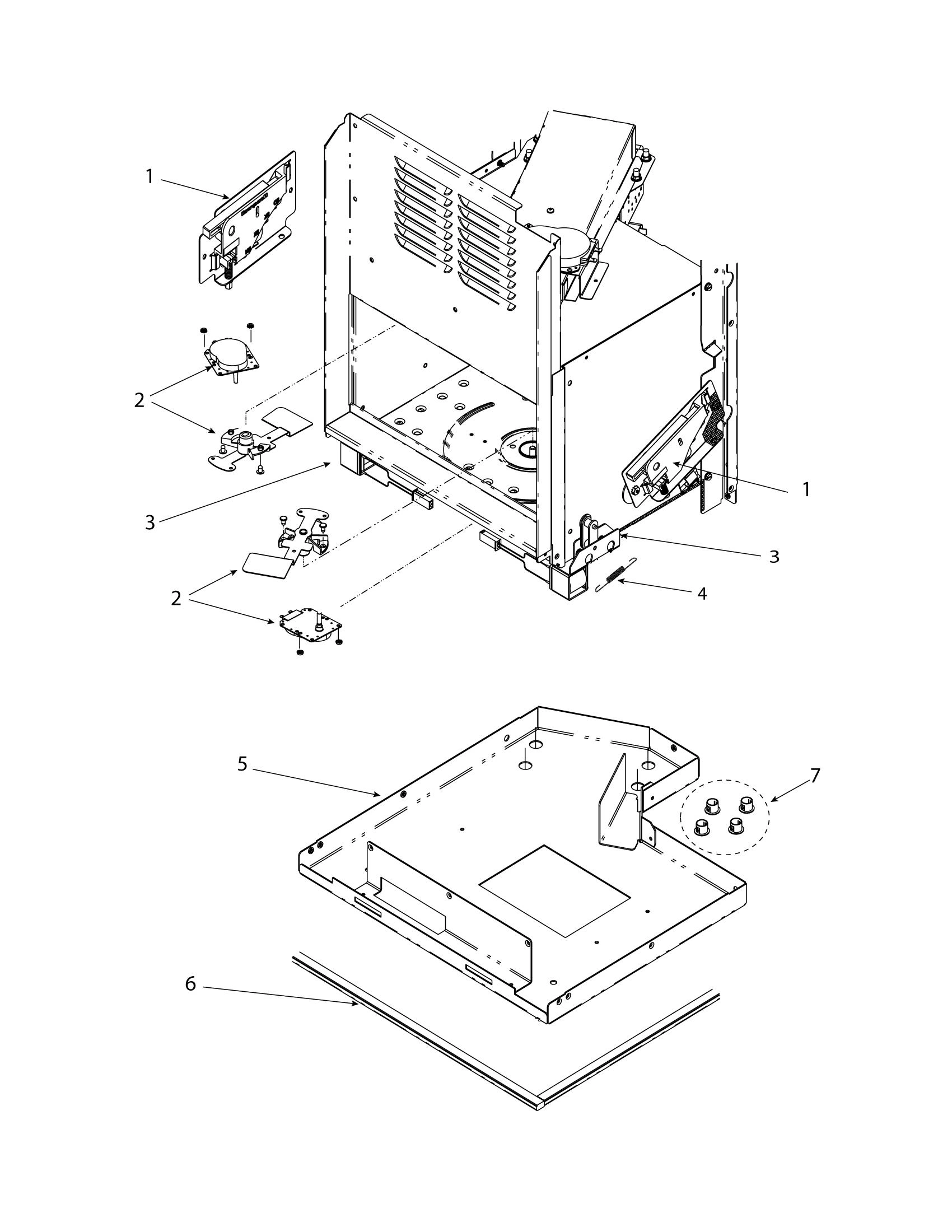

ANTENNA MOTORS / SWITCHES / LH & RH SOLENOIDS / BASEPAN

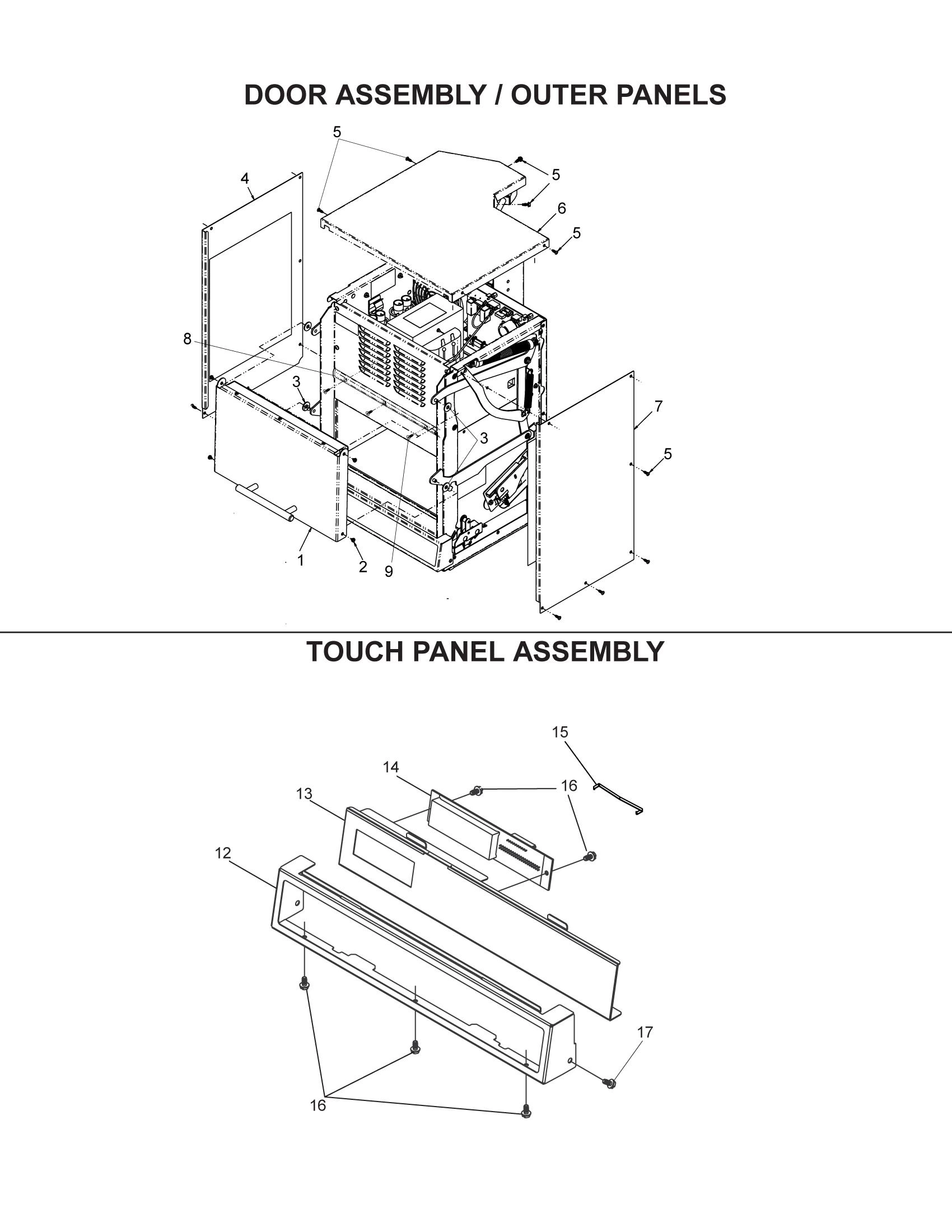

DOOR ASSY / OUTER PANELS / TOUCH PANEL ASSY
FUSE / POWER CORD / CAVITY EXHAUST FAN / CAVITY TCO
GLIDE STRIPS / ANTENNA SHIELD / TRAY / LH & RH HINGE ASSEMBLY
MAIN CONTROL BOARD / FAN / MAGNETRONS / TRANSFORMERS
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products MOC24B-P2004817M Amana Menumaster MOC24B
1
UP MAG SHROUD WELD-E CT ACP 20018002Q Contact Us For Availability
1
WIRE, JUMPER ACP 13017716 Contact Us For Availability
2
POWER CORD ACP 20075802 Contact Us For Availability
2
SCREW-TC/PAN ACP 13041802 Contact Us For Availability
3
HARNESS-OVEN ACP 20216701 Contact Us For Availability
4
STRAP-OVEN ACP 21009501 Contact Us For Availability
5
SEALER, RTV- ALUMINUM ACP 20021804 Contact Us For Availability
6
BRKT-40 PIN HEADER ACP 20023501 Contact Us For Availability
7
SUPPORT-PCB ACP M0590609 Contact Us For Availability
9
LWR OC BACK WELD-E CT ACP 20023608 Contact Us For Availability
9
SCREW ACP 12991611 Contact Us For Availability
11
GRILLE-EXH FAN ACP 20009701 Contact Us For Availability
11
REAR MC BRKT-E CT ACP 21001503 Contact Us For Availability
12
HOOD-CAVITY FAN ACP 21020302 Contact Us For Availability
14
STUD-#6 SC X .31 ACP 20021601 Contact Us For Availability
15
CLIP, RETAINER ACP 20023301 Contact Us For Availability
15
NUT-#8 HEX ACP 20018901 Contact Us For Availability
17
SCREW-SM/FLAT ACP 20021703 Contact Us For Availability
18
GASKET-CAV FAN ACP 20095601 Contact Us For Availability
19
GROMMET-RUBBER ACP 20095701 Contact Us For Availability
19
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
21
BRKT- CAPACITOR ACP 13069001 Contact Us For Availability
× ![]()
