Model Accelerated Cooking Products MOC24B-P2000315M Amana Menumaster MOC24B – Common Parts & Diagrams
ANTENNA MOTORS / SWITCHES / LH RH SOLENOIDS
Door Assembly / OUTER PANELS

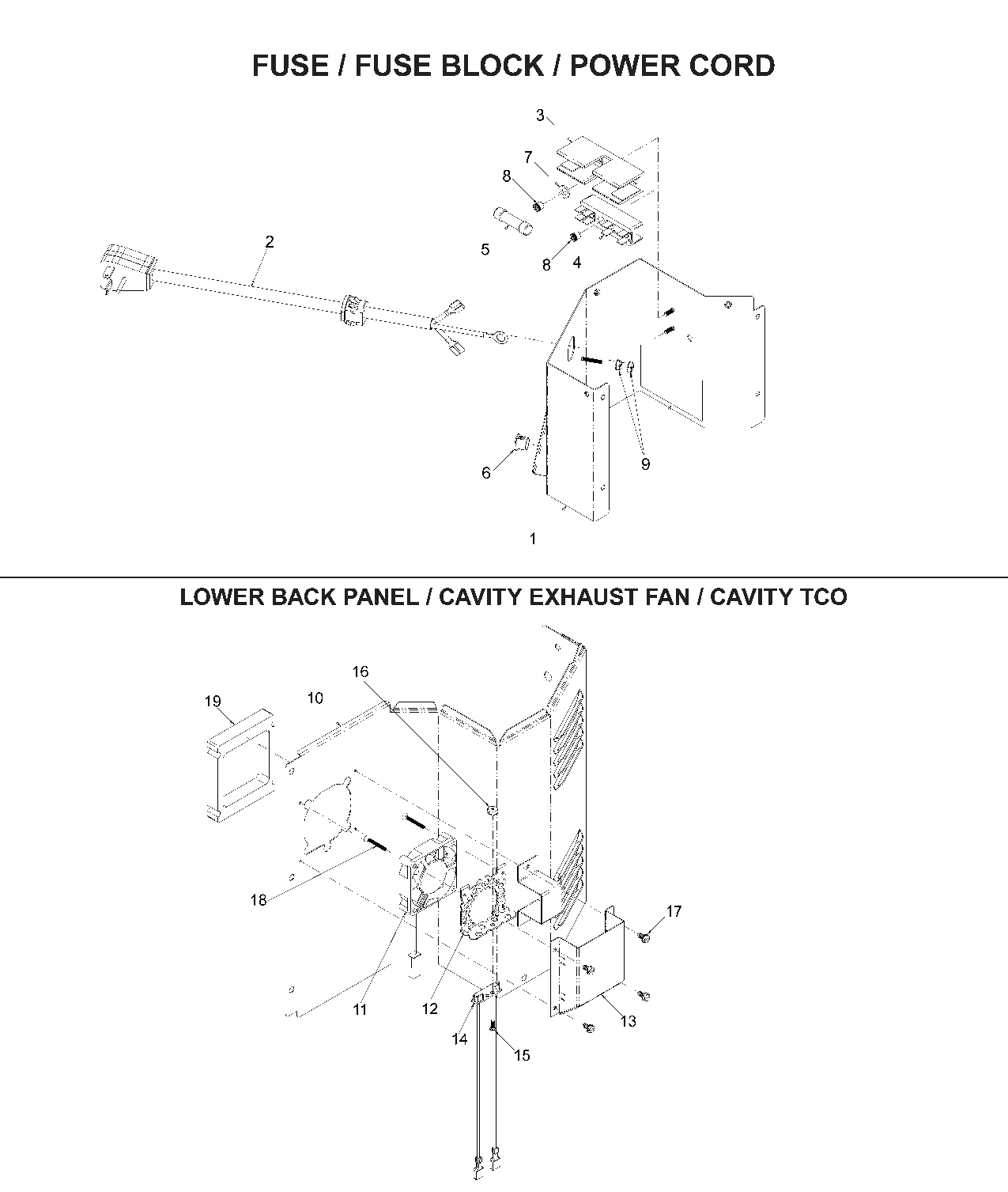

Fuse / Fuse Block / Power Cord

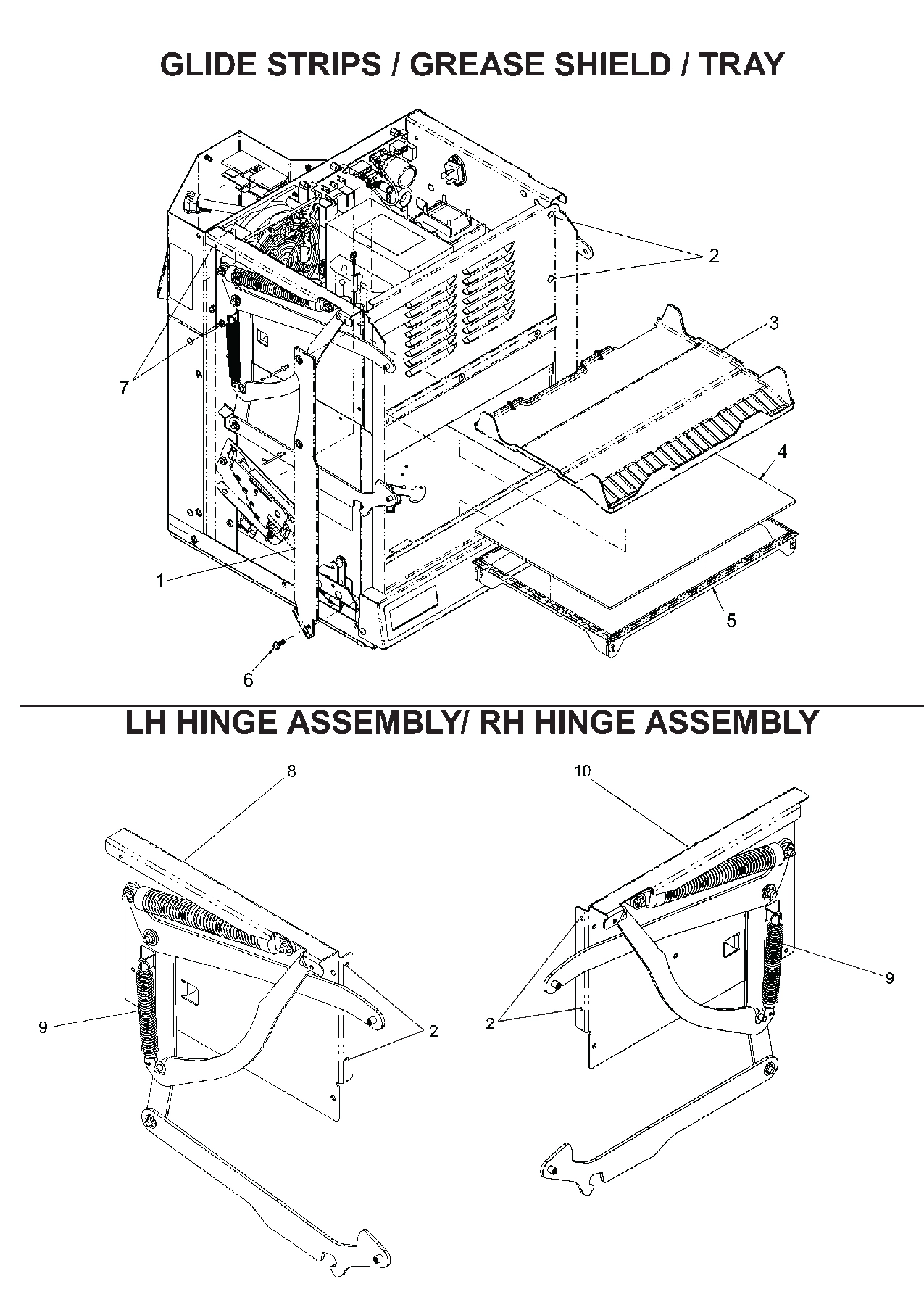

Glide Strips / Grease Shield / Tray

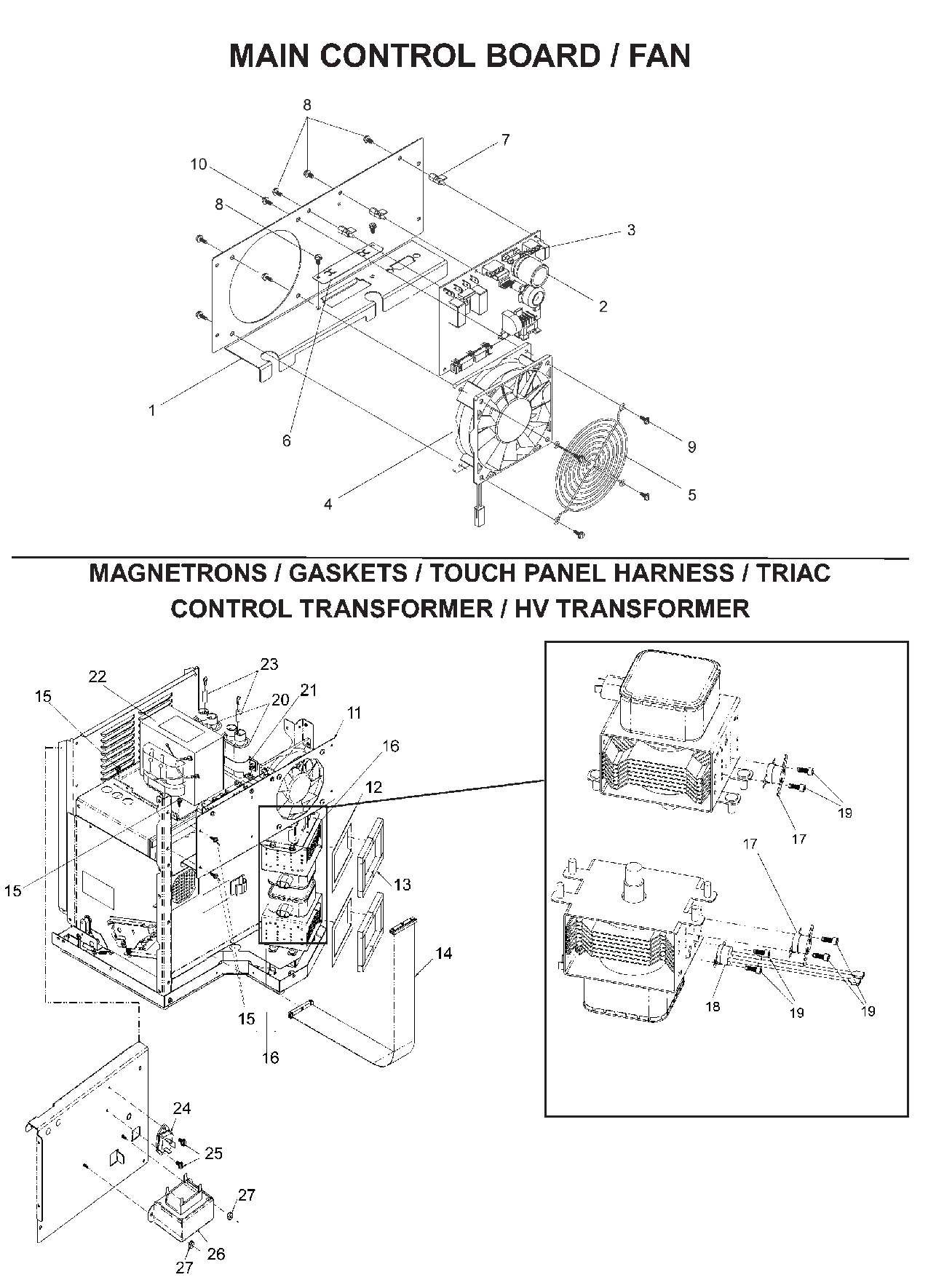

Main Control Board / Fan
Supplemental INFORMATION
Common parts from model Accelerated Cooking Products MOC24B-P2000315M Amana Menumaster MOC24B
1
UP MAG SHROUD WELD-E CT ACP 20018002Q Contact Us For Availability
1
KIT, GLIDE STRIPS & RIVETS ACP 14090025 Contact Us For Availability
1
WIRE, JUMPER ACP 13017716 Contact Us For Availability
2
BOARD, MAIN CONTROL ACP 59004084 Contact Us For Availability
2
POWER CORD ACP 20075802 Contact Us For Availability
2
SCREW-TC/PAN TORX RoHS ACP 13074001 Contact Us For Availability
2
HARNESS, HV ACP 20017801 Contact Us For Availability
3
ANTENNA SHIELD ACP 59184614 Contact Us For Availability
3
BLOCK-FUSE ACP 10091101 Contact Us For Availability
3
FUSE, 2.5A ACP 20031701 Contact Us For Availability
3
HARNESS, MAIN ACP 20216601 Contact Us For Availability
4
KIT, CERAMIC TRAY & SEALER ACP 14179117 Contact Us For Availability
4
BLOCK-TERMINAL ACP B5677203 Contact Us For Availability
4
STRAP-OVEN ACP 21009501 Contact Us For Availability
5
SUPPORT, TRAY ACP 59004098 Contact Us For Availability
5
GUARD-FAN ACP 20013701 Contact Us For Availability
5
SEALER, RTV- ALUMINUM ACP 20021804 Contact Us For Availability
6
PLUG, HOLE ACP 59184622 Contact Us For Availability
6
BRKT-40 PIN HEADER ACP 20023501 Contact Us For Availability
7
SCREW-TC/PAN ACP 13041802 Contact Us For Availability
7
WASHER ACP 12546101 Contact Us For Availability
7
SUPPORT-PCB ACP M0590609 Contact Us For Availability
8
KIT, SWITCHES & FUSE ACP 14090031 Contact Us For Availability
8
OUTER PANEL- RH ACP 59004103 Contact Us For Availability
8
KIT, HINGE- LH ACP 14090026 Contact Us For Availability
9
STRIP, ANTI INTRUSION ACP 20013601 Contact Us For Availability
9
SPRING, HINGE ACP 20020601 Contact Us For Availability
9
SCREW TF/HEX RoHS ACP 12992306 Contact Us For Availability
10
KIT, ANTENNA ASSY & RIVETS ACP 14189146 Contact Us For Availability
10
SCREW-TC/FLAT ACP 13047404 Contact Us For Availability
10
LWR OC BACK WELD-E CT ACP 20023602 Contact Us For Availability
10
KIT, HINGE- RH ACP 14090027 Contact Us For Availability
10
SCREW-SM/PAN ACP 12990608 Contact Us For Availability
11
KIT, CAVITY EXH MOTOR & GASKET ACP 59004092 Contact Us For Availability
11
REAR MC BRKT-E CT ACP 21001503 Contact Us For Availability
12
ESCUTCHEON-CONTROL ACP 21021202 Contact Us For Availability
12
GRILLE-EXH FAN ACP 20009701 Contact Us For Availability
13
TOUCH PANEL ASSY ACP 59224799 Contact Us For Availability
13
HOOD-CAVITY FAN ACP 21020302 Contact Us For Availability
13
GASKET-MAG SEAL ACP 59194708 Contact Us For Availability
14
THERMAL CUTOUT ASSY- CAVITY ACP 59004115 Contact Us For Availability
14
BOARD, DISPLAY ACP 59004085 Contact Us For Availability
14
KIT, HARNESS- PC BD TO TP ACP 14090028 Contact Us For Availability
15
BASE COVER-E CT ACP 20173001 Contact Us For Availability
15
CLIP, RETAINER ACP 20023301 Contact Us For Availability
15
SCREW ACP 12991605 Contact Us For Availability
15
STUD-#8 SC ACP 14179138 Contact Us For Availability
16
NUT-#8 HEX ACP 20018901 Contact Us For Availability
17
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
17
THERMAL CUTOUT- MAG TCO ACP 20241404 Contact Us For Availability
18
SCREW-SM/FLAT ACP 20021703 Contact Us For Availability
18
THERMAL CUTOUT - LATCH TCO ACP B5684135 Contact Us For Availability
19
GASKET-CAV FAN ACP 20095601 Contact Us For Availability
19
SCREW-TC ACP 20095801 Contact Us For Availability
20
CAPACITOR- .85 ACP 59174540 Contact Us For Availability
20
GROMMET-RUBBER ACP 20095701 Contact Us For Availability
21
BRKT- CAPACITOR ACP 13069001 Contact Us For Availability
21
SCREW-TF/HEX RoHS ACP 12992304 Contact Us For Availability
23
DIODE ACP 20057401 Contact Us For Availability
24
TRIAC (40A) ACP 59174520 Contact Us For Availability
25
SCREW-SM/HEX RoHS ACP 12990522 Contact Us For Availability
26
TRANSFORMER, CONTROL ACP 59004119 Contact Us For Availability
27
NUT-#6 KEPS ACP 13045501 Contact Us For Availability
× ![]()
