Model Maytag MMW9730AS02 ELECTRIC OVEN – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

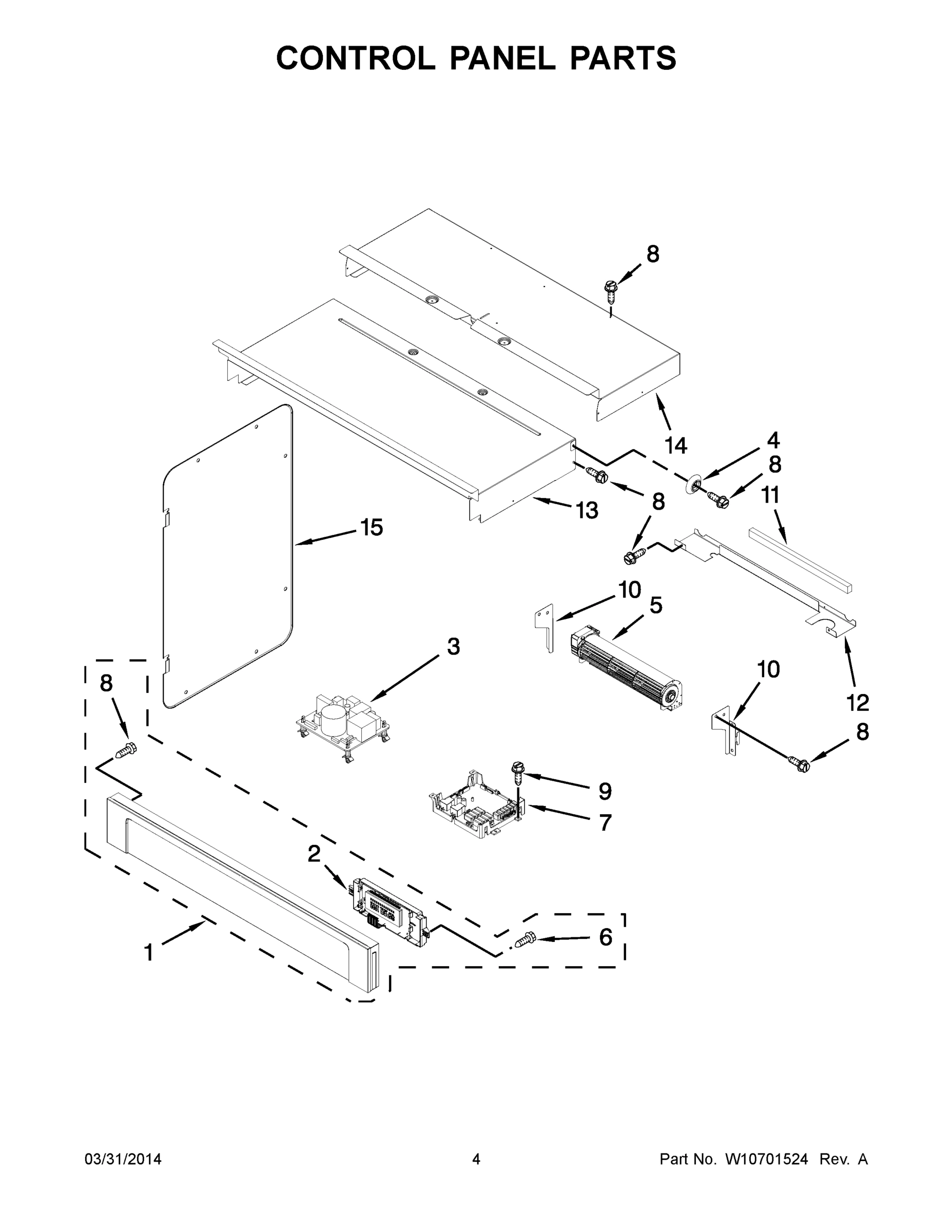

03 - CONTROL PANEL PARTS

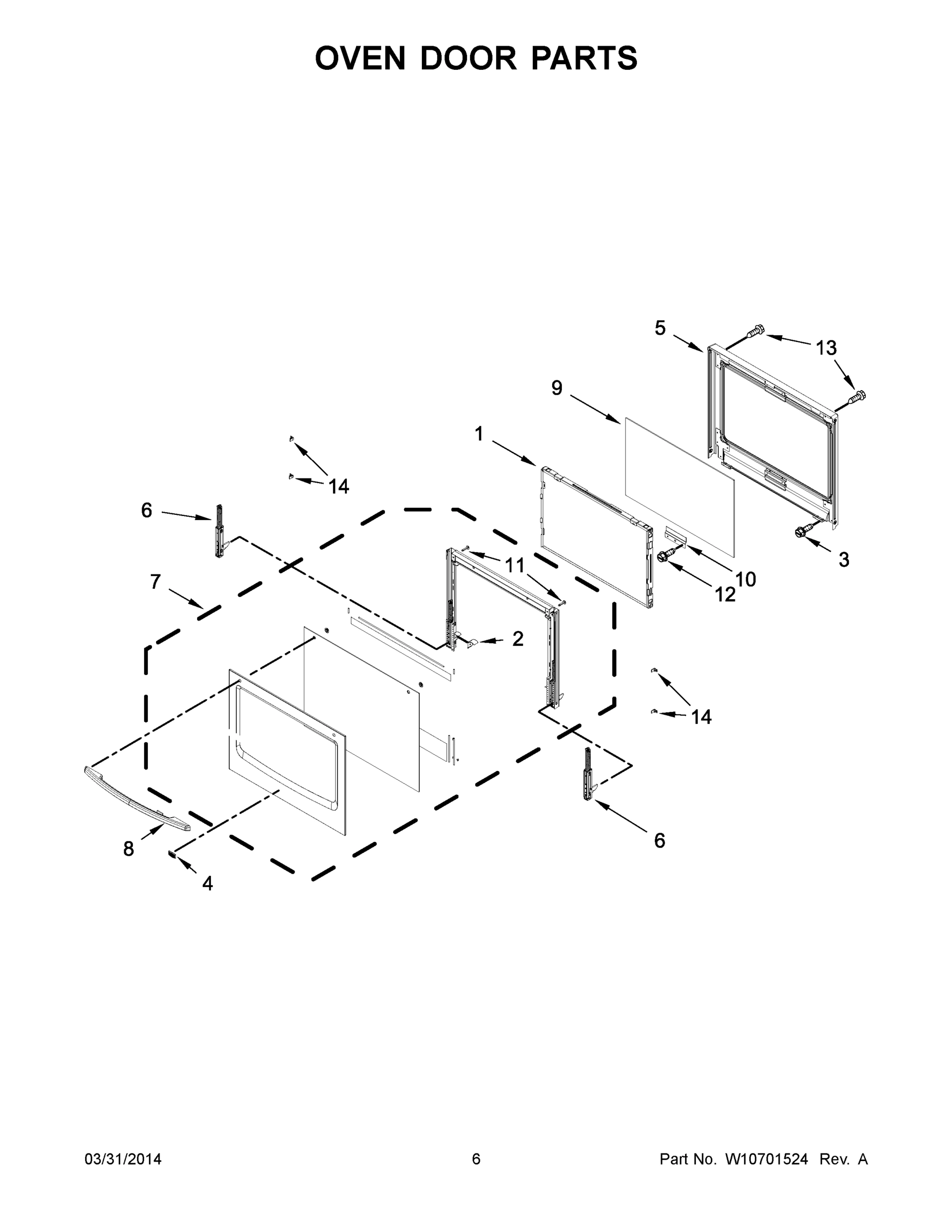

04 - OVEN DOOR PARTS

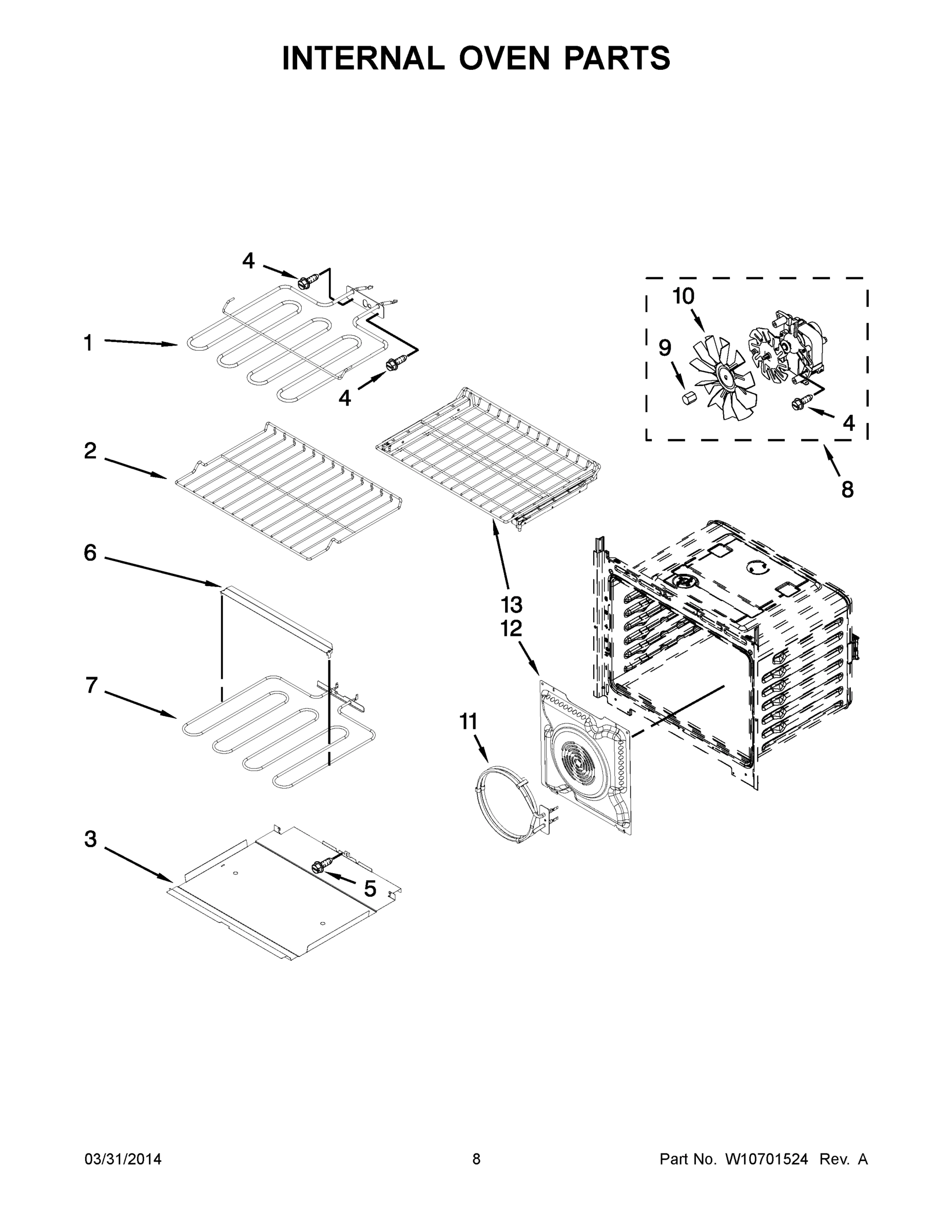

05 - INTERNAL OVEN PARTS

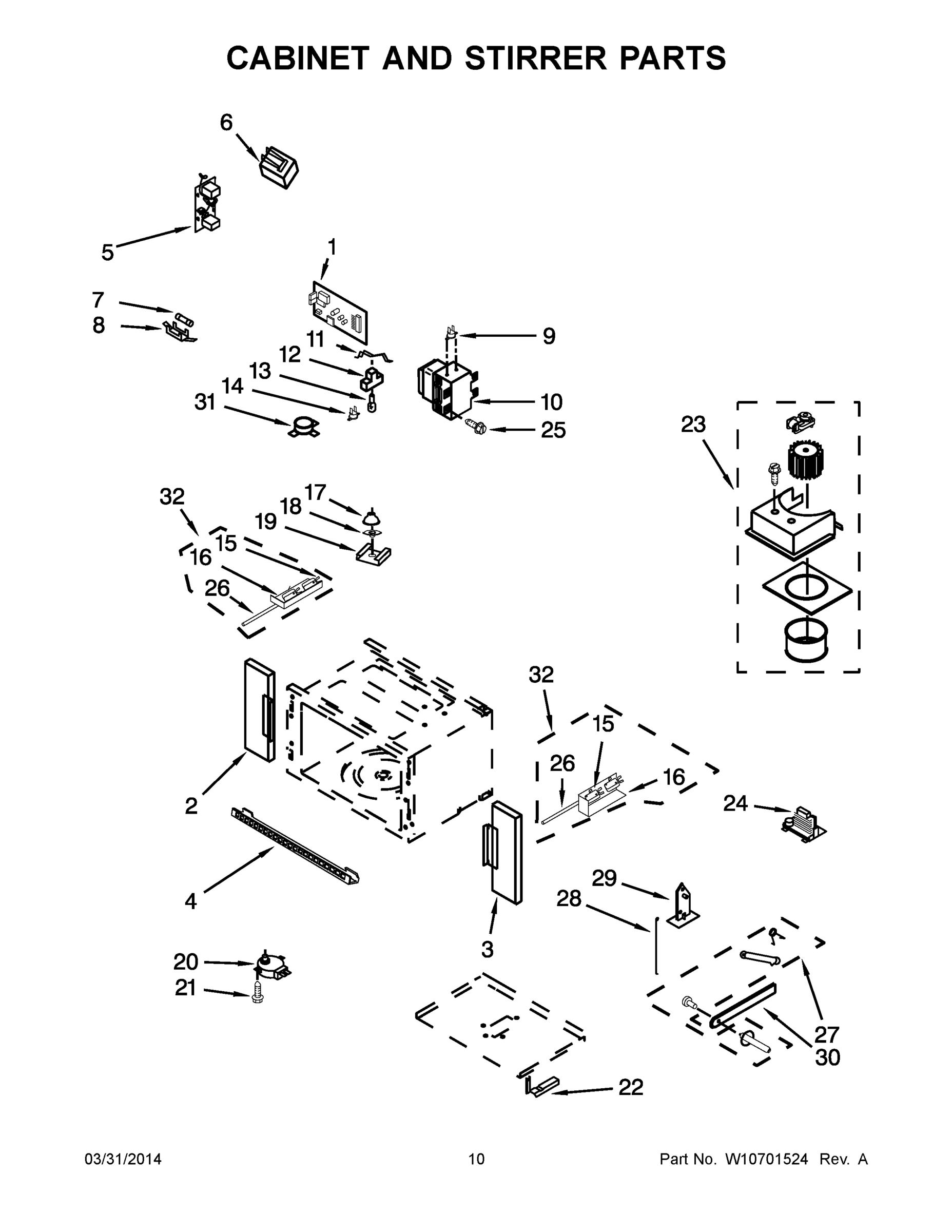

06 - CABINET AND STIRRER PARTS

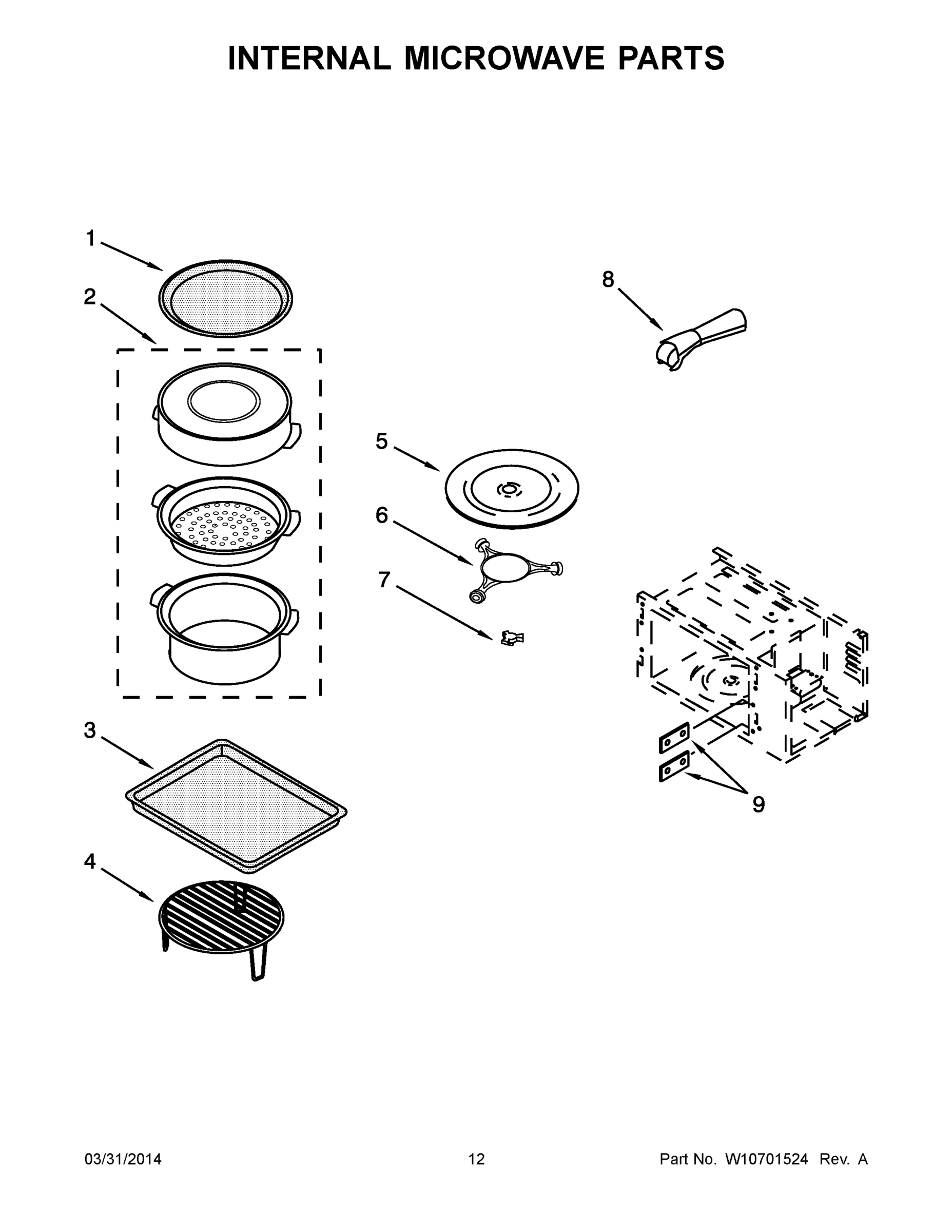

07 - INTERNAL MICROWAVE PARTS

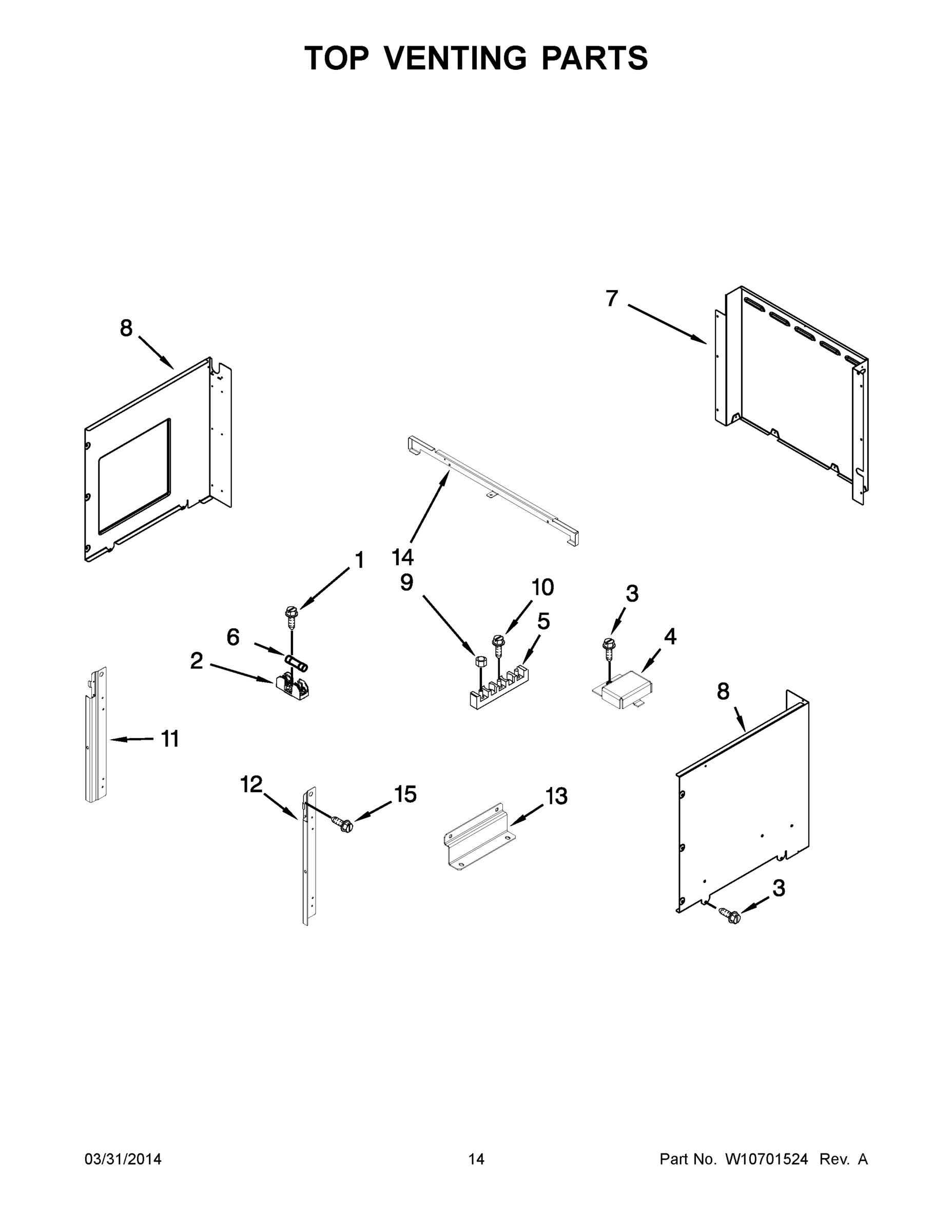

08 - TOP VENTING PARTS

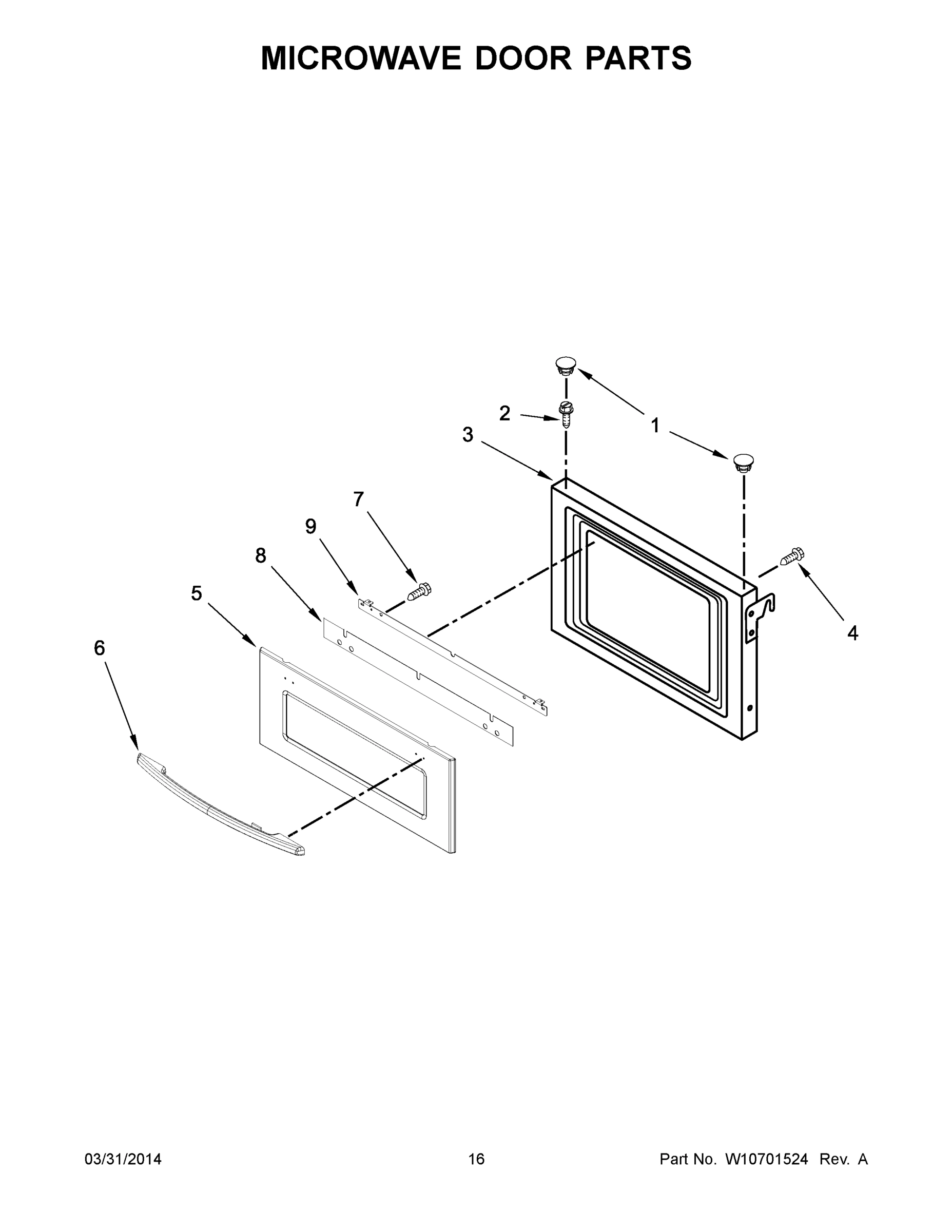

09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MMW9730AS02 ELECTRIC OVEN
1
MAY W10354190 MAY W10354190 Contact Us For Availability
1
MAY W10354191 MAY W10354191 Contact Us For Availability
1
TECH SHEET MAY W10425199 Contact Us For Availability
1
MAY W10540089 MAY W10540089 Contact Us For Availability
1
MAY W10540090 MAY W10540090 Contact Us For Availability
1
MAY W10540091 MAY W10540091 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
1
MAY W10486188 MAY W10486188 Contact Us For Availability
1
PLATE, CRISP MAY W10120480 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10496841 MAY W10496841 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282967 MAY W10282967 Contact Us For Availability
2
TRIM, SIDE LEFT MAY W10486208 Contact Us For Availability
2
STEAMER MAY W10120484 Contact Us For Availability
2
MAY 4454949 MAY 4454949 Contact Us For Availability
2
MAY 4449040 MAY 4449040 Contact Us For Availability
3
MAY W10282975 MAY W10282975 Contact Us For Availability
3
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
3
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
3
TRIM, SIDE RIGHT MAY W10486209 Contact Us For Availability
3
MAY W10120486 MAY W10120486 Contact Us For Availability
3
MAY W10486210 MAY W10486210 Contact Us For Availability
4
MAY W10318220 MAY W10318220 Contact Us For Availability
4
MAY 8285593 MAY 8285593 Contact Us For Availability
4
MAY W10363824 MAY W10363824 Contact Us For Availability
4
MAY W10288004 MAY W10288004 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
4
MAY W10486211 MAY W10486211 Contact Us For Availability
4
RACK MAY W10120483 Contact Us For Availability
4
MAY 4449154 MAY 4449154 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
BLOWER MAY W10661038 Contact Us For Availability
5
MAY W10320791 MAY W10320791 Contact Us For Availability
5
FILTER, NOISE MAY W10486187 Contact Us For Availability
5
TURNTABLE MAY 4375274 Contact Us For Availability
5
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
5
MAY W10358167 MAY W10358167 Contact Us For Availability
5
MAY W10358168 MAY W10358168 Contact Us For Availability
5
ASSEMBLY, OUTER DOOR (WHITE) MAY W10358169 Contact Us For Availability
6
MAY W10641573 MAY W10641573 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
HINGE-DOOR MAY W10419876 Contact Us For Availability
6
HANDLE, DOOR (STAINLESS) MAY W10284921 Contact Us For Availability
6
HANDLE, DOOR (BLACK) MAY W10284922 Contact Us For Availability
6
HANDLE, DOOR (WHITE) MAY W10284923 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
6
TRANSFORMER MAY 8205692 Contact Us For Availability
6
MAY W10486179 MAY W10486179 Contact Us For Availability
6
MAY W10017410 MAY W10017410 Contact Us For Availability
7
MAY W10260262 MAY W10260262 Contact Us For Availability
7
MAY W10496830 MAY W10496830 Contact Us For Availability
7
MAY W10587560 MAY W10587560 Contact Us For Availability
7
MAY W10587561 MAY W10587561 Contact Us For Availability
7
MAY W10587562 MAY W10587562 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
7
MAY 4375321 MAY 4375321 Contact Us For Availability
7
MAY 8205677 MAY 8205677 Contact Us For Availability
7
MAY W10519707 MAY W10519707 Contact Us For Availability
7
MAY W10143304 MAY W10143304 Contact Us For Availability
8
SUPPORT, BASE (RIGHT) MAY W10283021 Contact Us For Availability
8
MAY W10588277 MAY W10588277 Contact Us For Availability
8
BLOCK, FUSE MAY 4375231 Contact Us For Availability
8
MAY W10120481 MAY W10120481 Contact Us For Availability
8
CHASSIS, COMBO SIDE (LEFT) MAY W10283028 Contact Us For Availability
8
CHASSIS, COMBO SIDE (RIGHT) MAY W10283029 Contact Us For Availability
8
MAY W10359769 MAY W10359769 Contact Us For Availability
9
MAY W10671661 MAY W10671661 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10284901 MAY W10284901 Contact Us For Availability
9
NUT, ACORN MAY W10116349 Contact Us For Availability
9
MAY W10287986 MAY W10287986 Contact Us For Availability
9
COVER, PLATES MAY W10120230 Contact Us For Availability
9
MAY W10407600 MAY W10407600 Contact Us For Availability
10
MAY W10283042 MAY W10283042 Contact Us For Availability
10
MAY W10283078 MAY W10283078 Contact Us For Availability
10
MAY W10351257 MAY W10351257 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10116351 MAY W10116351 Contact Us For Availability
10
MAY W10120113 MAY W10120113 Contact Us For Availability
10
MAY 3400080 MAY 3400080 Contact Us For Availability
11
MAY W10282960 MAY W10282960 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY 8533988 MAY 8533988 Contact Us For Availability
11
MAY W10260248 MAY W10260248 Contact Us For Availability
11
MAY W10475855 MAY W10475855 Contact Us For Availability
11
RAIL, SIDE (LEFT) MAY W10360516 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10509164 MAY W10509164 Contact Us For Availability
12
MAY W10359278 MAY W10359278 Contact Us For Availability
12
HOUSING, LAMP MAY 8205658 Contact Us For Availability
12
RAIL, SIDE (RIGHT) MAY W10360518 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
MAY W10318158 MAY W10318158 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
13
MAY W10282973 MAY W10282973 Contact Us For Availability
13
LAMP, HALOGEN MAY W10287972 Contact Us For Availability
13
MAY W10283024 MAY W10283024 Contact Us For Availability
14
MAY W10696134 MAY W10696134 Contact Us For Availability
14
MAY W10283031 MAY W10283031 Contact Us For Availability
14
MAY W10392683 MAY W10392683 Contact Us For Availability
14
MAY W10389447 MAY W10389447 Contact Us For Availability
14
MAY W10283022 MAY W10283022 Contact Us For Availability
15
MAY W10283033 MAY W10283033 Contact Us For Availability
15
MAY W10330566 MAY W10330566 Contact Us For Availability
15
Screw MAY 3400832 Contact Us For Availability
16
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
16
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
17
MAY W10254050 MAY W10254050 Contact Us For Availability
17
MAY 4375320 MAY 4375320 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
18
MAY 4375318 MAY 4375318 Contact Us For Availability
19
MAY W10282900 MAY W10282900 Contact Us For Availability
19
CLIP, SPRING MAY W10120231 Contact Us For Availability
20
MAY W10327373 MAY W10327373 Contact Us For Availability
20
MAY W10351279 MAY W10351279 Contact Us For Availability
20
MAY W10287967 MAY W10287967 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
21
MAY 4375202 MAY 4375202 Contact Us For Availability
22
SUPPORT, BASE (LEFT) MAY W10283020 Contact Us For Availability
22
MAY W10120478 MAY W10120478 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
23
ASSEMBLY, BLOWER MAY W10330572 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
24
MAY W10120229 MAY W10120229 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
25
MAY W10130890 MAY W10130890 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
26
MAY W10120235 MAY W10120235 Contact Us For Availability
27
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
28
MAY W10412711 MAY W10412711 Contact Us For Availability
28
MAY 8205704 MAY 8205704 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
29
MAY 8205686 MAY 8205686 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
30
ARM, SLIDING MAY W10120236 Contact Us For Availability
31
MAY W10519703 MAY W10519703 Contact Us For Availability
31
MAY W10475857 MAY W10475857 Contact Us For Availability
32
ASSEMBLY, INTERLOCK SWITCH MAY W10358241 Contact Us For Availability
33
MAY W10616809 MAY W10616809 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10282944 MAY W10282944 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP. CONDUIT MAY 4448664 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW MAY 4449809 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, COMBO MAY 4450950 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN AND ROASTING MAY W10123240 Contact Us For Availability
NI
MAY W10190263 MAY W10190263 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COMMUNICATION MAY W10284927 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIGNAL MAY W10286230 Contact Us For Availability
NI
ACCESSORIES, KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
NI
MAY W10392129 MAY W10392129 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, EOL MAY W10409836 Contact Us For Availability
NI
MAY W10573327 MAY W10573327 Contact Us For Availability
NI
MAY W10601517 MAY W10601517 Contact Us For Availability
× ![]()
