Model Maytag MMW7730DS02 ELECTRIC OVEN – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

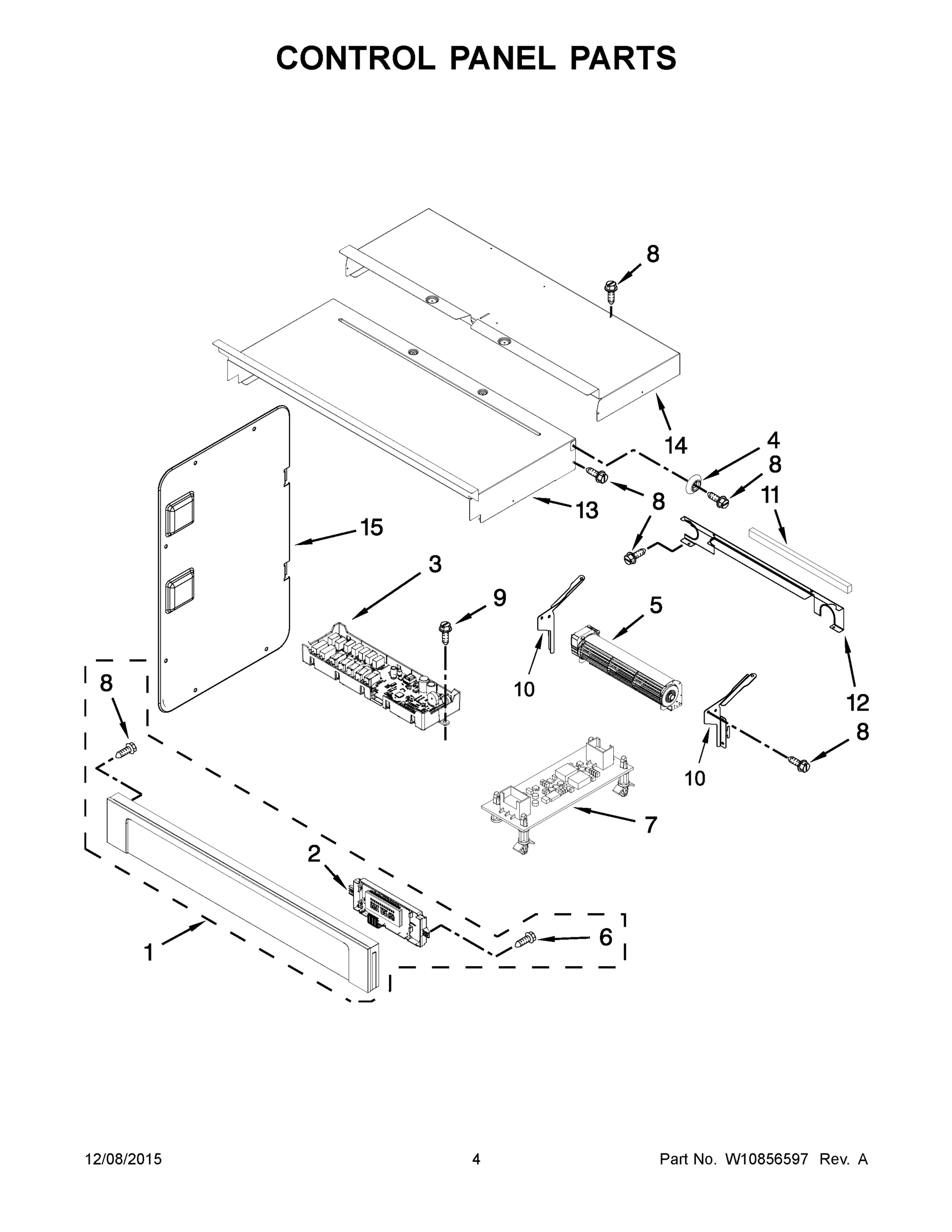

03 - CONTROL PANEL PARTS

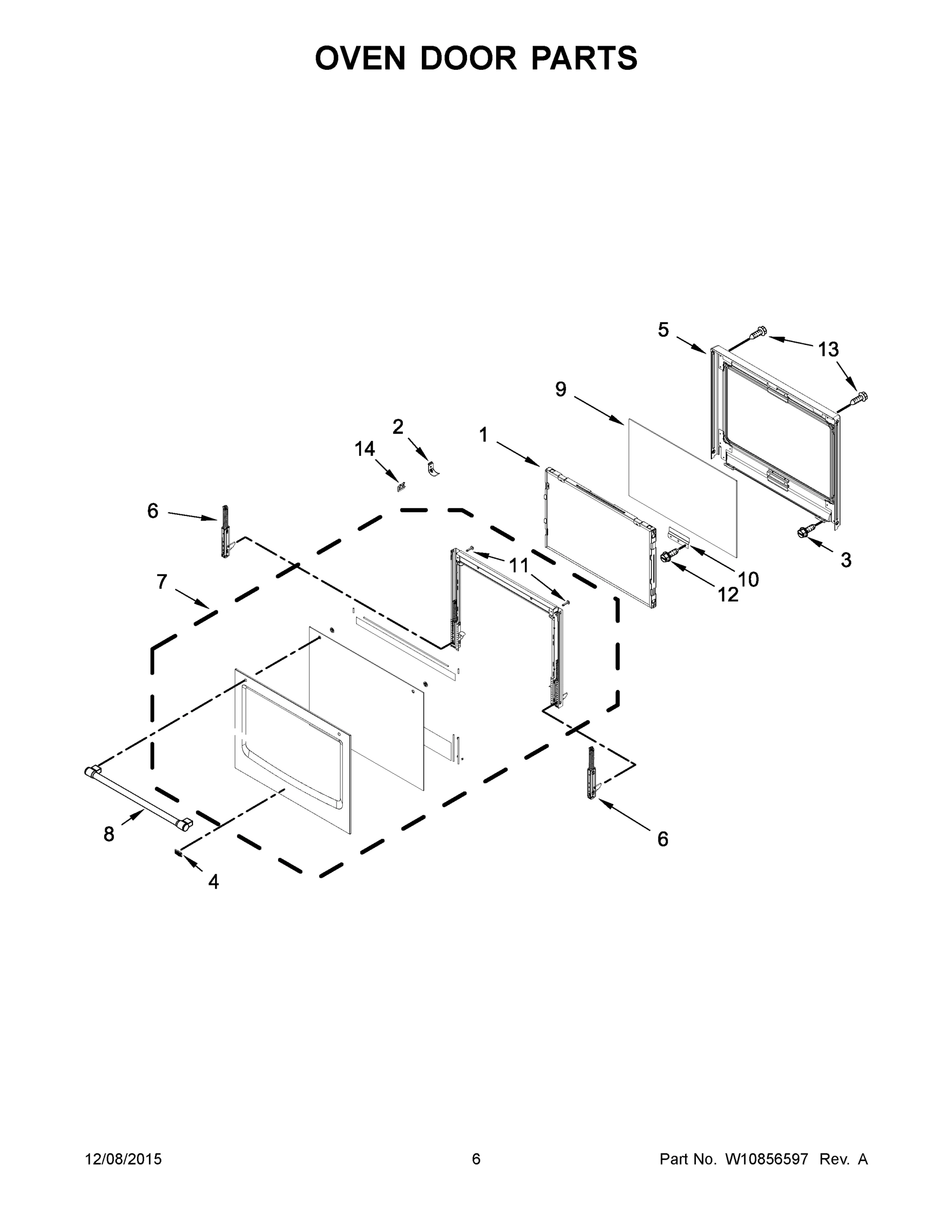

04 - OVEN DOOR PARTS

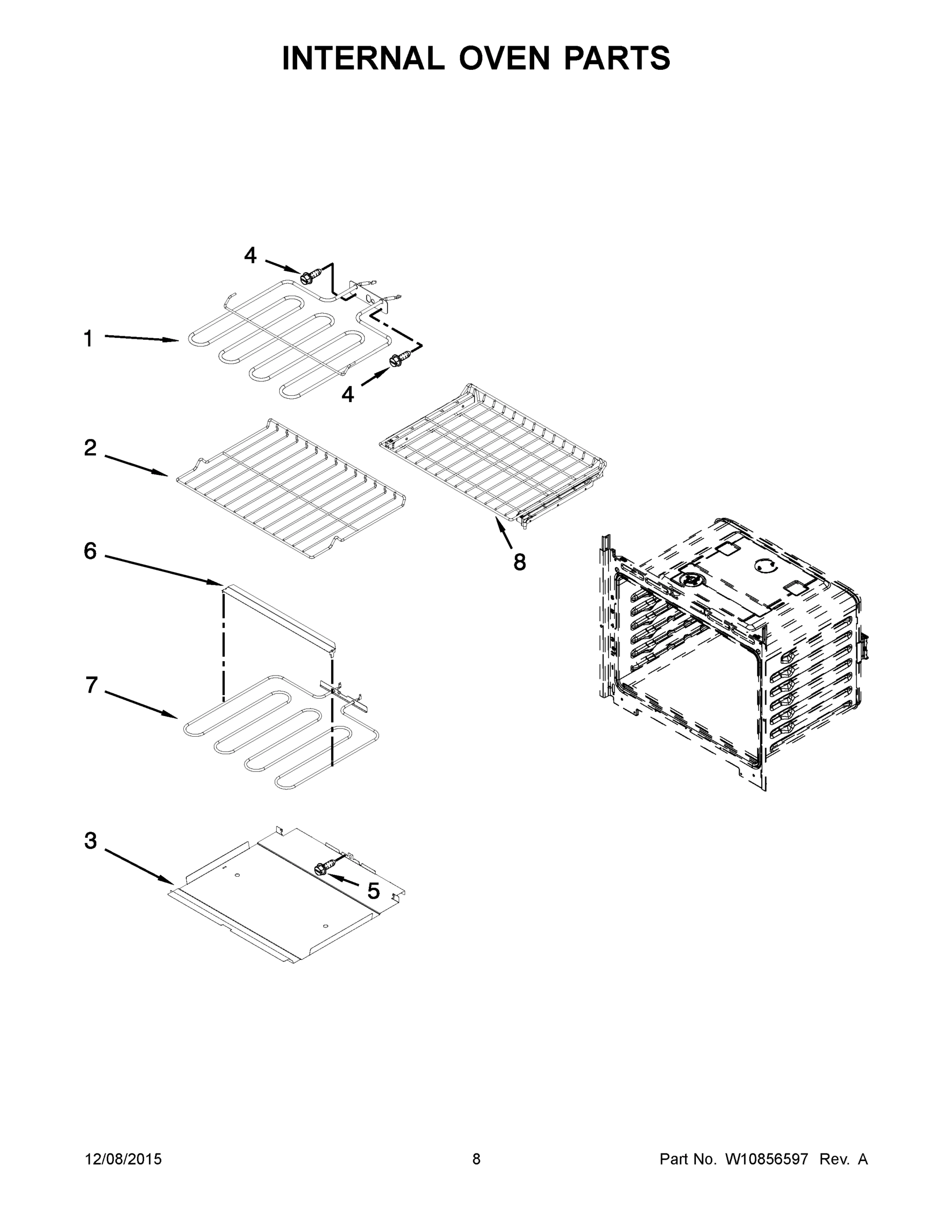

05 - INTERNAL OVEN PARTS

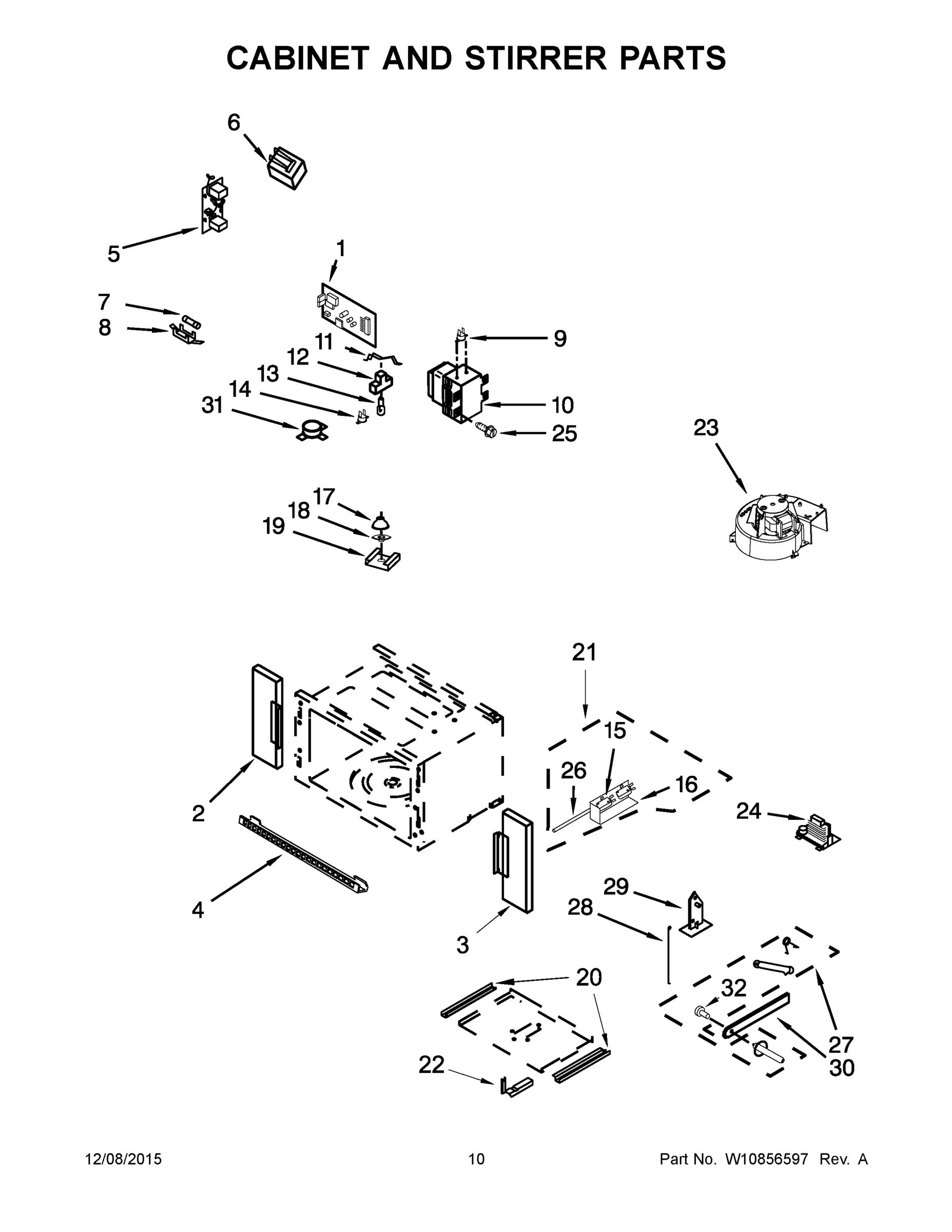

06 - CABINET AND STIRRER PARTS

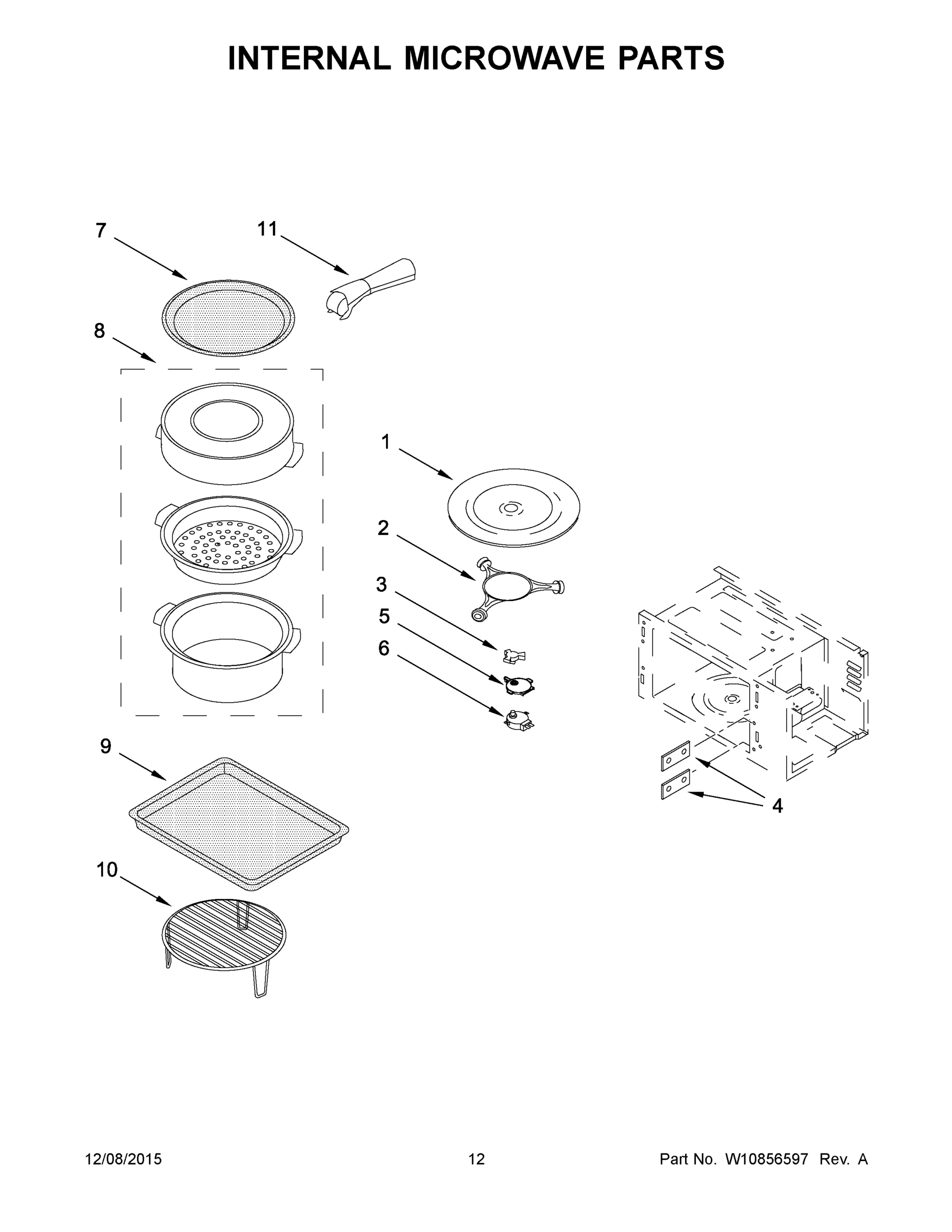

07 - INTERNAL MICROWAVE PARTS

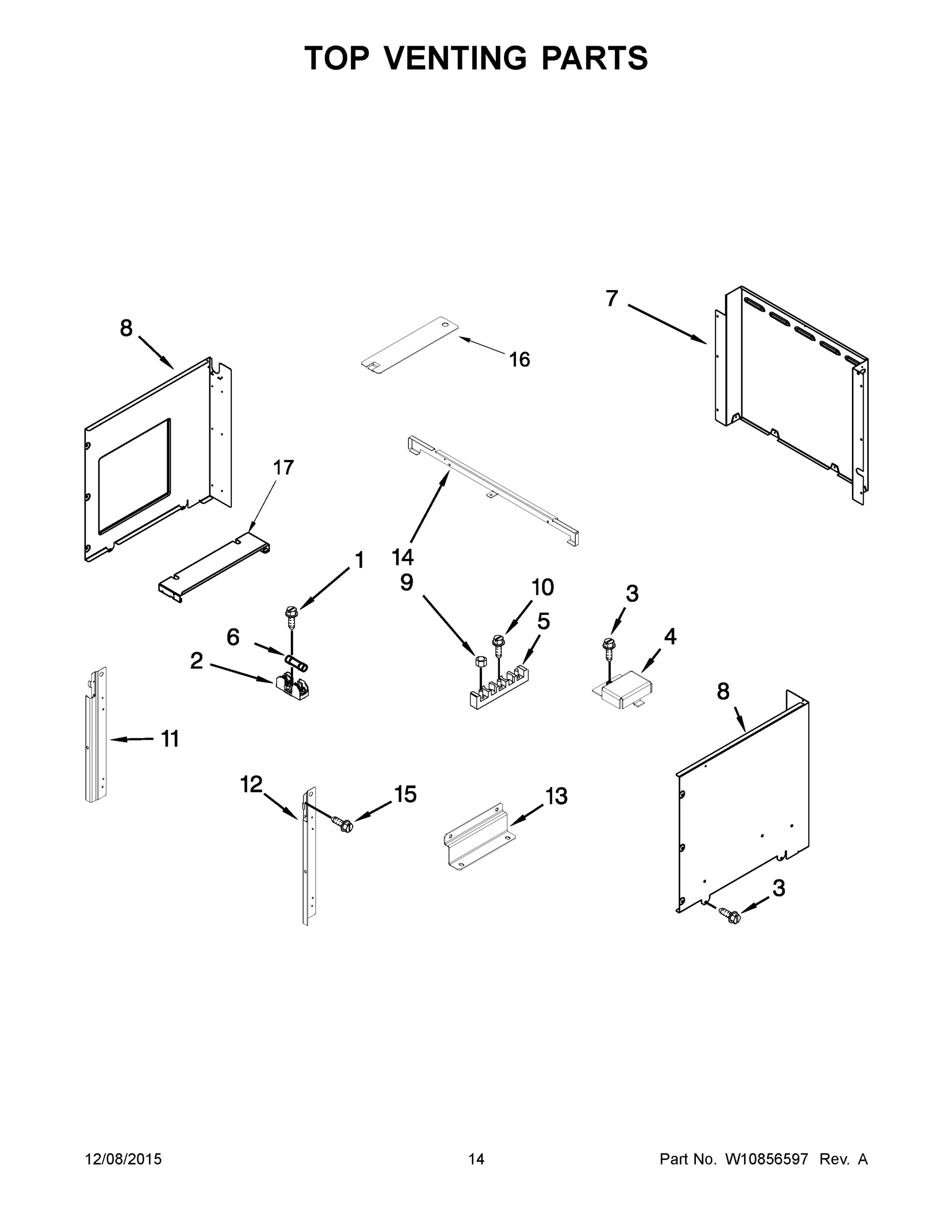

08 - TOP VENTING PARTS

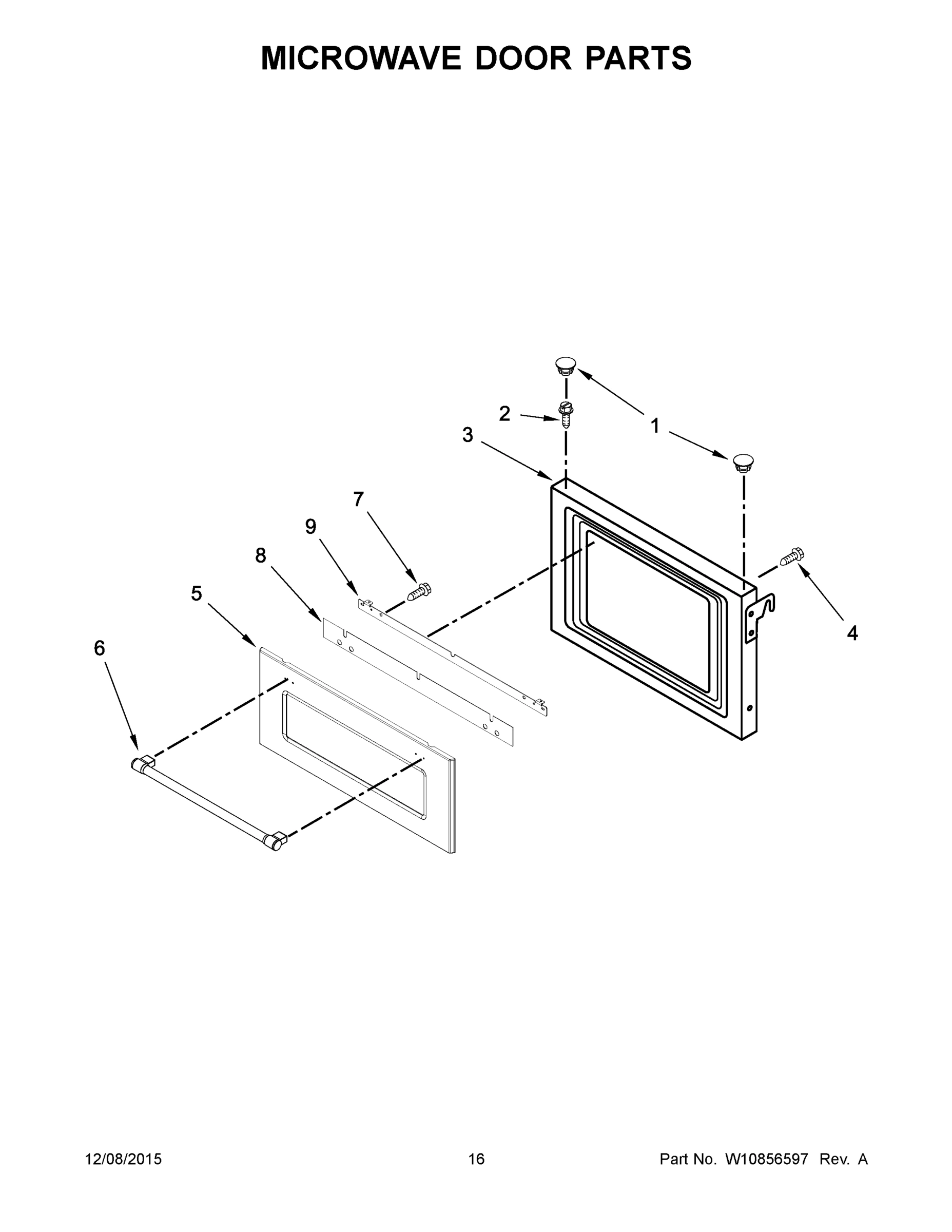

09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MMW7730DS02 ELECTRIC OVEN
1
MAY W10812375 MAY W10812375 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
1
MAY W10586836 MAY W10586836 Contact Us For Availability
1
MAY 461967720541 MAY 461967720541 Contact Us For Availability
1
MAY 7101P060-60 MAY 7101P060-60 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
1A
MAY W10796010 MAY W10796010 Contact Us For Availability
1A
MAY W10812374 MAY W10812374 Contact Us For Availability
1B
MAY W10798185 MAY W10798185 Contact Us For Availability
1C
MAY W10796080 MAY W10796080 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10752316 MAY W10752316 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282967 MAY W10282967 Contact Us For Availability
2
MAY 461967017491 MAY 461967017491 Contact Us For Availability
2
MAY W10367316 MAY W10367316 Contact Us For Availability
2
MAY 4454949 MAY 4454949 Contact Us For Availability
2
MAY 4449040 MAY 4449040 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
MAY W10759189 MAY W10759189 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
3
MAY W10367739 MAY W10367739 Contact Us For Availability
3
MAY W10545578 MAY W10545578 Contact Us For Availability
3
MAY W10687342 MAY W10687342 Contact Us For Availability
4
MAY W10618102 MAY W10618102 Contact Us For Availability
4
MAY 8285593 MAY 8285593 Contact Us For Availability
4
MAY W10618105 MAY W10618105 Contact Us For Availability
4
MAY W10612925 MAY W10612925 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
4
MAY 461968973241 MAY 461968973241 Contact Us For Availability
4
MAY 461967451001 MAY 461967451001 Contact Us For Availability
4
MAY 4449154 MAY 4449154 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
BLOWER MAY W10661038 Contact Us For Availability
5
MAY W10709147 MAY W10709147 Contact Us For Availability
5
MAY W10692851 MAY W10692851 Contact Us For Availability
5
MAY 461967753742 MAY 461967753742 Contact Us For Availability
5
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
5
MAY W10358167 MAY W10358167 Contact Us For Availability
5A
MAY W10358168 MAY W10358168 Contact Us For Availability
6
MAY W10813743 MAY W10813743 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
MAY W10639069 MAY W10639069 Contact Us For Availability
6
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10665843 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
6
MAY 461967848621 MAY 461967848621 Contact Us For Availability
6
MAY 461967848971 MAY 461967848971 Contact Us For Availability
6
MAY W10017410 MAY W10017410 Contact Us For Availability
7
MAY W10734063 MAY W10734063 Contact Us For Availability
7
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
7
BOARD, WIDE INTERFACE MAY W10412514 Contact Us For Availability
7
MAY W10587560 MAY W10587560 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
7
MAY 241908600053 MAY 241908600053 Contact Us For Availability
7
PLATE, CRISP MAY W10120480 Contact Us For Availability
7
MAY W10519707 MAY W10519707 Contact Us For Availability
7A
MAY W10587561 MAY W10587561 Contact Us For Availability
8
SUPPORT, BASE (RIGHT) MAY W10283021 Contact Us For Availability
8
MAY W10282973 MAY W10282973 Contact Us For Availability
8
BLOCK, FUSE MAY 4375231 Contact Us For Availability
8
STEAMER MAY W10120484 Contact Us For Availability
8
MAY W10655466 MAY W10655466 Contact Us For Availability
8
MAY W10359769 MAY W10359769 Contact Us For Availability
8A
CHASSIS, COMBO SIDE (RIGHT) MAY W10283029 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10678524 MAY W10678524 Contact Us For Availability
9
MAY 461967846741 MAY 461967846741 Contact Us For Availability
9
MAY W10120486 MAY W10120486 Contact Us For Availability
9
MAY W10407600 MAY W10407600 Contact Us For Availability
10
MAY W10283042 MAY W10283042 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY 461967847321 MAY 461967847321 Contact Us For Availability
10
RACK MAY W10120483 Contact Us For Availability
10
MAY 3400080 MAY 3400080 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY W10282960 MAY W10282960 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
11
MAY W10465869 MAY W10465869 Contact Us For Availability
11
MAY W10120481 MAY W10120481 Contact Us For Availability
11
RAIL, SIDE (LEFT) MAY W10360516 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10618126 MAY W10618126 Contact Us For Availability
12
MAY W10490593 MAY W10490593 Contact Us For Availability
12
RAIL, SIDE (RIGHT) MAY W10360518 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
CHASSIS, COVER TOP FRONT 30" MAY W10318158 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
13
MAY W10795595 MAY W10795595 Contact Us For Availability
13
MAY W10283024 MAY W10283024 Contact Us For Availability
14
MAY W10813703 MAY W10813703 Contact Us For Availability
14
CHASSIS, COVER TOP BACK 30" MAY W10283031 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
MAY W10389447 MAY W10389447 Contact Us For Availability
14
MAY W10283022 MAY W10283022 Contact Us For Availability
15
CHASSIS, COMBO SIDE MAY W10655467 Contact Us For Availability
15
MAY W10330566 MAY W10330566 Contact Us For Availability
15
SCREW (BLACK) MAY 3400832 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
16
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
16
MAY W10356437 MAY W10356437 Contact Us For Availability
17
MAY W10254050 MAY W10254050 Contact Us For Availability
17
MAY 423107022541 MAY 423107022541 Contact Us For Availability
17
MAY W10356644 MAY W10356644 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
18
MAY 423107720491 MAY 423107720491 Contact Us For Availability
19
MAY W10834867 MAY W10834867 Contact Us For Availability
19
MAY 461967010591 MAY 461967010591 Contact Us For Availability
20
MAY W10351279 MAY W10351279 Contact Us For Availability
20
MAY 461967008461 MAY 461967008461 Contact Us For Availability
20A
MAY W10327373 MAY W10327373 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
21
MAY W10371814 MAY W10371814 Contact Us For Availability
22
SUPPORT, BASE (LEFT) MAY W10283020 Contact Us For Availability
22
MAY 461968979601 MAY 461968979601 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
23
MAY 461968969271 MAY 461968969271 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
24
MAY W10468206 MAY W10468206 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
25
MAY 461967825971 MAY 461967825971 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
26
MAY W10120235 MAY W10120235 Contact Us For Availability
27
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
28
MAY W10412711 MAY W10412711 Contact Us For Availability
28
MAY 461967570351 MAY 461967570351 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
29
MAY 461967750494 MAY 461967750494 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
30
MAY 461967750483 MAY 461967750483 Contact Us For Availability
31
MAY W10519703 MAY W10519703 Contact Us For Availability
31
MAY W10460457 MAY W10460457 Contact Us For Availability
32
MAY 461967510191 MAY 461967510191 Contact Us For Availability
33
MAY W10616809 MAY W10616809 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
MAY 4450950 MAY 4450950 Contact Us For Availability
NI
MAY W10282944 MAY W10282944 Contact Us For Availability
NI
STRAP, GROUND MAY W10392129 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W10573327 Contact Us For Availability
NI
MAY W10778560 MAY W10778560 Contact Us For Availability
NI
MAY W10778562 MAY W10778562 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, FAN & TURNTABLE MAY W10389372 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, INVERTER MAY W10406103 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
