Model Maytag MMW7530WDW01 ELECTRIC WALL OVEN – Common Parts & Diagrams

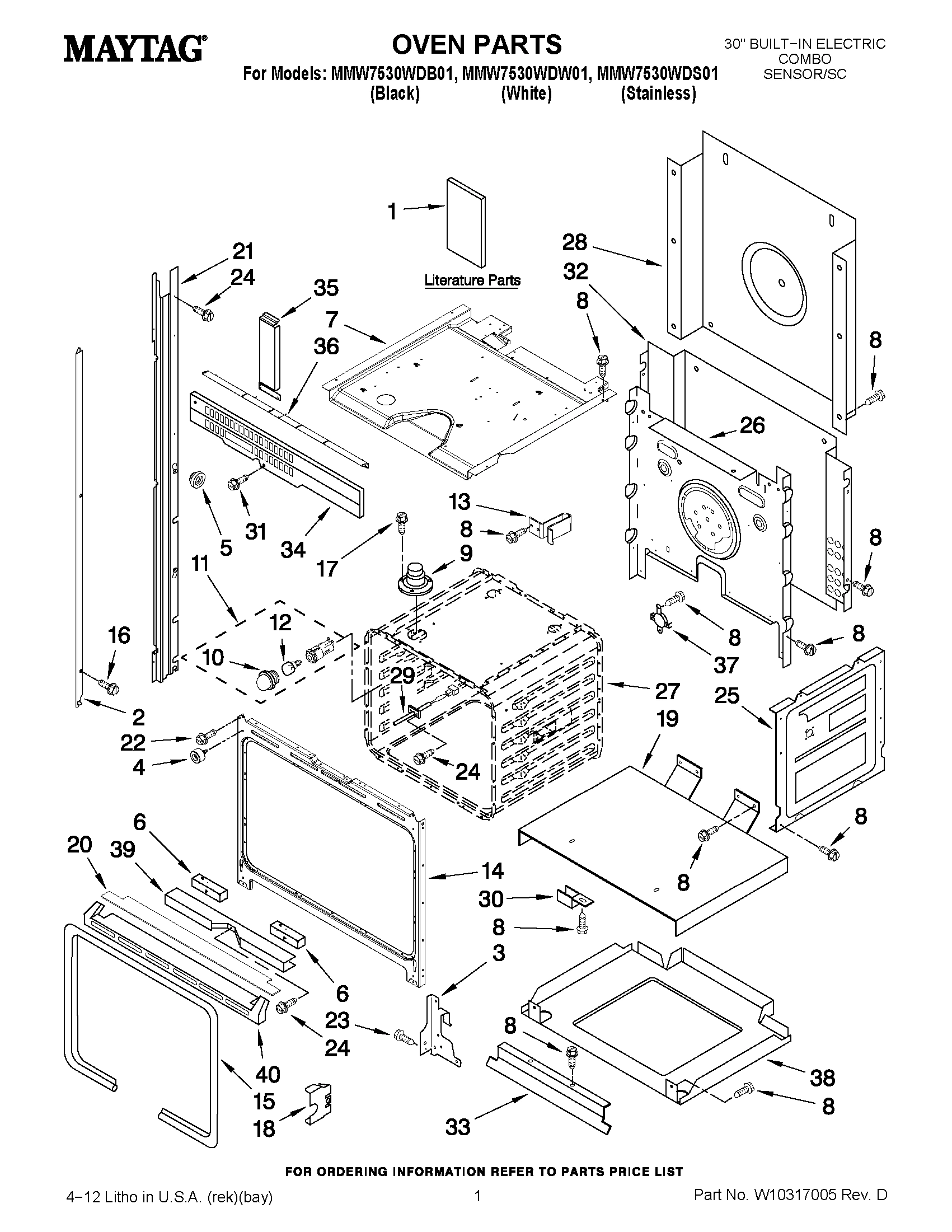

01 - OVEN PARTS

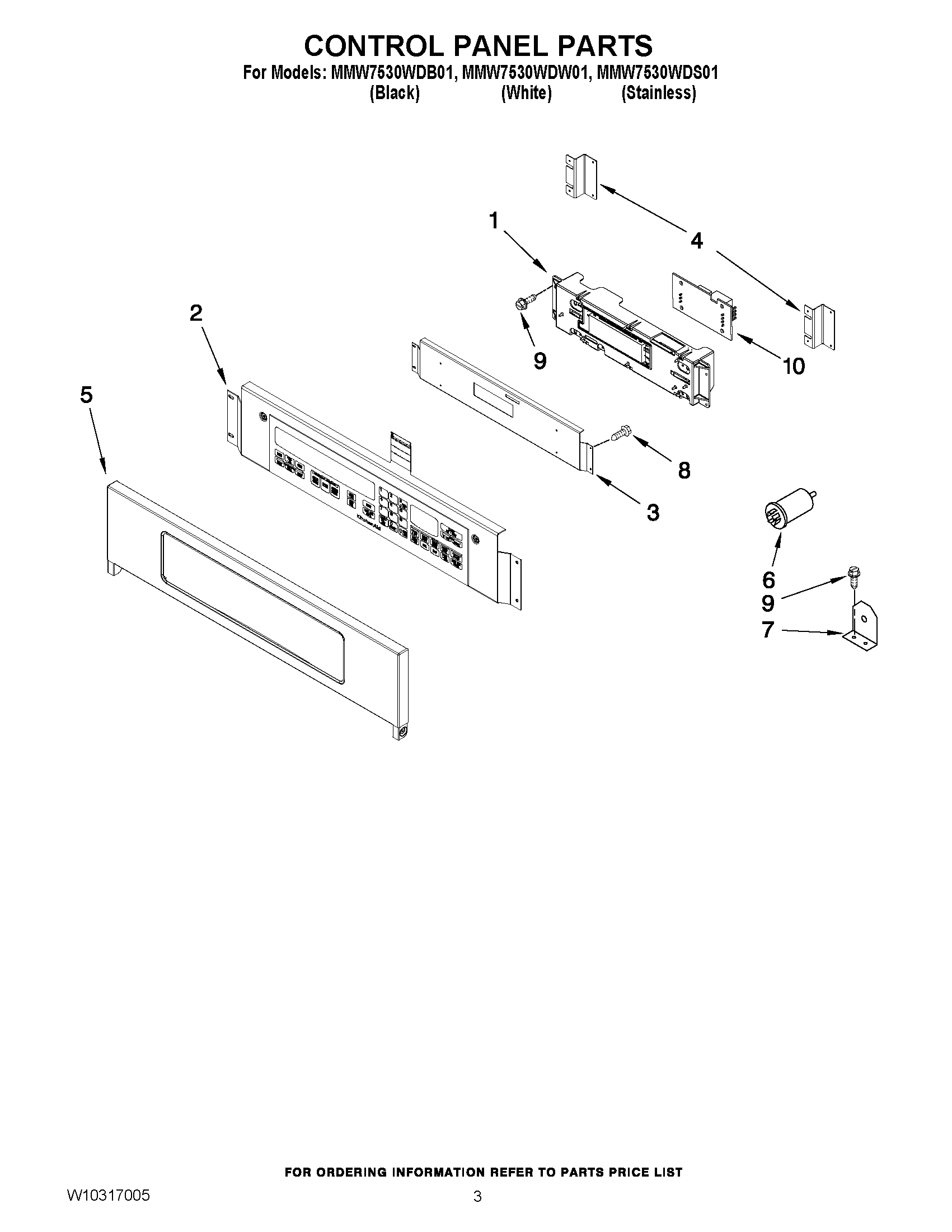

02 - CONTROL PANEL PARTS

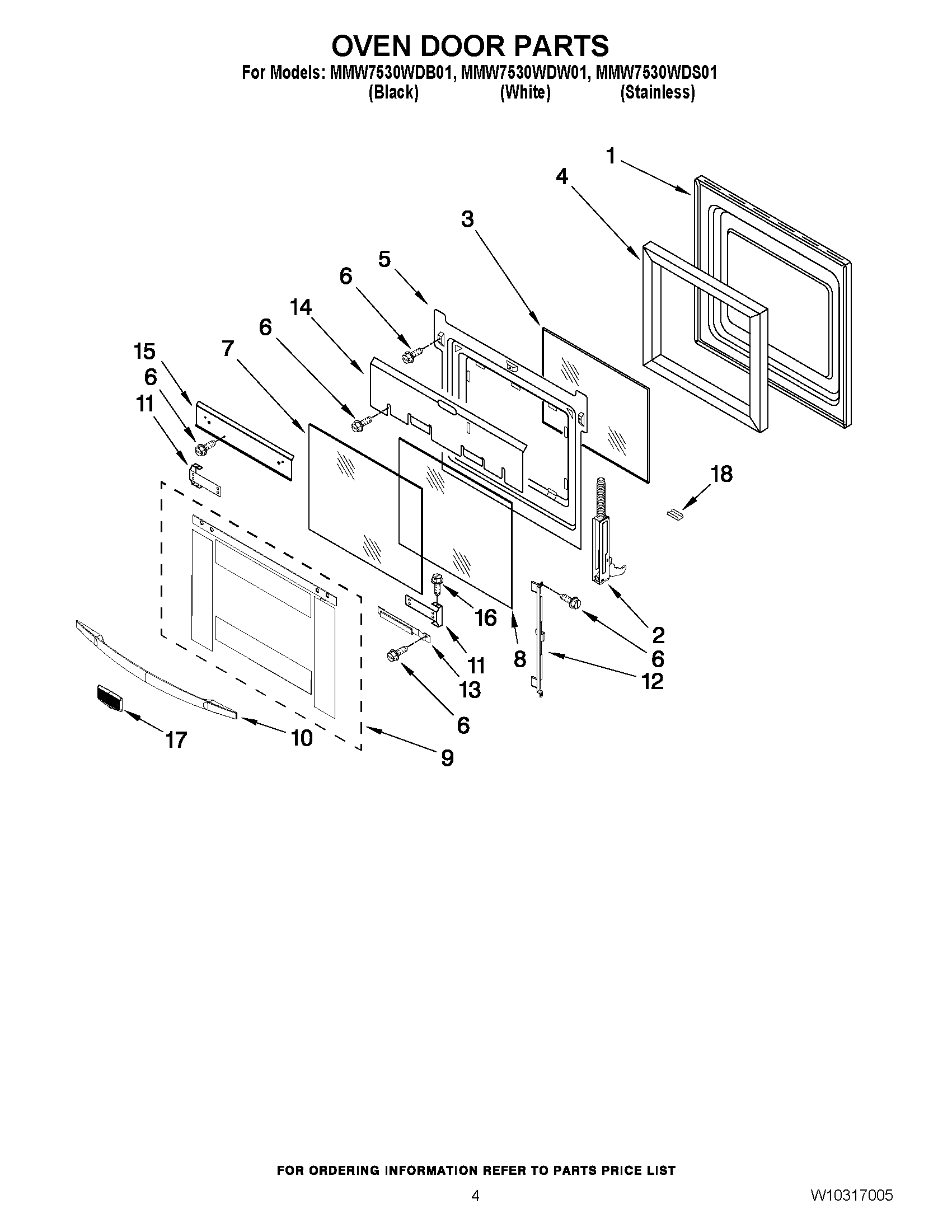

03 - OVEN DOOR PARTS

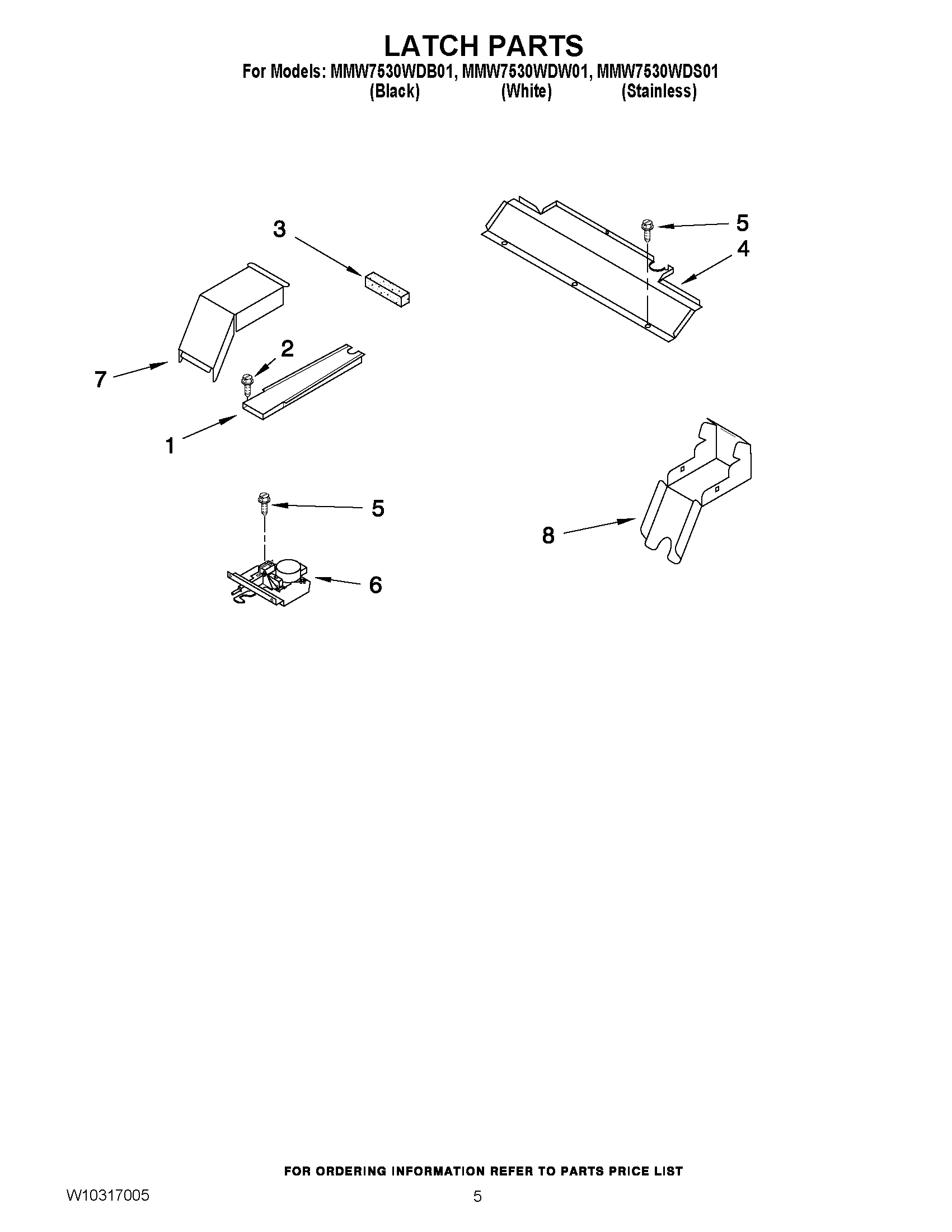

04 - LATCH PARTS

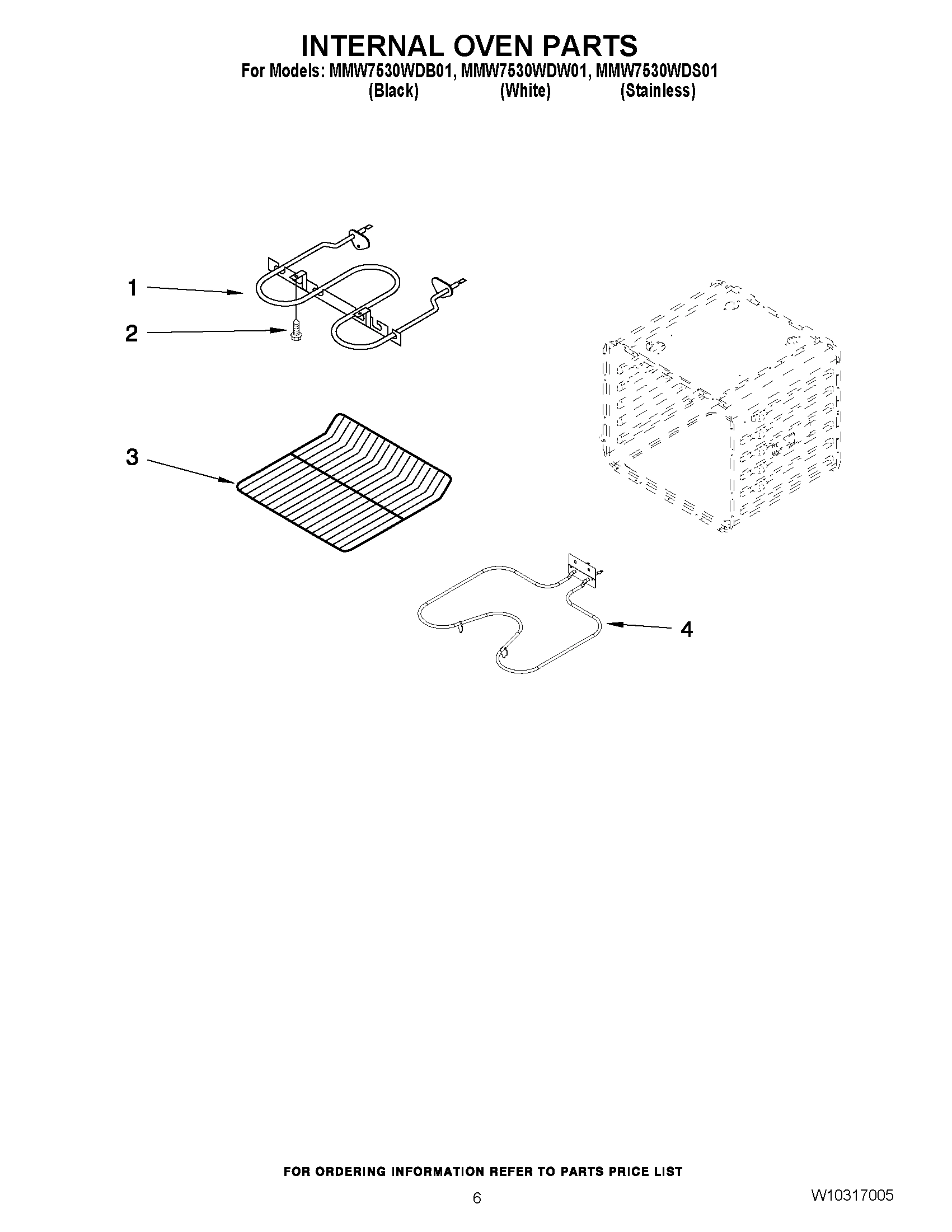

05 - INTERNAL OVEN PARTS

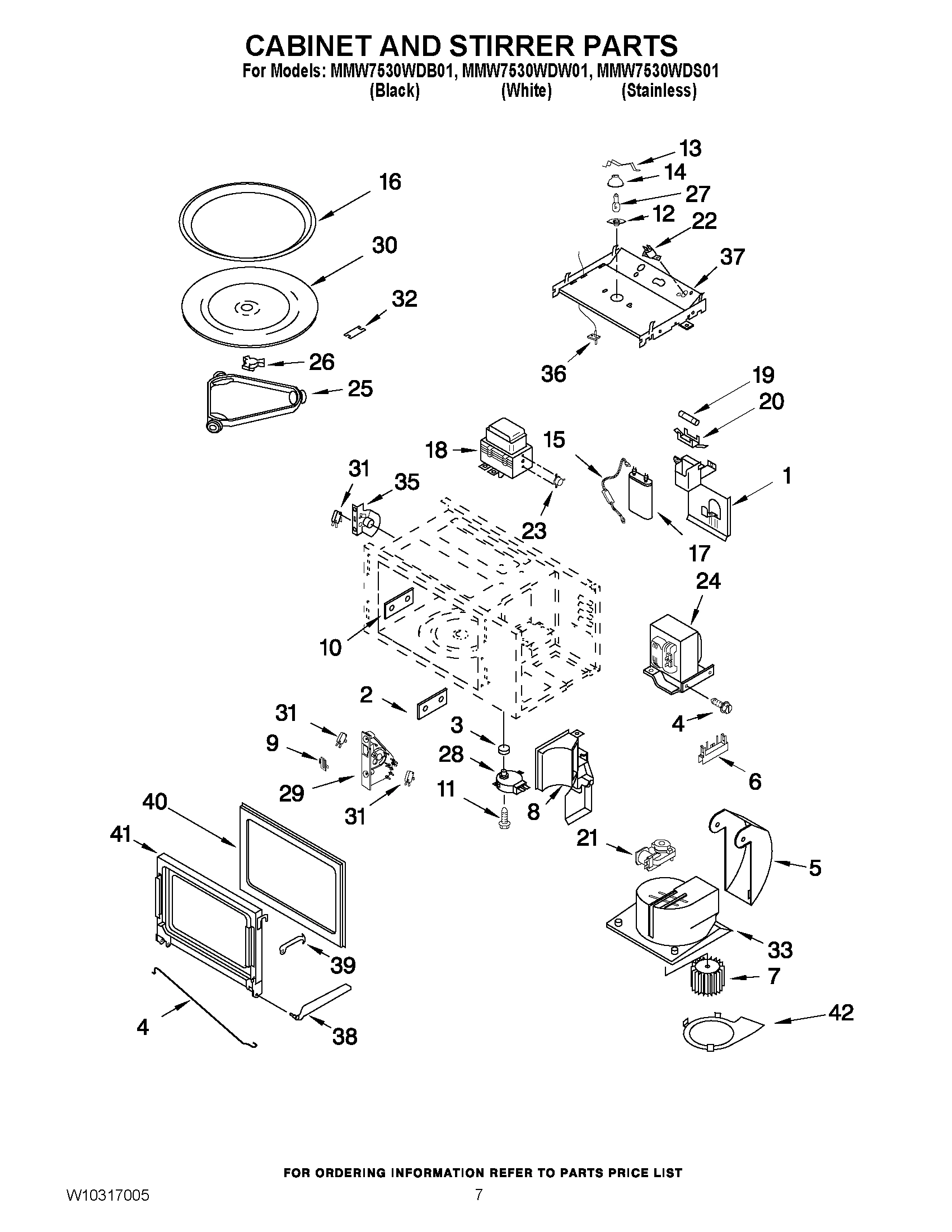

06 - CABINET AND STIRRER PARTS

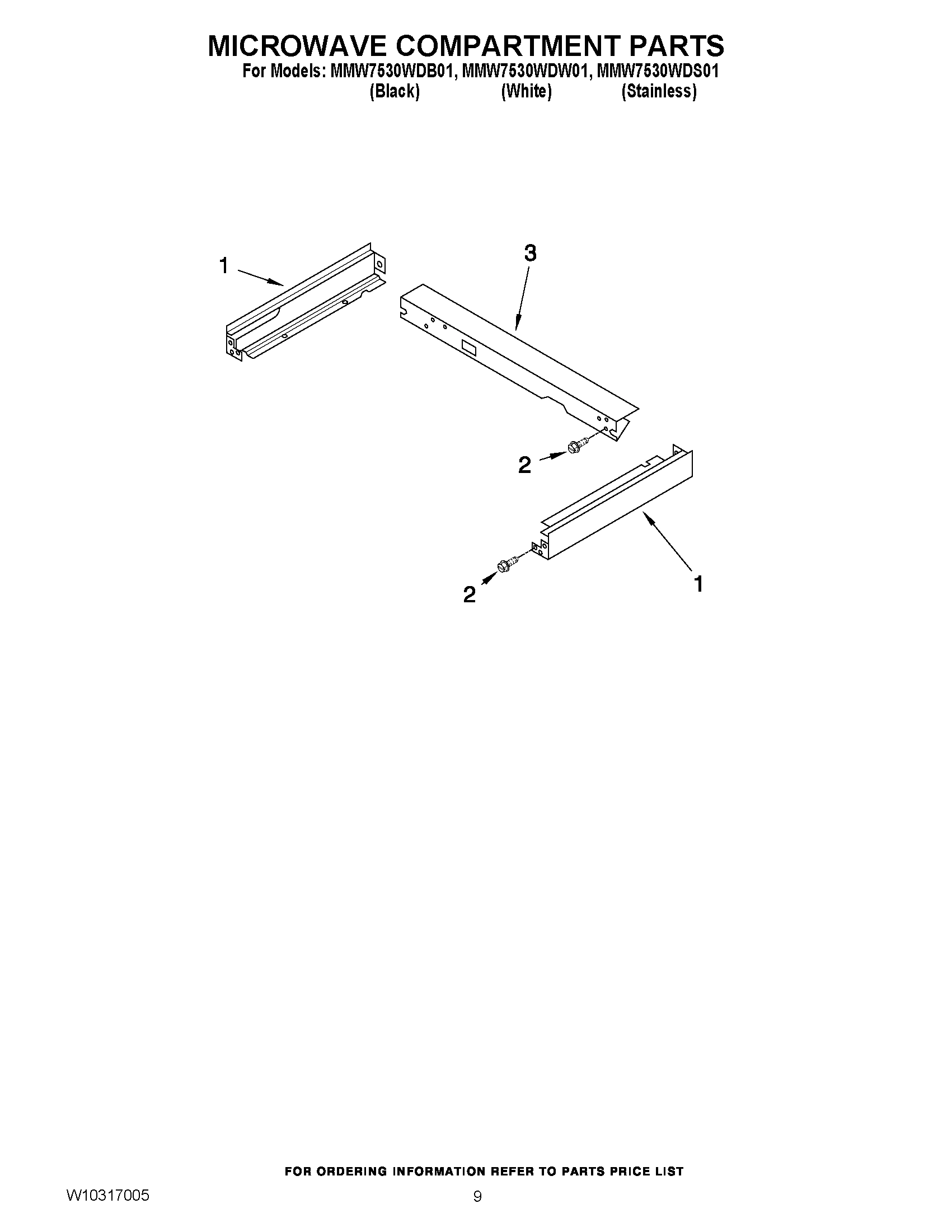

07 - MICROWAVE COMPARTMENT PARTS

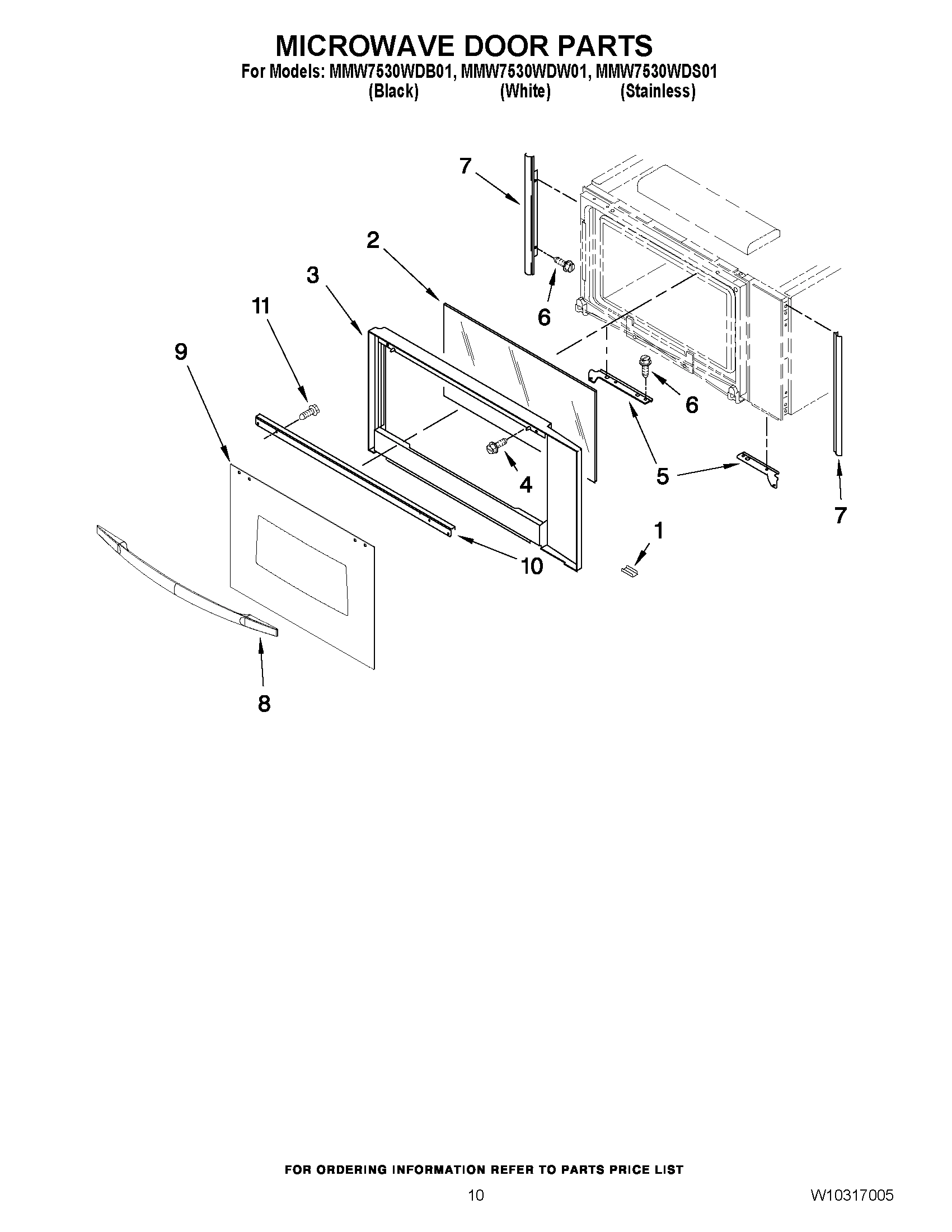

08 - MICROWAVE DOOR PARTS

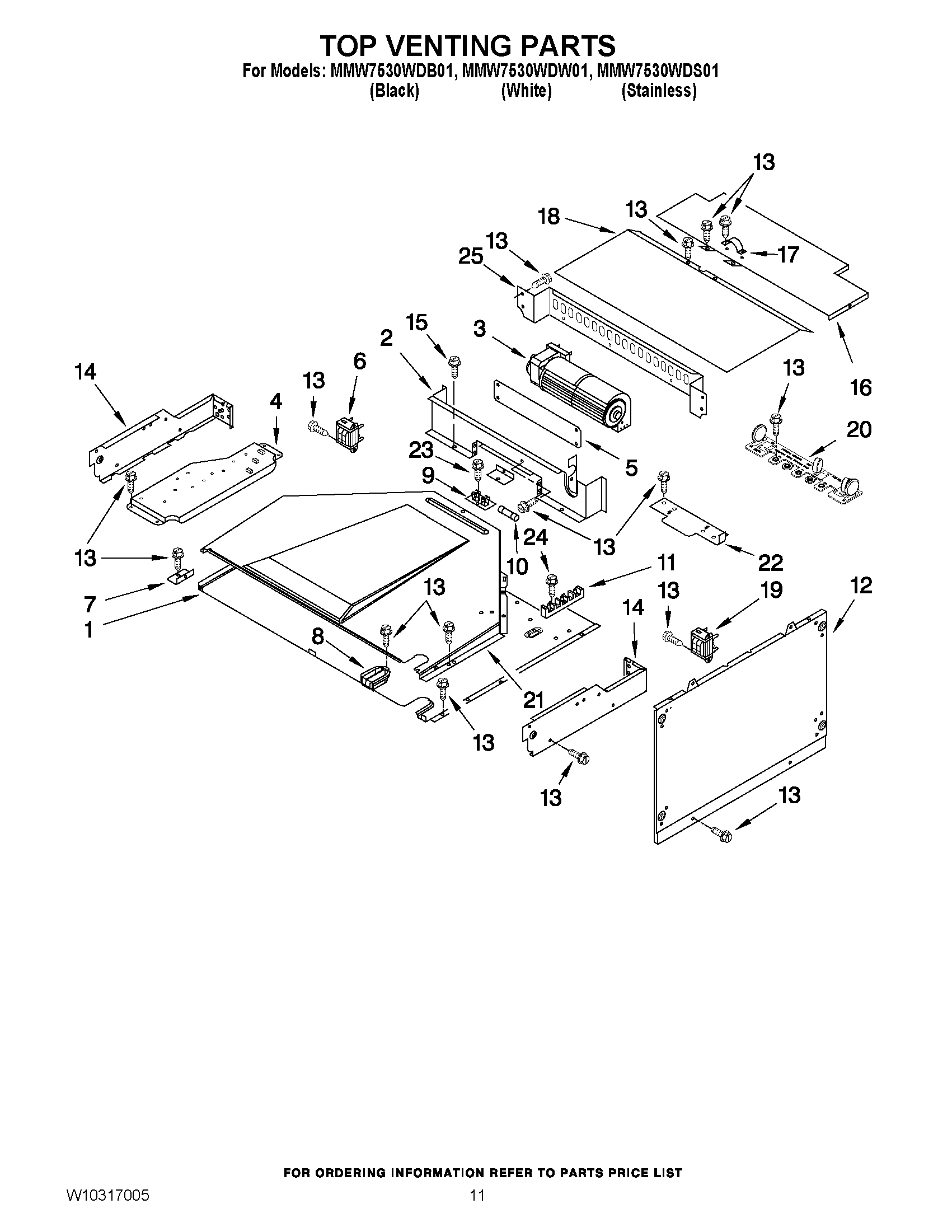

09 - TOP VENTING PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MMW7530WDW01 ELECTRIC WALL OVEN
1
MAY 8304173 MAY 8304173 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
INSTRUCTION, INSTALLER MAY W10075750 Contact Us For Availability
1
MAY W10192051 MAY W10192051 Contact Us For Availability
1
MAY W10276987 MAY W10276987 Contact Us For Availability
1
MAY W10276988 MAY W10276988 Contact Us For Availability
1
MAY W10244178 MAY W10244178 Contact Us For Availability
1
MAY 9759413 MAY 9759413 Contact Us For Availability
1
RETAINER, GLASS (STAINLESS) MAY W10158497 Contact Us For Availability
1
RETAINER, GLASS (WHITE) MAY W10318997 Contact Us For Availability
1
RETAINER, GLASS (BLACK) MAY W10318998 Contact Us For Availability
1
MAY 4451759 MAY 4451759 Contact Us For Availability
1
MAY 9760771 MAY 9760771 Contact Us For Availability
1
MAY 4375299 MAY 4375299 Contact Us For Availability
1
SUPPORT RAILS (RIGHT) MAY 4452551 Contact Us For Availability
1
SUPPORT RAILS (LEFT) MAY 4452552 Contact Us For Availability
1
MAY 4450378 MAY 4450378 Contact Us For Availability
2
TRIM, SIDE RIGHT (BLACK) MAY 4455430 Contact Us For Availability
2
TRIM, SIDE LEFT (BLACK) MAY 4455431 Contact Us For Availability
2
TRIM, SIDE RIGHT (WHITE) MAY 4455432 Contact Us For Availability
2
TRIM, SIDE LEFT (WHITE) MAY 4455433 Contact Us For Availability
2
MAY W10274589 MAY W10274589 Contact Us For Availability
2
MAY W10274590 MAY W10274590 Contact Us For Availability
2
MAY 4449040 MAY 4449040 Contact Us For Availability
2
MAY W10307709 MAY W10307709 Contact Us For Availability
2
MAY W10307710 MAY W10307710 Contact Us For Availability
2
HINGE, DOOR (RIGHT STAINLESS MODEL) MAY 9760573 Contact Us For Availability
2
HINGE, DOOR (LEFT STAINLESS MODEL) MAY 9760574 Contact Us For Availability
2
HINGE, DOOR (RIGHT BLACK, WHITE MODELS) MAY 9760575 Contact Us For Availability
2
HINGE, DOOR (LEFT BLACK, WHITE MODELS) MAY 9760576 Contact Us For Availability
2
MAY 4375338 MAY 4375338 Contact Us For Availability
2
MAY 4450834 MAY 4450834 Contact Us For Availability
2
MAY 4448935 MAY 4448935 Contact Us For Availability
3
MAY 4455605 MAY 4455605 Contact Us For Availability
3
MAY 4455606 MAY 4455606 Contact Us For Availability
3
MAY W10307706 MAY W10307706 Contact Us For Availability
3
MAY 4449259 MAY 4449259 Contact Us For Availability
3
SEAL, FOAM MAY 4451758 Contact Us For Availability
3
MAY W10179152 MAY W10179152 Contact Us For Availability
3
MAY 4375037 MAY 4375037 Contact Us For Availability
3
MAY 4452548 MAY 4452548 Contact Us For Availability
3
FRAME-DOOR MAY 8303556 Contact Us For Availability
3
BLOWER (1200 RPM) MAY 4450920 Contact Us For Availability
3
BLOWER (45 MM) MAY W10016550 Contact Us For Availability
4
BUMPER, DOOR (STAINLESS MODEL) MAY 4448520 Contact Us For Availability
4
BUMPER, DOOR (BLACK, WHITE MODELS) MAY W10105790 Contact Us For Availability
4
MAY 4450038 MAY 4450038 Contact Us For Availability
4
MAY W10277352 MAY W10277352 Contact Us For Availability
4
INSULATION, DOOR AND BOTTOM DOOR MAY 4451722 Contact Us For Availability
4
MAY 4450408 MAY 4450408 Contact Us For Availability
4
ELEMENT, CONVECTION MAY W10207397 Contact Us For Availability
4
MAY 4375038 MAY 4375038 Contact Us For Availability
4
SPRING, TORSION MAY 4451009 Contact Us For Availability
4
MAY 4451789 MAY 4451789 Contact Us For Availability
5
Grommet, Mounting Rail MAY 4448444 Contact Us For Availability
5
MAY W10278521 MAY W10278521 Contact Us For Availability
5
MAY W10278522 MAY W10278522 Contact Us For Availability
5
MAY W10284427 MAY W10284427 Contact Us For Availability
5
MAY 4457132 MAY 4457132 Contact Us For Availability
5
MAY 4375450 MAY 4375450 Contact Us For Availability
5
BRACKET, MOUNTING (RIGHT) MAY 4449141 Contact Us For Availability
5
BRACKET, MOUNTING (LEFT) MAY 4449142 Contact Us For Availability
5
MAY 4452247 MAY 4452247 Contact Us For Availability
6
MAY 4452490 MAY 4452490 Contact Us For Availability
6
MAY 4451592 MAY 4451592 Contact Us For Availability
6
MAY W10195934 MAY W10195934 Contact Us For Availability
6
MAY 4375316 MAY 4375316 Contact Us For Availability
6
MAY 9760587 MAY 9760587 Contact Us For Availability
7
TOP, CHASSIS MAY 8303099 Contact Us For Availability
7
MAY 4451632 MAY 4451632 Contact Us For Availability
7
MAY 9759225 MAY 9759225 Contact Us For Availability
7
VENT, TOP MAY 4455178 Contact Us For Availability
7
MAY 4375322 MAY 4375322 Contact Us For Availability
7
FILLER, SIDE (RIGHT) MAY 4449083 Contact Us For Availability
7
MAY 4449086 MAY 4449086 Contact Us For Availability
7
MAY 4450027 MAY 4450027 Contact Us For Availability
8
GLASS, INNER DOOR MAY 9759228 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10269407 Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY W10269408 Contact Us For Availability
8
VENT, BOTTOM MAY 4455177 Contact Us For Availability
8
MAY 4375317 MAY 4375317 Contact Us For Availability
8
MAY 4449964 MAY 4449964 Contact Us For Availability
9
MAY 4452158 MAY 4452158 Contact Us For Availability
9
MAY W10270347 MAY W10270347 Contact Us For Availability
9
MAY W10270349 MAY W10270349 Contact Us For Availability
9
MAY W10270350 MAY W10270350 Contact Us For Availability
9
MAY 4375415 MAY 4375415 Contact Us For Availability
9
MAY W10268205 MAY W10268205 Contact Us For Availability
9
MAY W10268206 MAY W10268206 Contact Us For Availability
9
MAY W10270576 MAY W10270576 Contact Us For Availability
9
MAY 4454949 MAY 4454949 Contact Us For Availability
10
MAY W10067870 MAY W10067870 Contact Us For Availability
10
BOARD, MOTORIZED LATCH MAY 8301848 Contact Us For Availability
10
MAY 4375248 MAY 4375248 Contact Us For Availability
10
MAY W10268913 MAY W10268913 Contact Us For Availability
10
MAY W10017410 MAY W10017410 Contact Us For Availability
11
ASSEMBLY, OVEN LIGHT MAY W10009930 Contact Us For Availability
11
MAY W10256645 MAY W10256645 Contact Us For Availability
11
SCREW, 8-18 X 1.25 MAY 3196184 Contact Us For Availability
11
MAY 4375035 MAY 4375035 Contact Us For Availability
11
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
12
MAY 4452166 MAY 4452166 Contact Us For Availability
12
MAY 9759229 MAY 9759229 Contact Us For Availability
12
MAY 4375318 MAY 4375318 Contact Us For Availability
12
MAY 4452559 MAY 4452559 Contact Us For Availability
13
MAY 8300791 MAY 8300791 Contact Us For Availability
13
MAY 9759230 MAY 9759230 Contact Us For Availability
13
MAY 4375319 MAY 4375319 Contact Us For Availability
14
MAY W10115831 MAY W10115831 Contact Us For Availability
14
SHIELD, HEAT MAY 4457104 Contact Us For Availability
14
MAY 4375320 MAY 4375320 Contact Us For Availability
14
MAY 4451597 MAY 4451597 Contact Us For Availability
14
MAY 4451598 MAY 4451598 Contact Us For Availability
15
MAY 4455382 MAY 4455382 Contact Us For Availability
15
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
15
RECTIFIER MAY 4375350 Contact Us For Availability
15
SCREW MAY 1180485 Contact Us For Availability
16
CRISP PLATE MAY 4393536 Contact Us For Availability
16
MAY 4450551 MAY 4450551 Contact Us For Availability
17
Screw MAY 3196176 Contact Us For Availability
17
BADGE MAY W10288004 Contact Us For Availability
17
MAY W10250576 MAY W10250576 Contact Us For Availability
17
MAY 4448664 MAY 4448664 Contact Us For Availability
18
MAY 4452152 MAY 4452152 Contact Us For Availability
18
MAY 4375072 MAY 4375072 Contact Us For Availability
18
MAY W10308745 MAY W10308745 Contact Us For Availability
19
MAY 4451478 MAY 4451478 Contact Us For Availability
19
MAY 4375321 MAY 4375321 Contact Us For Availability
19
TRANSFORMER, 20VA LIGHT MAY 9760588 Contact Us For Availability
20
MAY W10110697 MAY W10110697 Contact Us For Availability
20
BLOCK, FUSE MAY 4375231 Contact Us For Availability
20
MAY 8302143 MAY 8302143 Contact Us For Availability
21
RAIL, SIDE (RIGHT) MAY 4450583 Contact Us For Availability
21
RAIL, SIDE (LEFT) MAY 4450584 Contact Us For Availability
21
MAY 8186527 MAY 8186527 Contact Us For Availability
21
MAY 4451634 MAY 4451634 Contact Us For Availability
22
MAY W10250580 MAY W10250580 Contact Us For Availability
22
PLATE, SERVICE MAY 4455191 Contact Us For Availability
23
MAY 4449743 MAY 4449743 Contact Us For Availability
23
MAY 4449154 MAY 4449154 Contact Us For Availability
23
MAY 8205652 MAY 8205652 Contact Us For Availability
24
MAY 4375286 MAY 4375286 Contact Us For Availability
24
MAY 3400080 MAY 3400080 Contact Us For Availability
25
Side, Chassis MAY 4455641 Contact Us For Availability
25
MAY 4375442 MAY 4375442 Contact Us For Availability
25
MAY W10123223 MAY W10123223 Contact Us For Availability
26
MAY W10161110 MAY W10161110 Contact Us For Availability
26
SHAFT, TURNTABLE MAY 8183788 Contact Us For Availability
27
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
27
MAY 4375348 MAY 4375348 Contact Us For Availability
28
MAY 4451747 MAY 4451747 Contact Us For Availability
28
MAY 4375347 MAY 4375347 Contact Us For Availability
29
MAY W10131825 MAY W10131825 Contact Us For Availability
29
MAY 4375412 MAY 4375412 Contact Us For Availability
29
MAY 4375413 MAY 4375413 Contact Us For Availability
30
BRACKET, SUPPORT MAY 4449845 Contact Us For Availability
30
MAY 4455915 MAY 4455915 Contact Us For Availability
31
MAY 4375346 MAY 4375346 Contact Us For Availability
32
MAY 4451756 MAY 4451756 Contact Us For Availability
33
DEFLECTOR, VENT MAY 9760677 Contact Us For Availability
33
MAY 4375333 MAY 4375333 Contact Us For Availability
34
MAY 8302592 MAY 8302592 Contact Us For Availability
35
EXT-FILLER MAY 4449906 Contact Us For Availability
35
SWITCH HOLDER (RIGHT) MAY 4375336 Contact Us For Availability
35
SWITCH HOLDER (LEFT) MAY 4375337 Contact Us For Availability
36
MAY 8303502 MAY 8303502 Contact Us For Availability
36
MAY 4375422 MAY 4375422 Contact Us For Availability
37
THERMOSTAT MAY 9759243 Contact Us For Availability
37
ISOLATION PLATE MAY 4375437 Contact Us For Availability
38
MAY 9759713 MAY 9759713 Contact Us For Availability
38
MAY 4375323 MAY 4375323 Contact Us For Availability
38
MAY 4375324 MAY 4375324 Contact Us For Availability
39
MAY 4448933 MAY 4448933 Contact Us For Availability
39
MAY 4375331 MAY 4375331 Contact Us For Availability
40
TRIM, VENT BOTTOM (STAINLESS) MAY W10166934 Contact Us For Availability
40
TRIM, VENT BOTTOM (BLACK) MAY W10278493 Contact Us For Availability
40
TRIM, VENT BOTTOM (WHITE) MAY W10278494 Contact Us For Availability
40
FRAME, INNER MAY 4375340 Contact Us For Availability
41
MAY 4375339 MAY 4375339 Contact Us For Availability
42
MAY 4375334 MAY 4375334 Contact Us For Availability
NI
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
NI
Screw MAY 3400832 Contact Us For Availability
NI
MAY 4449316 MAY 4449316 Contact Us For Availability
NI
MAY 4450365 MAY 4450365 Contact Us For Availability
NI
INSULATION - MWO CONV., GRILL MAY 4452491 Contact Us For Availability
NI
INSULATION - MWO CONV., TOP MAY 4452492 Contact Us For Availability
NI
MAY 261869 MAY 261869 Contact Us For Availability
NI
PAINT, SPRAY, (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
SCREW, INSTALLATION MAY 4448950 Contact Us For Availability
NI
SCREW MAY 4450800 Contact Us For Availability
NI
MAY 4450831 MAY 4450831 Contact Us For Availability
NI
MAY 4450950 MAY 4450950 Contact Us For Availability
NI
LEAD, GROUND STRAP MAY 4452400 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
HARNESS, LATCH MAY 8301909 Contact Us For Availability
NI
HARNESS, COMBO MAY 8304156 Contact Us For Availability
NI
MAY 8304200 MAY 8304200 Contact Us For Availability
NI
MAY 8304201 MAY 8304201 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
Clip MAY 98997 Contact Us For Availability
× ![]()
