Model Maytag MMV6190FB3 MICROWAVE HOOD, 1.9 CUBIC FOOT – Common Parts & Diagrams

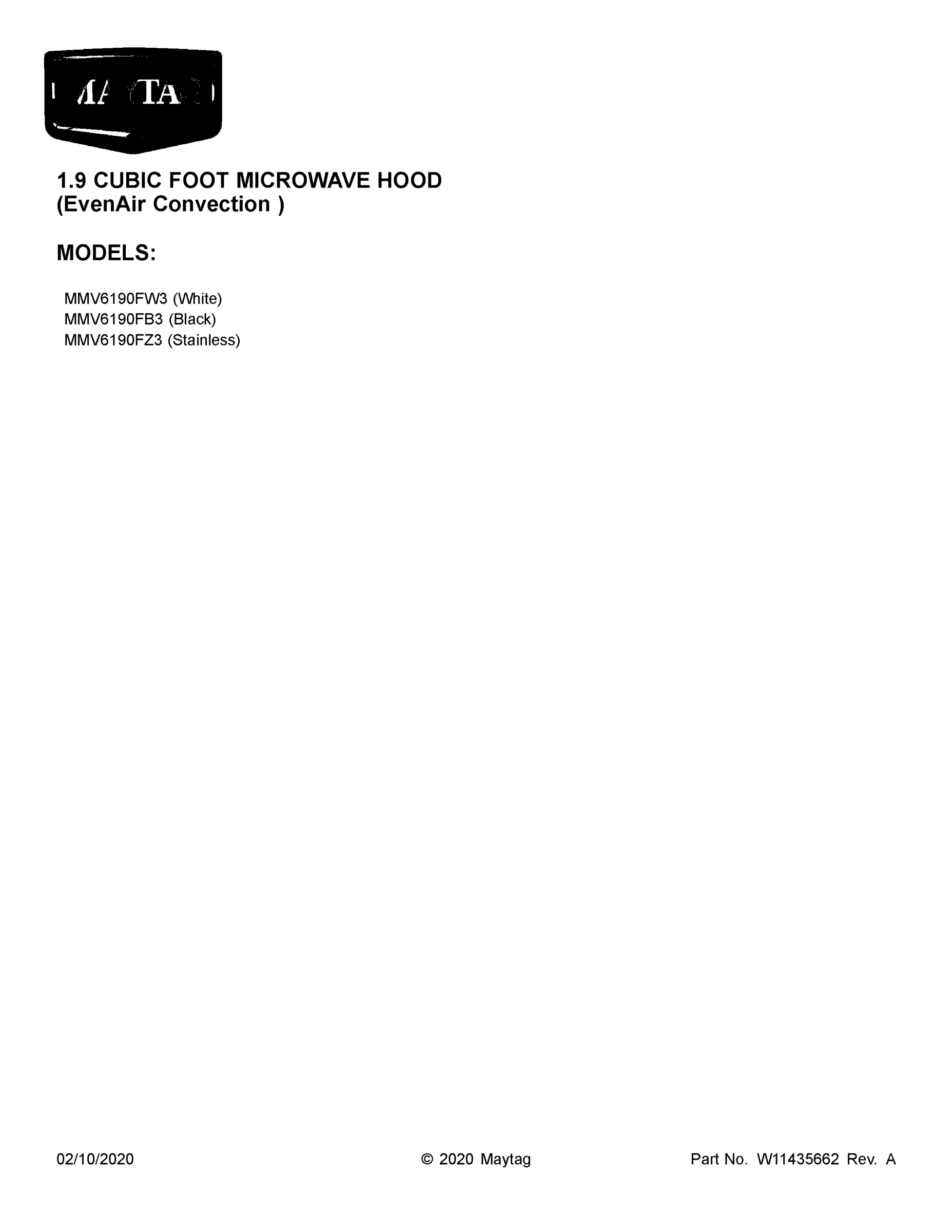

01 - COVER SHEET

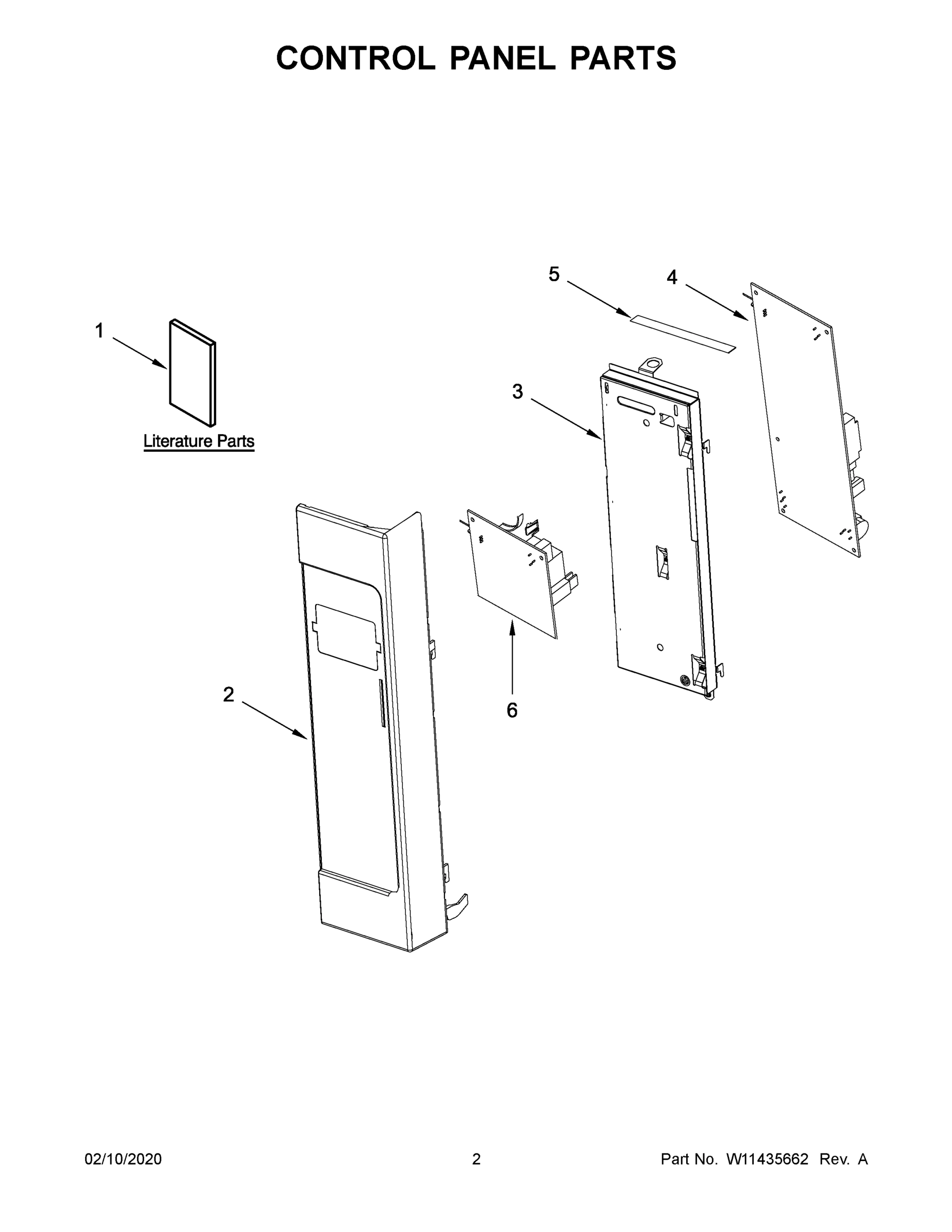

02 - CONTROL PANEL PARTS

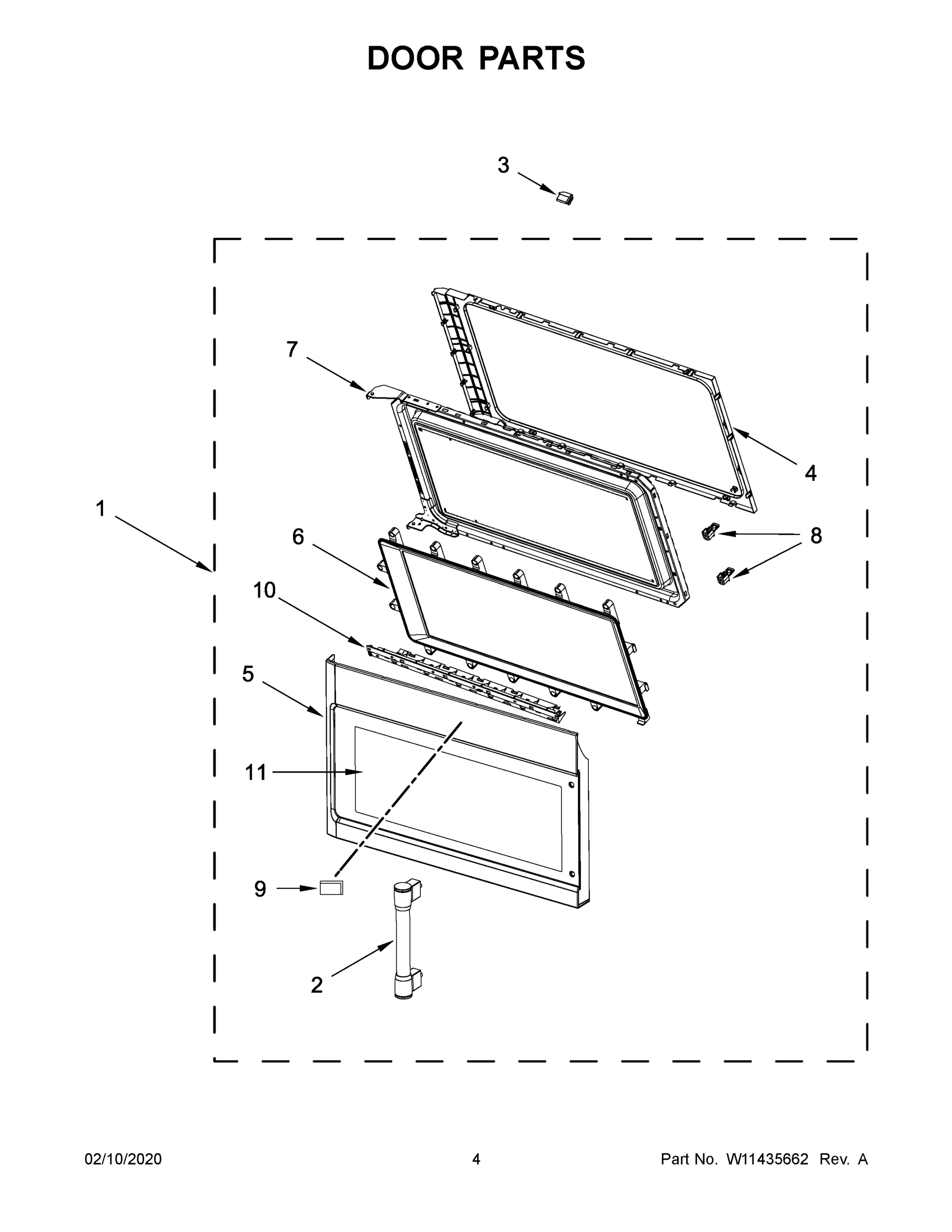

03 - DOOR PARTS

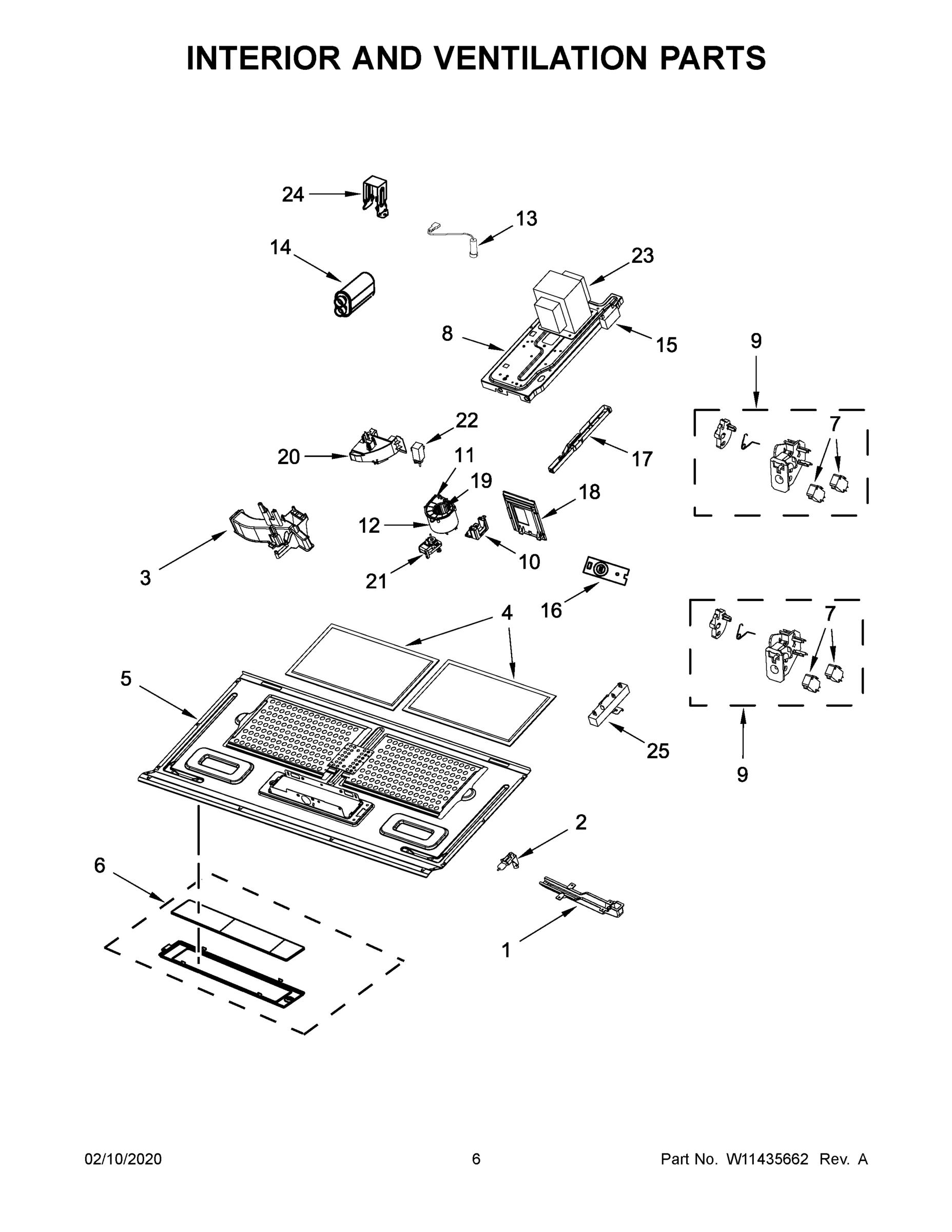

04 - INTERIOR AND VENTILATION PARTS

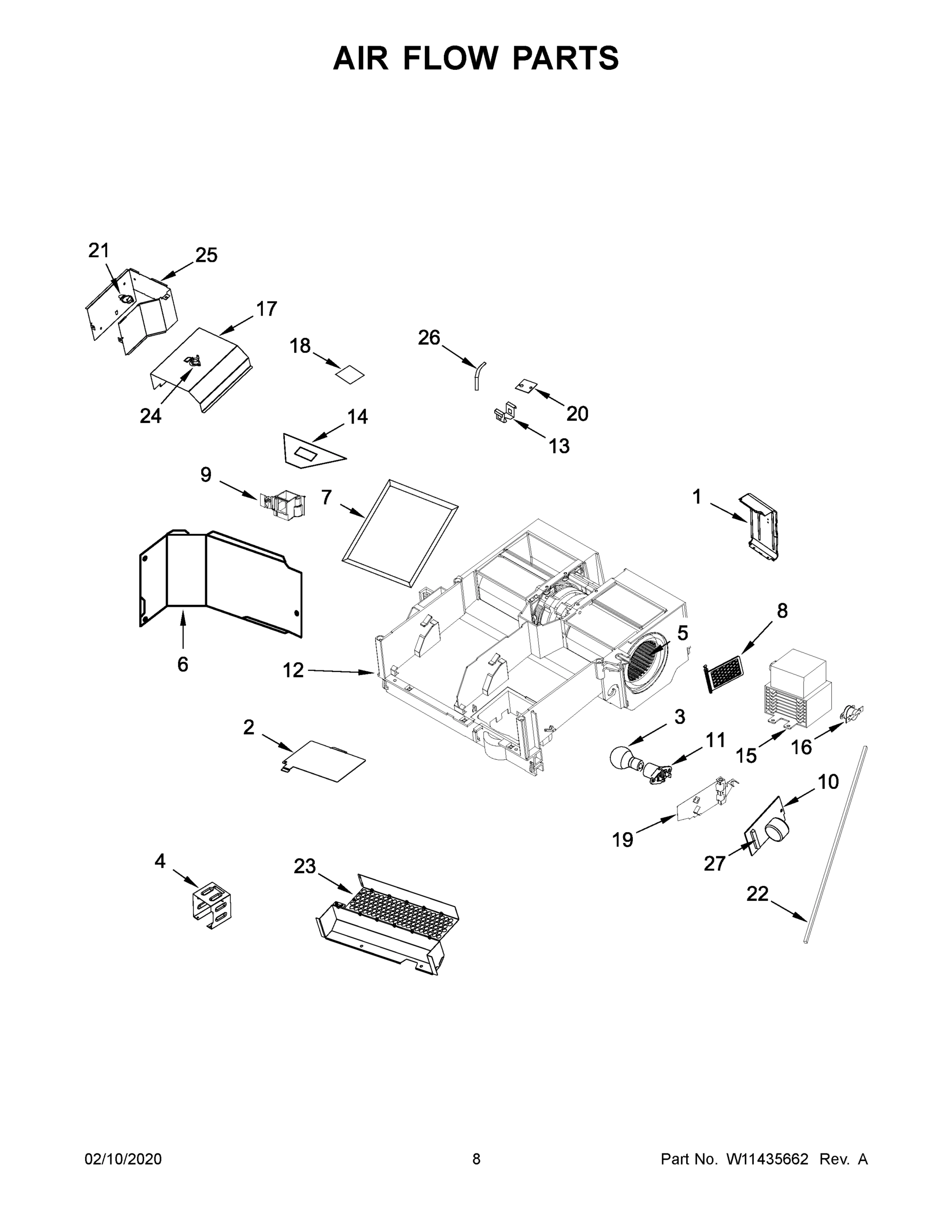

05 - AIR FLOW PARTS

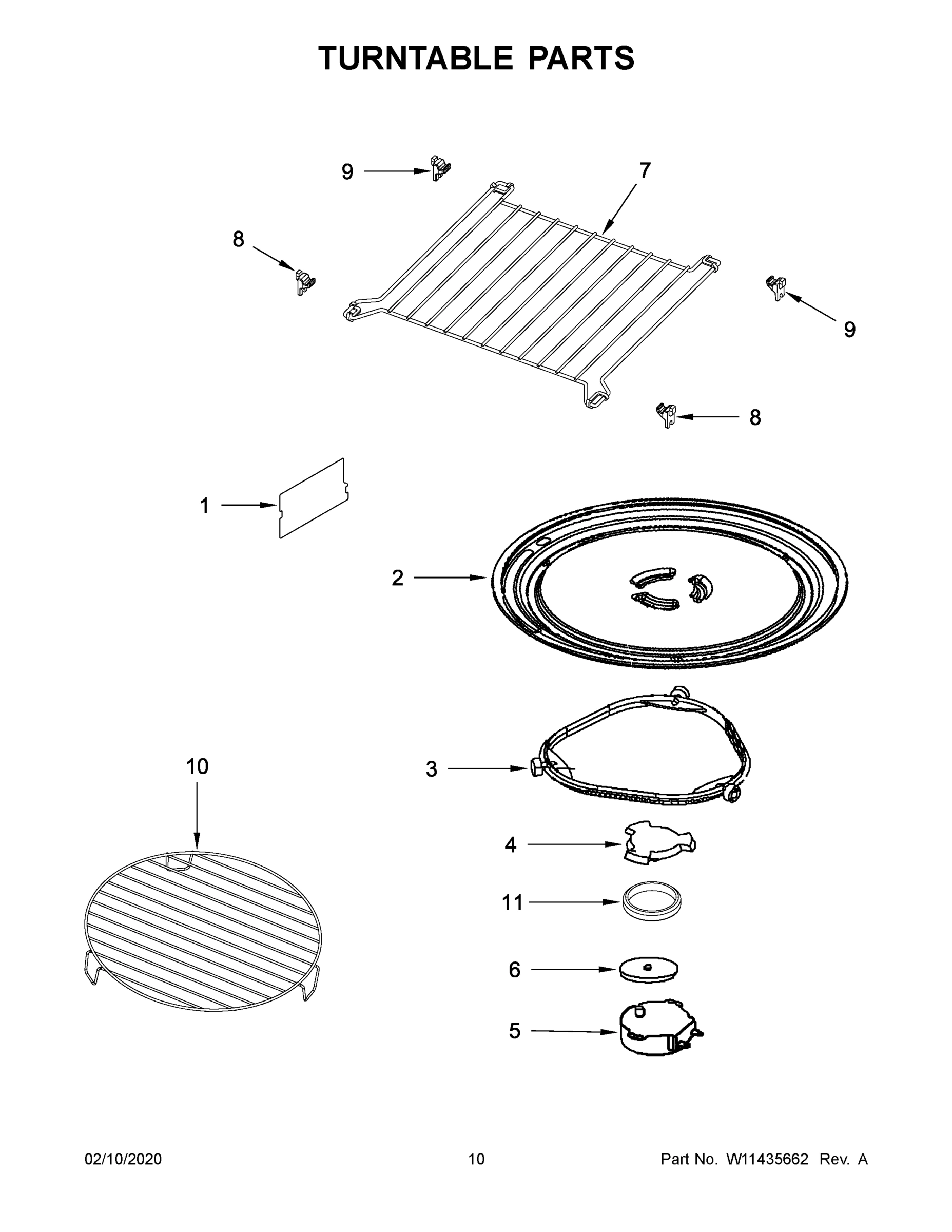

06 - TURNTABLE PARTS

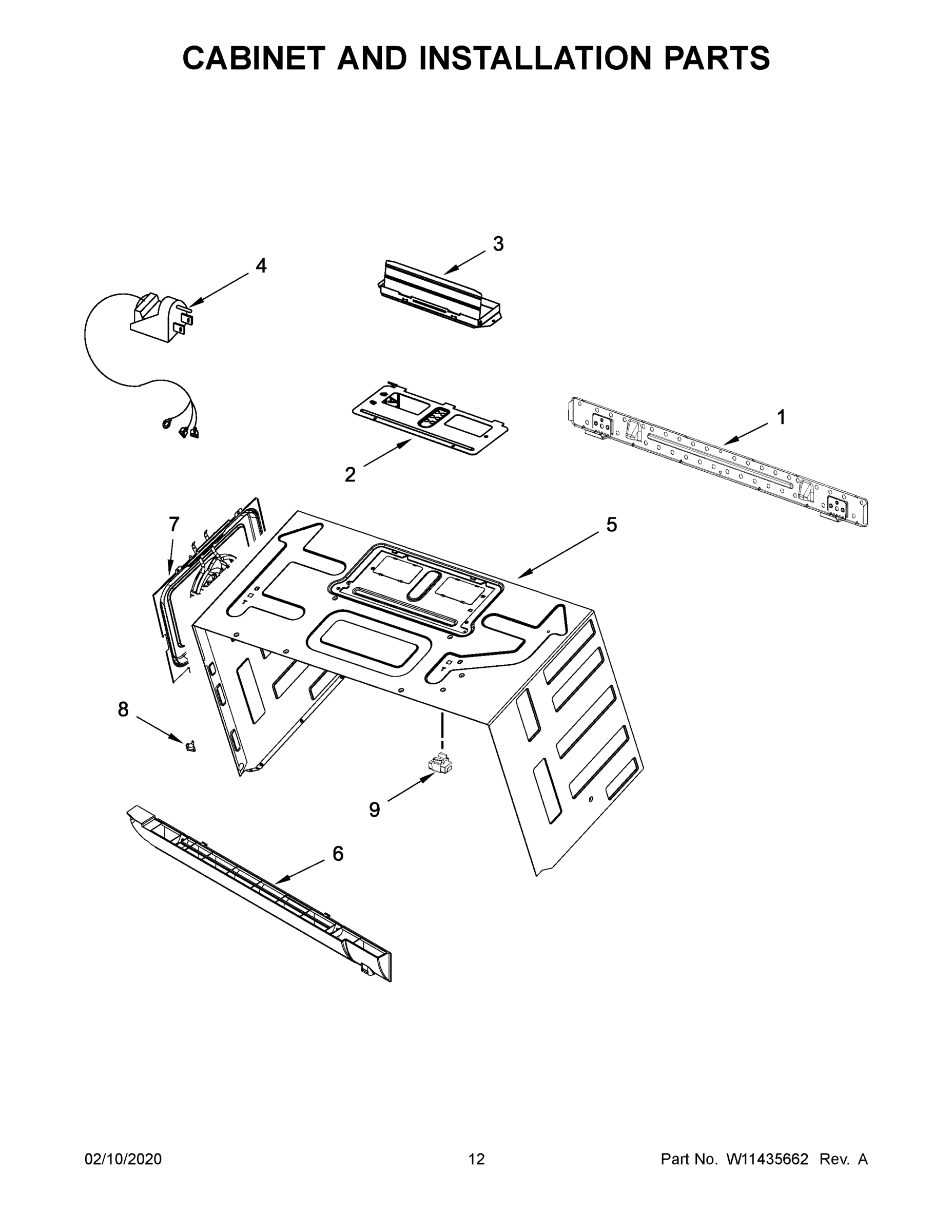

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV6190FB3 MICROWAVE HOOD, 1.9 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10724870 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) MAY W11031966 Contact Us For Availability
1
AIR DUCT, TURNTABLE MOTOR MAY W10570212 Contact Us For Availability
1
MAY W11300398 MAY W11300398 Contact Us For Availability
1
MAY W11361167 MAY W11361167 Contact Us For Availability
1
PLATE, MOUNTING MAY W11025649 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10847762 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) MAY W11031968 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10598205 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) MAY W11031967 Contact Us For Availability
1C
MAY W11268415 MAY W11268415 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (WHITE) MAY W11031990 Contact Us For Availability
2
HANDLE (WHITE) MAY W10890417 Contact Us For Availability
2
LAMP, HALOGEN MAY W10709921 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10531726 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (BLACK) MAY W11031989 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10890418 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10871384 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W11157214 Contact Us For Availability
3
BACKGROUND, CONTROL MAY W10540727 Contact Us For Availability
3
STOPPER, DOOR MAY W10643448 Contact Us For Availability
3
ASSEMBLY, AIRGUIDE GRILLE MAY W10758887 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RING, TURNTABLE MAY W10679313 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MAY W11361144 MAY W11361144 Contact Us For Availability
4
FRAME, INNER MAY W10648086 Contact Us For Availability
4
FILTER, GREASE MAY W10535950 Contact Us For Availability
4
HOUSING, DAMPER MAY W10712444 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
5
SEAL, CONTROL MAY W10540721 Contact Us For Availability
5
ASSEMBLY, DOOR FRAME (WHITE) MAY W10860851 Contact Us For Availability
5
PLATE, BOTTOM MAY W10571126 Contact Us For Availability
5
MAY W11409088 MAY W11409088 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10466420 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W11178714 Contact Us For Availability
5A
ASSEMBLY, DOOR FRAME (BLACK) MAY W10860854 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W11178713 Contact Us For Availability
5B
ASSEMBLY, DOOR FRAME (STAINLESS) MAY W10865172 Contact Us For Availability
6
MAY W11381424 MAY W11381424 Contact Us For Availability
6
PLATE, STEAM PROTECTION MAY W10860861 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
6
PLATE, AIR GUIDE MAY W10533487 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10701696 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10701697 Contact Us For Availability
7
FOIL, DOOR MAY W10891966 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10637931 Contact Us For Availability
7
ASSEMBLY, CONVECTION MOTOR AND FAN MAY W10665531 Contact Us For Availability
8
HOOKS, DOOR MAY W10489272 Contact Us For Availability
8
CHASSIS, COMPONENT MAY W10908577 Contact Us For Availability
8
VALVE, DOOR MAY W10533486 Contact Us For Availability
8
HOOK, MICROWAVE (FRONT) MAY W10740485 Contact Us For Availability
8
MAY W11268275 MAY W11268275 Contact Us For Availability
9
BADGE MAY W10612925 Contact Us For Availability
9
ASSEMBLY, INTERLOCK (INCLUDES SWITCHES) MAY W11187757 Contact Us For Availability
9
OUTLET, CAVITY (FRONT) (FOR WHITE MODELS) MAY W10892386 Contact Us For Availability
9
HOOK, MICROWAVE (REAR) MAY W10573936 Contact Us For Availability
9
ASSEMBLY, MOUNTING NUT MAY W11122643 Contact Us For Availability
9A
OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS M MAY W10892385 Contact Us For Availability
10
TRIM, DOOR (WHITE) MAY W10892376 Contact Us For Availability
10
HOLDER, NTC MAY W10533480 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
RACK, CONVECTION MAY W10440082 Contact Us For Availability
10A
TRIM, DOOR (BLACK) MAY W10892375 Contact Us For Availability
11
ASSEMBLY, DOOR GLASS (WHITE) MAY W10860864 Contact Us For Availability
11
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
11
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
11
SEAL, TURNTABLE BLOCK MAY W10568148 Contact Us For Availability
11A
ASSEMBLY, DOOR GLASS (BLACK) MAY W10860865 Contact Us For Availability
12
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
12
MAY W11382018 MAY W11382018 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W11222648 Contact Us For Availability
13
CLIP MAY 8206223 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10561770 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W11188557 Contact Us For Availability
16
THERMISTOR, PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10591803 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533112 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533107 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
19
MAY W11293488 MAY W11293488 Contact Us For Availability
20
AIR GUIDE, MAGNETRON MAY W10533104 Contact Us For Availability
20
COVER, THERMOSTAT MAY W10259248 Contact Us For Availability
21
MOTOR, COOLING FAN MAY W11169357 Contact Us For Availability
21
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
22
ACTUATOR MAY W10458325 Contact Us For Availability
22
SEAL, FOAM MAY W10571180 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W11087316 Contact Us For Availability
23
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10633730 Contact Us For Availability
24
THERMOSTAT, CAVITY MAY W10654514 Contact Us For Availability
25
MAY W11259891 MAY W11259891 Contact Us For Availability
25
DUCT, CAVITY (REAR) MAY W10533483 Contact Us For Availability
26
SENSOR, CONVECTION MAY W10557537 Contact Us For Availability
27
FUSE MAY W10138793 Contact Us For Availability
NI
PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, INSTALLATION, HARDWARE MAY 8206614 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, CONTROL MAY W10533304 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
INSULATION, BACK MAY W10571450 Contact Us For Availability
NI
INSULATION, TOP MAY W10571451 Contact Us For Availability
NI
INSULATION, SIDE MAY W10571453 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10892377 Contact Us For Availability
NI
MAY W11302285 MAY W11302285 Contact Us For Availability
NI
MAY W11302352 MAY W11302352 Contact Us For Availability
× ![]()
