Model Maytag MMV5208WS1 MICROWAVE – Common Parts & Diagrams

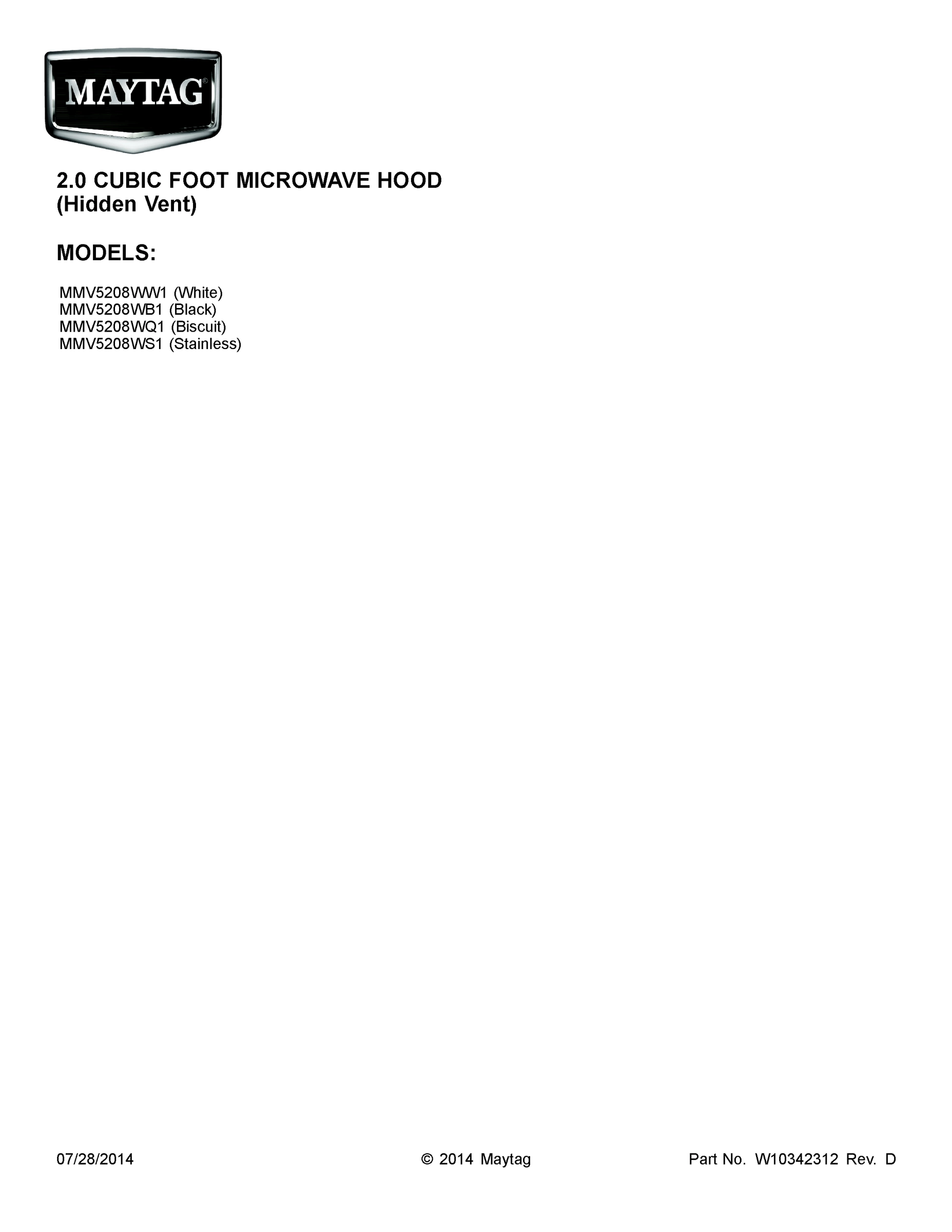

01 - COVER SHEET

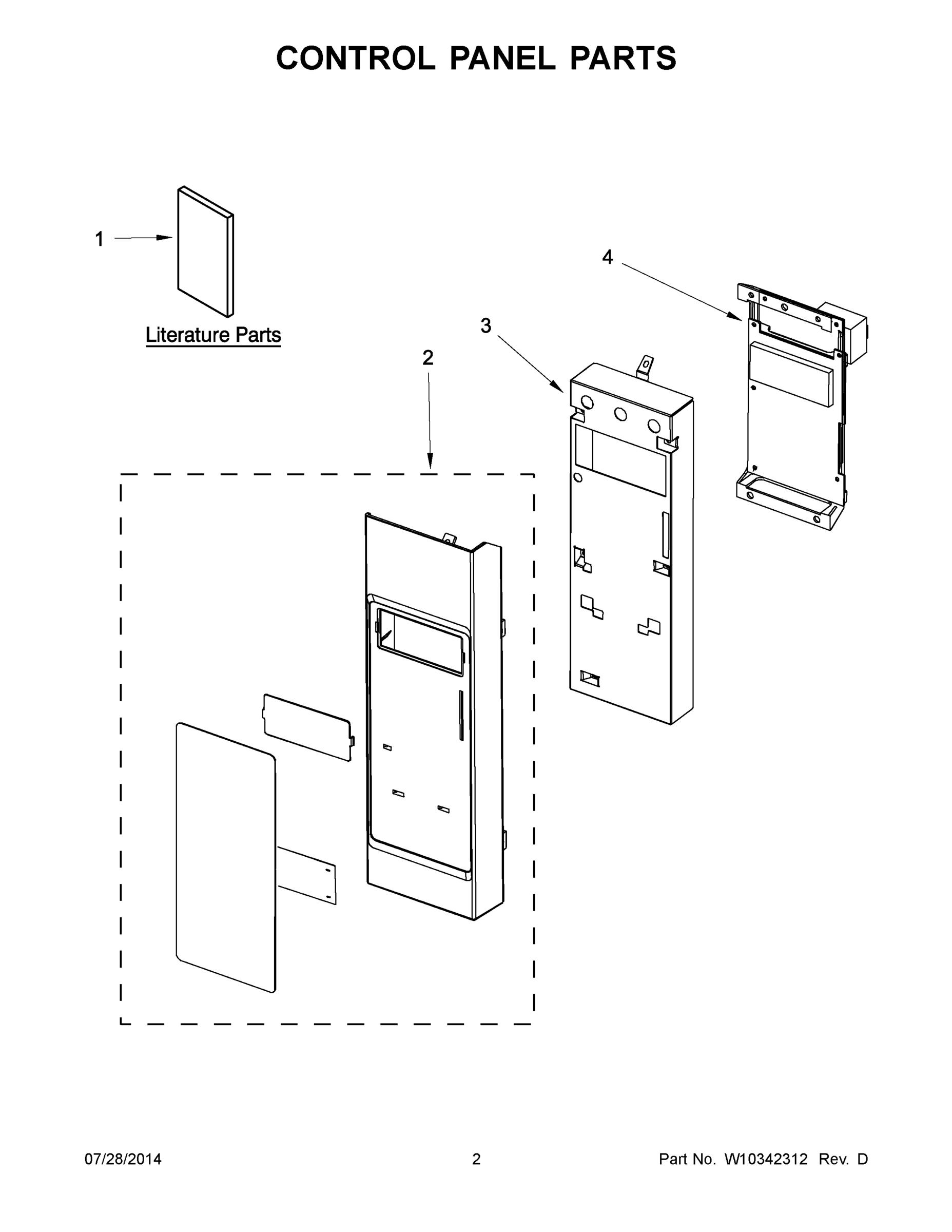

02 - CONTROL PANEL PARTS
03 - DOOR PARTS
04 - INTERIOR AND VENTILATION PARTS
05 - AIR FLOW PARTS
06 - TURNTABLE PARTS
07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV5208WS1 MICROWAVE
1
INSTALLATION INSTRUCTIONS MAY W10316010 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) MAY W10286831 Contact Us For Availability
1
MAY W10286815 MAY W10286815 Contact Us For Availability
1
MAY W10286814 MAY W10286814 Contact Us For Availability
1
MAY W10313272 MAY W10313272 Contact Us For Availability
1
MAY W10245177 MAY W10245177 Contact Us For Availability
1A
MAY W10274323 MAY W10274323 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) MAY W10286830 Contact Us For Availability
1B
MAY W10306120 MAY W10306120 Contact Us For Availability
1B
DOOR, COMPLETE (BISCUIT) MAY W10286833 Contact Us For Availability
1C
MAY W10325256 MAY W10325256 Contact Us For Availability
1C
DOOR, COMPLETE (STAINLESS) MAY W10286832 Contact Us For Availability
2
MAY W10286818 MAY W10286818 Contact Us For Availability
2
MAY W10259244 MAY W10259244 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
HOOK, MICROWAVE RACK (LEFT FRONT AND RIGHT FR MAY W10245207 Contact Us For Availability
2
MAY 8206385 MAY 8206385 Contact Us For Availability
2A
MAY W10286817 MAY W10286817 Contact Us For Availability
2A
MAY W10259243 MAY W10259243 Contact Us For Availability
2B
MAY W10286820 MAY W10286820 Contact Us For Availability
2B
MAY W10286844 MAY W10286844 Contact Us For Availability
2C
MAY W10286819 MAY W10286819 Contact Us For Availability
2C
MAY W10259246 MAY W10259246 Contact Us For Availability
3
MAY W10245199 MAY W10245199 Contact Us For Availability
3
MAY W10138802 MAY W10138802 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
MAY W10245178 MAY W10245178 Contact Us For Availability
3
HOOK, MICROWAVE RACK (LEFT REAR) MAY W10245208 Contact Us For Availability
3
DAMPER MAY 8206442 Contact Us For Availability
4
MAY W10286816 MAY W10286816 Contact Us For Availability
4
BADGE MAY W10286845 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
4
HOOK, MICROWAVE RACK (RIGHT REAR) MAY W10245209 Contact Us For Availability
4
MAY W10269470 MAY W10269470 Contact Us For Availability
4A
BADGE (BISCUIT MODEL) MAY W10286846 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
SHIELD, FINGER MAY W10342991 Contact Us For Availability
5
RIVETS MAY W10138801 Contact Us For Availability
5
MAY W10244765 MAY W10244765 Contact Us For Availability
5A
MAY W10245176 MAY W10245176 Contact Us For Availability
5B
MAY W10251166 MAY W10251166 Contact Us For Availability
6
MAY W10210875 MAY W10210875 Contact Us For Availability
6
MOTOR, FAN ASSEMBLY MAY W10325863 Contact Us For Availability
6
MAY W10289909 MAY W10289909 Contact Us For Availability
6
MAY W10286825 MAY W10286825 Contact Us For Availability
6A
MAY W10286828 MAY W10286828 Contact Us For Availability
6B
MAY W10286829 MAY W10286829 Contact Us For Availability
6C
MAY W10259232 MAY W10259232 Contact Us For Availability
7
MAY W10210873 MAY W10210873 Contact Us For Availability
7
MAY W10245179 MAY W10245179 Contact Us For Availability
7
MAY W10289910 MAY W10289910 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
MICROSWITCH V15T16-CC200/NC MAY W10269457 Contact Us For Availability
8
MAY 8206230 MAY 8206230 Contact Us For Availability
8
MAY W10290311 MAY W10290311 Contact Us For Availability
8
MOUNTING NUT MAY W10107810 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
MAY W10245210 MAY W10245210 Contact Us For Availability
9
MAY W10286824 MAY W10286824 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
FILTER, NOISE MAY W10269465 Contact Us For Availability
10
MAY 8205042 MAY 8205042 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
11
MAY W10269467 MAY W10269467 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
MAY W10245211 MAY W10245211 Contact Us For Availability
12A
MAY W10156813 MAY W10156813 Contact Us For Availability
13
ASSEMBLY, PISTON MAY W10197758 Contact Us For Availability
13
HOLDER, HOOD FAN MOTOR MAY W10245206 Contact Us For Availability
14
CAPACITOR, HOOD MOTOR MAY W10245191 Contact Us For Availability
14
BRACKET, FILTER BOARD MAY W10313274 Contact Us For Availability
15
THERMISTOR MAY W10163422 Contact Us For Availability
15
MAY W10139750 MAY W10139750 Contact Us For Availability
16
MAY W10245193 MAY W10245193 Contact Us For Availability
16
COVER, AIR GUIDE SENSOR MAY W10245214 Contact Us For Availability
17
MAY W10310720 MAY W10310720 Contact Us For Availability
17
MAY W10222507 MAY W10222507 Contact Us For Availability
18
MAY W10342990 MAY W10342990 Contact Us For Availability
18
THERMOSTAT, MAGNETRON MAY 8206342 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
MAY W10245194 MAY W10245194 Contact Us For Availability
20
MAY W10245182 MAY W10245182 Contact Us For Availability
21
MAY W10138793 MAY W10138793 Contact Us For Availability
21
MAY W10245212 MAY W10245212 Contact Us For Availability
22
THERMOSTAT, CAVITY 125/-35 CELCIUS MAY W10245195 Contact Us For Availability
22
MAY W10245215 MAY W10245215 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W10248271 Contact Us For Availability
24
MAY W10156817 MAY W10156817 Contact Us For Availability
25
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
26
DIODE, HIGH VOLTAGE MAY W10245187 Contact Us For Availability
27
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, GROUND WIRE TO CONNECT P MAY 8205696 Contact Us For Availability
NI
MISCELLANEOUS PARTS, INSTALLATION, HARDWARE MAY 8205948 Contact Us For Availability
NI
MISCELLANEOUS PARTS, GROUND WIRE, FILTER (FOR MAY W10107760 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TU MAY W10245226 Contact Us For Availability
NI
MAY W10342989 MAY W10342989 Contact Us For Availability
× ![]()
