Model LG MMV5207AAQ OTR – Common Parts & Diagrams

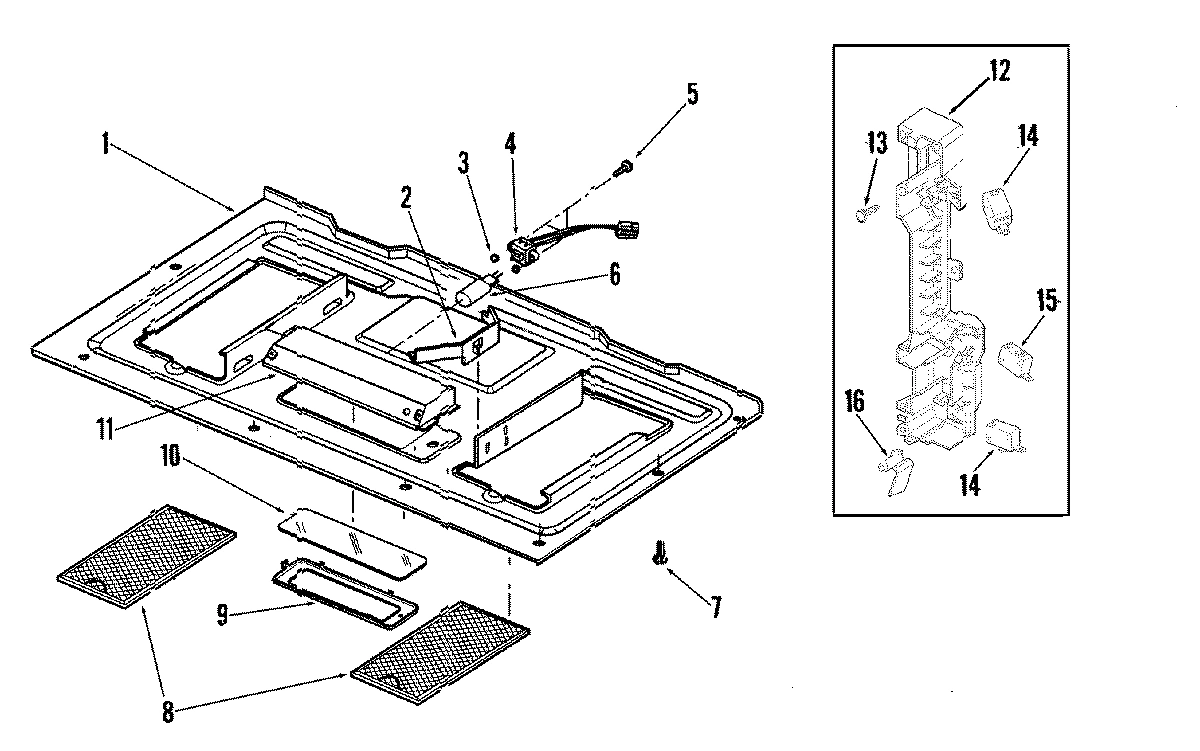

Diagram 0

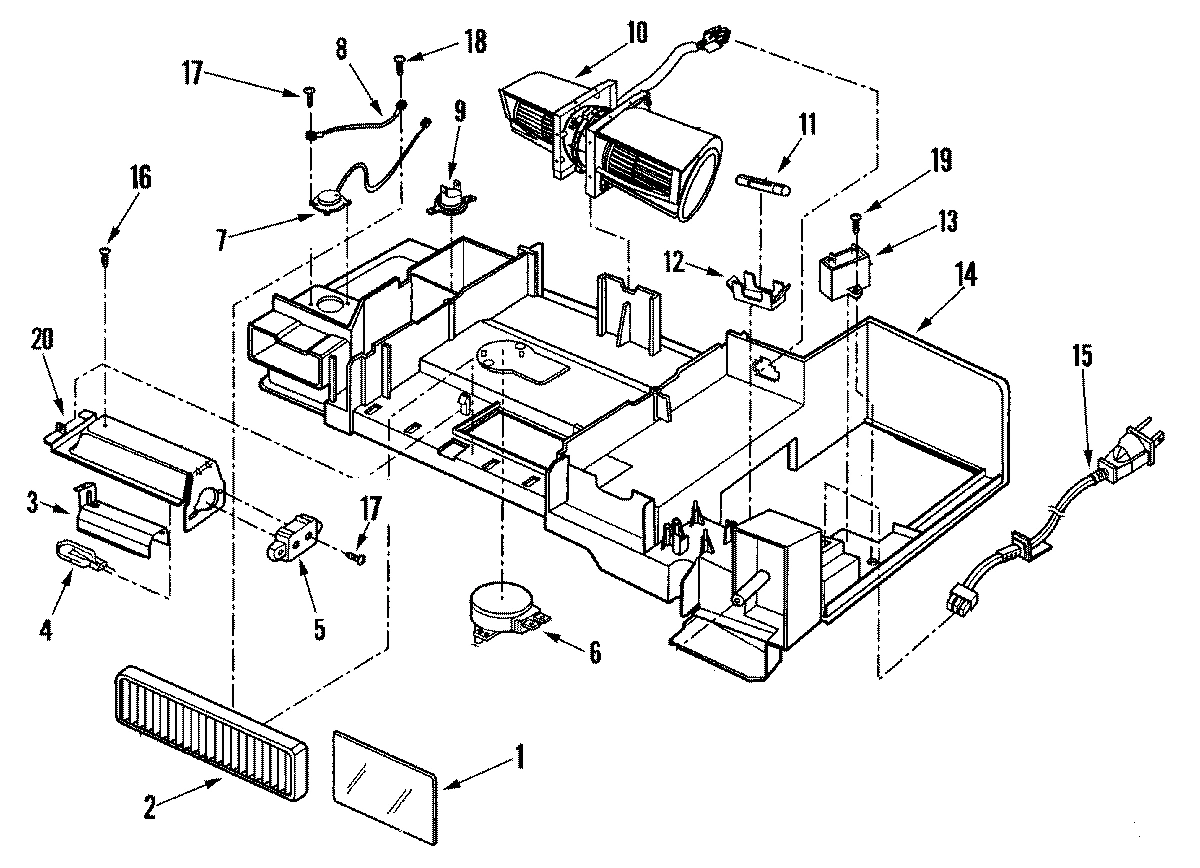

Diagram 1

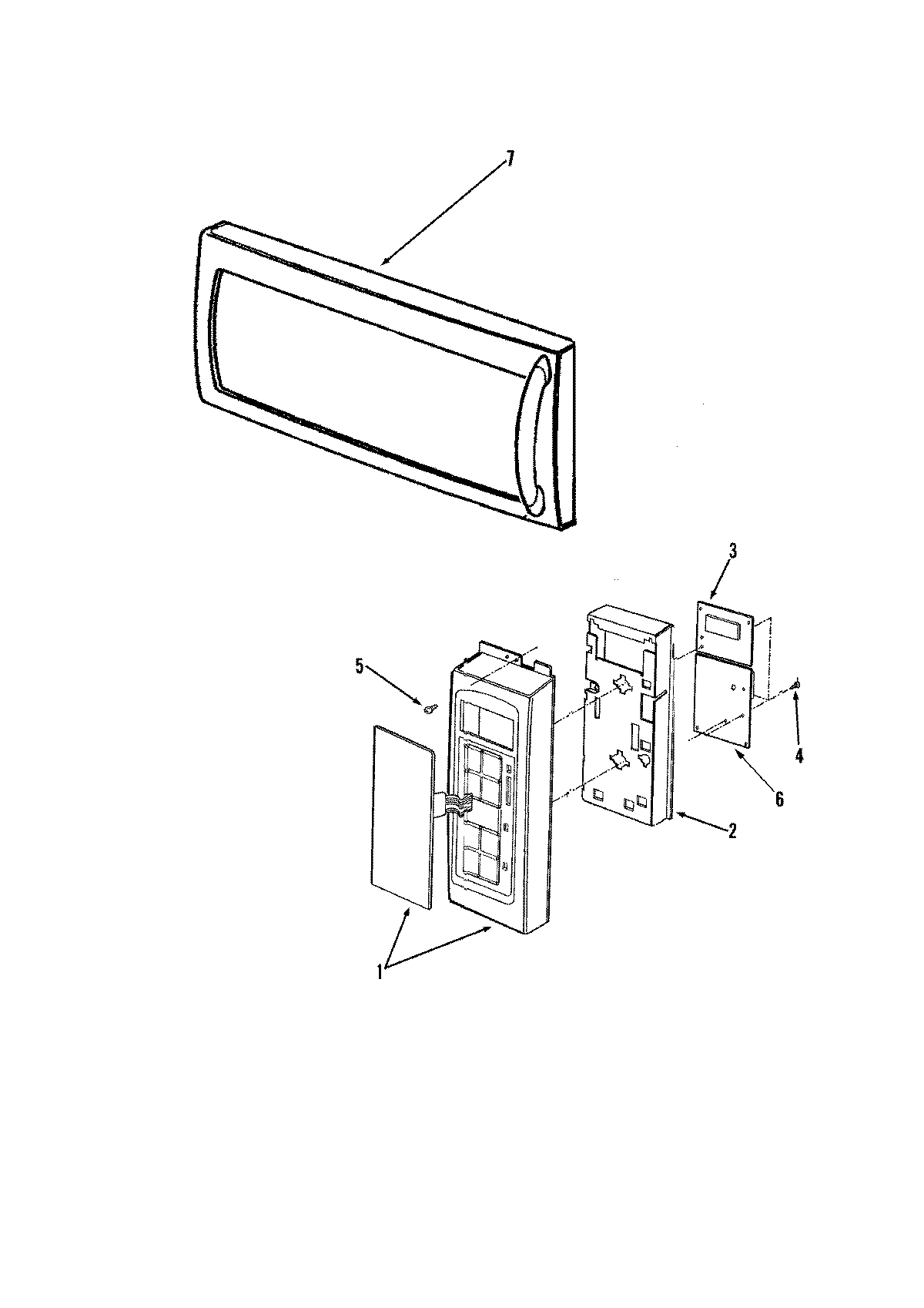

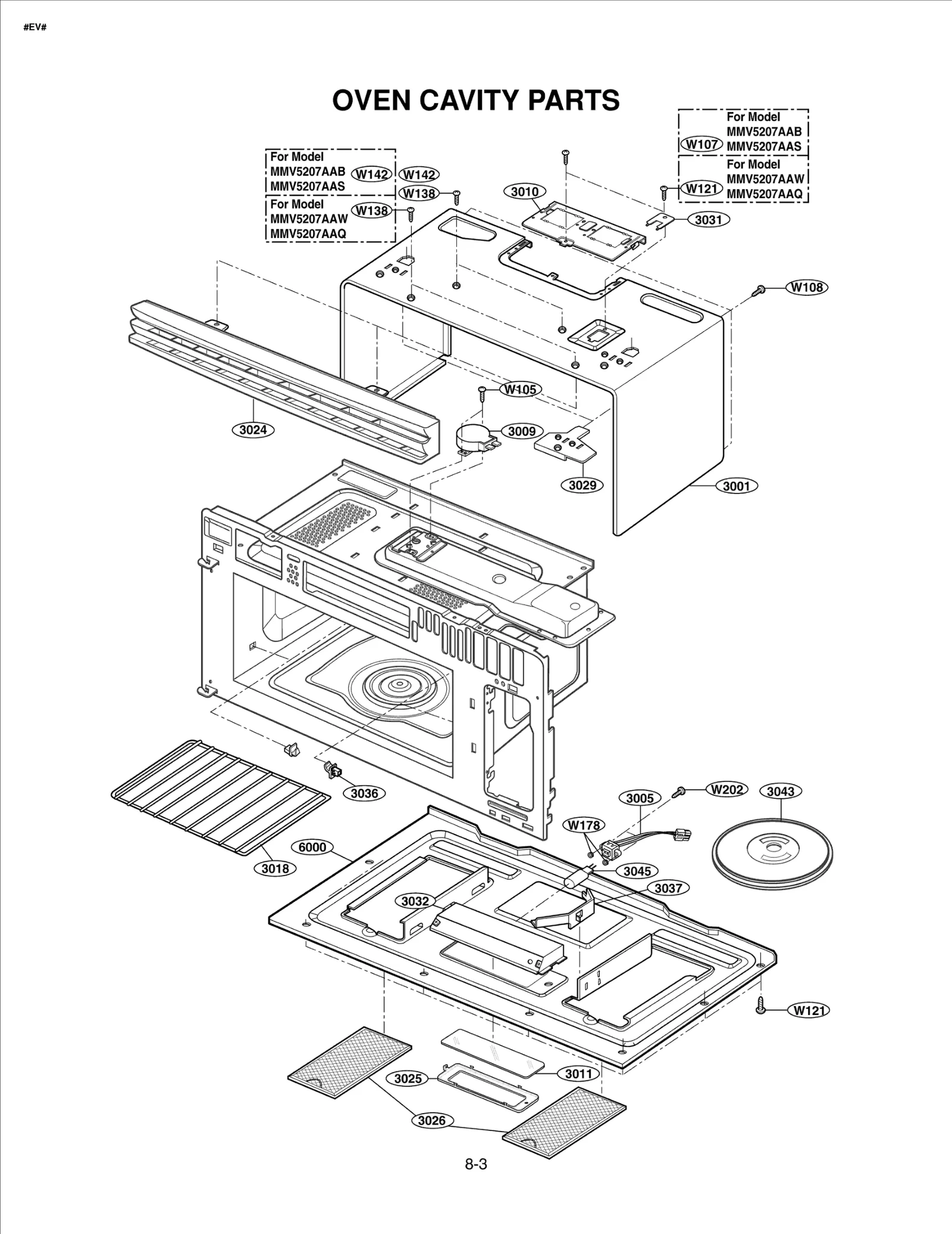

Diagram 2

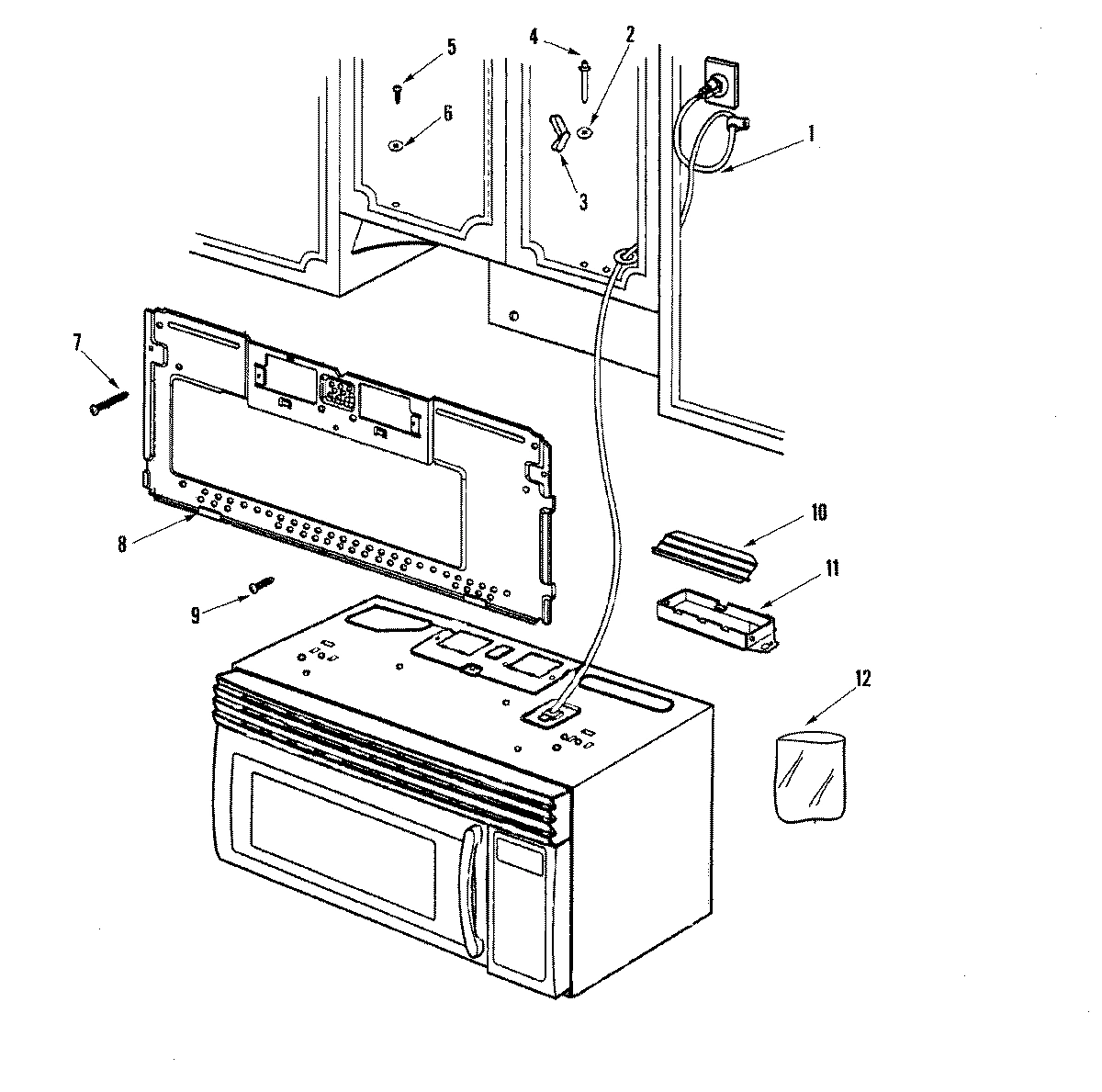

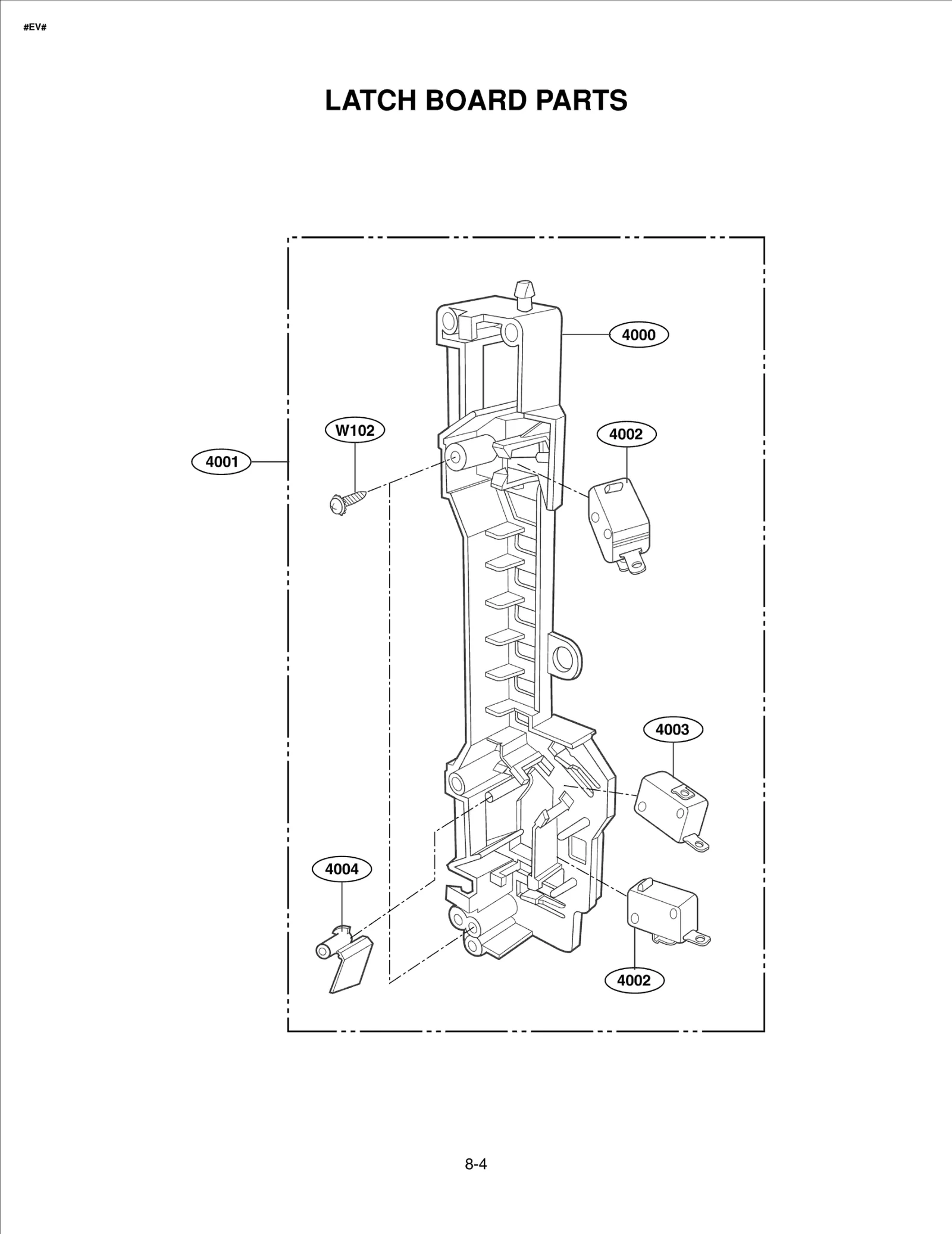

Diagram 3

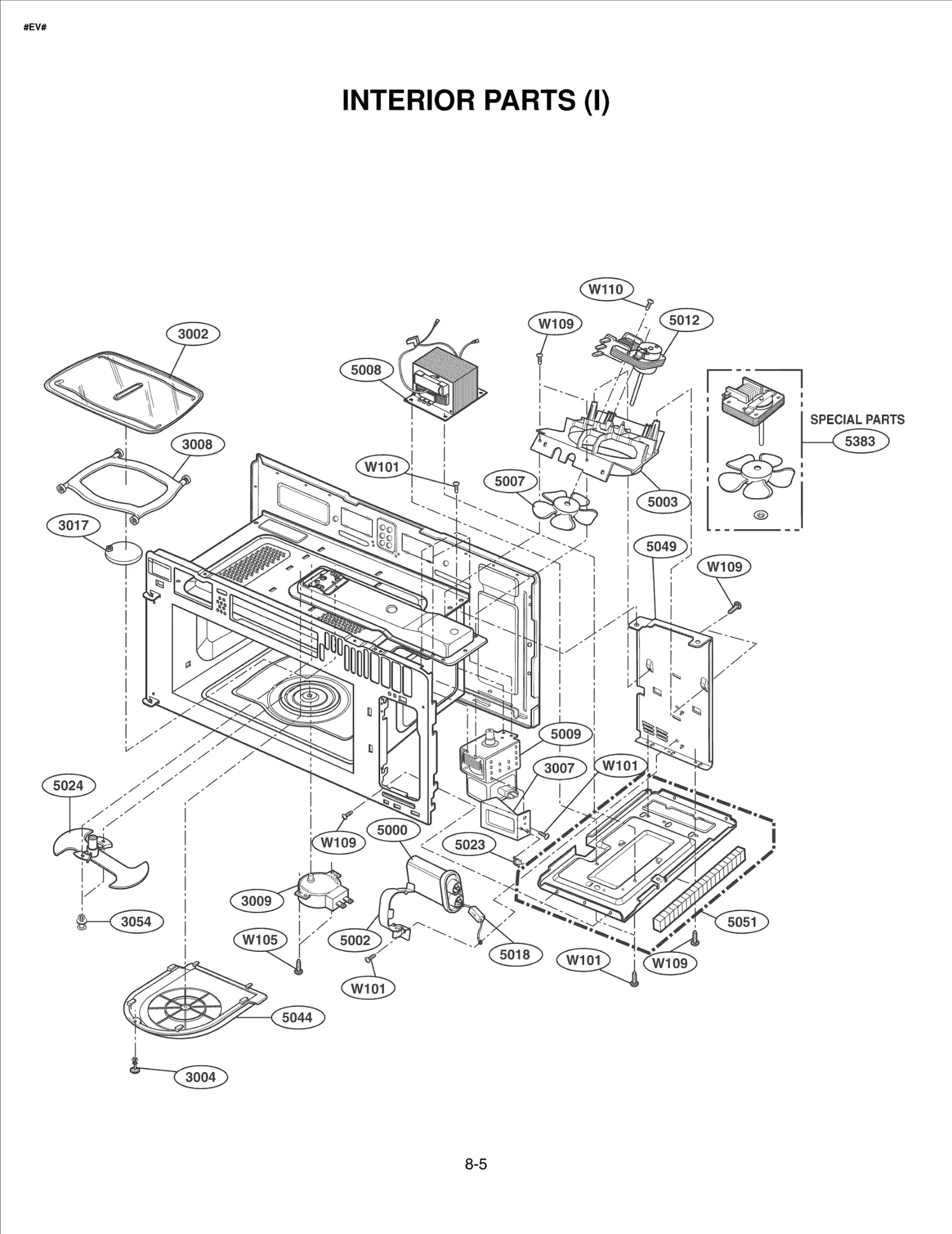

Diagram 4

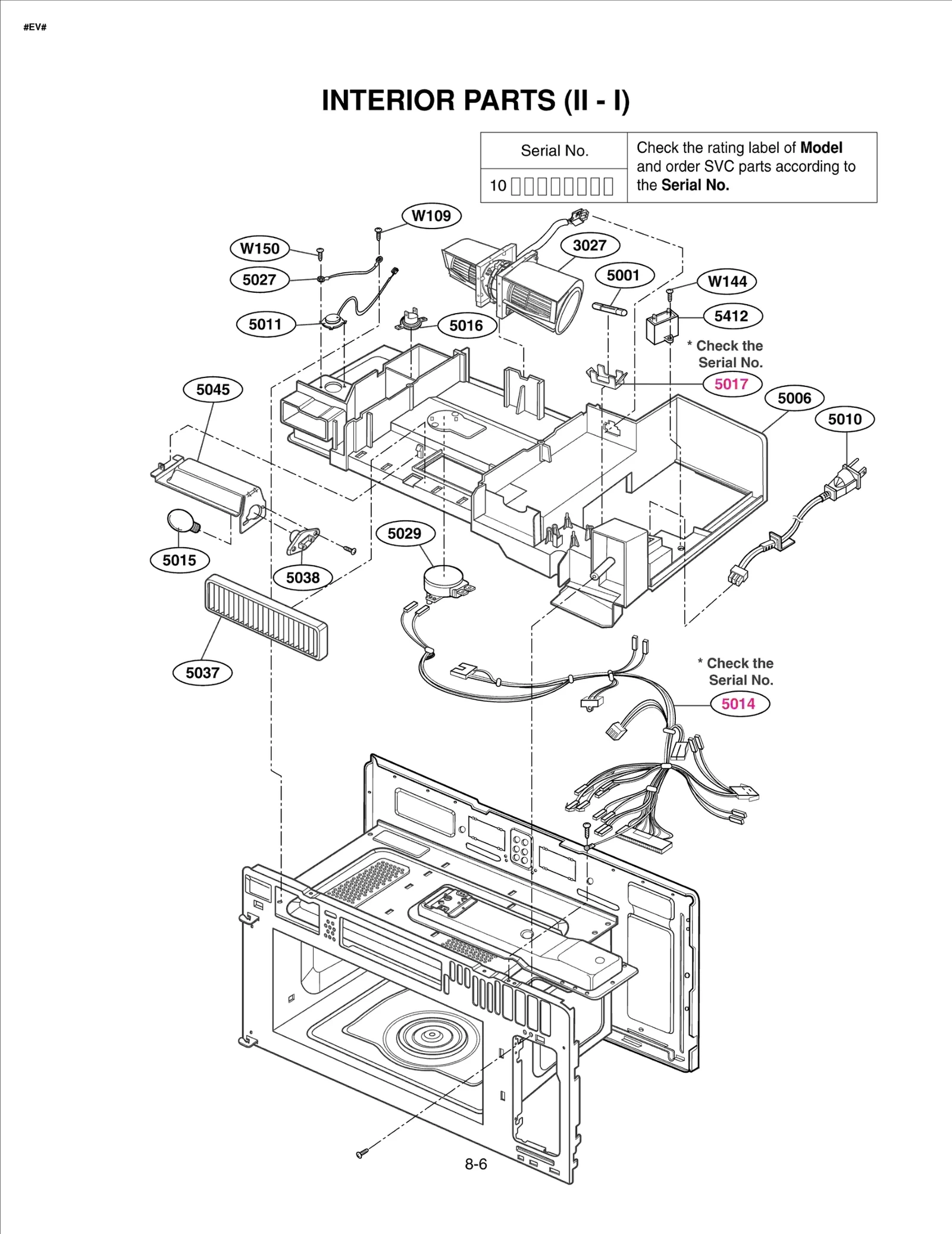

Diagram 5

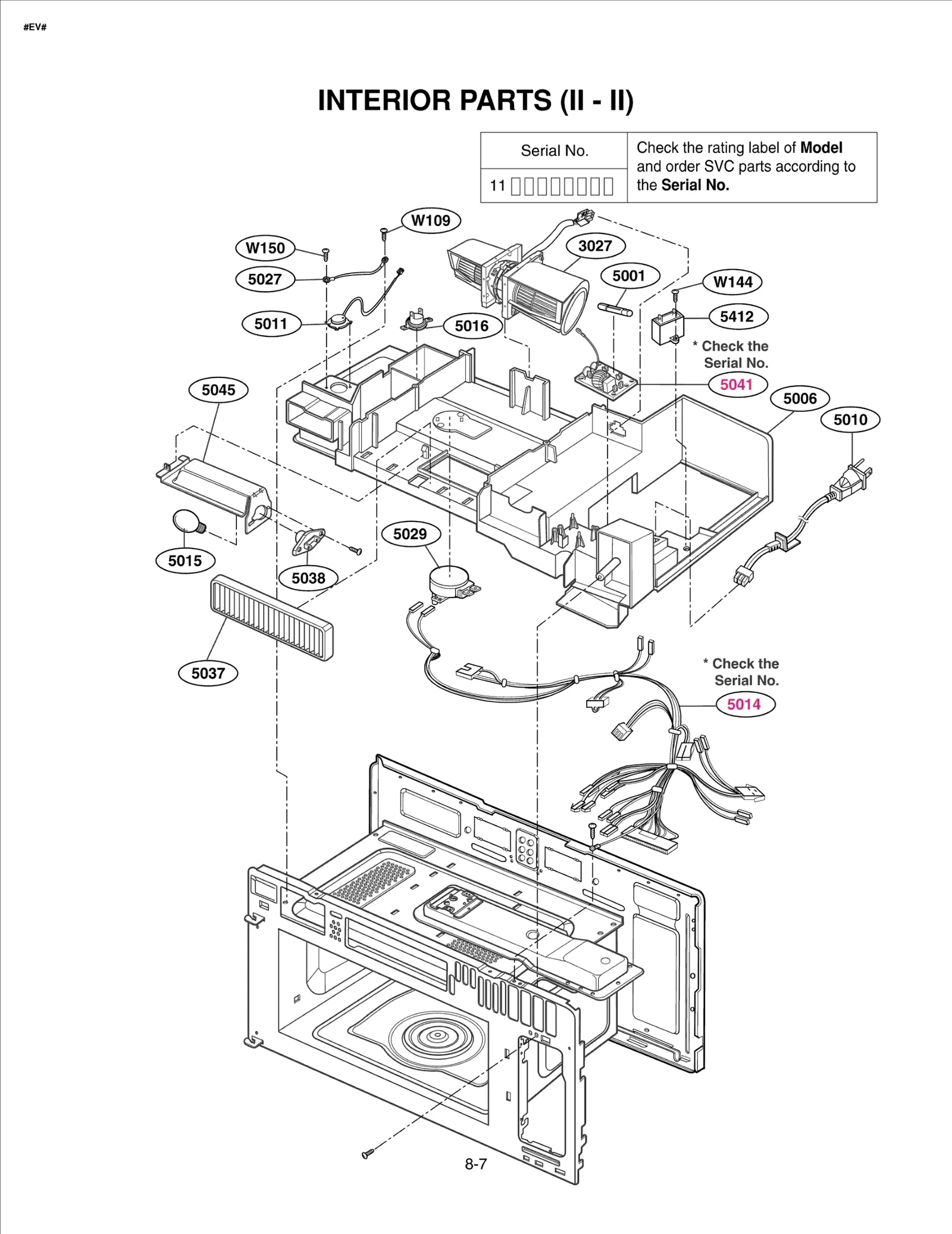

Diagram 6

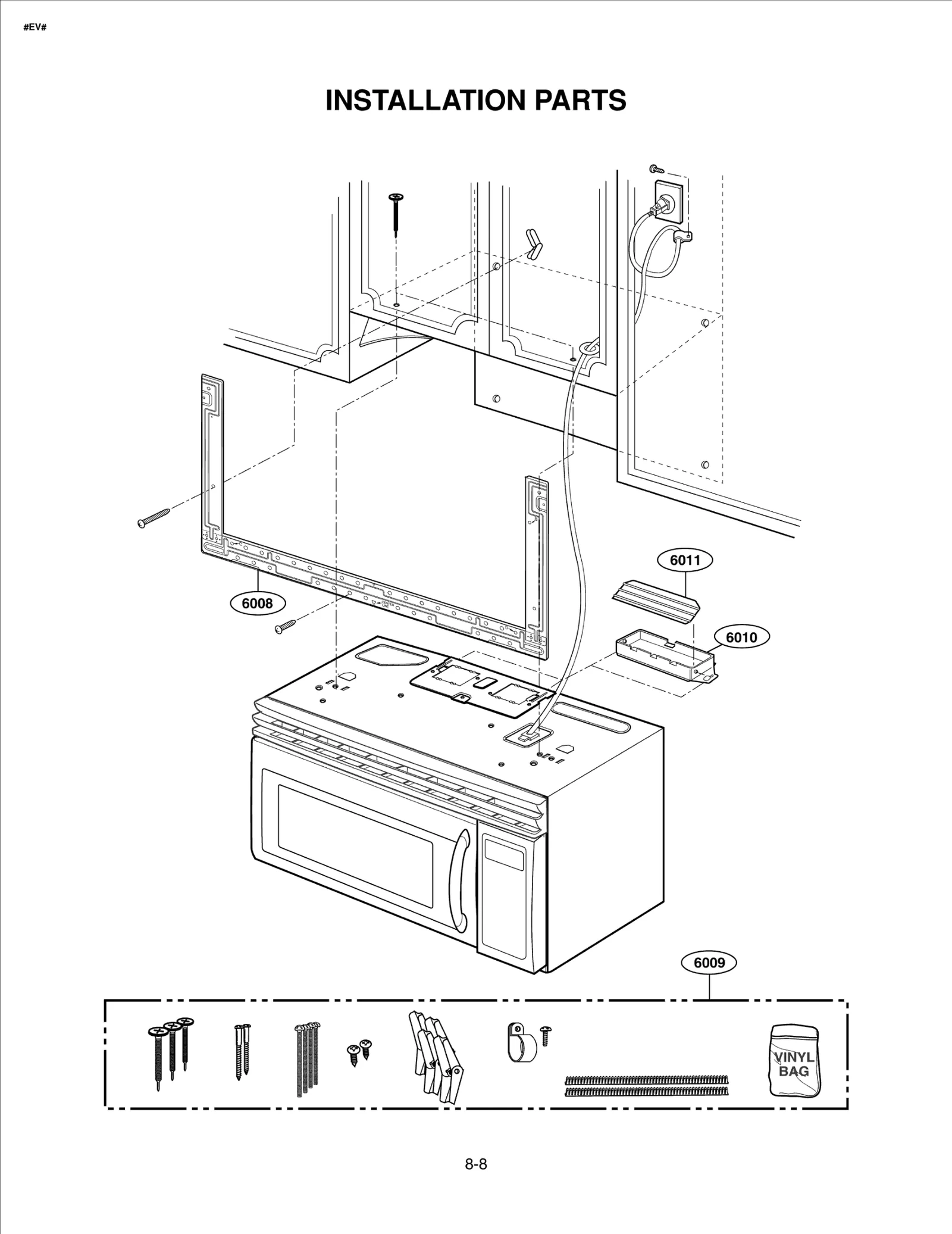

Diagram 7
Diagram 8
Common parts from model LG MMV5207AAQ OTR
*01
Manual,Owners LGE 3828W5A4122 Contact Us For Availability
*02
LGE 3828W5S3620 LGE 3828W5S3620 Contact Us For Availability
*04
Manual,Installation LGE 3828W5U0363 Contact Us For Availability
*05
Label,Cooking Guide LGE 3850W1D134A Contact Us For Availability
*06
TEMPLATE LGE 4922W1A027A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A060A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W1T0035 Contact Us For Availability
*10
Box LGE 3890W3Y843A Contact Us For Availability
1004
CHOKE COVER LGE 3552W0A001B Contact Us For Availability
3002
GLASS TRAY LGE 3390W0A001A Contact Us For Availability
3007
GUIDE,AIR LGE 4974W1A038A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A007A Contact Us For Availability
3017
RING ASSEMBLY LGE 4351W1A001C Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V008F Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3054
RIVET ASSEMBLY LGE 4051W3A001C Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5003
GUIDE,SUCTION LGE 4974W1A035A Contact Us For Availability
5006
DUCT LGE 5208W0A019A Contact Us For Availability
5007
FAN LGE 5900W1A027B Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D100C Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014T Contact Us For Availability
5014
HARNESS LGE 6877W1A579A Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5024
FAN ASSEMBLY LGE 5901W1A002A Contact Us For Availability
5027
WIRE-VOLTAGE LGE 3B72342Q Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A169A Contact Us For Availability
5049
GUIDE,AIR LGE 4974W1A037A Contact Us For Availability
5051
PLATE,BOTTOM LGE 3301W1A045B Contact Us For Availability
5383
SERVICE KIT LGE 383E81A010A Contact Us For Availability
6008
PLATE ASSEMBLY LGE 3301W0A003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771H Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C10
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C11
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C60
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C65
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C95
LGE 0CH1221K566 LGE 0CH1221K566 Contact Us For Availability
CR1
RESONATOR LGE 6212JB8001A Contact Us For Availability
D10
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D21
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
D34
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
D40
DIODE,SWITCHING LGE 0DS414809AB Contact Us For Availability
DP1
DIGITRON LGE 6302W5A023A Contact Us For Availability
J202
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
J302
RESISTOR,CHIP LGE 0RH0000L622 Contact Us For Availability
PT1
POWER TRANS 120/60 UL,12V/277M LGE 6010W2P008A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR150509AC Contact Us For Availability
Q43
TRANSISTOR LGE 0TR105009AB Contact Us For Availability
Q71
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R31
LGE 0RD1200G608 LGE 0RD1200G608 Contact Us For Availability
R35
LGE 0RD4700G608 LGE 0RD4700G608 Contact Us For Availability
R39
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R41
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3301L622 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R60
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R61
Resistor,Chip LGE 0RH2701L622 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
LGE 0RH1001L422 LGE 0RH1001L422 Contact Us For Availability
R67
LGE 0RN1072G408 LGE 0RN1072G408 Contact Us For Availability
R68
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R71
LGE 0RD2004G608 LGE 0RD2004G608 Contact Us For Availability
R72
LGE 0RD1004G608 LGE 0RD1004G608 Contact Us For Availability
R74
LGE 0RD2703G608 LGE 0RD2703G608 Contact Us For Availability
R75
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R94
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R100
LGE 0RD3302G608 LGE 0RD3302G608 Contact Us For Availability
R101
LGE 0RD1202G608 LGE 0RD1202G608 Contact Us For Availability
R111
RESISTOR,METAL GLAZED(CHIP) LGE 0RH4701L622 Contact Us For Availability
RY5
RELAY LGE 6920WRD013C Contact Us For Availability
RY7
RELAY LGE 6920W5A009A Contact Us For Availability
RY9
RELAY LGE 6920W5A014A Contact Us For Availability
U02
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
LGE 0DZ750009AA LGE 0DZ750009AA Contact Us For Availability
× ![]()
