Model Maytag MMV4207JB0 MICROWAVE HOOD, 1.9 CUBIC FOOT – Common Parts & Diagrams

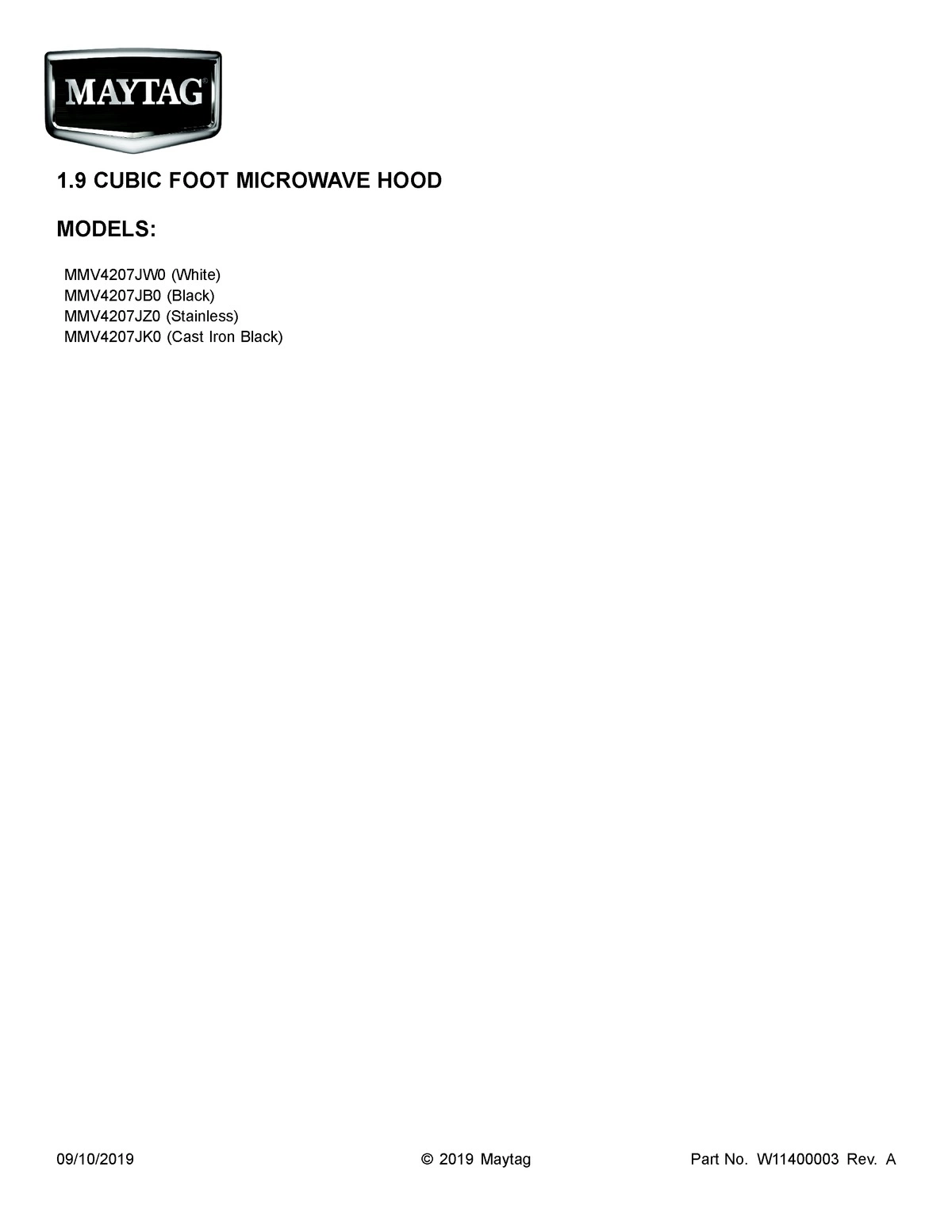

01 - COVER SHEET

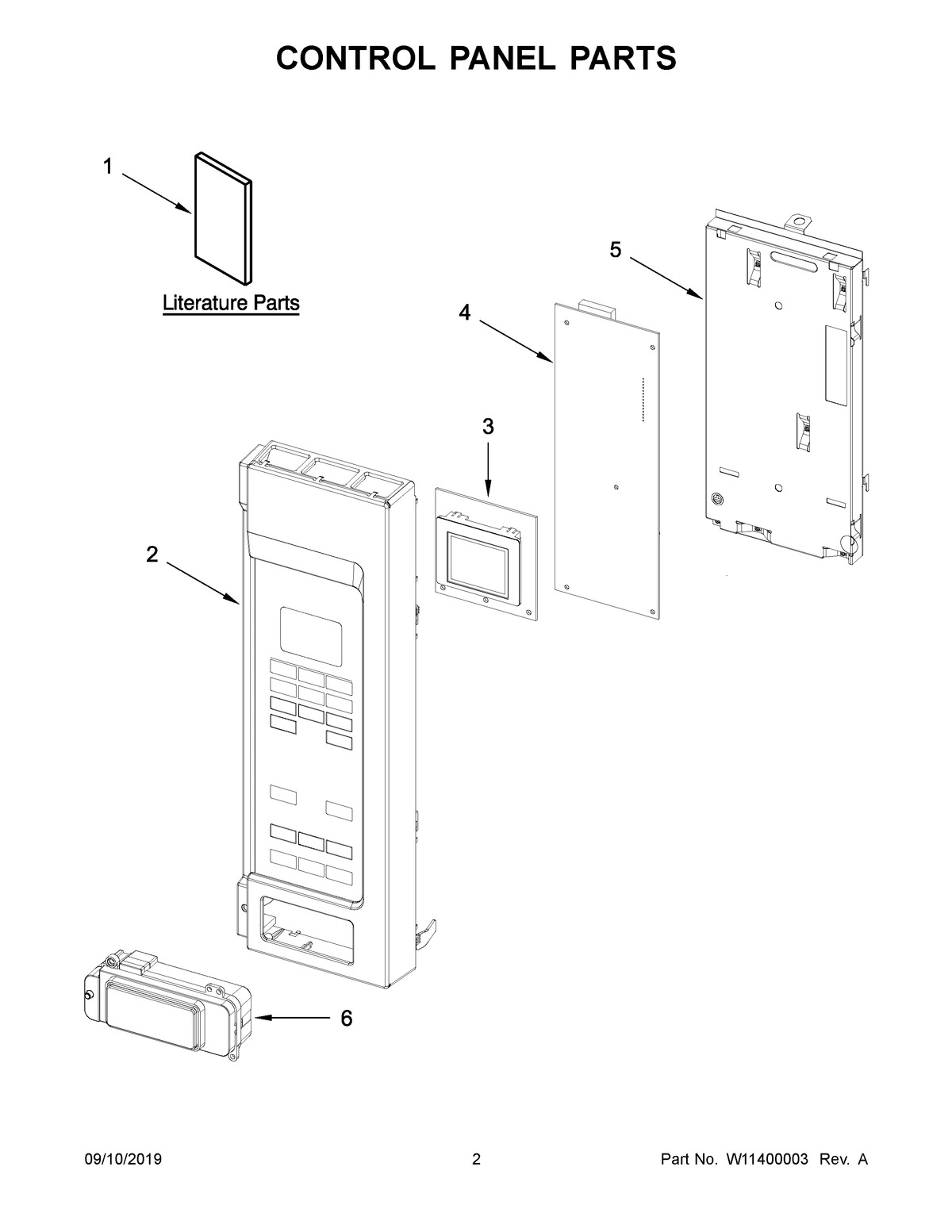

02 - CONTROL PANEL PARTS

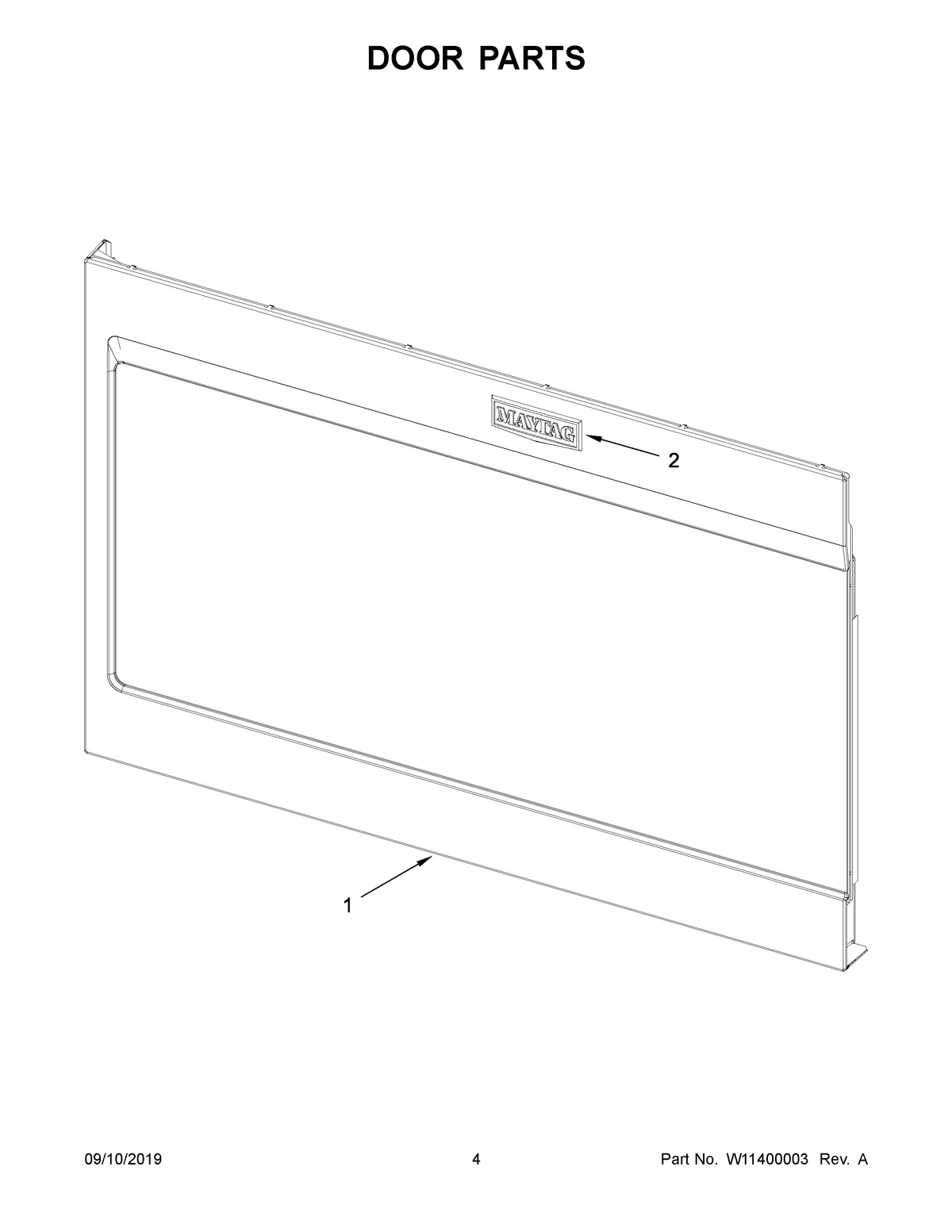

03 - DOOR PARTS

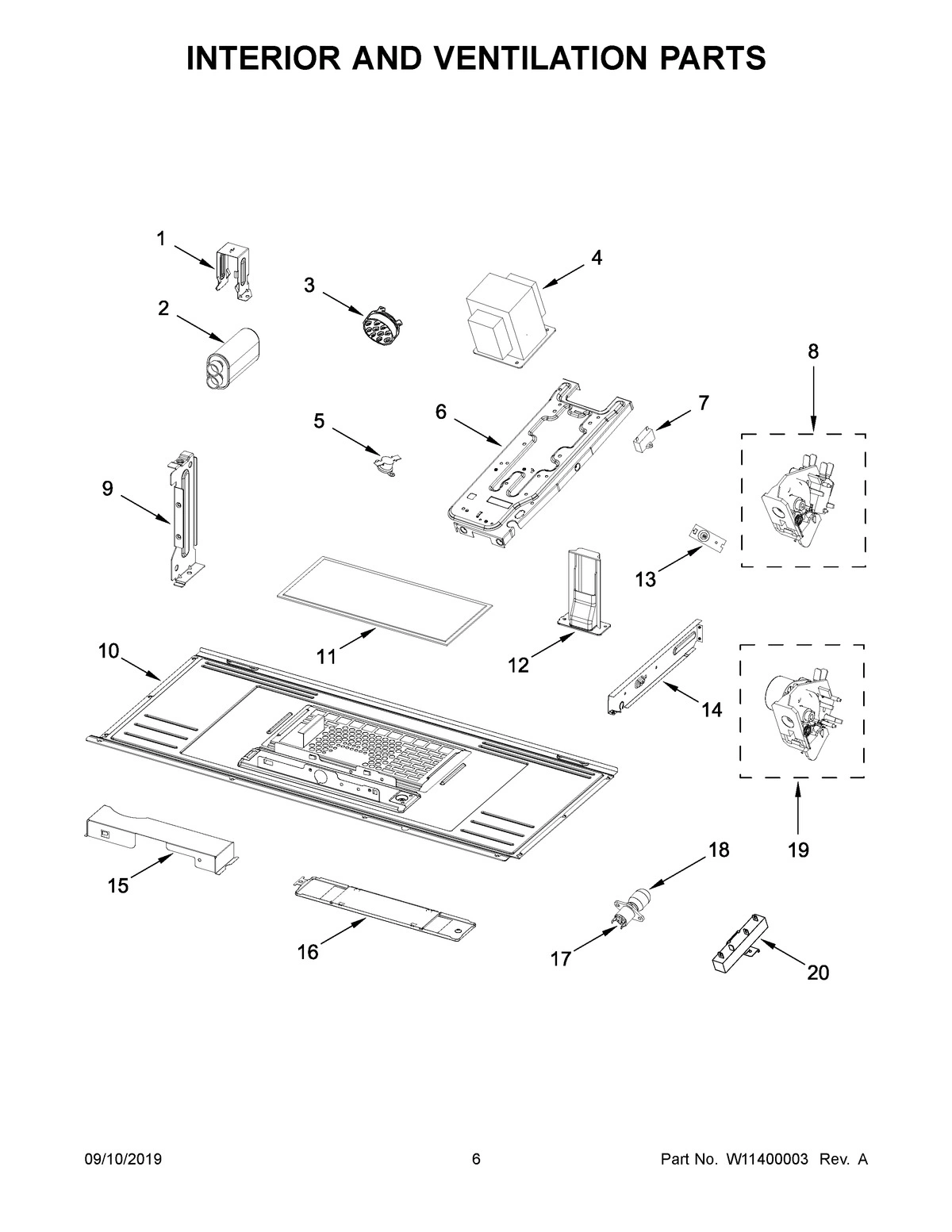

04 - INTERIOR AND VENTILATION PARTS

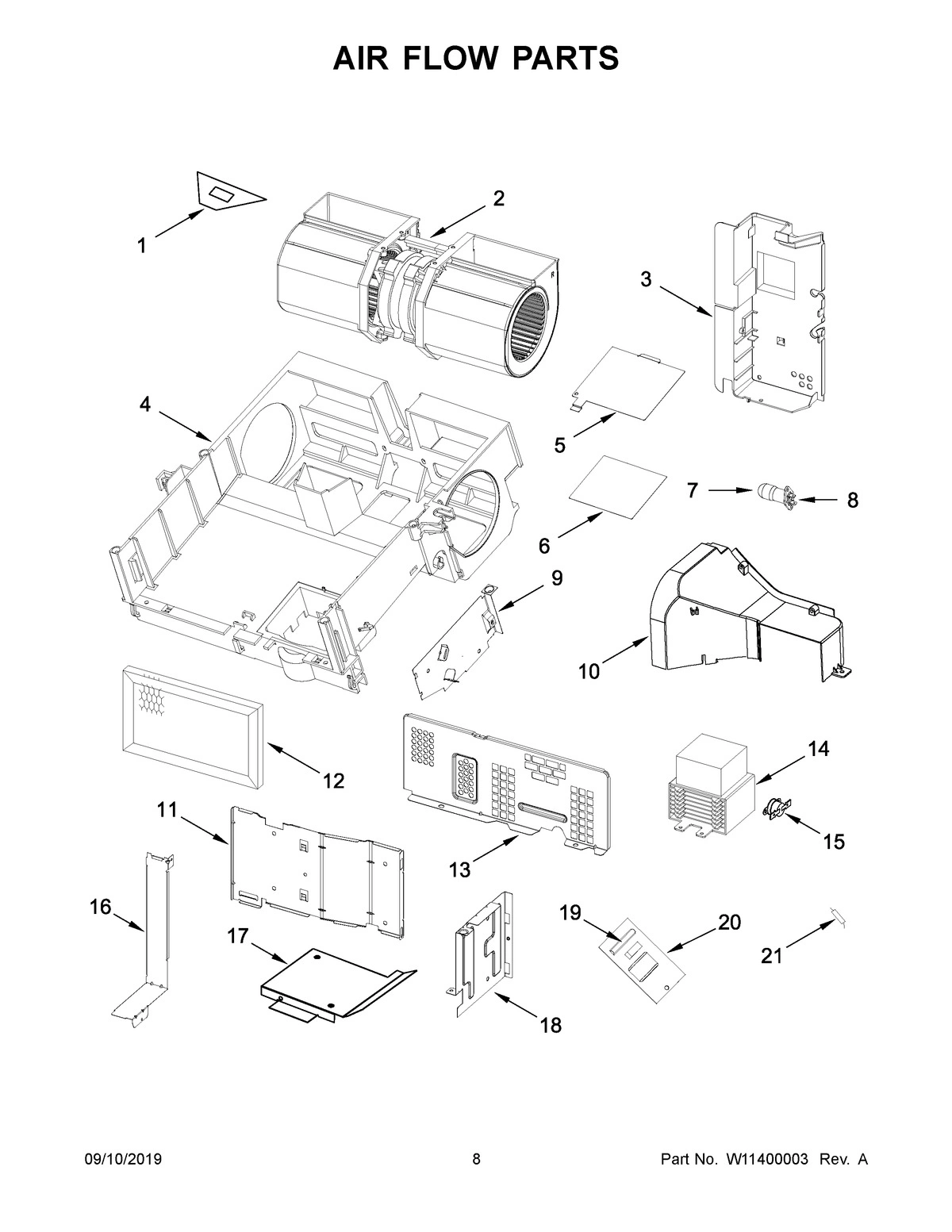

05 - AIR FLOW PARTS

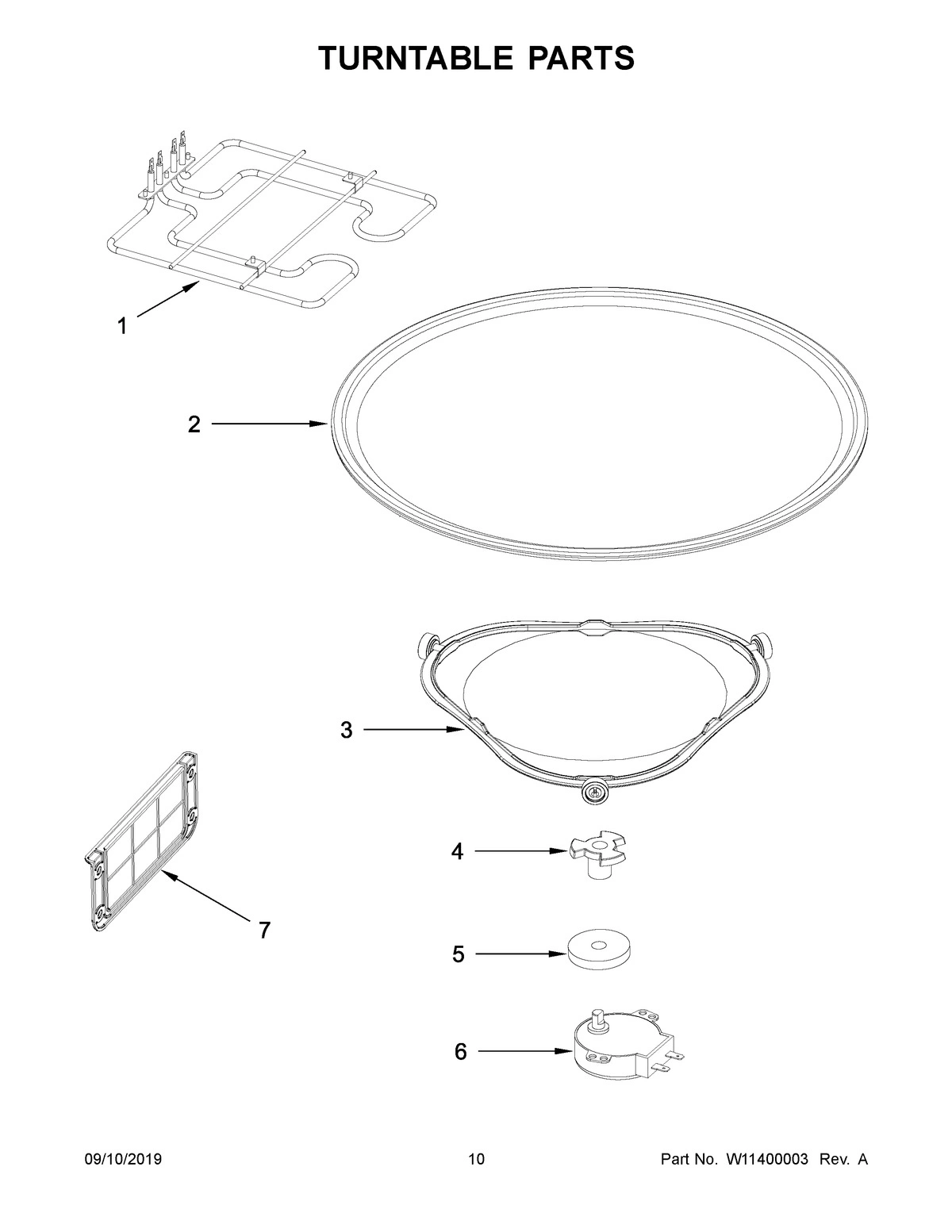

06 - TURNTABLE PARTS

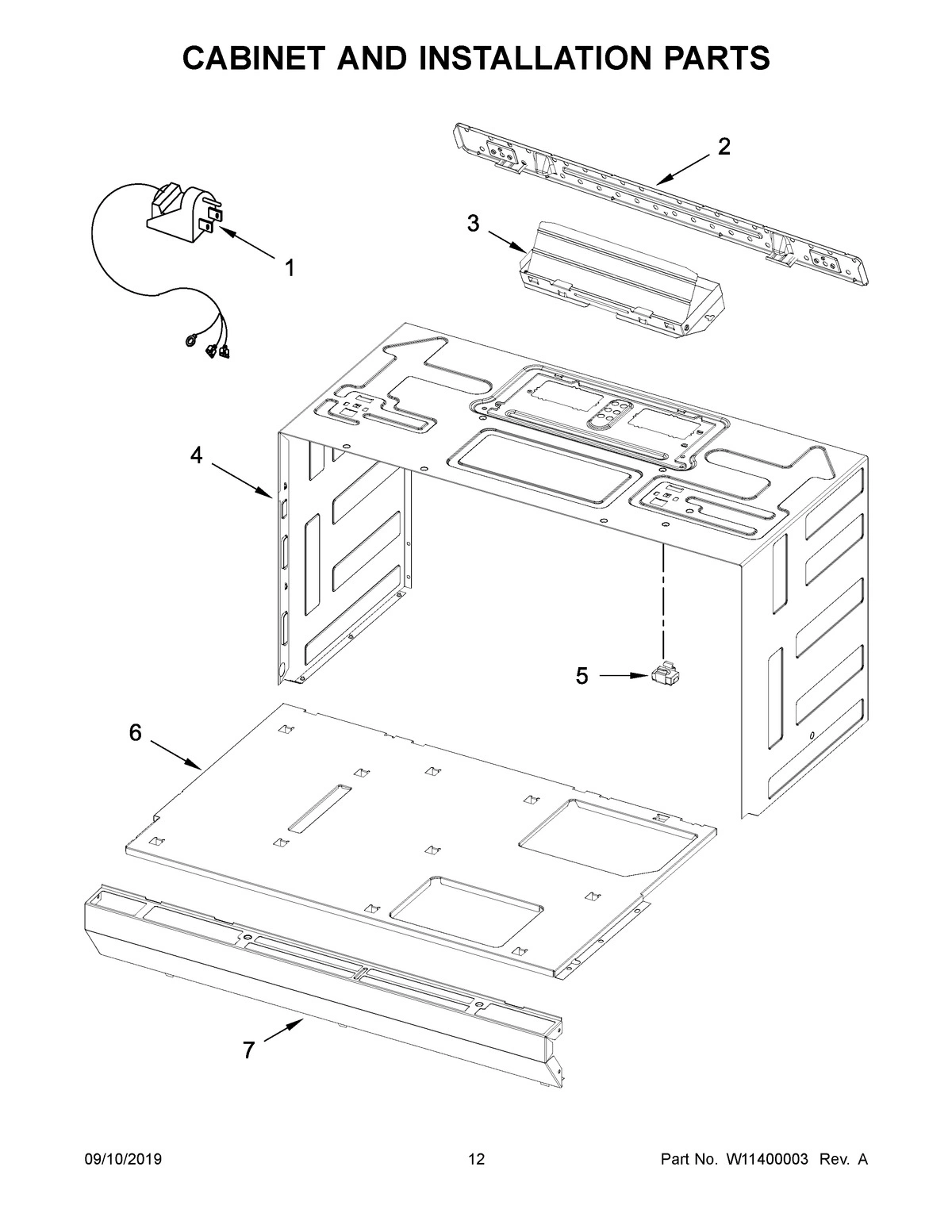

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV4207JB0 MICROWAVE HOOD, 1.9 CUBIC FOOT
1
MAY W11199602 MAY W11199602 Contact Us For Availability
1
MAY W11387162 MAY W11387162 Contact Us For Availability
1
BRACKET, CAPACITOR MAY W11265233 Contact Us For Availability
1
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
1
MAY W11268380 MAY W11268380 Contact Us For Availability
1
CORD, POWER MAY W10654511 Contact Us For Availability
1A
MAY W11297789 MAY W11297789 Contact Us For Availability
1A
MAY W11387165 MAY W11387165 Contact Us For Availability
1B
MAY W11297782 MAY W11297782 Contact Us For Availability
1B
MAY W11387160 MAY W11387160 Contact Us For Availability
1C
MAY W11387167 MAY W11387167 Contact Us For Availability
2
MAY W11386307 MAY W11386307 Contact Us For Availability
2
BADGE MAY W10685340 Contact Us For Availability
2
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
2
MOTOR, FAN MAY W11109701 Contact Us For Availability
2
MAY W11335034 MAY W11335034 Contact Us For Availability
2
PLATE, MOUNTING MAY W11025649 Contact Us For Availability
2A
MAY W11386294 MAY W11386294 Contact Us For Availability
2B
MAY W11386249 MAY W11386249 Contact Us For Availability
2C
MAY W11386250 MAY W11386250 Contact Us For Availability
3
MAY W11318425 MAY W11318425 Contact Us For Availability
3
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
3
MAY W11292618 MAY W11292618 Contact Us For Availability
3
RING, TURNTABLE (WITH ROLLERS) MAY W11193600 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MAY W11318422 MAY W11318422 Contact Us For Availability
4
MAY W11043565 MAY W11043565 Contact Us For Availability
4
MAY W11268295 MAY W11268295 Contact Us For Availability
4
MAY W11319884 MAY W11319884 Contact Us For Availability
4
CASE, OUTER (BLACK) MAY W11207441 Contact Us For Availability
5
MAY W11292180 MAY W11292180 Contact Us For Availability
5
THERMOSTAT, CAVITY MAY W10668273 Contact Us For Availability
5
COVER, LAMP MAY 8206382 Contact Us For Availability
5
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
5
ASSEMBLY, MOUNTING NUT MAY W11122643 Contact Us For Availability
6
MAY W11386322 MAY W11386322 Contact Us For Availability
6
MAY W11268348 MAY W11268348 Contact Us For Availability
6
MAY W11268331 MAY W11268331 Contact Us For Availability
6
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
6
MAY W11268327 MAY W11268327 Contact Us For Availability
6A
MAY W11386320 MAY W11386320 Contact Us For Availability
6B
MAY W11386323 MAY W11386323 Contact Us For Availability
6C
MAY W11386319 MAY W11386319 Contact Us For Availability
7
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
7
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
7
MAY W11268343 MAY W11268343 Contact Us For Availability
7
GRILLE, VENT (BLACK) MAY W10845643 Contact Us For Availability
8
ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES) MAY W11169310 Contact Us For Availability
8
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
9
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
9
MAY W11293488 MAY W11293488 Contact Us For Availability
10
MAY W11295401 MAY W11295401 Contact Us For Availability
10
MAY W11283720 MAY W11283720 Contact Us For Availability
11
MAY W11268912 MAY W11268912 Contact Us For Availability
11
MAY W11268306 MAY W11268306 Contact Us For Availability
12
MAY W11376573 MAY W11376573 Contact Us For Availability
12
FILTER, CHARCOAL MAY W10845250 Contact Us For Availability
13
THERMISTOR MAY W10163422 Contact Us For Availability
13
SHIELD, FINGER MAY W10342991 Contact Us For Availability
14
MAY W11295335 MAY W11295335 Contact Us For Availability
14
MAY W10638903 MAY W10638903 Contact Us For Availability
15
MAY W11361503 MAY W11361503 Contact Us For Availability
15
MAY W11360415 MAY W11360415 Contact Us For Availability
16
MAY W11295403 MAY W11295403 Contact Us For Availability
16
COVER, AIRGUIDE INLET MAY W10828038 Contact Us For Availability
17
HOLDER, LAMP MAY W10210871 Contact Us For Availability
17
MAY W11314197 MAY W11314197 Contact Us For Availability
18
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
18
MAY W11268304 MAY W11268304 Contact Us For Availability
19
ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES) MAY W11169312 Contact Us For Availability
19
FUSE MAY W10138793 Contact Us For Availability
20
MAY W11259892 MAY W11259892 Contact Us For Availability
20
BOARD, FILTER MAY W10531156 Contact Us For Availability
21
DIODE, HIGH VOLTAGE MAY W11222648 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MAY W11243462 MAY W11243462 Contact Us For Availability
NI
MAY W11334600 MAY W11334600 Contact Us For Availability
× ![]()
