Model Whirlpool MME08XW1 – Common Parts & Diagrams

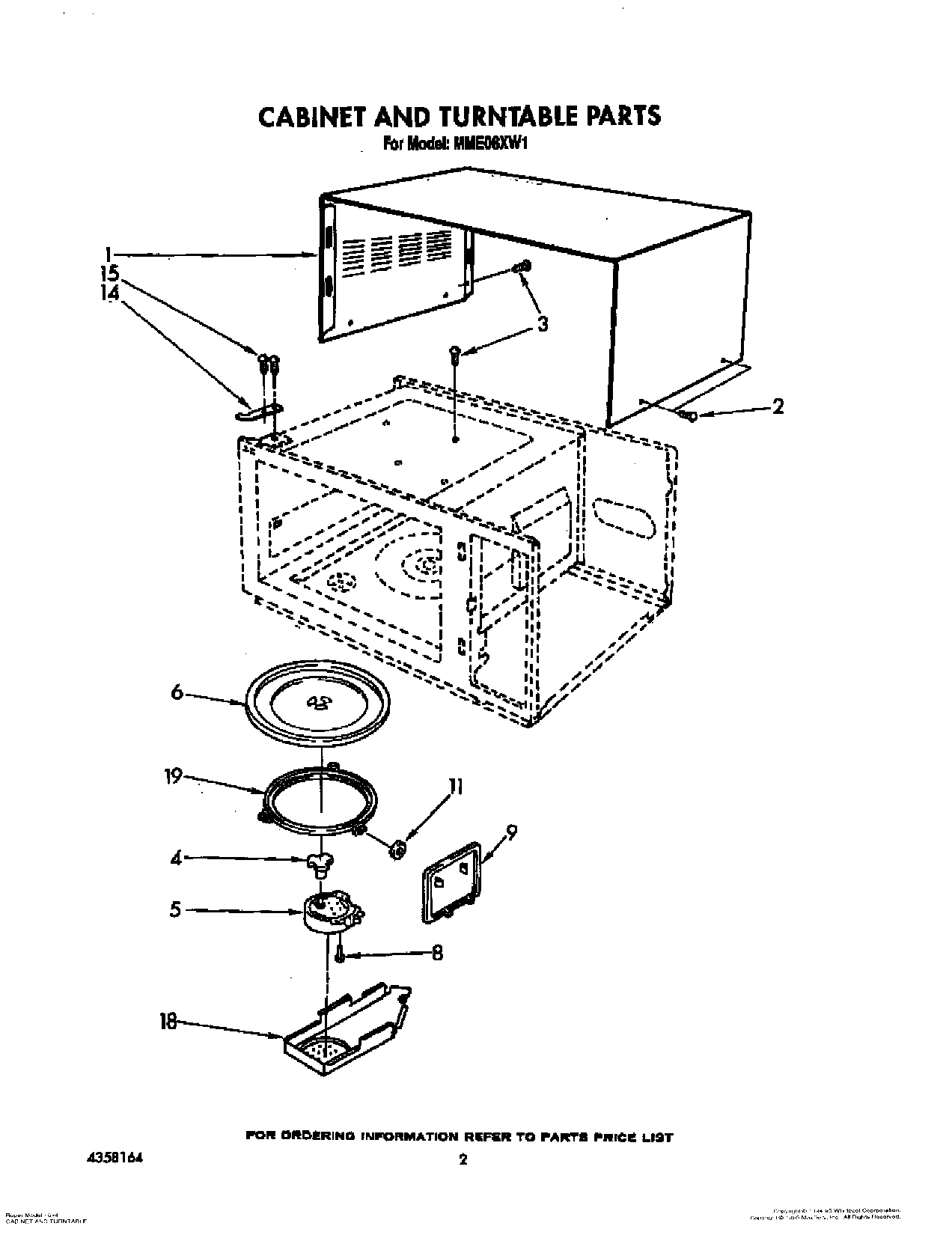

02 - CABINET AND TURNTABLE

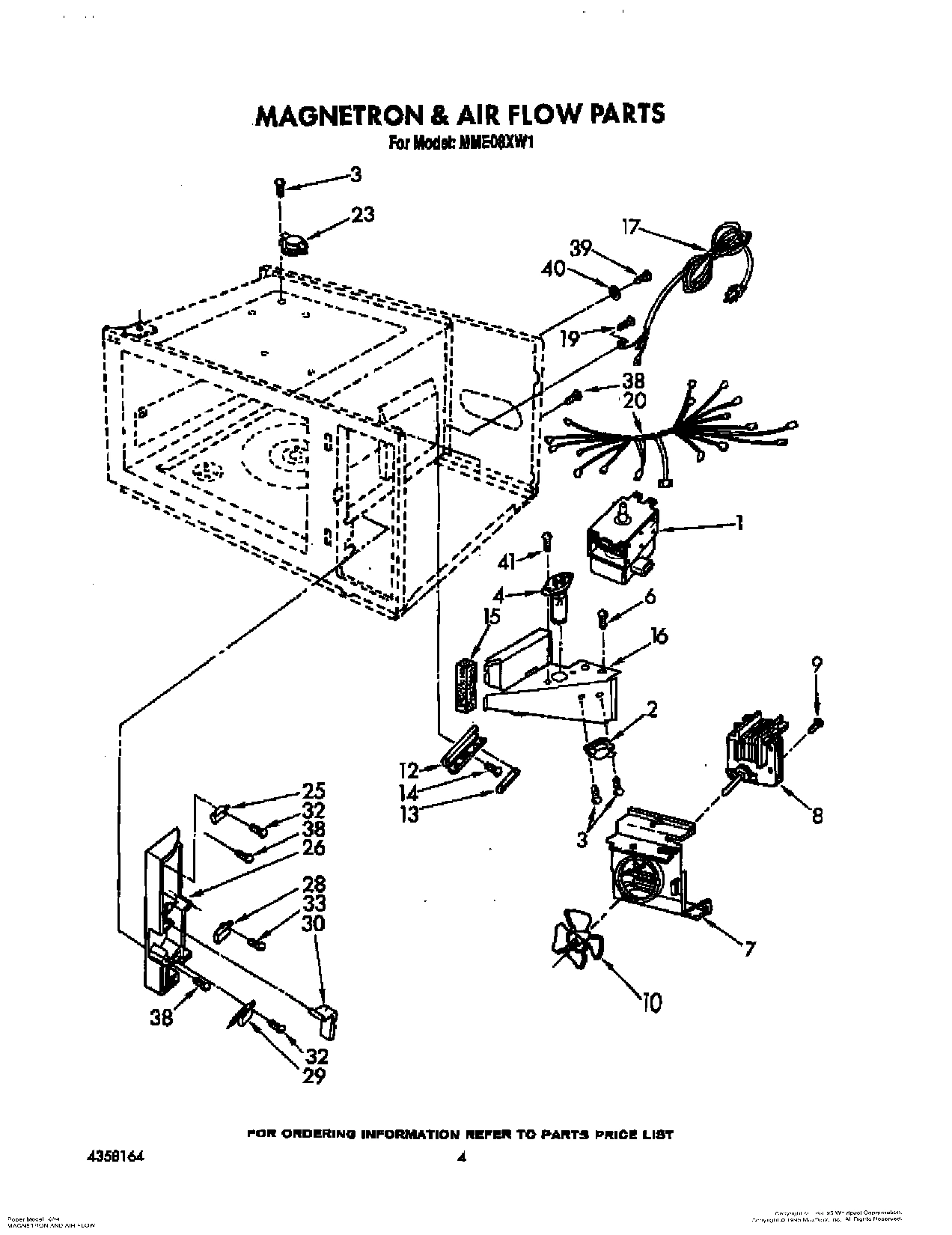

04 - MAGNETRON AND AIR FLOW, LIT/OPTIONAL
03 - DOOR AND CONTROL PANEL
05 - BASEPLATE
Common parts from model Whirlpool MME08XW1
Under The cabinet Mounting Kit WPL 4158693 Contact Us For Availability
Installation Instructions for WPL 4158695 Contact Us For Availability
Wall Template WPL 4158698 Contact Us For Availability
Guide, Use And Care WPL LIT4158664 Contact Us For Availability
Tech Sheet WPL LIT4158684 Contact Us For Availability
U.T.C. Card WPL LIT4158728 Contact Us For Availability
Repair Parts List WPL LIT4358164 Contact Us For Availability
1
Magnetron WPL 4158798 Contact Us For Availability
1
Control Panel Complete WPL 4358097 Contact Us For Availability
1
Baseplate WPL 4158619 Contact Us For Availability
2
Screw No.4x12mm (4) WPL 4158084 Contact Us For Availability
2
Thermostat WPL 4158474 Contact Us For Availability
2
Microcomputer WPL 4358096 Contact Us For Availability
2
Transformer WPL 4158802 Contact Us For Availability
3
Screw No.5x12mm (4) WPL 4158192 Contact Us For Availability
3
Screw No.3x8mm (4) WPL 4158082 Contact Us For Availability
4
Shaft, Turntable WPL 4158786 Contact Us For Availability
4
Baseless Lamp WPL 4158586 Contact Us For Availability
4
Lever, Release WPL 4158808 Contact Us For Availability
4
Capacitor WPL 4158507 Contact Us For Availability
5
Motor, Turntable WPL 4158782 Contact Us For Availability
5
Spring, Release Button (2) WPL 4158809 Contact Us For Availability
5
H.V. Diode Cable WPL 4158897 Contact Us For Availability
6
Tray, Glass WPL 4158813 Contact Us For Availability
6
Screw, No.4 x 8 WPL 4158791 Contact Us For Availability
6
Release Button WPL 4158810 Contact Us For Availability
6
Bracket, Capacitor WPL 4158799 Contact Us For Availability
7
Bracket, Fan WPL 4158797 Contact Us For Availability
7
Screw No.4x10mm (8) WPL 4158076 Contact Us For Availability
7
Door, Complete WPL 4158811 Contact Us For Availability
8
Motor, Fan WPL 4158796 Contact Us For Availability
8
Digitron Window WPL 4158772 Contact Us For Availability
8
H.V. Cable WPL 4158805 Contact Us For Availability
9
Cap, Air Guide WPL 4358094 Contact Us For Availability
9
Screw No.4x28mm (2) WPL 4158189 Contact Us For Availability
9
Hinge Plate, Lower WPL 4358092 Contact Us For Availability
10
Fan WPL 4158758 Contact Us For Availability
10
Washer, Hinge WPL 4158419 Contact Us For Availability
11
Roller, Table (3) WPL 4158787 Contact Us For Availability
11
Leg, Left WPL 4158780 Contact Us For Availability
12
Holder, Fuse WPL 4158761 Contact Us For Availability
12
Screw No.4x16mm (4) WPL 4158472 Contact Us For Availability
13
Screw WPL 4158079 Contact Us For Availability
13
Fuse WPL 4158378 Contact Us For Availability
14
Hinge, Upper WPL 4158739 Contact Us For Availability
14
Screw, Machine (1) WPL 4158194 Contact Us For Availability
15
Seal, Foam WPL 4158967 Contact Us For Availability
15
Bracket, Hinge WPL 4358093 Contact Us For Availability
16
Air Duct WPL 4158801 Contact Us For Availability
16
Leg, Right WPL 4158781 Contact Us For Availability
17
Power Cord WPL 4158760 Contact Us For Availability
18
Cover, Turntable Motor WPL 4158783 Contact Us For Availability
19
Base, Turntable WPL 4158788 Contact Us For Availability
20
Wiring Harness WPL 4358095 Contact Us For Availability
23
Thermostat, Oven WPL 4158795 Contact Us For Availability
26
Latch Board WPL 4158792 Contact Us For Availability
29
Micro Switch, Secondary WPL 4158651 Contact Us For Availability
30
Release Rod WPL 4158794 Contact Us For Availability
32
Screw No.3x16mm (2) WPL 4158187 Contact Us For Availability
33
Screw No.3x30mm (1) WPL 4158208 Contact Us For Availability
38
Screw (5) WPL 4158307 Contact Us For Availability
40
Washer WPL 4339419 Contact Us For Availability
× ![]()
