Model Electrolux MLXE42REW8 LAUNDRY CENTER – Common Parts & Diagrams

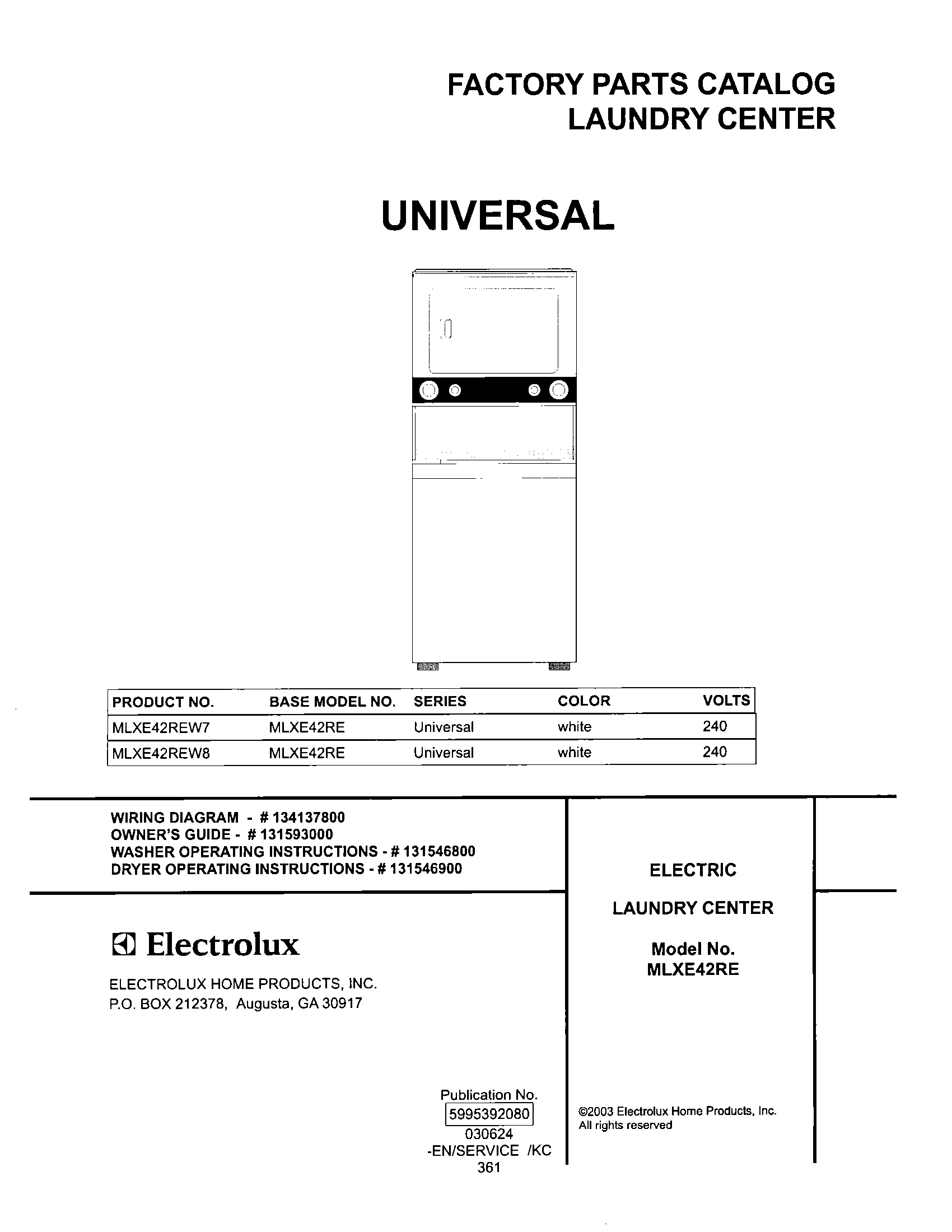

01 - COVER

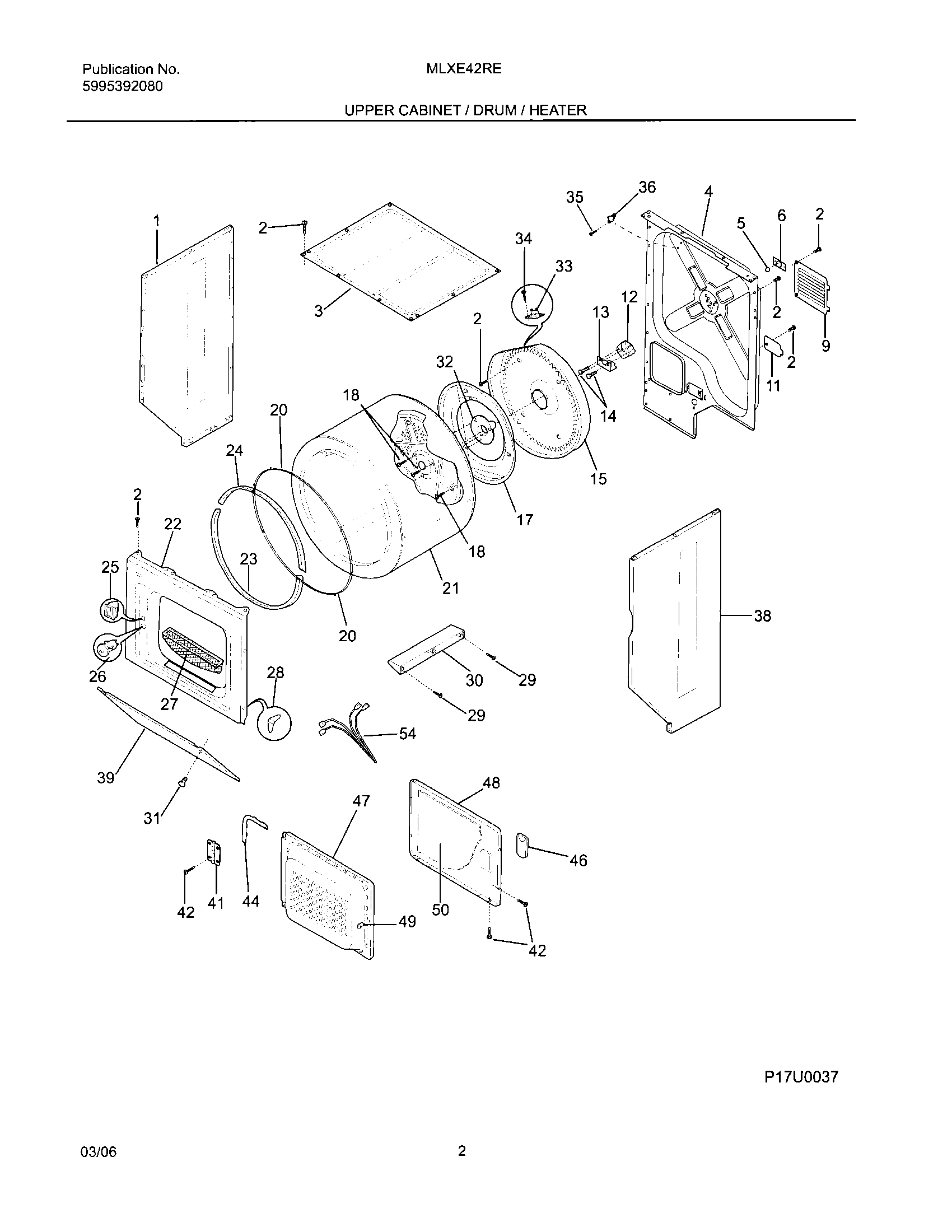

03 - UPPER CABINET/DRUM/HEATER
05 - MOTOR/BLOWER/BELT
07 - CONTROL PANEL
09 - LOWER CABINET/TOP
11 - MOTOR/TUB
13 - TRANSMISSION
14 - WIRING DIAGRAM
Common parts from model Electrolux MLXE42REW8 LAUNDRY CENTER
1
Cap,agitator ,standard,slim WCI 3204395 Contact Us For Availability
1
WCI 131206800 WCI 131206800 Contact Us For Availability
1
SEAL-AIR DUCT WCI 131295200 Contact Us For Availability
1
Timer,3-off WCI 131225300 Contact Us For Availability
2
Screw,pan head ,8-18B x 0.31 WCI 131168200 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
3
WCI 131398303 WCI 131398303 Contact Us For Availability
3
Panel,top WCI 131883301 Contact Us For Availability
3A
Bumper,lid ,front WCI 134075500 Contact Us For Availability
4
WCI 131212301 WCI 131212301 Contact Us For Availability
4
Fastener,push-in WCI 131362400 Contact Us For Availability
5
WCI 5303281019 WCI 5303281019 Contact Us For Availability
5
Grommet,hinge WCI 5303208743 Contact Us For Availability
6
Clip,ball ,steel ,flat nut WCI 5303281020 Contact Us For Availability
6
Lid,washer ,white WCI 5303212872 Contact Us For Availability
6
WCI 134197900 WCI 134197900 Contact Us For Availability
7
WASHER-INLET HOSE WCI 5303161296 Contact Us For Availability
8
Timer,washer WCI 131964100 Contact Us For Availability
8
WCI 3205245 WCI 3205245 Contact Us For Availability
9
WCI 131390000 WCI 131390000 Contact Us For Availability
10
WCI 131628900 WCI 131628900 Contact Us For Availability
11
Screw,lid strike mtg ,6-20B X 0.375 WCI 3204368 Contact Us For Availability
12
WCI 131825900 WCI 131825900 Contact Us For Availability
12
WCI 131476300 WCI 131476300 Contact Us For Availability
14
WCI 131658100 WCI 131658100 Contact Us For Availability
14
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri WCI 131205400 Contact Us For Availability
15
THERMOSTAT-CONTROL WCI 3204307 Contact Us For Availability
16
WCI 131545101 WCI 131545101 Contact Us For Availability
17
Baffle,heater shield WCI 3204254 Contact Us For Availability
18
WCI 131557201 WCI 131557201 Contact Us For Availability
18
WCI 131413600 WCI 131413600 Contact Us For Availability
20
Pin,slide ,side to top WCI 3204374 Contact Us For Availability
20
Screw,tub bearing ,8-12B x 0.750 WCI 3205150 Contact Us For Availability
20
End Cap,black ,LH WCI 131288100 Contact Us For Availability
21
WASHER, SPIN BEARING, UPPER WCI 5308002401 Contact Us For Availability
21
WCI 134122532 WCI 134122532 Contact Us For Availability
21A
Knob,washer timer ,black WCI 131977000 Contact Us For Availability
22
SPRING-IDLER WCI 3205241 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
22
WCI 134031600 WCI 134031600 Contact Us For Availability
23
WCI 134119400 WCI 134119400 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
25
Door Catch WCI 131658800 Contact Us For Availability
26
Seal Assy,tub ,transmission WCI 5303279394 Contact Us For Availability
26
BEARING-OUTER TUB WCI 3204405 Contact Us For Availability
27
WCI 134242400 WCI 134242400 Contact Us For Availability
28
WCI 5303281074 WCI 5303281074 Contact Us For Availability
28
Spacer,bearing block ,transmission WCI 131784400 Contact Us For Availability
29
WCI 131498301 WCI 131498301 Contact Us For Availability
29
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s WCI 131382300 Contact Us For Availability
30
WCI 131862900 WCI 131862900 Contact Us For Availability
31
Screw,pph ,10-16AB x 0.625 WCI 131202300 Contact Us For Availability
32
WCI 131777700 WCI 131777700 Contact Us For Availability
33
WCI 3204267 WCI 3204267 Contact Us For Availability
33
Spring,torsional WCI 3204425 Contact Us For Availability
33
WCI 131900200 WCI 131900200 Contact Us For Availability
34
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi WCI 131243800 Contact Us For Availability
34
Screw,cab body ,1/4-14 x 0.625 ,side-to-base WCI 131205500 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
35
RING-RETAINING WCI 3161433 Contact Us For Availability
35
WCI 131892100 WCI 131892100 Contact Us For Availability
36
WCI 134120900 WCI 134120900 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
Washer,spring type WCI 5303161306 Contact Us For Availability
38
WCI 5303318708 WCI 5303318708 Contact Us For Availability
38
WCI 5303311213 WCI 5303311213 Contact Us For Availability
39
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr WCI 131205100 Contact Us For Availability
41
WCI 131513300 WCI 131513300 Contact Us For Availability
42
WCI 131104303 WCI 131104303 Contact Us For Availability
43
Pad,leveling leg ,front WCI 131422100 Contact Us For Availability
43A
Pad,self lvlg leg ,rear WCI 131422200 Contact Us For Availability
45
Pin,panel locator ,side WCI 131346400 Contact Us For Availability
45A
Pin,panel locator ,front WCI 131346401 Contact Us For Availability
46
HANDLE-DOOR, WHITE WCI 131789400 Contact Us For Availability
48
Clamp,pump to trap WCI 131306234 Contact Us For Availability
48
WCI 131789303 WCI 131789303 Contact Us For Availability
49
HOSE-PUMP TO TUB WCI 131494800 Contact Us For Availability
50
WCI 134101800 WCI 134101800 Contact Us For Availability
53
WCI 5304401845 WCI 5304401845 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
54
Wiring Harness,door switch ,w/o light WCI 131498900 Contact Us For Availability
58
Screw,quadrex ,10-16AB X 0.750 WCI 134160900 Contact Us For Availability
68
RING-DRAIN HOSE WCI 131707800 Contact Us For Availability
NI
Insert,spring adjuster ,vertical WCI 5303212877 Contact Us For Availability
NI
· Seal,splash cover WCI 131901400 Contact Us For Availability
NI
Cushion,drain hose ,base WCI 131663500 Contact Us For Availability
NI
Bushing,snap-in ,drain hose WCI 131453000 Contact Us For Availability
NI
Clip,drain hose ,back sheet WCI 5303309503 Contact Us For Availability
NI
Screw,terminal block ,(3) WCI 5303208586 Contact Us For Availability
× ![]()
