Model Electrolux MLXE42RBW3 LAUNDRY CENTER – Common Parts & Diagrams

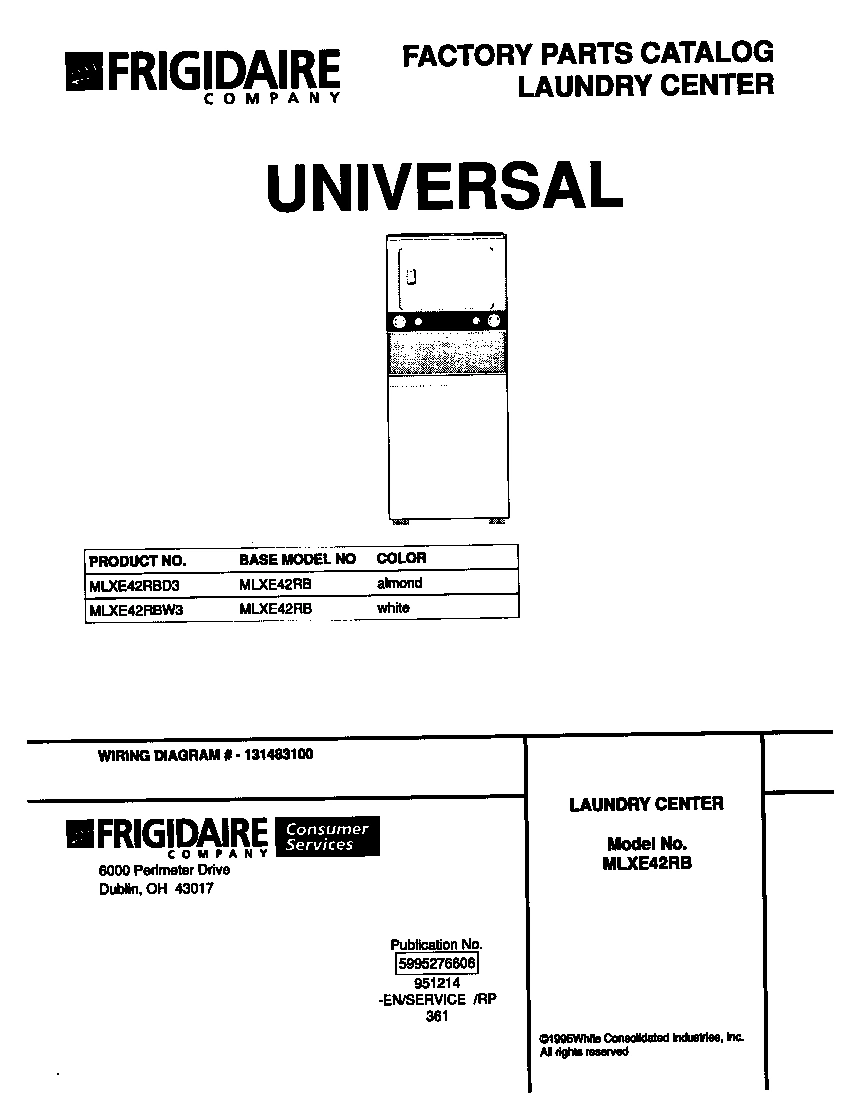

01 - COVER

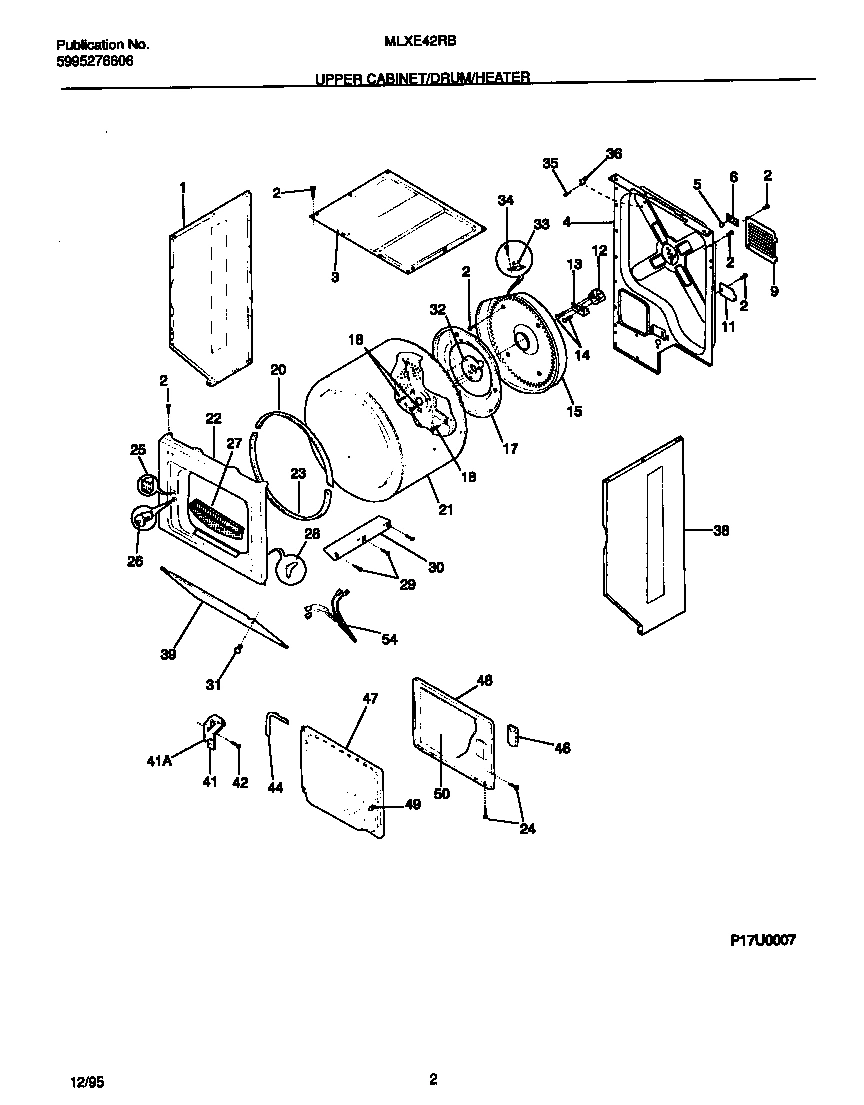

02 - UPPER CABINET/DRUM/HEATER

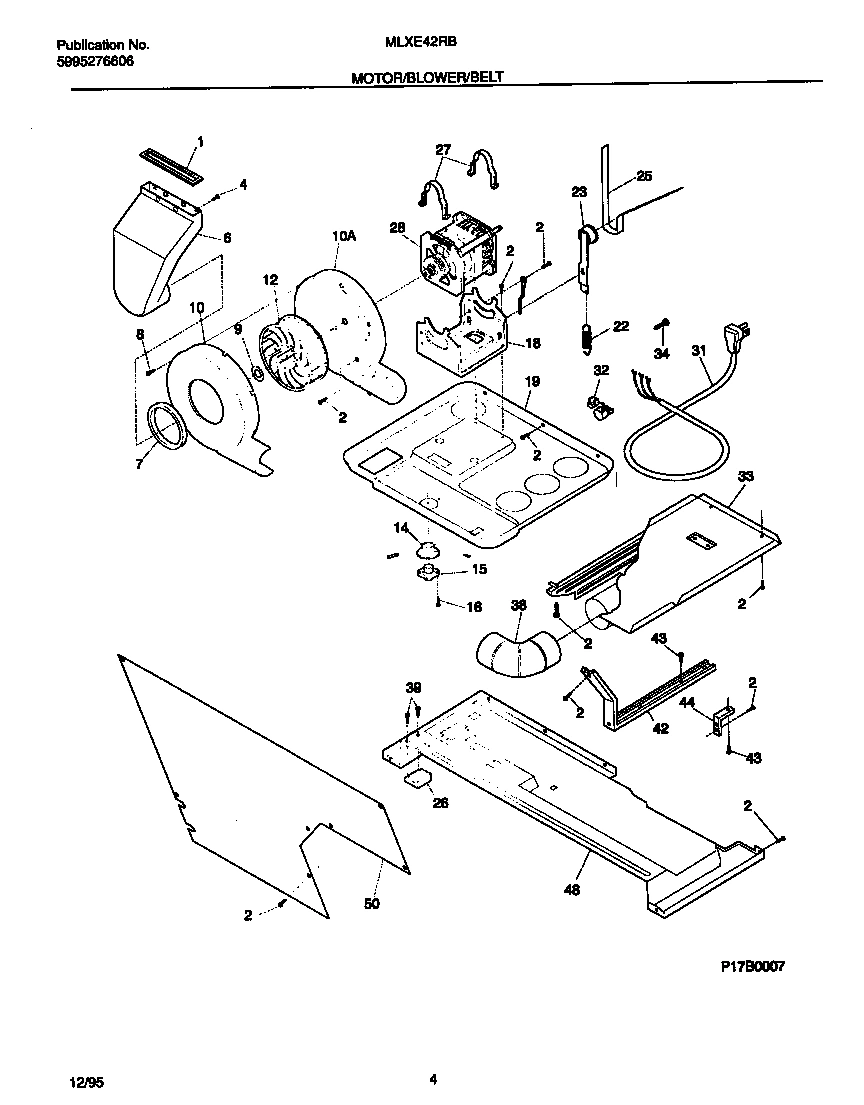

03 - MOTOR/BLOWER/BELT

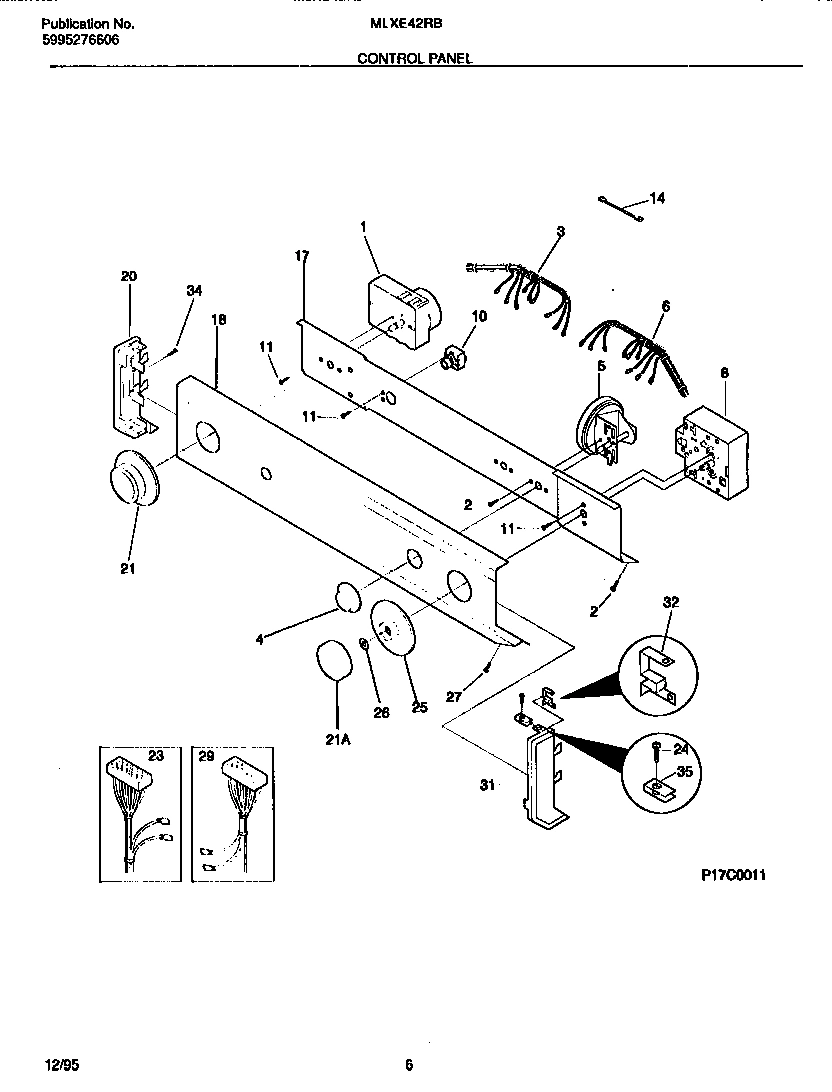

04 - CONTROL PANEL

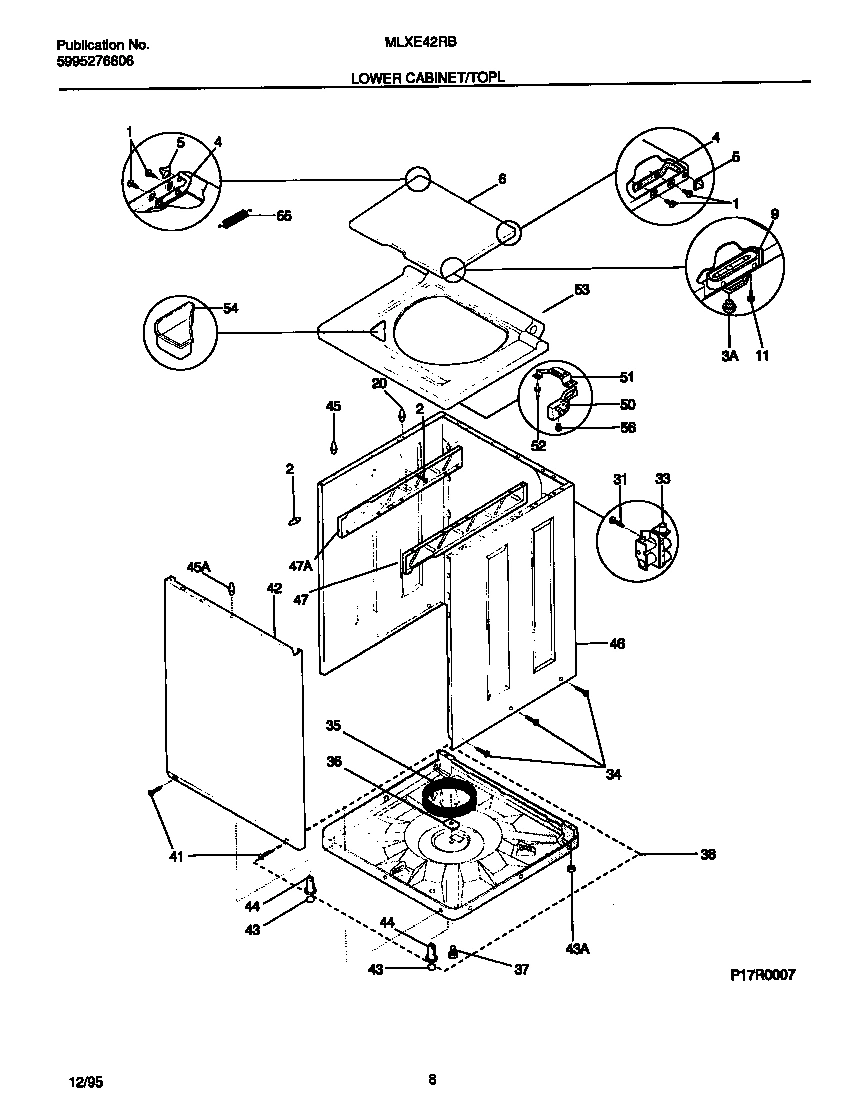

05 - LOWER CABINET/TOP

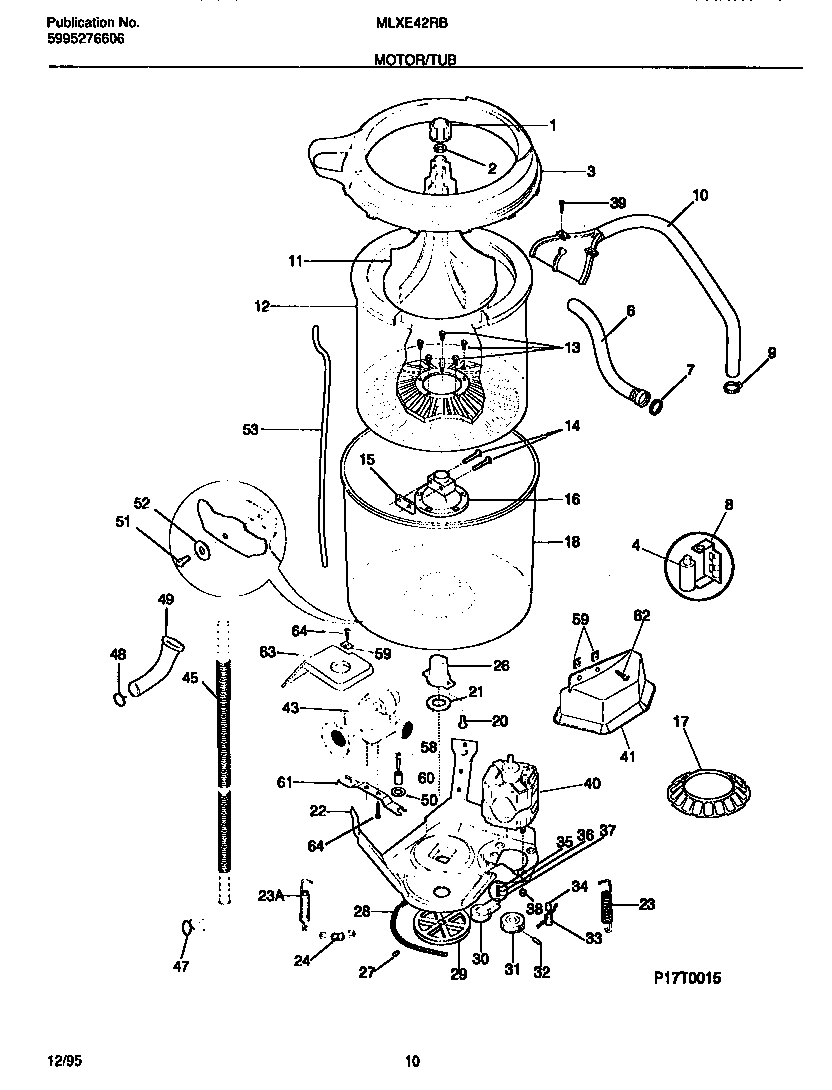

06 - MOTOR/TUB

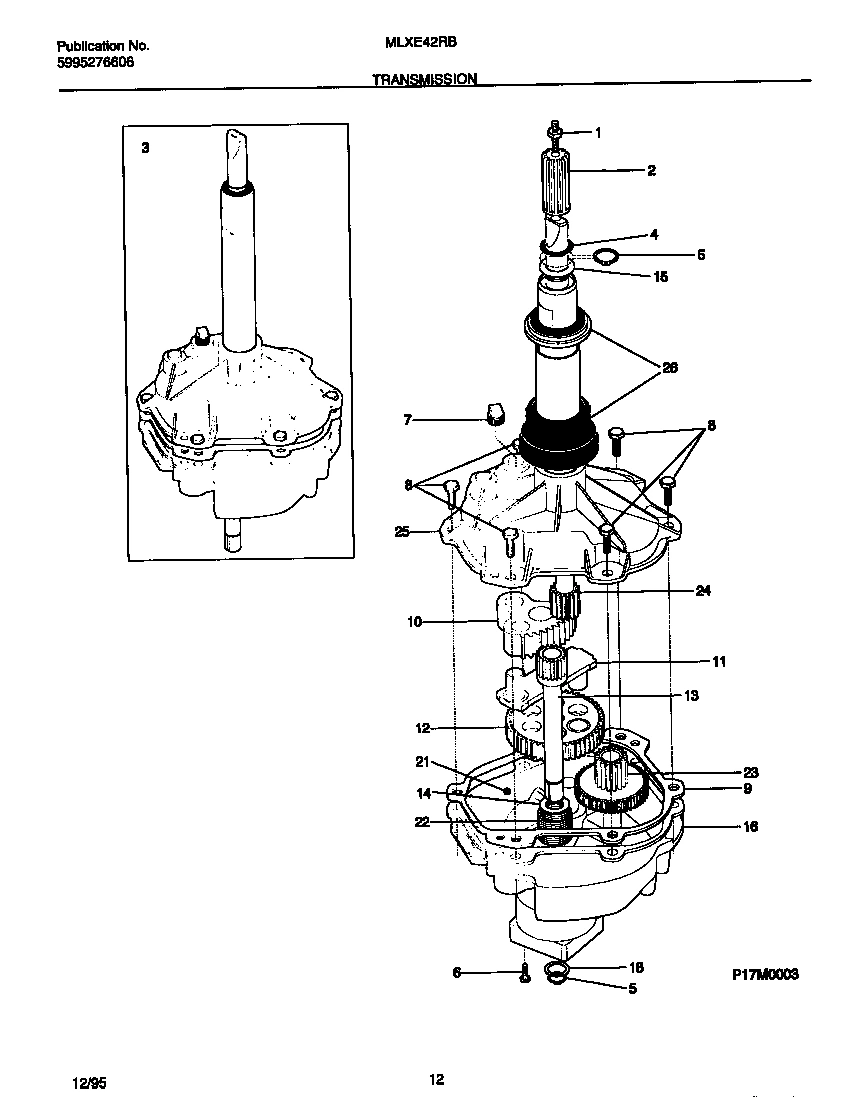

07 - TRANSMISSION
08 - WIRING DIAGRAM
Common parts from model Electrolux MLXE42RBW3 LAUNDRY CENTER
*29330
INSERT-SPRING ADJ WCI 5303212877 Contact Us For Availability
1
WCI 3204395 No Longer Available
1
WCI 131206800 WCI 131206800 Contact Us For Availability
1
WCI 131225300 WCI 131225300 Contact Us For Availability
1
SCREW-HINGE/LID, PPH 45 HDR PT, 6-32 X .312 WCI 5303211089 Contact Us For Availability
2
WCI 3204396 WCI 3204396 Contact Us For Availability
4
WCI 131212302 WCI 131212302 Contact Us For Availability
5
RING-RETAINING WCI 5303161223 Contact Us For Availability
5
WCI 3204362 WCI 3204362 Contact Us For Availability
6
WCI 5303212873 WCI 5303212873 Contact Us For Availability
6
WCI 131346600 WCI 131346600 Contact Us For Availability
7
PLUG-PIPE WCI 5303161224 Contact Us For Availability
8
WCI 131437300 WCI 131437300 Contact Us For Availability
8
SCREW-BLOWER HSG, PPH AB ST/Z/CH, 6-18 X .60 WCI 3205245 Contact Us For Availability
8
WCI 5303161252 WCI 5303161252 Contact Us For Availability
8
SCREW-UPPER HOUSING WCI 3161225 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
10
SWITCH-PUSH START WCI 5303209890 Contact Us For Availability
10
HOSE & NOZZLE WCI 3204400 Contact Us For Availability
10
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
11
WCI 3204401 WCI 3204401 Contact Us For Availability
11
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
12
TUB-SPIN, AND TRUNNION WCI 131090400 Contact Us For Availability
12
GEAR-CRANK WCI 5308015496 Contact Us For Availability
13
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
14
WASHER-THRUST WCI 5303161226 Contact Us For Availability
15
WASHER WCI 5303161232 Contact Us For Availability
16
WCI 131362000 WCI 131362000 Contact Us For Availability
17
WCI 131076600 WCI 131076600 Contact Us For Availability
18
WASHER-SPACER WCI 5308002475 Contact Us For Availability
20
WCI 131288100 WCI 131288100 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
22
WCI 131417600 WCI 131417600 Contact Us For Availability
23
WCI 5303283286 No Longer Available
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
24
WCI 5308015507 WCI 5308015507 Contact Us For Availability
25
WCI 5303205527 WCI 5303205527 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
SPACER-TIMER-SHAFT WCI 3205248 Contact Us For Availability
27
WCI 5303212834 WCI 5303212834 Contact Us For Availability
28
WCI 5303281074 WCI 5303281074 Contact Us For Availability
29
WCI 131361800 WCI 131361800 Contact Us For Availability
30
ARM-IDLER WCI 3204422 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
32
PIN-ROLL WCI 3204424 Contact Us For Availability
32
WCI 3204357 WCI 3204357 Contact Us For Availability
33
WCI 3204425 WCI 3204425 Contact Us For Availability
34
SLEEVE-IDLER WCI 3204426 Contact Us For Availability
35
WCI 5308002385 WCI 5308002385 Contact Us For Availability
35
CLIP-END CAP WCI 5308014350 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
36
WCI 3204380 WCI 3204380 Contact Us For Availability
37
WASHER-SPRING WCI 5303161306 Contact Us For Availability
37
SCREW-SHIPPING, HH AB YEL, 1/4-14 X .750 WCI 131102900 Contact Us For Availability
38
WCI 5303311213 WCI 5303311213 Contact Us For Availability
38
NUT-LOCK, MOTOR WCI 5303283079 Contact Us For Availability
40
WCI 131449700 WCI 131449700 Contact Us For Availability
41
SHIELD-MOTOR WCI 131474500 Contact Us For Availability
42
WCI 131104305 WCI 131104305 Contact Us For Availability
43
WCI 131268401 WCI 131268401 Contact Us For Availability
43
WCI 131422100 WCI 131422100 Contact Us For Availability
45
WCI 131346400 WCI 131346400 Contact Us For Availability
45A
CLIP-DRAIN HOSE (NOT ILLUSTRATED) WCI 131462500 Contact Us For Availability
45B
WCI 131461200 No Longer Available
46
HANDLE-DOOR-ALMOND WCI 131063601 Contact Us For Availability
46
WCI 131452802 WCI 131452802 Contact Us For Availability
47
WCI 131091001 WCI 131091001 Contact Us For Availability
47
WCI 131106701 WCI 131106701 Contact Us For Availability
47
CLAMP-HOSE WCI 3204456 Contact Us For Availability
49
WCI 131434500 WCI 131434500 Contact Us For Availability
50
LOCK-LID WCI 3205646 Contact Us For Availability
50
WCI 131268600 WCI 131268600 Contact Us For Availability
51
BRACKET-LID LOCK WCI 5303306138 Contact Us For Availability
51
SCREW-LEG TO TUB, HWH 23, .31-18 X .875 WCI 3204459 Contact Us For Availability
52
RIVET-LID SWITCH WCI 08002420 Contact Us For Availability
52
WCI 131315800 WCI 131315800 Contact Us For Availability
53
WCI 131452520 WCI 131452520 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
58
WCI 131464900 WCI 131464900 Contact Us For Availability
59
CLIP-SHIELD WCI 5303283052 Contact Us For Availability
60
WCI 131268700 WCI 131268700 Contact Us For Availability
61
WCI 131268500 WCI 131268500 Contact Us For Availability
63
WCI 131351500 WCI 131351500 Contact Us For Availability
64
WCI 5303283072 WCI 5303283072 Contact Us For Availability
× ![]()
