Model Maytag MLG22PDAWW0 LAUNDRY, COMMERCIAL, STACKED – Common Parts & Diagrams

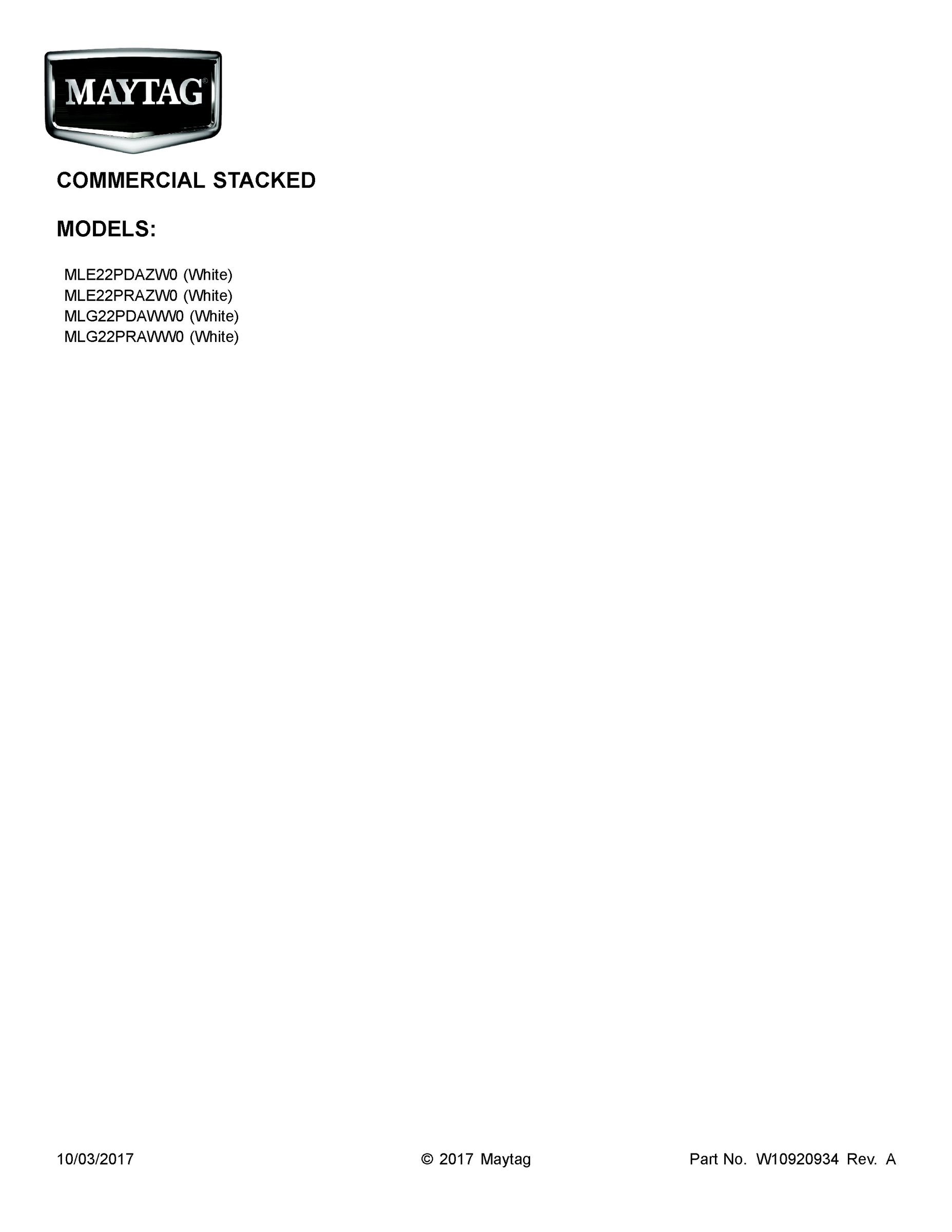

01 - COVER SHEET

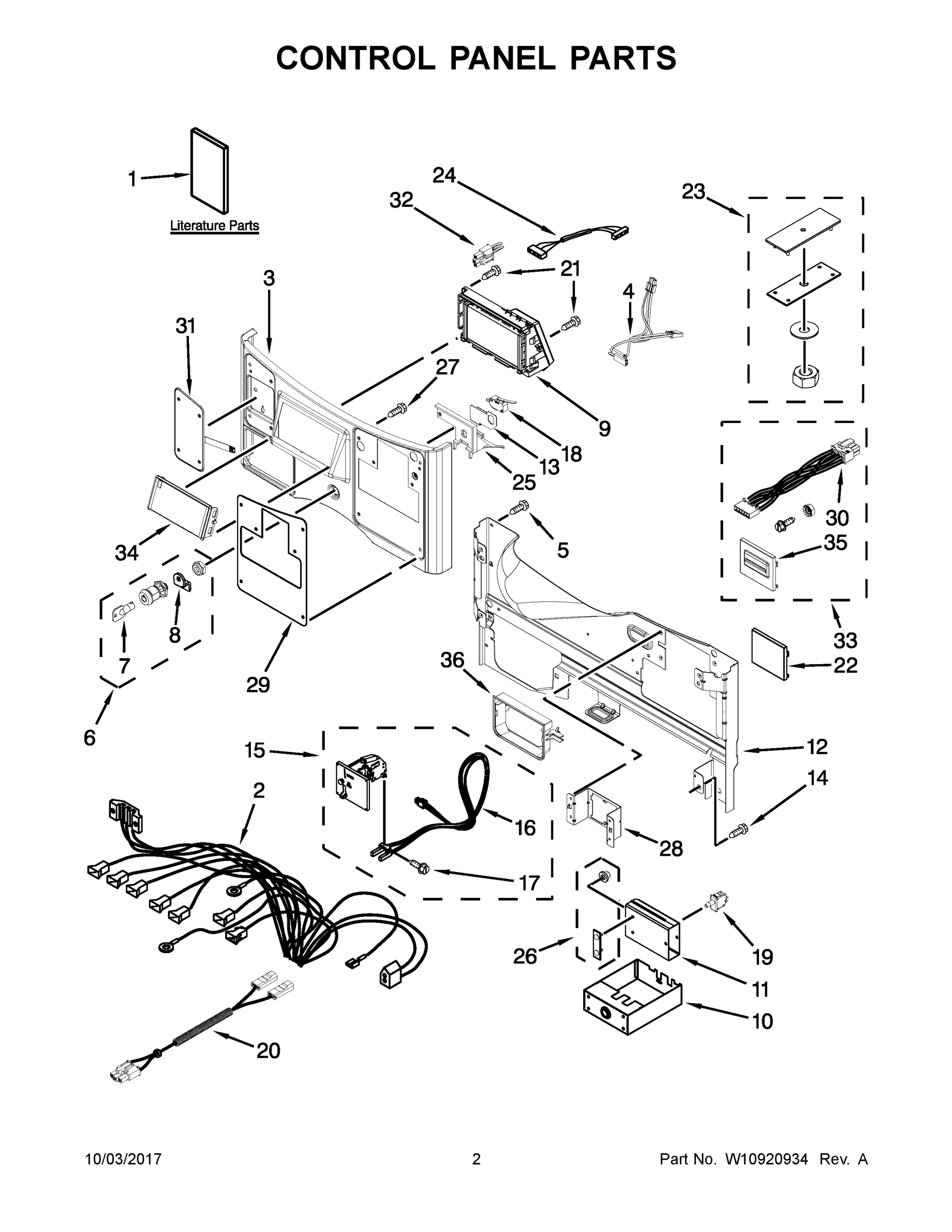

02 - CONTROL PANEL PARTS
03 - DRYER CABINET PARTS
04 - BULKHEAD AND BLOWER PARTS
05 - DRYER HEATING PARTS-ELECTRIC
06 - DRYER HEATING PARTS - GAS
07 - BURNER ASSEMBLY PARTS
08 - DRYER DOOR PARTS
09 - WASHER DOOR PARTS
10 - WASHER CABINET PARTS
11 - DISPENSER PARTS
12 - TUB AND BASKET PARTS
13 - PUMP AND MOTOR PARTS
14 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLG22PDAWW0 LAUNDRY, COMMERCIAL, STACKED
1
INSTRUCTIONS, INSTALLATION FOR MLG22PD/PRAWW MAY W10920979 Contact Us For Availability
1
COVER, TERMINAL BLOCK (ELECTRIC MODELS) MAY W10286180 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ELEMENT, HEATER MAY W10157669 Contact Us For Availability
1
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) MAY W10135231 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
1
BELLOW MAY W10660257 Contact Us For Availability
1
RAIL-SPACER, LEFT MAY W10405229 Contact Us For Availability
1
VALVE, WATER INLET (DOUBLE) MAY W10212596 Contact Us For Availability
1
NUT, PULLEY MAY 8533999 Contact Us For Availability
1
MOTOR, DRIVE MAY W10811032 Contact Us For Availability
1A
MAY W10920980 MAY W10920980 Contact Us For Availability
1A
COVER, TERMINAL BLOCK (GAS MODELS) MAY 8317340 Contact Us For Availability
1B
SHEET, TECH MAY W10920931 Contact Us For Availability
2
HARNESS, WIRING (ELECTRIC MODELS) MAY W10555303 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
ASSEMBLY, WELD HEATER BOX MAY W10608837 Contact Us For Availability
2
SENSOR, RADIANT MAY 338906 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
2
ASSEMBLY, DOOR HINGE MAY W10198424 Contact Us For Availability
2
CLAMP, BELLOW TO TUB MAY 8540108 Contact Us For Availability
2
RAIL-SPACER, RIGHT MAY W10405223 Contact Us For Availability
2
VALVE, WATER INLET (SINGLE) MAY W10212598 Contact Us For Availability
2
PULLEY MAY 8540088 Contact Us For Availability
2
BOLT, MOTOR MAY 8540134 Contact Us For Availability
2A
HARNESS, WIRING (GAS MODELS) MAY W10555305 Contact Us For Availability
3
PANEL, CONSOLE MAY W10198207 Contact Us For Availability
3
SCREW MAY W10773242 Contact Us For Availability
3
CLIP, SPRING MAY W10345456 Contact Us For Availability
3
BRACKET, HEATER BOX (PR - CARD READER) MAY 8066099 Contact Us For Availability
3
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
3
ASSEMBLY, DOOR INTERMEDIATE MAY W10137467 Contact Us For Availability
3
LOCK, DOOR MAY W10375379 Contact Us For Availability
3
CABINET (WHITE) MAY W10198145 Contact Us For Availability
3
CLAMP, HOSE MAY W10096852 Contact Us For Availability
3
BELT, DRIVE MAY W10260319 Contact Us For Availability
3
TRAP, AIR MAY W10405608 Contact Us For Availability
3A
BRACKET, HEATER BOX (PD - COIN DROP) MAY W10198340 Contact Us For Availability
4
WIRE HARNESS, SENSOR SWITCH MAY W10242896 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY W10542714 Contact Us For Availability
4
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
4
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
4
SCREW MAY 8540725 Contact Us For Availability
4
PANEL, FRONT (WHITE) MAY W10306505 Contact Us For Availability
4
SCREW MAY W10137456 Contact Us For Availability
4
COUNTERWEIGHT, FRONT MAY W10223198 Contact Us For Availability
4
HARNESS, MOTOR MAY W10201879 Contact Us For Availability
5
SCREW MAY 3357011 Contact Us For Availability
5
ASSEMBLY, AIR DUCT (ELECTRIC MODELS) MAY 697354 Contact Us For Availability
5
JUMPER, WIRE MAY 3401707 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
5
HOOK, DOOR MAY 8540221 Contact Us For Availability
5
PANEL, TOE (WHITE) MAY 8540664 Contact Us For Availability
5
NOZZLE, INLET MAY 8183181 Contact Us For Availability
5
PIPE, VENTILATION MAY W10142720 Contact Us For Availability
5
CLAMP, HOSE MAY 8181734 Contact Us For Availability
5A
ASSEMBLY, AIR DUCT (GAS MODELS) MAY W10865336 Contact Us For Availability
6
ASSEMBLY, LOCK ACCESS DOOR MAY W10899602 Contact Us For Availability
6
CLIP, TOE PANEL MAY 8519459 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
6
SCREW MAY 90767 Contact Us For Availability
6
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
6
SEAL, WINDOW MAY 8579663 Contact Us For Availability
6
HANDLE, DOOR MAY W10112925 Contact Us For Availability
6
FOOT, LEVELING MAY W10245373 Contact Us For Availability
6
HOSE, VALVE TO DISPENSER MAY W10212611 Contact Us For Availability
6
CLAMP, VENT HOSE MAY 8540010 Contact Us For Availability
6
HOSE, TUB TO PUMP MAY 8540012 Contact Us For Availability
7
SCREW MAY 3390647 Contact Us For Availability
7
KEY, ACCESS DOOR MAY W10140858 Contact Us For Availability
7
SWITCH, ASSEMBLY MAY W10155571 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 279973 Contact Us For Availability
7
BASE, BURNER MAY 3389871 Contact Us For Availability
7
HANDLE, DOOR (WHITE) MAY W10112976 Contact Us For Availability
7
TRIM RING, OUTER DOOR MAY W10198440 Contact Us For Availability
7
NUT, HEX MAY 3359452 Contact Us For Availability
7
DRAWER, DETERGENT MAY W10376660 Contact Us For Availability
7
HOSE, EXHAUST MAY 8540019 Contact Us For Availability
7
CLAMP, HOSE MAY 370448 Contact Us For Availability
8
CAM, LOCKING MAY W10913660 Contact Us For Availability
8
TOP (WHITE) MAY W10336080 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
8
CLAMP, BELLOW TO FRONT PANEL MAY W10217563 Contact Us For Availability
8
STRAIN RELIEF, POWER CORD MAY W10110676 Contact Us For Availability
8
CLAMP, HOSE MAY 356138 Contact Us For Availability
8
COVER, DETERGENT DRAWER MAY 8540399 Contact Us For Availability
8
TUB, REAR MAY W11024153 Contact Us For Availability
9
ASSEMBLY, TECHBOX (PD) MAY W11040815 Contact Us For Availability
9
CLAMP, MOTOR MAY 660658 Contact Us For Availability
9
SCREEN, LINT MAY W10049370 Contact Us For Availability
9
SCREW MAY 693995 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234870 Contact Us For Availability
9
SCREW MAY 3393258 Contact Us For Availability
9
CLAMP, SUPPORT MAY 8540115 Contact Us For Availability
9
RIVET MAY 8518891 Contact Us For Availability
9
TAB, DRAWER RELEASE MAY W10198458 Contact Us For Availability
9
COUNTERWEIGHT, REAR MAY W10200747 Contact Us For Availability
9
HOSE, DRAIN INNER MAY W10272563 Contact Us For Availability
9A
ASSEMBLY, TECHBOX (PR) MAY W11040837 Contact Us For Availability
9A
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234868 Contact Us For Availability
10
BOX, COIN MAY W10133248 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
10
BRACKET, BURNER (PD - COIN DROP) MAY W10198376 Contact Us For Availability
10
VALVE, GAS (60 HZ - COMPLETE) MAY W10141728 Contact Us For Availability
10
DOOR, INNER MAY W10363674 Contact Us For Availability
10
CLAMP, GLASS MAY 8540114 Contact Us For Availability
10
PANEL, REAR MAY W10258342 Contact Us For Availability
10
SIPHON, BLEACH/SOFTENER MAY W10407371 Contact Us For Availability
10
GASKET, TUB MAY 8540090 Contact Us For Availability
10
RETAINER, DRAIN HOSE MAY W10003290 Contact Us For Availability
11
ASSEMBLY, VAULT BODY MAY W10133258 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 359625 Contact Us For Availability
11
BRACKET, BURNER (PR - CARD READER) MAY 8529757 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
11
SCREW MAY 8540513 Contact Us For Availability
11
BRACE, TRANSPORT MAY W10189659 Contact Us For Availability
11
DOOR, LIVING HINGE MAY W10298953 Contact Us For Availability
11
BASKET, COMPLETE MAY W10198146 Contact Us For Availability
11
TIE, CABLE MAY 4454842 Contact Us For Availability
12
BRACKET, CONSOLE MAY W10198369 Contact Us For Availability
12
BASE, CABINET (PD) MAY W11116960 Contact Us For Availability
12
COLLAR, DUCT MAY W10344699 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
12
OUTER RING, DOOR MAY W10198431 Contact Us For Availability
12
FRAME, DOOR FRONT ASSEMBLY MAY W10137404 Contact Us For Availability
12
BOLT, SHIPPING (SET OF 4) MAY W10251449 Contact Us For Availability
12
DISPENSER, OUTER HOUSING MAY W10212603 Contact Us For Availability
12
BAFFLE, TUB MAY W10118982 Contact Us For Availability
12
PUMP (COMPLETE) MAY W10730972 Contact Us For Availability
12A
BASE, CABINET (PR) MAY 8565046 Contact Us For Availability
13
BRACKET-SWITCH MAY W10160652 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 8533971 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
13
WINDOW MAY W10286878 Contact Us For Availability
13
GLASS, DOOR MAY W10388315 Contact Us For Availability
13
HOSE, WATER INLET (COLD) MAY W10852720 Contact Us For Availability
13
PLATE, DISTRIBUTION MAY W10212604 Contact Us For Availability
13
VENTILATION, CONNECTOR MAY W10142721 Contact Us For Availability
13
FOOT, RUBBER (SLIDER) MAY W10034820 Contact Us For Availability
13A
HOSE, WATER INLET (HOT) MAY W10852721 Contact Us For Availability
14
SCREW MAY W10386302 Contact Us For Availability
14
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
14
SCREW MAY 3387230 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
14
FRAME, DOOR BACK SUPPORT MAY W10198442 Contact Us For Availability
14
CORD, POWER (ELECTRIC MODELS) MAY W10712174 Contact Us For Availability
14
CLAMP, HOSE MAY 8281276 Contact Us For Availability
14
FLAP, VENTILATION MAY W10142722 Contact Us For Availability
14
FOOT, RUBBER (LOCK) MAY W10728444 Contact Us For Availability
14A
CORD, POWER (GAS MODELS) MAY W10869140 Contact Us For Availability
15
ASSEMBLY, SINGLE COIN DROP FOR MLE/G22PDAWW MAY W10133242 Contact Us For Availability
15
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
15
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
15
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
15
HINGE, DOOR MAY W10198417 Contact Us For Availability
15
UNIT, MOTOR CONTROL MAY W10384849 Contact Us For Availability
15
HOSE, DISPENSER TO TUB MAY W10583436 Contact Us For Availability
15
SCREW, REAR COUNTERWEIGHT MAY W10246531 Contact Us For Availability
15
CAP, LOCK FOOT MAY 8540033 Contact Us For Availability
15A
ASSEMBLY, DUAL COIN DROP FOR MLE/G22PDAZW MAY W10198395 Contact Us For Availability
16
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
16
SCREW MAY 98129 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
16
DOOR, INTERMEDIATE (STATIONARY) MAY 8580059 Contact Us For Availability
16
SCREW MAY 8540284 Contact Us For Availability
16
BRACE, REAR MAY W10244560 Contact Us For Availability
16
HANDLE, DRAWER MAY W10764308 Contact Us For Availability
16
SPRING, SUSPENSION MAY W10010360 Contact Us For Availability
16
SCREW, VENTILATION MAY 8533964 Contact Us For Availability
16A
COIN OPTIC SENSOR ASSEMBLY (BLACK) MAY W10247388 Contact Us For Availability
17
SCREW MAY W10142655 Contact Us For Availability
17
BULKHEAD, REAR MAY W10080170 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
17
SCREW MAY 8534022 Contact Us For Availability
17
SCREW MAY 8540282 Contact Us For Availability
17
COVER, HANDLE MAY W10899390 Contact Us For Availability
17
SCREW MAY W10094780 Contact Us For Availability
17
SEAL, FILTER CAP MAY W10391451 Contact Us For Availability
18
SWITCH, SERVICE ACCESS MAY W10447152 Contact Us For Availability
18
BRACKET, STACK MAY W10198461 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
18
RETAINER, WINDOW (UPPER) MAY 8519356 Contact Us For Availability
18
HOSE, DRAIN OUTER MAY W10106460 Contact Us For Availability
18
BOLT ASSEMBLY, COUNTERWEIGHT CENTER HOLE MAY W10259288 Contact Us For Availability
18
FILTER, PUMP MAY W10391445 Contact Us For Availability
19
SWITCH, VAULT SERVICE DOOR MAY W10131838 Contact Us For Availability
19
ASSEMBLY, DOOR SWITCH MAY W10350910 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
VALVE, GAS MAY 697441 Contact Us For Availability
19
SEAL, DOOR MAY W10407973 Contact Us For Availability
19
CONNECTOR, HOSE OUTLET MAY W10003260 Contact Us For Availability
19
ABSORBER, SHOCK MAY W10015830 Contact Us For Availability
19
CAP, FILTER MAY W10391446 Contact Us For Availability
20
WIRE HARNESS, VAULT SWITCH MAY W10300896 Contact Us For Availability
20
BRACKET, CONSOLE MAY 8565237 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
NUT, COMPRESSION MAY 233076 Contact Us For Availability
20
BUMPER MAY 238614 Contact Us For Availability
20
CLAMP, TUB MAY 8540092 Contact Us For Availability
21
SCREW MAY W10192860 Contact Us For Availability
21
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
21
PIPE, TAIL MAY 3393767 Contact Us For Availability
21
SCREW MAY W10015090 Contact Us For Availability
21
TUB, FRONT MAY W10266965 Contact Us For Availability
22
COVER PD/PN MAY W10198366 Contact Us For Availability
22
RAMP, DOOR MAY 8580015 Contact Us For Availability
22
PIPE, EXHAUST MAY 8563728 Contact Us For Availability
22
PIPE, GAS SUPPLY MAY W10110395 Contact Us For Availability
22
FILTER, INTERFERENCE MAY W10339736 Contact Us For Availability
22
NUT, PUSH-IN MAY 8540072 Contact Us For Availability
23
KIT-COIN BOX, SECURITY (TO BE SERVICED AS A K MAY W10169579 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
23
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
23
SENSOR, PRESSURE MAY W10448876 Contact Us For Availability
23
CONTROL, NEGATIVE THERMISTOR MAY W10176659 Contact Us For Availability
24
HARNESS, WIRE DRYER CCU TO UIC MAY W10242897 Contact Us For Availability
24
BRACKET, WATER CHANNEL MAY W10198224 Contact Us For Availability
24
SCREW MAY 489463 Contact Us For Availability
24
CLAMP, PIPE MAY 3387561 Contact Us For Availability
24
HOSE, PRESSURE SWITCH MAY 8540294 Contact Us For Availability
24
SEAL, RUBBER MAY 8540228 Contact Us For Availability
25
CONSOLE, SUPPORT MAY W10198375 Contact Us For Availability
25
ENCLOSURE, CCU MAY W10198363 Contact Us For Availability
25
ASSEMBLY, DRUM (COMPLETE) MAY W10865330 Contact Us For Availability
25
SCREW, GROUNDING MAY 8540479 Contact Us For Availability
26
ASSEMBLY, MOUNTING STRAP WELD MAY W10159907 Contact Us For Availability
26
PANEL, REAR MAY W10865341 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
COVER, TRANSPORT MAY 8540268 Contact Us For Availability
27
SCREW MAY 3400408 Contact Us For Availability
27
ASSEMBLY, MOTOR 60 HZ. MAY W10396034 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
27
U-BEND, DRAIN HOSE MAY 8577378 Contact Us For Availability
28
BRACKET (PD) MAY W10198322 Contact Us For Availability
28
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
28
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
28
MICROSWITCH MAY W10085220 Contact Us For Availability
28A
BRACKET (PR) MAY W10198323 Contact Us For Availability
29
FASCIA (PD) MAY W11034287 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
29
SLEEVE, CORD SUPPORT MAY 8540728 Contact Us For Availability
29A
FASCIA (PR) MAY W11034310 Contact Us For Availability
30
HARNESS, CARD READER MAY W10239515 Contact Us For Availability
30
BELT, DRIVE MAY W10131172 Contact Us For Availability
30
THERMISTOR MAY 8577274 Contact Us For Availability
30
SCREW MAY 8540727 Contact Us For Availability
31
FASICA, MEMBRANE AND BEZEL ASSEMBLY MAY W10899384 Contact Us For Availability
31
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
31
SCREW MAY 8540329 Contact Us For Availability
32
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
32
BRACKET, MOTOR MAY W10135695 Contact Us For Availability
32
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
32
MICROCOMPUTER, MACHINE CONTROL MAY W10733698 Contact Us For Availability
33
CARD READER, CONVERSION KIT MAY W10198451 Contact Us For Availability
33
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
GRILLE, OUTLET MAY W10181926 Contact Us For Availability
33
TIE, CABLE MAY 3429563 Contact Us For Availability
34
DISPLAY, WINDOW MAY W10198390 Contact Us For Availability
34
PANEL, FRONT (WHITE) MAY W10549665 Contact Us For Availability
34
BAFFLE, DRUM MAY W10153409 Contact Us For Availability
34
SLEEVE MAY 2161302 Contact Us For Availability
35
BEZEL (PR) MAY W10198367 Contact Us For Availability
35
BRACKET, DRUM LIGHT MAY W10465334 Contact Us For Availability
35
TIE, CABLE (BEADED) MAY 3347868 Contact Us For Availability
36
COLLAR, DISPENSER MAY W10198345 Contact Us For Availability
36
PLUG, FRONT PANEL MAY 8565043 Contact Us For Availability
36
BULKHEAD, FRONT MAY 8565061 Contact Us For Availability
36
WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
37
BRACKET, CONTROL MAY 8563727 Contact Us For Availability
37
SEAL, FOAM MAY 8318396 Contact Us For Availability
38
CONTROL BOARD MAY W10376685 Contact Us For Availability
38
HARNESS CHANNEL, SIDE FRONT MAY W10200785 Contact Us For Availability
39
SCREW MAY 3393008 Contact Us For Availability
39
MAY W11034058 MAY W11034058 Contact Us For Availability
40
BRACKET, SPRING MAY 8540643 Contact Us For Availability
41
COVER, CCU MAY W10405233 Contact Us For Availability
42
BRACKET, CCU MAY W10198280 Contact Us For Availability
43
PEDESTAL, COMMERCIAL (WHITE) MAY W10103350 Contact Us For Availability
44
SCREW MAY W10346892 Contact Us For Availability
45
BRACKET, CONSOLE MAY W10846488 Contact Us For Availability
46
CAP PLUG MAY W10018050 Contact Us For Availability
47
TRANSFORMER, 120 TO 22.5 VAC MAY W10198388 Contact Us For Availability
48
BASE, RETAINER MAY W10198373 Contact Us For Availability
49
RELIEF, STRAIN (POWER CORD) MAY 8316644 Contact Us For Availability
NI
DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VE MAY W10470674 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE L.P.G. MAY W10135245 Contact Us For Availability
NI
LP CONVERSION KIT (EU TYPE 4) MAY W10233219 Contact Us For Availability
NI
LP CONVERSION KIT (FR/BE NAT GAS) MAY W10832960 Contact Us For Availability
NI
LP CONVERSION KIT (AUS TYPE 4) MAY W10832961 Contact Us For Availability
NI
CABLE SET, DOOR LOCK POWER (2 POLE) MAY W11085097 Contact Us For Availability
NI
CCU TO MCU - POWER (2 POLE) MAY W11085100 Contact Us For Availability
NI
CABLE SET, UI TO CCU COMMUNICATION MAY W11085110 Contact Us For Availability
NI
ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
× ![]()
