Model Maytag MLE27PDBGW0 COMMERCIAL ELECTRIC DRYER – Common Parts & Diagrams

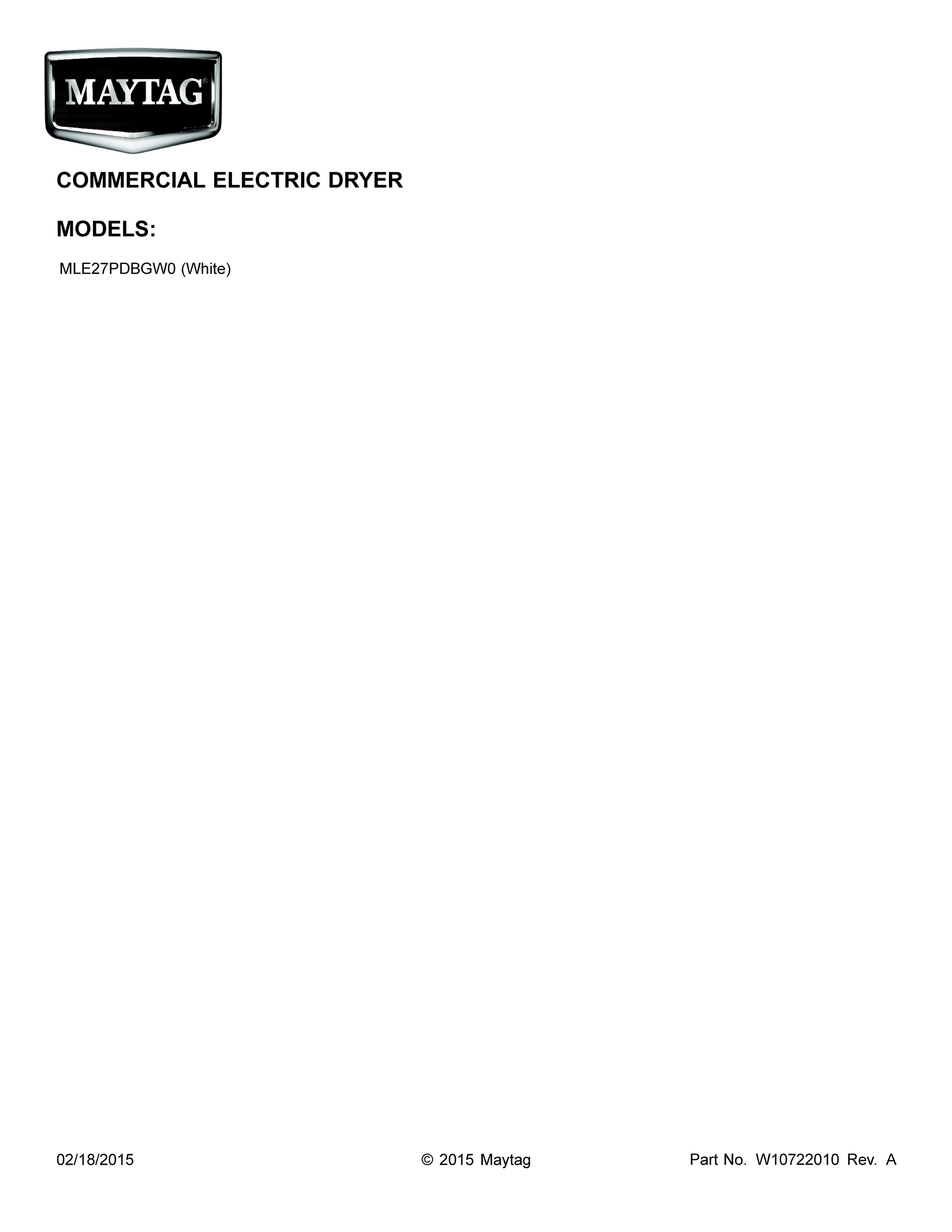

01 - COVER SHEET

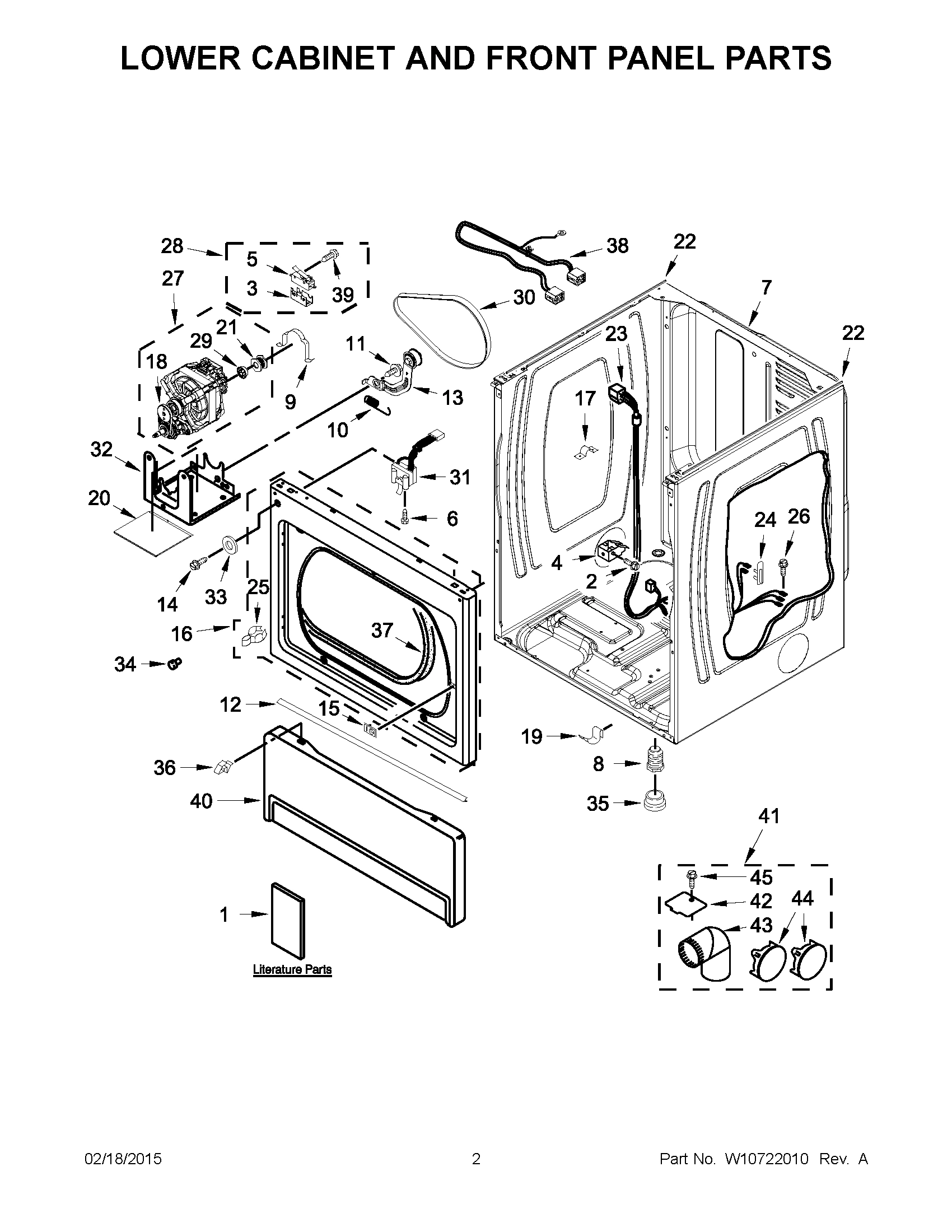

02 - LOWER CABINET AND FRONT PANEL PARTS

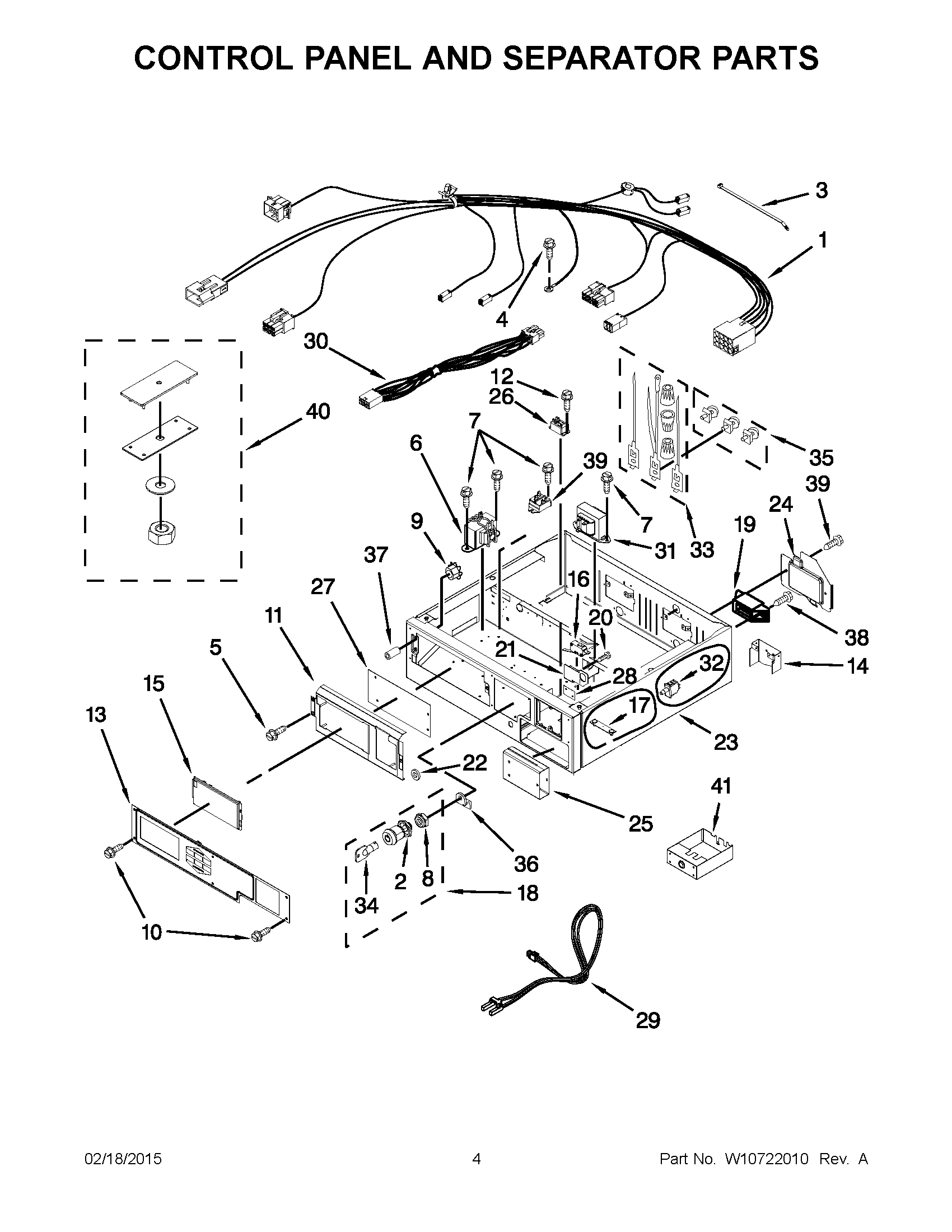

03 - CONTROL PANEL AND SEPARATOR PARTS

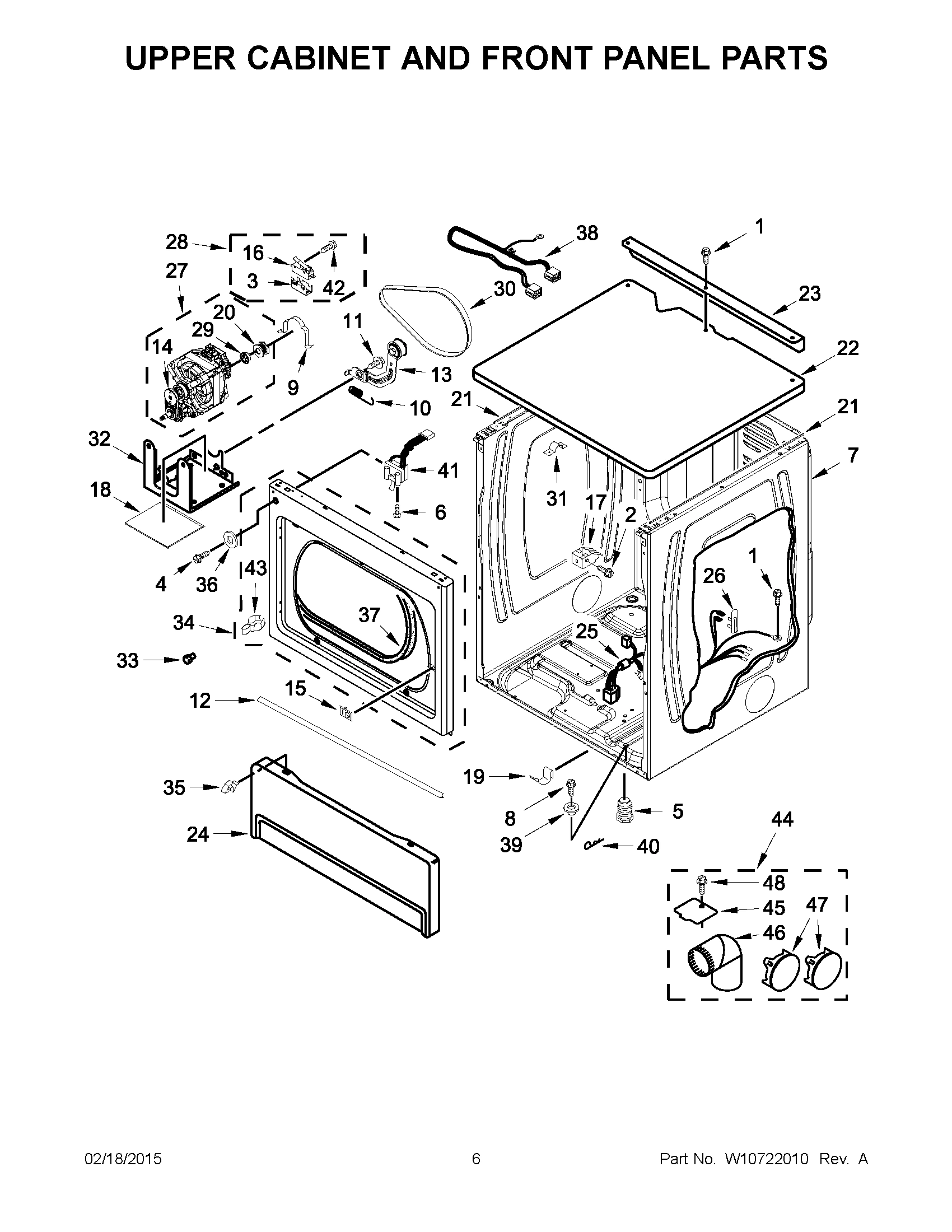

04 - UPPER CABINET AND FRONT PANEL PARTS

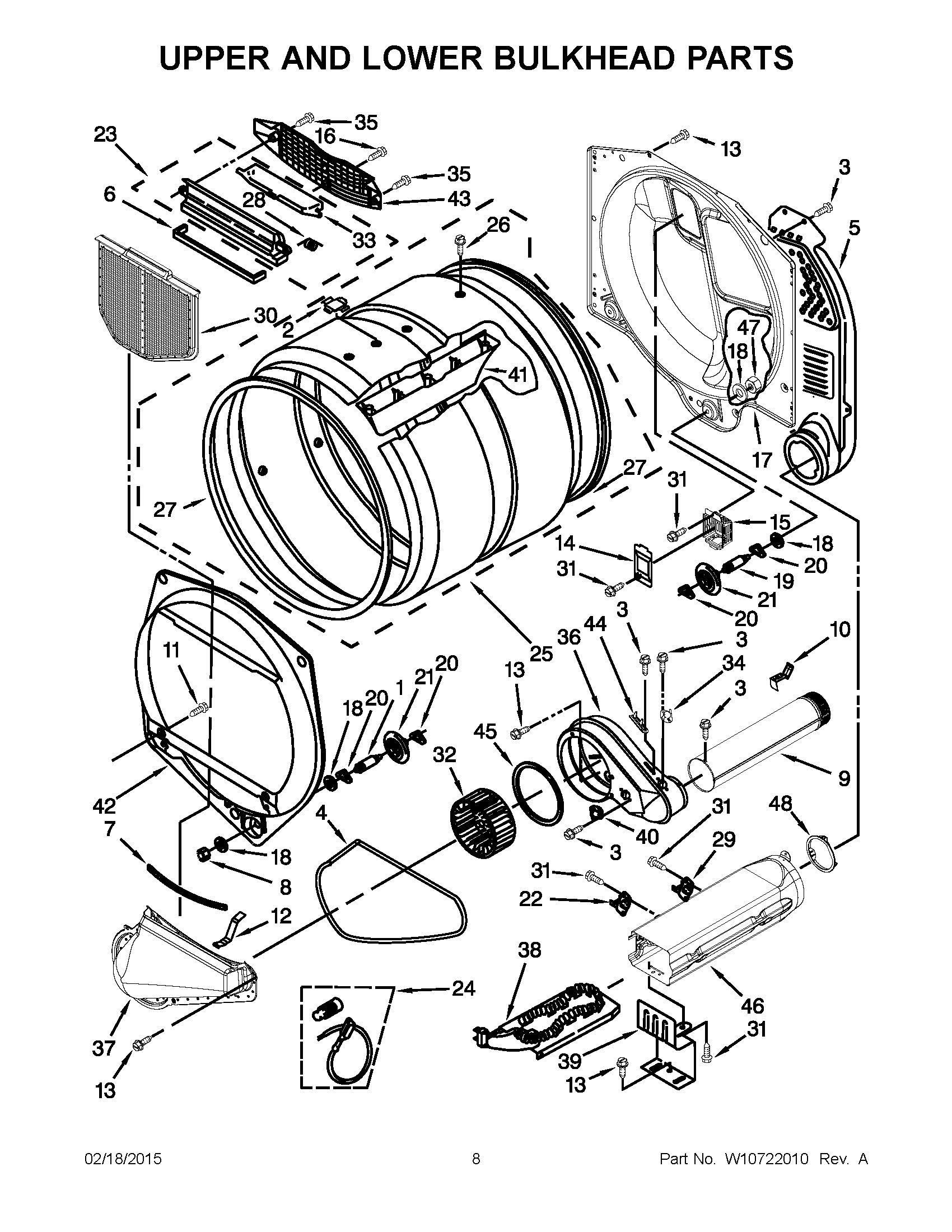

05 - UPPER AND LOWER BULKHEAD PARTS

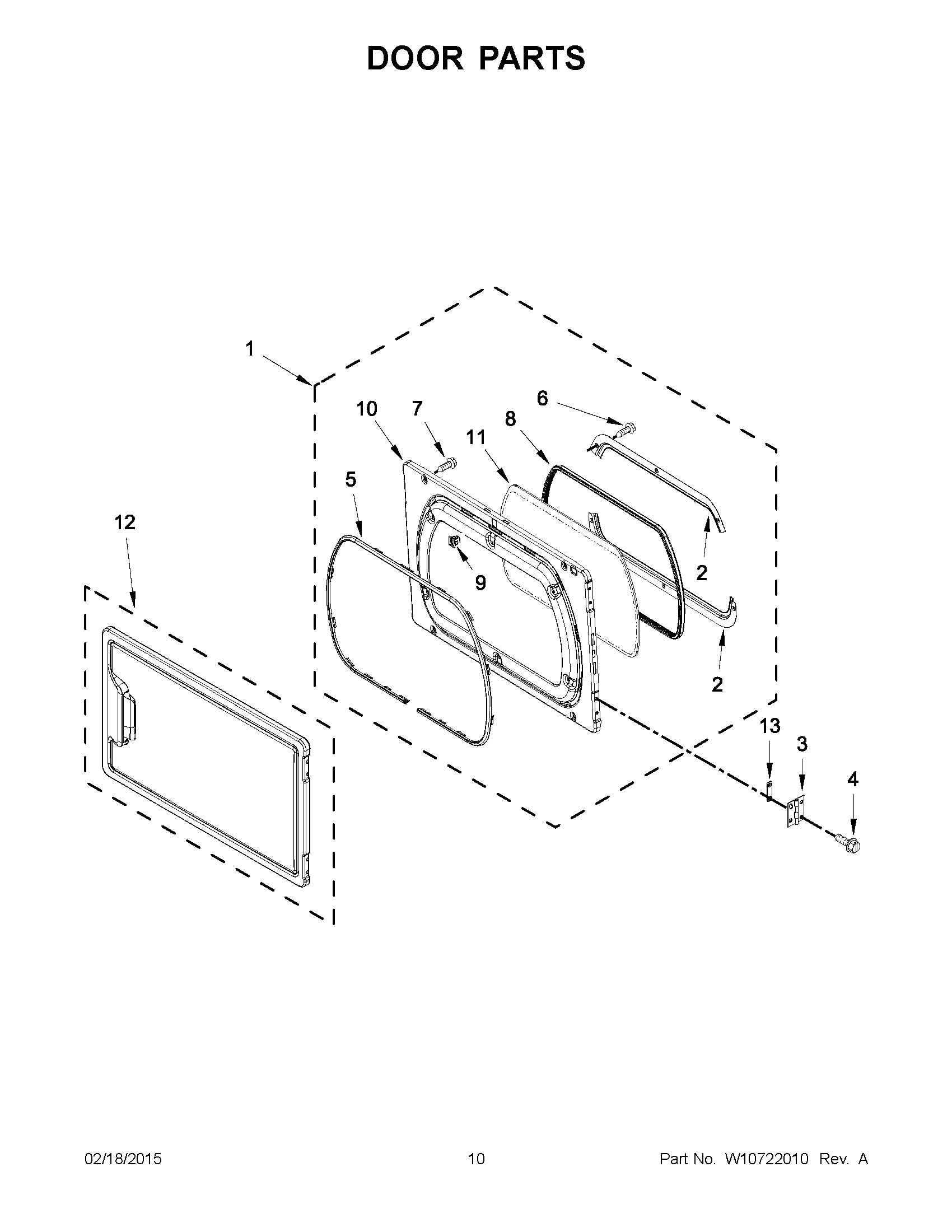

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE27PDBGW0 COMMERCIAL ELECTRIC DRYER
1
MAY W10722014 MAY W10722014 Contact Us For Availability
1
MAY W10702054 MAY W10702054 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10513690 MAY W10513690 Contact Us For Availability
1A
MAY W10184546 MAY W10184546 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
CAP, PLUG MAY W10128544 Contact Us For Availability
2
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
3
MAY 8564011 MAY 8564011 Contact Us For Availability
3
MAY 8529895 MAY 8529895 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 8533974 MAY 8533974 Contact Us For Availability
4
SEAL, PLATE COVER MAY W10181918 Contact Us For Availability
4
MAY 342055 MAY 342055 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
MAY W10354795 MAY W10354795 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY W10237957 MAY W10237957 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
SCREW MAY 3393258 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
SCREW MAY 8533971 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10192860 MAY W10192860 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
BOLT, SECURITY MAY 3400523 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10284122 MAY W10284122 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
MAY W10121167 MAY W10121167 Contact Us For Availability
9
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10386302 MAY W10386302 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
10
MAY W10470571 MAY W10470571 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10657185 MAY W10657185 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
11
MAY W10284121 MAY W10284121 Contact Us For Availability
12
MAY W10576519 MAY W10576519 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY (WHITE) MAY W10284127 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
MAY W10678231 MAY W10678231 Contact Us For Availability
13
SCREW MAY 489463 Contact Us For Availability
13
PLUG-HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
14
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
14
MAY W10192090 MAY W10192090 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
15
MAY W10521429 MAY W10521429 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
16
MAY W10410873 MAY W10410873 Contact Us For Availability
16
MAY W10133281 MAY W10133281 Contact Us For Availability
16
SCREW MAY 695240 Contact Us For Availability
17
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
17
MAY W10159907 MAY W10159907 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
18
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY W10237321 MAY W10237321 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10167237 MAY W10167237 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
SEAL, FOAM MAY 8318396 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY 2006252 MAY 2006252 Contact Us For Availability
22
TOP (WHITE) MAY 3389351 Contact Us For Availability
22
THERMOSTAT MAY W10168175 Contact Us For Availability
23
MAY W10159849 MAY W10159849 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
MAY W10685669 MAY W10685669 Contact Us For Availability
24
MAY 697215 MAY 697215 Contact Us For Availability
24
MAY W10196677 MAY W10196677 Contact Us For Availability
24
MAY 279457 MAY 279457 Contact Us For Availability
25
MAY W10702053 MAY W10702053 Contact Us For Availability
25
MAY W10133258 MAY W10133258 Contact Us For Availability
25
MAY W10545922 MAY W10545922 Contact Us For Availability
26
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
26
MAY W10258680 MAY W10258680 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10747112 MAY W10747112 Contact Us For Availability
27
MAY W10678221 MAY W10678221 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
28
MAY W10151156 MAY W10151156 Contact Us For Availability
28
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
29
MAY 3393657 MAY 3393657 Contact Us For Availability
29
MAY W10226074 MAY W10226074 Contact Us For Availability
29
CUT-OFF, THERMAL MAY W10141623 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10111027 MAY W10111027 Contact Us For Availability
30
SCREEN, LINT (WHITE) MAY W10596627 Contact Us For Availability
31
CLIP MAY 98997 Contact Us For Availability
31
SCREW MAY 3390647 Contact Us For Availability
31
TRANSFORMER, 240 - 120 VAC MAY W10237958 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
SWITCH, VAULT SERVICE DOOR MAY W10133289 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
MAY 279318 MAY 279318 Contact Us For Availability
33
MAY W10685668 MAY W10685668 Contact Us For Availability
34
MAY W10694721 MAY W10694721 Contact Us For Availability
34
KEY, ACCESS DOOR MAY W10140858 Contact Us For Availability
34
THERMOSTAT, CYCLING (140F) MAY W10194158 Contact Us For Availability
35
MAY 3391943 MAY 3391943 Contact Us For Availability
35
RETAINER MAY 3388229 Contact Us For Availability
35
MAY 279393 MAY 279393 Contact Us For Availability
35
SCREW MAY 3387230 Contact Us For Availability
36
MAY W10223794 MAY W10223794 Contact Us For Availability
36
MAY W10233256 MAY W10233256 Contact Us For Availability
36
MAY W10119255 MAY W10119255 Contact Us For Availability
37
MAY 3387242 MAY 3387242 Contact Us For Availability
37
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
37
MAY 8066168 MAY 8066168 Contact Us For Availability
38
MAY W10702055 MAY W10702055 Contact Us For Availability
38
SCREW MAY 3400000 Contact Us For Availability
38
ELEMENT, HEATER MAY 3387749 Contact Us For Availability
39
MAY W10133335 MAY W10133335 Contact Us For Availability
39
MAY 3389233 MAY 3389233 Contact Us For Availability
39
MAY W10119253 MAY W10119253 Contact Us For Availability
40
MAY W10169579 MAY W10169579 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
THERMOSTAT, ELECTRONIC (155F) MAY W10206206 Contact Us For Availability
41
MAY W10237959 MAY W10237959 Contact Us For Availability
41
MAY W10133248 MAY W10133248 Contact Us For Availability
41
BAFFLE, DRUM MAY 697693 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
42
MAY 697557 MAY 697557 Contact Us For Availability
43
MAY 696144 MAY 696144 Contact Us For Availability
43
MAY W10692558 MAY W10692558 Contact Us For Availability
44
MAY 279818 MAY 279818 Contact Us For Availability
44
LIMITER, THERMAL (192F) MAY W10167627 Contact Us For Availability
45
MAY 3394331 MAY 3394331 Contact Us For Availability
45
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
46
ELBOW MAY 49026 Contact Us For Availability
46
MAY W10608837 MAY W10608837 Contact Us For Availability
47
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
47
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
48
MAY 488729 MAY 488729 Contact Us For Availability
48
MAY W10344699 MAY W10344699 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
× ![]()
