Model Maytag MLE24PDAYW2 ELECTRIC DRYER – Common Parts & Diagrams
01 - LOWER CABINET AND FRONT PANEL PARTS
02 - CONTROL PANEL AND SEPARATOR PARTS

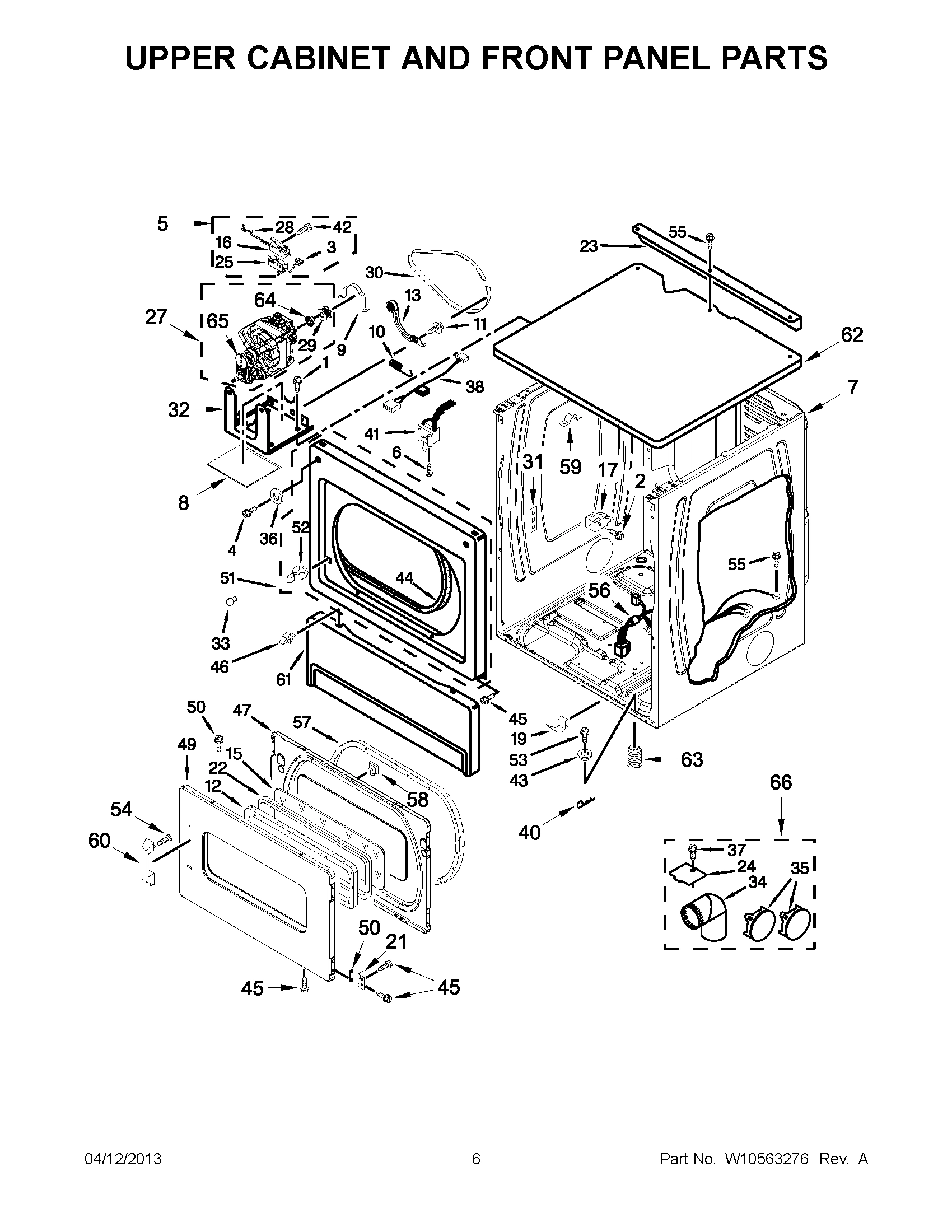

03 - UPPER CABINET AND FRONT PANEL PARTS

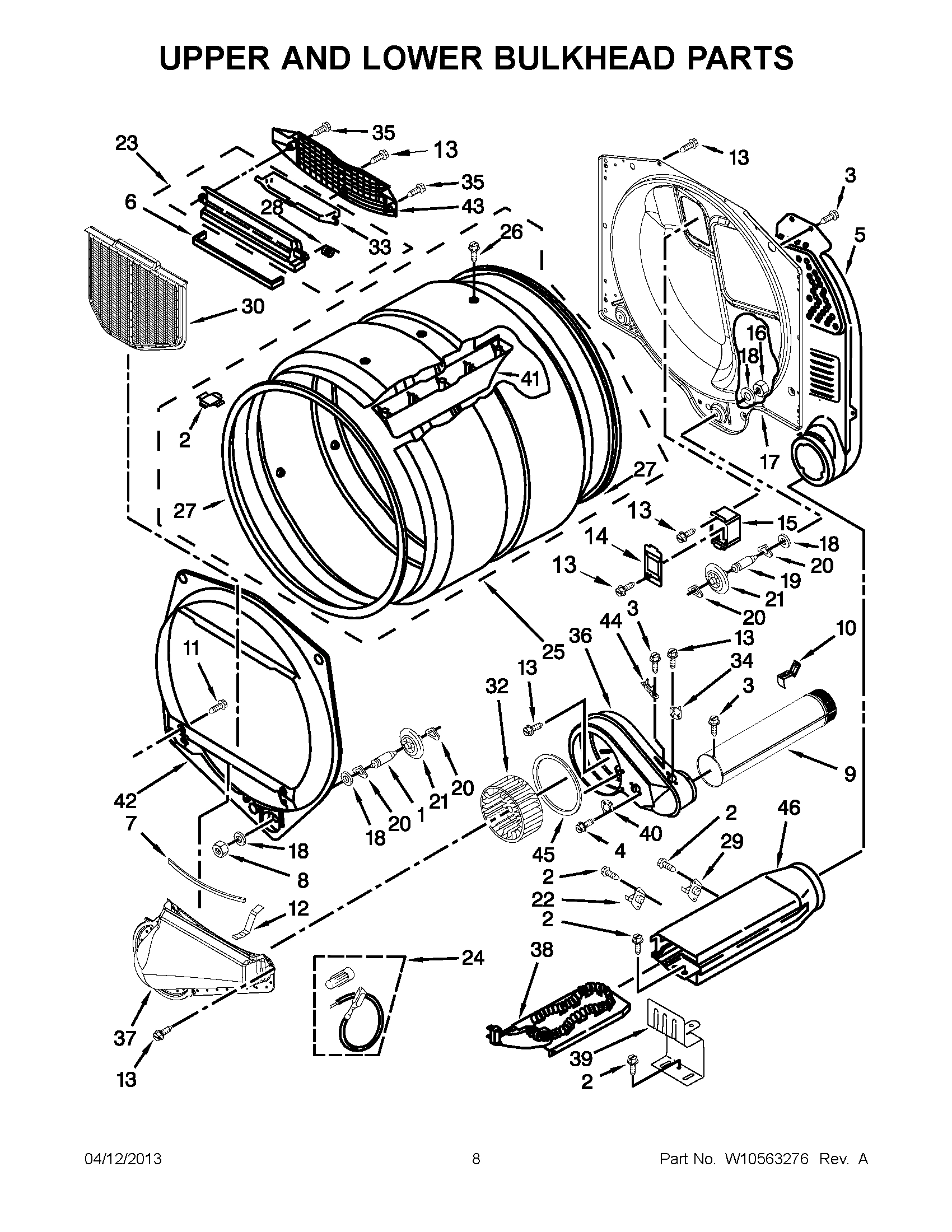

04 - UPPER AND LOWER BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE24PDAYW2 ELECTRIC DRYER
1
MAY W10135168 MAY W10135168 Contact Us For Availability
1
MAY W10169673 MAY W10169673 Contact Us For Availability
1
MAY W10184580 MAY W10184580 Contact Us For Availability
1
SCREW MAY 3390663 Contact Us For Availability
1
MAY W10169674 MAY W10169674 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
Plug, Drum Hole MAY 8066086 Contact Us For Availability
3
MAY 8539892 MAY 8539892 Contact Us For Availability
3
MAY 8529895 MAY 8529895 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 8533974 MAY 8533974 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
5
MAY W10155571 MAY W10155571 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY W10133285 MAY W10133285 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10386302 MAY W10386302 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10163677 MAY W10163677 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
12
MAY 3392915 MAY 3392915 Contact Us For Availability
12
BUTTON, PUSH MAY W10131113 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
MAY W10135185 MAY W10135185 Contact Us For Availability
14
ASSEMBLY, SINGLE COIN DROP MAY W10133242 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
15
WINDOW MAY 3392918 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
16
MAY 8564010 MAY 8564010 Contact Us For Availability
16
MAY W10447152 MAY W10447152 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
Clip, Front Panel MAY 3391846 Contact Us For Availability
17
MAY W10159907 MAY W10159907 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY 3397659 MAY 3397659 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN MAY W10279703 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY 3392914 MAY 3392914 Contact Us For Availability
22
BOLT, HEX BAR MAY W10137319 Contact Us For Availability
22
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
23
MAY W10159849 MAY W10159849 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
24
MAY 3394331 MAY 3394331 Contact Us For Availability
24
MAY W10196677 MAY W10196677 Contact Us For Availability
24
MAY 279457 MAY 279457 Contact Us For Availability
25
MAY 8564011 MAY 8564011 Contact Us For Availability
25
MAY W10133258 MAY W10133258 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10133278 MAY W10133278 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10396034 MAY W10396034 Contact Us For Availability
27
MAY W10130700 MAY W10130700 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10167613 MAY W10167613 Contact Us For Availability
28
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
COIN-OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
29
MAY 8318314 MAY 8318314 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
SCREW MAY W10142655 Contact Us For Availability
30
Screen, Lint MAY W10049370 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10131838 MAY W10131838 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
33
MAY W10181925 MAY W10181925 Contact Us For Availability
34
ELBOW MAY 49026 Contact Us For Availability
34
Key, Access Door MAY W10140858 Contact Us For Availability
34
MAY W10131836 MAY W10131836 Contact Us For Availability
35
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
35
MAY 279393 MAY 279393 Contact Us For Availability
35
SCREW MAY 3387230 Contact Us For Availability
36
WASHER MAY 3392186 Contact Us For Availability
36
MAY W10133266 MAY W10133266 Contact Us For Availability
36
MAY W10135254 MAY W10135254 Contact Us For Availability
37
MAY 488729 MAY 488729 Contact Us For Availability
37
Standoff, Circuit Board MAY W10133514 Contact Us For Availability
37
MAY 8066168 MAY 8066168 Contact Us For Availability
38
Jumper, Door Switch MAY 8283298 Contact Us For Availability
38
MAY 3387748 MAY 3387748 Contact Us For Availability
39
SCREW MAY 3400000 Contact Us For Availability
39
MAY 8066099 MAY 8066099 Contact Us For Availability
40
MAY W10133335 MAY W10133335 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
THERMOSTAT 155° F (ELECTRONIC) MAY W10193019 Contact Us For Availability
41
Switch, Door MAY 3406109 Contact Us For Availability
41
MAY W10169579 MAY W10169579 Contact Us For Availability
41
Baffle, Drum MAY 697693 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
MAY W10133248 MAY W10133248 Contact Us For Availability
42
MAY 697557 MAY 697557 Contact Us For Availability
43
MAY W10111027 MAY W10111027 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
43
MAY W10181926 MAY W10181926 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
45
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
47
MAY W10323063 MAY W10323063 Contact Us For Availability
49
MAY W10322548 MAY W10322548 Contact Us For Availability
50
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
51
FRONT PANEL (WHITE) MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
53
BOLT, SECURITY MAY 3400523 Contact Us For Availability
54
Screw MAY 9742177 Contact Us For Availability
56
MAY W10169678 MAY W10169678 Contact Us For Availability
56
MAY W10169676 MAY W10169676 Contact Us For Availability
57
MAY 3390735 MAY 3390735 Contact Us For Availability
58
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
59
Clip MAY 98997 Contact Us For Availability
59
MAY 3391943 MAY 3391943 Contact Us For Availability
60
MAY W10213202 MAY W10213202 Contact Us For Availability
61
TOE PANEL (WHITE) MAY 697215 Contact Us For Availability
62
TOP (WHITE) MAY 3389351 Contact Us For Availability
63
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
64
MAY 3393657 MAY 3393657 Contact Us For Availability
65
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
66
MAY 279818 MAY 279818 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
× ![]()
