Model Maytag MLE20PDBYW2 LAUNDRY SYSTEM – Common Parts & Diagrams

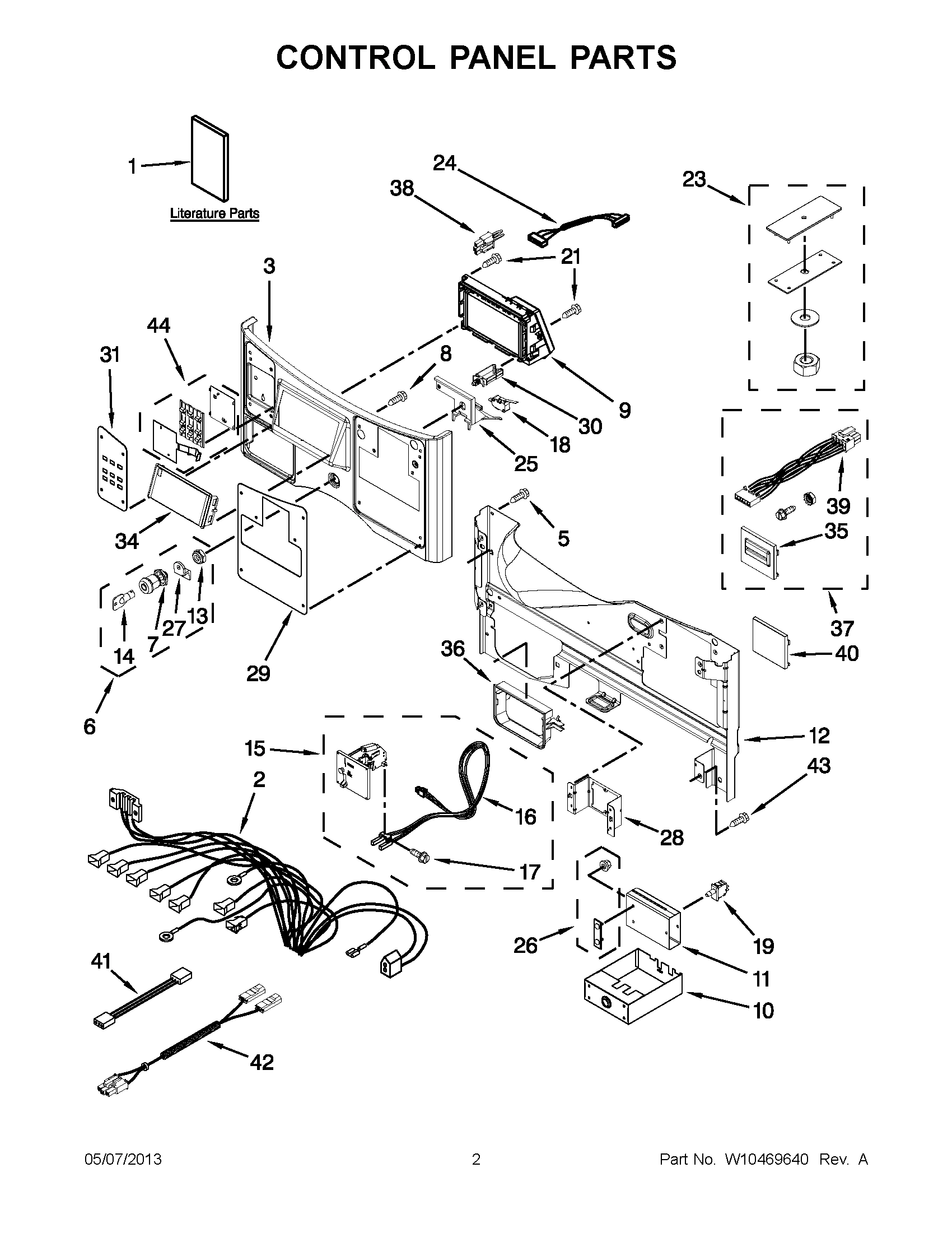

01 - CONTROL PANEL PARTS

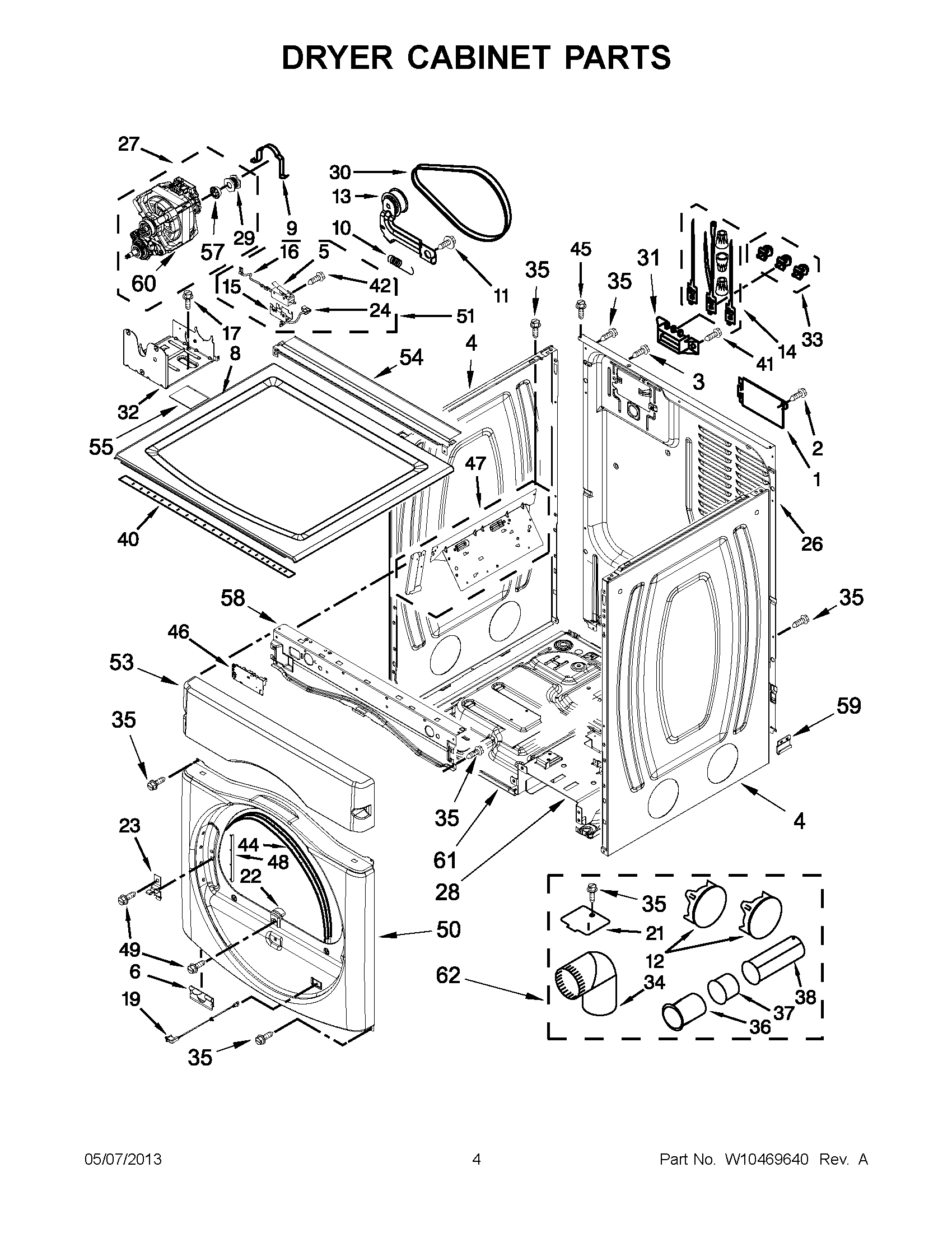

02 - DRYER CABINET PARTS

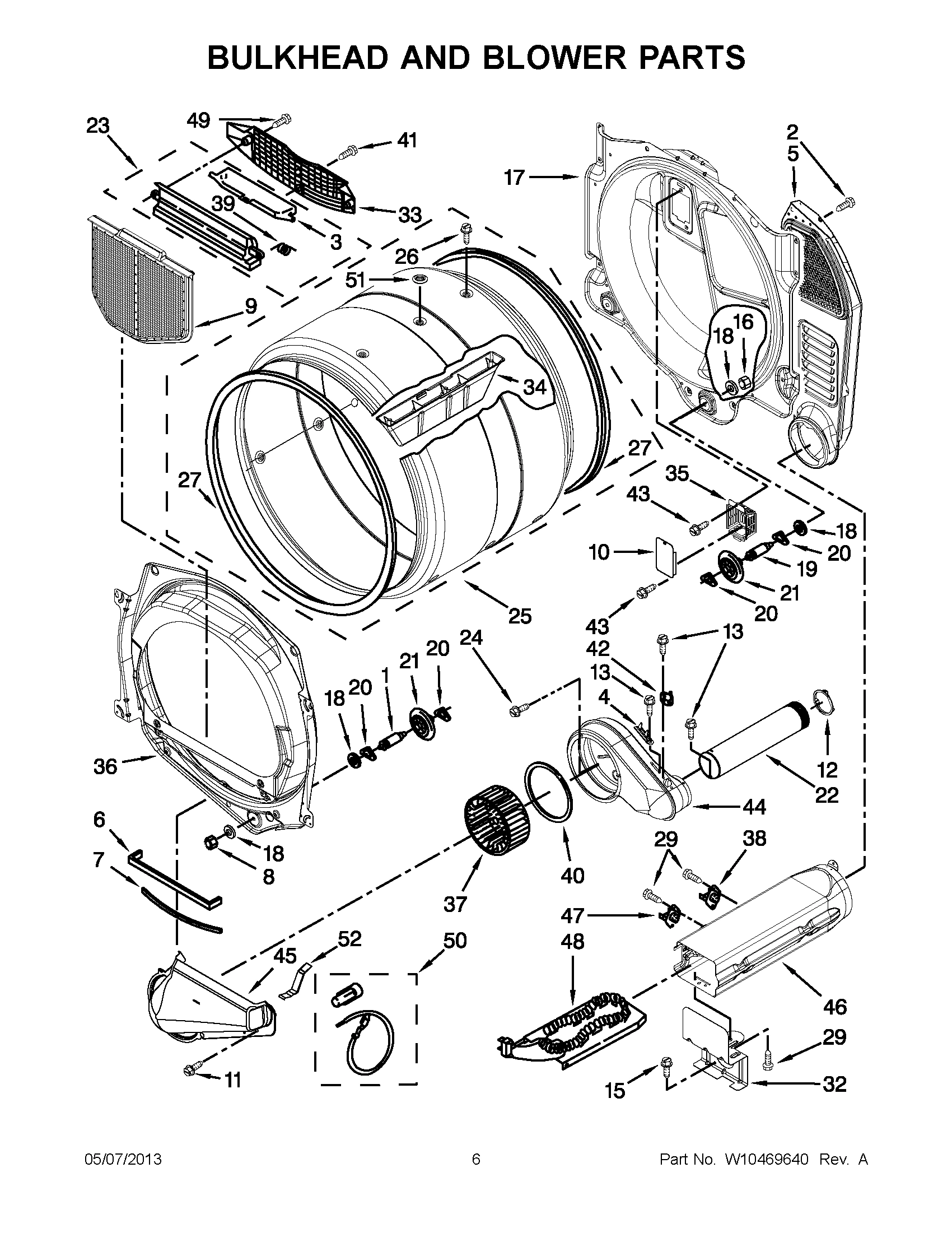

03 - BULKHEAD AND BLOWER PARTS

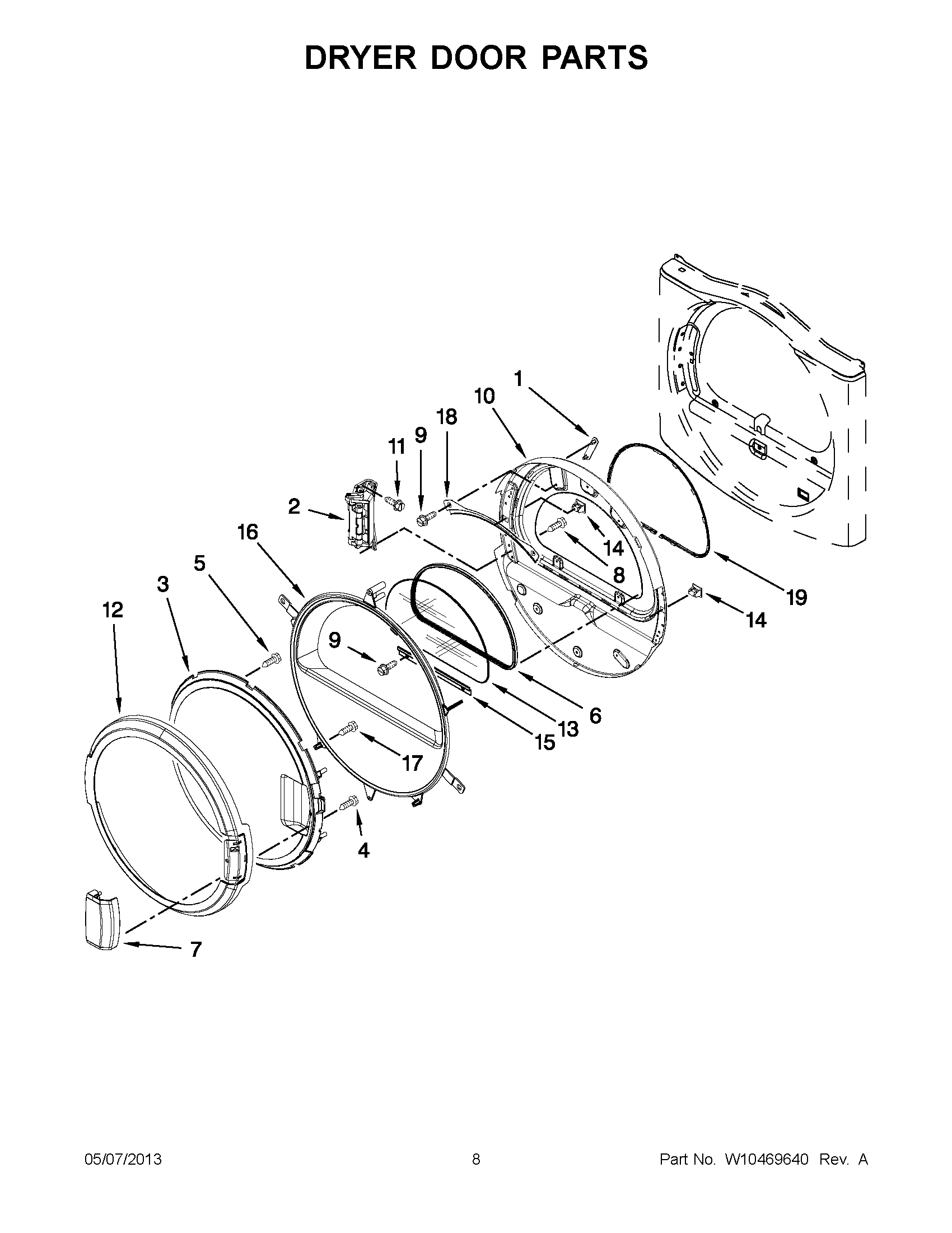

04 - DRYER DOOR PARTS

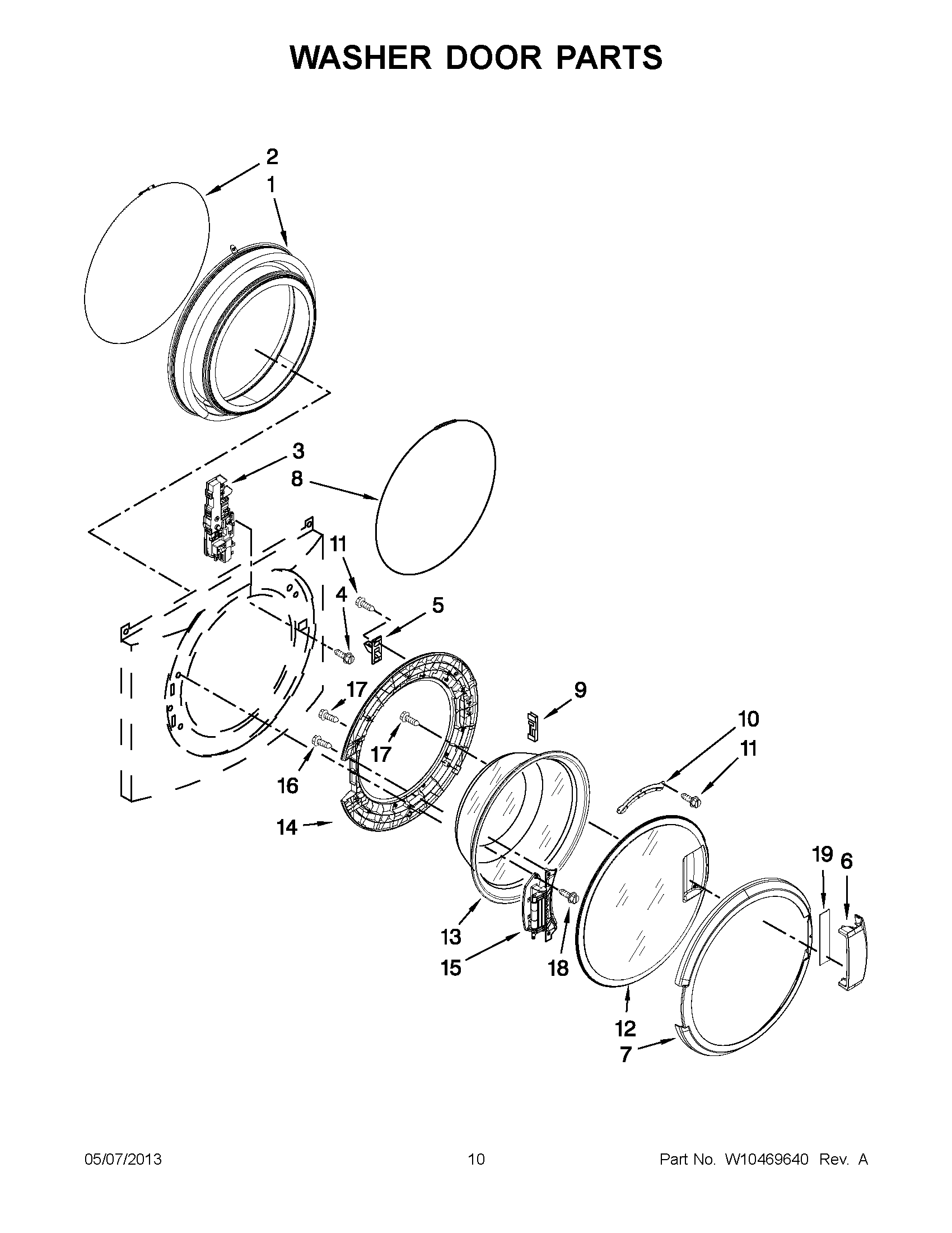

05 - WASHER DOOR PARTS

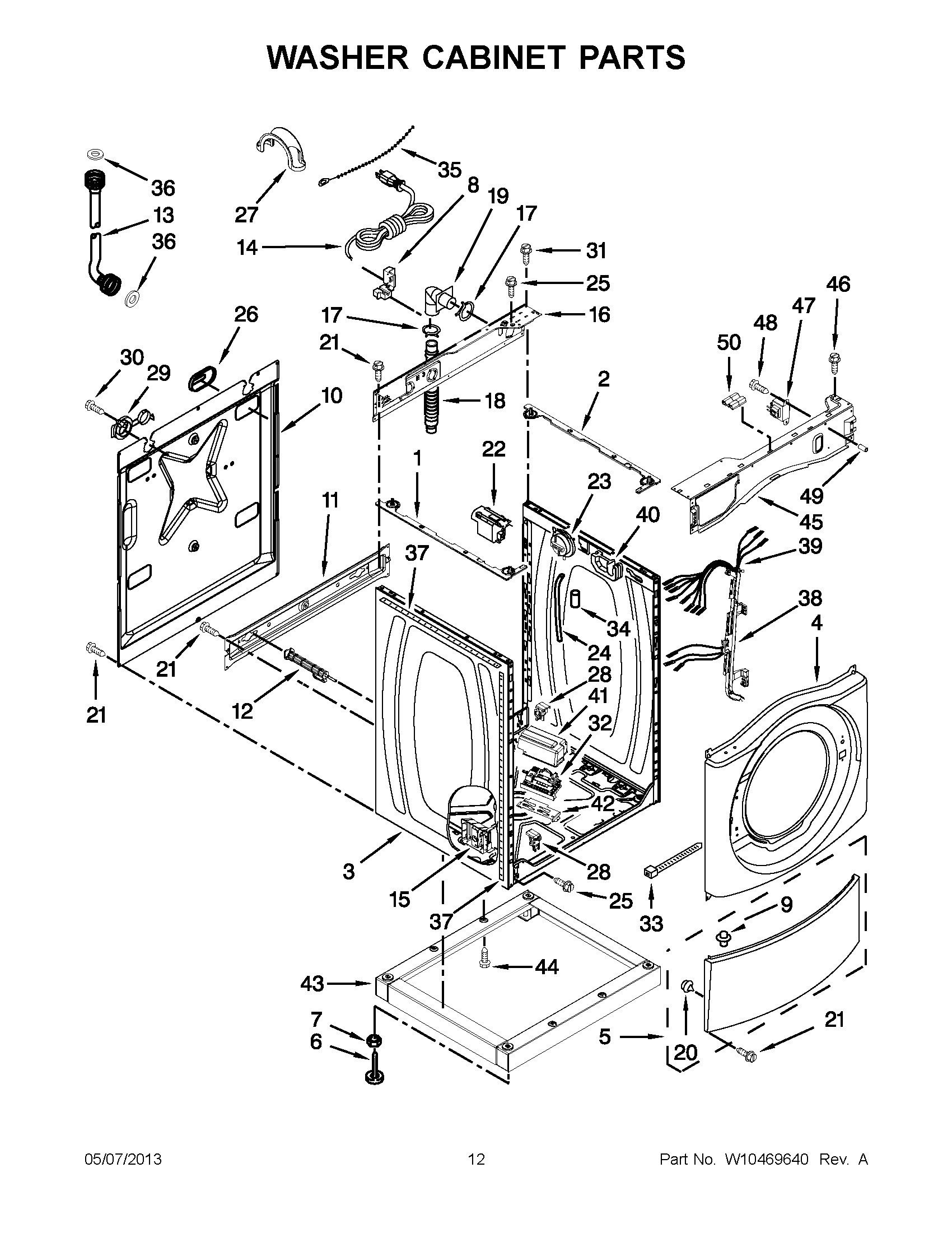

06 - WASHER CABINET PARTS

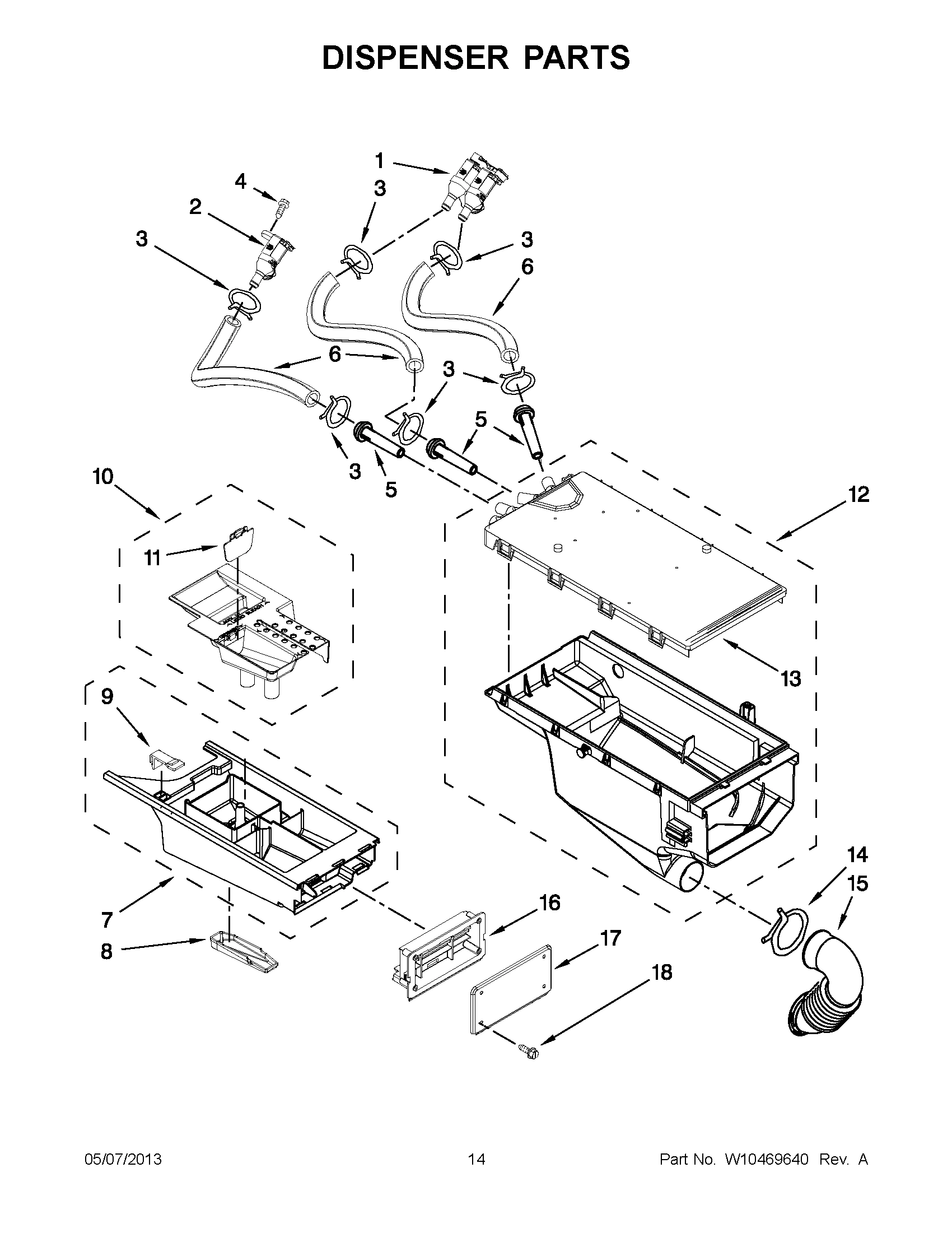

07 - DISPENSER PARTS

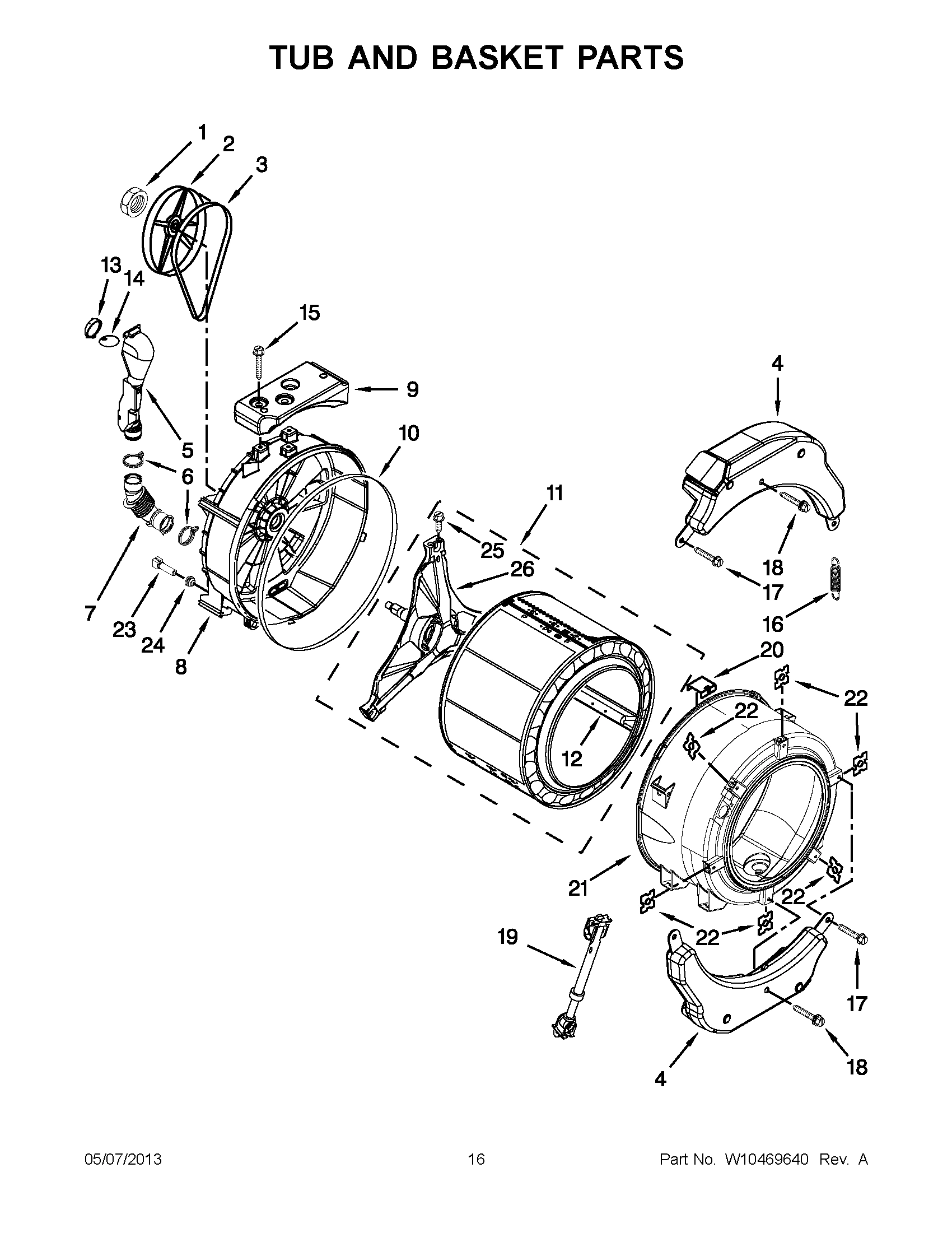

08 - TUB AND BASKET PARTS

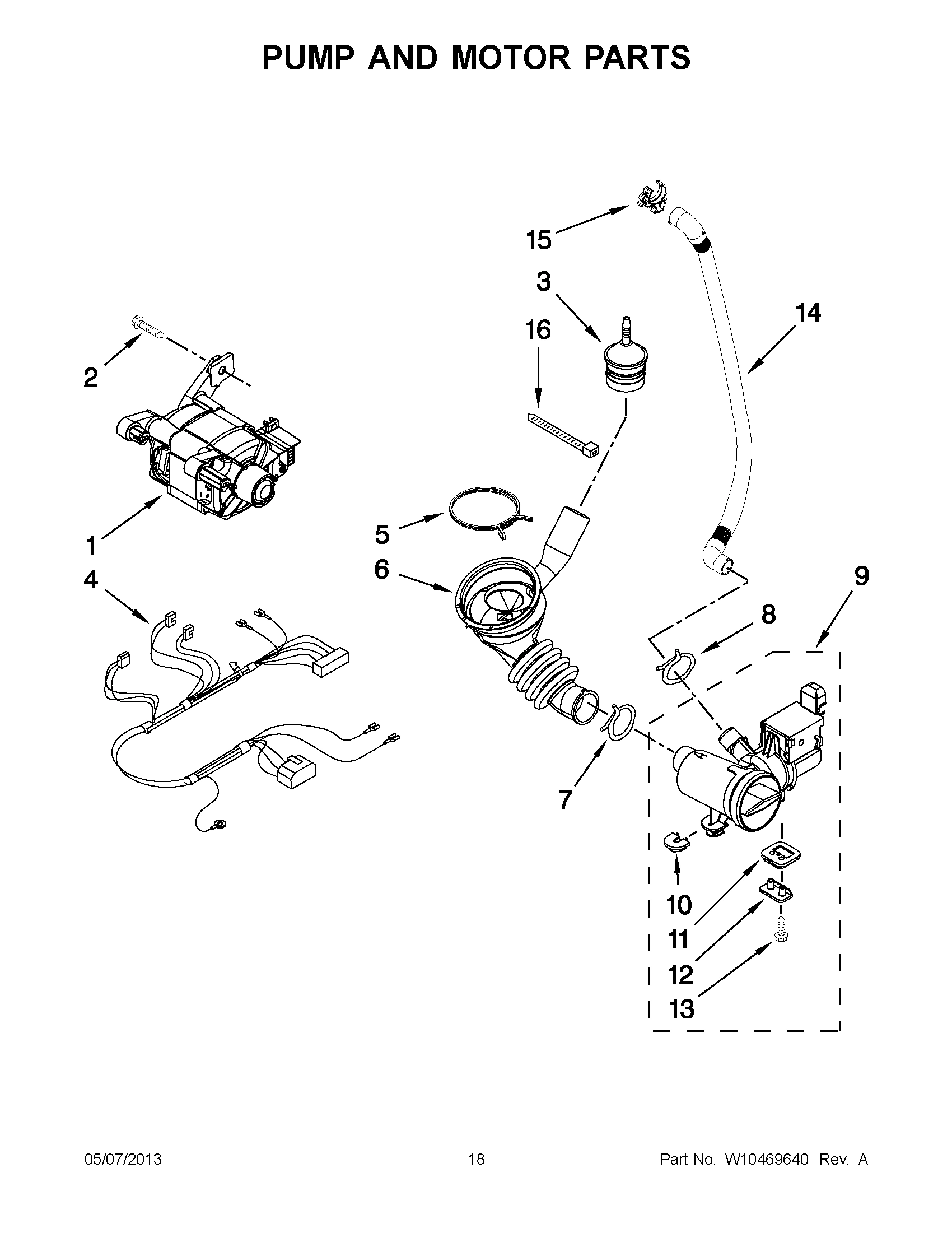

09 - PUMP AND MOTOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE20PDBYW2 LAUNDRY SYSTEM
1
INSTRUCTIONS, INSTALLATION MAY W10045641 Contact Us For Availability
1
MAY W10335470 MAY W10335470 Contact Us For Availability
1
MAY W10286180 MAY W10286180 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
1
MAY W10311051 MAY W10311051 Contact Us For Availability
1
MAY W10405229 MAY W10405229 Contact Us For Availability
1
MAY W10212596 MAY W10212596 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
1
MAY W10171927 MAY W10171927 Contact Us For Availability
2
MAY W10555302 MAY W10555302 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
MAY W10198424 MAY W10198424 Contact Us For Availability
2
MAY 8540108 MAY 8540108 Contact Us For Availability
2
MAY W10405223 MAY W10405223 Contact Us For Availability
2
MAY W10212598 MAY W10212598 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
3
ASSEMBLY, PANEL PD - COIN DROP MAY W10198200 Contact Us For Availability
3
ASSEMBLY, PANEL PR - CARD READER MAY W10198201 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
3
MAY W10375379 MAY W10375379 Contact Us For Availability
3
MAY W10225458 MAY W10225458 Contact Us For Availability
3
MAY 370450 MAY 370450 Contact Us For Availability
3
MAY W10260319 MAY W10260319 Contact Us For Availability
3
MAY W10405608 MAY W10405608 Contact Us For Availability
4
MAY W10542714 MAY W10542714 Contact Us For Availability
4
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
4
Screw MAY 9742177 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
PANEL, FRONT MAY W10306505 Contact Us For Availability
4
MAY W10223198 MAY W10223198 Contact Us For Availability
4
MAY W10201879 MAY W10201879 Contact Us For Availability
5
MAY 8564010 MAY 8564010 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
PANEL, TOE MAY 8540664 Contact Us For Availability
5
MAY 8183181 MAY 8183181 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
5
CLAMP, HOSE MAY 8181734 Contact Us For Availability
6
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
6
HANDLE, DOOR MAY W10117474 Contact Us For Availability
6
MAY W10245373 MAY W10245373 Contact Us For Availability
6
MAY W10212611 MAY W10212611 Contact Us For Availability
6
MAY 8540010 MAY 8540010 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
7
NUT, HEX MAY W10139762 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10112976 MAY W10112976 Contact Us For Availability
7
MAY W10198440 MAY W10198440 Contact Us For Availability
7
NUT, HEX MAY 3359452 Contact Us For Availability
7
MAY W10376660 MAY W10376660 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
7
MAY 370448 MAY 370448 Contact Us For Availability
8
MAY 3400408 MAY 3400408 Contact Us For Availability
8
LID & BUMPER ASSEMBLY (WHITE) MAY W10336080 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
8
MAY W10217563 MAY W10217563 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
MAY 356138 MAY 356138 Contact Us For Availability
8
MAY 8540399 MAY 8540399 Contact Us For Availability
8
MAY W10303574 MAY W10303574 Contact Us For Availability
9
ASSEMBLY, TECHBOX PD - COIN DROP MAY W10198219 Contact Us For Availability
9
ASSEMBLY, TECHBOX PR - CARD READER MAY W10198220 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10596627 MAY W10596627 Contact Us For Availability
9
Screw MAY 3393258 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY W10198458 MAY W10198458 Contact Us For Availability
9
MAY W10200747 MAY W10200747 Contact Us For Availability
9
MAY W10130913 MAY W10130913 Contact Us For Availability
10
MAY W10133248 MAY W10133248 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10564648 MAY W10564648 Contact Us For Availability
10
MAY 8540114 MAY 8540114 Contact Us For Availability
10
MAY W10258342 MAY W10258342 Contact Us For Availability
10
MAY W10407371 MAY W10407371 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
10
MAY W10034820 MAY W10034820 Contact Us For Availability
11
MAY W10133258 MAY W10133258 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY 359625 MAY 359625 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
11
MAY 8540513 MAY 8540513 Contact Us For Availability
11
MAY W10189659 MAY W10189659 Contact Us For Availability
11
MAY W10298953 MAY W10298953 Contact Us For Availability
11
MAY W10303571 MAY W10303571 Contact Us For Availability
11
MAY W10034830 MAY W10034830 Contact Us For Availability
12
MAY W10198369 MAY W10198369 Contact Us For Availability
12
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
MAY W10198431 MAY W10198431 Contact Us For Availability
12
MAY W10137404 MAY W10137404 Contact Us For Availability
12
MAY W10251449 MAY W10251449 Contact Us For Availability
12
MAY W10212603 MAY W10212603 Contact Us For Availability
12
MAY W10118982 MAY W10118982 Contact Us For Availability
12
MAY 8540033 MAY 8540033 Contact Us For Availability
13
NUT, HEX MAY W10177242 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
Screw MAY 8533971 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
13
MAY W10388315 MAY W10388315 Contact Us For Availability
13
HOSE, INLET HOT WATER MAY 8571378 Contact Us For Availability
13
HOSE, INLET (COLD WATER) MAY W10194208 Contact Us For Availability
13
MAY W10212604 MAY W10212604 Contact Us For Availability
13
MAY W10142721 MAY W10142721 Contact Us For Availability
13
MAY 8533964 MAY 8533964 Contact Us For Availability
14
Key, Access Door MAY W10140858 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
14
MAY W10198442 MAY W10198442 Contact Us For Availability
14
MAY W10205500 MAY W10205500 Contact Us For Availability
14
MAY 8281276 MAY 8281276 Contact Us For Availability
14
Flap - Ventilation MAY W10142722 Contact Us For Availability
14
HOSE, DRAIN- INNER MAY W10272563 Contact Us For Availability
15
ASSEMBLY, SINGLE COIN DROP MAY W10133242 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
Screw MAY 693995 Contact Us For Availability
15
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
15
MAY W10198417 MAY W10198417 Contact Us For Availability
15
MAY W10384849 MAY W10384849 Contact Us For Availability
15
MAY 8540063 MAY 8540063 Contact Us For Availability
15
MAY W10246531 MAY W10246531 Contact Us For Availability
15
MAY W10003290 MAY W10003290 Contact Us For Availability
16
COIN-OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
16
MAY W10167613 MAY W10167613 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
DOOR,INTERMEDIATE MAY 8580059 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY W10244560 MAY W10244560 Contact Us For Availability
16
MAY W10405607 MAY W10405607 Contact Us For Availability
16
MAY W10010360 MAY W10010360 Contact Us For Availability
16
MAY 2262071 MAY 2262071 Contact Us For Availability
17
SCREW MAY W10142655 Contact Us For Availability
17
SCREW MAY 343641 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
17
MAY 8540282 MAY 8540282 Contact Us For Availability
17
MAY W10198450 MAY W10198450 Contact Us For Availability
17
SCREW MAY W10094780 Contact Us For Availability
18
MAY W10447152 MAY W10447152 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
Retainer-Window Upper MAY 8519356 Contact Us For Availability
18
HOSE, DRAIN- OUTER MAY W10106460 Contact Us For Availability
18
MAY W10137456 MAY W10137456 Contact Us For Availability
18
MAY W10259288 MAY W10259288 Contact Us For Availability
19
MAY W10131838 MAY W10131838 Contact Us For Availability
19
MAY W10350910 MAY W10350910 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY W10407973 MAY W10407973 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
MAY W10003260 MAY W10003260 Contact Us For Availability
19
MAY W10015830 MAY W10015830 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY 238614 MAY 238614 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
MAY W10192860 MAY W10192860 Contact Us For Availability
21
PLATE, COVER MAY 8066115 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY W10266965 MAY W10266965 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
PIPE, EXHAUST MAY 8563728 Contact Us For Availability
22
MAY W10339736 MAY W10339736 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10169579 MAY W10169579 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10153423 Contact Us For Availability
23
MAY W10292407 MAY W10292407 Contact Us For Availability
23
MAY W10176659 MAY W10176659 Contact Us For Availability
24
MAY W10242897 MAY W10242897 Contact Us For Availability
24
MAY 8539892 MAY 8539892 Contact Us For Availability
24
Screw MAY 489463 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
MAY 8540766 MAY 8540766 Contact Us For Availability
25
MAY W10198375 MAY W10198375 Contact Us For Availability
25
MAY W10549246 MAY W10549246 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
25
MAY 8540382 MAY 8540382 Contact Us For Availability
26
MAY W10159907 MAY W10159907 Contact Us For Availability
26
MAY 8565059 MAY 8565059 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
26
MAY 8540342 MAY 8540342 Contact Us For Availability
27
MAY W10133266 MAY W10133266 Contact Us For Availability
27
MAY W10396034 MAY W10396034 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
27
MAY 8577378 MAY 8577378 Contact Us For Availability
28
BRACKET PD COIN DROP & PN NON-COIN MAY W10198322 Contact Us For Availability
28
BRACKET PR - CARD READER MAY W10198323 Contact Us For Availability
28
MAY W10133261 MAY W10133261 Contact Us For Availability
28
MAY W10085220 MAY W10085220 Contact Us For Availability
29
FASCIA PD - COIN DROP MAY W10198334 Contact Us For Availability
29
FASCIA PR - CARD READER MAY W10198336 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
SCREW MAY 90767 Contact Us For Availability
29
MAY 8540728 MAY 8540728 Contact Us For Availability
30
MAY W10129069 MAY W10129069 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY 8540727 MAY 8540727 Contact Us For Availability
31
BUTTONS, FASCIA MAY W10198284 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
BRACKET, HEATER BOX PR - CARD READER MAY 8066099 Contact Us For Availability
32
BRACKET, HEATER BOX PD - COIN DROP MAY W10198340 Contact Us For Availability
32
MAY W10487818 MAY W10487818 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY W10153412 MAY W10153412 Contact Us For Availability
33
MAY 3429563 MAY 3429563 Contact Us For Availability
34
MAY W10198390 MAY W10198390 Contact Us For Availability
34
ELBOW MAY 49026 Contact Us For Availability
34
MAY W10153409 MAY W10153409 Contact Us For Availability
34
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
35
MAY W10198367 MAY W10198367 Contact Us For Availability
35
MAY W10465334 MAY W10465334 Contact Us For Availability
35
TIE, CABLE (BEADED) MAY 3347868 Contact Us For Availability
36
MAY W10198345 MAY W10198345 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY 8565061 MAY 8565061 Contact Us For Availability
36
WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
37
MAY W10198451 MAY W10198451 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
37
Seal, Foam MAY 8318396 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
MAY 8318314 MAY 8318314 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
MAY W10239515 MAY W10239515 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
39
MAY W10330829 MAY W10330829 Contact Us For Availability
40
MAY W10198366 MAY W10198366 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
40
MAY 8540643 MAY 8540643 Contact Us For Availability
41
SCREW MAY 695240 Contact Us For Availability
41
MAY W10405233 MAY W10405233 Contact Us For Availability
42
MAY W10300896 MAY W10300896 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
42
MAY W10198280 MAY W10198280 Contact Us For Availability
43
SCREW MAY 3390647 Contact Us For Availability
43
MAY W10386302 MAY W10386302 Contact Us For Availability
43
PEDESTAL, COMMERCIAL MAY W10103350 Contact Us For Availability
44
MAY W10198198 MAY W10198198 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
44
MAY 3400111 MAY 3400111 Contact Us For Availability
45
MAY 3393008 MAY 3393008 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
45
MAY W10294428 MAY W10294428 Contact Us For Availability
46
MAY W10376685 MAY W10376685 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
46
MAY W10015090 MAY W10015090 Contact Us For Availability
47
Bracket, Control MAY 8563727 Contact Us For Availability
47
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
47
MAY W10198388 MAY W10198388 Contact Us For Availability
48
Plug, Front Panel MAY 8565043 Contact Us For Availability
48
MAY 3387748 MAY 3387748 Contact Us For Availability
48
MAY 8540329 MAY 8540329 Contact Us For Availability
49
SCREW MAY 3357011 Contact Us For Availability
49
SCREW MAY 3387230 Contact Us For Availability
49
MAY W10018050 MAY W10018050 Contact Us For Availability
50
MAY W10549665 MAY W10549665 Contact Us For Availability
50
MAY 279457 MAY 279457 Contact Us For Availability
50
MAY W10198373 MAY W10198373 Contact Us For Availability
51
MAY W10155571 MAY W10155571 Contact Us For Availability
51
CAP, PLUG MAY W10128544 Contact Us For Availability
52
MAY W10345456 MAY W10345456 Contact Us For Availability
53
MAY W10198363 MAY W10198363 Contact Us For Availability
54
MAY W10198224 MAY W10198224 Contact Us For Availability
55
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
57
MAY 3393657 MAY 3393657 Contact Us For Availability
58
MAY 8565237 MAY 8565237 Contact Us For Availability
59
BRACKET-STACK MAY W10198461 Contact Us For Availability
60
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
61
BASE, CABINET (PR (CARD READER)) MAY 8565046 Contact Us For Availability
61
ASSEMBLY, VAULT BASE & BRACKET PD - COIN DROP MAY W10198309 Contact Us For Availability
62
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY W10342214 MAY W10342214 Contact Us For Availability
NI
THE FOLLOWING CABLE SETS: (NOT ILLUSTRATED) MAY N/P Contact Us For Availability
NI
MAY W10342200 MAY W10342200 Contact Us For Availability
NI
MAY W10342201 MAY W10342201 Contact Us For Availability
NI
MAY W10342208 MAY W10342208 Contact Us For Availability
NI
MAY W10342210 MAY W10342210 Contact Us For Availability
NI
ACCESSORY PARTS, 4` DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
× ![]()
Login and Registration Form
