Model Maytag MHW6000XW2 AUTOMATIC WASHER – Common Parts & Diagrams

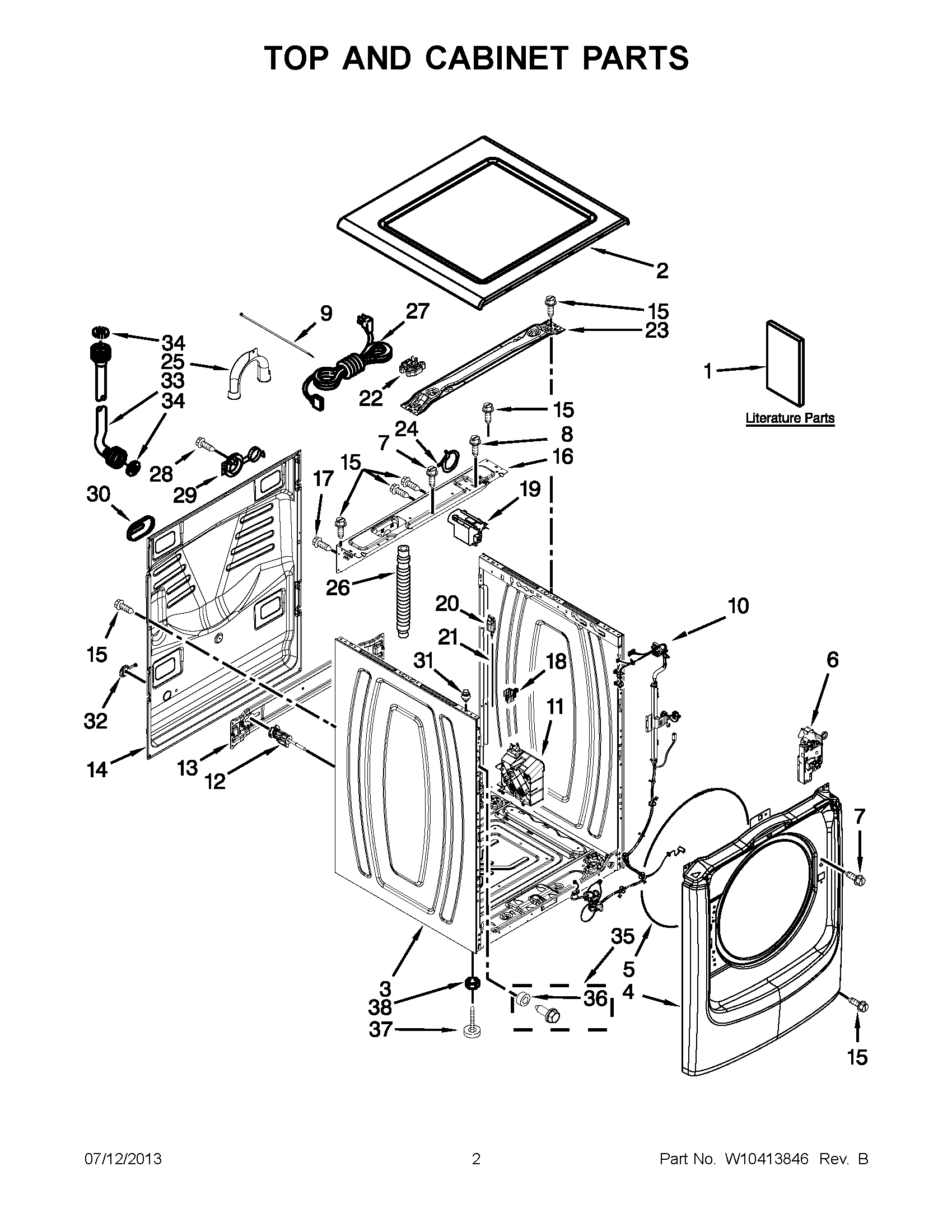

01 - TOP AND CABINET PARTS

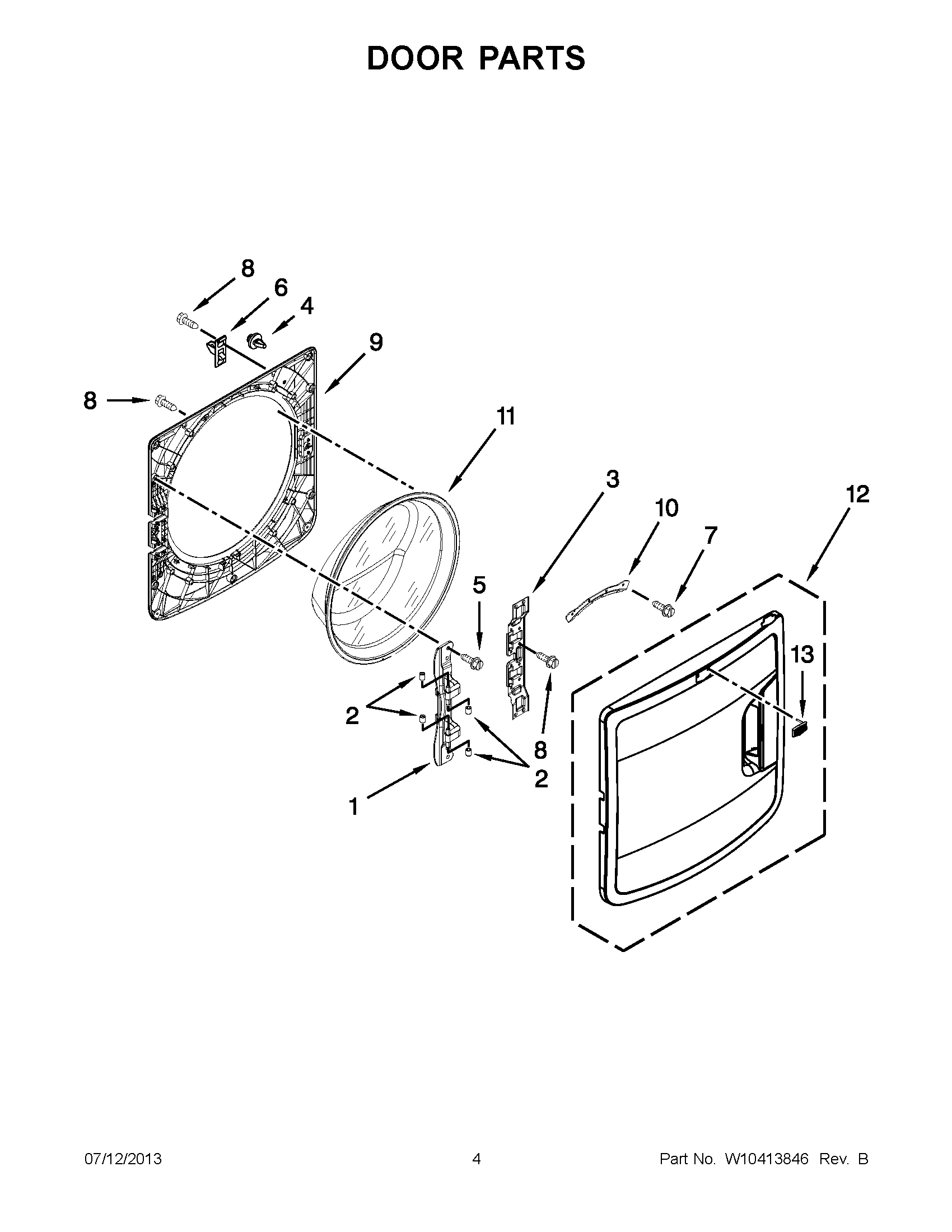

02 - DOOR PARTS

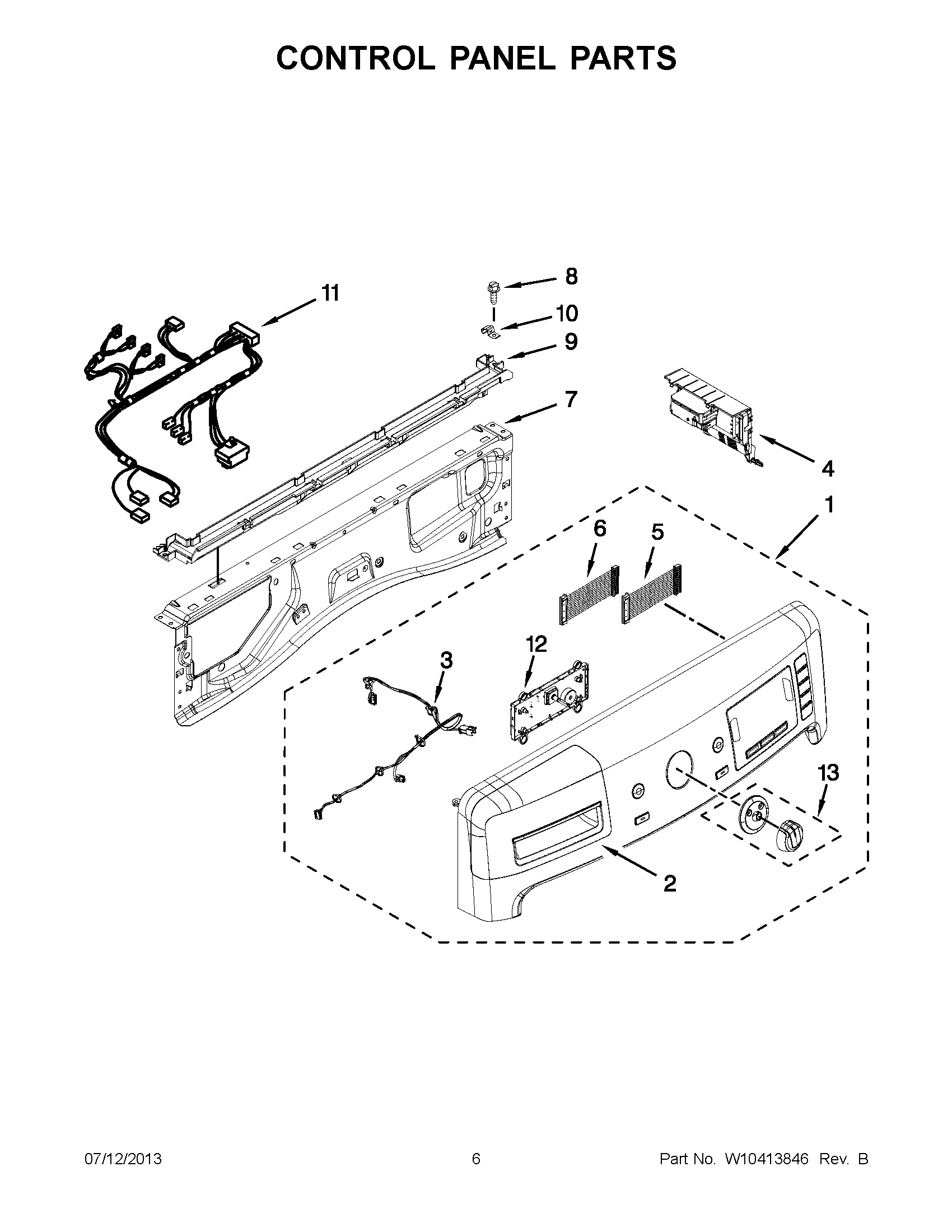

03 - CONTROL PANEL PARTS

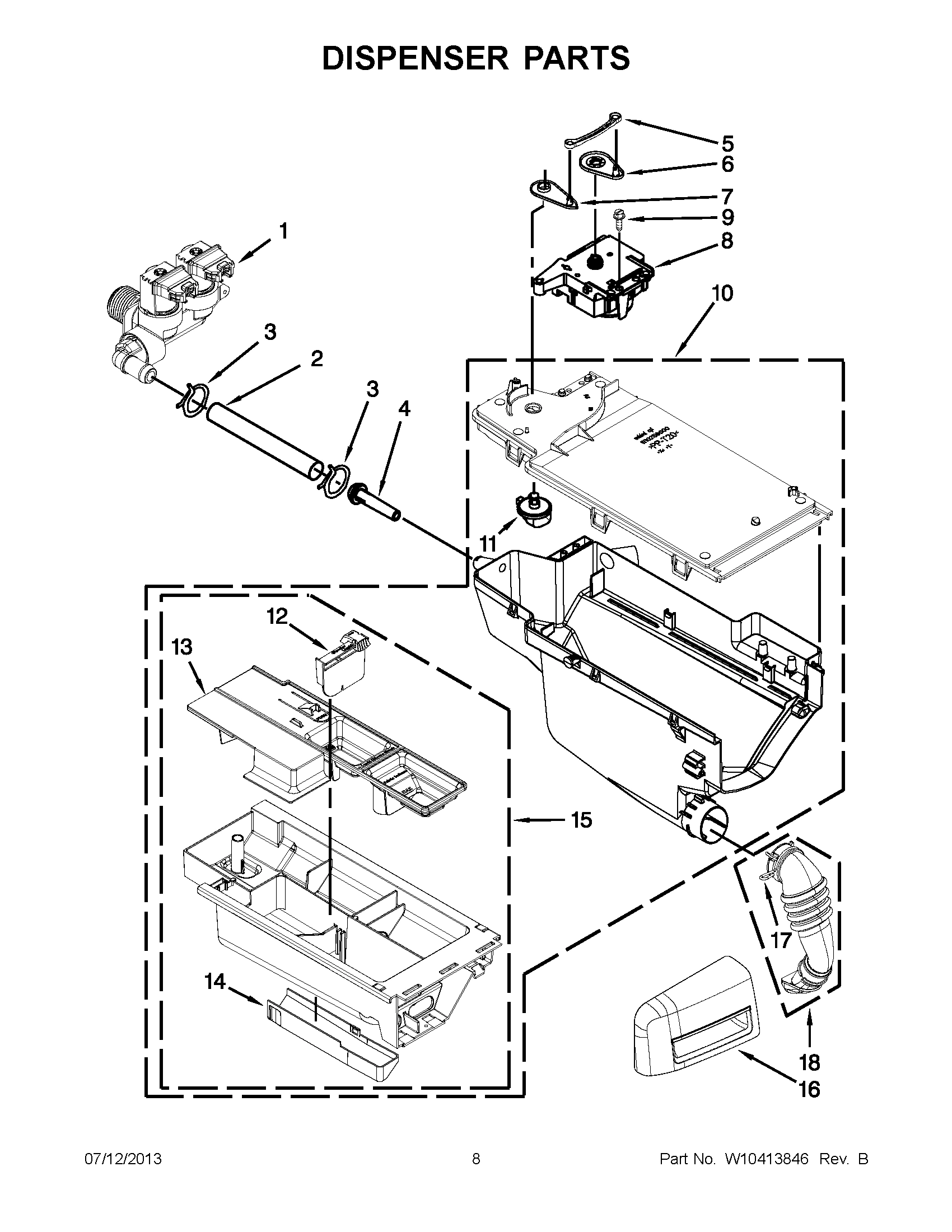

04 - DISPENSER PARTS

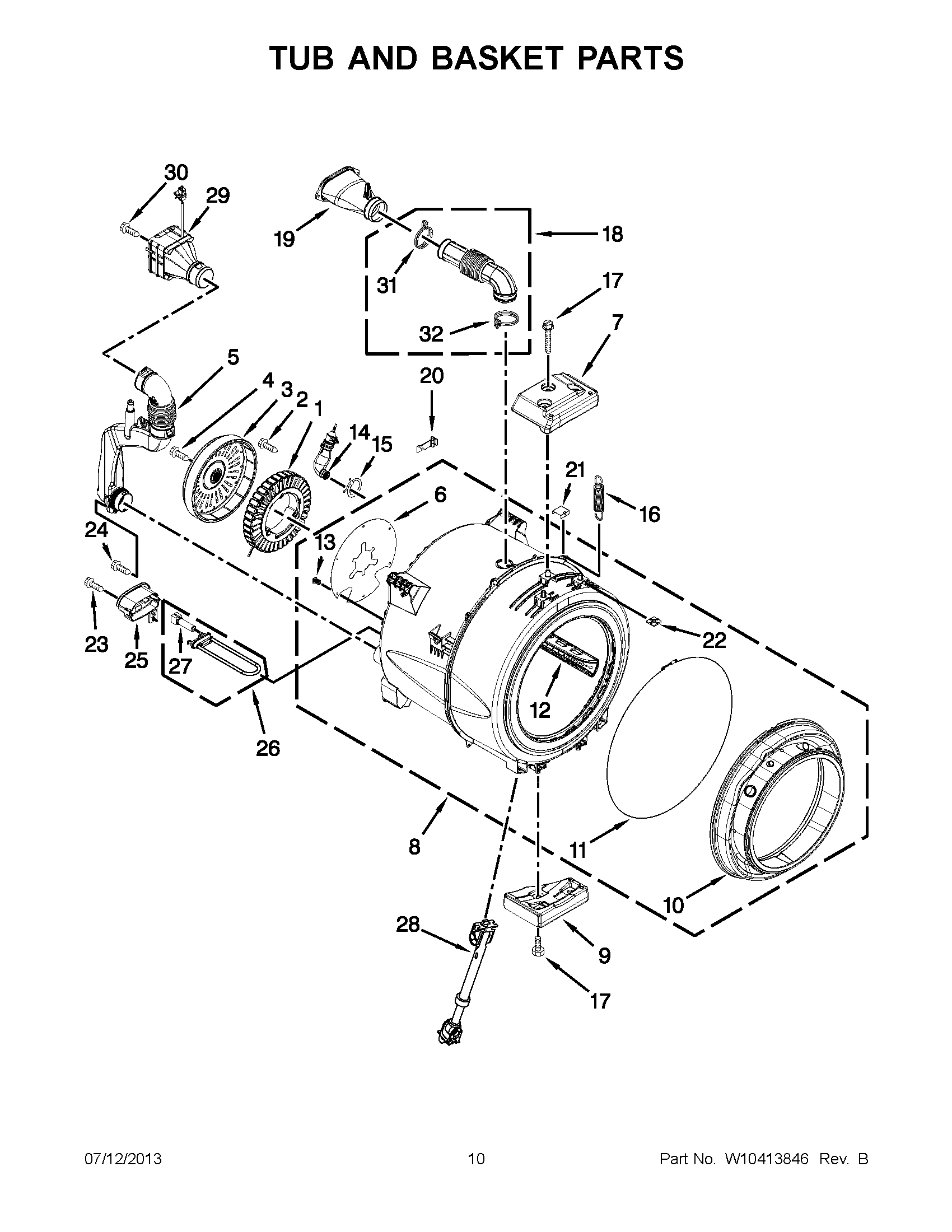

05 - TUB AND BASKET PARTS

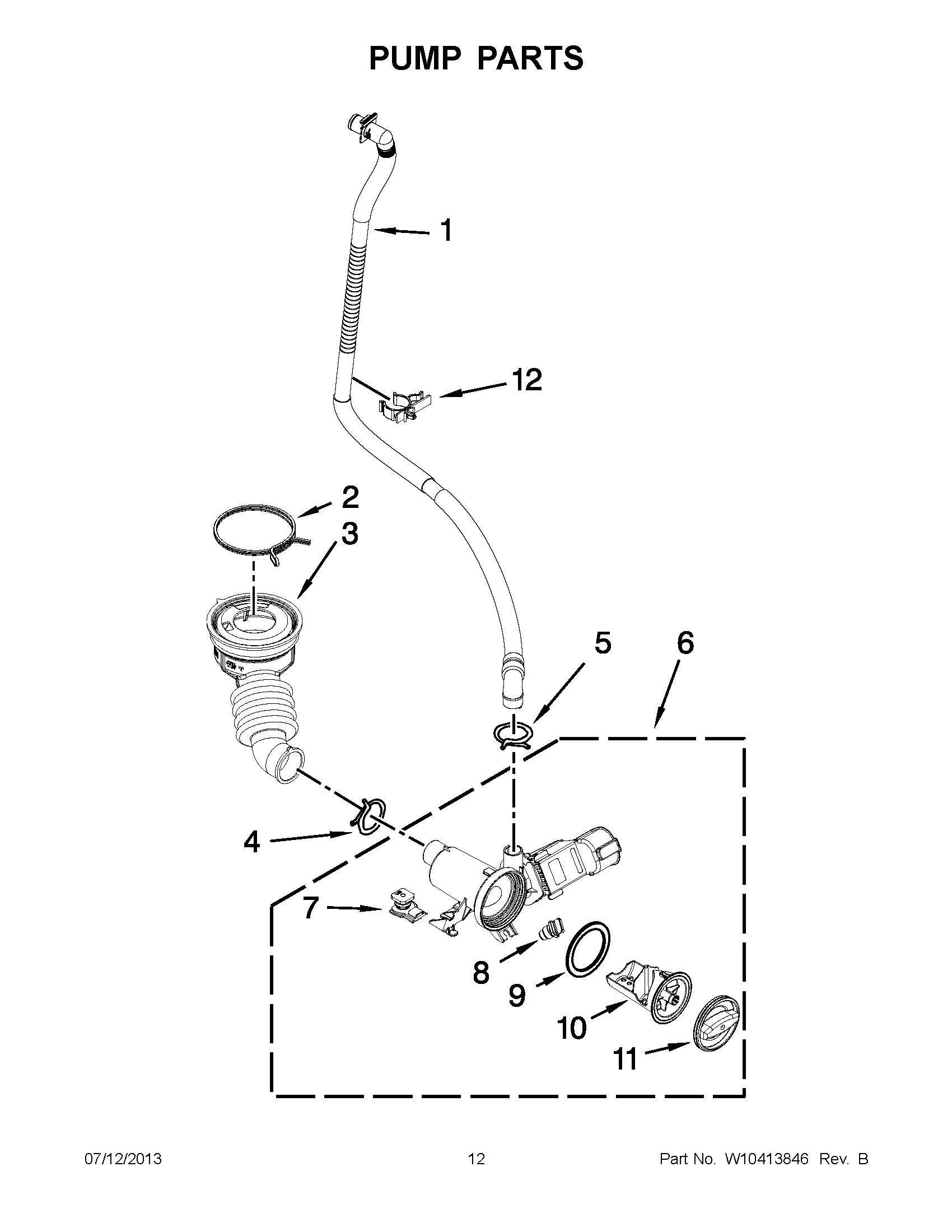

06 - PUMP PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MHW6000XW2 AUTOMATIC WASHER
1
MAY W10254447 MAY W10254447 Contact Us For Availability
1
MAY W10254474 MAY W10254474 Contact Us For Availability
1
MAY W10254489 MAY W10254489 Contact Us For Availability
1
MAY W10254495 MAY W10254495 Contact Us For Availability
1
HINGE BASE MAY W10208415 Contact Us For Availability
1
MAY W10387857 MAY W10387857 Contact Us For Availability
1
MAY W10387860 MAY W10387860 Contact Us For Availability
1
MAY W10387862 MAY W10387862 Contact Us For Availability
1
MAY W10289387 MAY W10289387 Contact Us For Availability
1
MAY W10213978 MAY W10213978 Contact Us For Availability
1
MAY W10267642 MAY W10267642 Contact Us For Availability
2
MAY W10208373 MAY W10208373 Contact Us For Availability
2
TOP (COSMETALLIC) MAY W10304145 Contact Us For Availability
2
MAY W10337799 MAY W10337799 Contact Us For Availability
2
MAY W10208398 MAY W10208398 Contact Us For Availability
2
MAY W10538835 MAY W10538835 Contact Us For Availability
2
MAY W10253476 MAY W10253476 Contact Us For Availability
2
CLAMP, HOSE MAY 8181734 Contact Us For Availability
3
MAY W10441106 MAY W10441106 Contact Us For Availability
3
MAY W10441108 MAY W10441108 Contact Us For Availability
3
MAY W10441110 MAY W10441110 Contact Us For Availability
3
MAY W10312805 MAY W10312805 Contact Us For Availability
3
MAY W10271989 MAY W10271989 Contact Us For Availability
3
MAY W10096852 MAY W10096852 Contact Us For Availability
3
MAY W10213980 MAY W10213980 Contact Us For Availability
3
MAY W10467168 MAY W10467168 Contact Us For Availability
4
MAY W10441117 MAY W10441117 Contact Us For Availability
4
MAY W10441119 MAY W10441119 Contact Us For Availability
4
MAY W10441121 MAY W10441121 Contact Us For Availability
4
MAY 8572266 MAY 8572266 Contact Us For Availability
4
MAY W10427972 MAY W10427972 Contact Us For Availability
4
MAY 8183181 MAY 8183181 Contact Us For Availability
4
MAY W10253477 MAY W10253477 Contact Us For Availability
4
MAY W10273036 MAY W10273036 Contact Us For Availability
5
RETAINER, BELLOW TO FRONT PANEL MAY W10237503 Contact Us For Availability
5
MAY 356138 MAY 356138 Contact Us For Availability
5
MAY W10288126 MAY W10288126 Contact Us For Availability
5
HARNESS, JUMPER MAY W10309986 Contact Us For Availability
5
MAY 8183183 MAY 8183183 Contact Us For Availability
5
MAY W10261582 MAY W10261582 Contact Us For Availability
6
LOCK,DOOR MAY 8183197 Contact Us For Availability
6
MAY W10488048 MAY W10488048 Contact Us For Availability
6
HARNESS, JUMPER MAY W10309987 Contact Us For Availability
6
MAY W10003190 MAY W10003190 Contact Us For Availability
6
MAY W10267637 MAY W10267637 Contact Us For Availability
6
MAY W10321032 MAY W10321032 Contact Us For Availability
7
MAY 8540513 MAY 8540513 Contact Us For Availability
7
MAY W10208197 MAY W10208197 Contact Us For Availability
7
MAY W10183517 MAY W10183517 Contact Us For Availability
7
MAY W10253014 MAY W10253014 Contact Us For Availability
7
MAY W10338326 MAY W10338326 Contact Us For Availability
8
MAY 8540329 MAY 8540329 Contact Us For Availability
8
SCREW MAY W10142290 Contact Us For Availability
8
MAY 8534022 MAY 8534022 Contact Us For Availability
8
MAY W10163975 MAY W10163975 Contact Us For Availability
8
MAY W10355161 MAY W10355161 Contact Us For Availability
8
MAY 8182816 MAY 8182816 Contact Us For Availability
9
TIE, CABLE MAY W10339879 Contact Us For Availability
9
MAY W10272396 MAY W10272396 Contact Us For Availability
9
MAY W10317570 MAY W10317570 Contact Us For Availability
9
MAY W10237535 MAY W10237535 Contact Us For Availability
9
MAY 8181736 MAY 8181736 Contact Us For Availability
10
MAY W10339734 MAY W10339734 Contact Us For Availability
10
MAY W10003440 MAY W10003440 Contact Us For Availability
10
MAY W10317566 MAY W10317566 Contact Us For Availability
10
MAY W10351811 MAY W10351811 Contact Us For Availability
10
MAY W10474367 MAY W10474367 Contact Us For Availability
10
MAY W10241027 MAY W10241027 Contact Us For Availability
11
MAY W10374126 MAY W10374126 Contact Us For Availability
11
MAY W10208263 MAY W10208263 Contact Us For Availability
11
MAY W10271979 MAY W10271979 Contact Us For Availability
11
MAY W10003110 MAY W10003110 Contact Us For Availability
11
MAY W10237502 MAY W10237502 Contact Us For Availability
11
MAY W10338322 MAY W10338322 Contact Us For Availability
12
MAY W10271590 MAY W10271590 Contact Us For Availability
12
MAY W10272401 MAY W10272401 Contact Us For Availability
12
MAY W10455728 MAY W10455728 Contact Us For Availability
12
MAY W10015200 MAY W10015200 Contact Us For Availability
12
MAY W10292810 MAY W10292810 Contact Us For Availability
12
MAY W10441646 MAY W10441646 Contact Us For Availability
13
MAY W10237498 MAY W10237498 Contact Us For Availability
13
BADGE (CHROME) MAY W10316087 Contact Us For Availability
13
MAY W10514146 MAY W10514146 Contact Us For Availability
13
MAY W10289432 MAY W10289432 Contact Us For Availability
13
MAY W10273613 MAY W10273613 Contact Us For Availability
14
MAY W10502639 MAY W10502639 Contact Us For Availability
14
MAY W10003140 MAY W10003140 Contact Us For Availability
14
MAY W10260500 MAY W10260500 Contact Us For Availability
15
MAY W10256686 MAY W10256686 Contact Us For Availability
15
Clamp, Hose MAY 371499 Contact Us For Availability
16
MAY W10467483 MAY W10467483 Contact Us For Availability
16
HANDLE, DISPENSER DRAWER (WHITE) MAY W10281852 Contact Us For Availability
16
MAY W10315748 MAY W10315748 Contact Us For Availability
16
HANDLE, DISPENSER DRAWER (RED) MAY W10316371 Contact Us For Availability
16
MAY W10312146 MAY W10312146 Contact Us For Availability
17
MAY W10305097 MAY W10305097 Contact Us For Availability
17
MAY W10239910 MAY W10239910 Contact Us For Availability
17
MAY W10261496 MAY W10261496 Contact Us For Availability
18
MAY W10181028 MAY W10181028 Contact Us For Availability
18
MAY W10239966 MAY W10239966 Contact Us For Availability
18
MAY W10568614 MAY W10568614 Contact Us For Availability
19
MAY W10367632 MAY W10367632 Contact Us For Availability
19
MAY W10352818 MAY W10352818 Contact Us For Availability
20
MAY W10304342 MAY W10304342 Contact Us For Availability
20
MAY W10316388 MAY W10316388 Contact Us For Availability
21
MAY W10251962 MAY W10251962 Contact Us For Availability
21
MAY 8540092 MAY 8540092 Contact Us For Availability
22
MAY W10245452 MAY W10245452 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10467484 MAY W10467484 Contact Us For Availability
23
SCREW MAY 9740848 Contact Us For Availability
24
MAY W10306501 MAY W10306501 Contact Us For Availability
25
MAY W10280024 MAY W10280024 Contact Us For Availability
25
MAY W10318155 MAY W10318155 Contact Us For Availability
26
MAY W10267638 MAY W10267638 Contact Us For Availability
26
MAY W10426377 MAY W10426377 Contact Us For Availability
27
MAY W10434975 MAY W10434975 Contact Us For Availability
27
SENSOR, TEMP MAY W10467289 Contact Us For Availability
28
SCREW MAY 3351614 Contact Us For Availability
28
MAY W10312625 MAY W10312625 Contact Us For Availability
29
COVER, POWER CORD-TRANSPORT MAY W10275820 Contact Us For Availability
29
MAY W10434964 MAY W10434964 Contact Us For Availability
30
MAY 8540282 MAY 8540282 Contact Us For Availability
30
MAY 8182700 MAY 8182700 Contact Us For Availability
31
SCREW, BUSH ASSEMBLY MAY W10208380 Contact Us For Availability
31
MAY W10273034 MAY W10273034 Contact Us For Availability
32
MAY W10304004 MAY W10304004 Contact Us For Availability
32
MAY W10353599 MAY W10353599 Contact Us For Availability
33
Hose, Water Inlet (Cold Water) MAY W10194208 Contact Us For Availability
33
MAY W10194209 MAY W10194209 Contact Us For Availability
34
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
35
MAY W10298211 MAY W10298211 Contact Us For Availability
36
MAY W10323182 MAY W10323182 Contact Us For Availability
37
FOOT, FRONT MAY W10001130 Contact Us For Availability
38
NUT, HEX MAY 3359452 Contact Us For Availability
NI
ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART MAY 1903WH Contact Us For Availability
NI
ACCESSORY PARTS, 4` DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 31682 MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4396899 MAY 4396899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
MAY W10298318RP MAY W10298318RP Contact Us For Availability
NI
MAY W10318650 MAY W10318650 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (RED) MAY W10363227 Contact Us For Availability
× ![]()
