Model Whirlpool MHE13XHB0 MICROWAVE – Common Parts & Diagrams

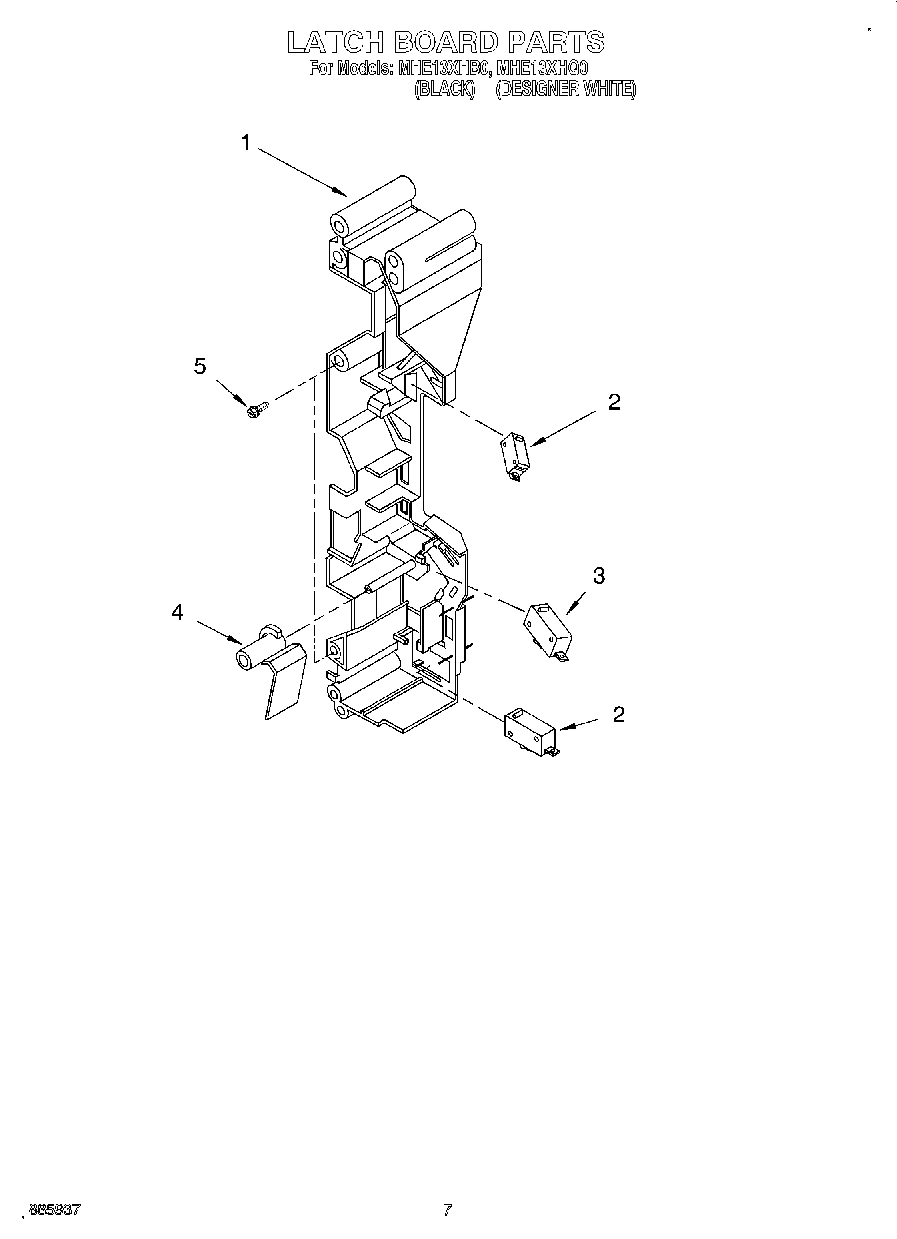

06 - LATCH BOARD

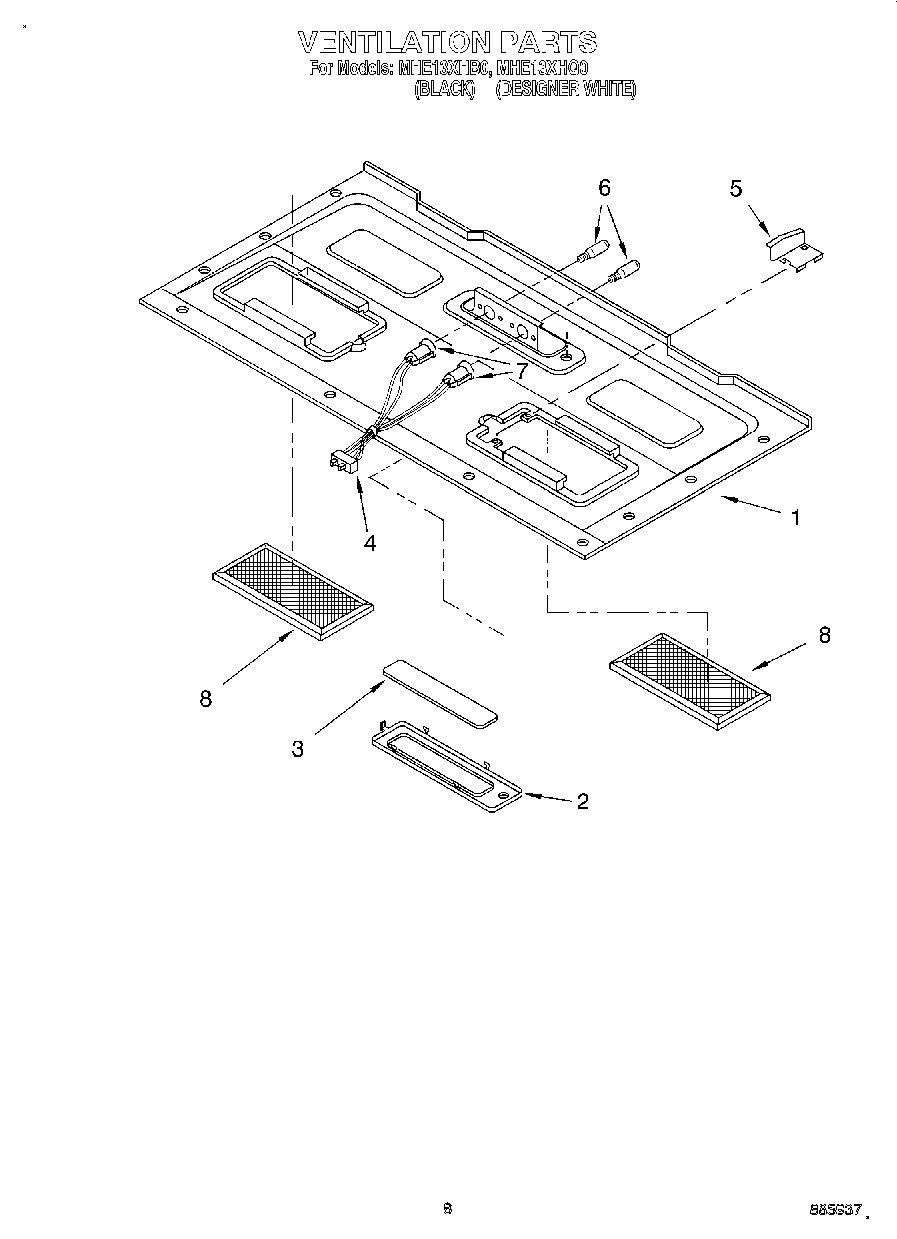

07 - VENTILATION
01 - CONTROL PANEL, LITERATURE
05 - INTERIOR
08 - INSTALLATION
03 - CABINET
02 - DOOR
04 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool MHE13XHB0 MICROWAVE
1
Literature Parts (Instructions, Installation) WPL LIT4359455 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359670 Contact Us For Availability
1
Literature Parts (Guide, U&C) WPL LIT4359930 Contact Us For Availability
1
Literature Parts (Guide, Cooking) WPL LIT4359931 Contact Us For Availability
1
Motor, Fan WPL 4359511 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Outer Case (White Model) WPL 4359487 Contact Us For Availability
1
Outer Case (Black Model) WPL 4359488 Contact Us For Availability
1
Door Assembly (Black) WPL 4359986 Contact Us For Availability
1
Door Assembly (White) WPL 4359987 Contact Us For Availability
1
Magnetron WPL 4359687 Contact Us For Availability
2
Control Panel (White Model) WPL 4359479 Contact Us For Availability
2
Control Panel (Black Model) WPL 4359480 Contact Us For Availability
2
Air Duct WPL 4359513 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Frame, Door WPL 4359465 Contact Us For Availability
2
H.V. Transformer WPL 4359494 Contact Us For Availability
3
Bracket, Control WPL 4359481 Contact Us For Availability
3
Cavity Assembly (Not Serviceable) WPL ARI118343A Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
4
Grille Vent (Screw) WPL 4358762 Contact Us For Availability
4
Key Membrane (Black) WPL 4359988 Contact Us For Availability
4
Key Membrane (White) WPL 4359989 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Grille Vent (White Model) WPL 4359489 Contact Us For Availability
4
Grille Vent (Black Model) WPL 4359490 Contact Us For Availability
4
Latch WPL 4359985 Contact Us For Availability
4
Capacitor, H.V. WPL 4359049 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
Bracket WPL 4359530 Contact Us For Availability
5
Screw WPL 4358883 Contact Us For Availability
5
PCB Sub Assy. WPL 4359661 Contact Us For Availability
5
Fuse WPL 4359514 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
Bracket, Front WPL 4358759 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Screw WPL 4358376 Contact Us For Availability
6
Screw WPL 4358188 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Bracket, Grille WPL 4358816 Contact Us For Availability
6
Panel, Door (White) WPL 4359469 Contact Us For Availability
6
Panel, Door (Black) WPL 4359470 Contact Us For Availability
6
Motor, Turntable WPL 4359932 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Cover, Power Cord WPL 4359616 Contact Us For Availability
7
Glass, Door (Black) WPL 4359983 Contact Us For Availability
7
Glass, Door (White) WPL 4359984 Contact Us For Availability
7
Plate WPL 4359500 Contact Us For Availability
8
Wire Holder WPL 4158267 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
8
Handle, Door (Screw) WPL 4358479 Contact Us For Availability
8
Handle, Door (White Model) WPL 4359473 Contact Us For Availability
8
Handle, Door (Black Model) WPL 4359474 Contact Us For Availability
8
H.V. Cable WPL 4359501 Contact Us For Availability
9
Screw WPL 4358381 Contact Us For Availability
9
Cover WPL 4359517 Contact Us For Availability
9
Plate, Mount WPL 4359377 Contact Us For Availability
9
Choke, Cover WPL 4359476 Contact Us For Availability
10
Lamp Holder WPL 4359518 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359560 Contact Us For Availability
11
Guide WPL 4359504 Contact Us For Availability
12
Motor, Ventilation WPL 4359990 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
12
Cover WPL 4359688 Contact Us For Availability
13
Lead, Wire WPL 4359690 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
15
Tape WPL 4359212 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 4359522 Contact Us For Availability
17
Filter, Charcoal WPL 4359331 Contact Us For Availability
17
Installation Hardware WPL 4158491 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
18
Turntable Shaft WPL 4359618 Contact Us For Availability
20
Plate WPL 4359510 Contact Us For Availability
× ![]()
