Model Whirlpool MHE11REQ0 – Common Parts & Diagrams

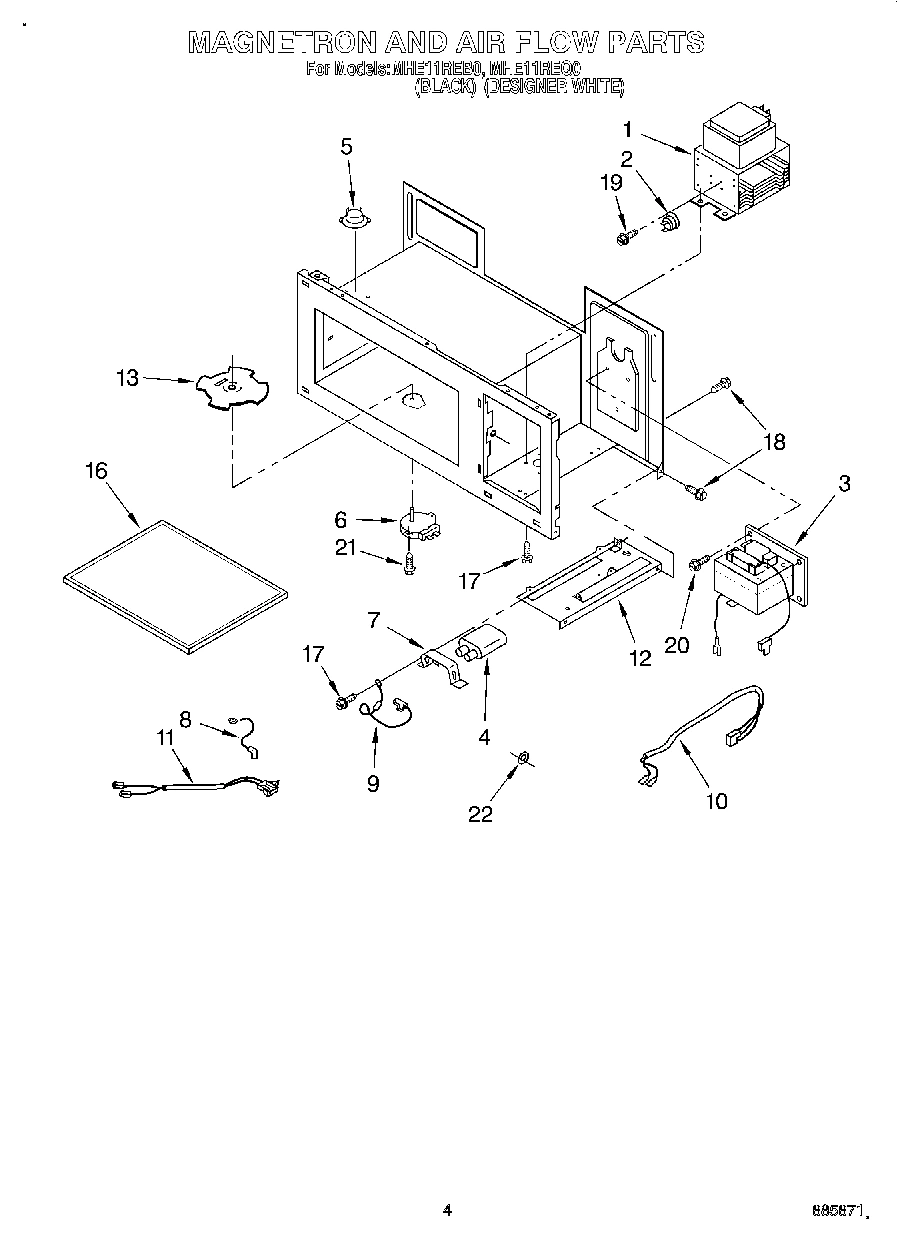

04 - MAGNETRON AND AIR FLOW

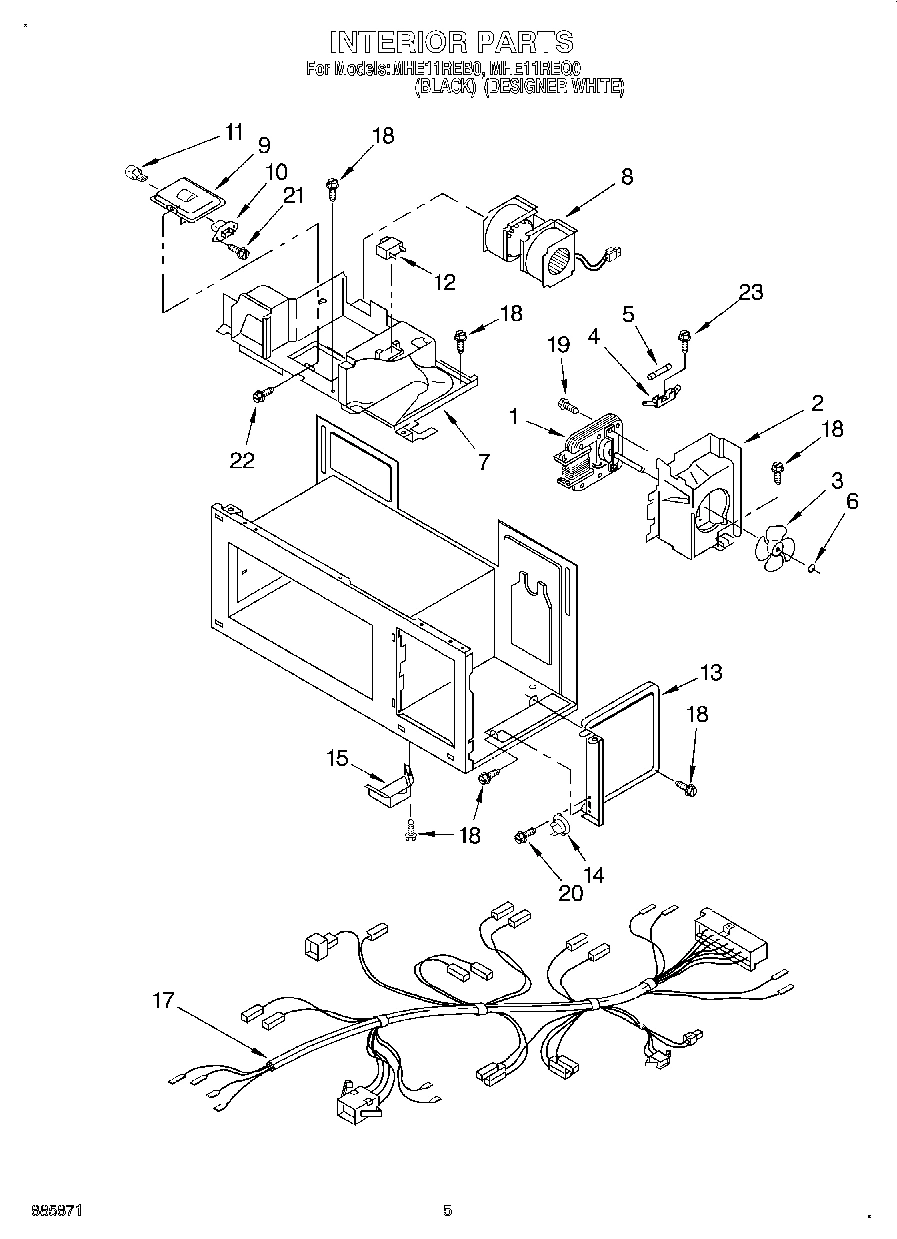

05 - INTERIOR, LIT/OPTIONAL

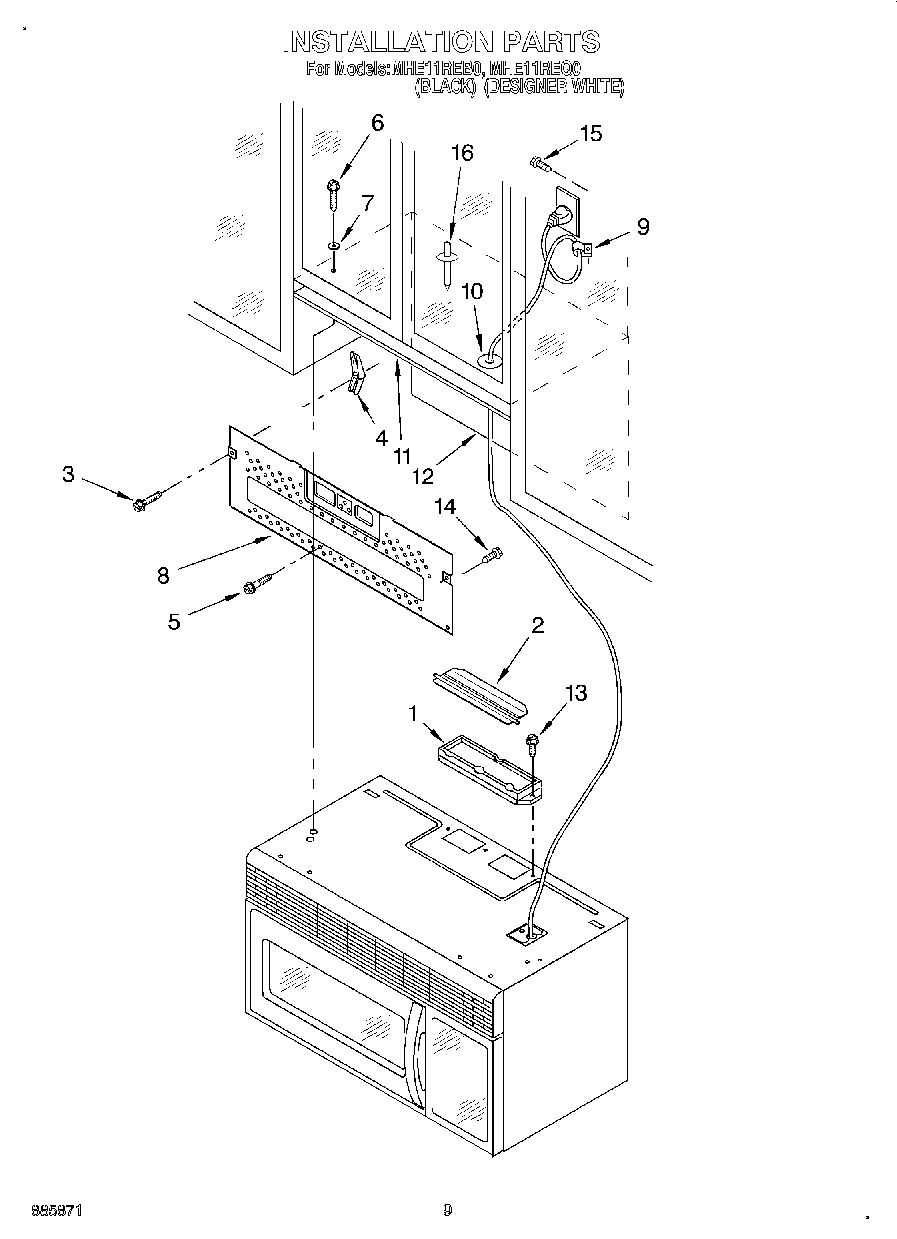

08 - INSTALLATION

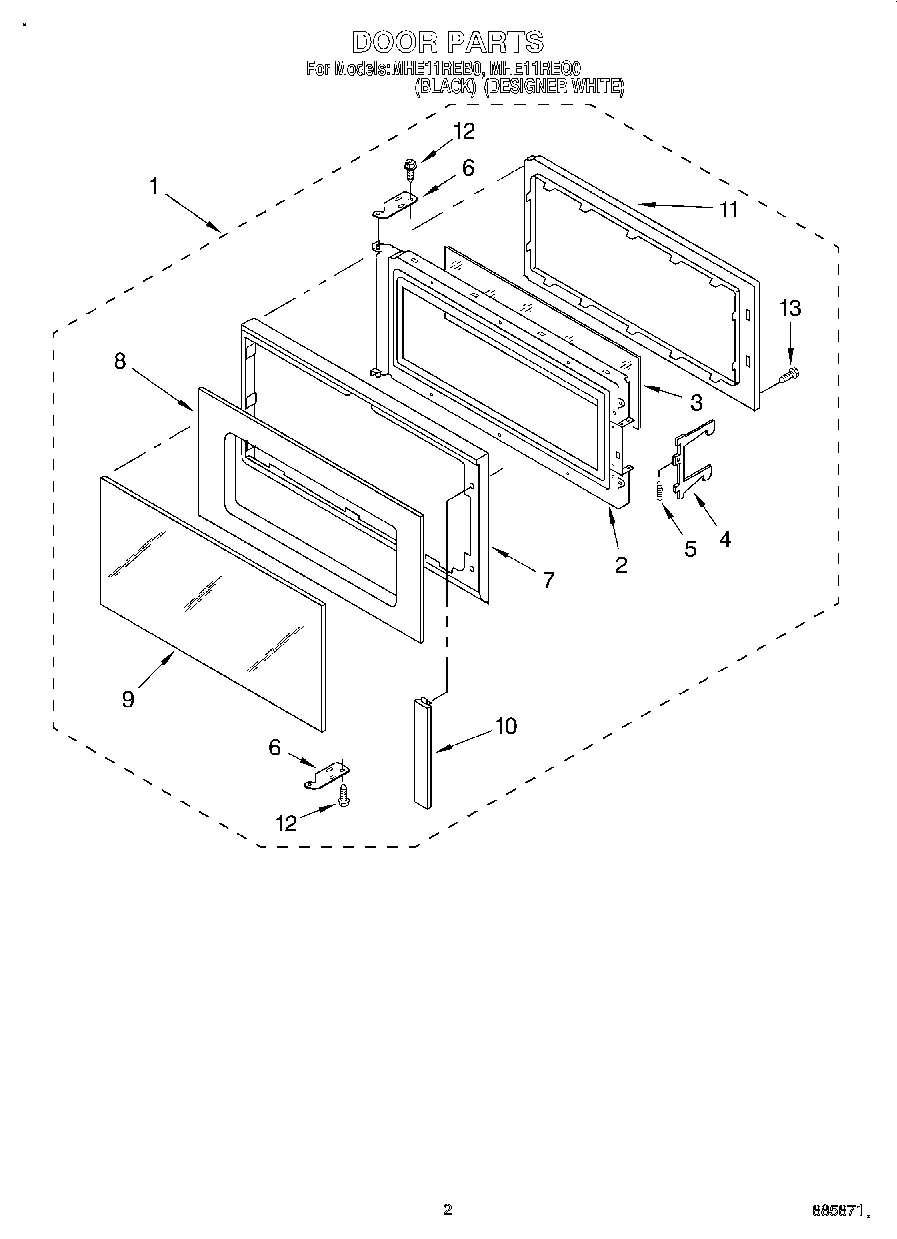

02 - DOOR

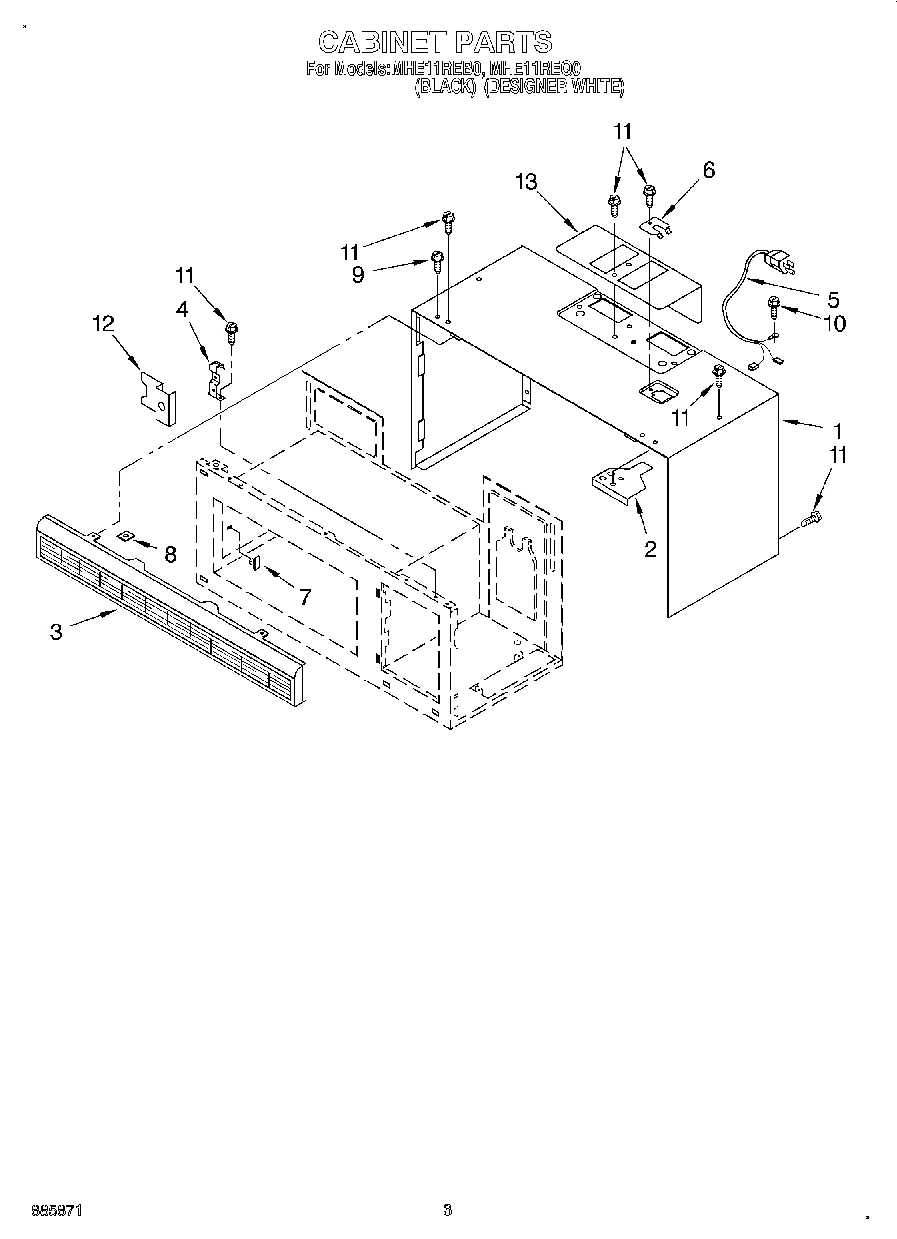

03 - CABINET

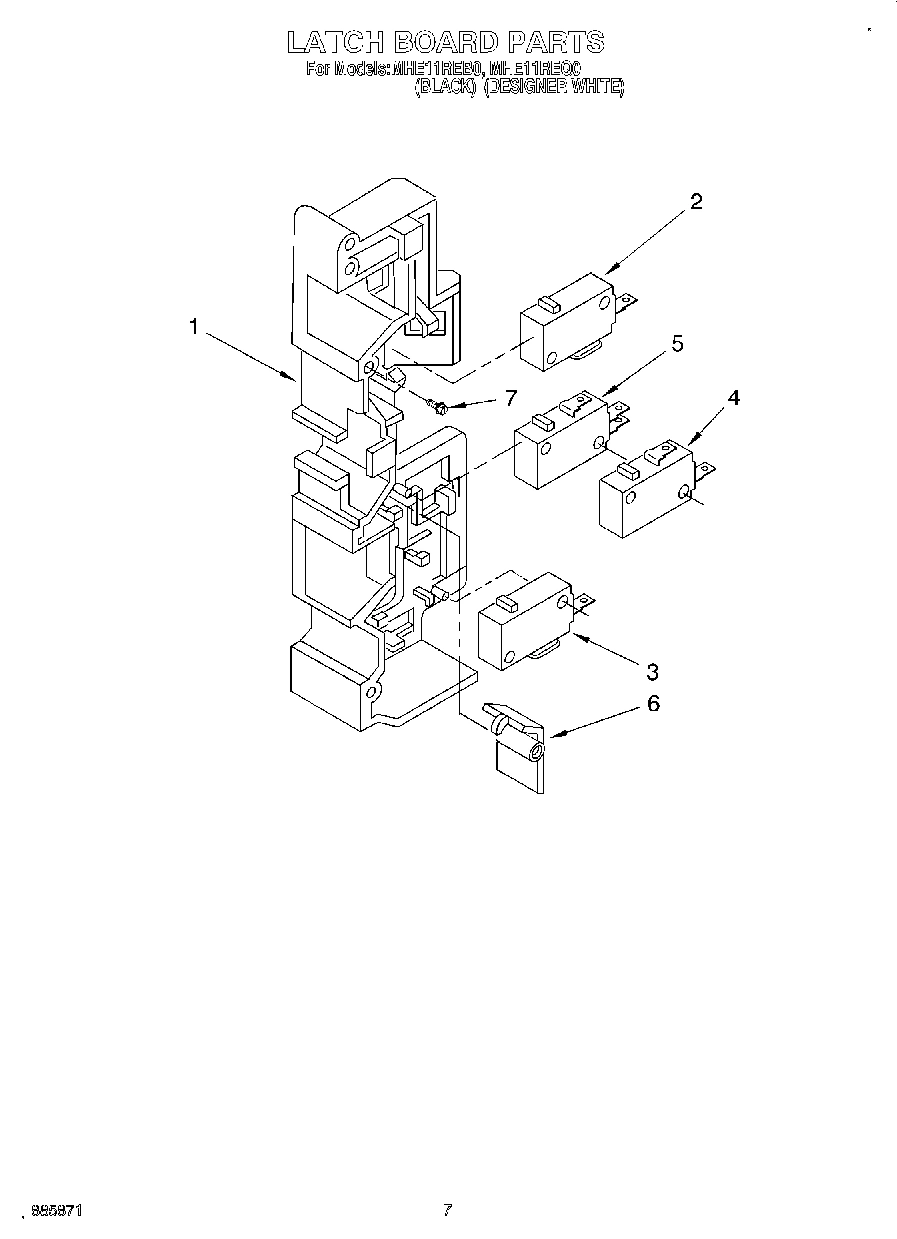

06 - LATCH BOARD

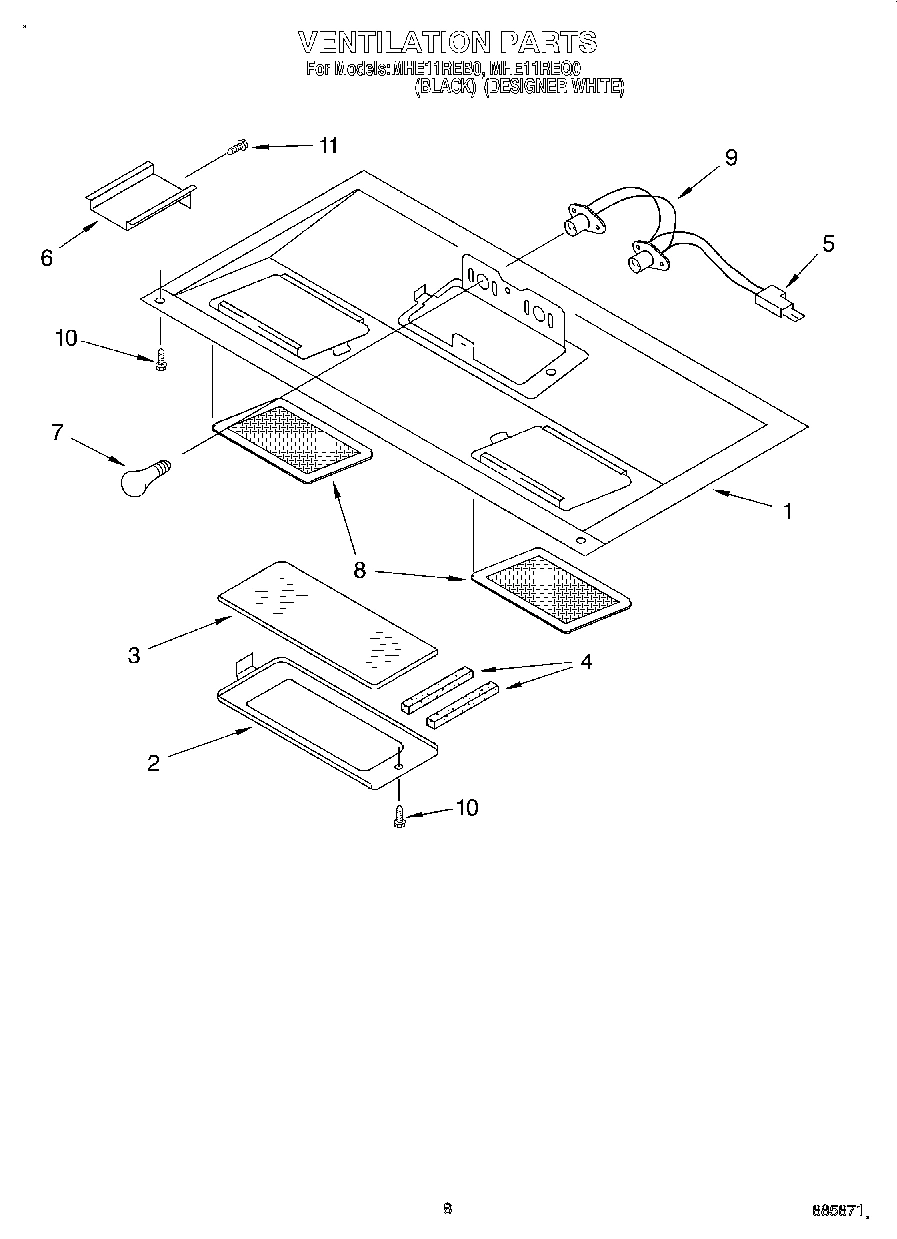

07 - VENTILATION

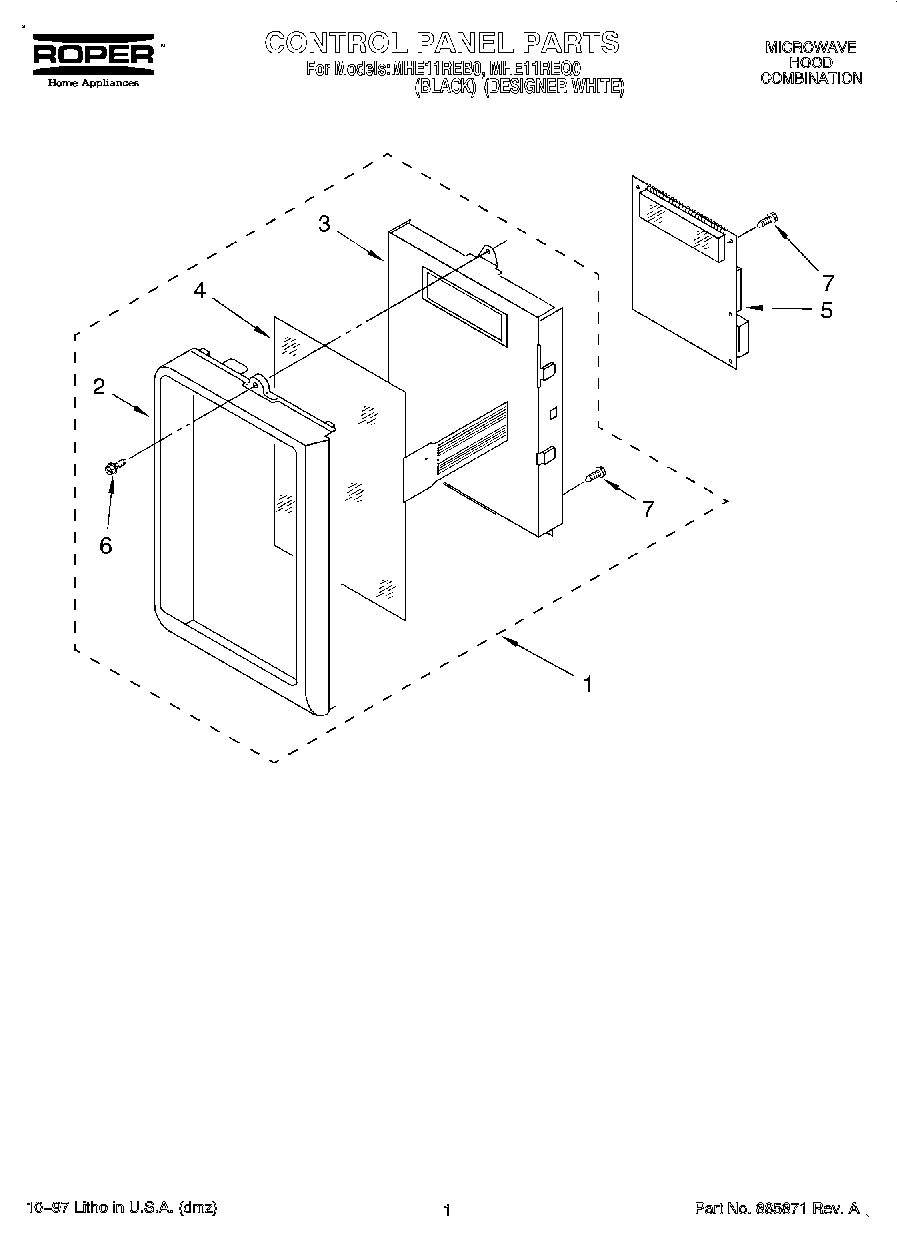

01 - CONTROL PANEL
Common parts from model Whirlpool MHE11REQ0
Tech Sheet WPL LIT4358737 Contact Us For Availability
Instructions, Installation WPL LIT4359330 Contact Us For Availability
Guide, Use & Care WPL LIT4359586 Contact Us For Availability
1
Motor, Fan WPL 4358784 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Door Assembly (White Model) WPL 4359045 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4359050 Contact Us For Availability
1
Outer Case (White Model) WPL 4358925 Contact Us For Availability
1
Outer Case (Black Model) WPL 4358926 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Base Plate (White Model) WPL 4358929 Contact Us For Availability
1
Base Plate (Black Model) WPL 4358930 Contact Us For Availability
1
Controller Sub Assy. (Black Model) WPL 4359582 Contact Us For Availability
1
Controller Sub Assy. (White Model) WPL 4359587 Contact Us For Availability
2
Control Panel (White Model) WPL 4358551 Contact Us For Availability
2
Guide Suction WPL 4358564 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Frame, Door (Black Model) WPL 4358750 Contact Us For Availability
2
Frame, Door (White Model) WPL 4358751 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Cover Cooktop Glass (White Model) WPL 4358533 Contact Us For Availability
2
Cover Cooktop Glass (Black Model) WPL 4358765 Contact Us For Availability
2
Control Panel (Black Model) WPL 4358552 Contact Us For Availability
3
Blower Fan WPL 4358379 Contact Us For Availability
3
Grille Vent (White Model) WPL 4359048 Contact Us For Availability
3
Grille Vent (Black Model) WPL 4359053 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4358953 Contact Us For Availability
3
Bracket, Control WPL 4358743 Contact Us For Availability
4
Holder, Fuse WPL 4158581 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Latch WPL 4358546 Contact Us For Availability
4
Bracket, Front WPL 4358759 Contact Us For Availability
4
Cushion, Glass WPL 4358767 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4359583 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359585 Contact Us For Availability
5
Fuse WPL 4358704 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Power Cord WPL 4359573 Contact Us For Availability
5
Lead Wire Assy. WPL 4358768 Contact Us For Availability
5
PCB Sub Assy. WPL 4359584 Contact Us For Availability
6
Push Nut WPL 4358055 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Plate, Hinge WPL 4358820 Contact Us For Availability
6
Screw (White Model) WPL 4358381 Contact Us For Availability
6
Cover, Power Cord WPL 4358761 Contact Us For Availability
6
Screw (Black Model) WPL 4358762 Contact Us For Availability
6
Lever Monitor WPL 4358795 Contact Us For Availability
6
Cover, Wire WPL 4358769 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Air Duct WPL 4358786 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Panel, Door (White Model) WPL 4358566 Contact Us For Availability
7
Panel, Door (Black Model) WPL 4358567 Contact Us For Availability
7
Plug, Cavity WPL 4358173 Contact Us For Availability
8
Motor, Ventilation WPL 4358787 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
8
Baffle, Door (White Model) WPL 4358554 Contact Us For Availability
8
Baffle, Door (Black Model) WPL 4358555 Contact Us For Availability
8
Bracket, Grille WPL 4358816 Contact Us For Availability
9
H.V. Diode-Cable WPL 4359422 Contact Us For Availability
9
Cover, Lamp WPL 4358789 Contact Us For Availability
9
Lamp Holder WPL 4358790 Contact Us For Availability
9
Glass, Door (Black Model) WPL 4358754 Contact Us For Availability
9
Glass, Door (White Model) WPL 4358755 Contact Us For Availability
9
Screw (White Model) WPL 4359009 Contact Us For Availability
10
Lead Wire WPL 4358779 Contact Us For Availability
10
Screw (Black Model) WPL 4358829 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Handle, Door (White Model) WPL 4359046 Contact Us For Availability
10
Handle, Door (Black Model) WPL 4359051 Contact Us For Availability
11
Lead Wire WPL 4358780 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359012 Contact Us For Availability
11
Choke Cover (White Model) WPL 4358557 Contact Us For Availability
11
Choke Cover (Black Model) WPL 4358558 Contact Us For Availability
12
Plate, Bottom WPL 4358781 Contact Us For Availability
12
Motor Condenser WPL 4158376 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
12
Screw WPL 4358067 Contact Us For Availability
12
Cover WPL 4359376 Contact Us For Availability
13
Stirrer Fan Disk WPL 4358782 Contact Us For Availability
13
Guide Air WPL 4358536 Contact Us For Availability
13
Plate, Mount WPL 4359377 Contact Us For Availability
14
Base Thermostat WPL 4158368 Contact Us For Availability
15
Cover, Connector WPL 4358791 Contact Us For Availability
16
Rod, Safety WPL 4358933 Contact Us For Availability
16
Ceramic Plate WPL 4158731 Contact Us For Availability
17
Lead Wire WPL 4358793 Contact Us For Availability
19
Screw WPL 4358190 Contact Us For Availability
20
Screw WPL 4358376 Contact Us For Availability
21
Screw WPL 4358188 Contact Us For Availability
21
Screw WPL 4358191 Contact Us For Availability
22
Temp Hole Cap WPL 4358156 Contact Us For Availability
23
Black Model WPL 4158311 Contact Us For Availability
23
White Model WPL 4158439 Contact Us For Availability
23
Installation Hardware WPL 4158491 Contact Us For Availability
23
Rack Kit WPL 4358524 Contact Us For Availability
× ![]()
