Model Whirlpool MH9181XMT1 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

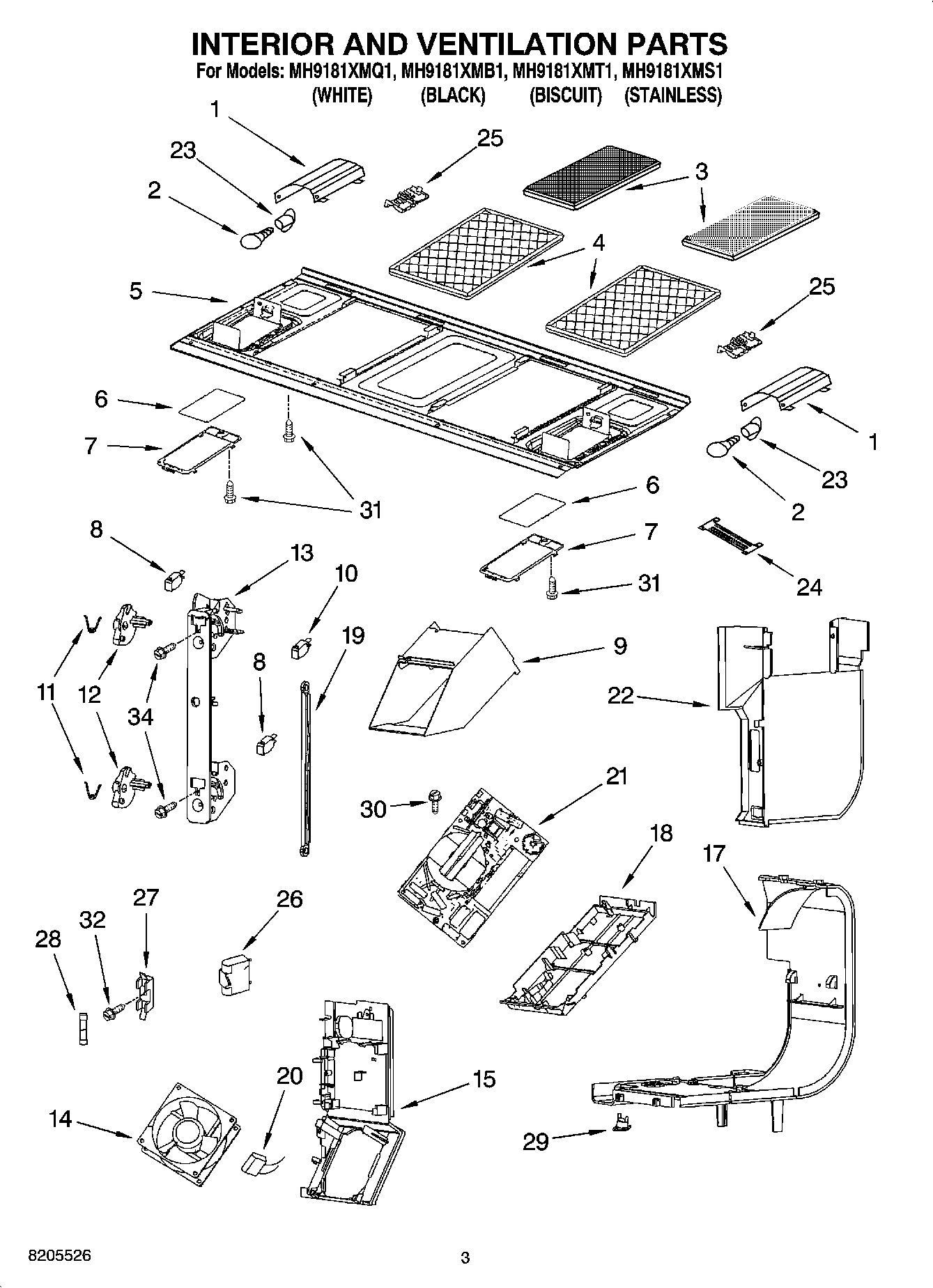

03 - INTERIOR AND VENTILATION PARTS

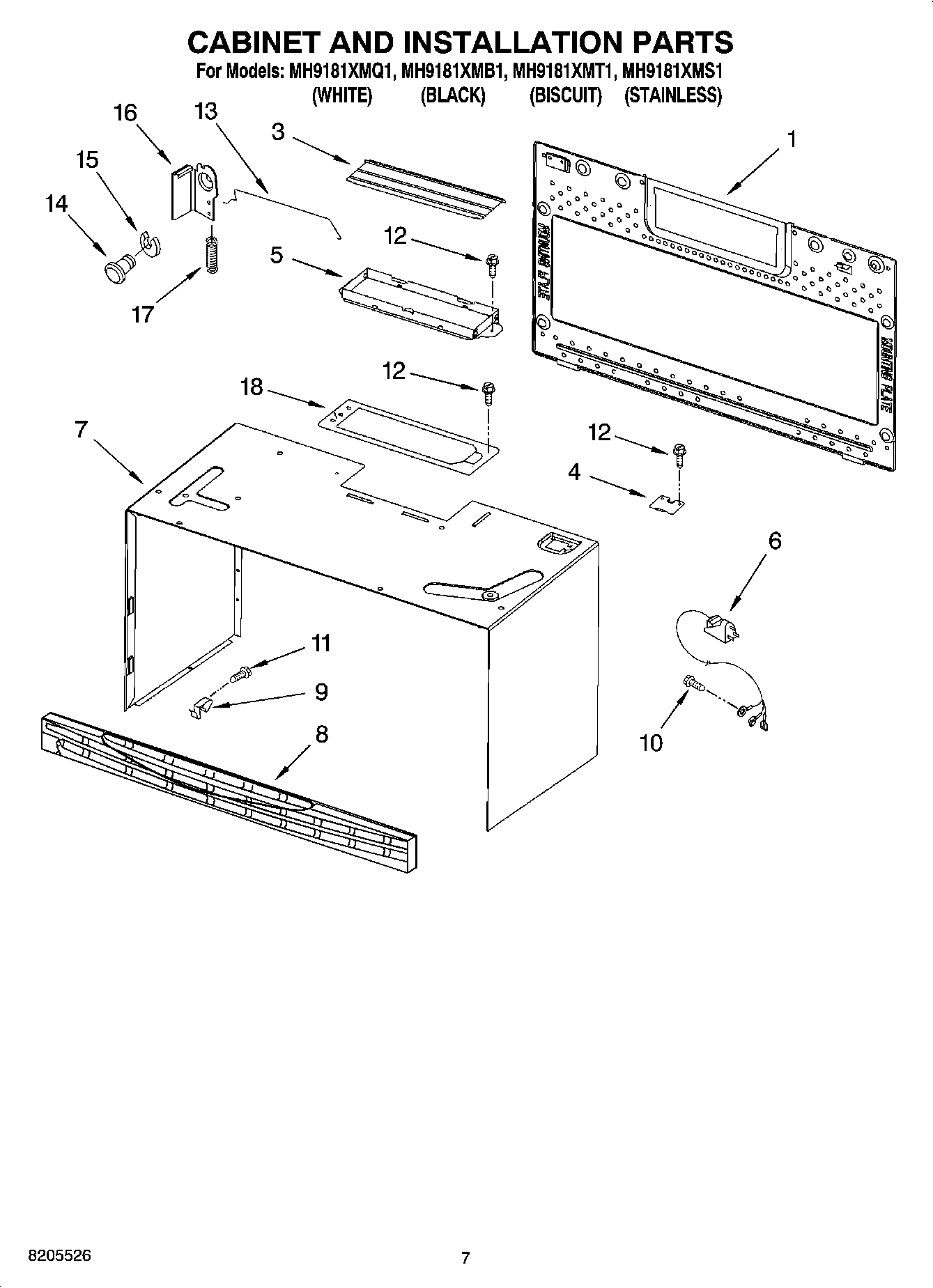

06 - CABINET AND INSTALLATION PARTS
01 - CONTROL PANEL PARTS
04 - AIR FLOW PARTS
05 - MAGNETRON AND TURNTABLE PARTS
02 - DOOR PARTS
Common parts from model Whirlpool MH9181XMT1 Microwave Oven 1.8 Cu. Ft.
1
Literature Parts (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8185465 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185466 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8185467 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI118336A Contact Us For Availability
2
Cover, Lamp WPL 8184925 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
2
Frame, Inner WPL 8184921 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204801 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204802 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204803 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204804 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
4
Bracket, Control WPL 8184920 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8184239 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8184241 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black/Stainless) WPL 8184242 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Button, Control (White) WPL 8184110 Contact Us For Availability
5
Button, Control (Biscuit) WPL 8184182 Contact Us For Availability
5
Button, Control (Stainless/Black) WPL 8184183 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184477 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI118337A Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8204822 Contact Us For Availability
7
Case, Outer (Black/Stainless) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
7
Keyboard Assy WPL 8204823 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Handle, Door (White) WPL 8185187 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8185438 Contact Us For Availability
7
Handle, Door (Stainless) WPL 8204796 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8184118 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184170 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184171 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8204791 Contact Us For Availability
8
Cover, Motor WPL 8184884 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8204792 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Stainless) WPL 8204793 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8204794 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8204795 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
11
Lower Hinge WPL 8204678 Contact Us For Availability
12
Cover WPL 8204676 Contact Us For Availability
12
Upper Hinge WPL 8204679 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 V WPL 8184875 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Template, Upper WPL 8183985 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Miscellaneous WPL ARI118338A Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8184926 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Foil, Lamp WPL 8184203 Contact Us For Availability
× ![]()
