Model Whirlpool MH9115XBQ4 – Common Parts & Diagrams
09 - INTERIOR
02 - CONTROL PANEL

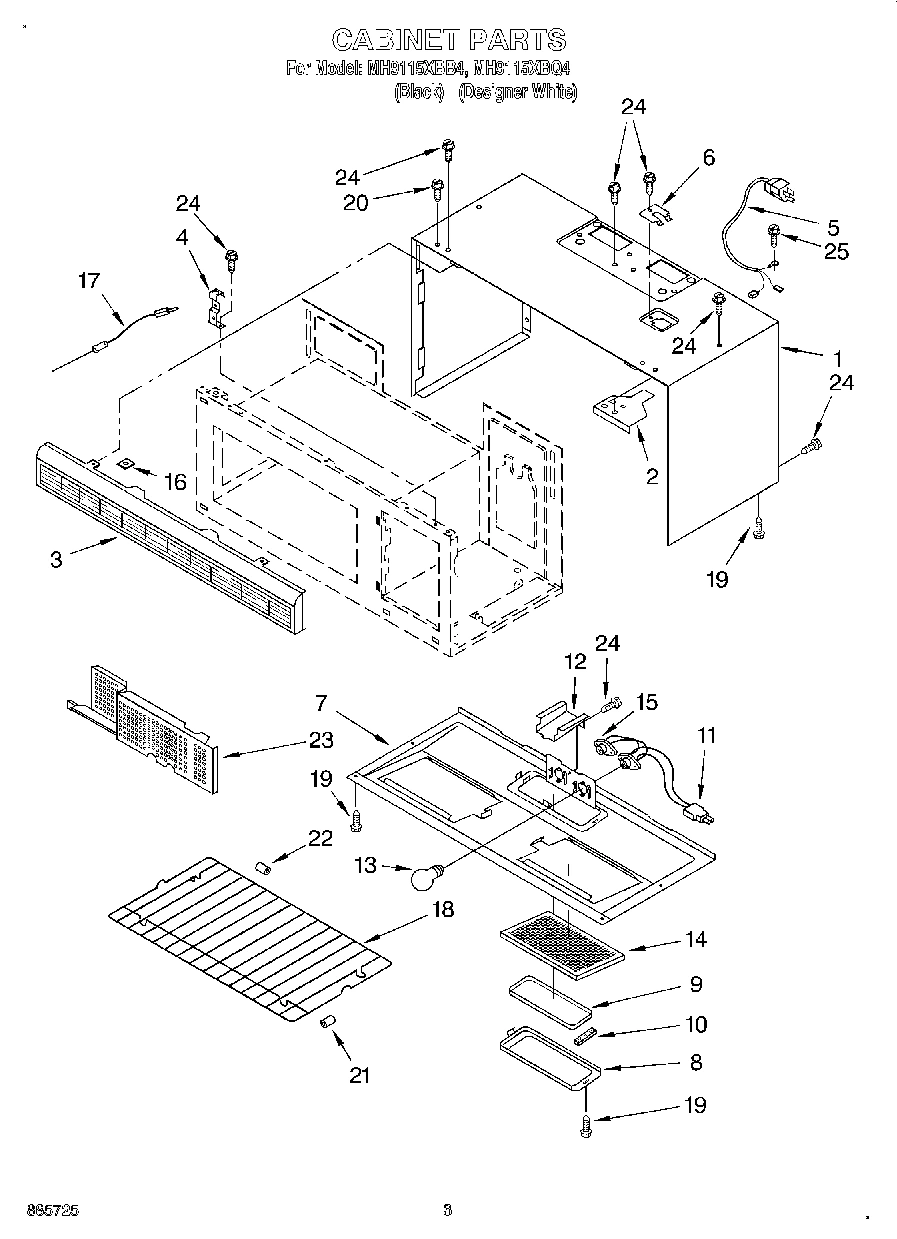

03 - CABINET

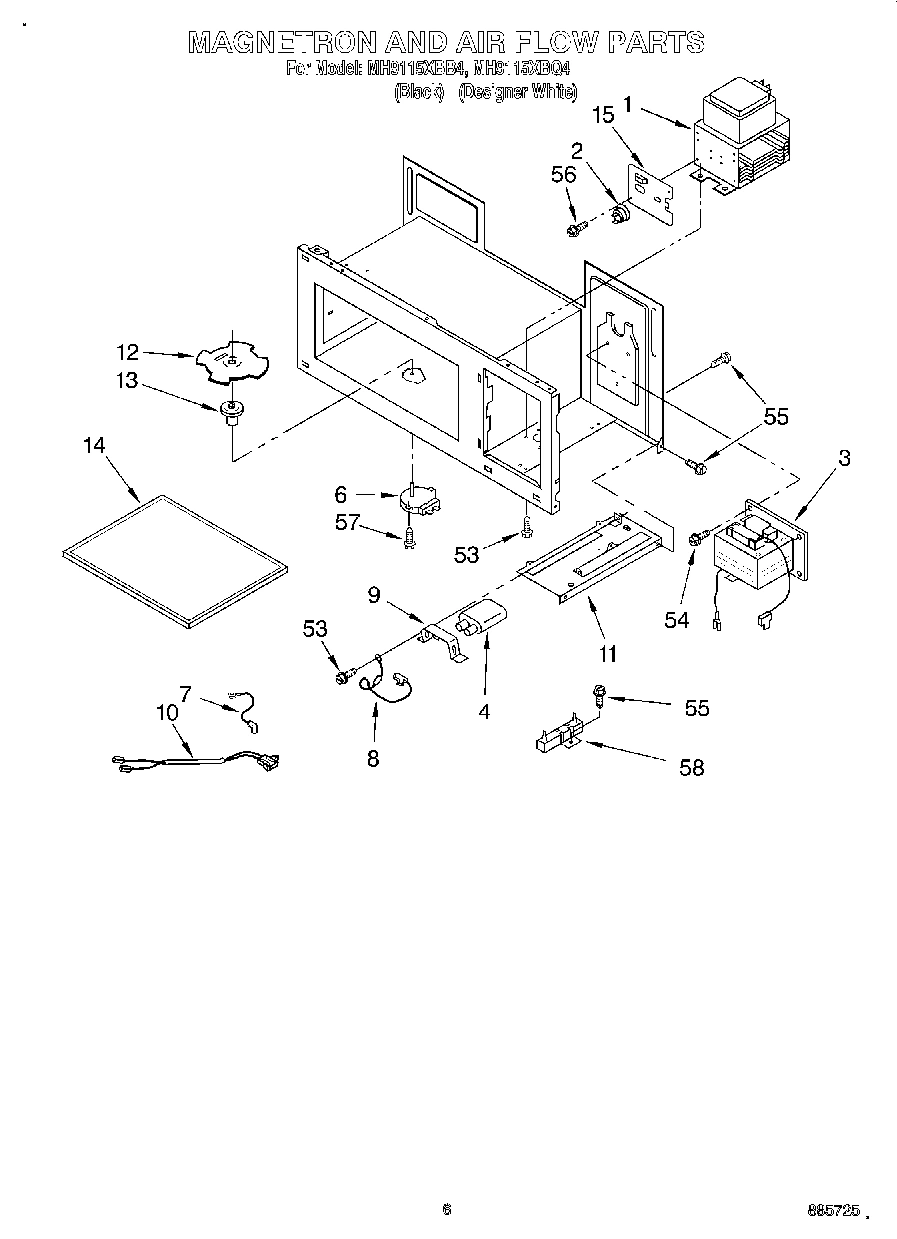

05 - MAGNETRON AND AIR FLOW

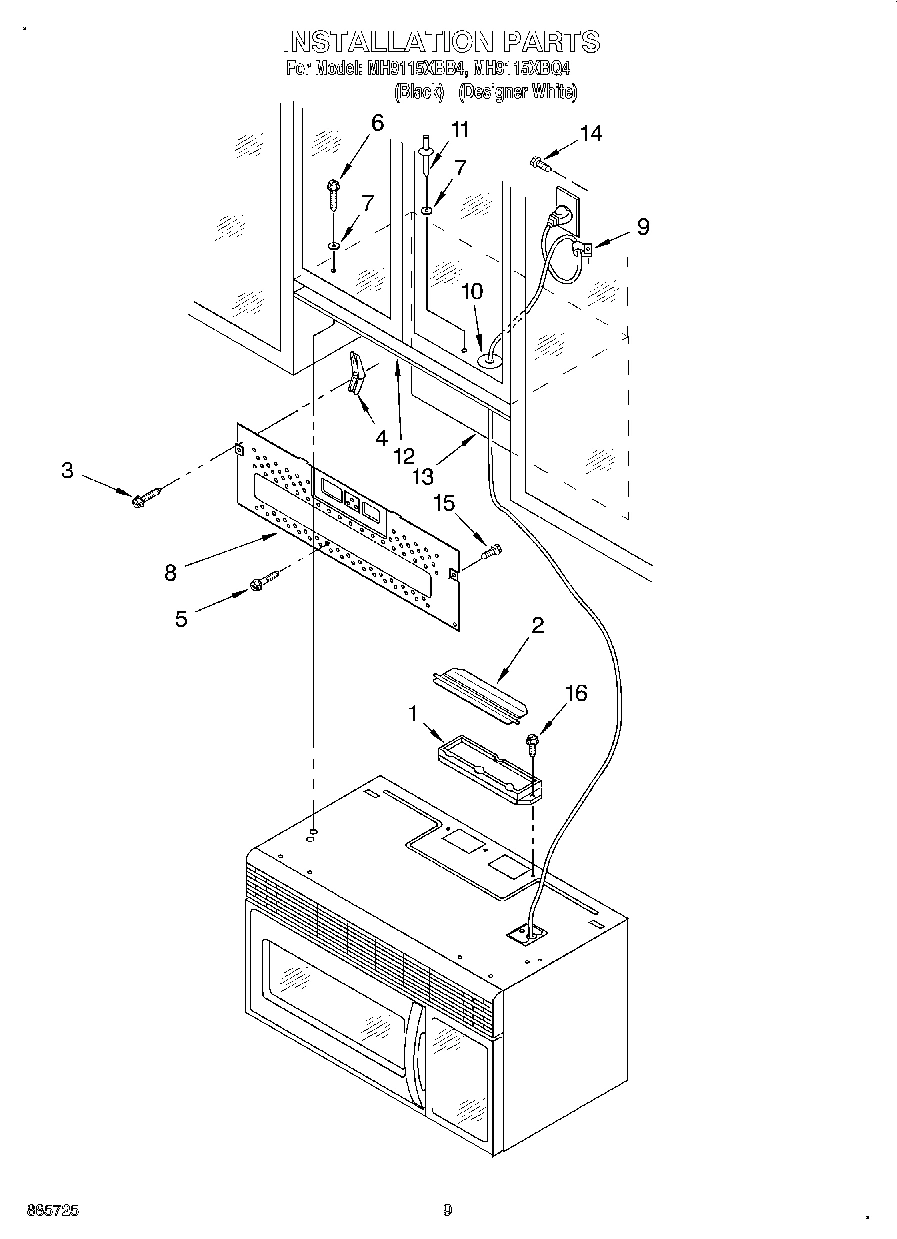

07 - INSTALLATION

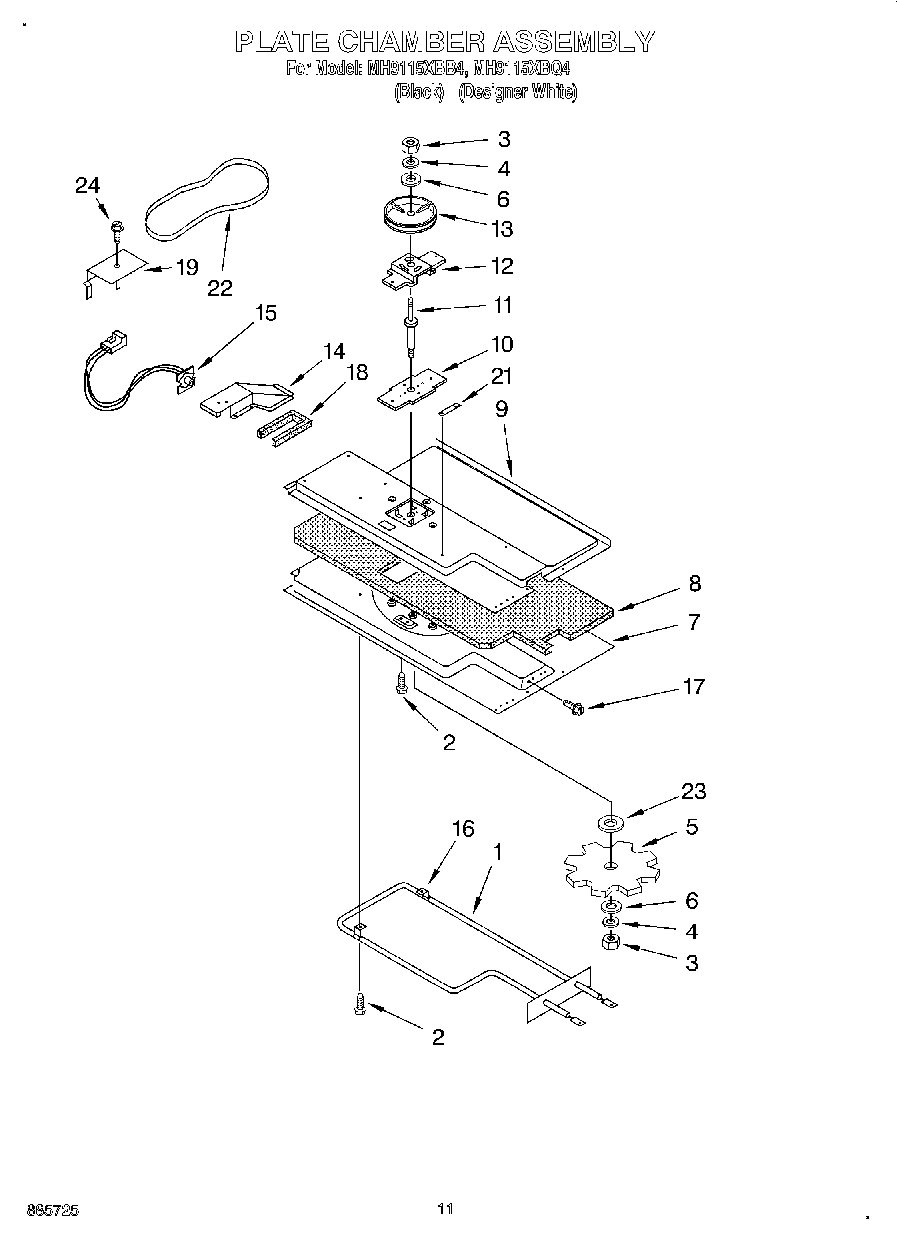

08 - PLATE CHAMBER ASSEMBLY

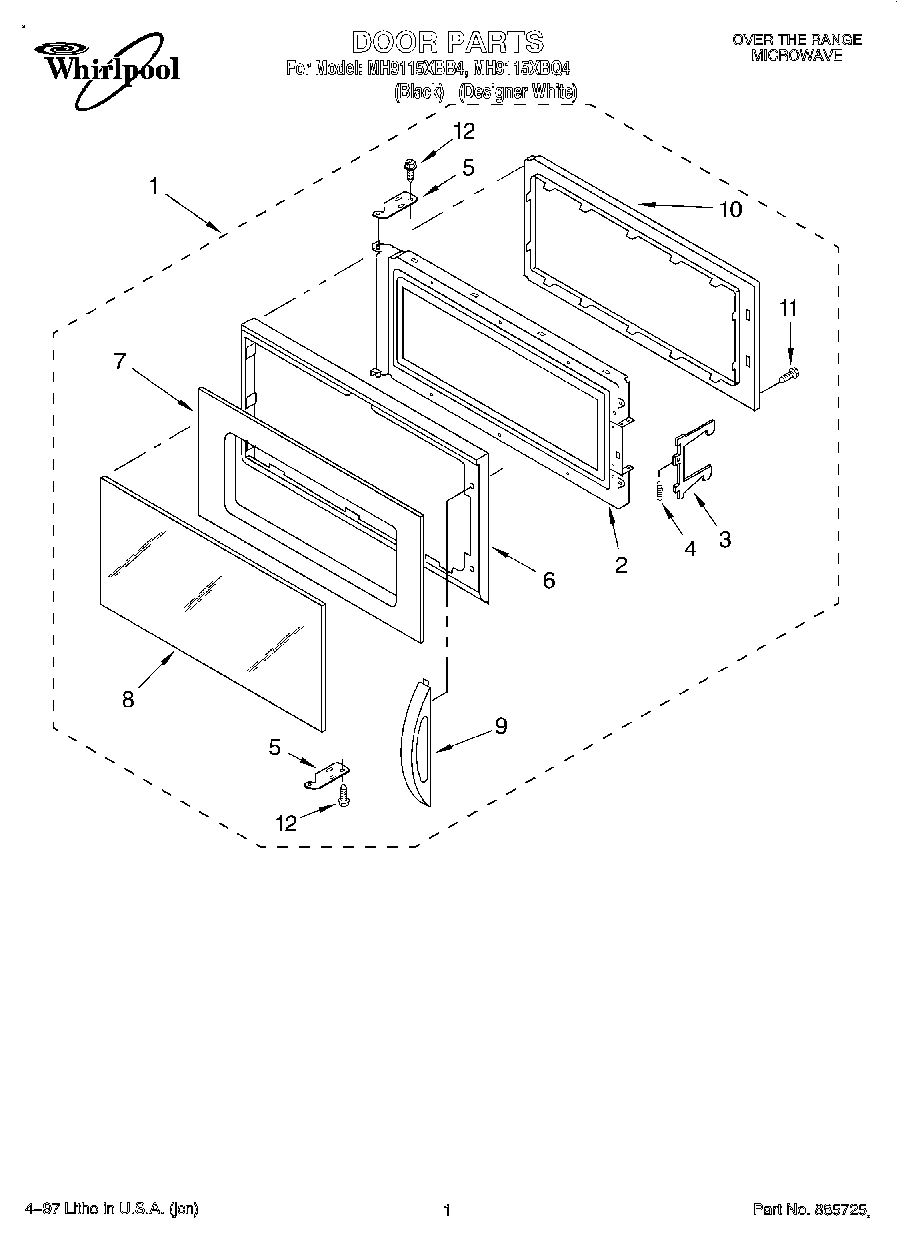

01 - DOOR

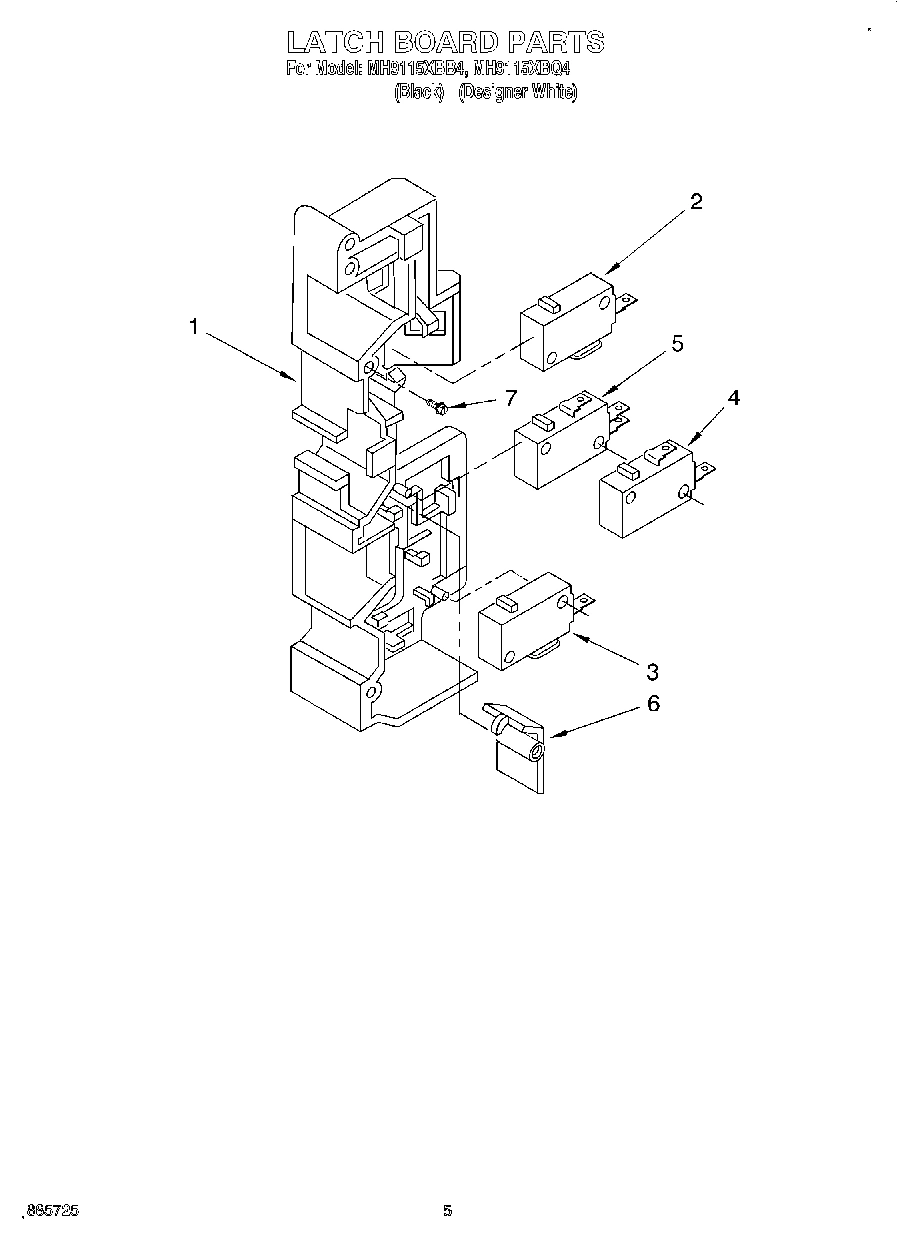

04 - LATCH BOARD, LITERATURE

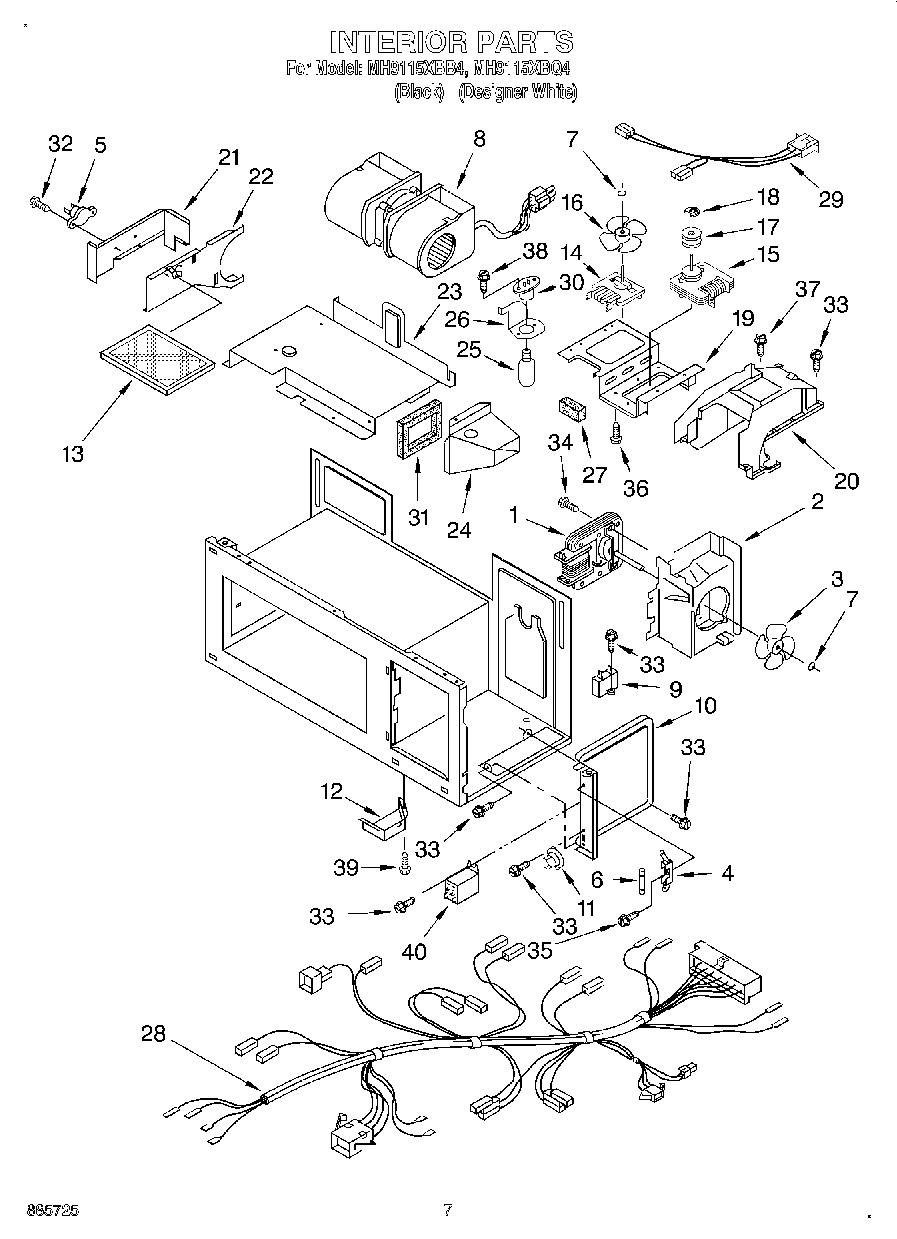

06 - INTERIOR
Common parts from model Whirlpool MH9115XBQ4
Cook Book WPL LIT4358713 Contact Us For Availability
Instructions, Installation WPL LIT4358932 Contact Us For Availability
Operation Manual WPL LIT4358954 Contact Us For Availability
Tech Sheet WPL LIT4359183 Contact Us For Availability
1
Motor, Fan WPL 4358784 Contact Us For Availability
1
Controller Sub Assembly (White Model) WPL 4358946 Contact Us For Availability
1
Controller Sub Assembly (Black Model) WPL 4358947 Contact Us For Availability
1
Outer Case (White Model) WPL 4358925 Contact Us For Availability
1
Outer Case (Black Model) WPL 4358926 Contact Us For Availability
1
Magnetron WPL 4359002 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Element WPL 4358983 Contact Us For Availability
1
Door Assembly (White Model) WPL 4358936 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4358940 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
2
Control Panel (White Model) WPL 4358551 Contact Us For Availability
2
Control Panel (Black Model) WPL 4358552 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Thermostat WPL 4358772 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Frame, Door WPL 4358937 Contact Us For Availability
2
Guide Suction WPL 4358564 Contact Us For Availability
3
Bracket, Control WPL 4358743 Contact Us For Availability
3
Grille Vent (White Model) WPL 4358952 Contact Us For Availability
3
Grille Vent (Black Model) WPL 4358998 Contact Us For Availability
3
Transformer WPL 4358774 Contact Us For Availability
3
Nut WPL 4358476 Contact Us For Availability
3
Latch WPL 4358546 Contact Us For Availability
3
Blower Fan WPL 4358379 Contact Us For Availability
4
Key Membrane (White Model) WPL 4358948 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4358996 Contact Us For Availability
4
Bracket, Front WPL 4358759 Contact Us For Availability
4
Capacitor WPL 4158947 Contact Us For Availability
4
Toggle Bolt WPL 4158326 Contact Us For Availability
4
Spring, Latch WPL 4358607 Contact Us For Availability
4
Holder, Fuse WPL 4358785 Contact Us For Availability
5
PCB Sub Assembly WPL 4358949 Contact Us For Availability
5
Power Cord WPL 4358760 Contact Us For Availability
5
Lag Screw WPL 4158323 Contact Us For Availability
5
Fan WPL 4358984 Contact Us For Availability
5
Plate, Hinge WPL 4358820 Contact Us For Availability
5
Thermostat WPL 4358443 Contact Us For Availability
6
Cover, Power Cord WPL 4358761 Contact Us For Availability
6
Motor, Synchronous WPL 4358777 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Washer WPL 4358478 Contact Us For Availability
6
Panel, Door (White Model) WPL 4358566 Contact Us For Availability
6
Panel, Door (Black Model) WPL 4358567 Contact Us For Availability
6
Lever WPL 4358795 Contact Us For Availability
6
Fuse WPL 4358704 Contact Us For Availability
7
Push Nut WPL 4358055 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Base Plate (White Model) WPL 4358929 Contact Us For Availability
7
Base Plate (Black Model) WPL 4358930 Contact Us For Availability
7
H.V. Cable WPL 4158827 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Plate, Chamber WPL 4358985 Contact Us For Availability
7
Baffle, Door WPL 4358938 Contact Us For Availability
8
Cover, Glass (White Model) WPL 4358533 Contact Us For Availability
8
Cover, Glass (Black Model) WPL 4358765 Contact Us For Availability
8
H.V. Diode-Cable WPL 4158923 Contact Us For Availability
8
Plate, Mounting WPL 4358924 Contact Us For Availability
8
Insulation WPL 4358986 Contact Us For Availability
8
Glass, Door (White Model) WPL 4358939 Contact Us For Availability
8
Glass, Door (Black Model) WPL 4358942 Contact Us For Availability
8
Motor, Ventilation WPL 4358960 Contact Us For Availability
9
Glass, Lamp WPL 4358953 Contact Us For Availability
9
Bracket, H.V.C. WPL 4358778 Contact Us For Availability
9
Plate, Outer WPL 4358987 Contact Us For Availability
9
Handle, Door (White Model) WPL 4358548 Contact Us For Availability
9
Handle, Door (Black Model) WPL 4358549 Contact Us For Availability
9
Motor Condenser WPL 4158376 Contact Us For Availability
10
Cushion, Glass WPL 4358767 Contact Us For Availability
10
Lead Wire WPL 4358780 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Plate, Bearing WPL 4358988 Contact Us For Availability
10
Choke Cover WPL 4358943 Contact Us For Availability
10
Guide Air WPL 4358536 Contact Us For Availability
11
Base Thermostat WPL 4158368 Contact Us For Availability
11
Safety Rod WPL 4358933 Contact Us For Availability
11
Lead Wire WPL 4358768 Contact Us For Availability
11
Plate, Bottom WPL 4358781 Contact Us For Availability
11
Bearing Assembly WPL 4358989 Contact Us For Availability
11
Screw (White Model) WPL 4358479 Contact Us For Availability
12
Cover, Wire WPL 4358769 Contact Us For Availability
12
Stirrer Fan Disk WPL 4358959 Contact Us For Availability
12
Template, Cabinet WPL 4358935 Contact Us For Availability
12
Holder, Bearing WPL 4358990 Contact Us For Availability
12
Screw WPL 4358067 Contact Us For Availability
12
Cover, Connector WPL 4358791 Contact Us For Availability
13
Holder Disk WPL 4358783 Contact Us For Availability
13
Template, Wall WPL 4358934 Contact Us For Availability
13
Pulley WPL 4358991 Contact Us For Availability
13
Charcoal Filter WPL 4358792 Contact Us For Availability
14
Ceramic Plate WPL 4158731 Contact Us For Availability
14
Air Tunnel WPL 4358992 Contact Us For Availability
14
Motor, Tower WPL 4358961 Contact Us For Availability
15
Bracket, Thermostat WPL 4358060 Contact Us For Availability
15
Sensor WPL 4358993 Contact Us For Availability
15
Motor, Circulation WPL 4358962 Contact Us For Availability
16
Screw WPL 4358188 Contact Us For Availability
16
Bracket, Grille WPL 4358816 Contact Us For Availability
16
Hanger, Element WPL 4358994 Contact Us For Availability
17
Temperature Probe WPL 4358430 Contact Us For Availability
17
Pulley, Motor WPL 4358963 Contact Us For Availability
18
Shelf Assembly WPL 4358537 Contact Us For Availability
18
Cushion WPL 4358660 Contact Us For Availability
18
E-Ring WPL 4358964 Contact Us For Availability
19
Bracket, Sensor WPL 4359005 Contact Us For Availability
19
Bracket, C-Motor WPL 4358965 Contact Us For Availability
20
Screw (Black Model) WPL 4358762 Contact Us For Availability
20
Screw (White Model) WPL 4359009 Contact Us For Availability
20
Air Duct WPL 4358966 Contact Us For Availability
21
Bushing Shelf WPL 4358956 Contact Us For Availability
21
Lug WPL 4358469 Contact Us For Availability
21
Guide, Chamber-A WPL 4359003 Contact Us For Availability
22
Bushing Shelf WPL 4358957 Contact Us For Availability
22
Belt WPL 4358995 Contact Us For Availability
22
Guide, Chamber-B WPL 4358968 Contact Us For Availability
23
Bracket, Inlet WPL 4358958 Contact Us For Availability
23
Plate, Fan WPL 4359007 Contact Us For Availability
23
Guide, Chamber WPL 4358969 Contact Us For Availability
24
Guide, Air Duct WPL 4358970 Contact Us For Availability
25
Blower Plate WPL 4359377 Contact Us For Availability
26
Cover, Oven Lamp WPL 4358972 Contact Us For Availability
27
Cushion WPL 4158864 Contact Us For Availability
28
Lead Wire WPL 4359192 Contact Us For Availability
29
Lead Wire WPL 4358980 Contact Us For Availability
30
Lamp Holder WPL 4358790 Contact Us For Availability
31
Cushion WPL 4358981 Contact Us For Availability
32
Screw WPL 4358450 Contact Us For Availability
34
Screw WPL 4358190 Contact Us For Availability
37
Screw WPL 4358381 Contact Us For Availability
38
Screw WPL 4358191 Contact Us For Availability
39
Screw WPL 4358829 Contact Us For Availability
40
A.C. Relay WPL 4359191 Contact Us For Availability
58
Resistor, Monitor WPL 4359190 Contact Us For Availability
× ![]()
