Model Whirlpool MH7135XEB2 – Common Parts & Diagrams
01 - CONTROL PANEL, LITERATURE
03 - CABINET

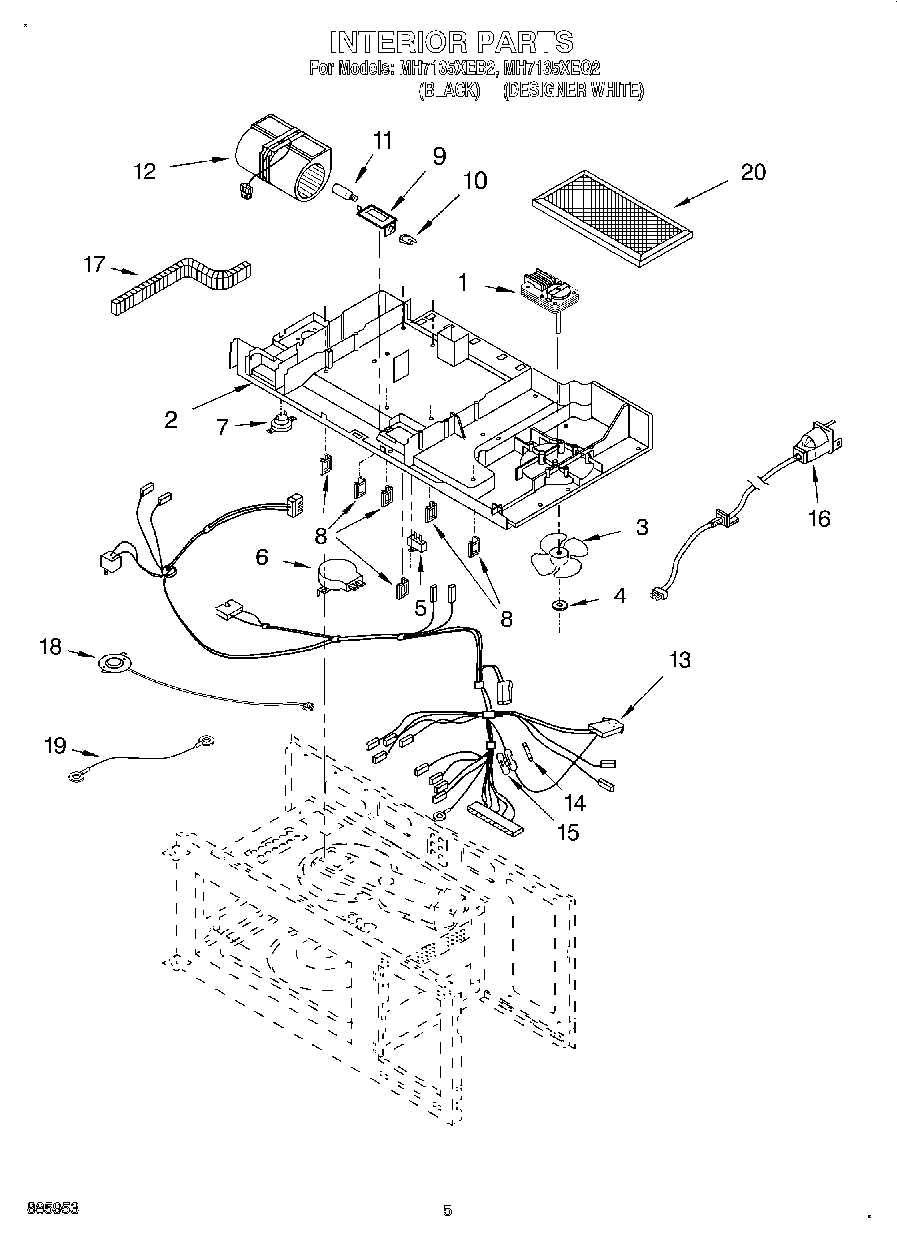

05 - INTERIOR
02 - DOOR

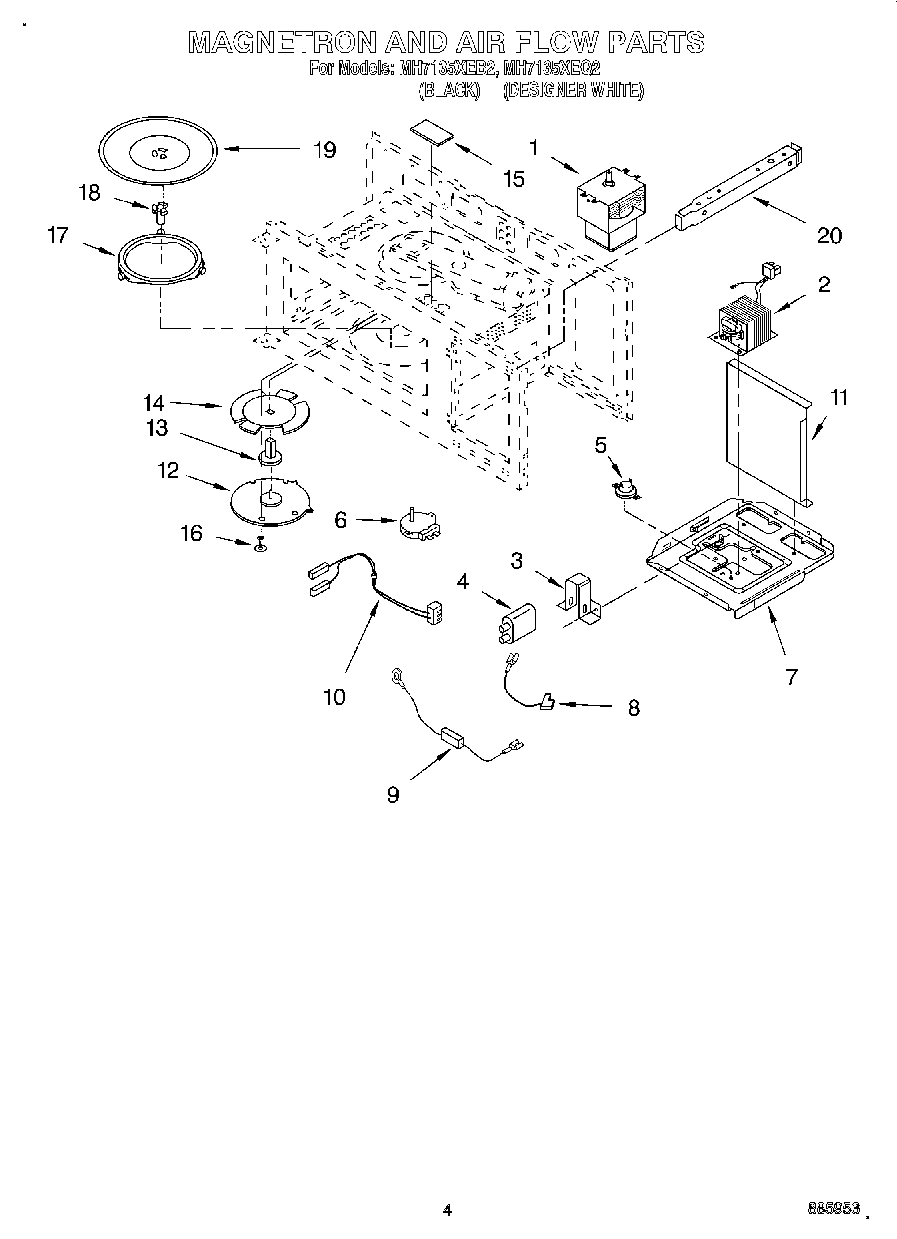

04 - MAGNETRON AND AIR FLOW

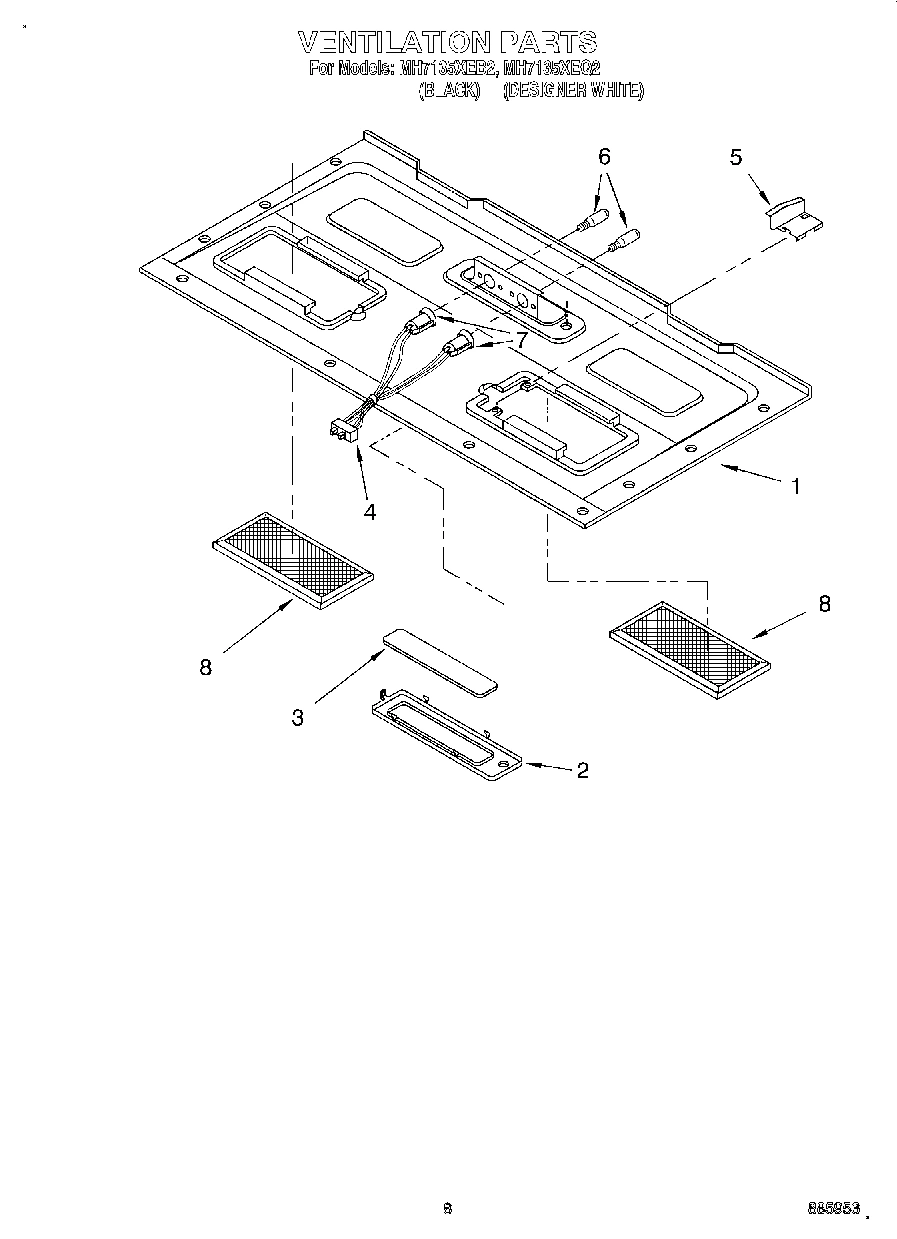

07 - VENTILATION

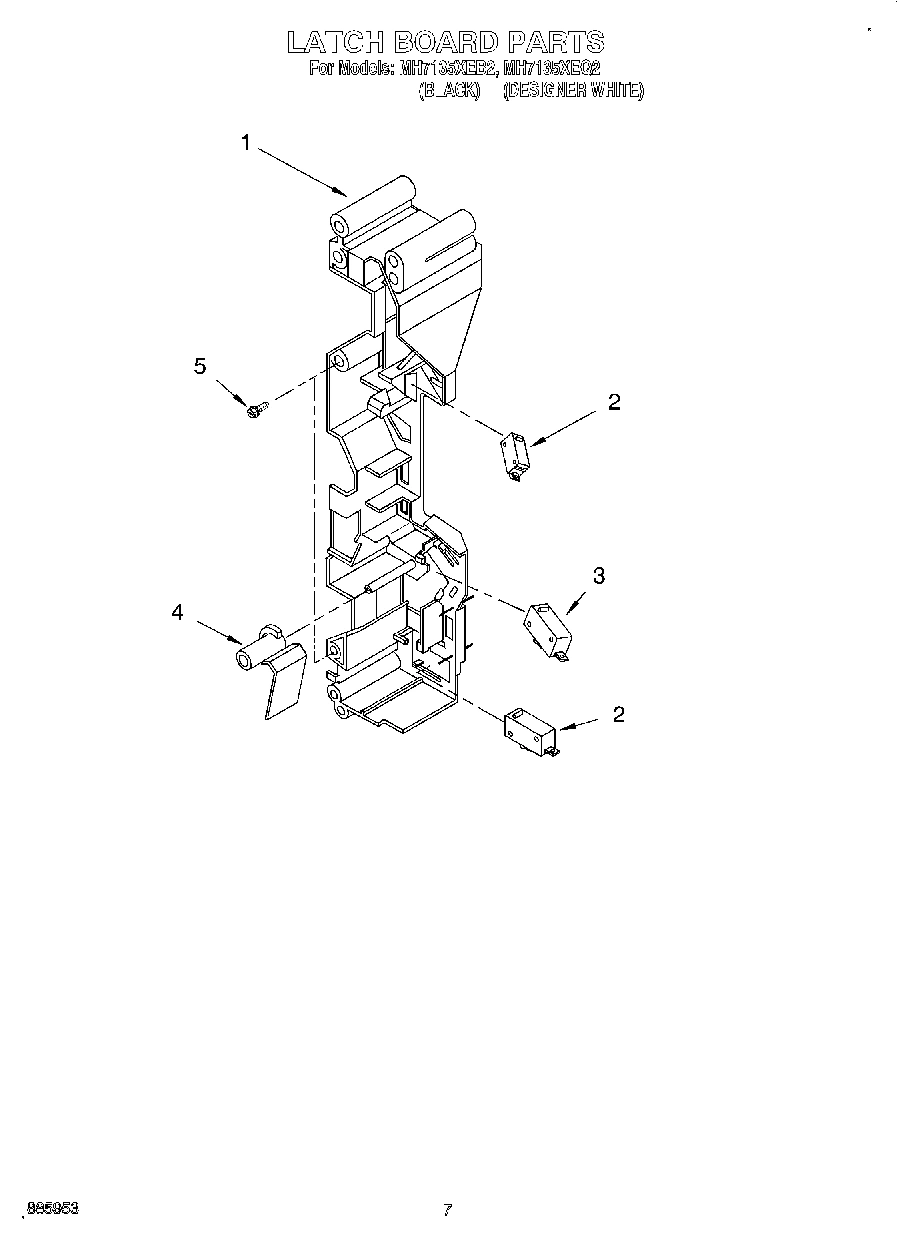

06 - LATCH BOARD

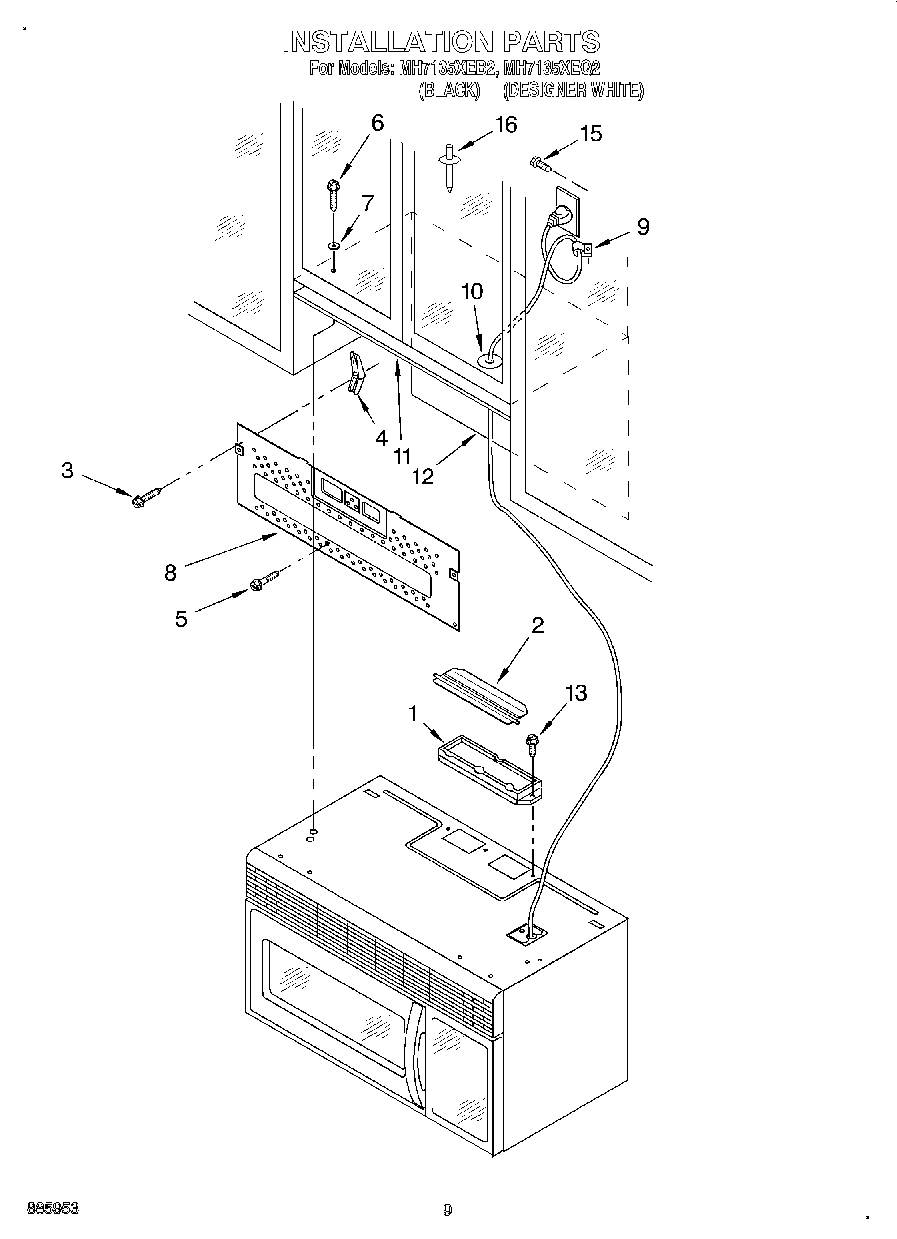

08 - INSTALLATION
Common parts from model Whirlpool MH7135XEB2
1
Outer Case (White Model) WPL 4359487 Contact Us For Availability
1
Outer Case (Black Model) WPL 4359488 Contact Us For Availability
1
Motor, Fan WPL 4359511 Contact Us For Availability
1
Door Assembly (White) WPL 4359976 Contact Us For Availability
1
Door Assembly (Black) WPL 4359978 Contact Us For Availability
1
Magnetron WPL 4359687 Contact Us For Availability
1
Base Plate (White) WPL 4359525 Contact Us For Availability
1
Base Plate (Black) WPL 4359526 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
2
Bracket (Screw) WPL 4358829 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Air Duct WPL 4359513 Contact Us For Availability
2
Frame, Door (White) WPL 4359977 Contact Us For Availability
2
Frame, Door (Black) WPL 4359979 Contact Us For Availability
2
H.V. Transformer WPL 4359494 Contact Us For Availability
2
Bracket (White) WPL 4359527 Contact Us For Availability
2
Bracket, Black WPL 4359532 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
3
Cavity Assembly (Not Serviceable) WPL ARI118242A Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
4
Push Nut WPL 4358055 Contact Us For Availability
4
Grille Vent (Screw) WPL 4359009 Contact Us For Availability
4
Grille Vent (White Model) WPL 4359489 Contact Us For Availability
4
Grille Vent (Black Model) WPL 4359490 Contact Us For Availability
4
Latch (White) WPL 4358546 Contact Us For Availability
4
Latch (Black) WPL 4359860 Contact Us For Availability
4
Capacitor, H.V. WPL 4359049 Contact Us For Availability
4
Lead Wire Assy WPL 4359529 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
Screw WPL 4358883 Contact Us For Availability
5
PCB Sub Assy. WPL 4359566 Contact Us For Availability
5
Bracket, Front WPL 4358759 Contact Us For Availability
5
Fuse WPL 4359514 Contact Us For Availability
5
Screw WPL 4358376 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Bracket WPL 4359530 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
6
PWB Sub, Assy WPL 4359486 Contact Us For Availability
6
Bracket, Grille WPL 4358816 Contact Us For Availability
6
Screw WPL 4358188 Contact Us For Availability
6
Motor, Synchronous WPL 4359515 Contact Us For Availability
6
Panel, Door (White) WPL 4359469 Contact Us For Availability
6
Panel, Door (Black) WPL 4359470 Contact Us For Availability
6
Motor, Turntable WPL 4359498 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
7
Controller Sub Assy. (White Model) WPL 4359561 Contact Us For Availability
7
Controller Sub Assy. (Black Model) WPL 4359562 Contact Us For Availability
7
Cover, Power Cord WPL 4359491 Contact Us For Availability
7
Lamp Holder WPL 4359518 Contact Us For Availability
7
Glass, Door (White Model) WPL 4359547 Contact Us For Availability
7
Glass, Door (Black Model) WPL 4359548 Contact Us For Availability
7
Plate WPL 4359500 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
8
Shelf Holder WPL 4358383 Contact Us For Availability
8
Wire Holder WPL 4158267 Contact Us For Availability
8
Handle, Door (White Model) WPL 4359473 Contact Us For Availability
8
Handle, Door (Black Model) WPL 4359474 Contact Us For Availability
8
H.V. Cable WPL 4359501 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
9
Screw WPL 4358762 Contact Us For Availability
9
Plate, Mount WPL 4359377 Contact Us For Availability
9
Cover WPL 4359517 Contact Us For Availability
9
Choke, Cover (Screw) WPL 4358479 Contact Us For Availability
9
Choke, Cover (White Model) WPL 4359475 Contact Us For Availability
9
Choke, Cover (Black) WPL 4359476 Contact Us For Availability
10
Rack, Grill WPL 4359492 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
11
Temp. Hole Cap WPL 4359493 Contact Us For Availability
11
Guide WPL 4359504 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359560 Contact Us For Availability
12
Motor, Ventilation WPL 4359519 Contact Us For Availability
12
Cover WPL 4359505 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
13
Lead, Wire WPL 4359521 Contact Us For Availability
13
Holder WPL 4359506 Contact Us For Availability
14
Stirrer Fan WPL 4359507 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
15
Tape WPL 4359212 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 4359522 Contact Us For Availability
17
Cushion WPL 4359569 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
18
Sensor Assy. WPL 4359568 Contact Us For Availability
18
Turntable Shaft WPL 4358141 Contact Us For Availability
19
Wire, Ground WPL 4358187 Contact Us For Availability
20
Charcoal Filter WPL 4359331 Contact Us For Availability
20
Filler Kit WPL 4158311 Contact Us For Availability
20
Installation Hardware WPL 4158491 Contact Us For Availability
20
Plate WPL 4359510 Contact Us For Availability
× ![]()
