Model Whirlpool MH7130XEB2 – Common Parts & Diagrams

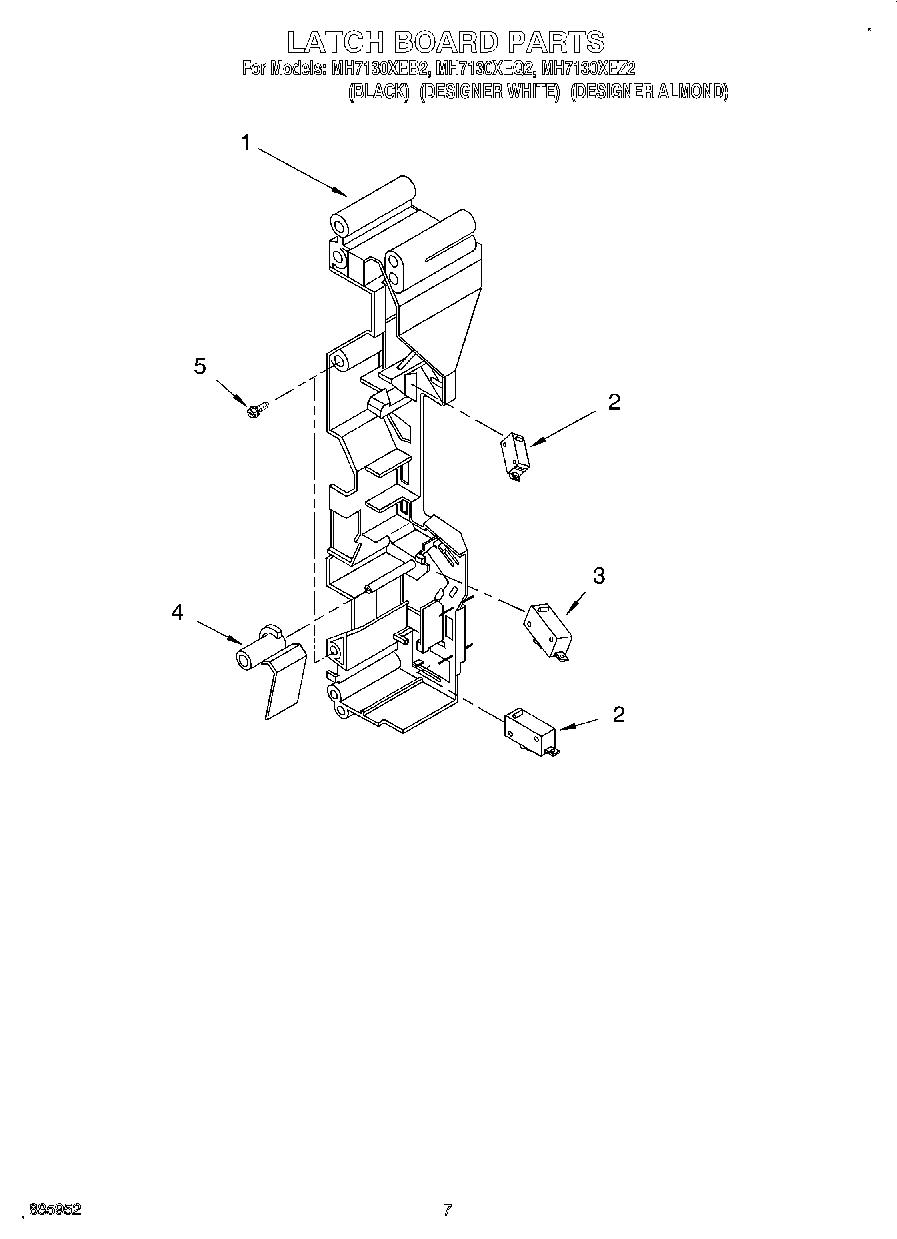

06 - LATCH BOARD

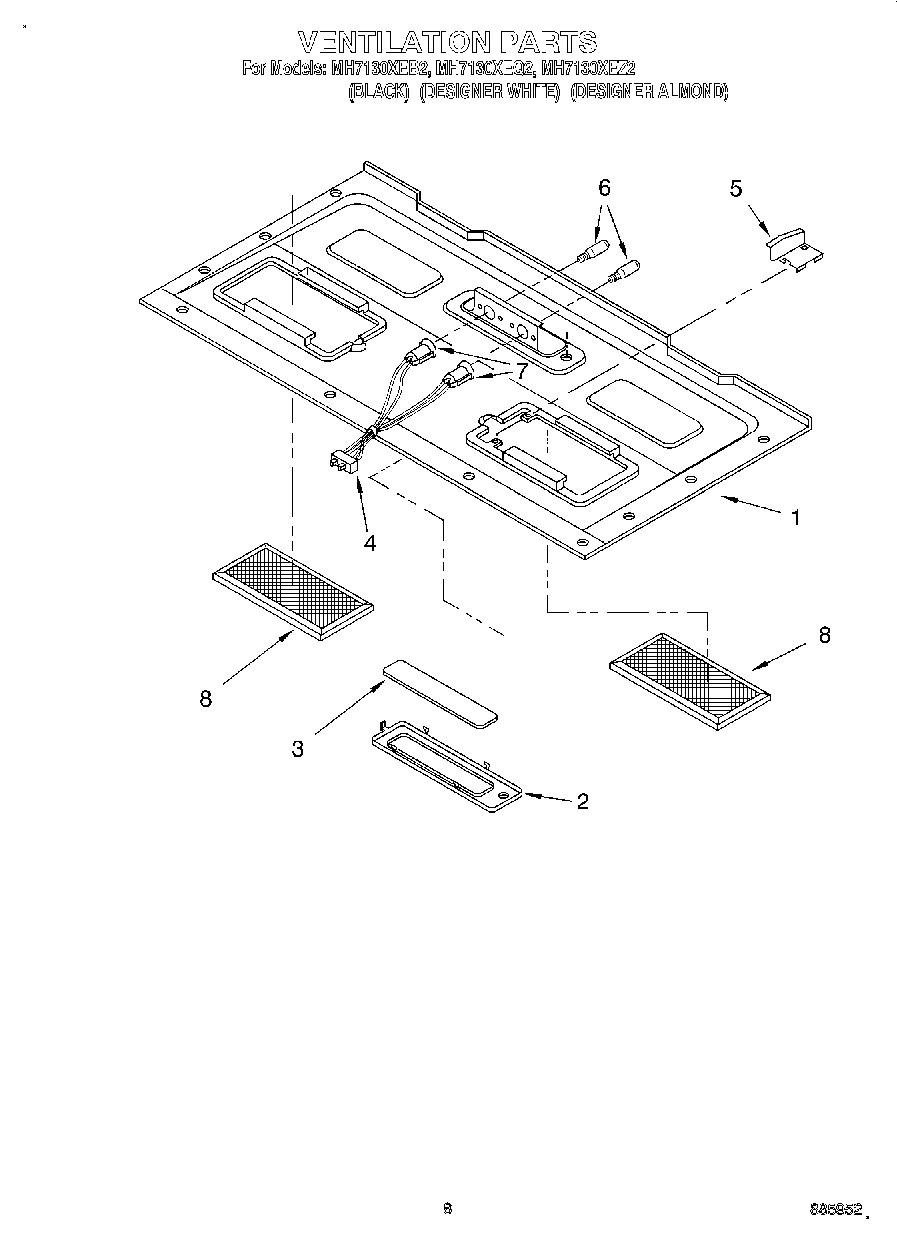

07 - VENTILATION

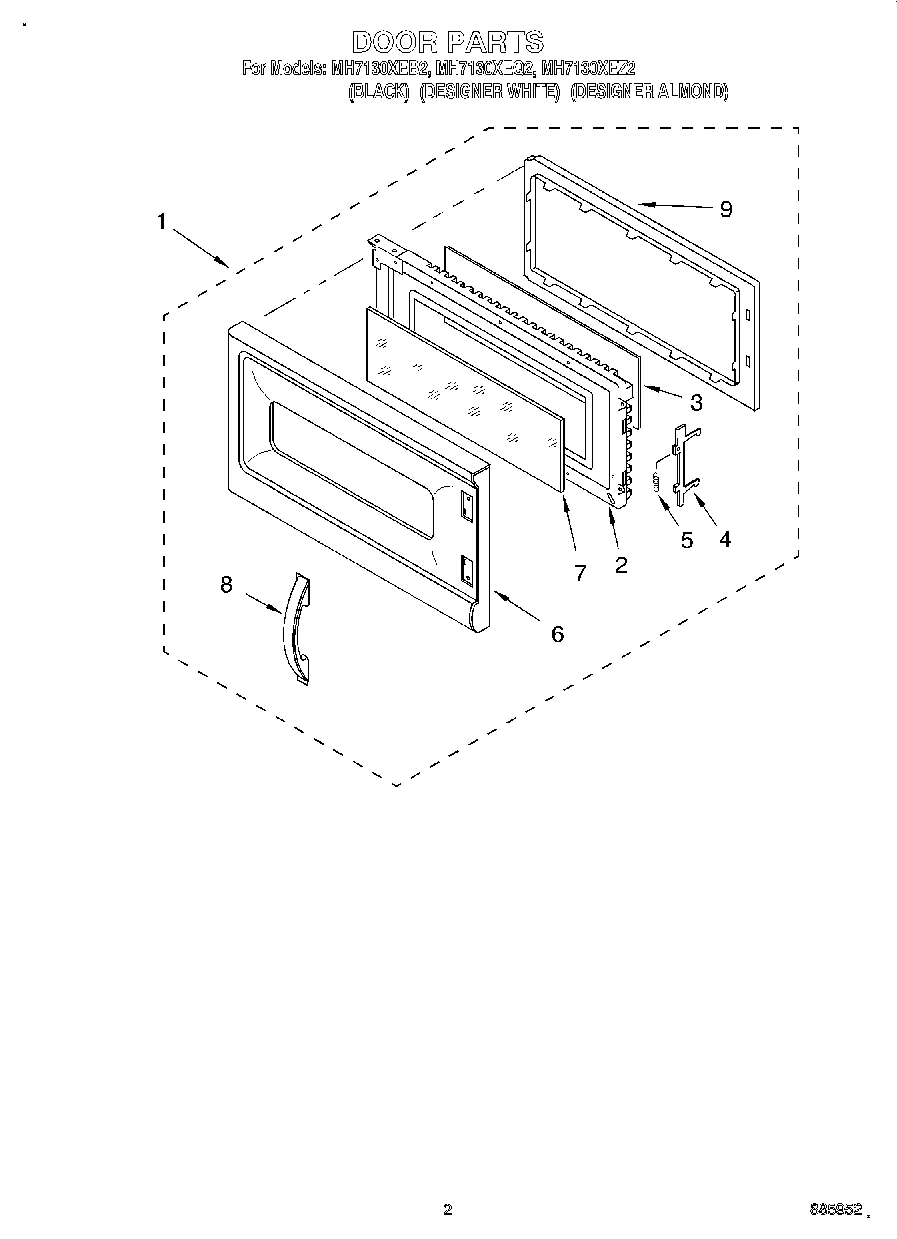

02 - DOOR

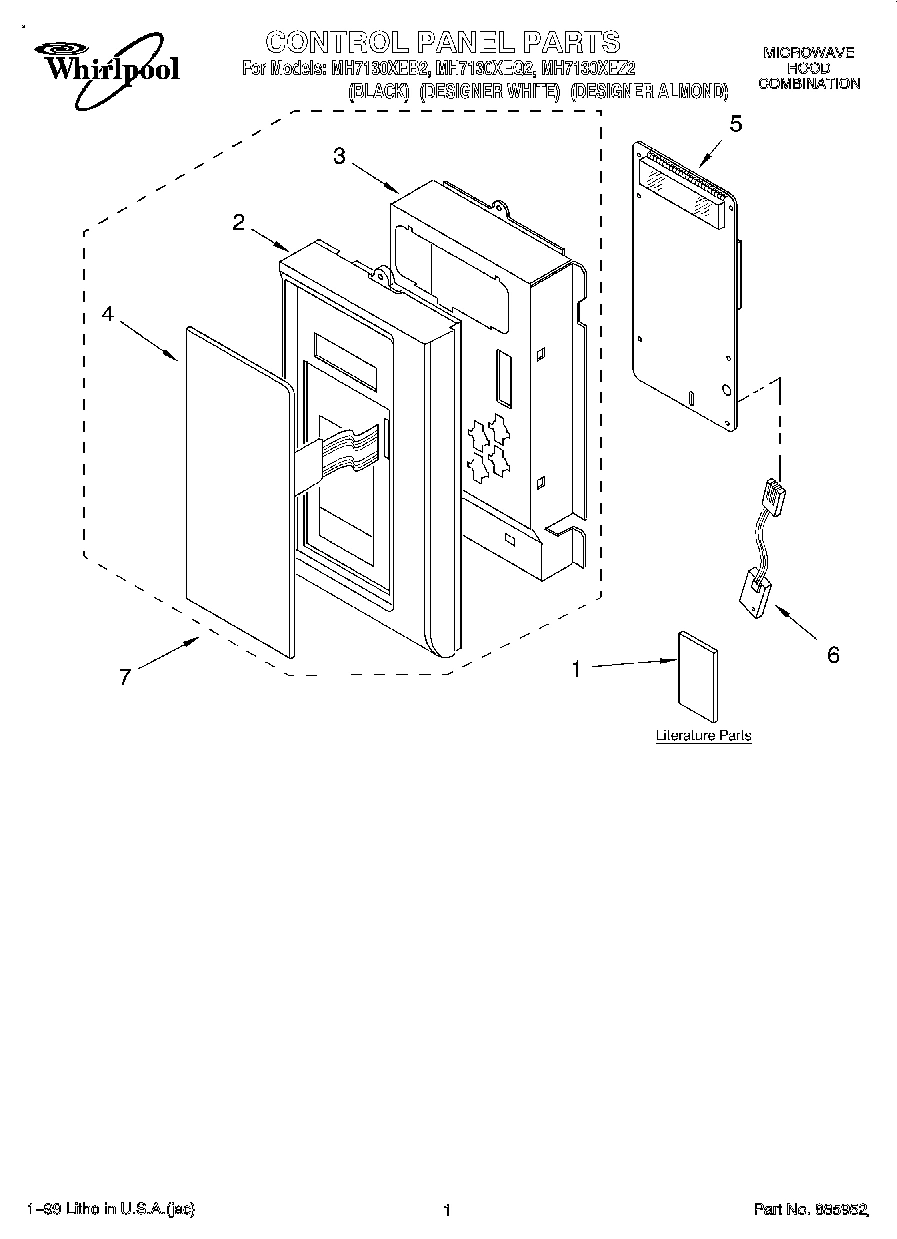

01 - CONTROL PANEL, LITERATURE

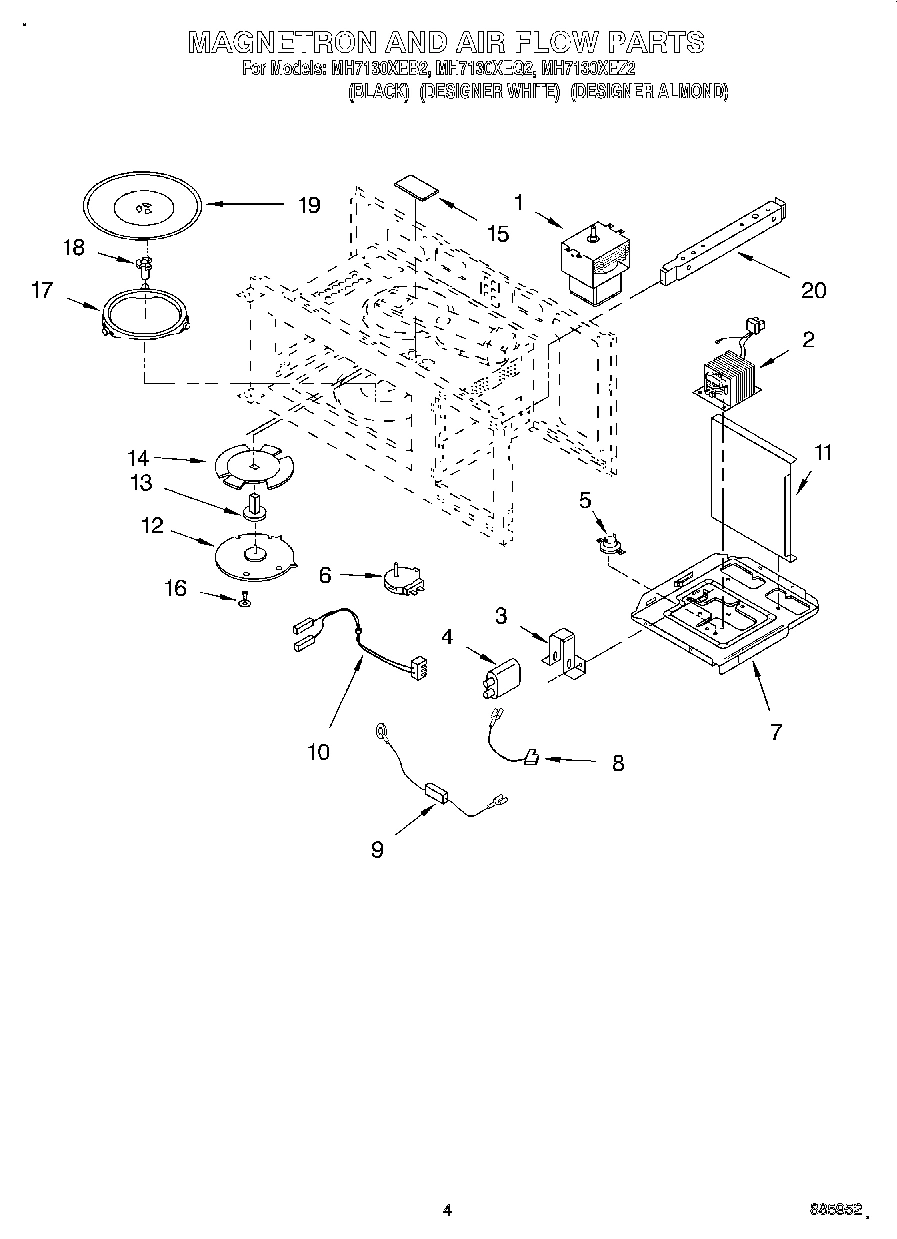

04 - MAGNETRON AND AIR FLOW

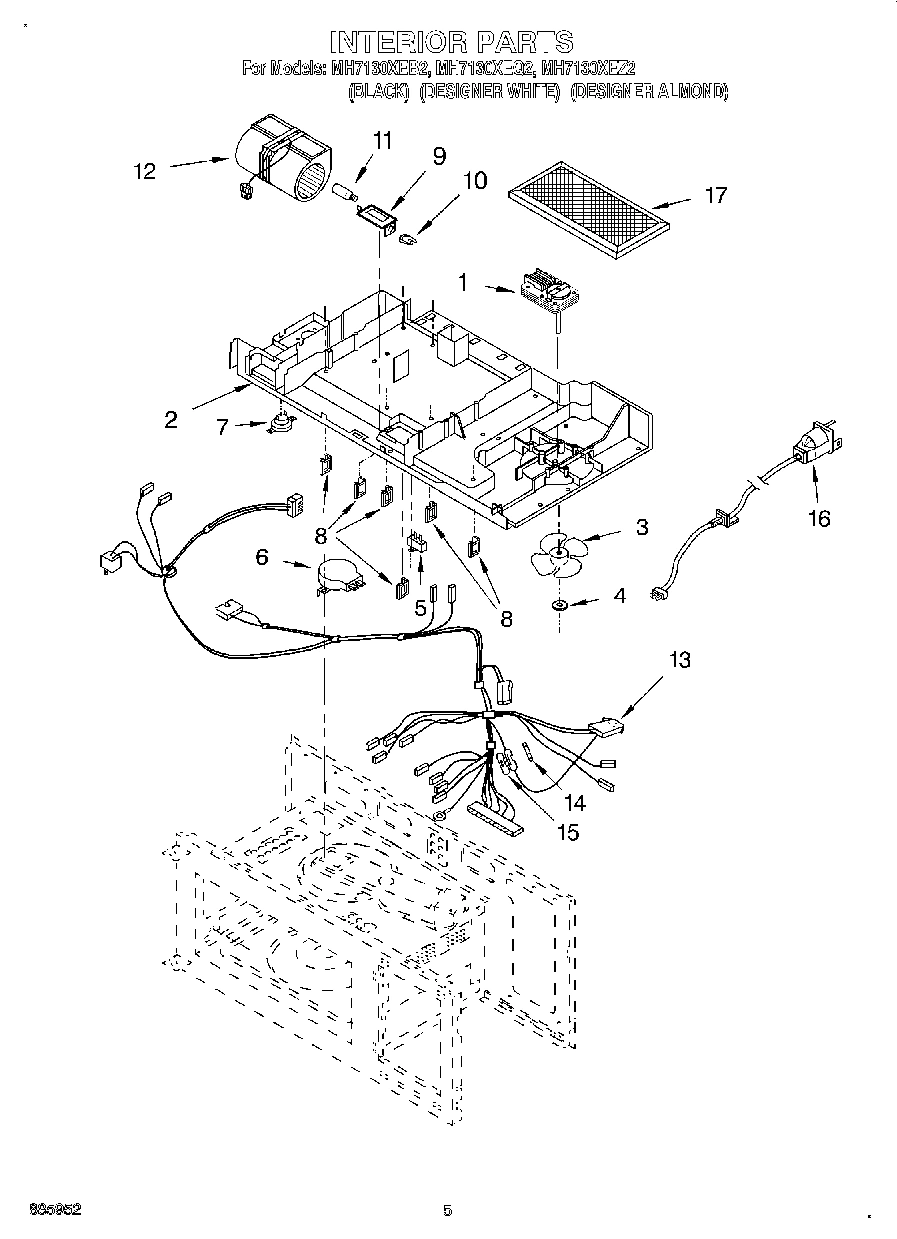

05 - INTERIOR

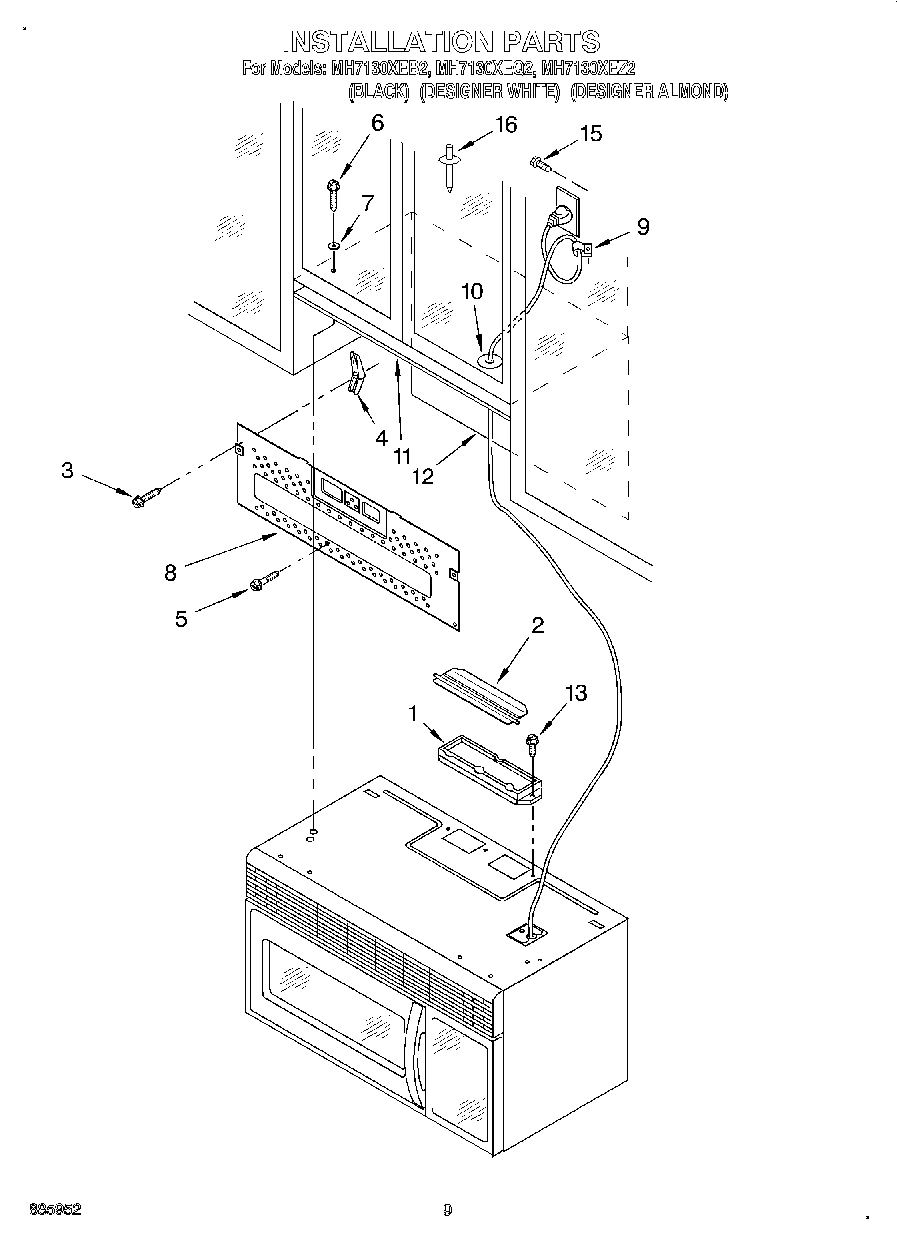

08 - INSTALLATION

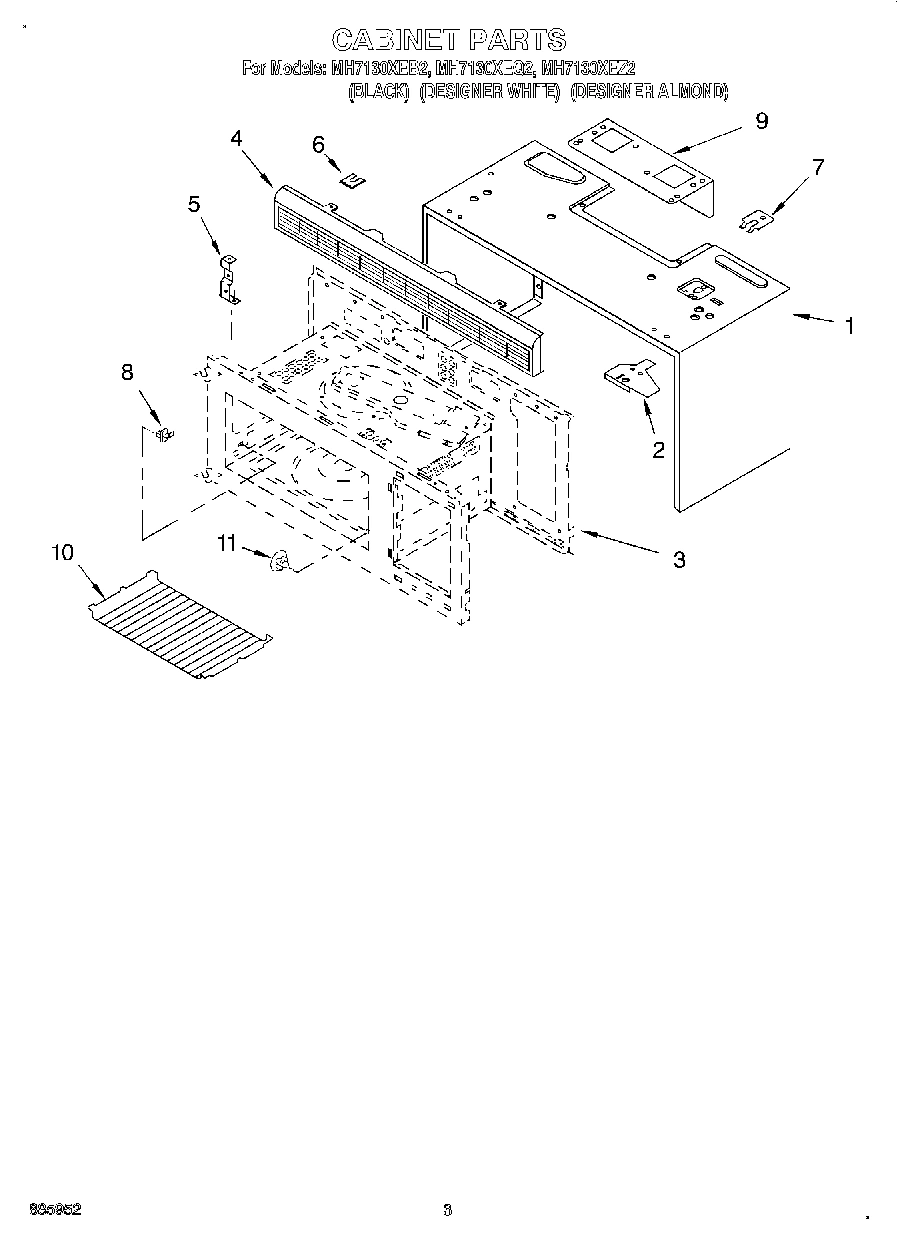

03 - CABINET
Common parts from model Whirlpool MH7130XEB2
Cabinet Template WPL ARI118230A Contact Us For Availability
1
Door Assembly (White) WPL 4359976 Contact Us For Availability
1
Door Assembly (Black) WPL 4359978 Contact Us For Availability
1
Door Assembly (Almond) WPL 4359980 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359414 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359455 Contact Us For Availability
1
Literature Parts (Guide, Cooking) WPL LIT4359456 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT4359622 Contact Us For Availability
1
Magnetron WPL 4359687 Contact Us For Availability
1
Motor, Fan WPL 4359511 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Outer Case (Screw) WPL 4358829 Contact Us For Availability
1
Outer Case (White Model) WPL 4359487 Contact Us For Availability
1
Outer Case (Black Model) WPL 4359488 Contact Us For Availability
1
Outer Case (Almond Model) WPL 4359555 Contact Us For Availability
2
Frame, Door (White) WPL 4359977 Contact Us For Availability
2
Frame, Door (Black) WPL 4359979 Contact Us For Availability
2
Frame, Door (Almond) WPL 4359981 Contact Us For Availability
2
Control Panel (White Model) WPL 4359479 Contact Us For Availability
2
Control Panel (Black Model) WPL 4359480 Contact Us For Availability
2
Control Panel (Almond) WPL 4359553 Contact Us For Availability
2
H.V. Transformer WPL 4359494 Contact Us For Availability
2
Screw WPL 4358188 Contact Us For Availability
2
Air Duct WPL 4359513 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
3
Bracket, Control WPL 4359481 Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
3
Cavity Assembly (Not Serviceable) WPL ARI118229A Contact Us For Availability
4
Push Nut WPL 4358055 Contact Us For Availability
4
Latch (White) WPL 4358546 Contact Us For Availability
4
Latch (Black) WPL 4359860 Contact Us For Availability
4
Grille Vent (Screw) WPL 4358762 Contact Us For Availability
4
Grille Vent (Screw) WPL 4359009 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359482 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4359483 Contact Us For Availability
4
Key Membrane (Almond) WPL 4359554 Contact Us For Availability
4
Capacitor, H.V. WPL 4359049 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Grille Vent (White Model) WPL 4359489 Contact Us For Availability
4
Grille Vent (Black Model) WPL 4359490 Contact Us For Availability
4
Grille Vent (Almond Model) WPL 4359556 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Screw WPL 4358883 Contact Us For Availability
5
PCB Sub Assy. WPL 4359413 Contact Us For Availability
5
Screw WPL 4358376 Contact Us For Availability
5
Fuse WPL 4359514 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
Bracket, Front WPL 4358759 Contact Us For Availability
6
Panel, Door (White) WPL 4359469 Contact Us For Availability
6
Panel, Door (Black) WPL 4359470 Contact Us For Availability
6
Panel, Door (Almond) WPL 4359546 Contact Us For Availability
6
PWB Sub, Assy WPL 4359486 Contact Us For Availability
6
Motor, Turntable WPL 4359498 Contact Us For Availability
6
Motor, Synchronous WPL 4359515 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Bracket, Grille WPL 4358816 Contact Us For Availability
7
Glass, Door (White Model) WPL 4359547 Contact Us For Availability
7
Glass, Door (Black Model) WPL 4359548 Contact Us For Availability
7
Glass, Door (Almond) WPL 4359549 Contact Us For Availability
7
Controller Sub Assy. (White Model) WPL 4359477 Contact Us For Availability
7
Controller Sub Assy. (Black Model) WPL 4359478 Contact Us For Availability
7
Controller Sub Assy. (Almond) WPL 4359552 Contact Us For Availability
7
Plate WPL 4359500 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Cover, Power Cord WPL 4359491 Contact Us For Availability
8
Handle, Door (White Model) WPL 4359473 Contact Us For Availability
8
Handle, Door (Black Model) WPL 4359474 Contact Us For Availability
8
Handle, Door (Almond) WPL 4359550 Contact Us For Availability
8
H.V. Cable WPL 4359501 Contact Us For Availability
8
Wire Holder WPL 4158267 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
8
Shelf Holder WPL 4358383 Contact Us For Availability
9
Choke, Cover (Screw) WPL 4358479 Contact Us For Availability
9
Choke, Cover (White Model) WPL 4359475 Contact Us For Availability
9
Choke, Cover (Black) WPL 4359476 Contact Us For Availability
9
Choke, Cover (Almond) WPL 4359551 Contact Us For Availability
9
Cover WPL 4359517 Contact Us For Availability
9
Plate, Mount WPL 4359377 Contact Us For Availability
10
Lamp Holder WPL 4359518 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Rack, Grill WPL 4359492 Contact Us For Availability
11
Guide WPL 4359504 Contact Us For Availability
11
Sheet-Top WPL 4359560 Contact Us For Availability
11
Temp. Hole Cap WPL 4359493 Contact Us For Availability
12
Cover WPL 4359505 Contact Us For Availability
12
Motor, Ventilation WPL 4359519 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
13
Holder WPL 4359506 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
13
Lead, Wire WPL 4359521 Contact Us For Availability
14
Stirrer Fan WPL 4359507 Contact Us For Availability
15
Tape WPL 4359212 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 4359522 Contact Us For Availability
17
Charcoal Filter WPL 4359331 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
17
Filler Kit WPL 4158311 Contact Us For Availability
17
Installation Hardware WPL 4158491 Contact Us For Availability
18
Turntable Shaft WPL 4358141 Contact Us For Availability
20
Plate WPL 4359510 Contact Us For Availability
× ![]()
