Model Whirlpool MH7115XBZ6 – Common Parts & Diagrams
05 - INTERIOR, LITERATURE
07 - VENTILATION

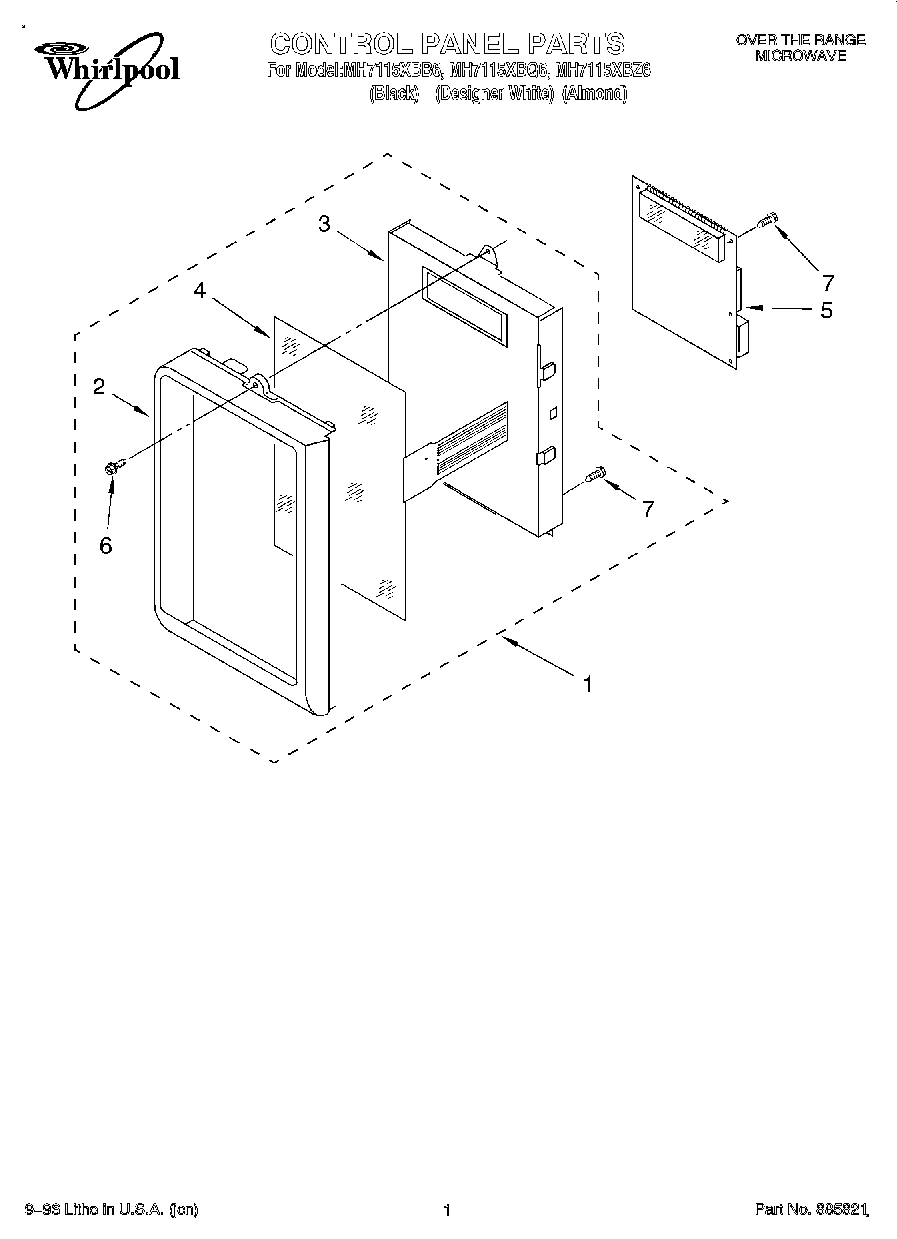

01 - CONTROL PANEL

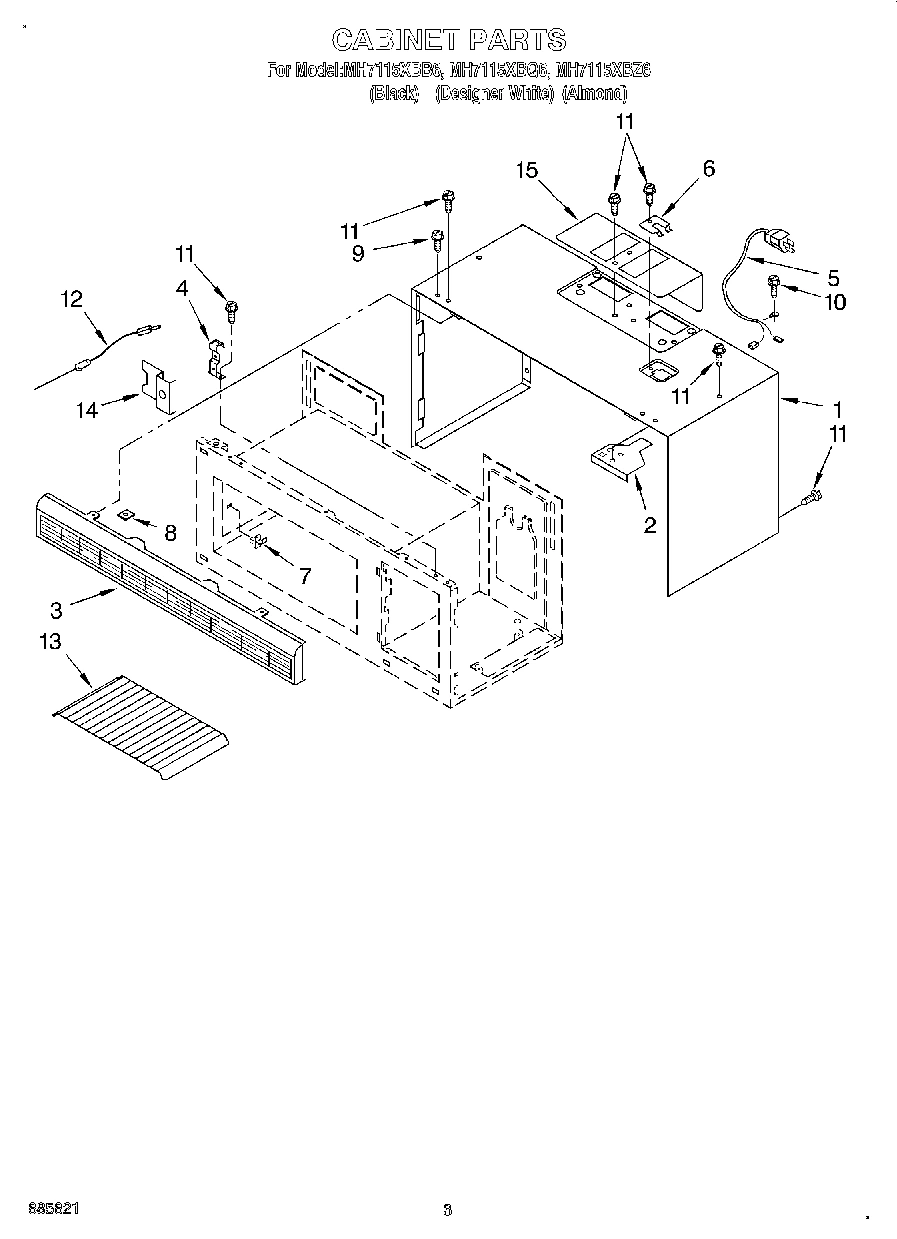

03 - CABINET

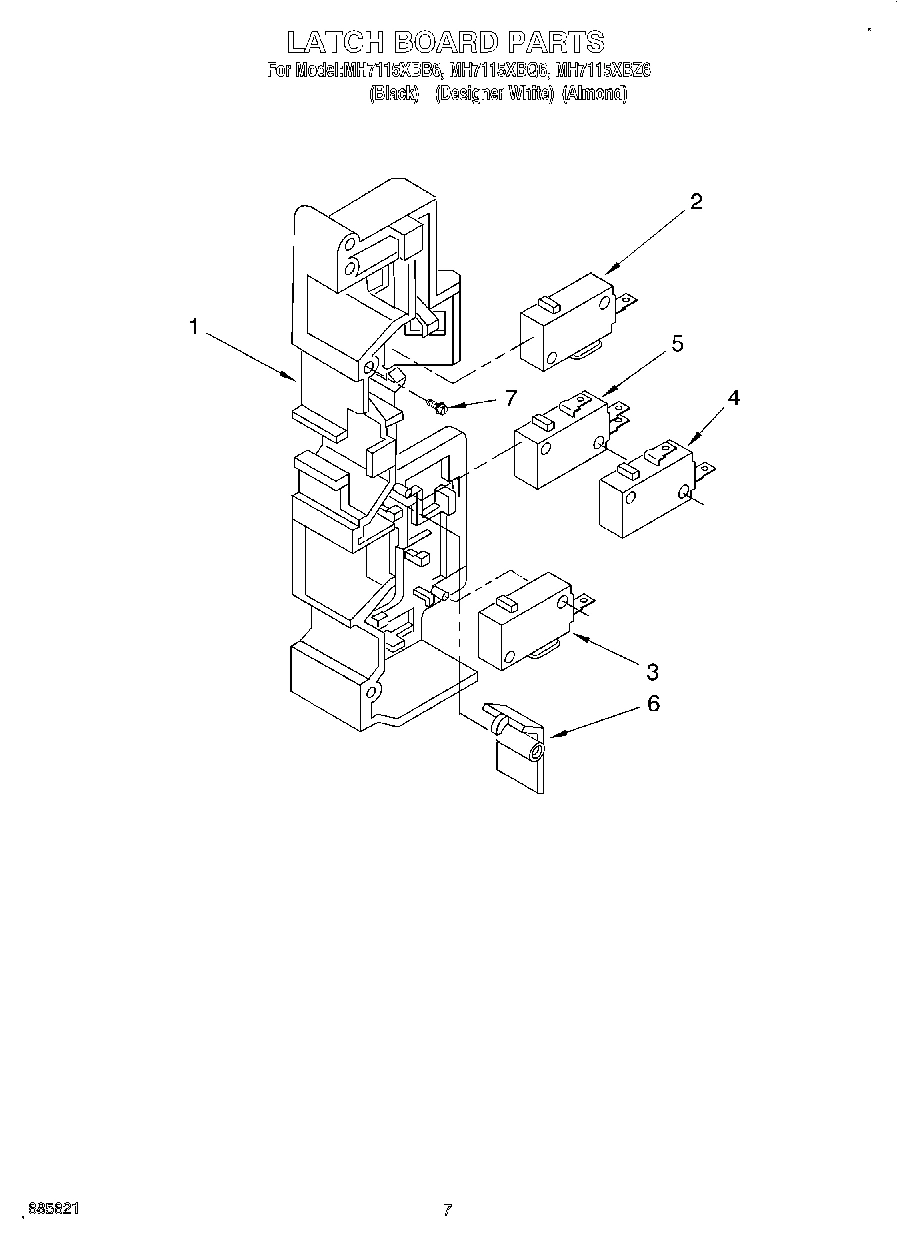

06 - LATCH BOARD

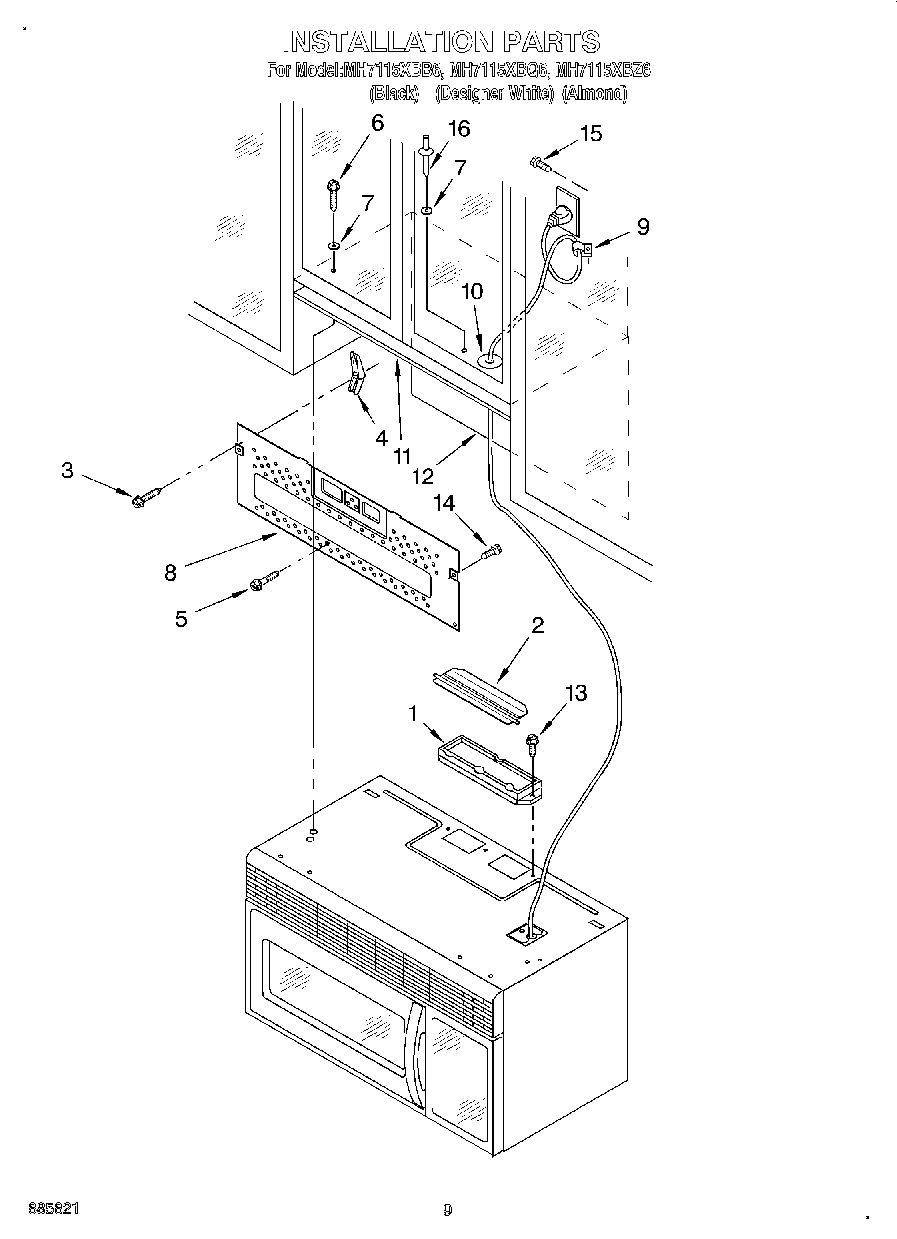

08 - INSTALLATION

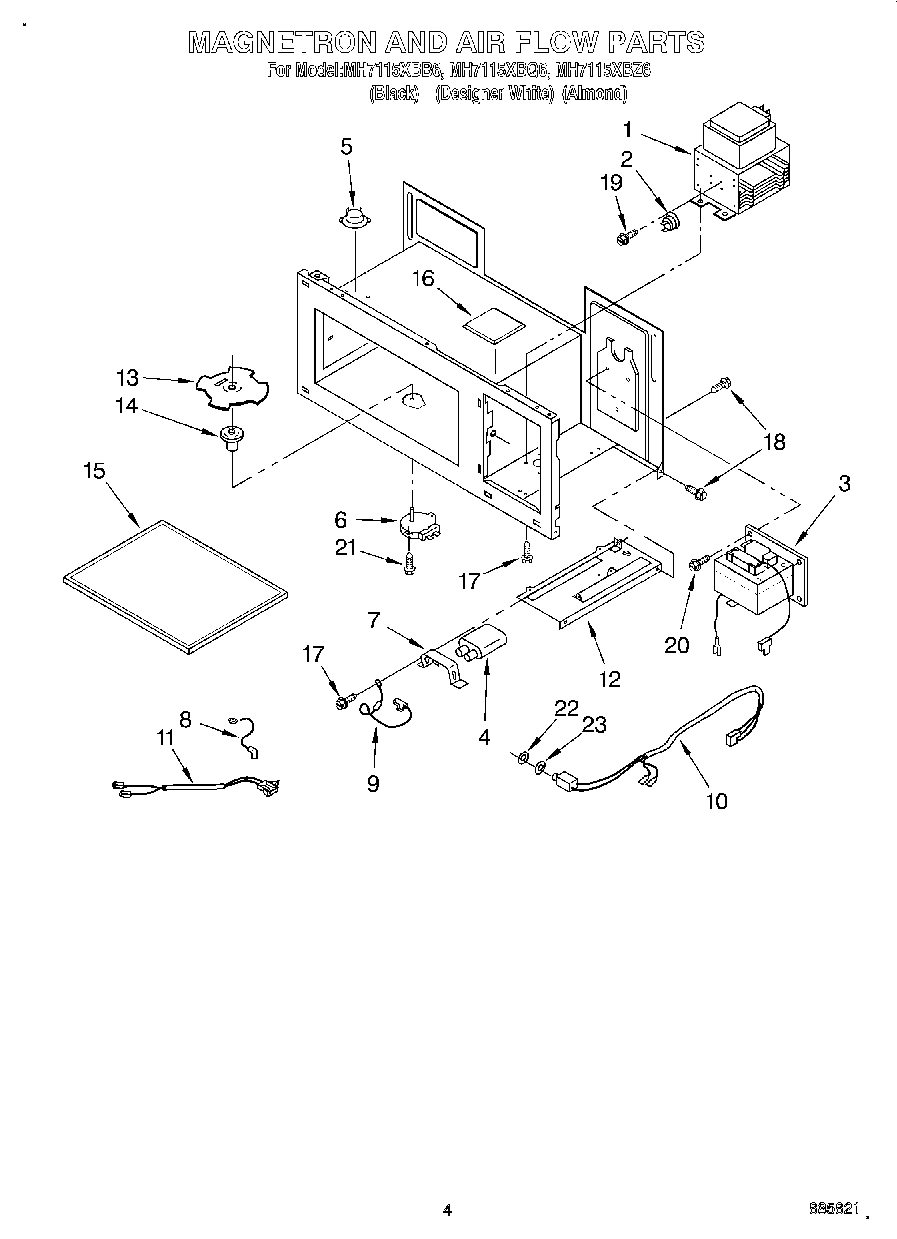

04 - MAGNETRON AND AIR FLOW

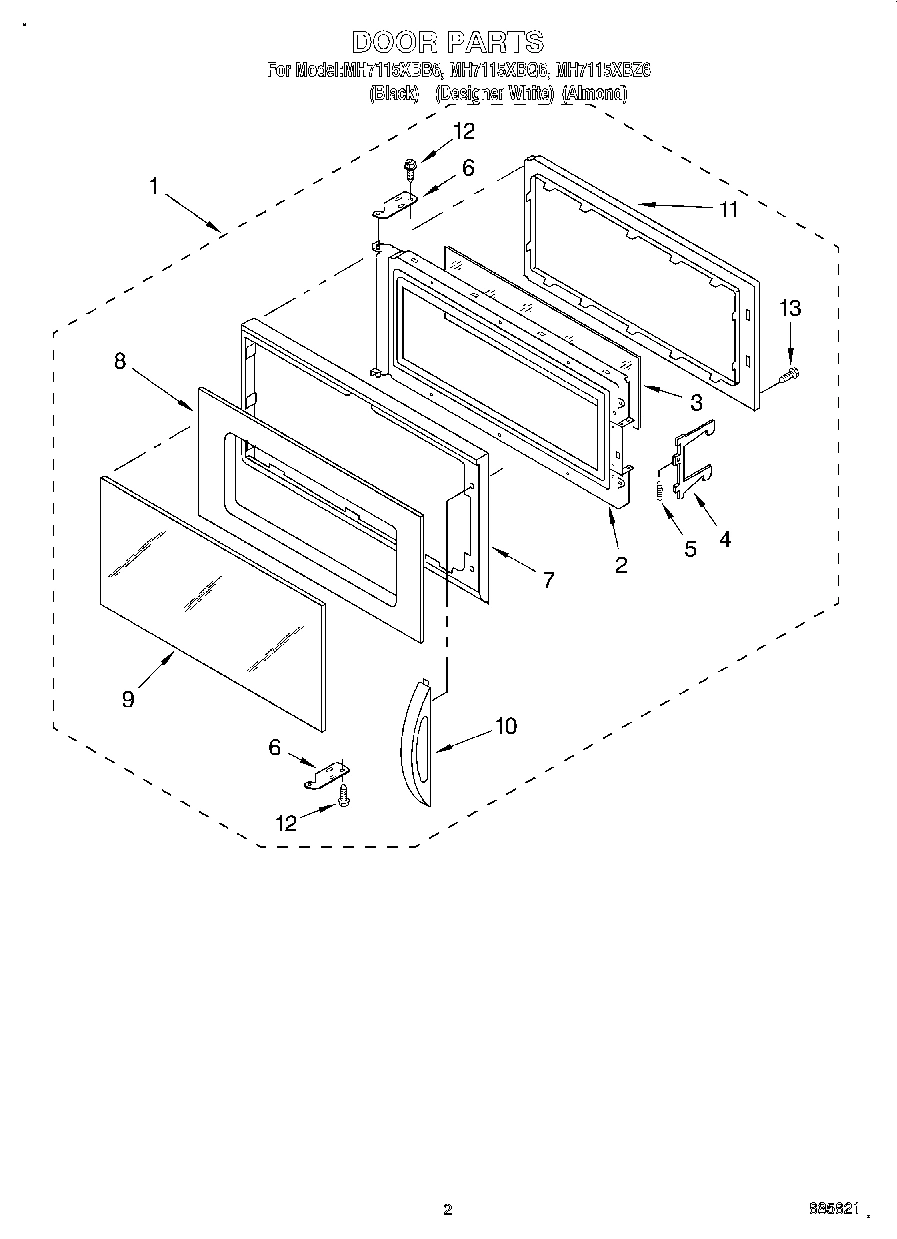

02 - DOOR
Common parts from model Whirlpool MH7115XBZ6
1
Motor, Fan WPL 4358784 Contact Us For Availability
1
Base Plate (White Model) WPL 4358929 Contact Us For Availability
1
Base Plate (Black Model) WPL 4358930 Contact Us For Availability
1
Base Plate (Almond Model) WPL 4358931 Contact Us For Availability
1
Controller Sub Assy. (Black Model) WPL 4358841 Contact Us For Availability
1
Controller Sub Assy. (White Model) WPL 4358842 Contact Us For Availability
1
Controller Sub Assy. (Almond Model) WPL 4358843 Contact Us For Availability
1
Outer Case (White Model) WPL 4358925 Contact Us For Availability
1
Outer Case (Black Model) WPL 4358926 Contact Us For Availability
1
Outer Case (Almond Model) WPL 4358927 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Magnatron WPL 4358059 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4358561 Contact Us For Availability
1
Door Assembly (White Model) WPL 4358722 Contact Us For Availability
1
Door Assembly (Almond Model) WPL 4358824 Contact Us For Availability
2
Control Panel (White Model) WPL 4358551 Contact Us For Availability
2
Cover Cooktop Glass (White Model) WPL 4358533 Contact Us For Availability
2
Cover Cooktop Glass (Black Model) WPL 4358765 Contact Us For Availability
2
Cover Cooktop Glass (Almond Model) WPL 4358831 Contact Us For Availability
2
Control Panel (Black Model) WPL 4358552 Contact Us For Availability
2
Control Panel (Almond Model) WPL 4358844 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Thermostat WPL 4358772 Contact Us For Availability
2
Frame, Door (Black Model) WPL 4358750 Contact Us For Availability
2
Frame, Door (White Model) WPL 4358751 Contact Us For Availability
2
Frame, Door (Almond Model) WPL 4358827 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4358571 Contact Us For Availability
3
Bracket, Control WPL 4358845 Contact Us For Availability
3
Grille Vent (Black Model) WPL 4358562 Contact Us For Availability
3
Grille Vent (White Model) WPL 4358851 Contact Us For Availability
3
Grille Vent (Almond Model) WPL 4358852 Contact Us For Availability
3
Transformer WPL 4358774 Contact Us For Availability
4
Cushion, Glass WPL 4358767 Contact Us For Availability
4
Key Membrane (White Model) WPL 4358846 Contact Us For Availability
4
Key Membrane (Almond Model) WPL 4358847 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4358848 Contact Us For Availability
4
Bracket, Front WPL 4358759 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Capacitor WPL 4158947 Contact Us For Availability
4
Latch WPL 4358546 Contact Us For Availability
5
Fuse WPL 4358704 Contact Us For Availability
5
Lead Wire Assy. WPL 4358768 Contact Us For Availability
5
PCB Sub Assy. WPL 4359237 Contact Us For Availability
5
Power Cord WPL 4358760 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
6
Push Nut WPL 4358055 Contact Us For Availability
6
Screw WPL 4358015 Contact Us For Availability
6
Cover, Wire WPL 4358769 Contact Us For Availability
6
Cover, Power Cord WPL 4358761 Contact Us For Availability
6
Lever Monitor WPL 4358795 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Motor WPL 4358777 Contact Us For Availability
6
Plate, Hinge WPL 4358820 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Air Duct WPL 4358786 Contact Us For Availability
7
Shelf Holder WPL 4358383 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Bracket WPL 4358778 Contact Us For Availability
7
Panel, Door (White Model) WPL 4358566 Contact Us For Availability
7
Panel, Door (Black Model) WPL 4358567 Contact Us For Availability
7
Panel, Door (Almond Model) WPL 4358834 Contact Us For Availability
8
Motor, Ventilation WPL 4358787 Contact Us For Availability
8
Bracket, Grille WPL 4358816 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
8
H.V. Cable WPL 4158827 Contact Us For Availability
8
Baffle, Door (White Model) WPL 4358554 Contact Us For Availability
8
Baffle, Door (Black Model) WPL 4358555 Contact Us For Availability
8
Baffle, Door (Almond Model) WPL 4358835 Contact Us For Availability
9
Cover, Lamp WPL 4358789 Contact Us For Availability
9
Lamp Holder WPL 4358790 Contact Us For Availability
9
Screw WPL 4358762 Contact Us For Availability
9
H.V. Diode-Cable WPL 4158923 Contact Us For Availability
9
Glass, Door (Black Model) WPL 4358836 Contact Us For Availability
9
Glass, Door (White Model) WPL 4358837 Contact Us For Availability
9
Glass, Door (Almond Model) WPL 4358838 Contact Us For Availability
10
Screw WPL 4358829 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Lead Wire WPL 4358823 Contact Us For Availability
10
Handle, Door (White Model) WPL 4358548 Contact Us For Availability
10
Handle, Door (Black Model) WPL 4358549 Contact Us For Availability
10
Handle, Door (Almond Model) WPL 4358839 Contact Us For Availability
11
Screw WPL 4358190 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4358935 Contact Us For Availability
11
Lead Wire WPL 4358780 Contact Us For Availability
11
Choke Cover (White Model) WPL 4358557 Contact Us For Availability
11
Choke Cover (Black Model) WPL 4358558 Contact Us For Availability
11
Choke Cover (Almond Model) WPL 4358840 Contact Us For Availability
12
Motor Condenser WPL 4158376 Contact Us For Availability
12
Probe WPL 4158371 Contact Us For Availability
12
Sheet-Wall Template WPL 4358934 Contact Us For Availability
12
Plate, Bottom WPL 4358781 Contact Us For Availability
12
Screw WPL 4358067 Contact Us For Availability
13
Guide Air WPL 4358536 Contact Us For Availability
13
Rack WPL 4358833 Contact Us For Availability
13
Stirrer Fan Disk WPL 4358782 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
14
Base Thermostat WPL 4158368 Contact Us For Availability
14
Cover WPL 4359376 Contact Us For Availability
14
Holder Disk WPL 4358783 Contact Us For Availability
15
Cover, Connector WPL 4358791 Contact Us For Availability
15
Plate, Mount WPL 4359377 Contact Us For Availability
15
Ceramic Plate WPL 4158731 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Filter WPL 4358792 Contact Us For Availability
16
Temp Hole Cap WPL 4358156 Contact Us For Availability
17
Lead Wire WPL 4359189 Contact Us For Availability
19
Screw WPL 4358376 Contact Us For Availability
21
Screw WPL 4358191 Contact Us For Availability
21
Screw WPL 4358188 Contact Us For Availability
22
Nut WPL 4158212 Contact Us For Availability
23
Washer WPL 4158213 Contact Us For Availability
24
Sensor WPL 4358825 Contact Us For Availability
25
Sensor Box WPL 4358826 Contact Us For Availability
× ![]()
