Model Whirlpool MH6150XMS1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

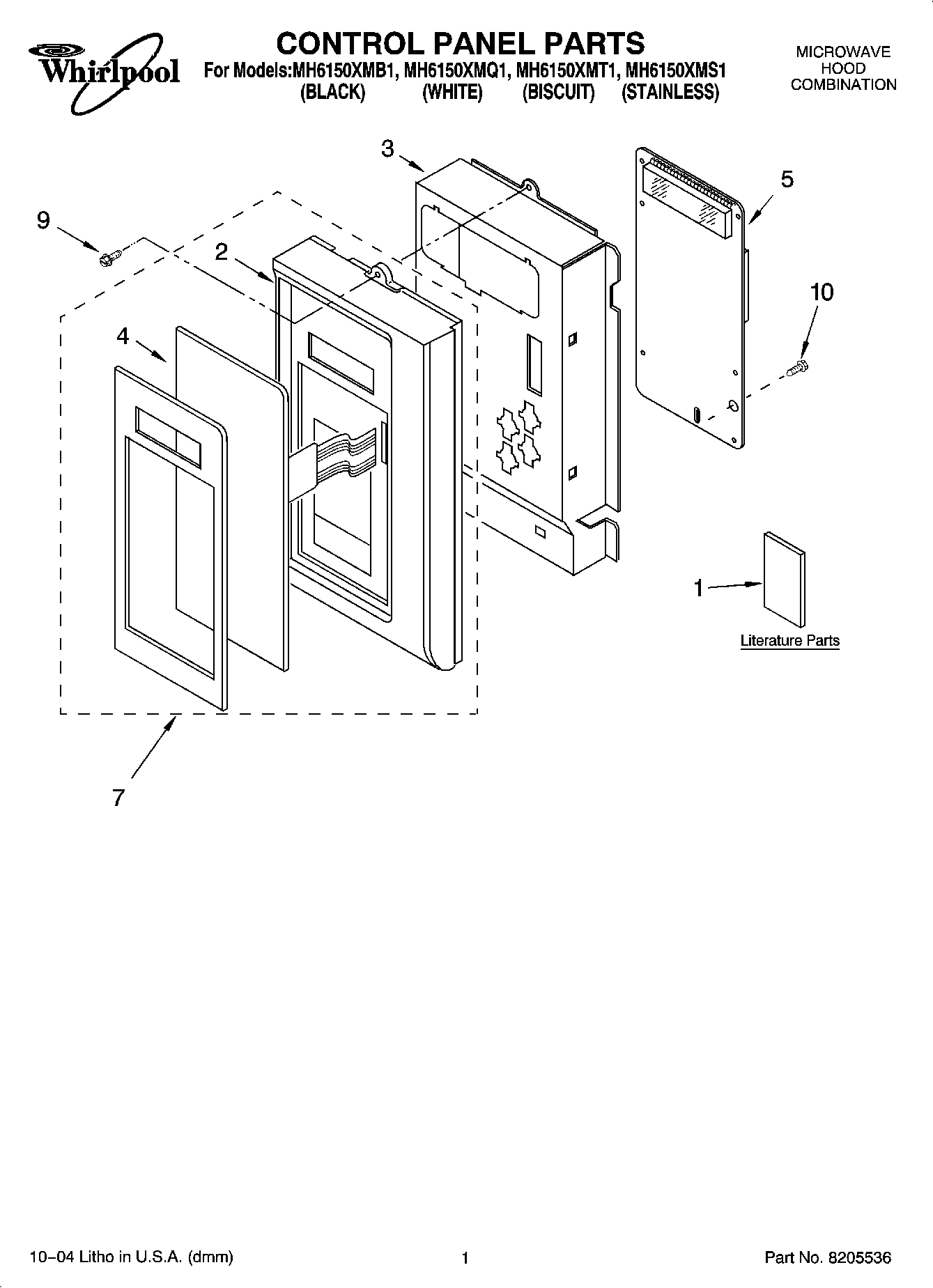

01 - CONTROL PANEL PARTS

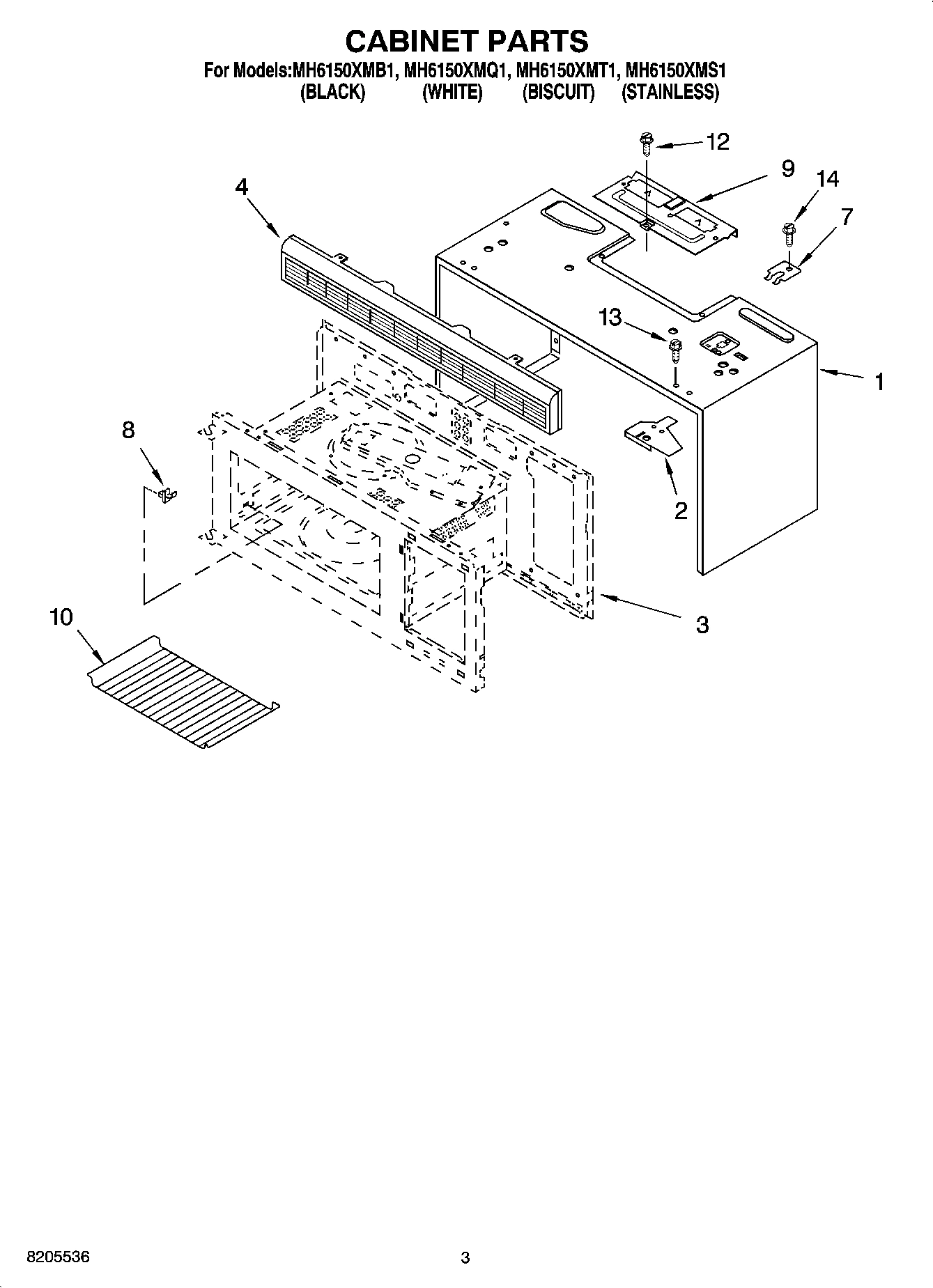

03 - CABINET PARTS

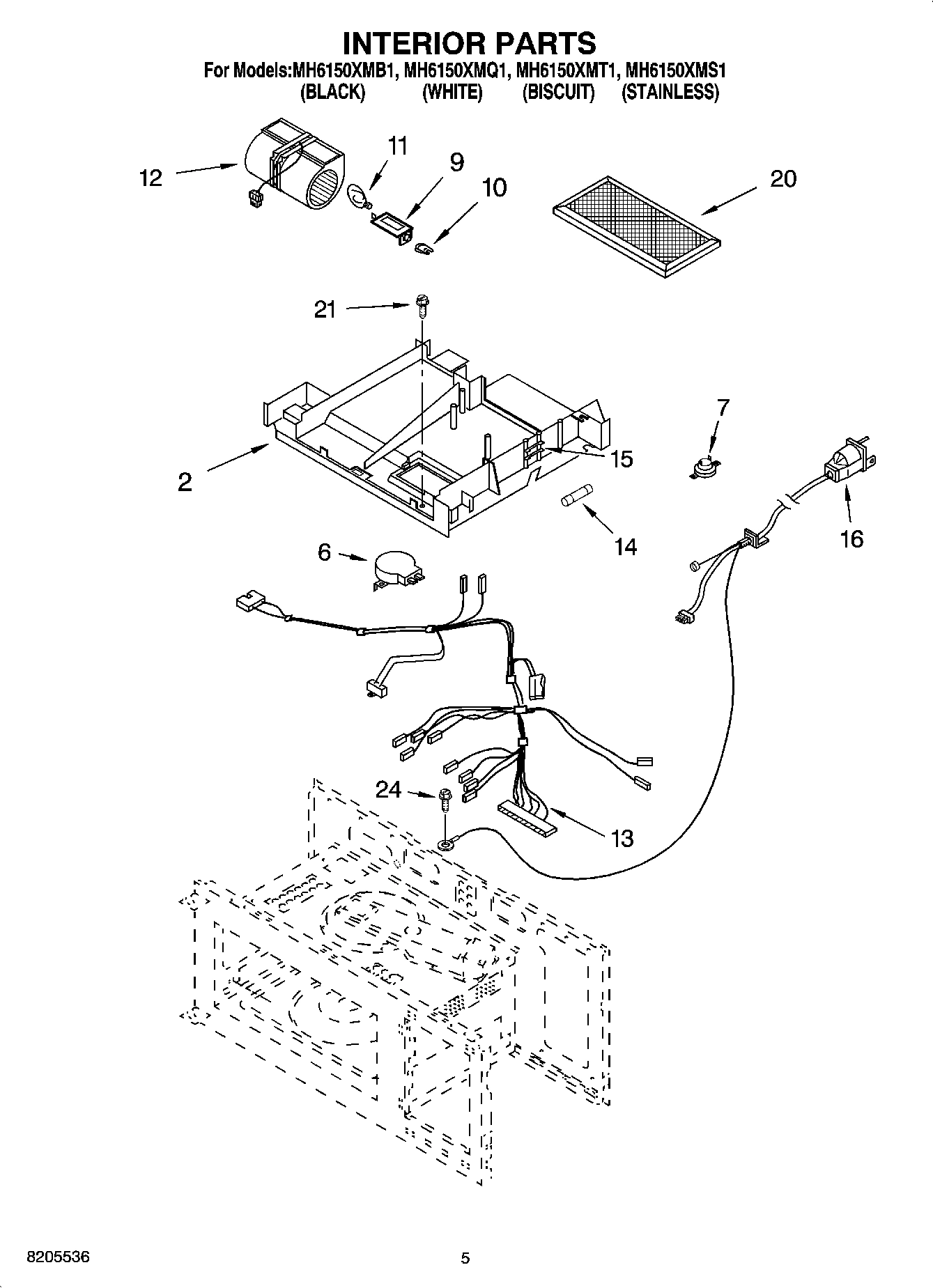

05 - INTERIOR PARTS

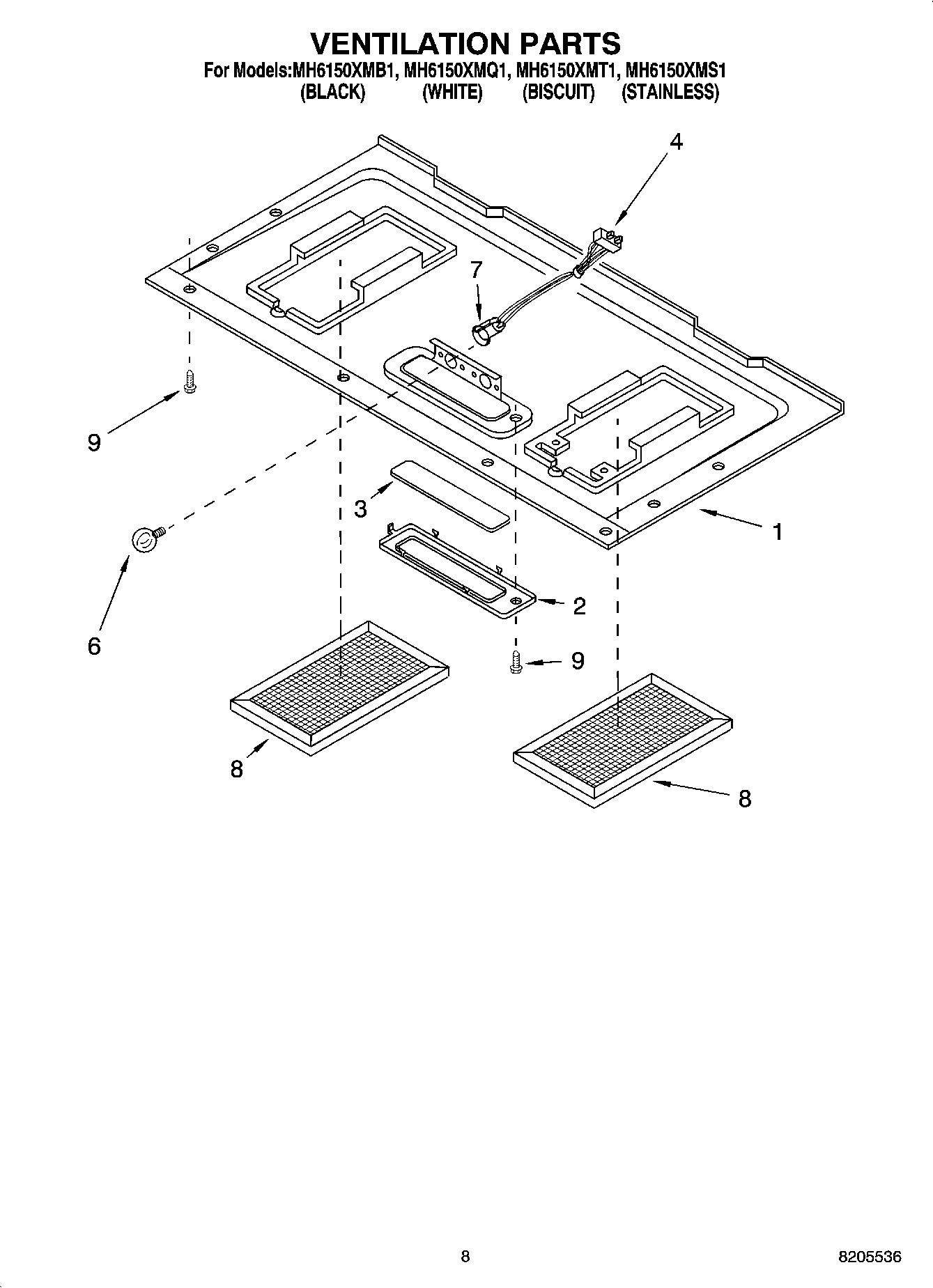

07 - VENTILATION PARTS

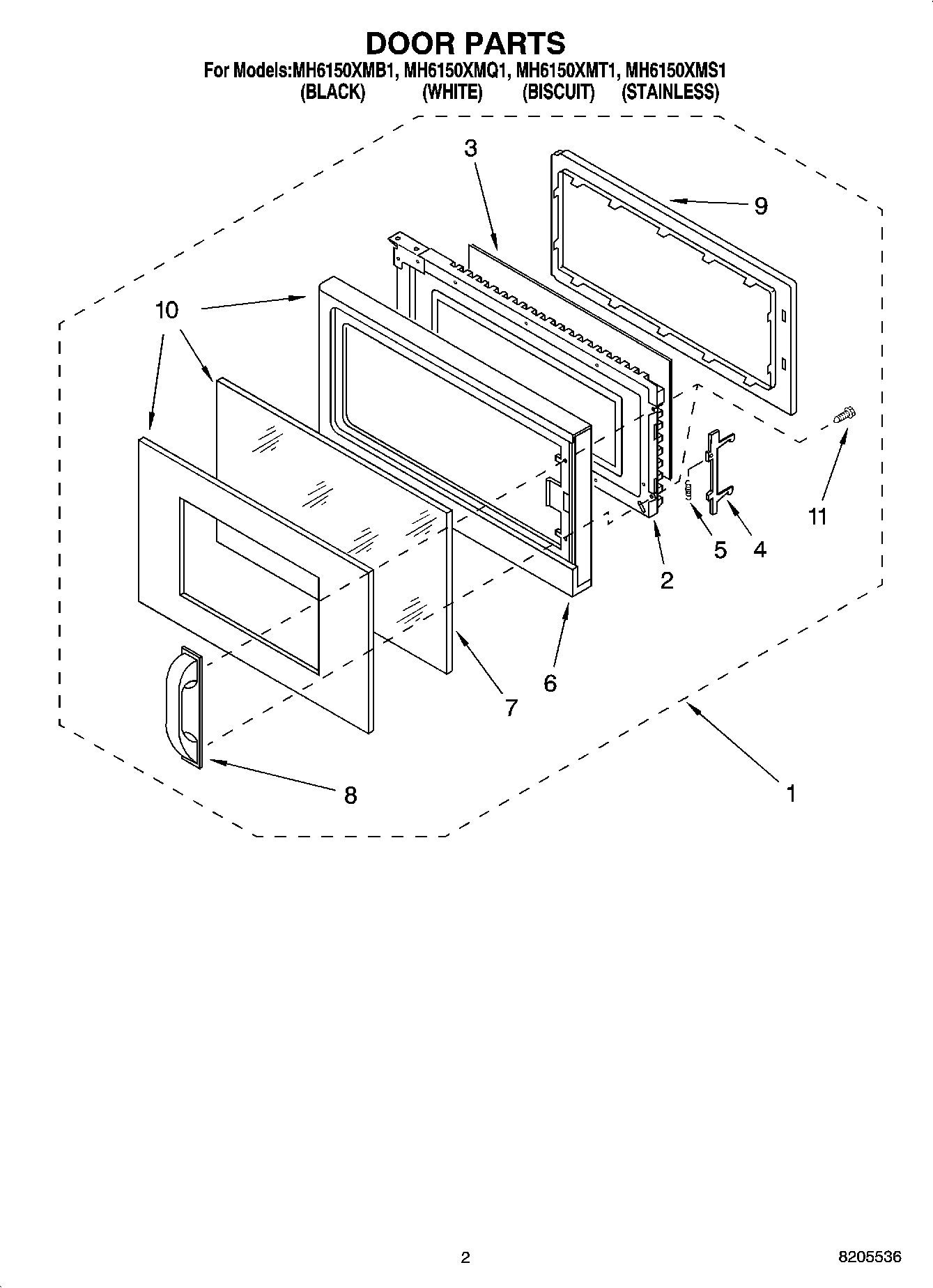

02 - DOOR PARTS

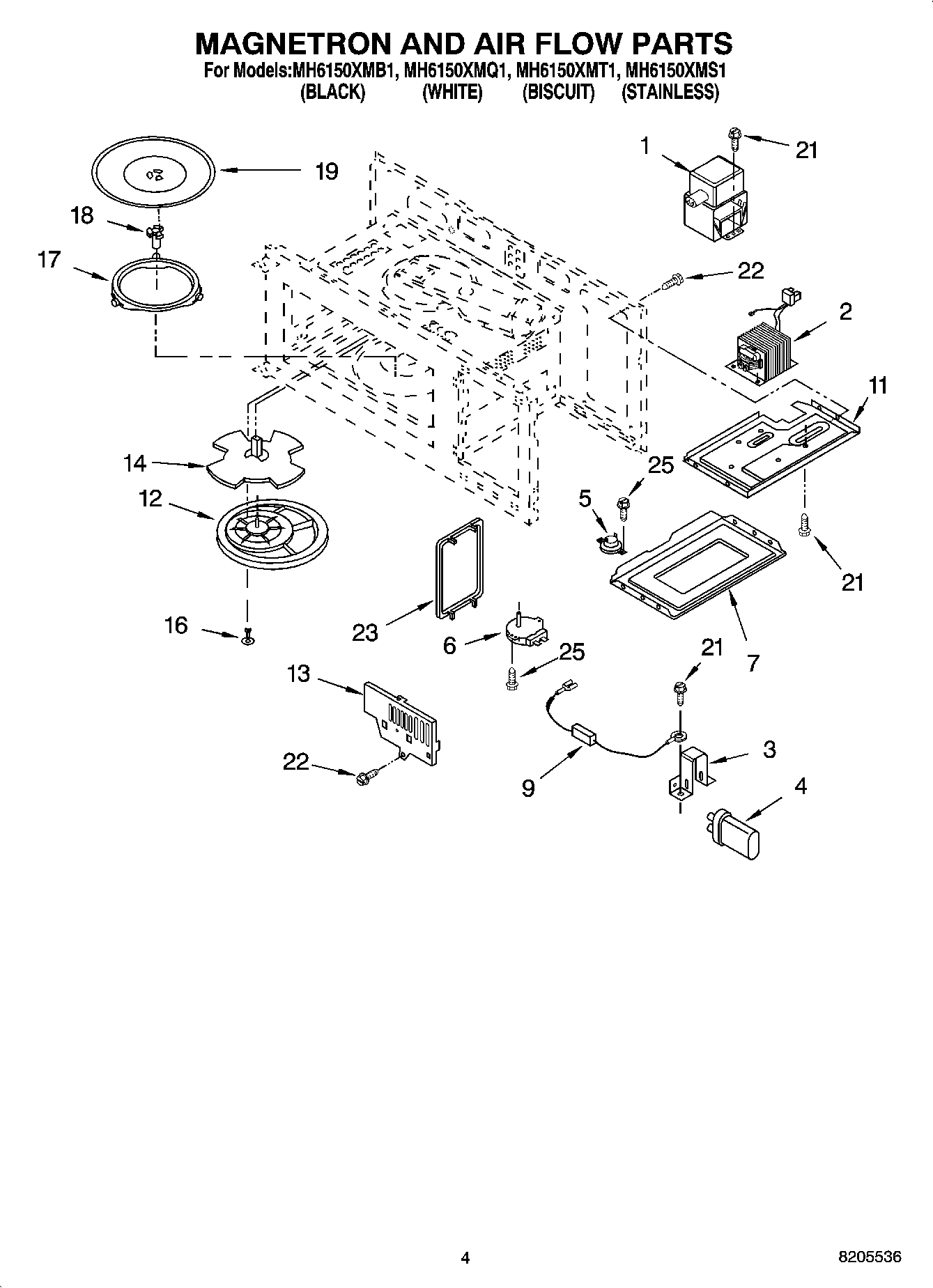

04 - MAGNETRON AND AIR FLOW PARTS

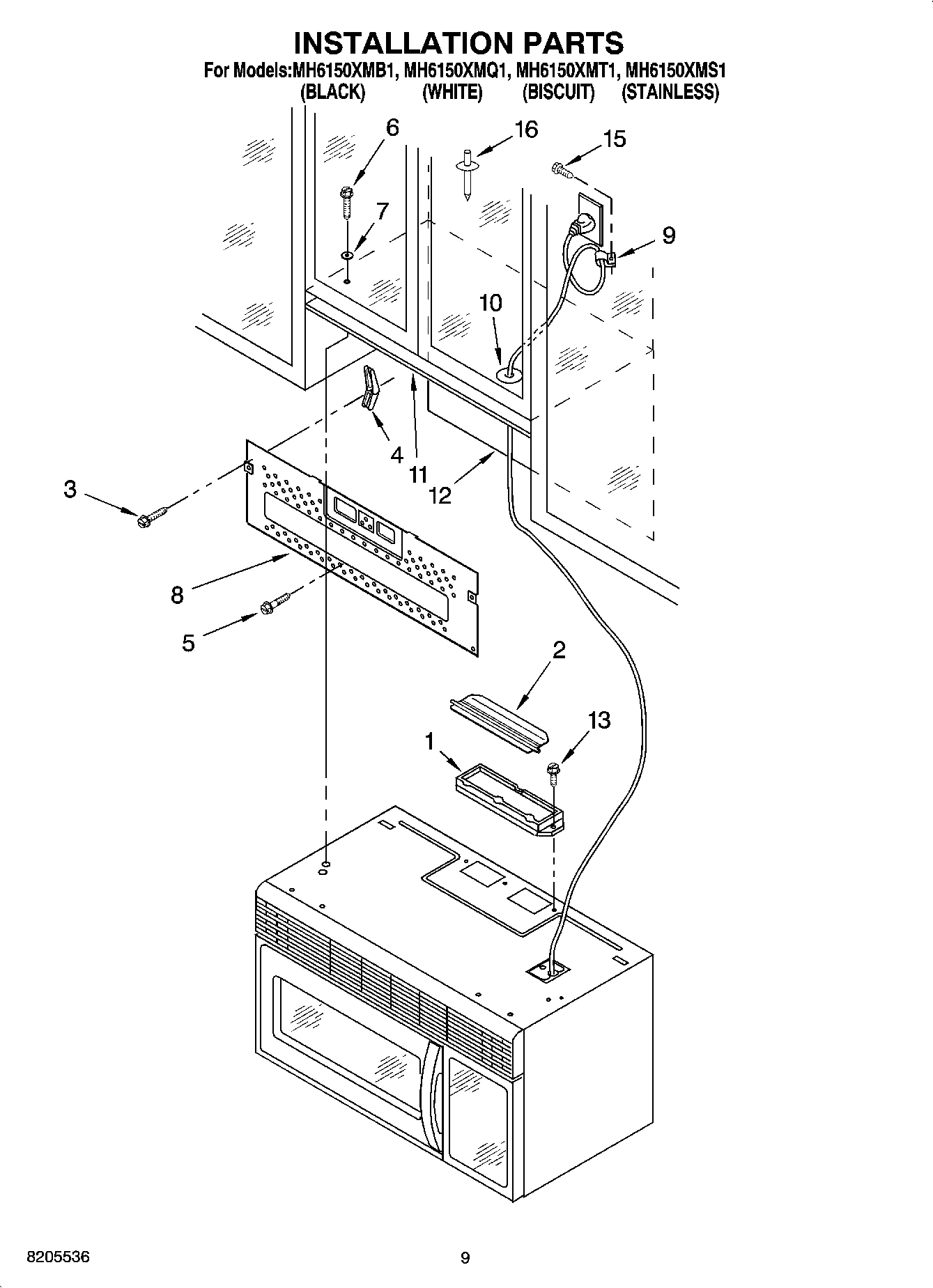

08 - INSTALLATION PARTS, MISCELLANEOUS PARTS

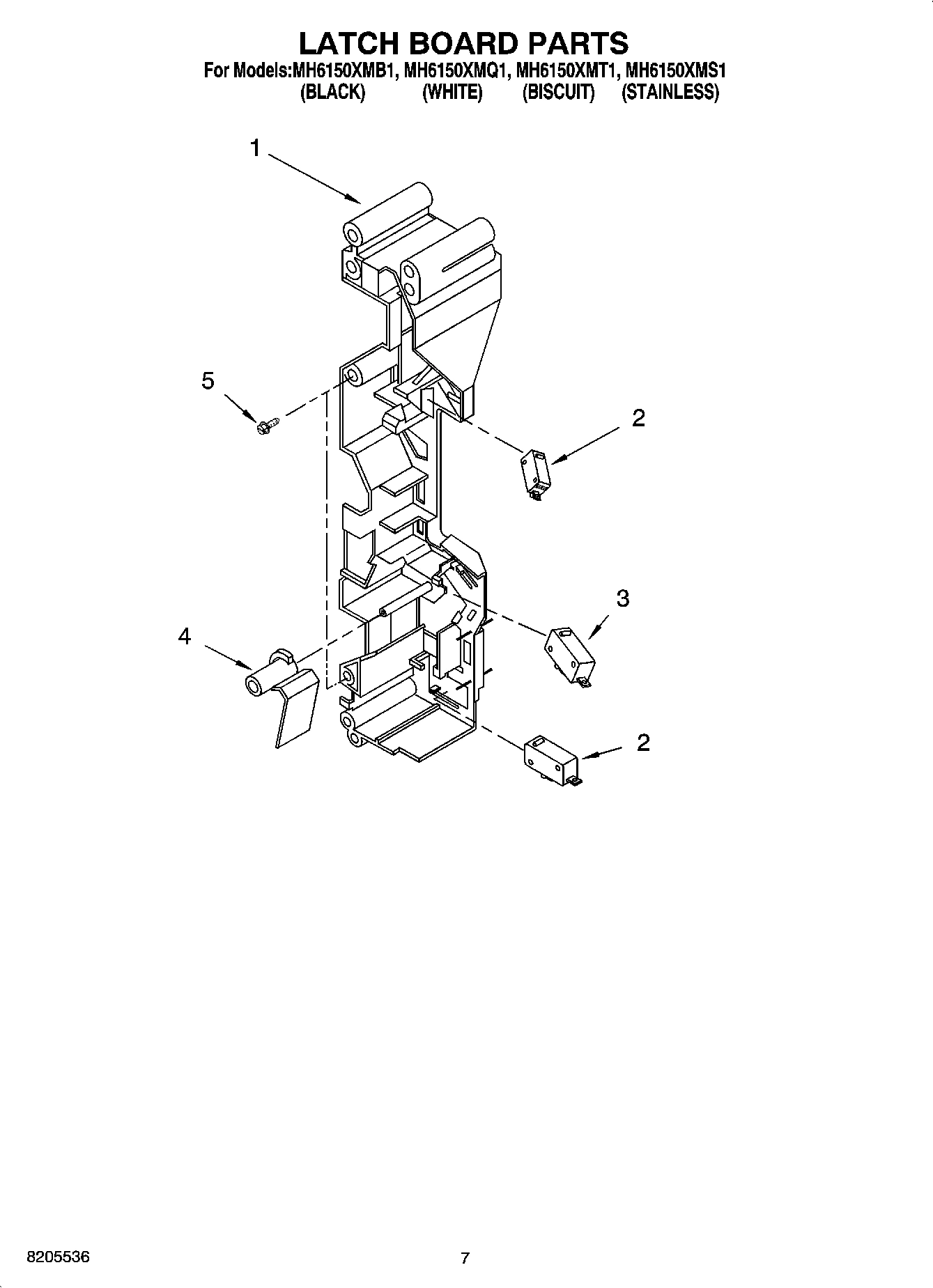

06 - LATCH BOARD PARTS
Common parts from model Whirlpool MH6150XMS1 MICROWAVE HOOD COMBINATION
Installation Hardware WPL 4358404 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI118161A Contact Us For Availability
SEALER WPL ARI118162A Contact Us For Availability
1
Outer Case (Black) WPL 8184034 Contact Us For Availability
1
Outer Case (White) WPL 8184035 Contact Us For Availability
1
Outer Case (Biscuit) WPL 8184760 Contact Us For Availability
1
Base Plate WPL 8184051 Contact Us For Availability
1
Door Assembly (White) WPL 8183973 Contact Us For Availability
1
Door Assembly (Biscuit) WPL 8183974 Contact Us For Availability
1
Door Assembly (Black) WPL 8184031 Contact Us For Availability
1
Door Assembly (Stainless) WPL 8184964 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Board, Latch WPL 8183558 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Air Duct WPL 8184045 Contact Us For Availability
2
Bracket WPL 4359527 Contact Us For Availability
2
Frame, Door (White Model) WPL 8172110 Contact Us For Availability
2
Frame, Door (Black Model) WPL 8172111 Contact Us For Availability
2
Frame, Door (Biscuit Model) WPL 8172112 Contact Us For Availability
2
Frame, Door (Stainless Model) WPL 8183976 Contact Us For Availability
2
H.V. Transformer WPL 8184046 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
3
Cavity Assy Not Serviceable WPL ARI118160A Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
3
Bracket WPL 8184752 Contact Us For Availability
4
Key Membrane (Black) WPL 8172133 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8172134 Contact Us For Availability
4
Grille Vent (Black) WPL 8184037 Contact Us For Availability
4
Grille Vent (White) WPL 8184038 Contact Us For Availability
4
Grille Vent (Biscuit) WPL 8184761 Contact Us For Availability
4
Lead Wire Assy WPL 8184042 Contact Us For Availability
4
Latch WPL 8171850 Contact Us For Availability
4
Capacitor, H.V. WPL 8183536 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
5
Microcomputer WPL 8184747 Contact Us For Availability
5
Spring, Latch (Stainless Model) WPL 8183882 Contact Us For Availability
5
Spring, Latch (BL/WH/BT Models) WPL 8184016 Contact Us For Availability
5
Thermostat, Base WPL 8184755 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
Screw WPL 4358051 Contact Us For Availability
6
Panel, Door (White) WPL 8172121 Contact Us For Availability
6
Motor, Stirrer WPL 8184750 Contact Us For Availability
6
Panel, Door (Black) WPL 8172122 Contact Us For Availability
6
Panel, Door (Biscuit) WPL 8172123 Contact Us For Availability
6
Motor, Turntable WPL 4359155 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
7
Panel/Membrane Asy Stls Model Only WPL 8184757 Contact Us For Availability
7
Cover, Power Cord WPL 4359616 Contact Us For Availability
7
Thermostat WPL 8184049 Contact Us For Availability
7
Lamp Holder WPL 4359518 Contact Us For Availability
7
Glass, Door For Stainless Mdl Order 10 WPL 8172125 Contact Us For Availability
7
Plate WPL 8184044 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
8
Plate, Mounting Wing WPL 8184050 Contact Us For Availability
8
Shelf Holder WPL 8205041 Contact Us For Availability
8
Handle, Door (Stainless Model) WPL 8171848 Contact Us For Availability
8
Handle, Door (White) WPL 8172118 Contact Us For Availability
8
Handle, Door (Black) WPL 8172119 Contact Us For Availability
8
Handle, Door (Biscuit) WPL 8172120 Contact Us For Availability
9
Plate, Mount WPL 8184655 Contact Us For Availability
9
Cover WPL 4359964 Contact Us For Availability
9
Choke, Cover WPL 8171846 Contact Us For Availability
10
Rack, Grill WPL 8205535 Contact Us For Availability
10
Panel/Glass Assy Stls Model Only WPL 8184965 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
11
BASE WPL 8184751 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 8183896 Contact Us For Availability
12
Motor, Ventilation WPL 8184041 Contact Us For Availability
12
Cover WPL 8171869 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
13
Screw (BL/STLS) WPL 4358762 Contact Us For Availability
13
Screw (WH/BT) WPL 4359009 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
13
Lead, Wire WPL 8184754 Contact Us For Availability
13
Shield WPL 8184748 Contact Us For Availability
14
Screw WPL 4358883 Contact Us For Availability
14
Stirrer Fan WPL 8184753 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 8184967 Contact Us For Availability
17
Rotating Ring WPL 8204783 Contact Us For Availability
18
Shaft, Turntable WPL 8171863 Contact Us For Availability
23
Cover WPL 8184033 Contact Us For Availability
25
Screw WPL 4358188 Contact Us For Availability
× ![]()
