Model LG MH6150XLT – Common Parts & Diagrams
Diagram 0
Diagram 1

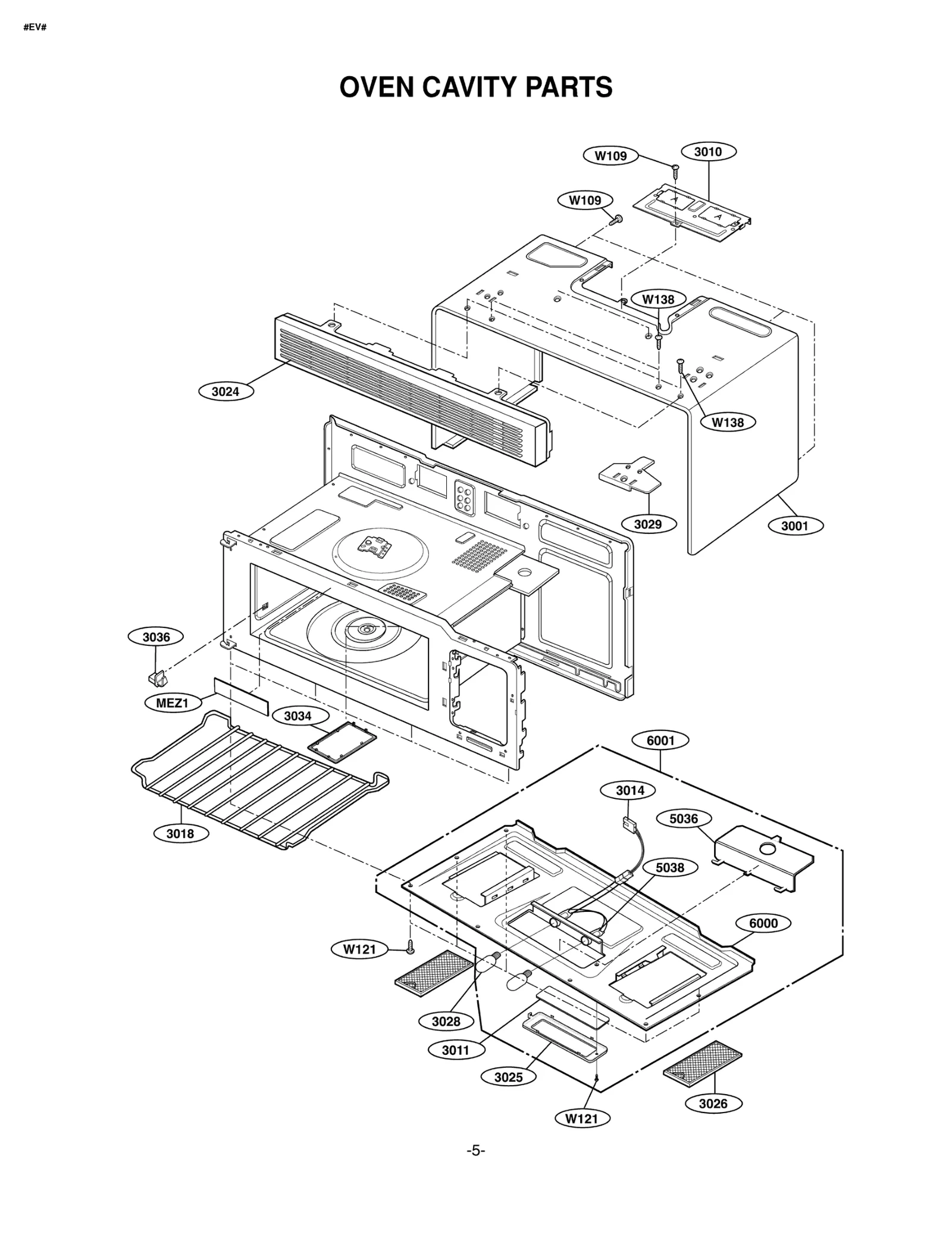

Diagram 2

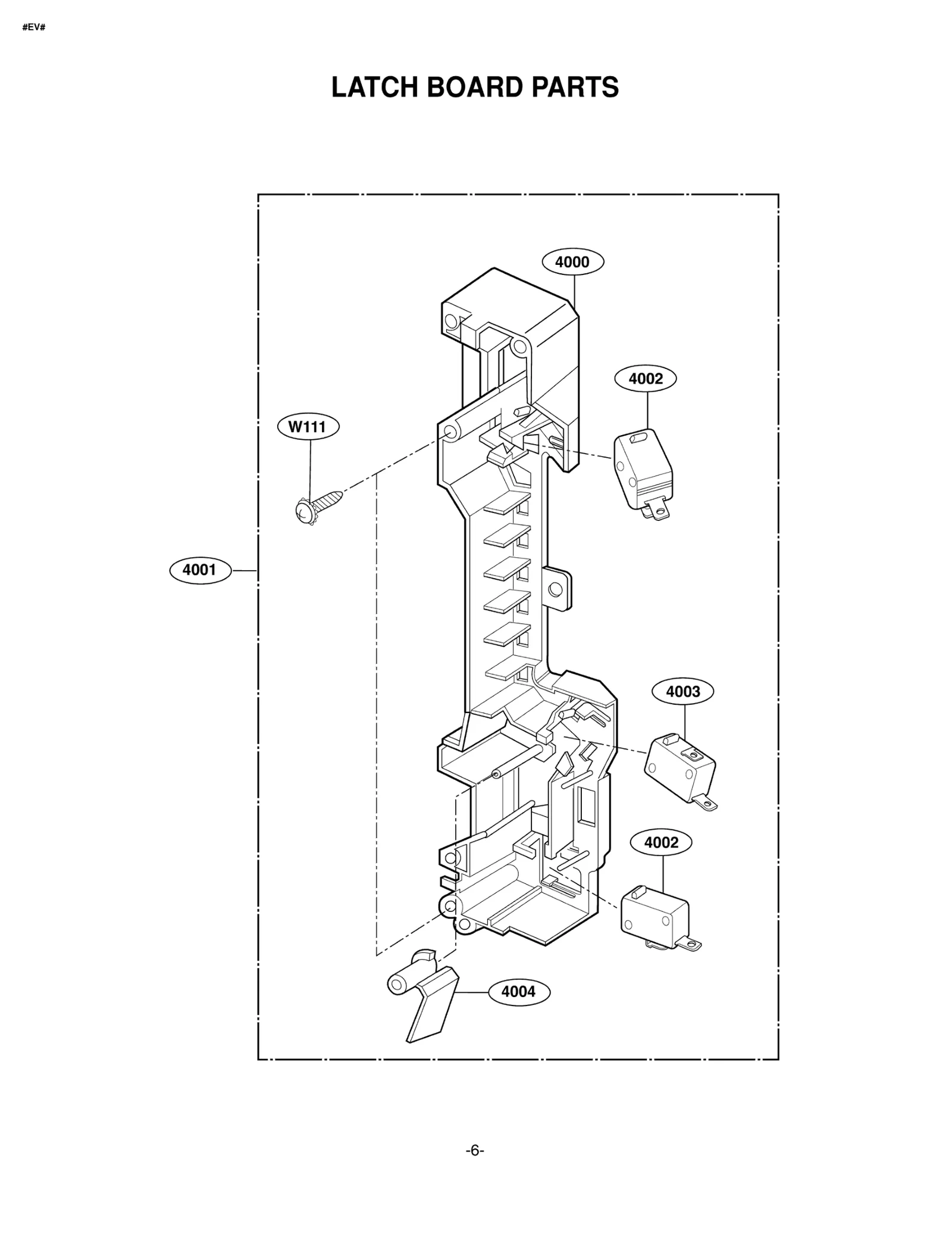

Diagram 3

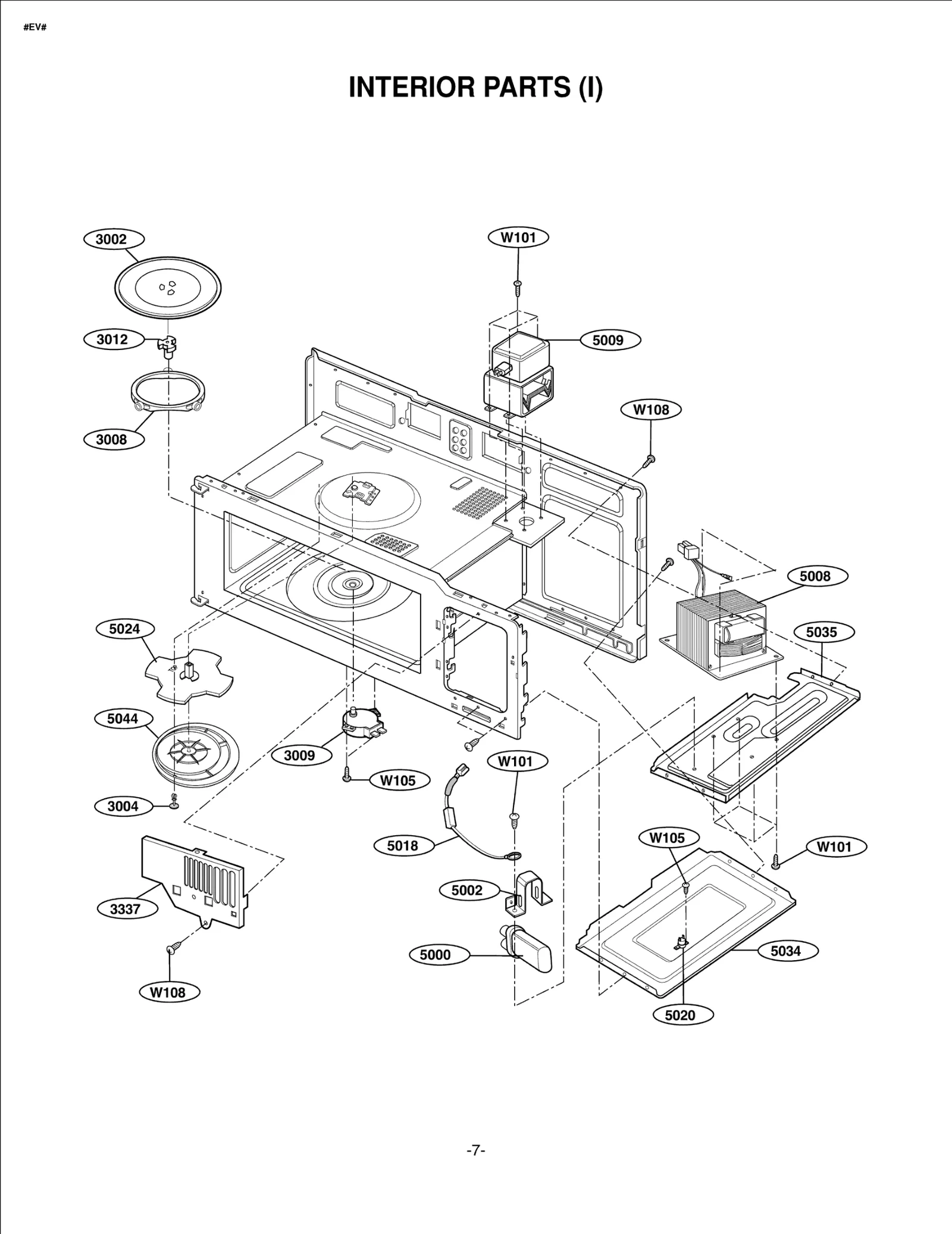

Diagram 4

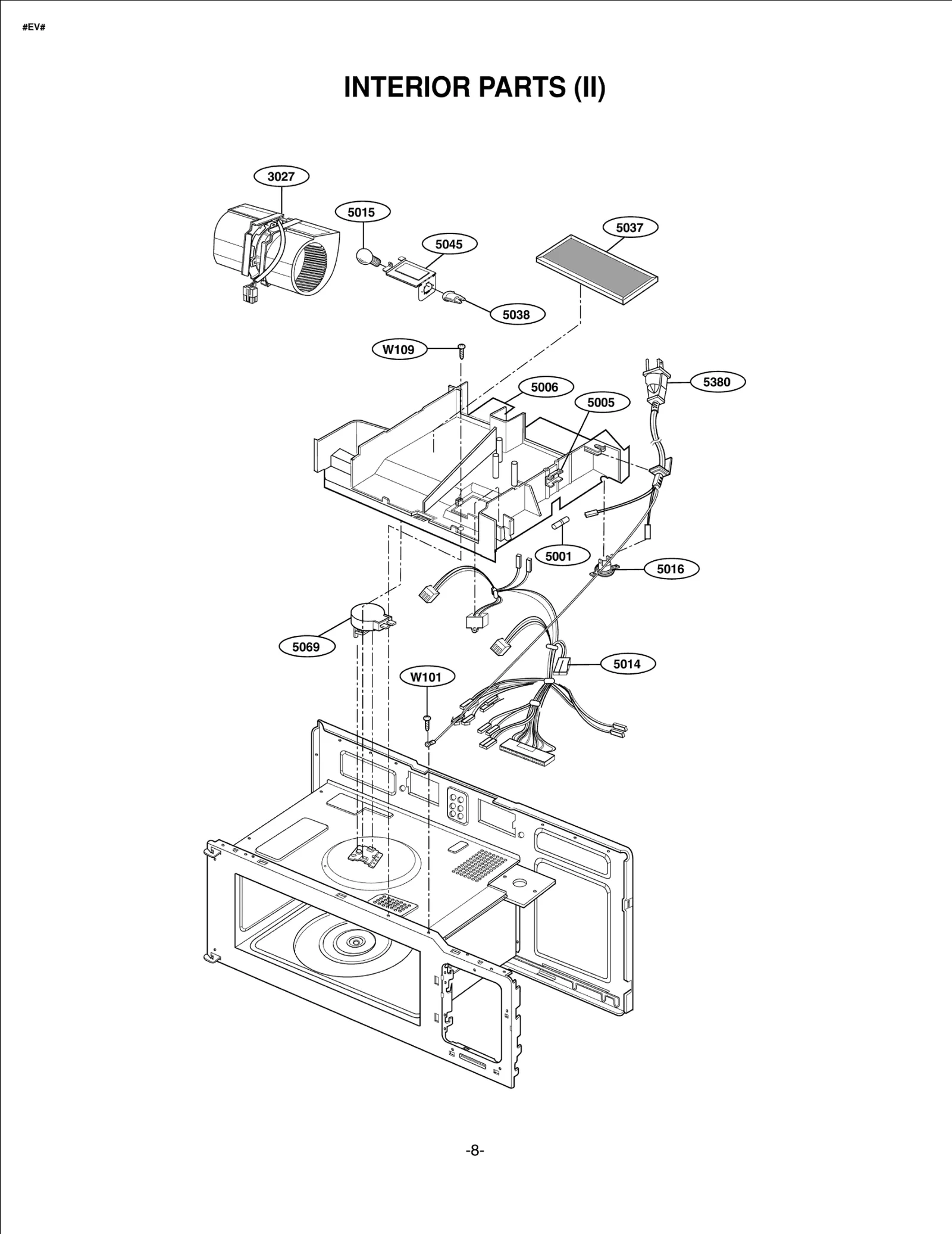

Diagram 5

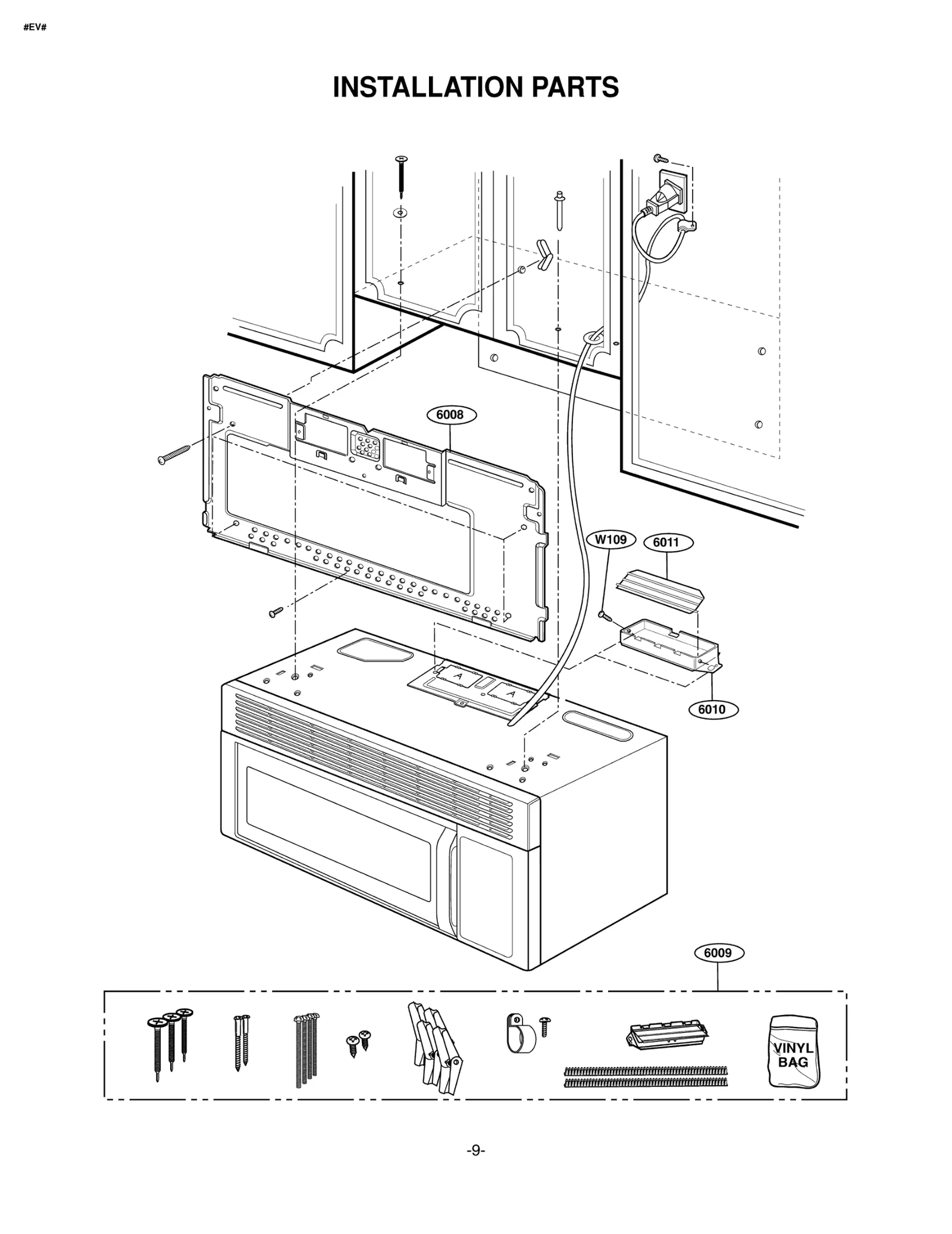

Diagram 6
Diagram 7
Common parts from model LG MH6150XLT
3002
GLASS TRAY LGE 1B71961F Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W2A012A Contact Us For Availability
3009
MOTOR SYNCHRONOUS 120V/60HZ LGE 2B72754E Contact Us For Availability
3011
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
3014
LEAD WIRE ASSY LGE 6877W1A340A Contact Us For Availability
3018
Shelf LGE 3750W1A006F Contact Us For Availability
3018
SHELF LGE 3750W1A006E Contact Us For Availability
3024
GRILLE,VENT LGE 3530W0A017E Contact Us For Availability
3025
BRACKET ALL MV-1320,C/TOP LAMP LGE 4810W3G100A Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V008A Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V006C Contact Us For Availability
3028
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3034
CANOPY WAVE GUIDE MS-101AM MS- LGE 3052W3A016A Contact Us For Availability
3036
SHELF HOLDER LGE 3B71271E Contact Us For Availability
3337
PROTECTOR (MECH) LGE 3740W1A005A Contact Us For Availability
4001
BOARD ASSY,[LATCH] LGE 3501W1A019A Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET,CAPACITOR LGE 4810W1A064A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5006
DUCT,[AIR DUCT] LGE 5208W0A005A Contact Us For Availability
5009
MAGNETRON LGE 2B71732B Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A010M Contact Us For Availability
5014
HARNESS LGE 6877W1A400A Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5024
STIRRER FAN ASSEMBLY LGE 5893W1A001A Contact Us For Availability
5034
PLATE,BOTTOM LGE 3300W1A003C Contact Us For Availability
5035
PLATE,BOTTOM LGE 3300W1A052A Contact Us For Availability
5036
COVER,MWO LGE 3550W3A095A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,MWO LGE 3550W1A077A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5069
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S002F Contact Us For Availability
6000
BASE PLATE LGE 3302W0A013H Contact Us For Availability
6001
BASE PLATE ASSEMBLY LGE 3303W1A041S Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6009
Kit Assembly LGE 2B72771F Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
MAY1
BOX,YELLOW LGE 3890W2Y188D Contact Us For Availability
MBM3
TEMPLATE LGE 4922W5A025A Contact Us For Availability
MEZ1
LABEL,COOKING GUIDE LGE 3850W1D056A Contact Us For Availability
MFL1
MANUAL,OWNERS LGE 3828W5A2250 Contact Us For Availability
MFL3
MANUAL,[INSTALLATION] LGE 3828W5U0143 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
