Model Whirlpool MH6150XHT0 MICROWAVE – Common Parts & Diagrams
03 - CABINET
04 - MAGNETRON AND AIR FLOW

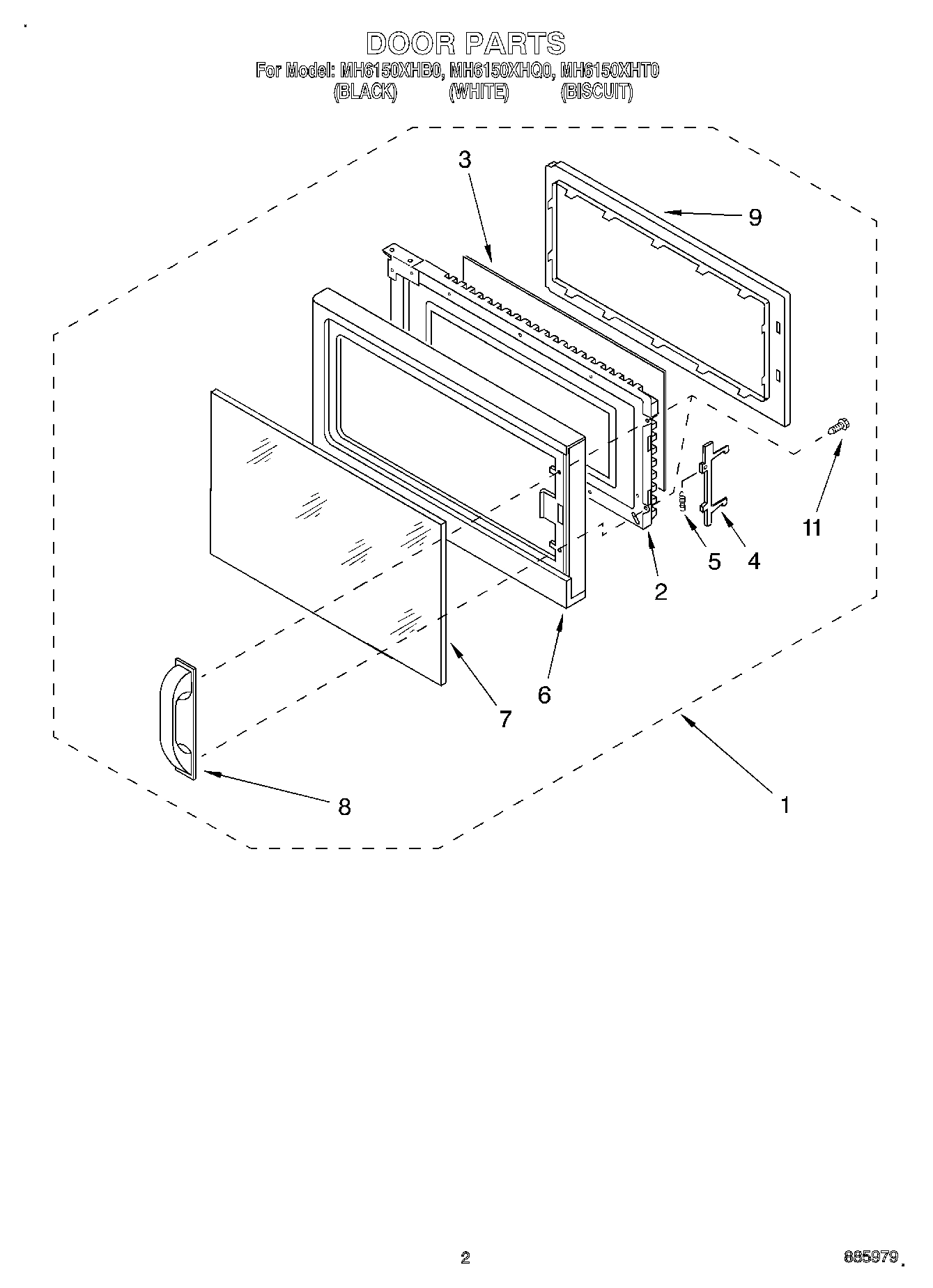

02 - DOOR

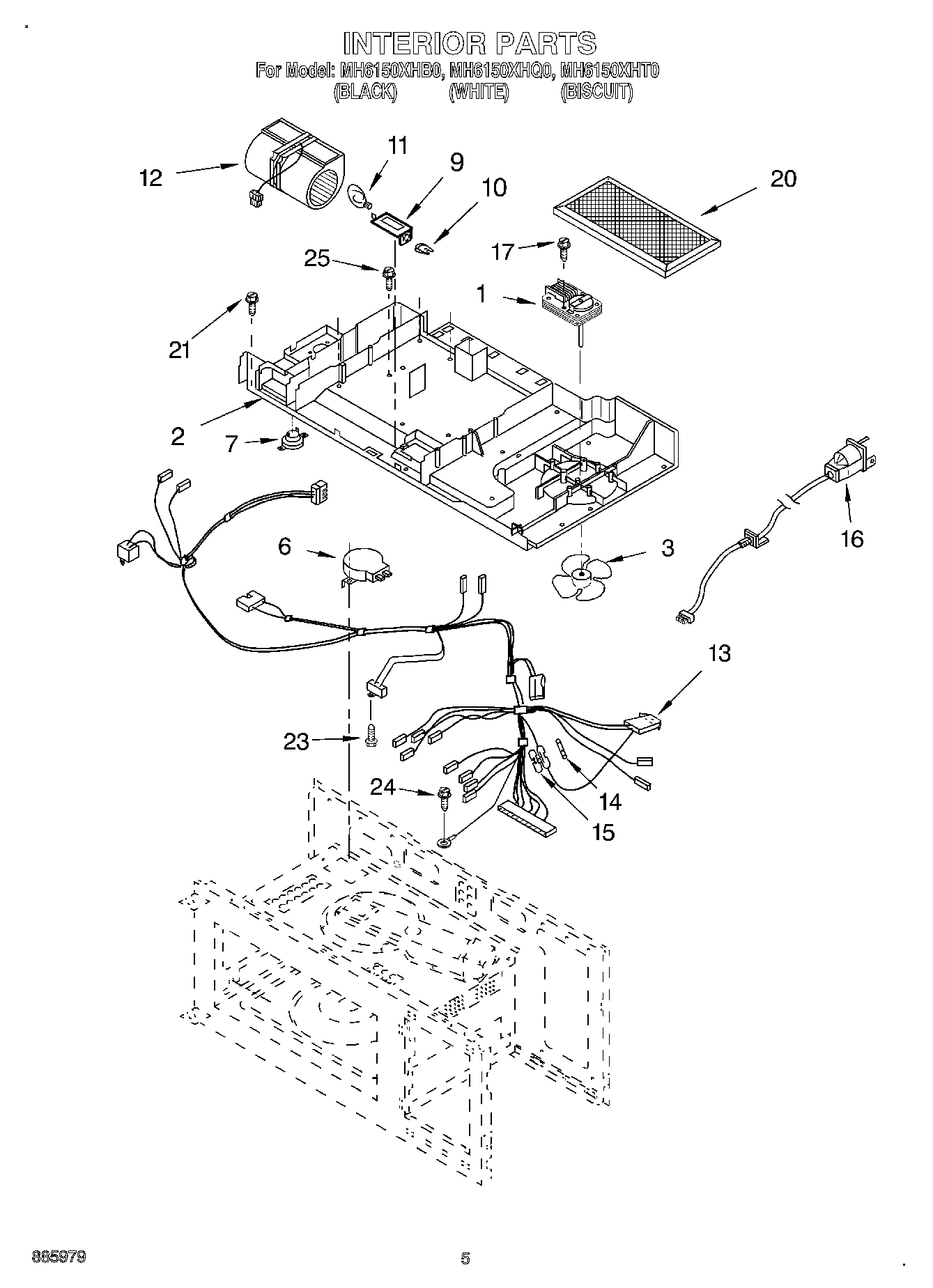

05 - INTERIOR

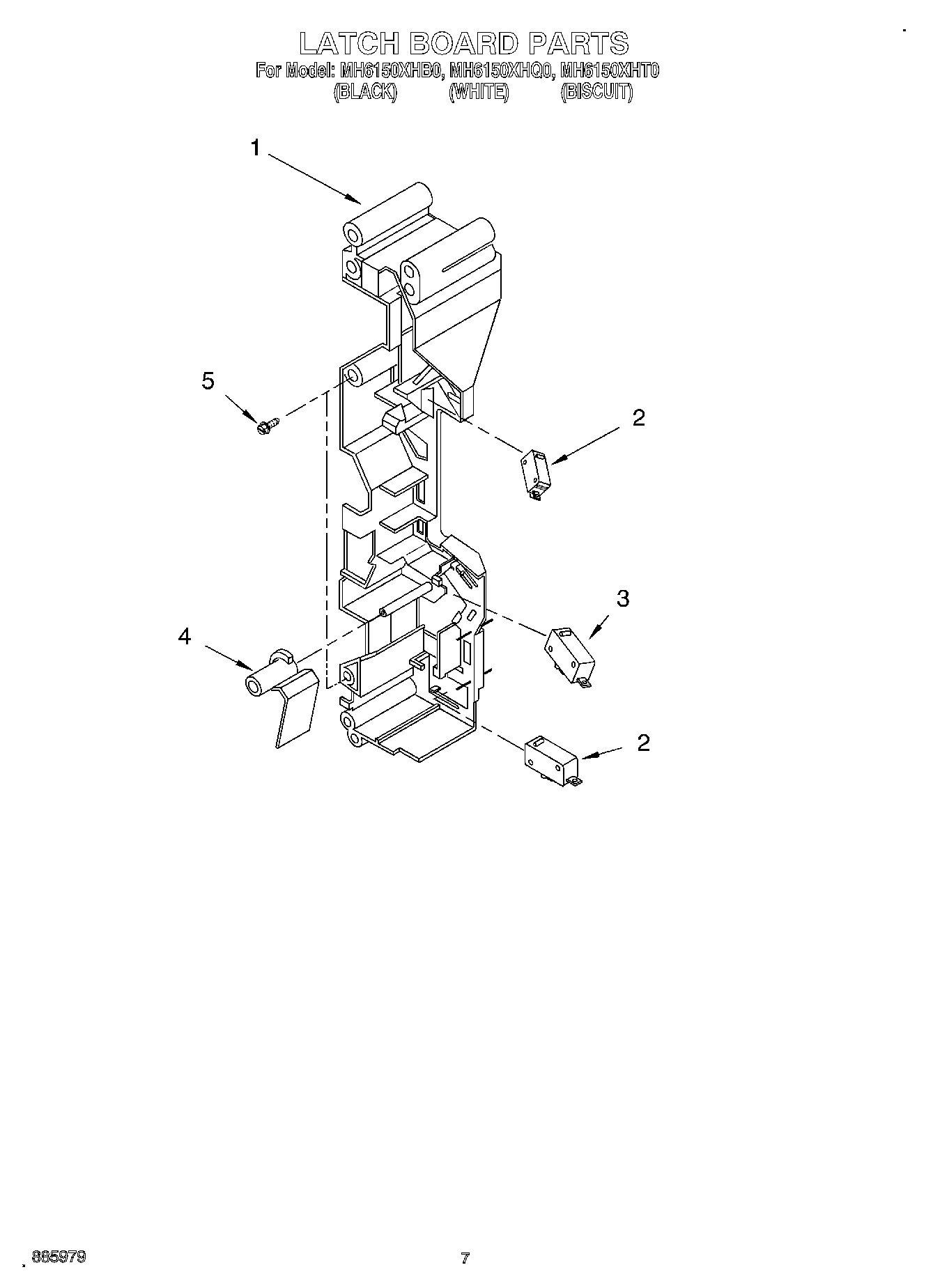

06 - LATCH BOARD

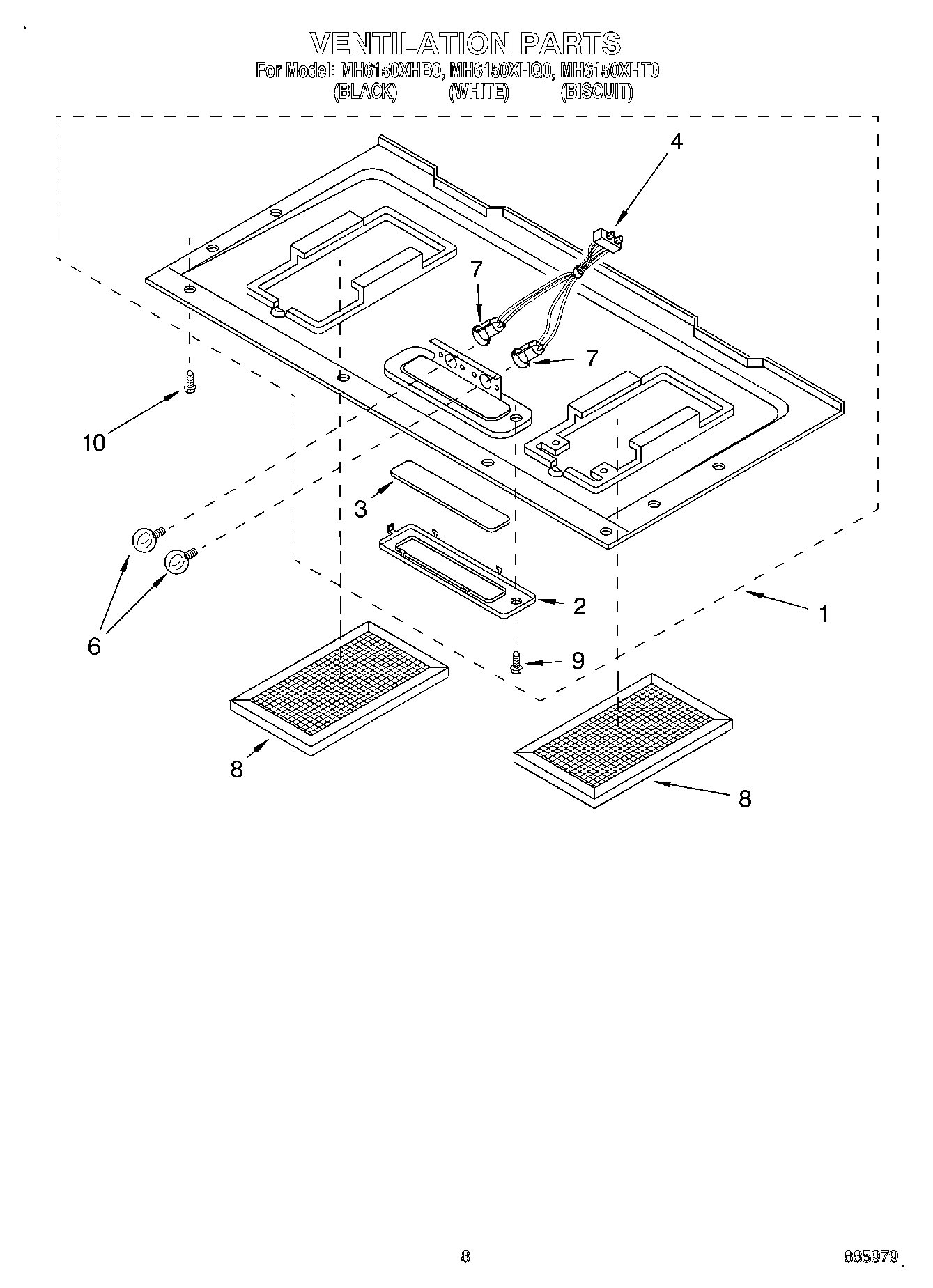

07 - VENTILATION

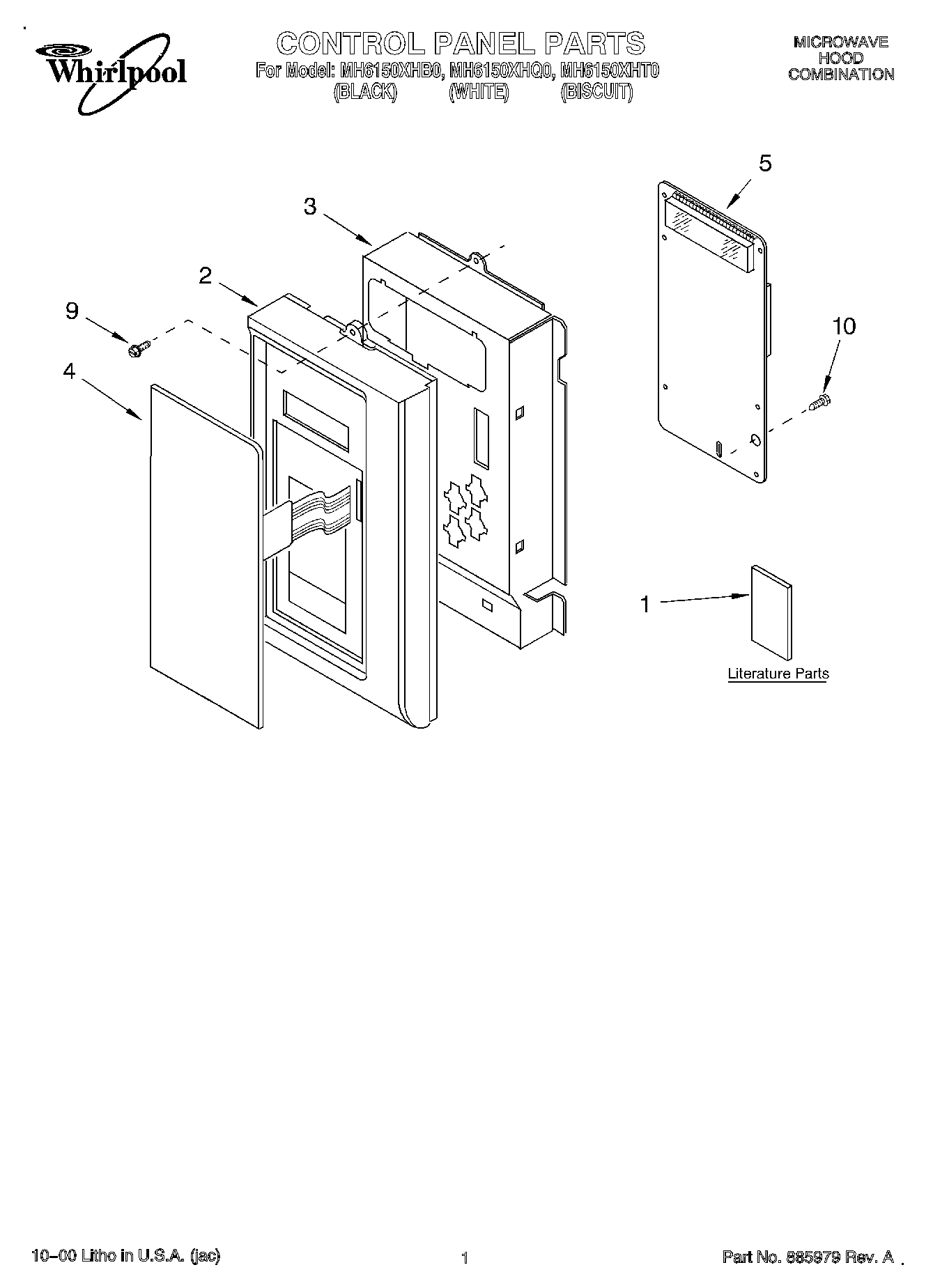

01 - CONTROL PANEL, LITERATURE
08 - INSTALLATION
Common parts from model Whirlpool MH6150XHT0 MICROWAVE
1
Magnetron WPL 8171874 Contact Us For Availability
1
Door Assembly (White) WPL 8172115 Contact Us For Availability
1
Door Assembly (Black) WPL 8172116 Contact Us For Availability
1
Door Assembly (Biscuit) WPL 8172117 Contact Us For Availability
1
Board, Latch WPL 8171866 Contact Us For Availability
1
Base Plate Assy (Black) WPL 8171881 Contact Us For Availability
1
Base Plate Assy (White) WPL 8172150 Contact Us For Availability
1
Base Plate Assy (Biscuit) WPL 8172151 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359970 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172041 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8172042 Contact Us For Availability
1
Literature Parts (Guide, Cooking) WPL LIT8172108 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
2
H.V. Transformer WPL 8172141 Contact Us For Availability
2
Frame, Door (White) WPL 8172110 Contact Us For Availability
2
Frame, Door (Black) WPL 8172111 Contact Us For Availability
2
Frame, Door (Biscuit) WPL 8172112 Contact Us For Availability
2
Air Duct WPL 8172139 Contact Us For Availability
2
Bracket (White) WPL 4359527 Contact Us For Availability
2
Bracket, Black WPL 4359532 Contact Us For Availability
2
Control Panel (White) WPL 8172126 Contact Us For Availability
2
Control Panel (Black) WPL 8172127 Contact Us For Availability
2
Control Panel (Biscuit) WPL 8172128 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
3
Bracket, Control WPL 8171855 Contact Us For Availability
4
Grille Vent (White) WPL 8172142 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Latch (Black) WPL 8171850 Contact Us For Availability
4
Latch (WH/BT) WPL 8172124 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
4
Lead Wire Assy WPL 4359529 Contact Us For Availability
4
Key Membrane (White) WPL 8172153 Contact Us For Availability
4
Key Membrane (Black) WPL 8172154 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8183790 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Screw WPL 4358051 Contact Us For Availability
5
PCB Sub Assy. WPL 8172155 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
6
Panel, Door (White) WPL 8172121 Contact Us For Availability
6
Motor, Turntable WPL 4359498 Contact Us For Availability
6
Panel, Door (Black) WPL 8172122 Contact Us For Availability
6
Panel, Door (Biscuit) WPL 8172123 Contact Us For Availability
6
Motor, Synchronous WPL 4359511 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
7
Plate WPL 8171868 Contact Us For Availability
7
Glass, Door WPL 8172125 Contact Us For Availability
7
Lamp Holder WPL 4359518 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
8
Seal, Water WPL 8171805 Contact Us For Availability
8
Handle, Door (White) WPL 8172118 Contact Us For Availability
8
Handle, Door (Black) WPL 8172119 Contact Us For Availability
8
Handle, Door (Biscuit) WPL 8172120 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
9
Screw (Black) WPL 4358762 Contact Us For Availability
9
Screw (WH/BT) WPL 4359009 Contact Us For Availability
9
Choke, Cover (Black) WPL 8171846 Contact Us For Availability
9
Choke, Cover (White) WPL 8172113 Contact Us For Availability
9
Choke, Cover (Biscuit) WPL 8172114 Contact Us For Availability
9
Cover WPL 4359964 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
10
Screw (Black) WPL 4358829 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
11
Guide WPL 8172146 Contact Us For Availability
11
Oven, Lamp WPL 8172149 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359560 Contact Us For Availability
12
Cover WPL 8171869 Contact Us For Availability
12
Motor, Ventilation WPL 8172147 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
13
Holder WPL 8171870 Contact Us For Availability
13
Lead, Wire WPL 8172160 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
14
Stirrer Fan WPL 8171872 Contact Us For Availability
15
Thermostat WPL 4358772 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 8171875 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
18
Turntable Shaft WPL 4359618 Contact Us For Availability
20
Charcoal Filter WPL 4359331 Contact Us For Availability
20
Resistor, Cement WPL 8171858 Contact Us For Availability
22
Screw WPL 8171882 Contact Us For Availability
23
Screw WPL 4358883 Contact Us For Availability
25
Installation Hardware WPL 4358404 Contact Us For Availability
× ![]()
