Model Whirlpool MH6141XKB0 MICROWAVE – Common Parts & Diagrams

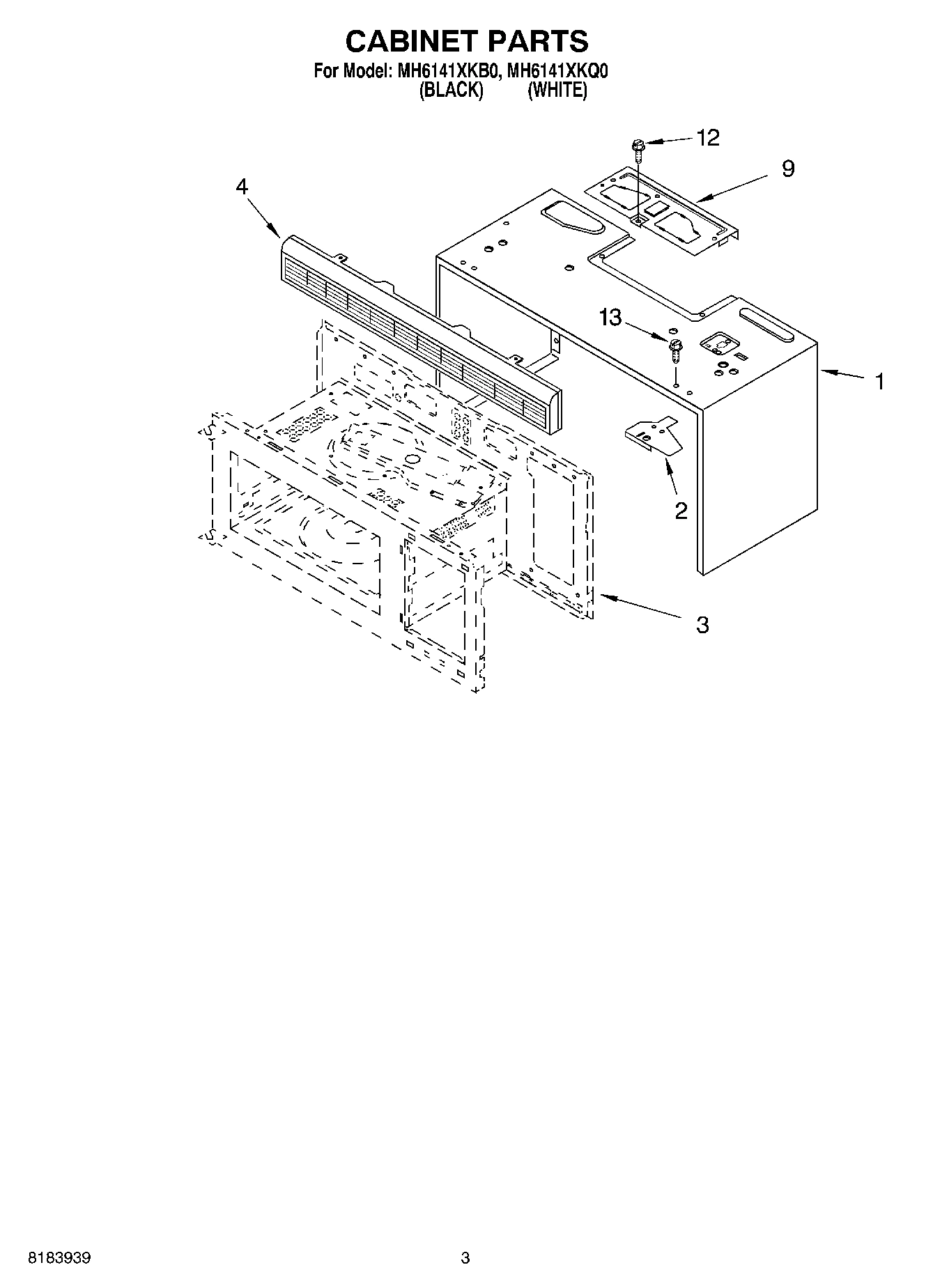

03 - CABINET

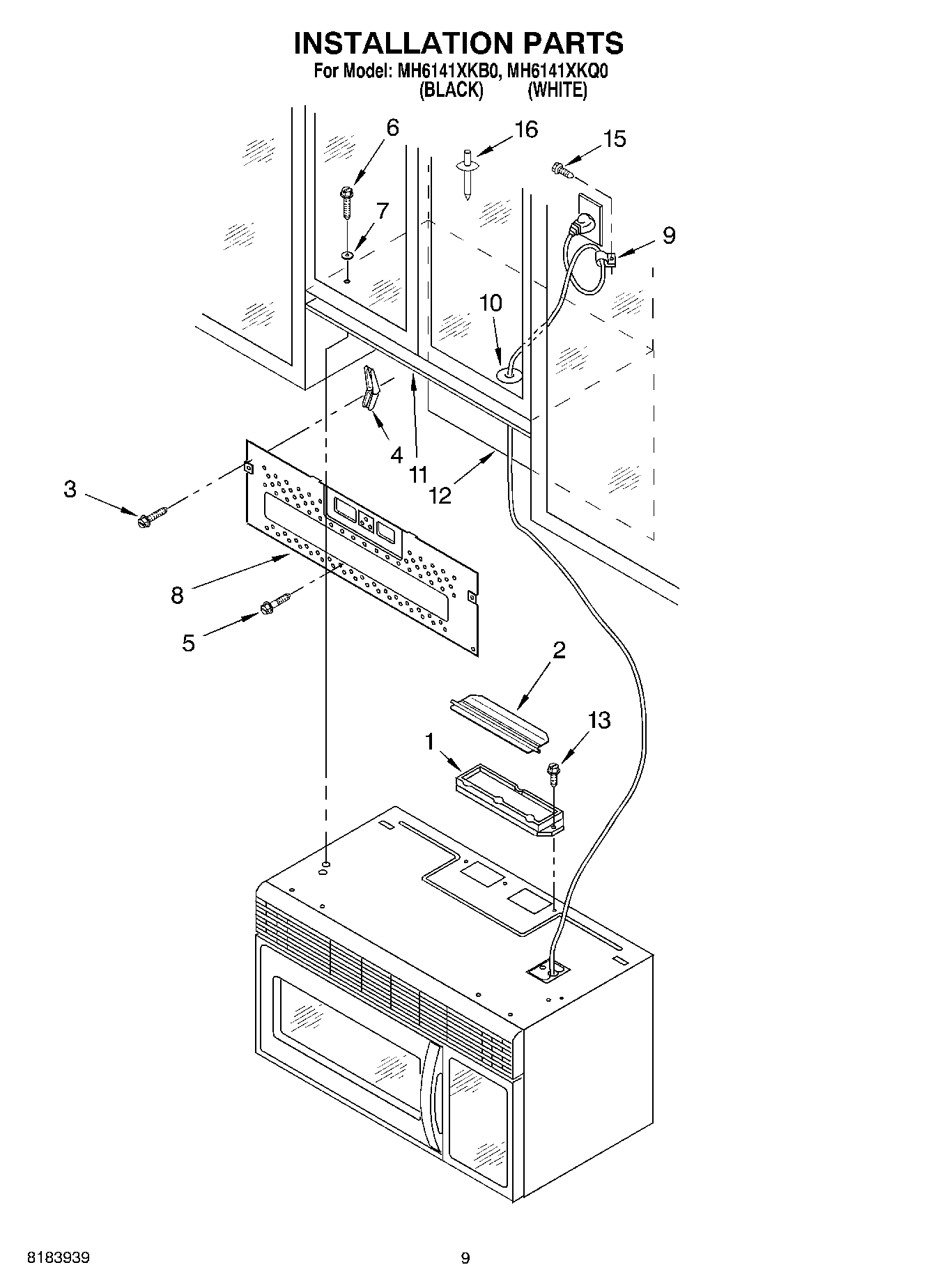

08 - INSTALLATION

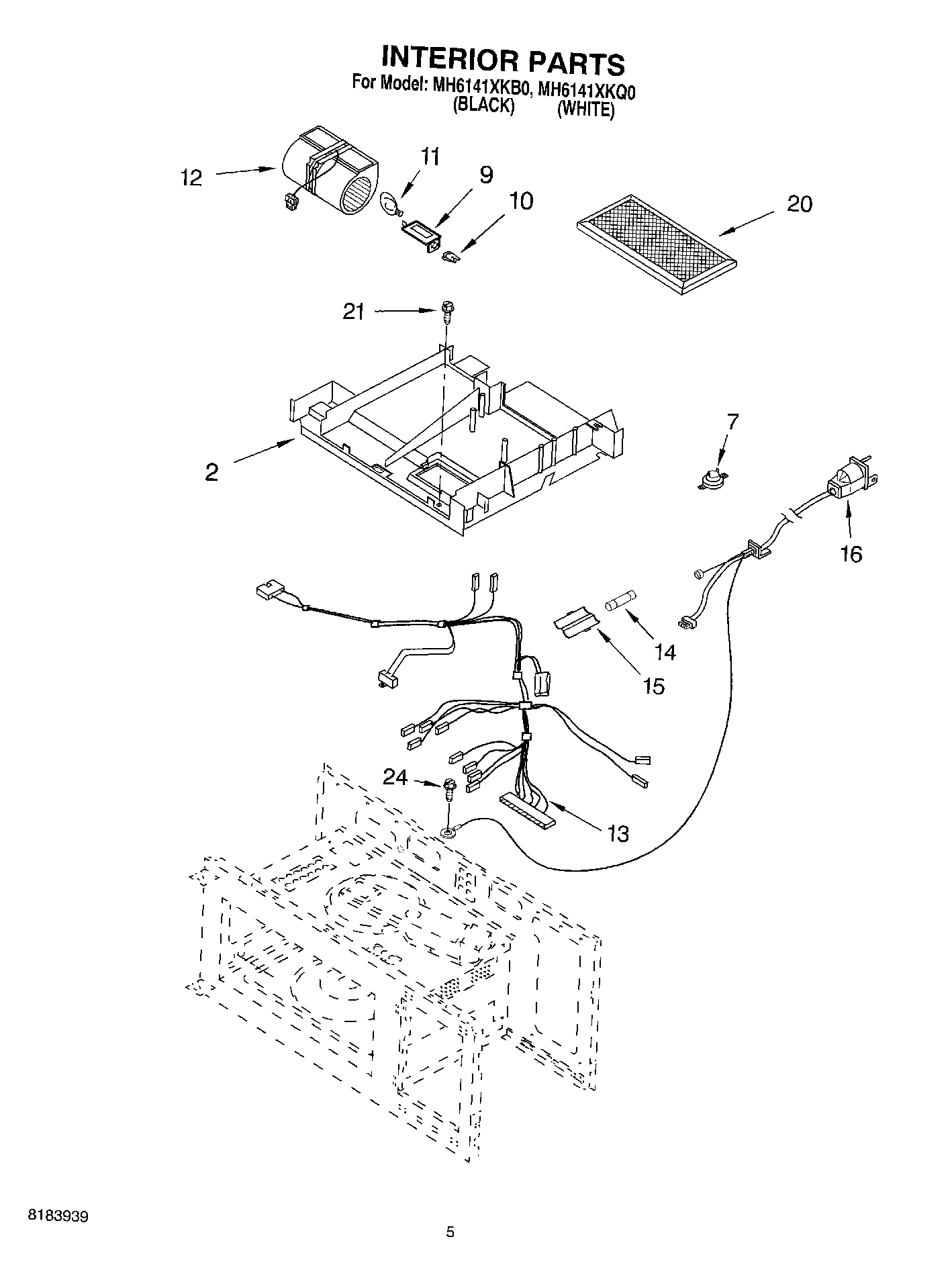

05 - INTERIOR

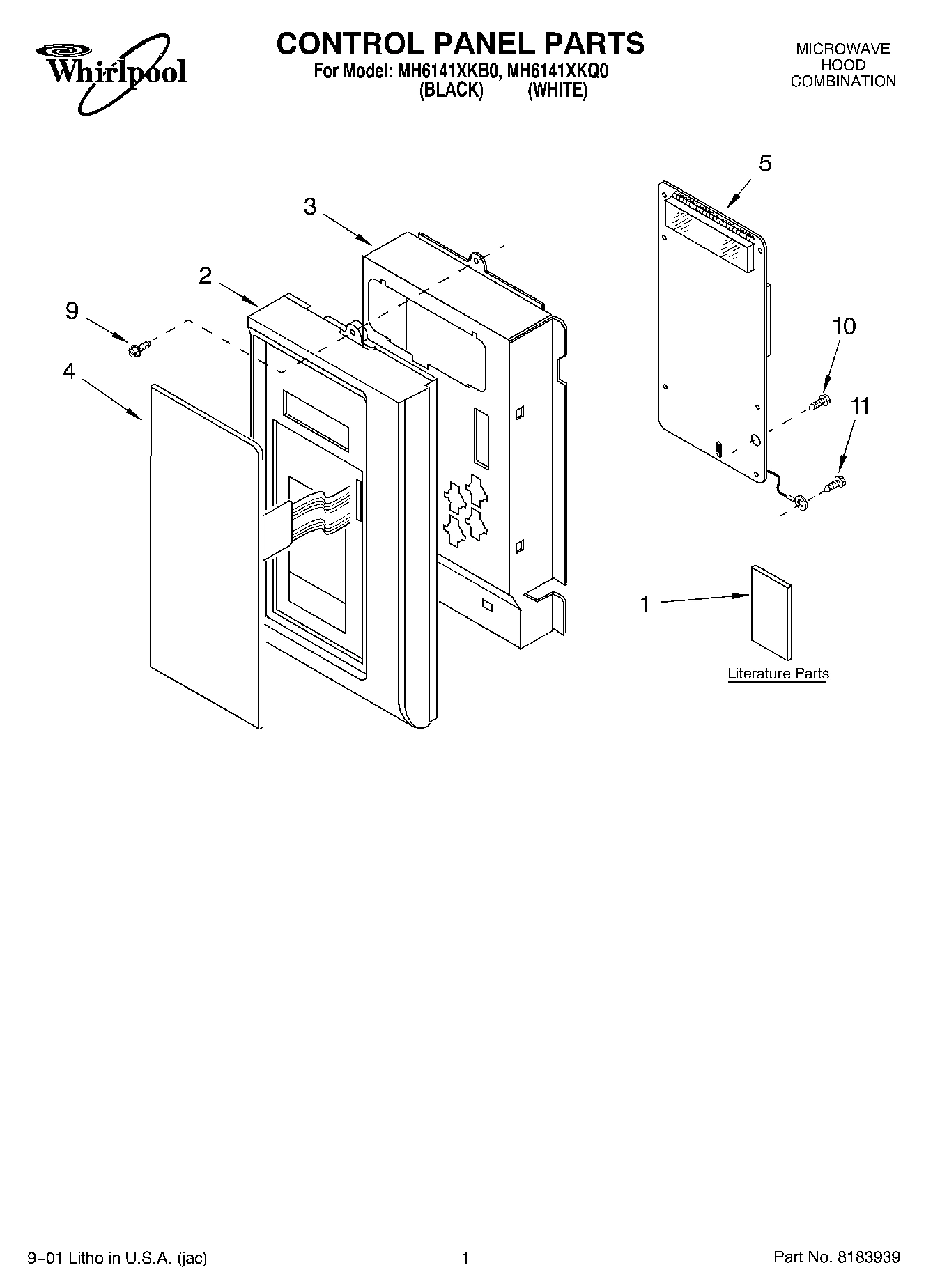

01 - CONTROL PANEL, LITERATURE

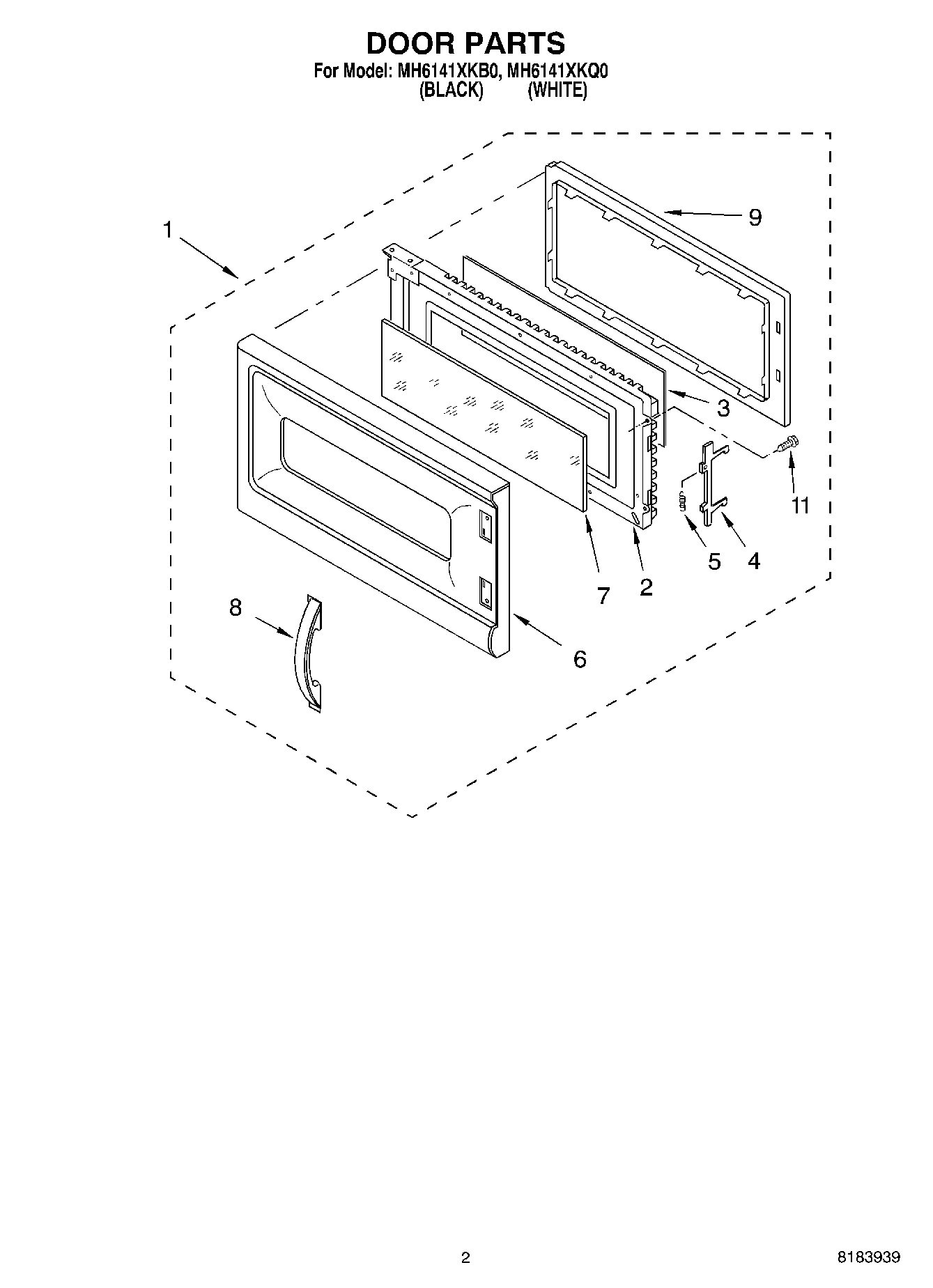

02 - DOOR

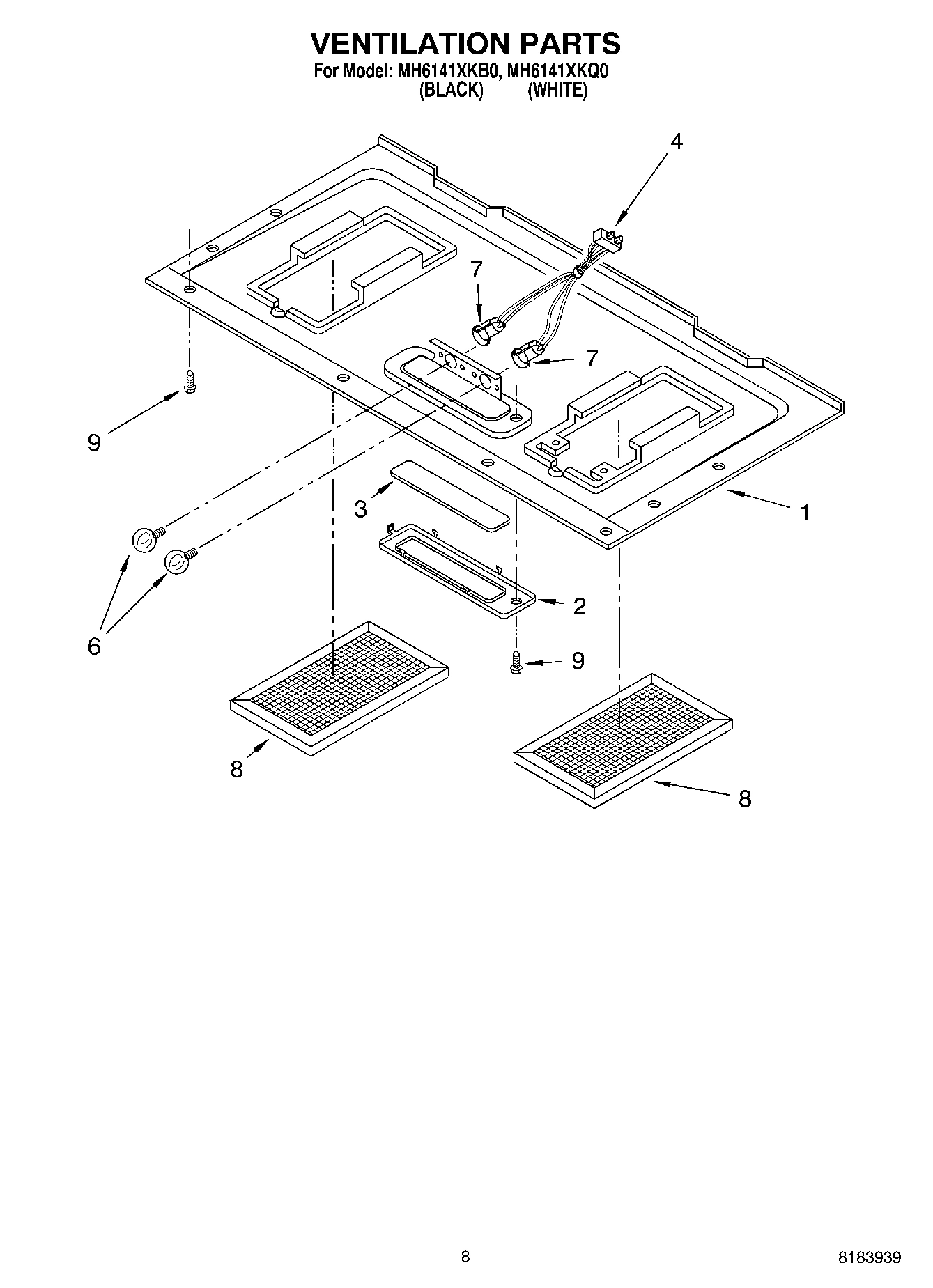

07 - VENTILATION

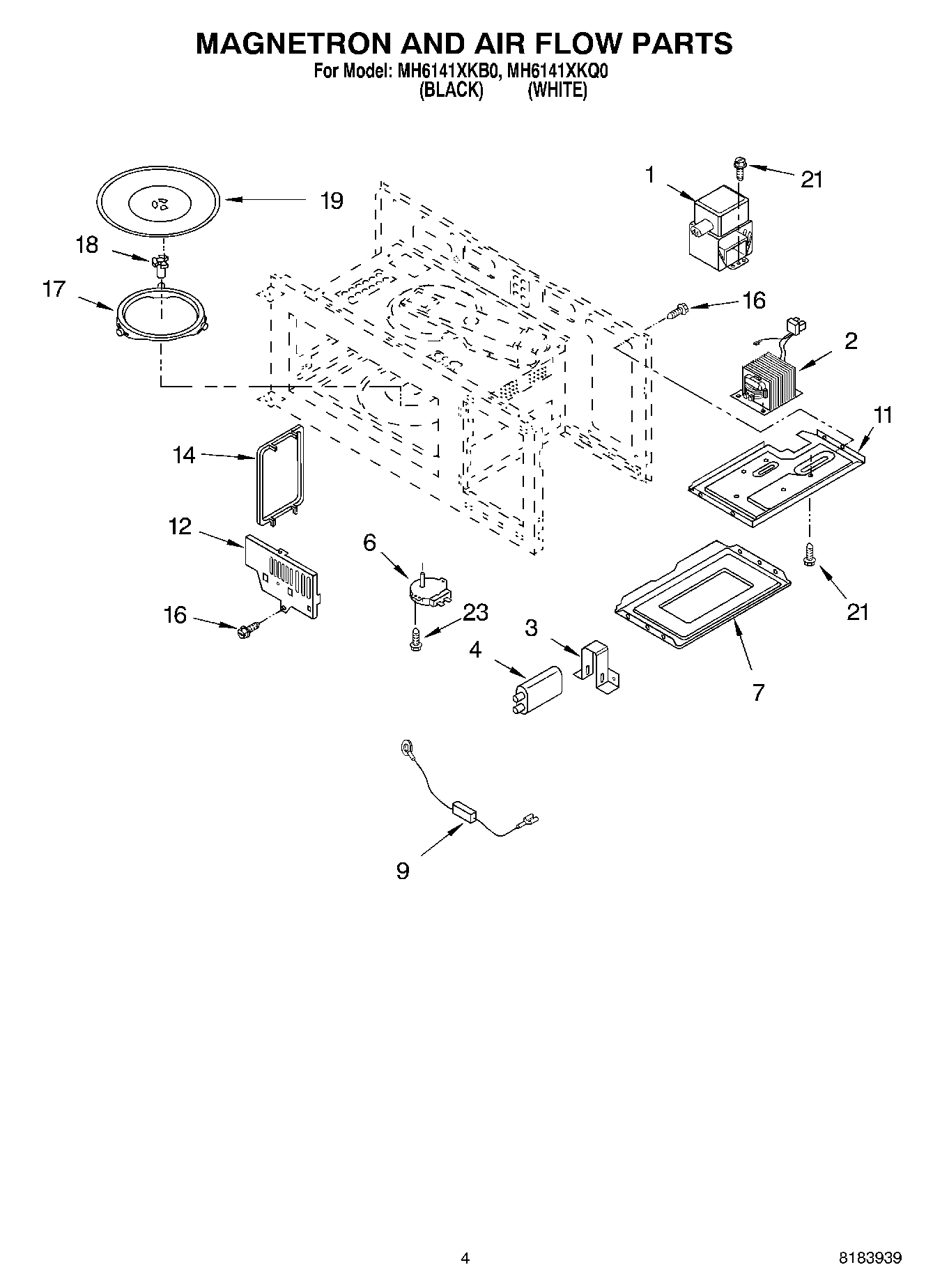

04 - MAGNETRON AND AIRFLOW

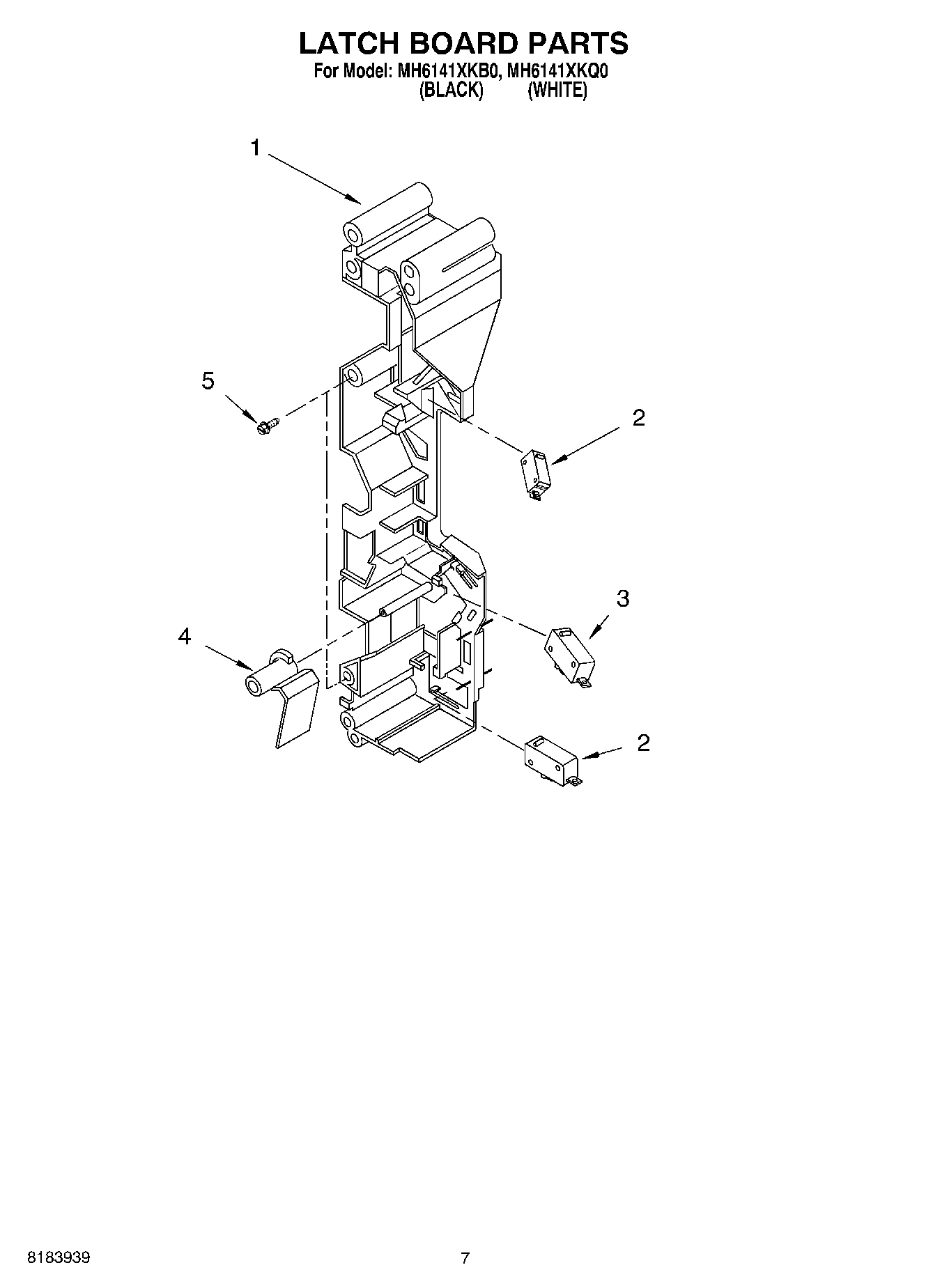

06 - LATCH BOARD
Common parts from model Whirlpool MH6141XKB0 MICROWAVE
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8183890 Contact Us For Availability
1
Literature Parts (Guide, Cooking) WPL LIT8183892 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8183894 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8183895 Contact Us For Availability
1
Door Assembly (Black) WPL 8184031 Contact Us For Availability
1
Door Assembly (White) WPL 8184032 Contact Us For Availability
1
Base Plate Assy WPL 8184051 Contact Us For Availability
1
Magnetron WPL 4359731 Contact Us For Availability
1
Board, Latch WPL 8171866 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Air Duct WPL 8184045 Contact Us For Availability
2
Control Panel (Black) WPL 8184017 Contact Us For Availability
2
Control Panel (White) WPL 8184018 Contact Us For Availability
2
Frame, Door WPL 8172111 Contact Us For Availability
2
Bracket WPL 4359527 Contact Us For Availability
2
H.V. Transformer WPL 8184046 Contact Us For Availability
3
Bracket, Control WPL 8171855 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Key Membrane (Black) WPL 8184326 Contact Us For Availability
4
Key Membrane (White) WPL 8184327 Contact Us For Availability
4
Latch WPL 8171850 Contact Us For Availability
4
Lead Wire Assy WPL 8184042 Contact Us For Availability
4
Capacitor, H.V. WPL 8183536 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
PCB Sub Assy. WPL 8184013 Contact Us For Availability
5
Spring, Latch WPL 8184016 Contact Us For Availability
5
Screw WPL 4358051 Contact Us For Availability
6
Panel, Door (White) WPL 8172121 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Panel, Door (Black) WPL 8172122 Contact Us For Availability
6
Motor, Turntable WPL 4359155 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Thermostat WPL 8184049 Contact Us For Availability
7
Lamp Holder WPL 4359518 Contact Us For Availability
7
Glass, Door WPL 8172125 Contact Us For Availability
7
Plate WPL 8184043 Contact Us For Availability
8
Plate, Mounting Wing WPL 8184050 Contact Us For Availability
8
Handle, Door (White) WPL 8172118 Contact Us For Availability
8
Handle, Door (Black) WPL 8172119 Contact Us For Availability
9
Screw (Black) WPL 4358762 Contact Us For Availability
9
Cover WPL 4359964 Contact Us For Availability
9
Choke, Cover WPL 8171846 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Screw (White) WPL 4359009 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 8183896 Contact Us For Availability
11
Screw (Black) WPL 4358381 Contact Us For Availability
11
Plate WPL 8184044 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
12
Motor, Ventilation WPL 8184041 Contact Us For Availability
12
Shield, Protector WPL 8184039 Contact Us For Availability
13
Lead, Wire WPL 8184048 Contact Us For Availability
14
Canopy WPL 8184033 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 8184047 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
18
Turntable Shaft WPL 8171863 Contact Us For Availability
23
Screw WPL 4358188 Contact Us For Availability
24
Installation Hardware WPL 4358404 Contact Us For Availability
× ![]()
