Model Whirlpool MH6130XEB1 MICROWAVE – Common Parts & Diagrams
04 - MAGNETRON AND AIR FLOW
06 - LATCH BOARD

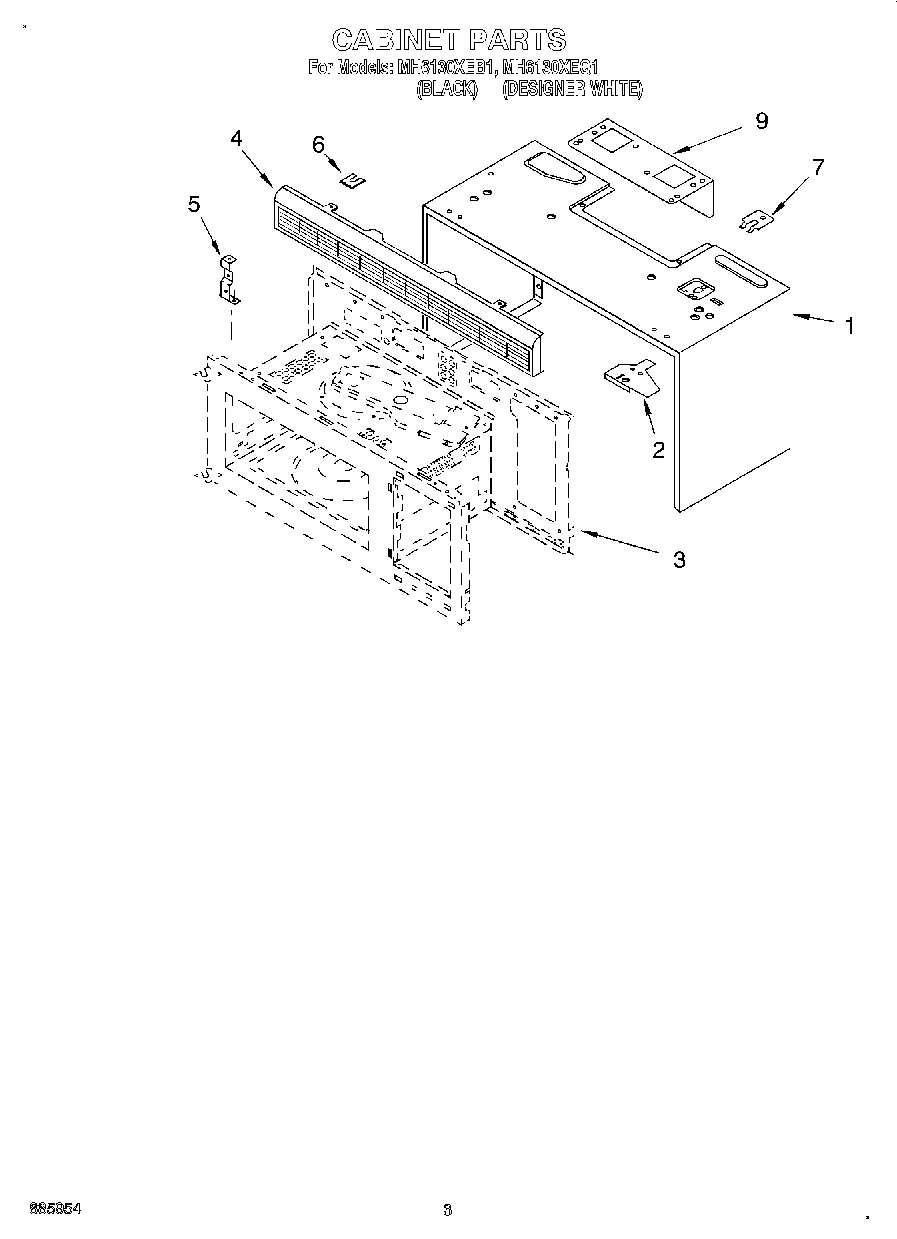

03 - CABINET

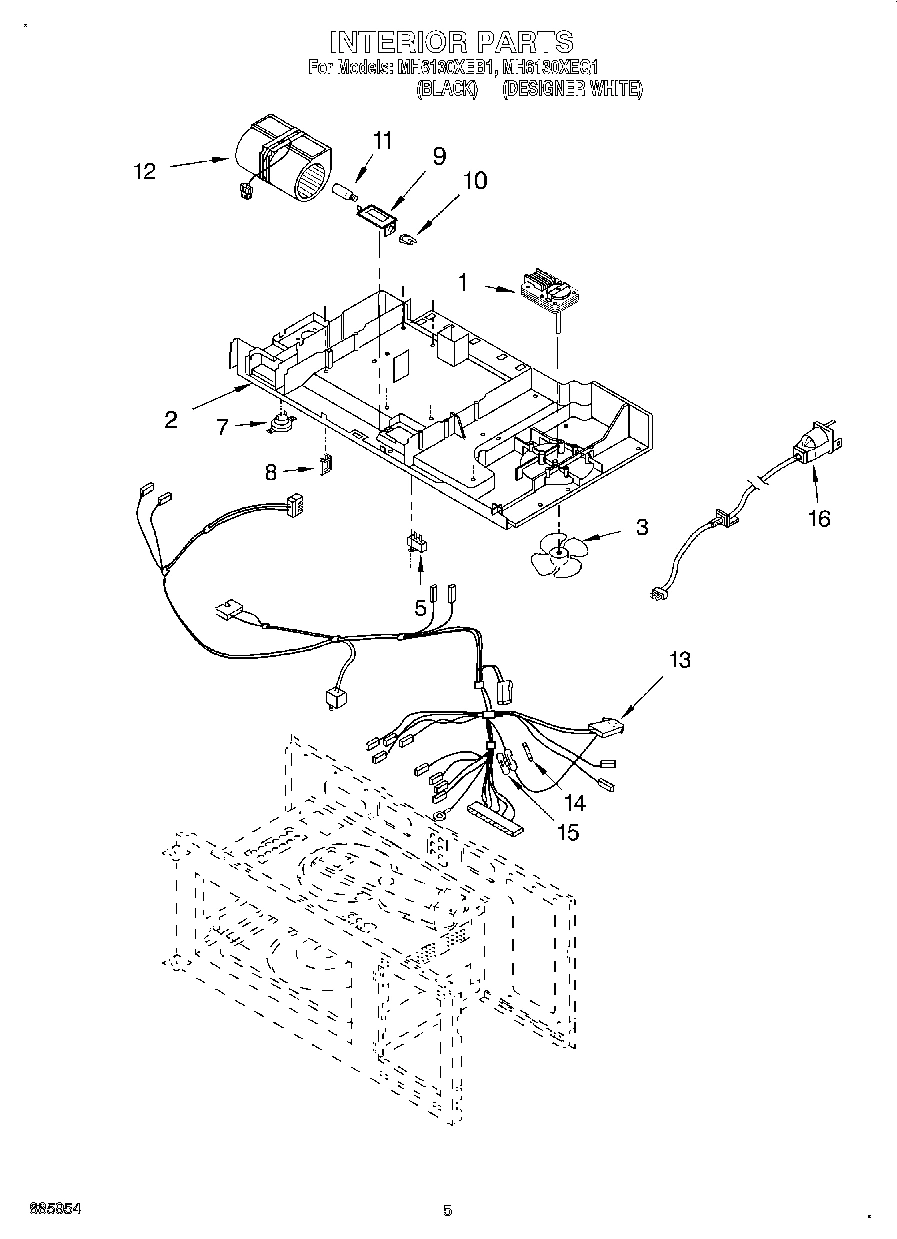

05 - INTERIOR

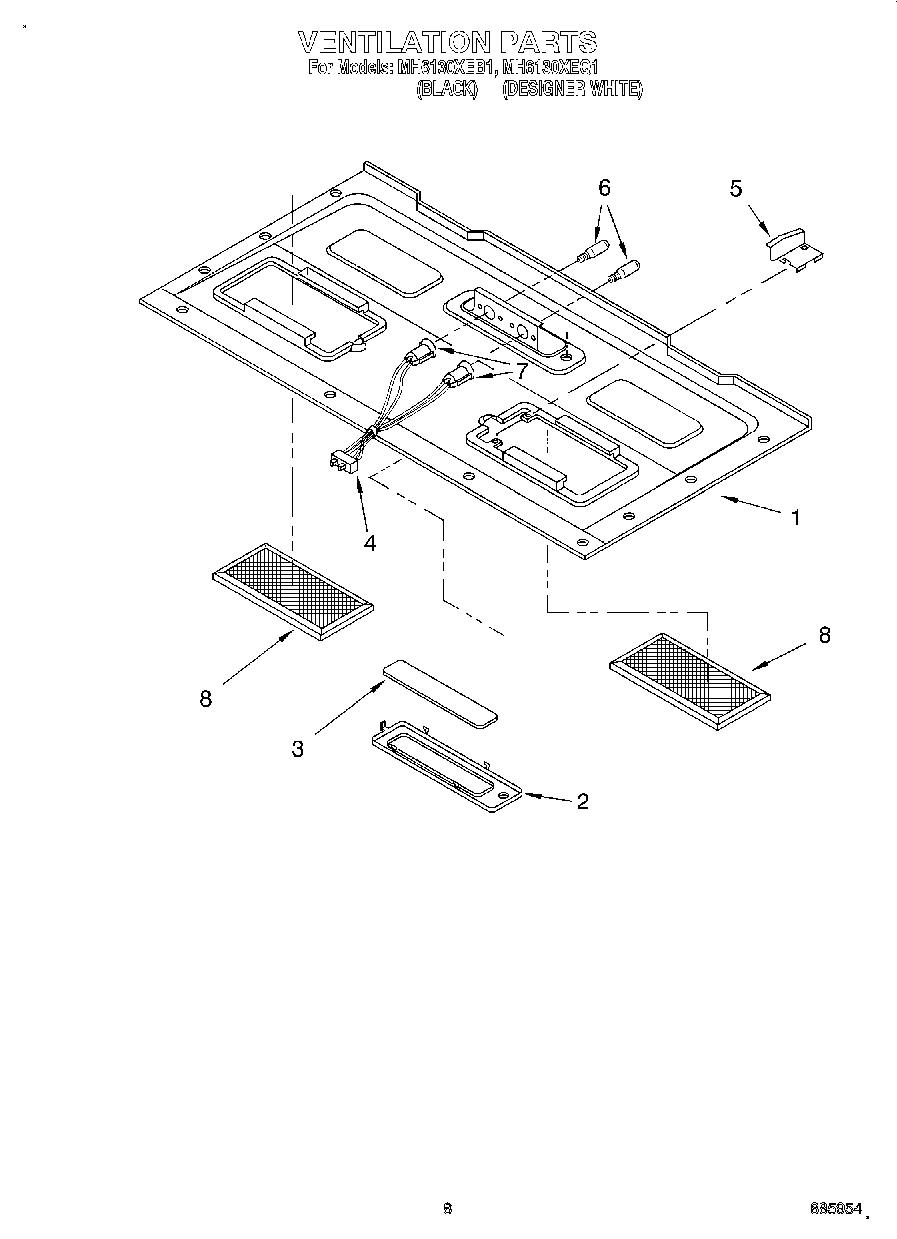

07 - VENTILATION

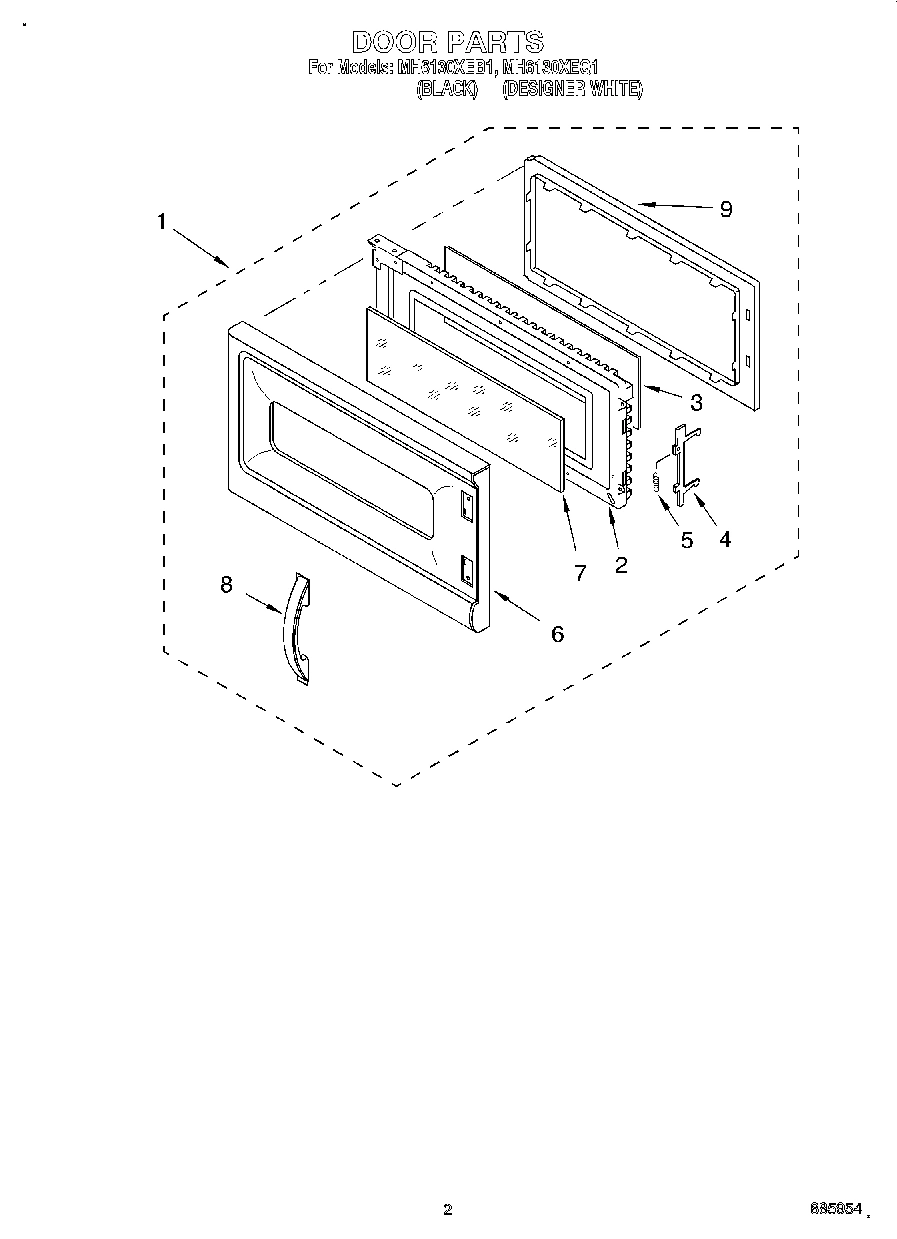

02 - DOOR

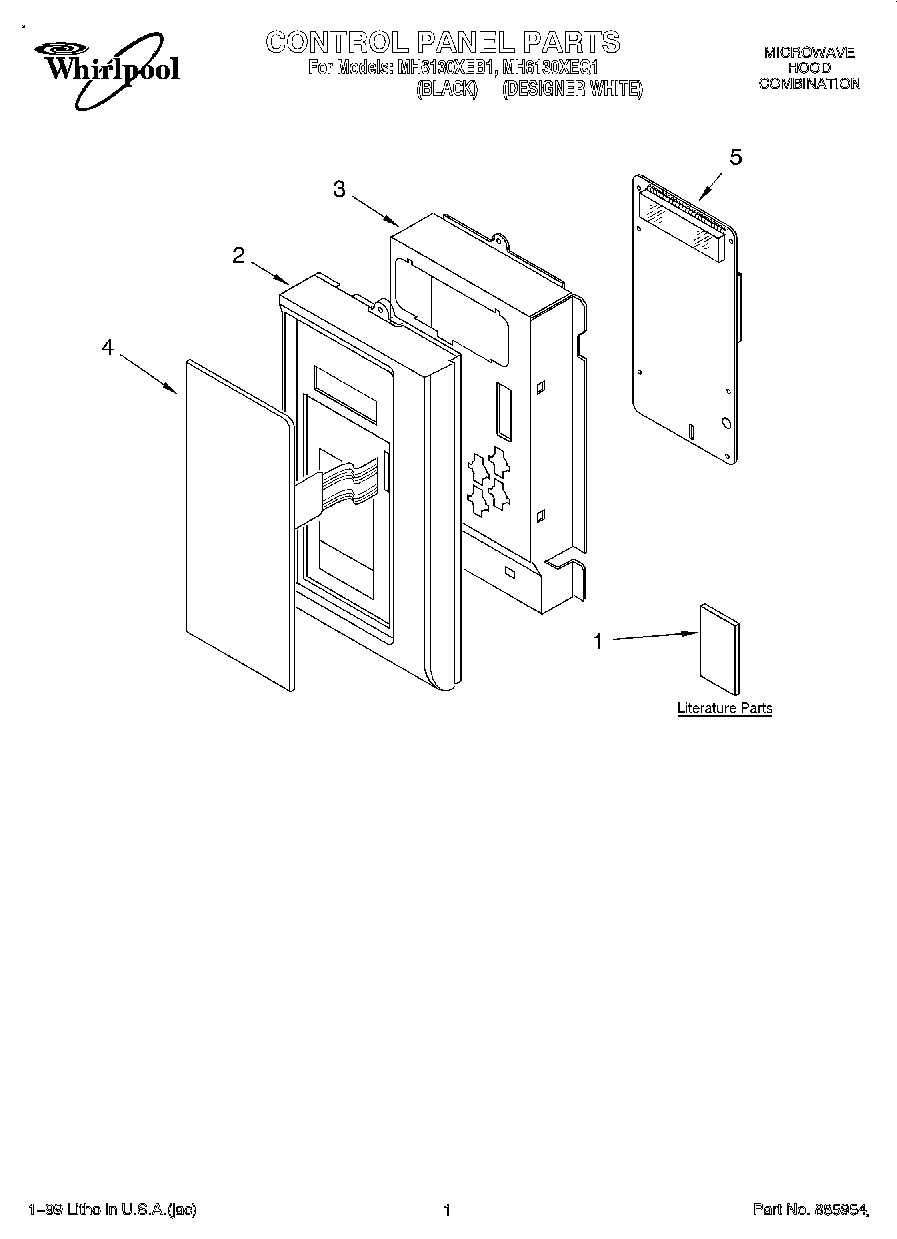

01 - CONTROL PANEL, LITERATURE

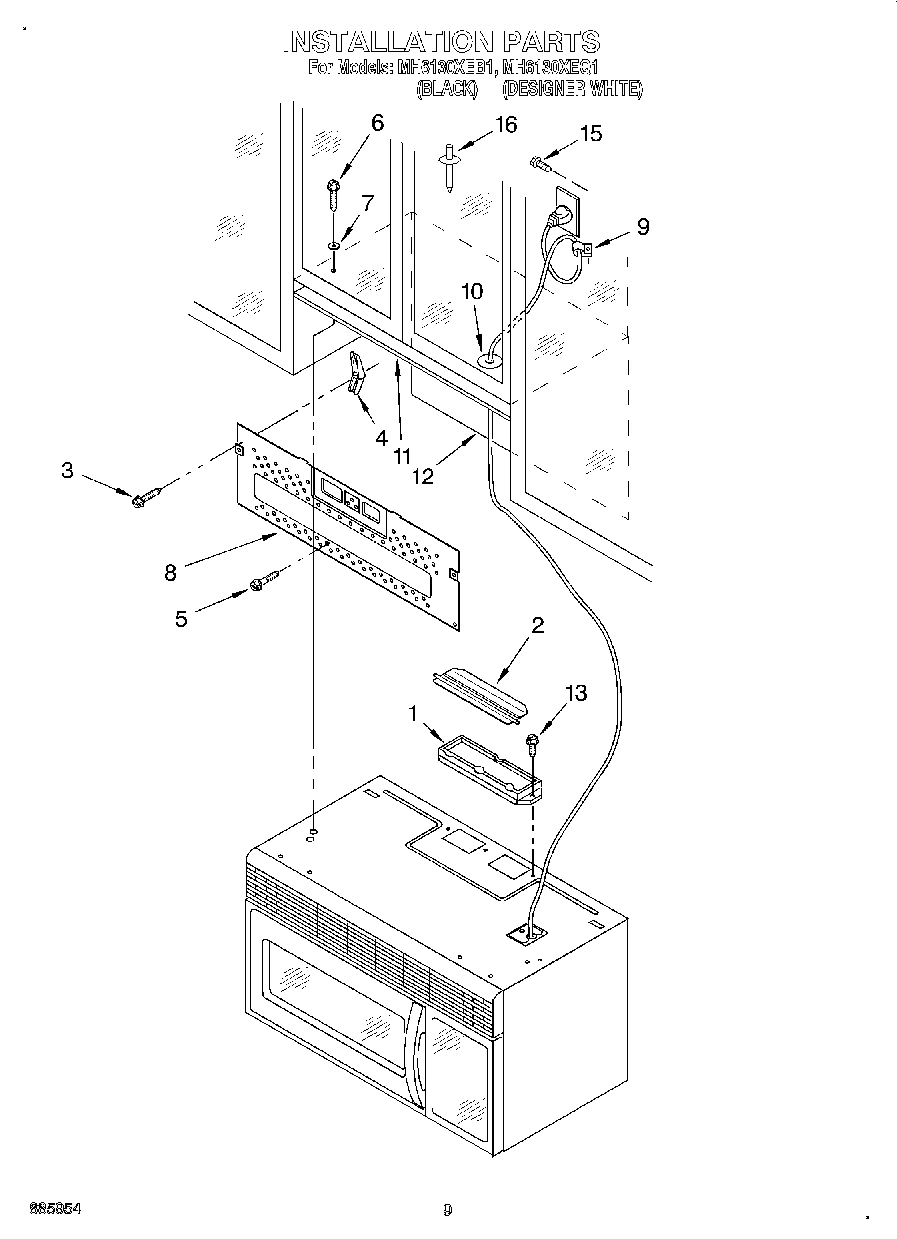

08 - INSTALLATION
Common parts from model Whirlpool MH6130XEB1 MICROWAVE
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Outer Case (White Model) WPL 4359487 Contact Us For Availability
1
Outer Case (Black Model) WPL 4359488 Contact Us For Availability
1
Motor, Fan WPL 4359511 Contact Us For Availability
1
Base Plate (White) WPL 4359525 Contact Us For Availability
1
Base Plate (Black) WPL 4359526 Contact Us For Availability
1
Door Assembly (White) WPL 4359976 Contact Us For Availability
1
Door Assembly (Black) WPL 4359978 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359455 Contact Us For Availability
1
Literature Parts (Guide, Cooking) WPL LIT4359456 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT4359626 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359670 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Control Panel (Screw) WPL 4358762 Contact Us For Availability
2
Screw WPL 4358188 Contact Us For Availability
2
Air Duct WPL 4359513 Contact Us For Availability
2
Screw (Black) WPL 4358829 Contact Us For Availability
2
Bracket (White) WPL 4359527 Contact Us For Availability
2
Bracket, Black WPL 4359532 Contact Us For Availability
2
Frame, Door (White) WPL 4359977 Contact Us For Availability
2
Frame, Door (Black) WPL 4359979 Contact Us For Availability
2
Control Panel (White Model) WPL 4359479 Contact Us For Availability
2
Control Panel (Black Model) WPL 4359480 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
3
Cavity Assembly (Not Serviceable) WPL ARI118107A Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359686 Contact Us For Availability
3
Brack WPL 4359481 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
4
Grille Vent (White Model) WPL 4359489 Contact Us For Availability
4
Grille Vent (Black Model) WPL 4359490 Contact Us For Availability
4
Lead Wire Assy WPL 4359529 Contact Us For Availability
4
Latch (White) WPL 4358546 Contact Us For Availability
4
Latch (Black) WPL 4359860 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4359684 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359685 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Bracket, Front WPL 4358759 Contact Us For Availability
5
Fuse WPL 4359514 Contact Us For Availability
5
Bracket WPL 4359530 Contact Us For Availability
5
Spring, Latch WPL 4358607 Contact Us For Availability
5
Screw WPL 4358883 Contact Us For Availability
5
PCB Sub Assy. WPL 4359661 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
6
Bracket, Grille WPL 4358816 Contact Us For Availability
6
Panel, Door (White) WPL 4359469 Contact Us For Availability
6
Panel, Door (Black) WPL 4359470 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
7
4358381 Screw WPL 4359377 Contact Us For Availability
7
Cover, Power Cord WPL 4359616 Contact Us For Availability
7
Lamp Holder WPL 4359518 Contact Us For Availability
7
Glass, Door (White Model) WPL 4359547 Contact Us For Availability
7
Glass, Door (Black Model) WPL 4359683 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
8
H.V. Cable WPL 4359501 Contact Us For Availability
8
Wire Holder WPL 4158267 Contact Us For Availability
8
Handle, Door (Screw) WPL 4358479 Contact Us For Availability
8
Handle, Door (White Model) WPL 4359473 Contact Us For Availability
8
Handle, Door (Black Model) WPL 4359474 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
9
Cover WPL 4359517 Contact Us For Availability
9
Choke, Cover (White Model) WPL 4359475 Contact Us For Availability
9
Choke, Cover (Black) WPL 4359476 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
11
Guide WPL 4359504 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359560 Contact Us For Availability
12
Cover WPL 4359688 Contact Us For Availability
12
Motor, Ventilation WPL 4359519 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
13
Lead, Wire WPL 4359690 Contact Us For Availability
15
Tape WPL 4359212 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Installation Hardware WPL 4158491 Contact Us For Availability
16
Power Cord WPL 4359522 Contact Us For Availability
17
Rotating Ring WPL 4359689 Contact Us For Availability
18
Turntable Shaft WPL 4359618 Contact Us For Availability
20
Plate WPL 4359510 Contact Us For Availability
× ![]()
