Model Whirlpool MH6110XBQ0 – Common Parts & Diagrams

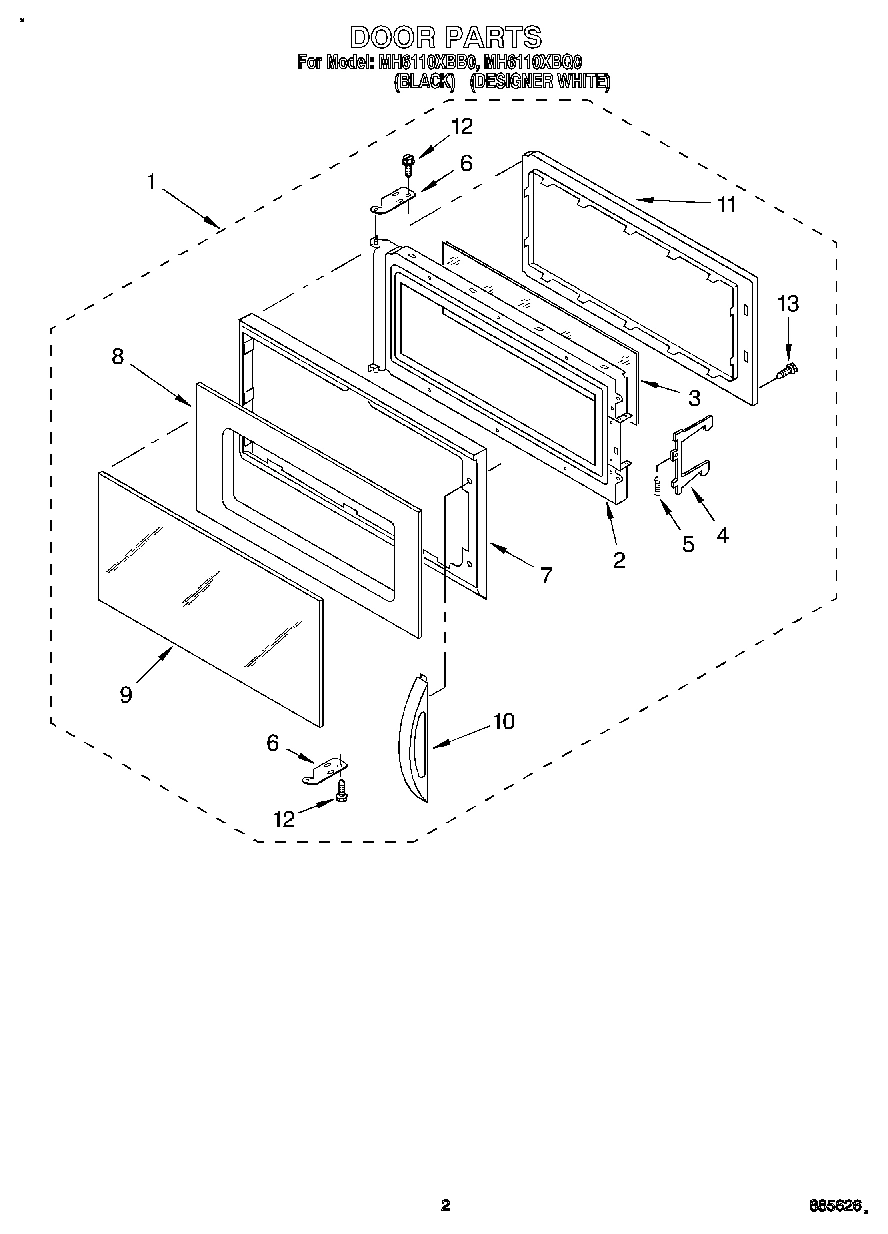

02 - DOOR

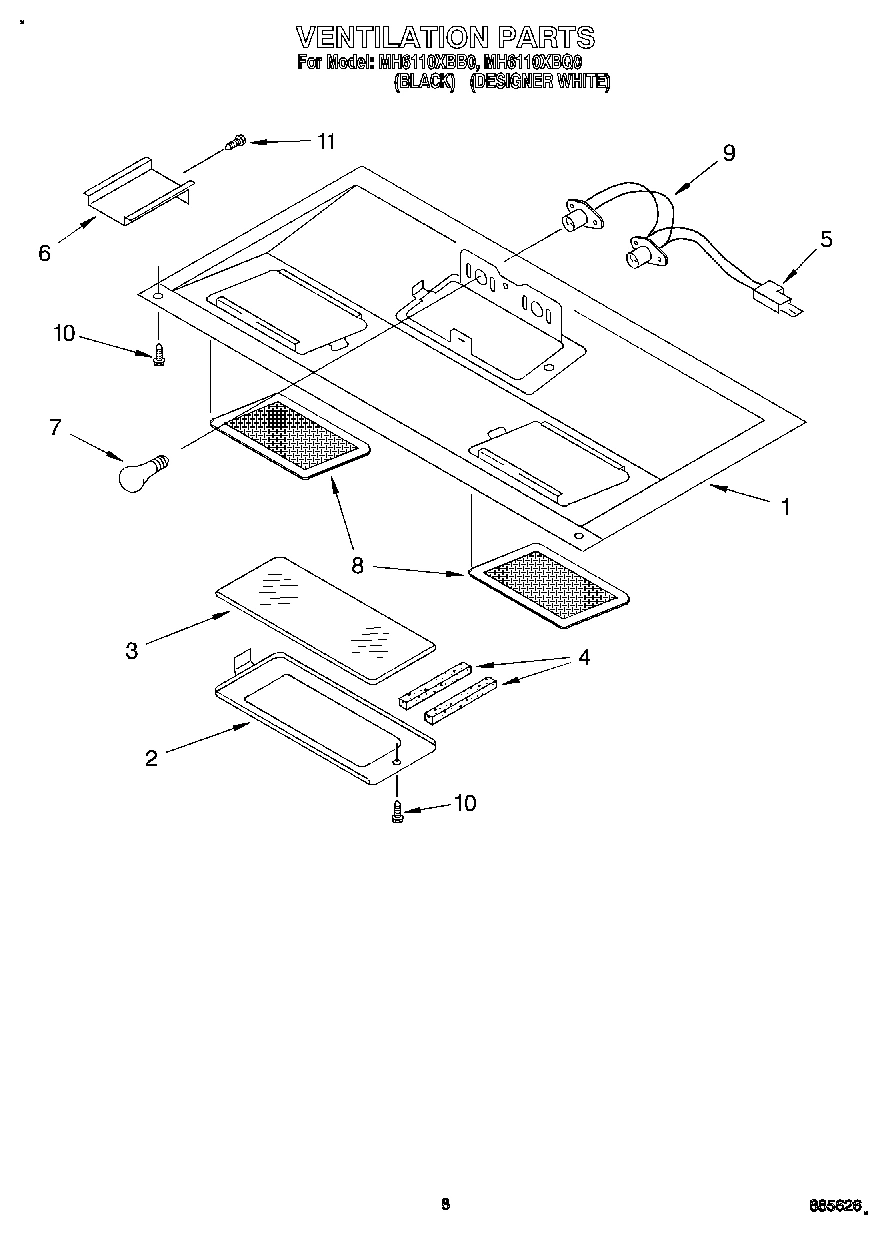

07 - VENTILATION

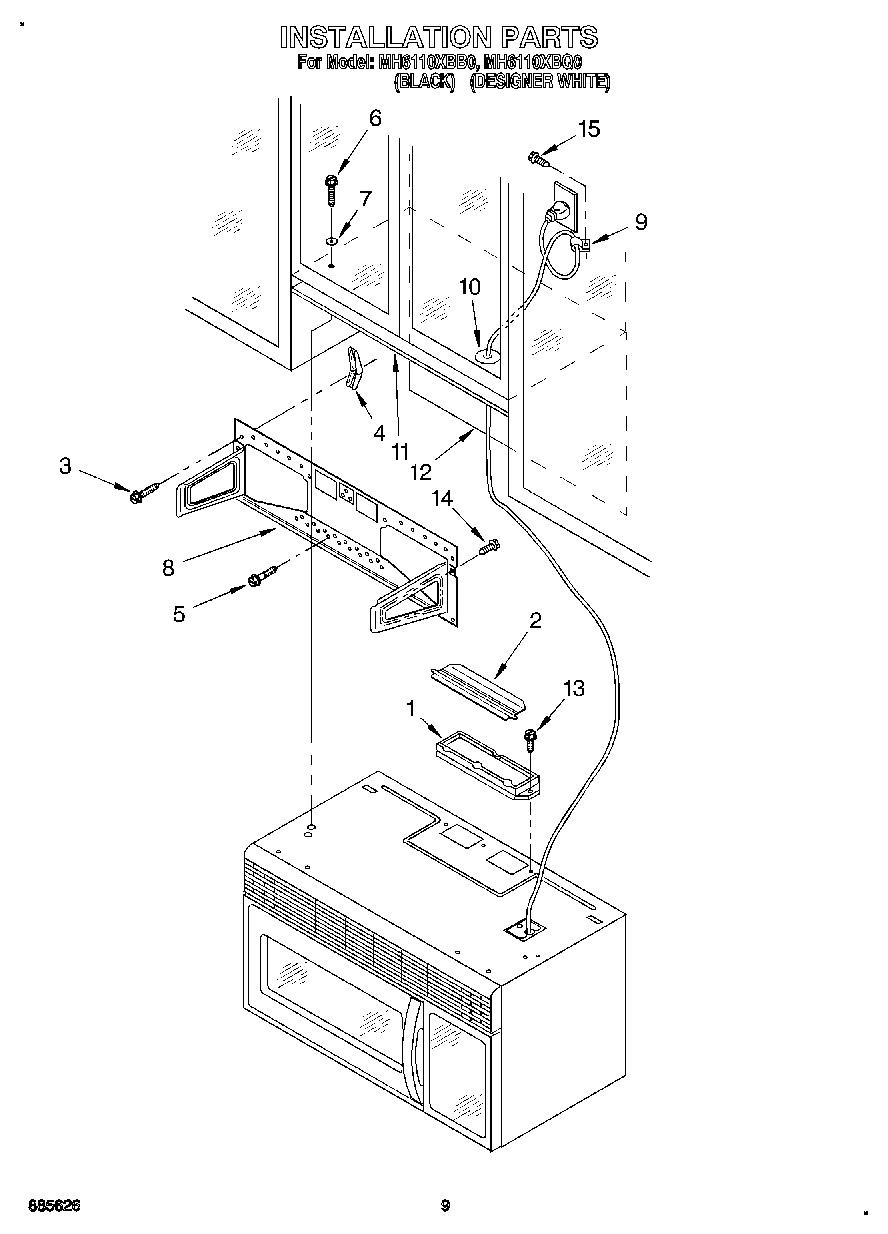

08 - INSTALLATION

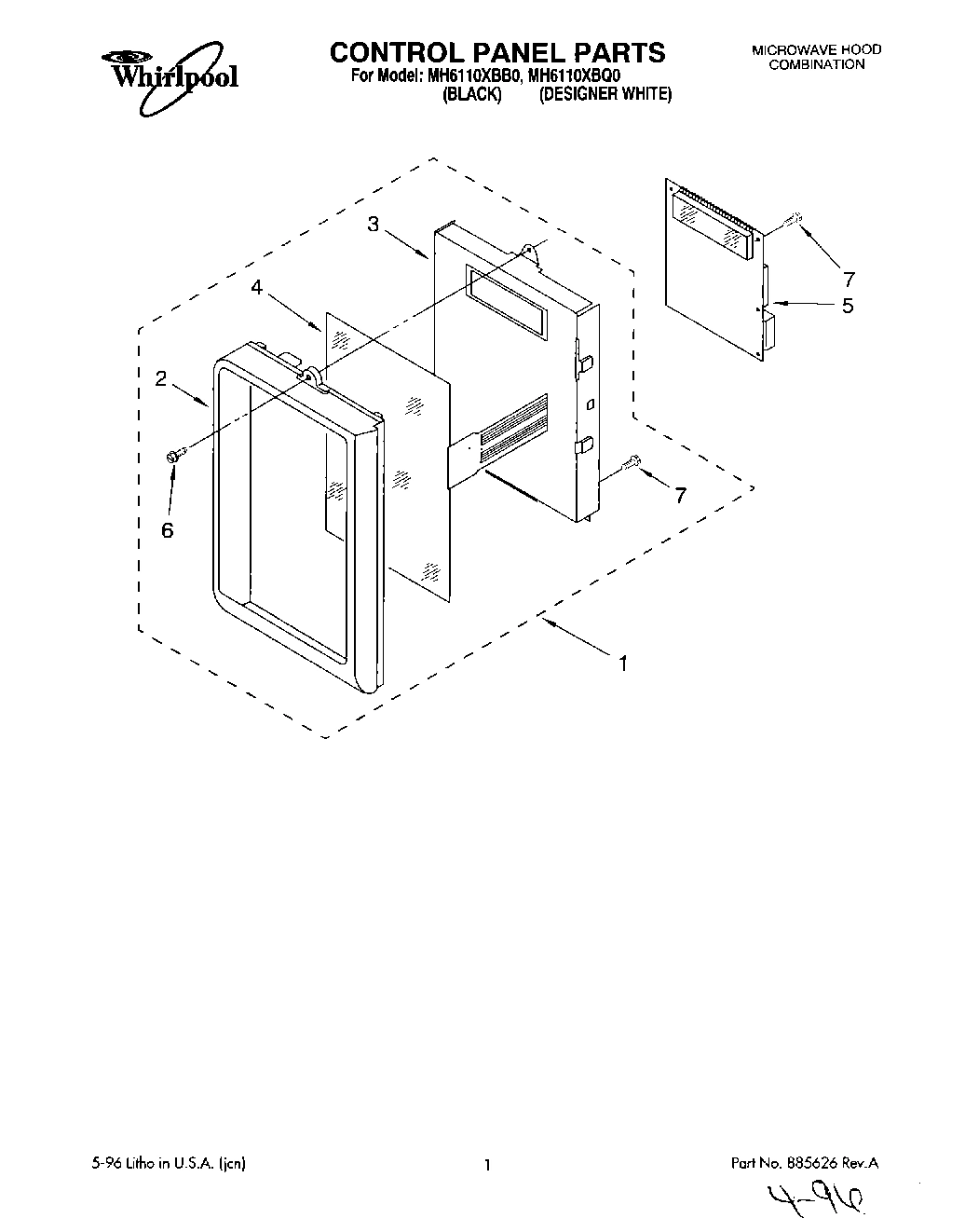

01 - CONTROL PANEL
06 - LATCH BOARD

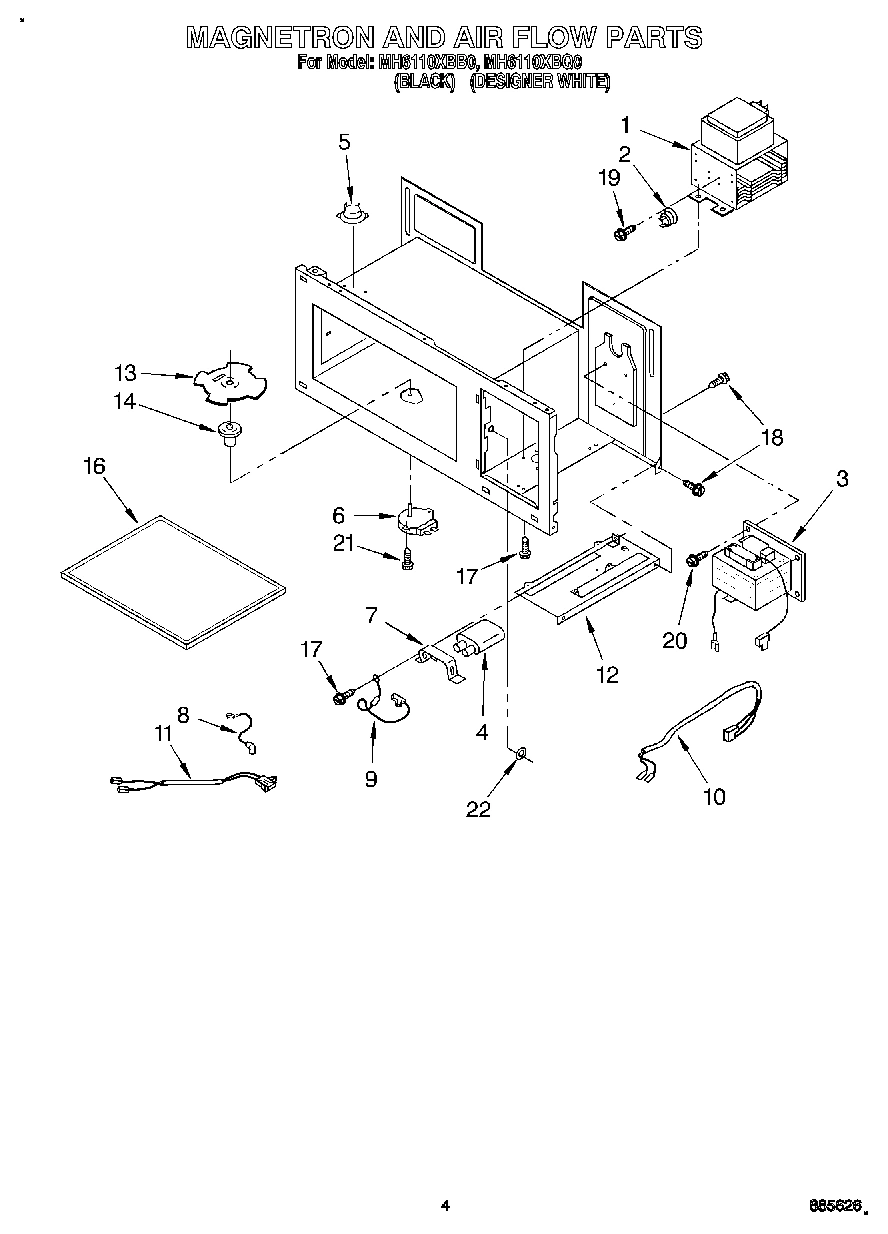

04 - MAGNETRON AND AIR FLOW

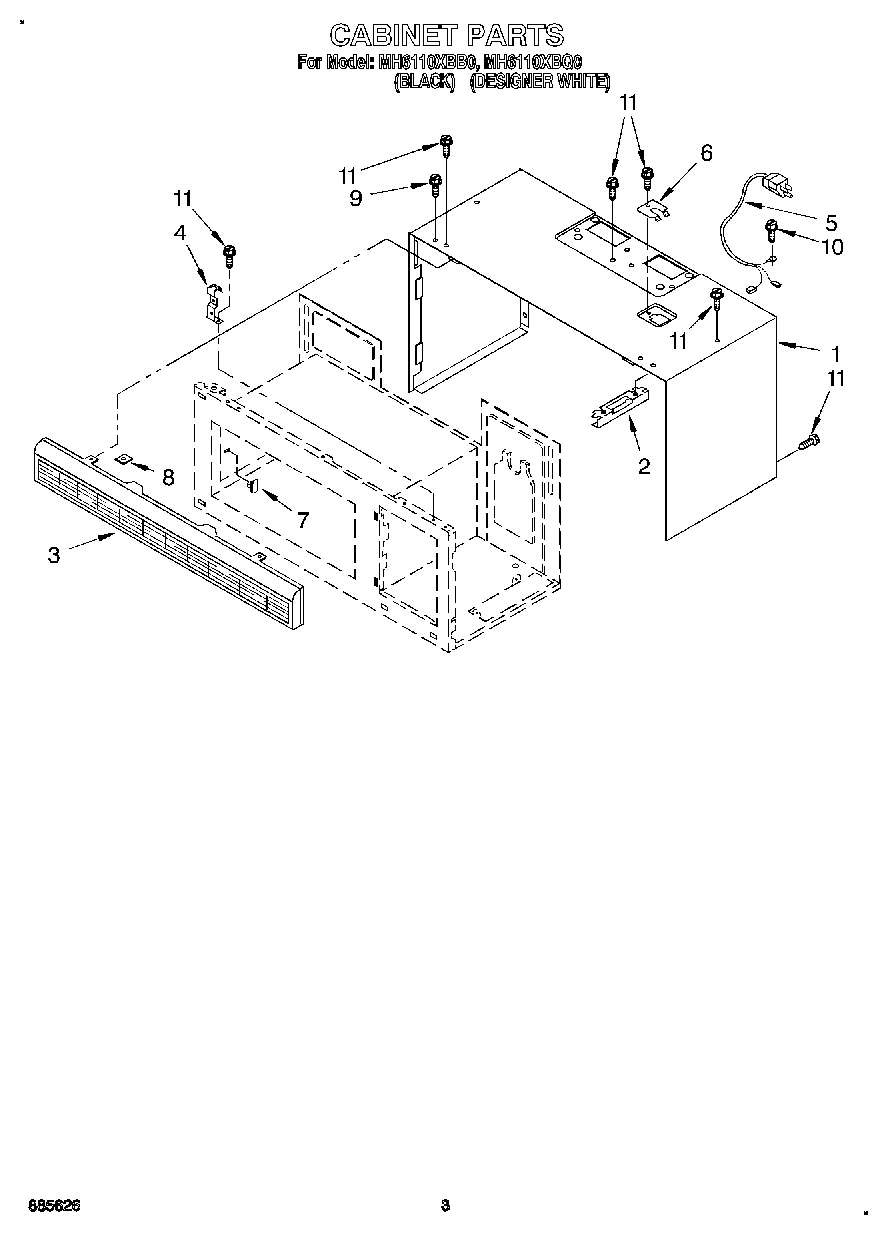

03 - CABINET

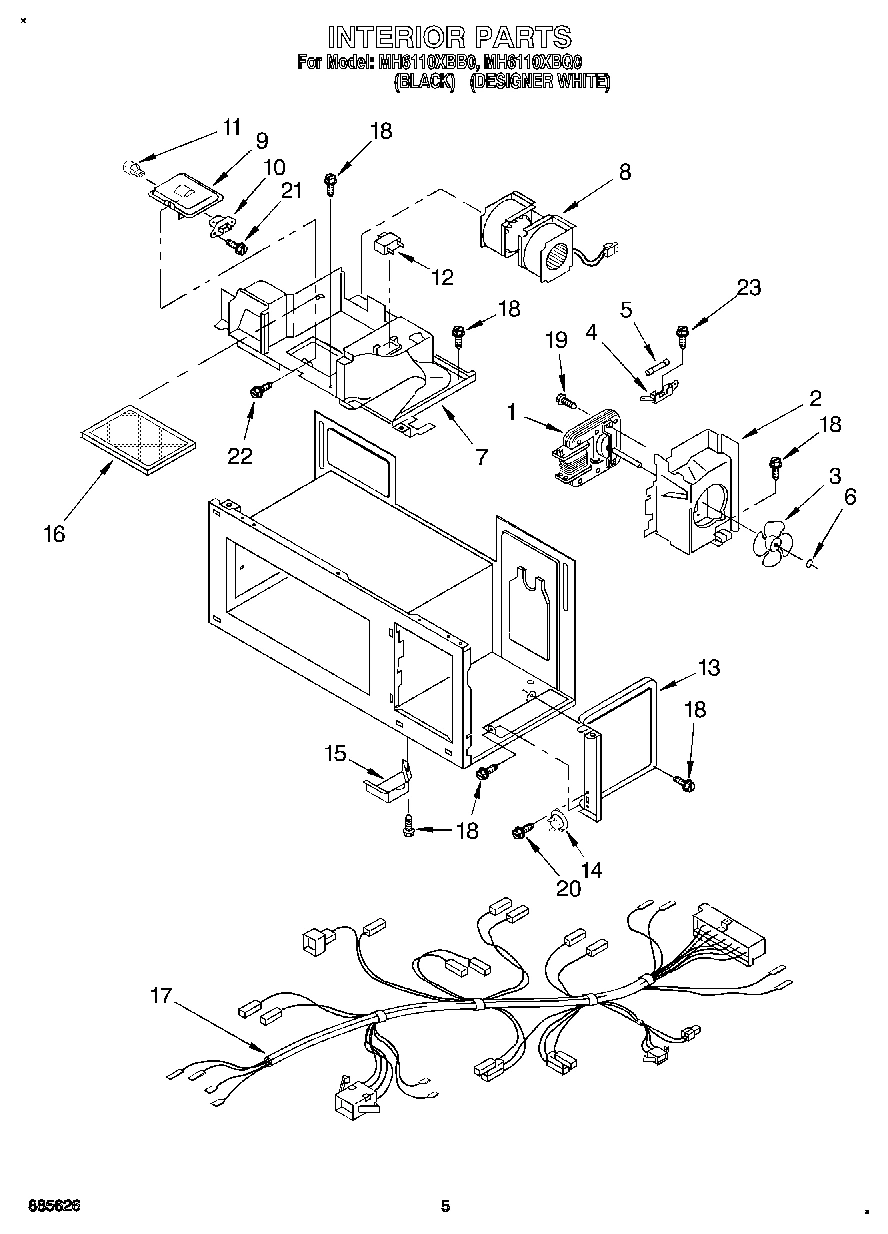

05 - INTERIOR, LIT/OPTIONAL
Common parts from model Whirlpool MH6110XBQ0
Guide, Use & Care WPL LIT4358511 Contact Us For Availability
Tech Sheet WPL LIT4358512 Contact Us For Availability
Instructions, Installation WPL LIT4358519 Contact Us For Availability
Cookbook WPL LIT4358520 Contact Us For Availability
1
Motor, Fan WPL 4358784 Contact Us For Availability
1
Base Plate (White Model) WPL 4358544 Contact Us For Availability
1
Base Plate (Black Model) WPL 4358763 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Controller Sub Assy. (Black Model) WPL 4358741 Contact Us For Availability
1
Controller Sub Assy. (White Model) WPL 4358742 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Magnatron WPL 4358059 Contact Us For Availability
1
Outer Case (White Model) WPL 4358540 Contact Us For Availability
1
Outer Case (Black Model) WPL 4358541 Contact Us For Availability
2
Control Panel (White Model) WPL 4358551 Contact Us For Availability
2
Cover Cooktop Glass (White Model) WPL 4358533 Contact Us For Availability
2
Cover Cooktop Glass (Black Model) WPL 4358765 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Control Panel (Black Model) WPL 4358552 Contact Us For Availability
2
Thermostat WPL 4358772 Contact Us For Availability
2
Mounting Bracket WPL 4358715 Contact Us For Availability
2
Guide Suction WPL 4358564 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4358571 Contact Us For Availability
3
Bracket, Control WPL 4358743 Contact Us For Availability
3
Transformer WPL 4358774 Contact Us For Availability
3
Grille Vent (Black Model) WPL 4358562 Contact Us For Availability
3
Grille Vent (White Model) WPL 4358758 Contact Us For Availability
3
Blower Fan WPL 4358379 Contact Us For Availability
4
Cushion, Glass WPL 4358767 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4358744 Contact Us For Availability
4
Key Membrane (White Model) WPL 4358745 Contact Us For Availability
4
Capacitor WPL 4158947 Contact Us For Availability
4
Bracket, Front WPL 4358759 Contact Us For Availability
4
Holder, Fuse WPL 4358785 Contact Us For Availability
5
Lead Wire Assy. WPL 4358768 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
PCB Sub Assy. WPL 4358746 Contact Us For Availability
5
Power Cord WPL 4358760 Contact Us For Availability
5
Fuse WPL 4358704 Contact Us For Availability
6
Push Nut WPL 4358055 Contact Us For Availability
6
Plate, Hinge WPL 4358753 Contact Us For Availability
6
Cover, Wire WPL 4358769 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Lever Monitor WPL 4358795 Contact Us For Availability
6
Motor WPL 4358777 Contact Us For Availability
6
Cover, Power Cord WPL 4358761 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Panel, Door (White Model) WPL 4358566 Contact Us For Availability
7
Panel, Door (Black Model) WPL 4358567 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Bracket WPL 4358778 Contact Us For Availability
7
Plug, Cavity WPL 4358173 Contact Us For Availability
7
Air Duct WPL 4358786 Contact Us For Availability
8
Baffle, Door (White Model) WPL 4358554 Contact Us For Availability
8
Baffle, Door (Black Model) WPL 4358555 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358573 Contact Us For Availability
8
H.V. Cable WPL 4158827 Contact Us For Availability
8
Bracket, Grille WPL 4358816 Contact Us For Availability
8
Motor, Ventilation WPL 4358787 Contact Us For Availability
9
Glass, Door (Black Model) WPL 4358754 Contact Us For Availability
9
Glass, Door (White Model) WPL 4358755 Contact Us For Availability
9
H.V. Diode-Cable WPL 4158923 Contact Us For Availability
9
Screw WPL 4358762 Contact Us For Availability
9
Cover, Lamp WPL 4358789 Contact Us For Availability
10
Handle, Door (White Model) WPL 4358548 Contact Us For Availability
10
Handle, Door (Black Model) WPL 4358549 Contact Us For Availability
10
Lamp Holder WPL 4358790 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Lead Wire WPL 4358779 Contact Us For Availability
11
Choke Cover (White Model) WPL 4358557 Contact Us For Availability
11
Choke Cover (Black Model) WPL 4358558 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4358796 Contact Us For Availability
11
Lead Wire WPL 4358780 Contact Us For Availability
11
Blower Plate WPL 4359377 Contact Us For Availability
12
Screw WPL 4358067 Contact Us For Availability
12
Sheet-Wall Template WPL 4358797 Contact Us For Availability
12
Plate, Bottom WPL 4358781 Contact Us For Availability
12
Motor Condenser WPL 4158376 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
13
Stirrer Fan Disk WPL 4358782 Contact Us For Availability
13
Guide Air WPL 4358536 Contact Us For Availability
14
Base Thermostat WPL 4158368 Contact Us For Availability
14
Holder Disk WPL 4358783 Contact Us For Availability
15
Cover, Connector WPL 4358791 Contact Us For Availability
16
Ceramic Plate WPL 4158731 Contact Us For Availability
16
Filter WPL 4358792 Contact Us For Availability
17
Lead Wire WPL 4358793 Contact Us For Availability
19
Screw WPL 4358190 Contact Us For Availability
20
Screw WPL 4358376 Contact Us For Availability
21
Screw WPL 4358188 Contact Us For Availability
21
Screw WPL 4358191 Contact Us For Availability
22
Screw WPL 4358015 Contact Us For Availability
22
Temp Hole Cap WPL 4358156 Contact Us For Availability
23
Filler Kit WPL 4158311 Contact Us For Availability
23
Installation Hardware WPL 4158491 Contact Us For Availability
23
Smoke Deflector Kit WPL 4358523 Contact Us For Availability
23
Rack WPL 4358524 Contact Us For Availability
× ![]()
