Model Whirlpool MH6100XYB0 – Common Parts & Diagrams

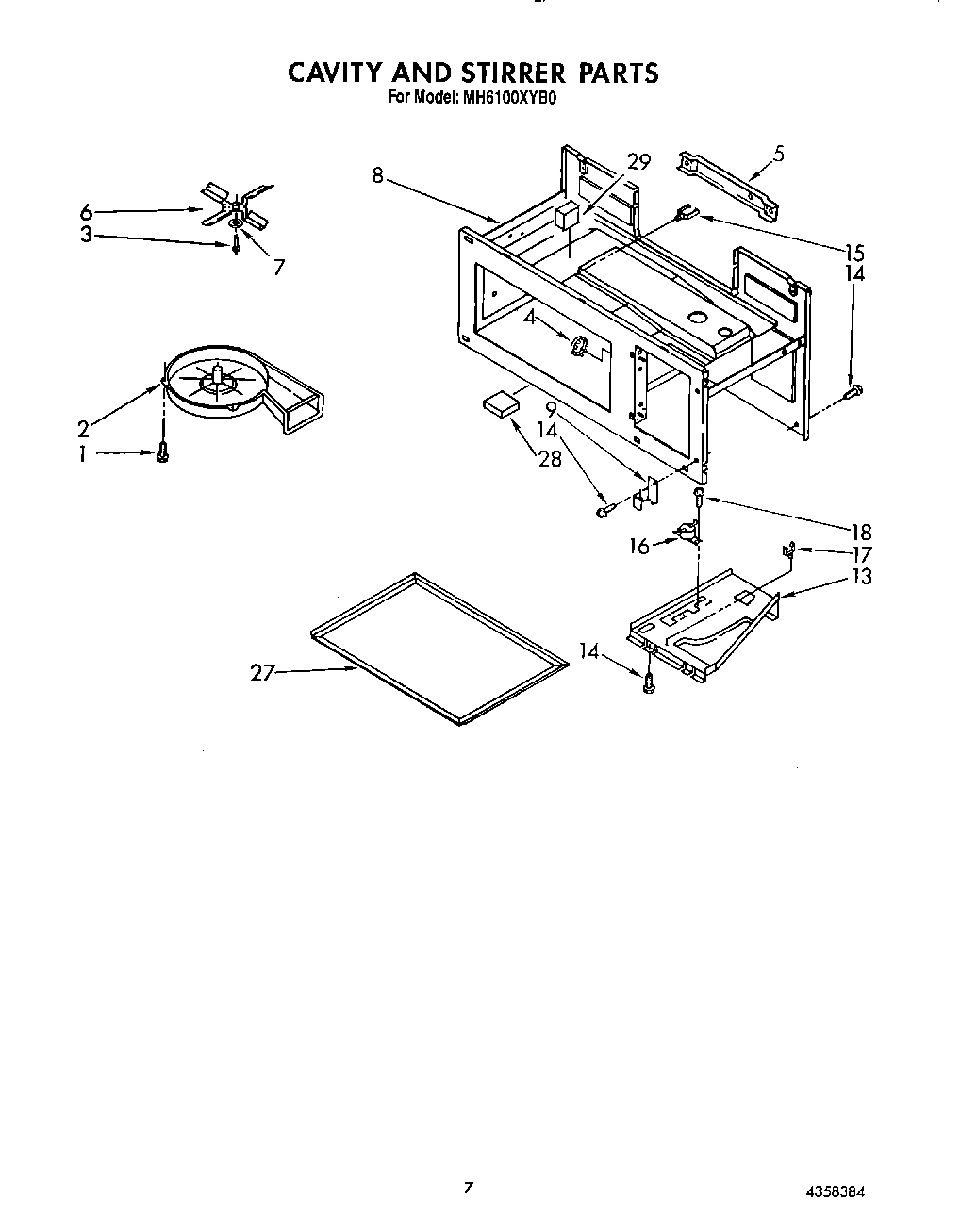

07 - CAVITY AND STIRRER

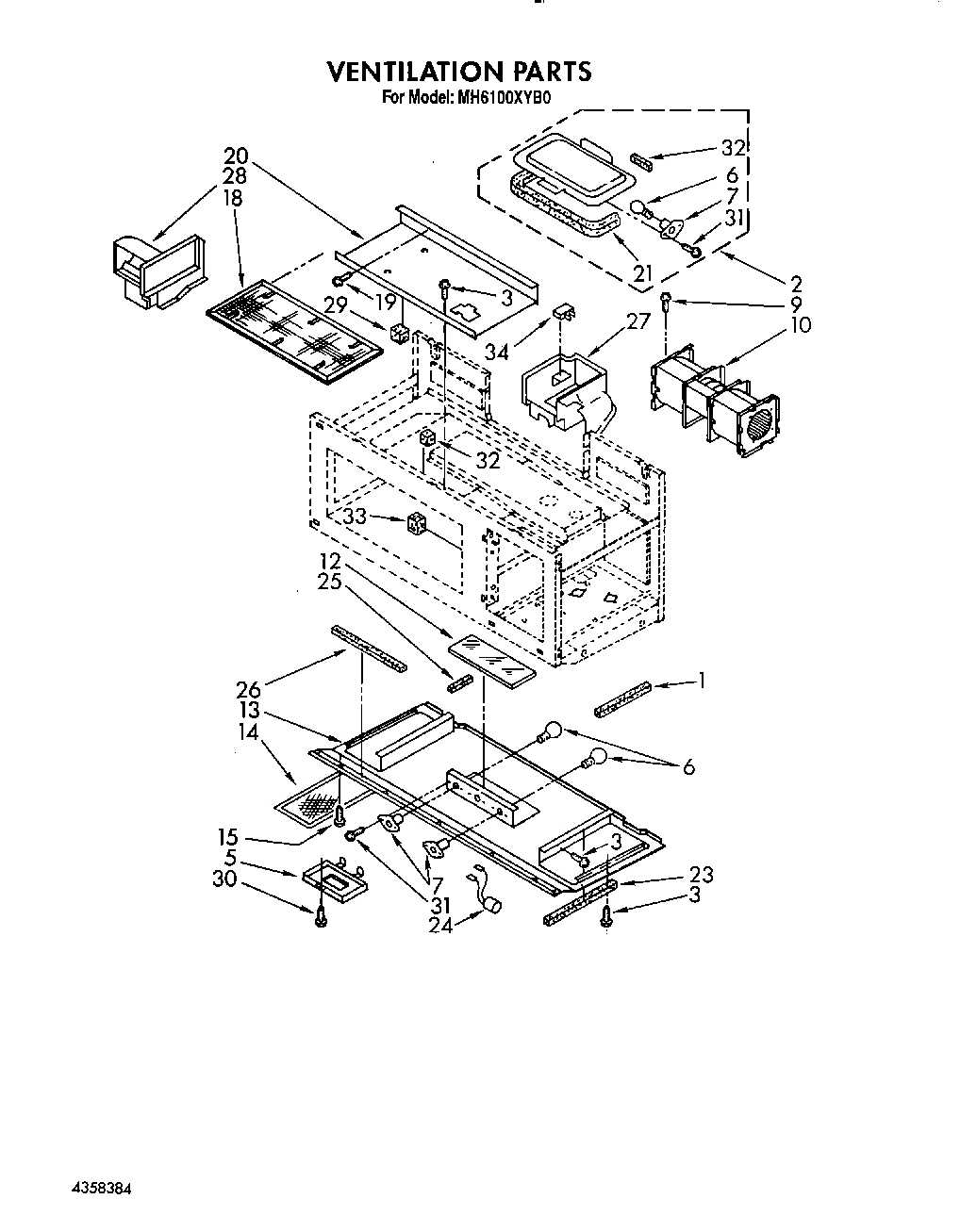

08 - VENTILATION
02 - MAGNETRON AND AIR FLOW
05 - DOOR, WIRING HARNESS, LIT/OPTIONAL
06 - CONTROL PANEL
04 - CABINET
03 - INSTALLATION PARTS
Common parts from model Whirlpool MH6100XYB0
Cookbook WPL LIT4158272 Contact Us For Availability
Defrost Guide WPL LIT4158705 Contact Us For Availability
Auto Set Guide WPL LIT4358002 Contact Us For Availability
Instructions, Installation WPL LIT4358149 Contact Us For Availability
Guide, Use & Care WPL LIT4358290 Contact Us For Availability
Tech Sheet WPL LIT4358303 Contact Us For Availability
List, Repair Parts WPL LIT4358384 Contact Us For Availability
1
Seal WPL 4358055 Contact Us For Availability
1
Cap, Hole WPL 4358156 Contact Us For Availability
1
Hinge Plate WPL 4358066 Contact Us For Availability
1
Main Wiring Harness (Includes Varsitor) WPL 4358174 Contact Us For Availability
1
Wire, Ground WPL 4358187 Contact Us For Availability
1
Strain Relief WPL 4158092 Contact Us For Availability
1
Washer (2) WPL 4158314 Contact Us For Availability
2
Lamp Asm. WPL 4358023 Contact Us For Availability
2
Harness WPL 4358158 Contact Us For Availability
2
Switch, Membrane WPL 4358166 Contact Us For Availability
2
Outer Case WPL 4358016 Contact Us For Availability
2
Cabinet Bolt (2) WPL 4158315 Contact Us For Availability
3
Screw WPL 4158076 Contact Us For Availability
3
Bracket, Magnetron WPL 4358374 Contact Us For Availability
3
Filler Kit WPL 4158311 Contact Us For Availability
3
Smoke Deflector Kit WPL 4158440 Contact Us For Availability
3
Thermostat WPL 4158485 Contact Us For Availability
3
Installation Hardware WPL 4158491 Contact Us For Availability
3
Digitron Window WPL 4158457 Contact Us For Availability
3
Vent Fan Mounting Bracket WPL 4358017 Contact Us For Availability
4
Control Panel WPL 4358070 Contact Us For Availability
5
Oven Lamp Cover WPL 4358040 Contact Us For Availability
5
Transformer, Power WPL 4358073 Contact Us For Availability
6
Holder, Fuse WPL 4158581 Contact Us For Availability
6
Complete Door WPL 4358229 Contact Us For Availability
6
Power Cord Assy. WPL 4358172 Contact Us For Availability
6
Cord Bushing WPL 4358012 Contact Us For Availability
7
Lamp Holder WPL 4158364 Contact Us For Availability
7
Fuse WPL 4358263 Contact Us For Availability
7
Handle WPL 4358068 Contact Us For Availability
7
Screw (2) WPL 4358188 Contact Us For Availability
7
Vent Grille WPL 4358019 Contact Us For Availability
8
Oven Cavity (Not Serviceable) WPL ARI118105A Contact Us For Availability
8
Motor Base WPL 4358037 Contact Us For Availability
8
Screw (3) WPL 4158425 Contact Us For Availability
8
Exhaust Damper WPL 4158319 Contact Us For Availability
9
Cntl. Hinge Assy. (2) WPL 4358048 Contact Us For Availability
9
Plug, Button WPL 4158487 Contact Us For Availability
9
Front Bracket WPL 4158426 Contact Us For Availability
9
Exhaust Adapter WPL 4158320 Contact Us For Availability
10
Ventilation Motor Asm. WPL 4358024 Contact Us For Availability
10
Air Guide (Side) WPL 4358025 Contact Us For Availability
10
Insert, Handle WPL 4358069 Contact Us For Availability
10
Mounting Rod WPL 4158427 Contact Us For Availability
11
Sealed Plate-R.H. WPL 4358020 Contact Us For Availability
11
Top Cabinet Nut (2) WPL 4158322 Contact Us For Availability
12
Cooktop Lamp Glass WPL 4358033 Contact Us For Availability
12
Screw WPL 4358381 Contact Us For Availability
12
Capacitor - H.V. WPL 4158507 Contact Us For Availability
12
Screw (4) WPL 4158323 Contact Us For Availability
13
Bottom Plate WPL 4358046 Contact Us For Availability
13
Base Plate WPL 4358027 Contact Us For Availability
13
Diode Cable WPL 4158871 Contact Us For Availability
13
Microcomputer WPL 4358180 Contact Us For Availability
13
Mounting Plate Assy. WPL 4358014 Contact Us For Availability
14
Air Filter (2) WPL 4358030 Contact Us For Availability
14
Capacitor Bracket WPL 4358062 Contact Us For Availability
14
Top Cabinet Template WPL 4358001 Contact Us For Availability
15
Wire Holder (4) WPL 4158267 Contact Us For Availability
15
Screw (3) WPL 4158353 Contact Us For Availability
15
Screw (2) WPL 4358190 Contact Us For Availability
15
Seal WPL 4358021 Contact Us For Availability
15
Toggle Wing (4) WPL 4158326 Contact Us For Availability
16
Base Thermostat WPL 4158368 Contact Us For Availability
16
Fan Motor WPL 4358052 Contact Us For Availability
17
Wire Holder (2) WPL 4158369 Contact Us For Availability
17
Fan Cover Front WPL 4358053 Contact Us For Availability
18
Charcoal Filter Assy. WPL 4358003 Contact Us For Availability
18
Wall Template WPL 4158328 Contact Us For Availability
20
Air Path (Front) WPL 4358038 Contact Us For Availability
21
Seal WPL 4358022 Contact Us For Availability
21
Blade, Fan WPL 4358379 Contact Us For Availability
22
Screw (2) WPL 4358271 Contact Us For Availability
23
Seal WPL 4358028 Contact Us For Availability
24
Wiring Harness WPL 4358032 Contact Us For Availability
24
Screw WPL 4358063 Contact Us For Availability
25
Seal, Lamp WPL 4358034 Contact Us For Availability
26
Seal, Base WPL 4358035 Contact Us For Availability
27
Tray, Glass WPL 4158731 Contact Us For Availability
27
Duct, R.S. WPL 4358029 Contact Us For Availability
27
Lever, Switch WPL 4158390 Contact Us For Availability
28
Seal, Cavity (Bottom) WPL 4358049 Contact Us For Availability
28
Duct, L.S. WPL 4358036 Contact Us For Availability
28
Latch Board Lower WPL 4358176 Contact Us For Availability
29
Seal, Cavity (Top) WPL 4358050 Contact Us For Availability
29
Cushion WPL 4358039 Contact Us For Availability
30
Latch Board Upper WPL 4358175 Contact Us For Availability
31
Screw WPL 4358191 Contact Us For Availability
31
Special Screw (2) WPL 4358051 Contact Us For Availability
32
Seal, Lamp WPL 4358041 Contact Us For Availability
33
Seal, Damper WPL 4358042 Contact Us For Availability
34
Fuse, Thermal WPL 4158376 Contact Us For Availability
34
Cover, Air WPL 4358031 Contact Us For Availability
36
Magnatron WPL 4358059 Contact Us For Availability
37
Bracket, Thermostat WPL 4358060 Contact Us For Availability
38
Thermostat WPL 4358117 Contact Us For Availability
39
Screw (2) WPL 4358376 Contact Us For Availability
43
Transformer WPL 4358377 Contact Us For Availability
47
Lead Wire WPL 4358061 Contact Us For Availability
× ![]()
