Model Electrolux MH525C2SB ROOM AIR CONDITIONER – Common Parts & Diagrams

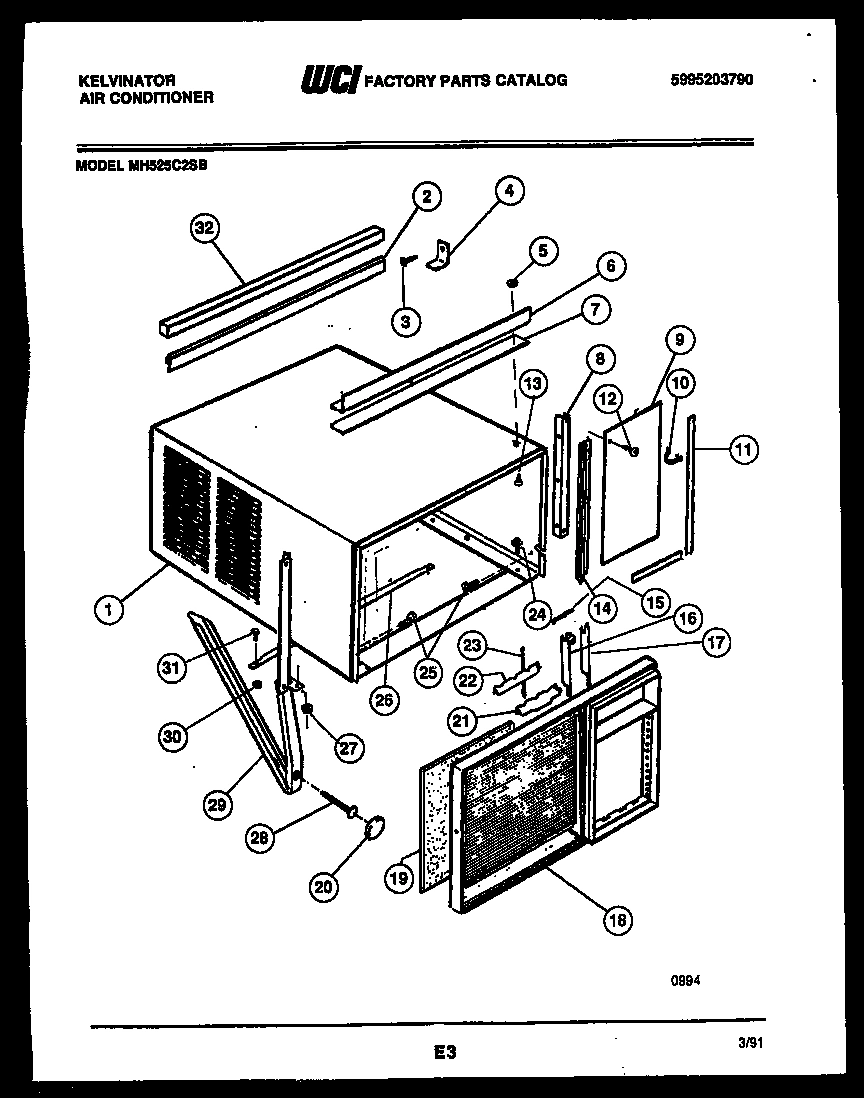

02 - CABINET PARTS

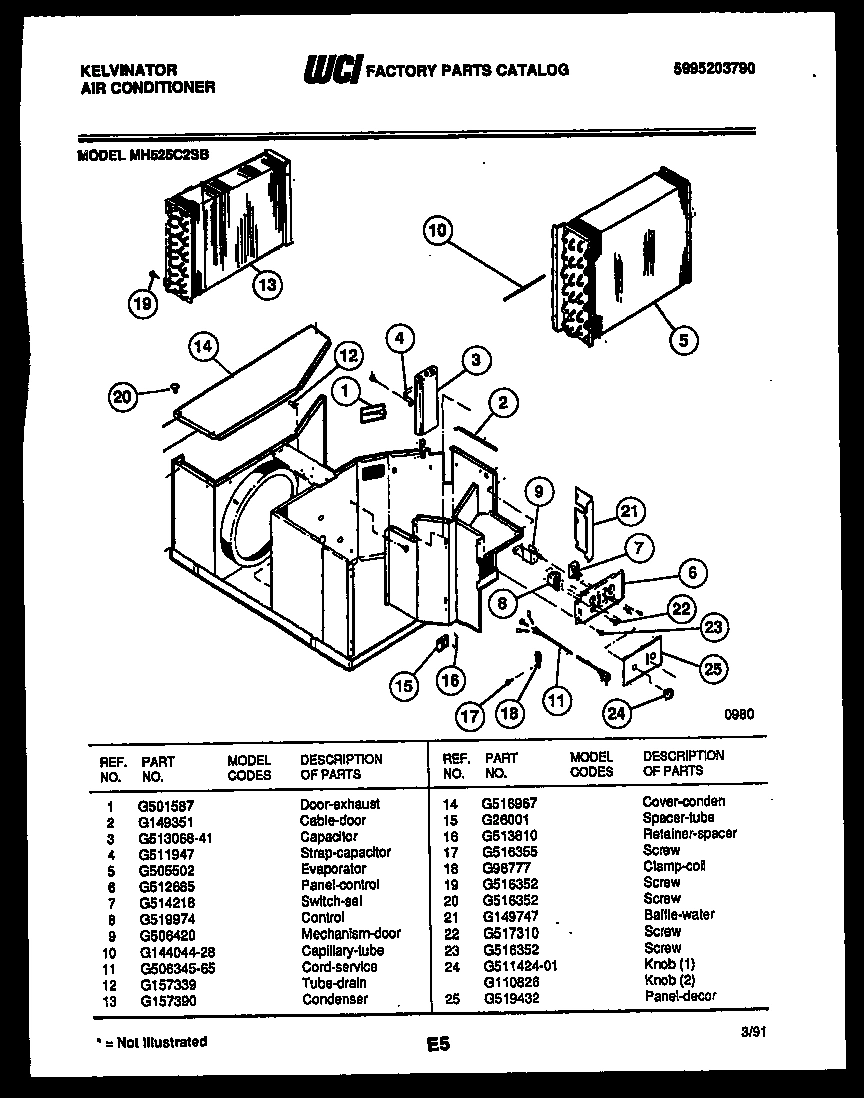

03 - UNIT PARTS

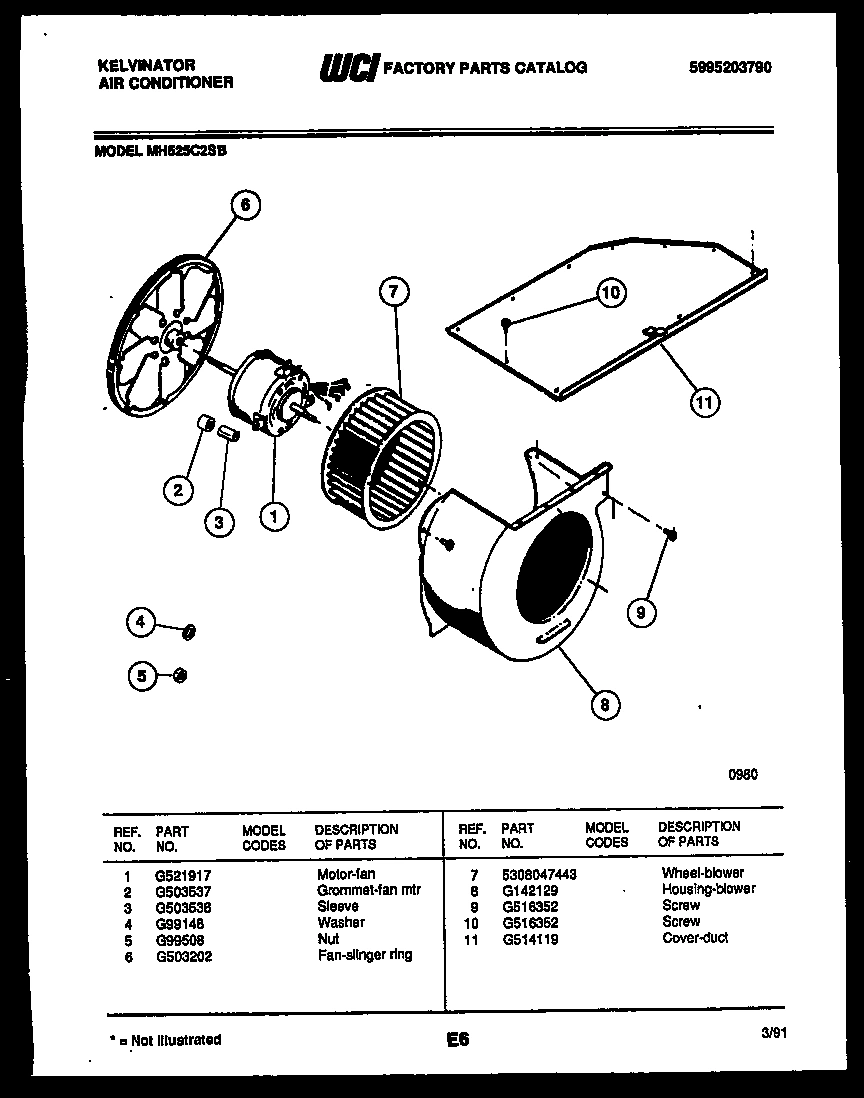

04 - ELECTRIC AND AIR HANDLING PARTS

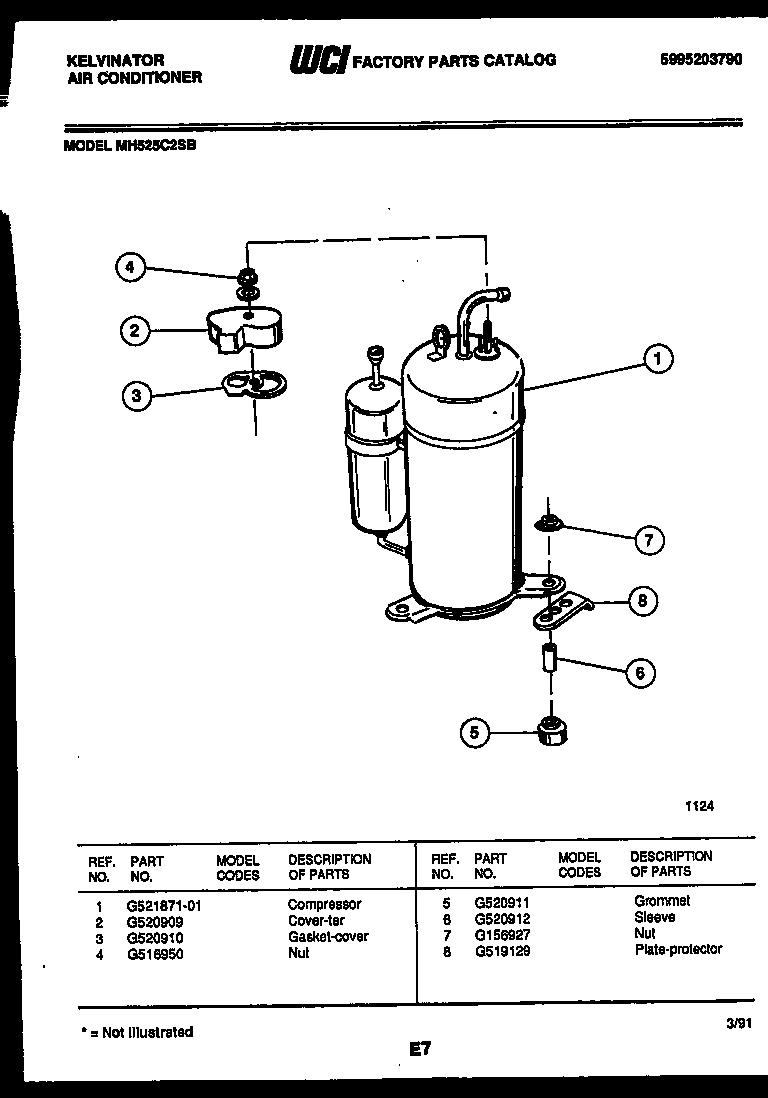

05 - COMPRESSOR
Common parts from model Electrolux MH525C2SB ROOM AIR CONDITIONER
*18770
SEAL, BETWEEN UNIT & SHELL WCI G149188-03 Contact Us For Availability
*18770
PANEL-ASSY WCI G518760 Contact Us For Availability
*18771
WCI 5314918205 WCI 5314918205 Contact Us For Availability
*18771
LOUVER-HORIZ WCI G513281-14 Contact Us For Availability
1
WRAPPER WCI G159566-11 Contact Us For Availability
1
WCI G501587 WCI G501587 Contact Us For Availability
1
MOTOR - FAN WCI G521917 Contact Us For Availability
1
WCI G521871-01 WCI G521871-01 Contact Us For Availability
2
GASKET WCI G149356-05 Contact Us For Availability
2
WCI G149351 WCI G149351 Contact Us For Availability
2
GROMMET-FAN MTR WCI G503537 Contact Us For Availability
2
COVER - TER. WCI G520909 Contact Us For Availability
3
WCI G100773 WCI G100773 Contact Us For Availability
3
CAPACITOR WCI G513068-41 Contact Us For Availability
3
SLEEVE WCI G503538 Contact Us For Availability
3
GASKET-COVER WCI G520910 Contact Us For Availability
4
BRKT-SUPPORT WCI G500741 Contact Us For Availability
4
STRAP-CAPACITOR WCI G511947 Contact Us For Availability
4
WCI G99148 WCI G99148 Contact Us For Availability
4
NUT WCI G516950 Contact Us For Availability
5
EVAPORATOR WCI G505502 Contact Us For Availability
5
NUT WCI G99508 Contact Us For Availability
5
GROMMET WCI G520911 Contact Us For Availability
6
WCI G149390-03 WCI G149390-03 Contact Us For Availability
6
WCI G512685 WCI G512685 Contact Us For Availability
6
WCI G503202 WCI G503202 Contact Us For Availability
6
SLEEVE WCI G520912 Contact Us For Availability
7
WCI G149187-04 WCI G149187-04 Contact Us For Availability
7
SWITCH - SEL. WCI G514218 Contact Us For Availability
7
WCI 5308047443 WCI 5308047443 Contact Us For Availability
7
NUT WCI G156927 Contact Us For Availability
8
MEMBER-SIDE FRAME WCI G149391-03 Contact Us For Availability
8
CONTROL WCI G519974 Contact Us For Availability
8
WCI G142129 WCI G142129 Contact Us For Availability
8
WCI G519129 WCI G519129 Contact Us For Availability
9
WCI G149202-03 WCI G149202-03 Contact Us For Availability
9
MECHANISM, DOOR WCI G506420 Contact Us For Availability
10
WCI G117313 WCI G117313 Contact Us For Availability
10
CAPILLARY-TUBE WCI G144044-28 Contact Us For Availability
10
WCI G516352 WCI G516352 Contact Us For Availability
11
SEAL - PANEL WCI G149187-05 Contact Us For Availability
11
WCI G506345-65 WCI G506345-65 Contact Us For Availability
11
COVER, DUCT WCI G514119 Contact Us For Availability
12
WCI G157339 WCI G157339 Contact Us For Availability
13
WCI G157390 WCI G157390 Contact Us For Availability
14
WCI G149182-05 WCI G149182-05 Contact Us For Availability
14
COVER-CONDEN. WCI G516967 Contact Us For Availability
15
WCI G100365 WCI G100365 Contact Us For Availability
15
SPACER-TUBE WCI G26001 Contact Us For Availability
16
LOUVER-VERT. WCI G157750 Contact Us For Availability
16
WCI G513810 WCI G513810 Contact Us For Availability
17
LOUVER-VERT. WCI G157749 Contact Us For Availability
17
SCREW WCI G516355 Contact Us For Availability
18
WCI G158353 WCI G158353 Contact Us For Availability
18
CLAMP-COIL WCI G98777 Contact Us For Availability
19
WCI G157868 WCI G157868 Contact Us For Availability
20
CAP-RUBBER WCI G120905 Contact Us For Availability
21
LOUVER-HORIZ. WCI G512966-18 Contact Us For Availability
21
BAFFLE, WATER WCI G149747 Contact Us For Availability
22
LOUVER-HORIZ. WCI G513272-18 Contact Us For Availability
22
SCREW WCI G517310 Contact Us For Availability
23
LINK-HORIZ-LOUVER WCI G513274 Contact Us For Availability
24
WCI G100821 WCI G100821 Contact Us For Availability
24
KNOB (1) WCI G511424-01 Contact Us For Availability
24A
WCI G110826 WCI G110826 Contact Us For Availability
25
SCREW WCI G516357 Contact Us For Availability
25
PANEL-DECOR. WCI G519432 Contact Us For Availability
26
WCI G513372 WCI G513372 Contact Us For Availability
28
SCREW WCI G120904 Contact Us For Availability
29
BRACE-SUPPORT WCI G149392-03 Contact Us For Availability
30
NUT WCI G513166 Contact Us For Availability
31
SCREW WCI G516984 Contact Us For Availability
32
SEAL - WINDOW WCI G145337-10 Contact Us For Availability
× ![]()
