Model Electrolux MH413A1QA ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER

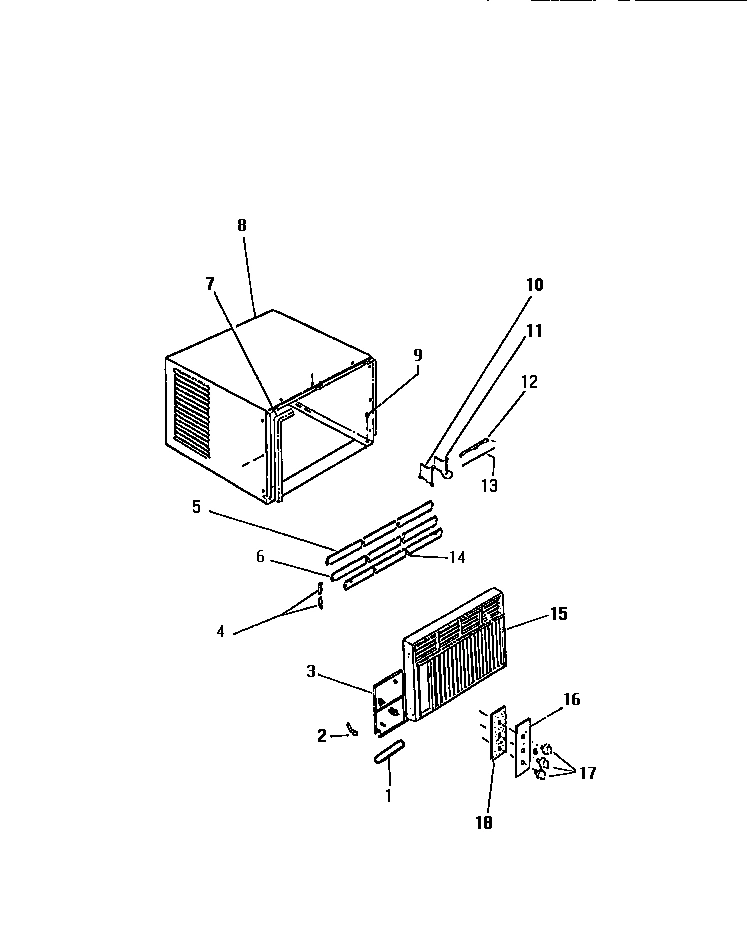

02 - CABINET, FRONT, WRAPPER

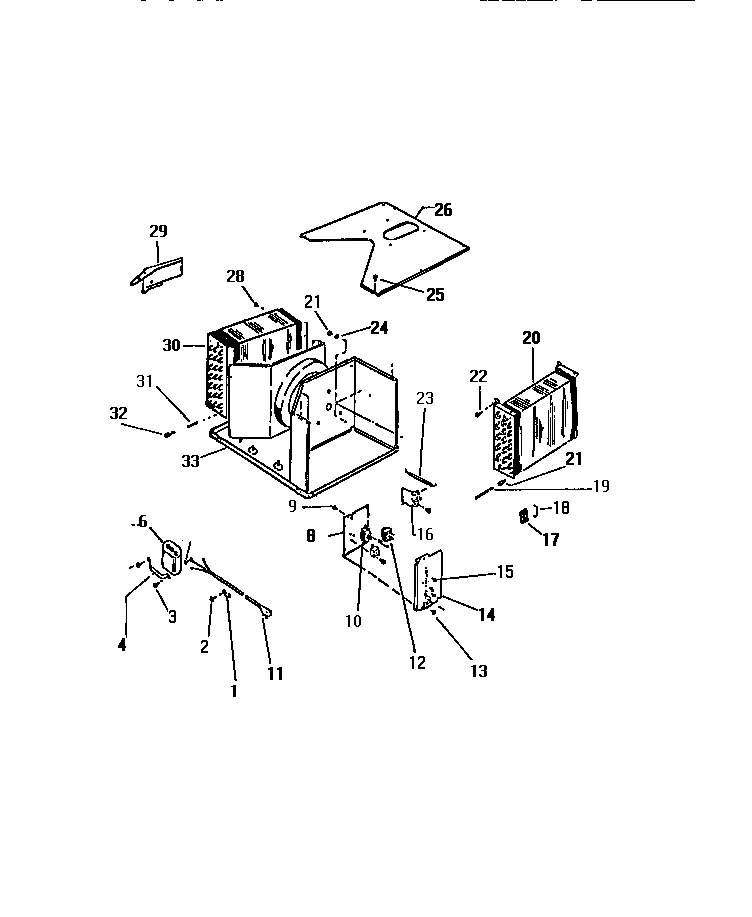

03 - CONTROLS

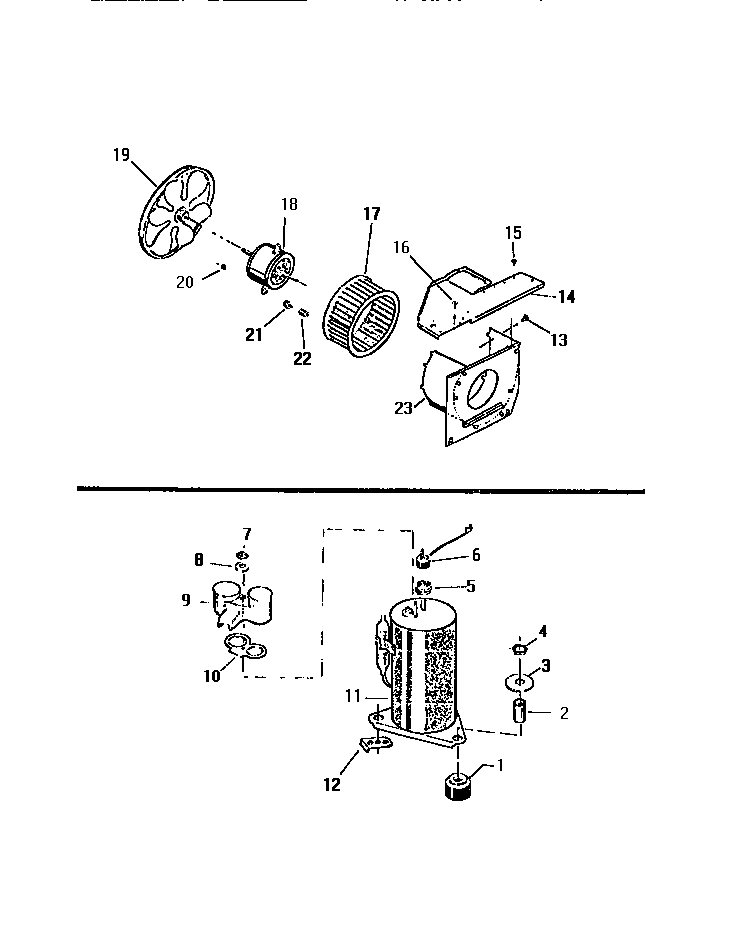

04 - AIR HANDLING PARTS, COMPRESSOR

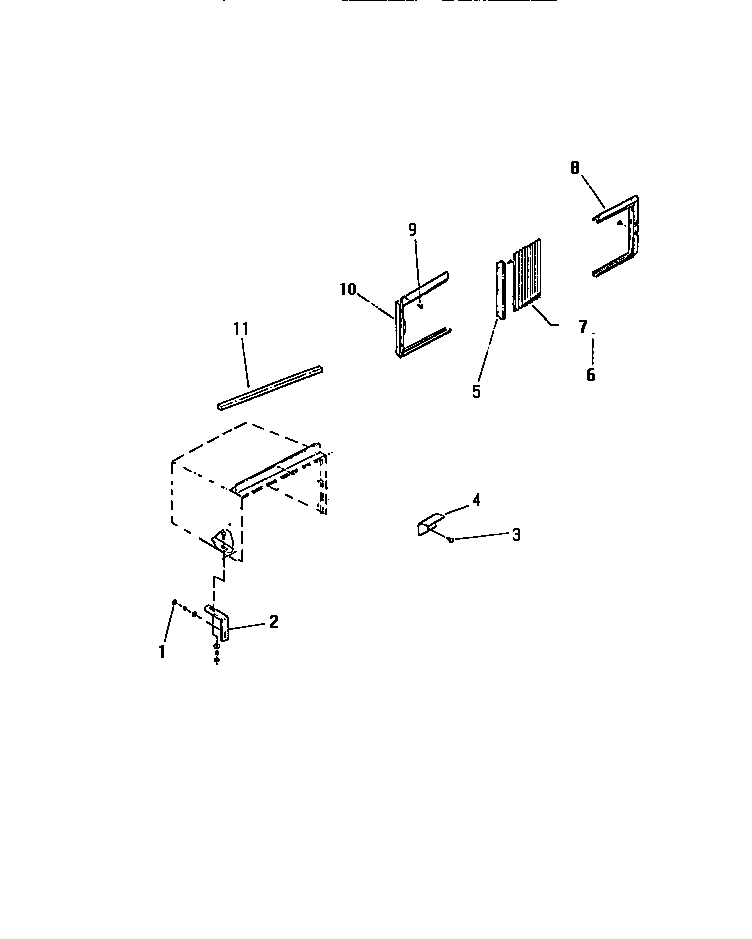

05 - WINDOW MOUNTING PARTS
Common parts from model Electrolux MH413A1QA ROOM AIR CONDITIONER
*29360
WCI G517982-53 WCI G517982-53 Contact Us For Availability
*29361
TIE-WIRE WCI G157176 Contact Us For Availability
*29362
KIT WINDOW WCI G507945 Contact Us For Availability
*29363
SEAL-CONT.PNL-TOP WCI G149308-28 Contact Us For Availability
*29364
WCI G518712 WCI G518712 Contact Us For Availability
*29365
WCI G518451-02 WCI G518451-02 Contact Us For Availability
*29366
WCI G518359 WCI G518359 Contact Us For Availability
*29367
INSTRUC.INSTAL. WCI G511171 Contact Us For Availability
*29368
OWNERS MANUAL WCI G518611 Contact Us For Availability
1
WCI G99731 WCI G99731 Contact Us For Availability
1
GROMMET ( 3 ) WCI G515922 Contact Us For Availability
1
NUT ( 4 ) WCI G513166 Contact Us For Availability
2
WCI G149106 WCI G149106 Contact Us For Availability
2
SCREW WCI G516355 Contact Us For Availability
2
WCI G58237 WCI G58237 Contact Us For Availability
2
BRKT-TRACK SUPPORT ( 2 ) WCI G501665 Contact Us For Availability
3
FILTER-AIR WCI G145332-39 Contact Us For Availability
3
SCREW WCI G516356 Contact Us For Availability
3
SPACER-COMPR. MTG. (3) WCI G508287 Contact Us For Availability
3
WCI G100824 WCI G100824 Contact Us For Availability
4
LINK-HORIZ-LOWER ( 2 ) WCI G508801 Contact Us For Availability
4
UPPER-HORIZ-LOUVER ( 2 ) WCI G508802 Contact Us For Availability
4
CLAMP-CAPACITOR WCI G501770 Contact Us For Availability
4
NUT-COMP.MTG ( 3 ) WCI G517928 Contact Us For Availability
4
BRKT-SILL SUPPORT-( 2 ) WCI G149183-02 Contact Us For Availability
5
LOUVER-HORIZ-UPPER WCI G508800-01 Contact Us For Availability
5
WCI G515921 WCI G515921 Contact Us For Availability
5
RETAINER PLASTIC PANEL ( 2 ) WCI G145324-05 Contact Us For Availability
6
LOUVER HORIZ. ( 3 ) WCI G505999-02 Contact Us For Availability
6
WCI G513068-34 WCI G513068-34 Contact Us For Availability
6
WCI G145296-70 WCI G145296-70 Contact Us For Availability
6
ANGLE -PNL RETAINER ( 2 ) WCI G145575 Contact Us For Availability
7
SEAL, BETWEEN UNIT AND SHELL (1) WCI G149188-01 Contact Us For Availability
7
WCI G515926 WCI G515926 Contact Us For Availability
7
PANEL-PLASTIC WINDOW WCI G145322-05 Contact Us For Availability
8
WCI G503032 WCI G503032 Contact Us For Availability
8
WCI G514860 WCI G514860 Contact Us For Availability
8
GASKEWT-COVER AND NUT WCI G515929 Contact Us For Availability
8
WCI G145321-05 WCI G145321-05 Contact Us For Availability
9
WCI G100821 WCI G100821 Contact Us For Availability
9
WCI G515925 WCI G515925 Contact Us For Availability
10
WCI G136381 WCI G136381 Contact Us For Availability
10
THERMOSTAT-CONTROL WCI G158995 Contact Us For Availability
10
WCI G525924 WCI G525924 Contact Us For Availability
10
WCI G145327-05 WCI G145327-05 Contact Us For Availability
11
WCI G136378 WCI G136378 Contact Us For Availability
11
WCI G506345-59 WCI G506345-59 Contact Us For Availability
11
COMPRESSOR WCI G518733-01 Contact Us For Availability
11
WCI C146337-10 WCI C146337-10 Contact Us For Availability
12
WCI G119621 WCI G119621 Contact Us For Availability
12
SWITCH WCI G513350 Contact Us For Availability
12
WCI G155754 WCI G155754 Contact Us For Availability
13
WCI G119993 WCI G119993 Contact Us For Availability
14
LOUVER-HORIZ LOWER WCI G506000-02 Contact Us For Availability
14
PANEL-CONTROL MTG WCI G502395 Contact Us For Availability
14
BOTTOM DUCT WCI G153211 Contact Us For Availability
15
PANEL-FRONT WCI G516339-01 Contact Us For Availability
15
SCREW ( 6 ) WCI G517310 Contact Us For Availability
15
WCI G516352 WCI G516352 Contact Us For Availability
16
WCI G517262 WCI G517262 Contact Us For Availability
16
WCI G506434 WCI G506434 Contact Us For Availability
17
WCI G110826 WCI G110826 Contact Us For Availability
17
TUBE-SPACER WCI G136662 Contact Us For Availability
17
WCI G145273-07 WCI G145273-07 Contact Us For Availability
18
WCI G510816 WCI G510816 Contact Us For Availability
18
WCI G136663 WCI G136663 Contact Us For Availability
18
MOT0R-FAN WCI G517058 Contact Us For Availability
19
TUBECAP. ( 2 ) WCI G144044-18 Contact Us For Availability
19
FAN-SLINGER RING WCI G142654 Contact Us For Availability
20
EVAPORATOR WCI G516370 Contact Us For Availability
20
NUT MOTOR MTG ( 3 ) WCI G517211 Contact Us For Availability
21
CONECTOR WCI G158416-01 Contact Us For Availability
21
WCI G119108 WCI G119108 Contact Us For Availability
22
SLEEVE ( 3 ) WCI G503538 Contact Us For Availability
23
WCI G506431 WCI G506431 Contact Us For Availability
24
WCI G99148 WCI G99148 Contact Us For Availability
25
SCREW ( 13 ) WCI G500621 Contact Us For Availability
26
WCI G518448 WCI G518448 Contact Us For Availability
29
WCI G160146 WCI G160146 Contact Us For Availability
30
WCI G501627 WCI G501627 Contact Us For Availability
31
STAINER WCI G84701 Contact Us For Availability
32
WCI G511989-02 WCI G511989-02 Contact Us For Availability
33
WCI G518919 WCI G518919 Contact Us For Availability
× ![]()
