Model Whirlpool MH3184XPB6 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

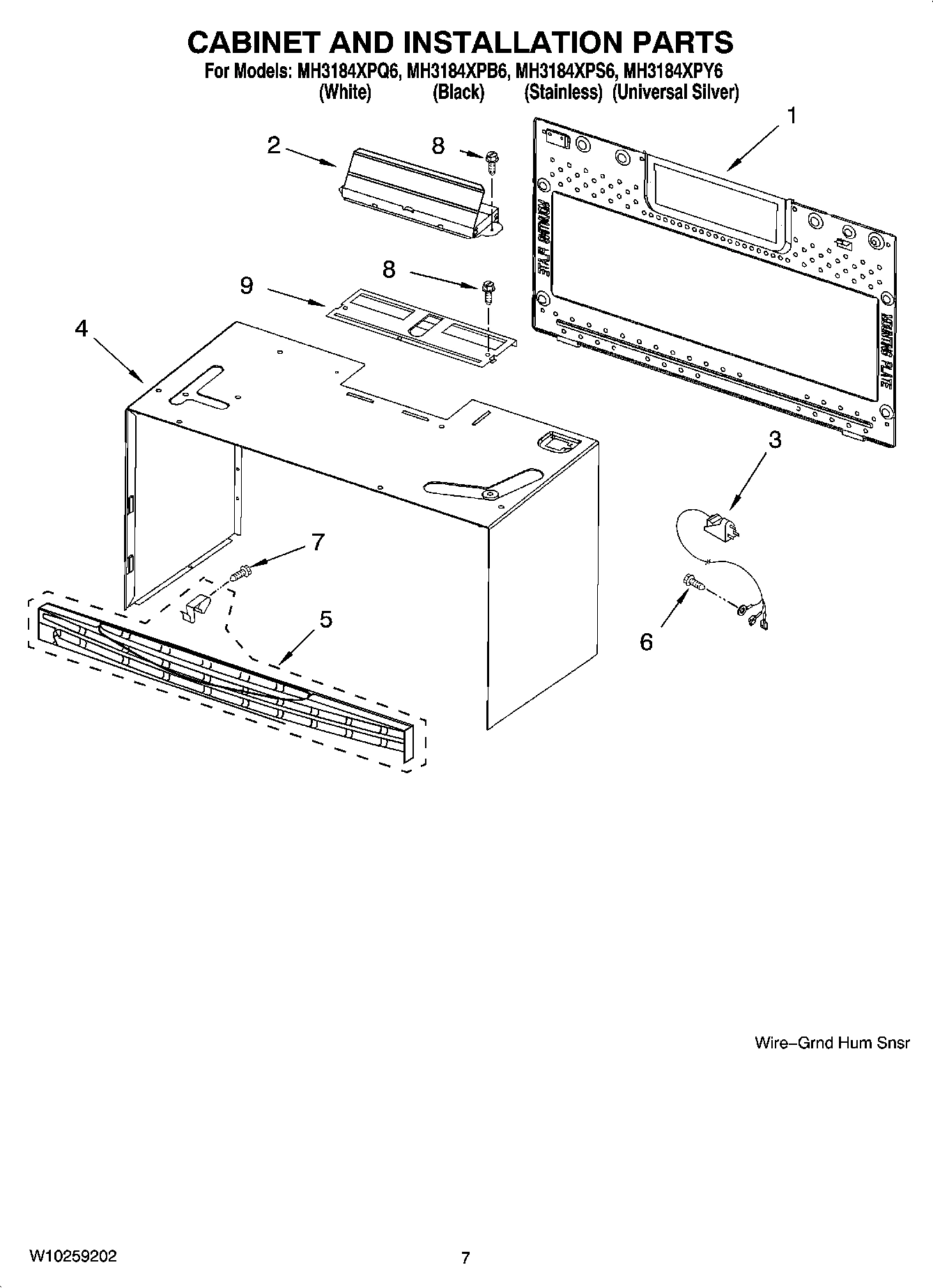

06 - CABINET AND INSTALLATION PARTS

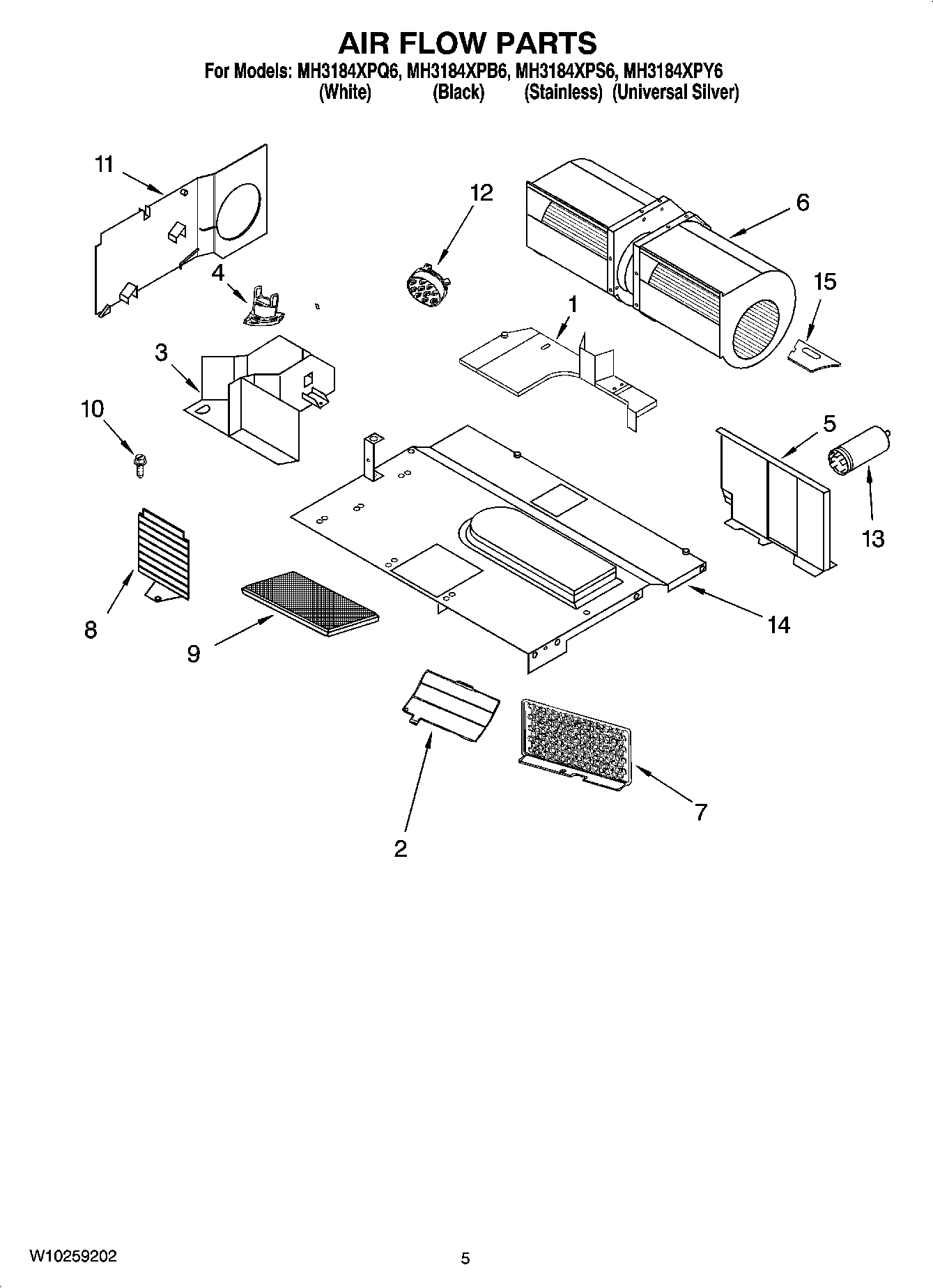

04 - AIR FLOW PARTS

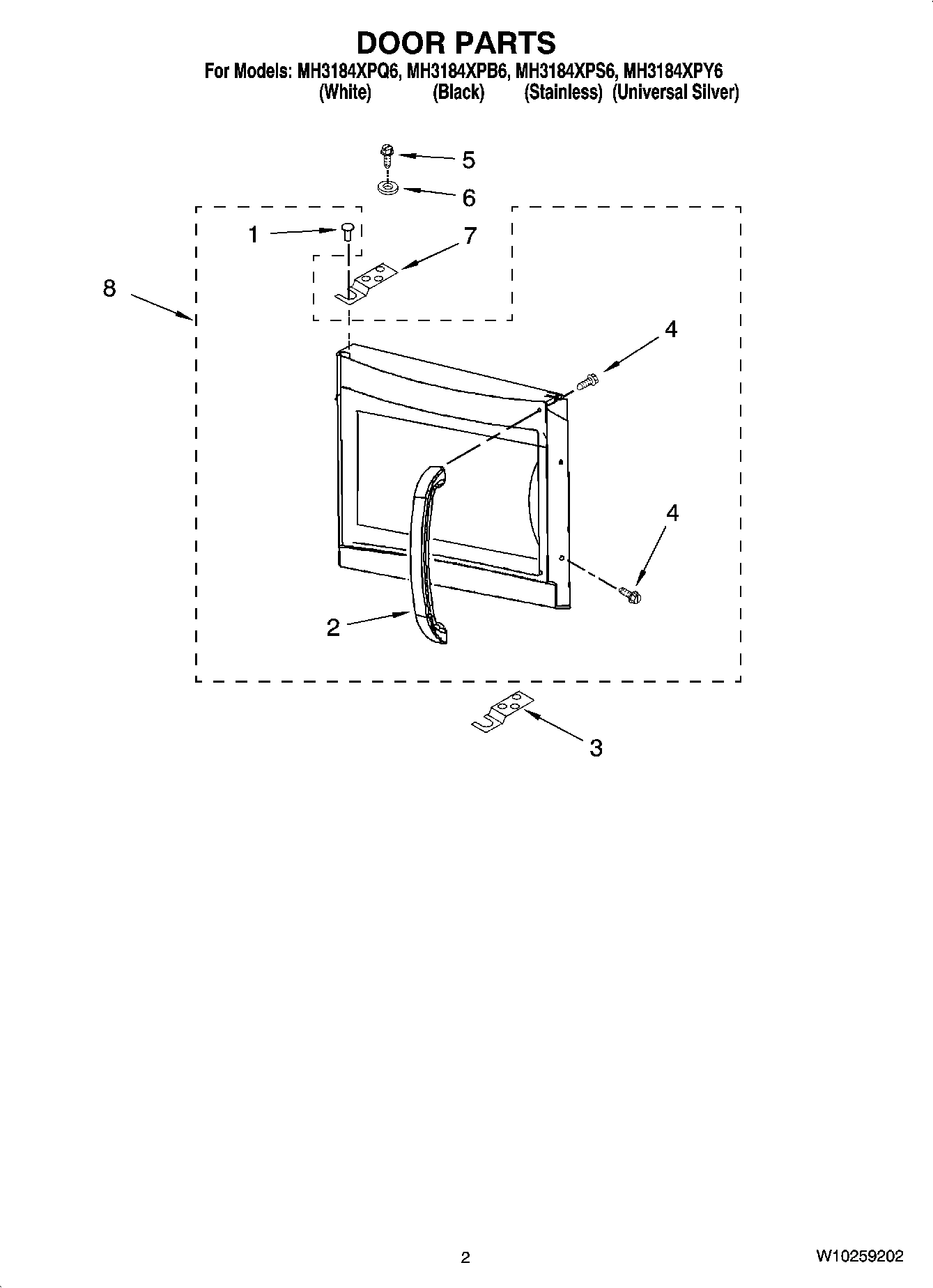

02 - DOOR PARTS

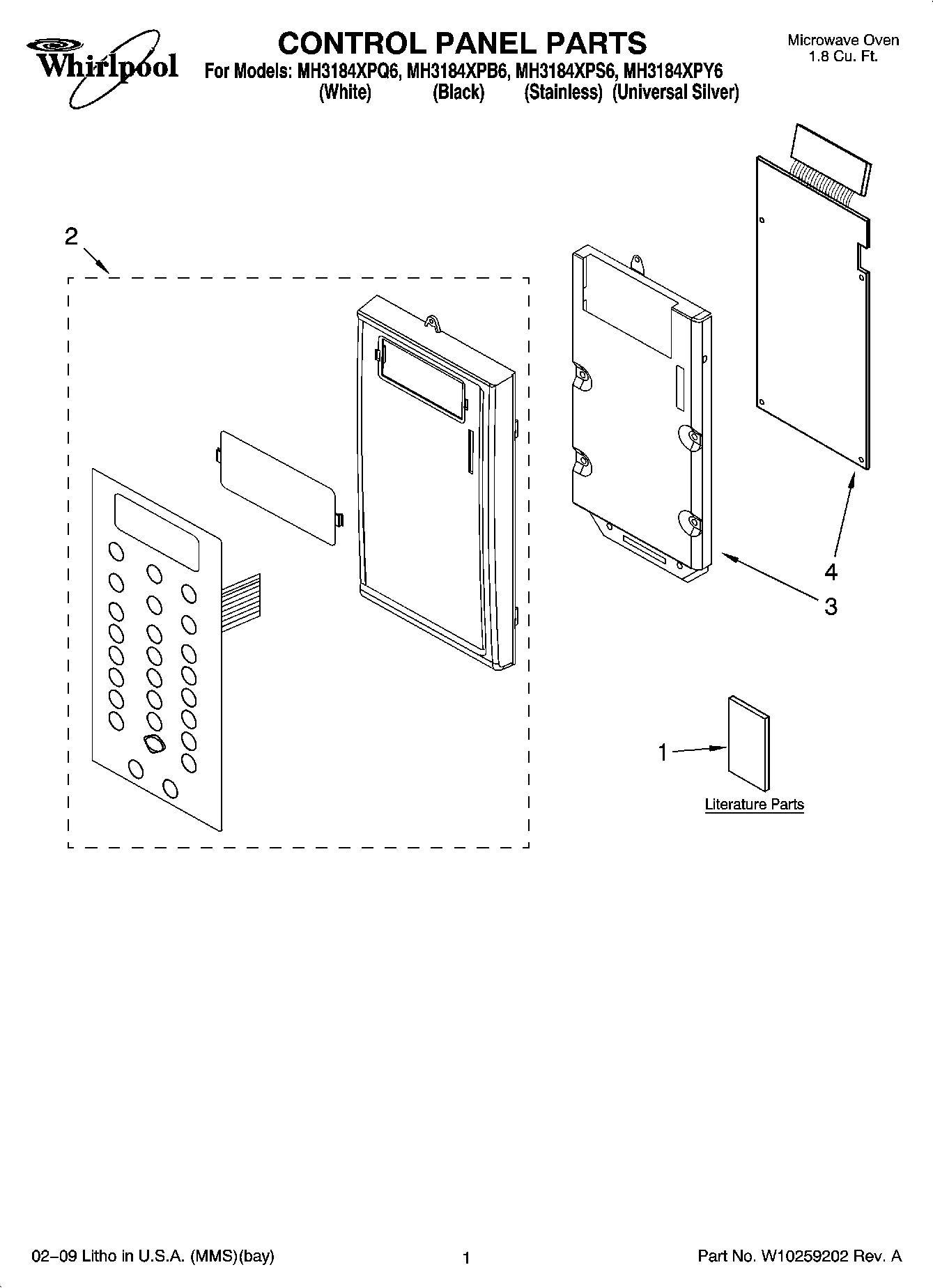

01 - CONTROL PANEL PARTS

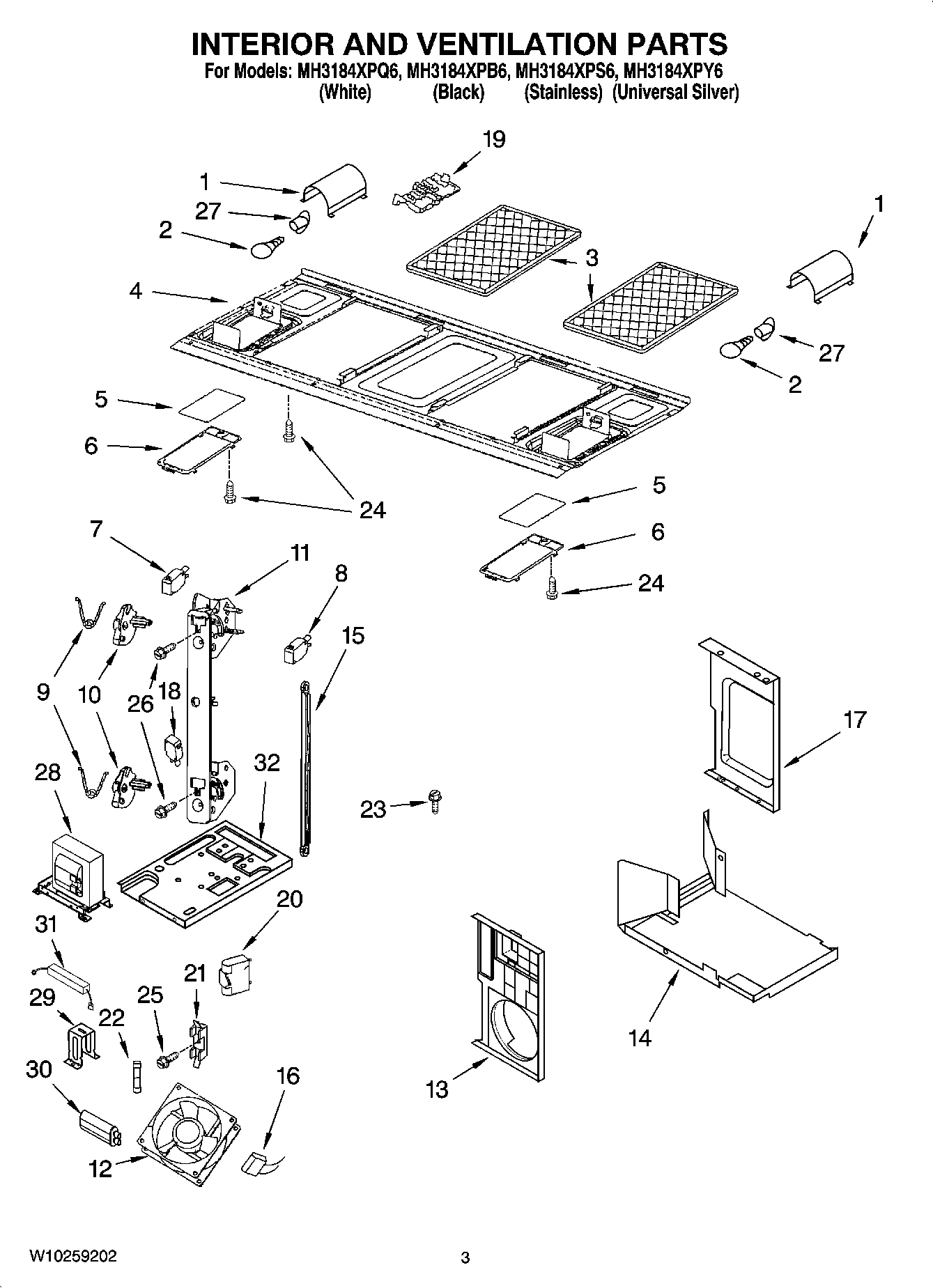

03 - INTERIOR AND VENTILATION PARTS

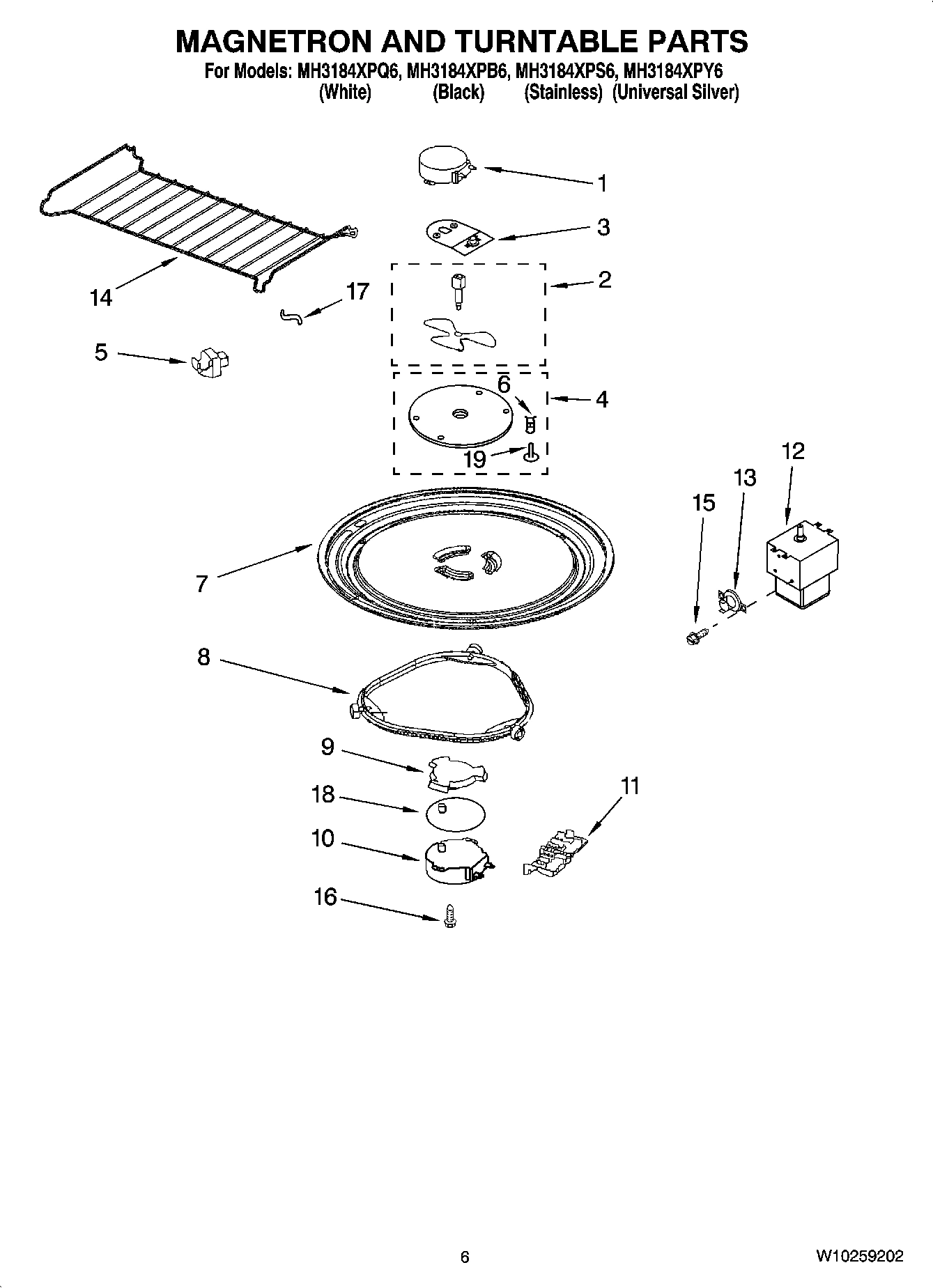

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool MH3184XPB6 Microwave Oven 1.8 Cu. Ft.
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
Cook Guide Label WPL 8205810 Contact Us For Availability
1
Tech Sheet WPL W10132021 Contact Us For Availability
1
U & C Guide WPL W10170440 Contact Us For Availability
1
Reflector, Lamp WPL 8205096 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
2
Handle, Door (Stainless) WPL 8206176 Contact Us For Availability
2
Handle, Door (White) WPL W10113945 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10251618 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10259206 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10259207 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
3
Lower Hinge WPL W10256901 Contact Us For Availability
3
Bracket, Control WPL W10114256 Contact Us For Availability
3
Thermostat/Bracket WPL 8206454 Contact Us For Availability
4
Thermostat WPL 8183703 Contact Us For Availability
4
Microcomputer WPL W10233386 Contact Us For Availability
4
Plate, Bottom WPL W10244597 Contact Us For Availability
4
Cover, Inlet Includes Nails and Bushings WPL 8184476 Contact Us For Availability
5
Air Guide, Back WPL 8205354 Contact Us For Availability
5
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Motor, Fan Assy WPL W10117942 Contact Us For Availability
6
Holder, Glass WPL 8184889 Contact Us For Availability
6
Bushings (4 of each) WPL 8204659 Contact Us For Availability
7
Turntable WPL 4393799 Contact Us For Availability
7
Screw WPL 8169475 Contact Us For Availability
7
Shield WPL 8205355 Contact Us For Availability
7
Upper Hinge WPL W10256902 Contact Us For Availability
8
SHIELD WPL 8206460 Contact Us For Availability
8
Complete Door (White) WPL 8205370 Contact Us For Availability
8
Complete Door (Stainless) WPL 8205371 Contact Us For Availability
8
Complete Door (Black) WPL 8205372 Contact Us For Availability
8
Complete Door (Universal Silver) WPL 8206194 Contact Us For Availability
9
Spring, Interlock WPL 8169438 Contact Us For Availability
10
Screw WPL 8169474 Contact Us For Availability
10
Plate, Cam WPL 8205211 Contact Us For Availability
11
Support, Interlock WPL 8185189 Contact Us For Availability
11
Air Guide (Right) WPL 8205352 Contact Us For Availability
11
Air Guide (Left) WPL 8205367 Contact Us For Availability
11
Cover, Terminal WPL W10253653 Contact Us For Availability
12
Humidity, Sensor WPL 8206446 Contact Us For Availability
12
Fan, DC 12 Volt WPL W10239608 Contact Us For Availability
13
Filter WPL 8206624 Contact Us For Availability
13
Housing, Fan WPL 8205364 Contact Us For Availability
13
Thermostat WPL 8184951 Contact Us For Availability
14
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
14
Diffuser, Housing WPL 8205357 Contact Us For Availability
14
Rack WPL 8205549 Contact Us For Availability
15
Rod-Locking Link WPL 8185190 Contact Us For Availability
15
Socket, Motor Wire WPL W10139750 Contact Us For Availability
15
Screw WPL 4393838 Contact Us For Availability
17
Plate, Side WPL 8206455 Contact Us For Availability
19
Cover, Terminal WPL 8184202 Contact Us For Availability
19
Nail, Plastic WPL 8204660 Contact Us For Availability
20
Motor, Capacitor WPL 8184091 Contact Us For Availability
21
Holder, Fuse WPL W10117908 Contact Us For Availability
23
SCREW WPL 8184199 Contact Us For Availability
25
SCREW WPL 8184200 Contact Us For Availability
28
Transformer, H.V. WPL 8206456 Contact Us For Availability
29
Bracket, Capacitor WPL 8206457 Contact Us For Availability
30
Capacitor, H.V. WPL W10258597 Contact Us For Availability
32
Chassis WPL 8206567 Contact Us For Availability
× ![]()
