Model Electrolux MH312F2EA ROOM AIR CONDITIONER – Common Parts & Diagrams

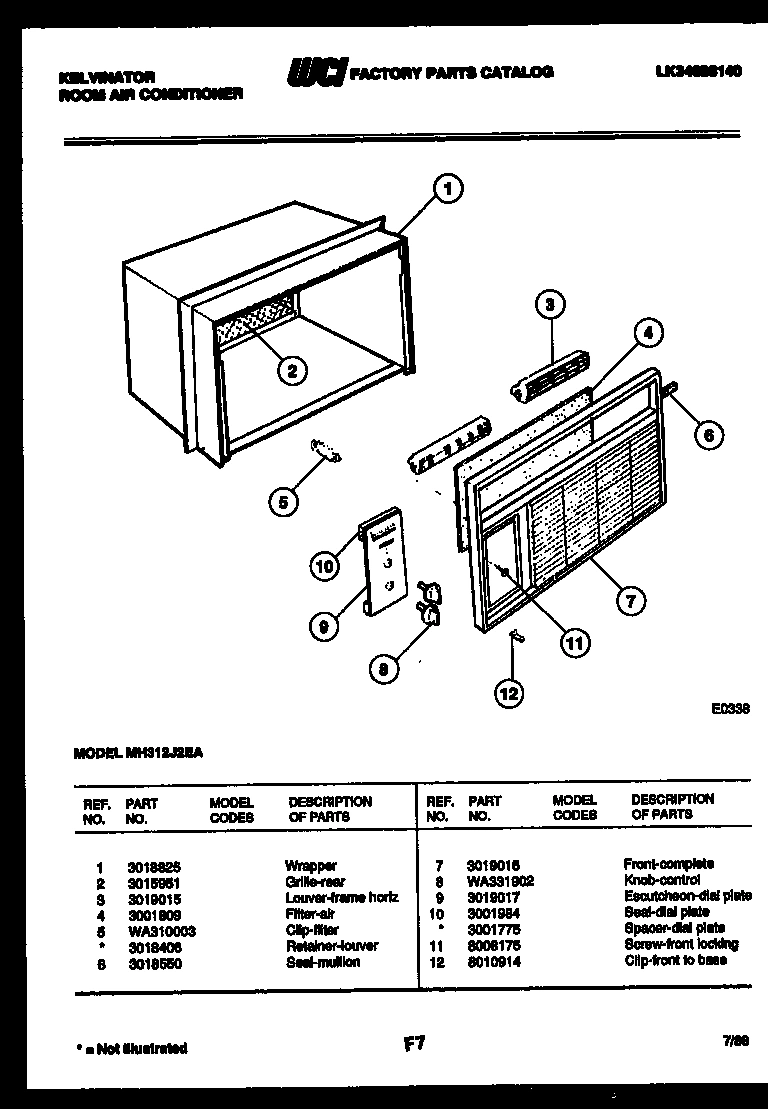

02 - CABINET PARTS

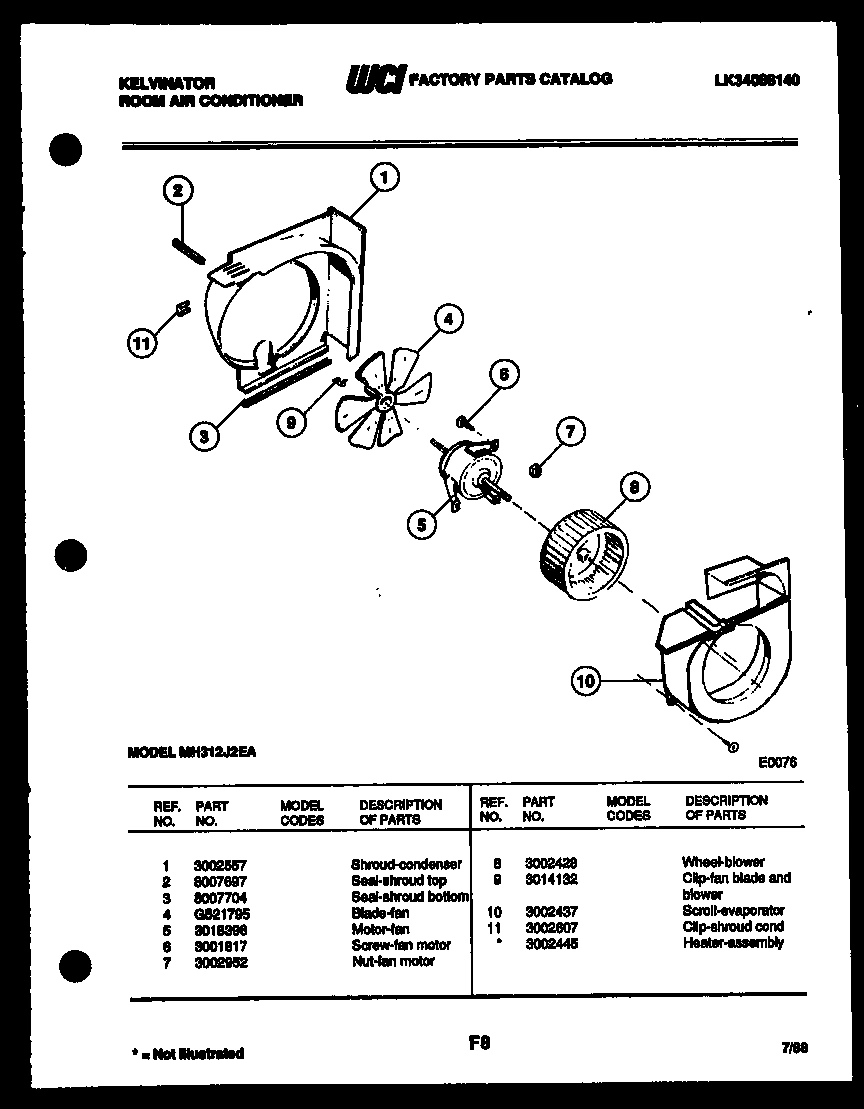

03 - AIR HANDLING PARTS

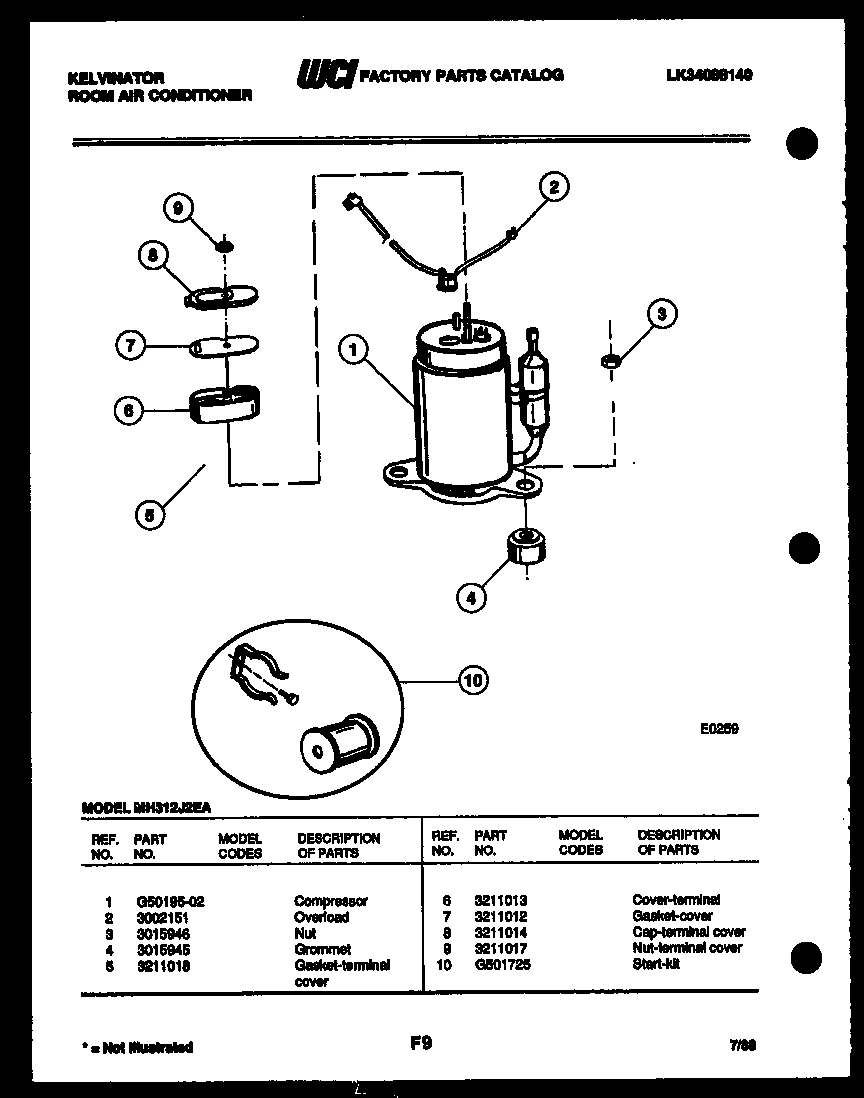

04 - COMPRESSOR

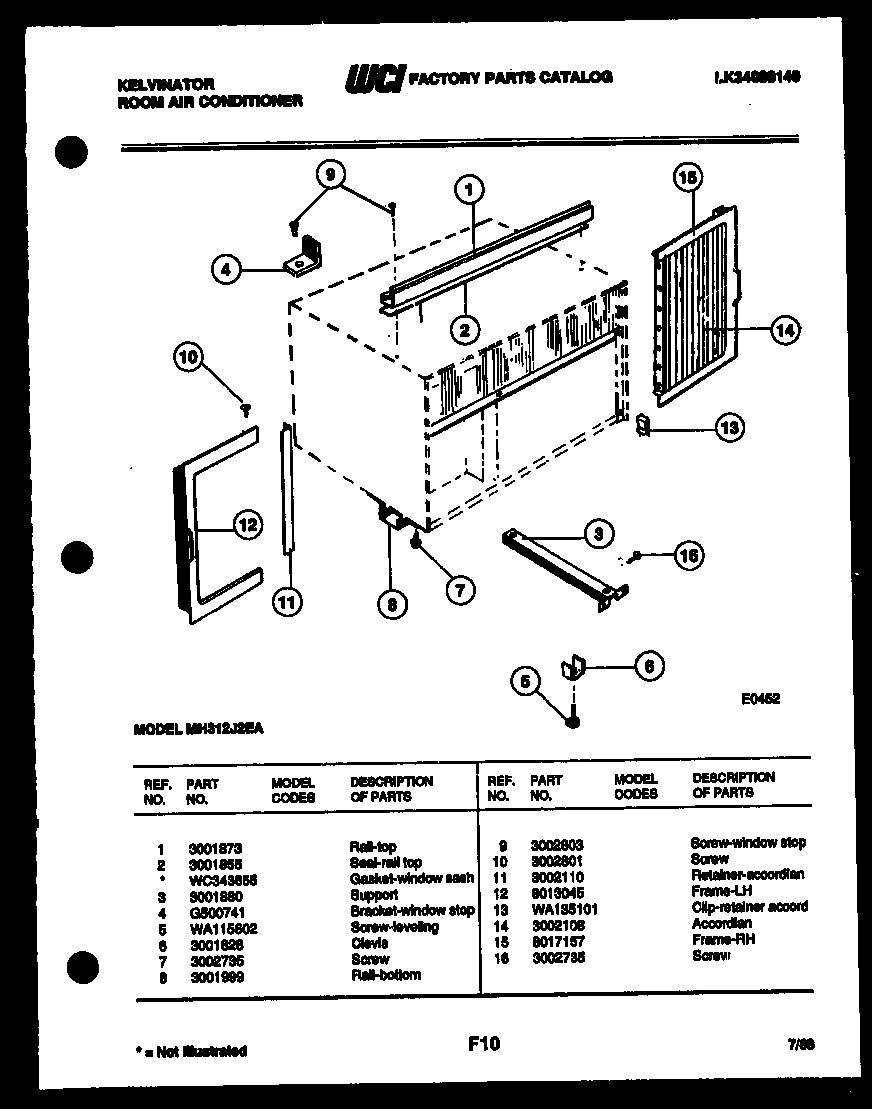

05 - CABINET AND INSTALLATION PARTS

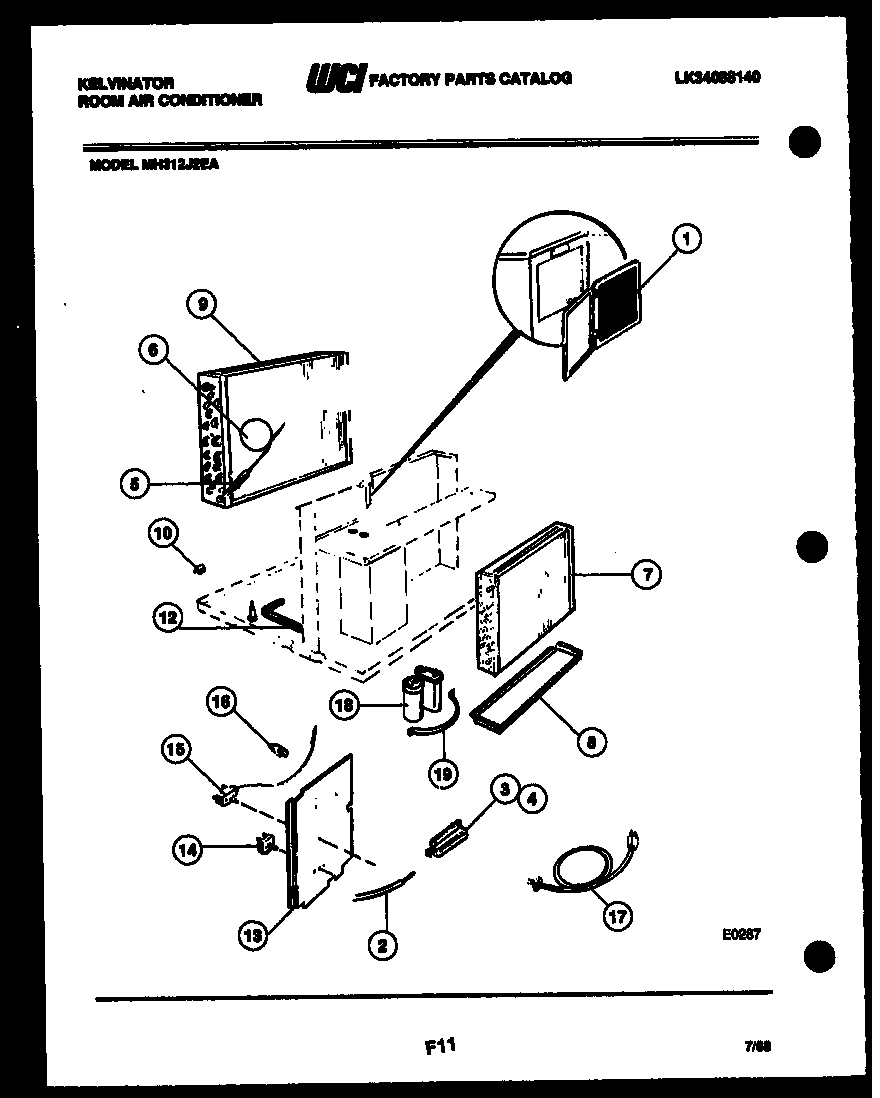

06 - ELECTRICAL PARTS
Common parts from model Electrolux MH312F2EA ROOM AIR CONDITIONER
*71567
WCI 3002445 WCI 3002445 Contact Us For Availability
*71596
CLIP-DRAIN TUBE WCI 3001780 Contact Us For Availability
1
WCI 3018825 WCI 3018825 Contact Us For Availability
1
WCI 3002557 WCI 3002557 Contact Us For Availability
1
WCI G50195-02 WCI G50195-02 Contact Us For Availability
1
WCI 3001873 WCI 3001873 Contact Us For Availability
1
WCI 3012455 WCI 3012455 Contact Us For Availability
2
WCI 3015951 WCI 3015951 Contact Us For Availability
2
SEAL-SHROUD TOP WCI 8007697 Contact Us For Availability
2
WCI 3002151 WCI 3002151 Contact Us For Availability
2
SEAL-RAIL TOP WCI 3001855 Contact Us For Availability
2
CABLE-LENT DOOR WCI 3002132 Contact Us For Availability
3
WCI 3019015 WCI 3019015 Contact Us For Availability
3
SEAL-SHROUD BOTTOM WCI 8007704 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 3001880 WCI 3001880 Contact Us For Availability
3
WCI 3001848 WCI 3001848 Contact Us For Availability
4
WCI 3001809 WCI 3001809 Contact Us For Availability
4
BLADE-FAN WCI G521795 Contact Us For Availability
4
GROMMET WCI 3015945 Contact Us For Availability
4
BRACKET-WINDOW STOP WCI G500741 Contact Us For Availability
4
WCI 3002127 WCI 3002127 Contact Us For Availability
5
WCI WA310003 WCI WA310003 Contact Us For Availability
5
WCI 3018396 WCI 3018396 Contact Us For Availability
5
GASKET-TERMINAL COVER WCI 3211018 Contact Us For Availability
5
SCREW-LEVELING WCI WA115602 Contact Us For Availability
5A
RETAINER-LOUVER (NON-ILLUSTRATED) WCI 3018406 Contact Us For Availability
6
WCI 3018550 WCI 3018550 Contact Us For Availability
6
WCI 3001817 WCI 3001817 Contact Us For Availability
6
WCI 3211013 WCI 3211013 Contact Us For Availability
6
CLEVIS WCI 3001828 Contact Us For Availability
6
CAPILLARY TUBE (CUT TO 35``) WCI 3001744 Contact Us For Availability
7
WCI 3019016 WCI 3019016 Contact Us For Availability
7
NUT-FAN MOTOR WCI 3002952 Contact Us For Availability
7
GASKET-COVER WCI 3211012 Contact Us For Availability
7
WCI 3002273 WCI 3002273 Contact Us For Availability
8
WCI WA331902 WCI WA331902 Contact Us For Availability
8
WCI 3002428 WCI 3002428 Contact Us For Availability
8
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
8
RAIL-BOTTOM WCI 3001999 Contact Us For Availability
8
WCI 3002332 WCI 3002332 Contact Us For Availability
9
WCI 3019017 WCI 3019017 Contact Us For Availability
9
CLIP-FAN BLADE AND BLOWER WCI 3014132 Contact Us For Availability
9
NUT - TERMINAL COVER WCI 3211017 Contact Us For Availability
9
SCREW-WINDOW STOP WCI 3002803 Contact Us For Availability
9
WCI 3002242 WCI 3002242 Contact Us For Availability
10
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
10
WCI 3002437 WCI 3002437 Contact Us For Availability
10
START-KIT WCI G501725 Contact Us For Availability
10
WCI 3002801 WCI 3002801 Contact Us For Availability
10
CLIP WCI G521772 Contact Us For Availability
10A
SPACER-DIAL PLATE, ( NON-ILLUSTRATED) WCI 3001775 Contact Us For Availability
11
SCREW-FRONT LOCKING WCI 8008175 Contact Us For Availability
11
CLIP-SHROUD COND WCI 3002607 Contact Us For Availability
11
WCI 3002110 WCI 3002110 Contact Us For Availability
12
CLIP-FRONT TO BASE WCI 8010914 Contact Us For Availability
12
WCI 8013045 WCI 8013045 Contact Us For Availability
12
WCI 3001761 WCI 3001761 Contact Us For Availability
13
CLIP-RETAINER ACCORD WCI WA135101 Contact Us For Availability
13
WCI 3002449 WCI 3002449 Contact Us For Availability
14
WCI 3002108 WCI 3002108 Contact Us For Availability
14
WCI 3017806 WCI 3017806 Contact Us For Availability
15
FRAME-RH WCI 8017157 Contact Us For Availability
15
WCI 3002175 WCI 3002175 Contact Us For Availability
16
WCI 3002735 WCI 3002735 Contact Us For Availability
16
WCI 3002177 WCI 3002177 Contact Us For Availability
17
SERVICE-CORD WCI 3002370 Contact Us For Availability
18
CAPACITOR-COMPR WCI 3001902 Contact Us For Availability
18A
CAPACITOR-FAN WCI 3012034 Contact Us For Availability
19
WCI 3001771 WCI 3001771 Contact Us For Availability
× ![]()
