Model Electrolux MH311F1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

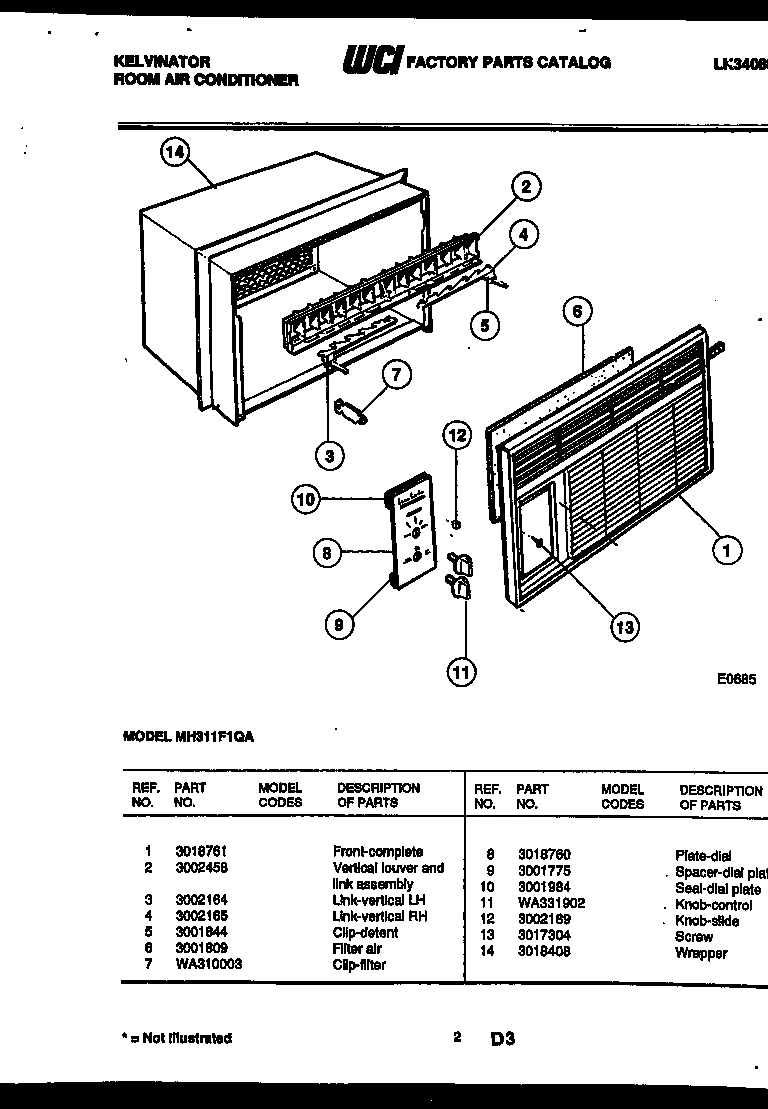

02 - CABINET PARTS

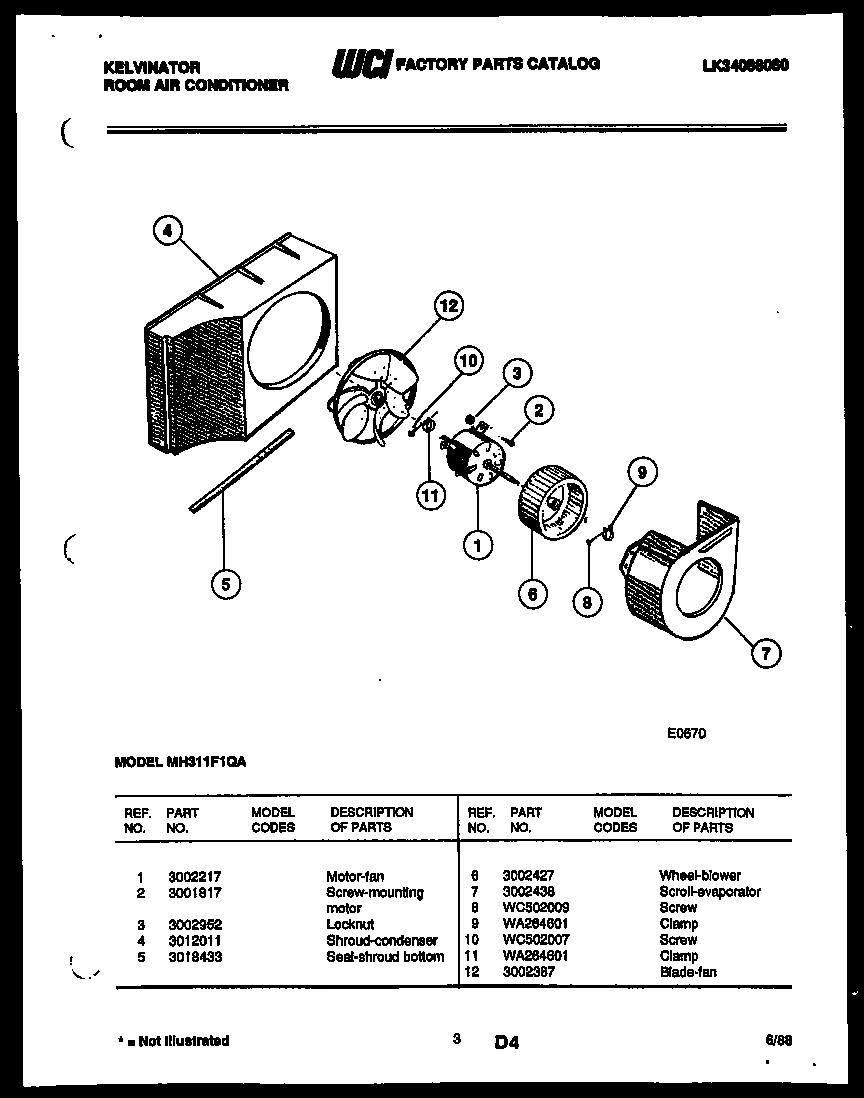

03 - AIR HANDLING PARTS

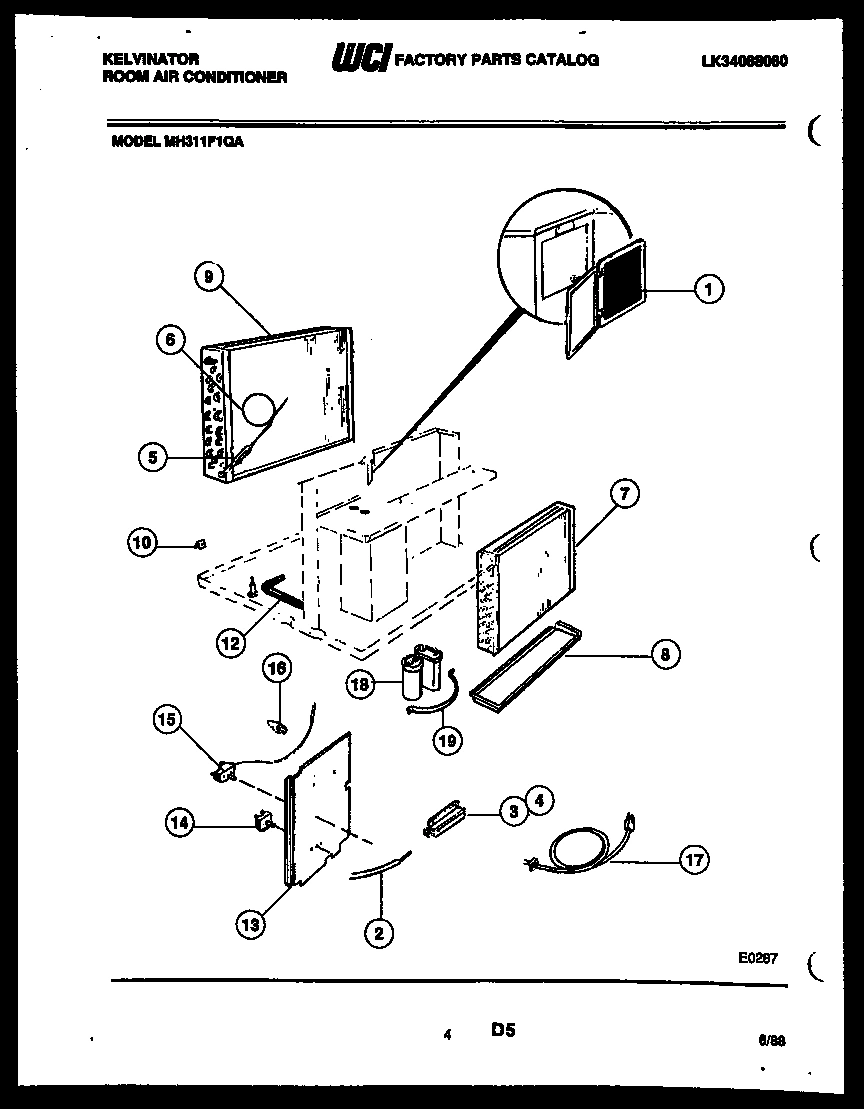

04 - UNIT PARTS

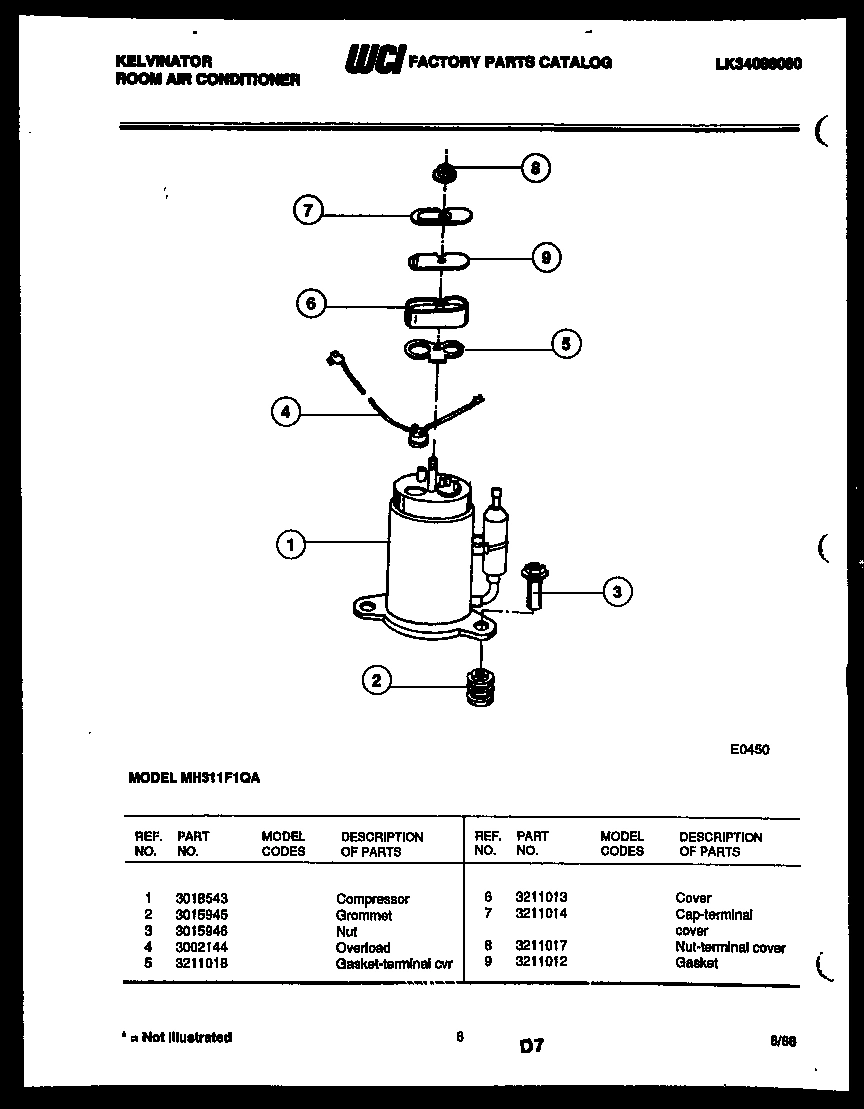

05 - COMPRESSOR

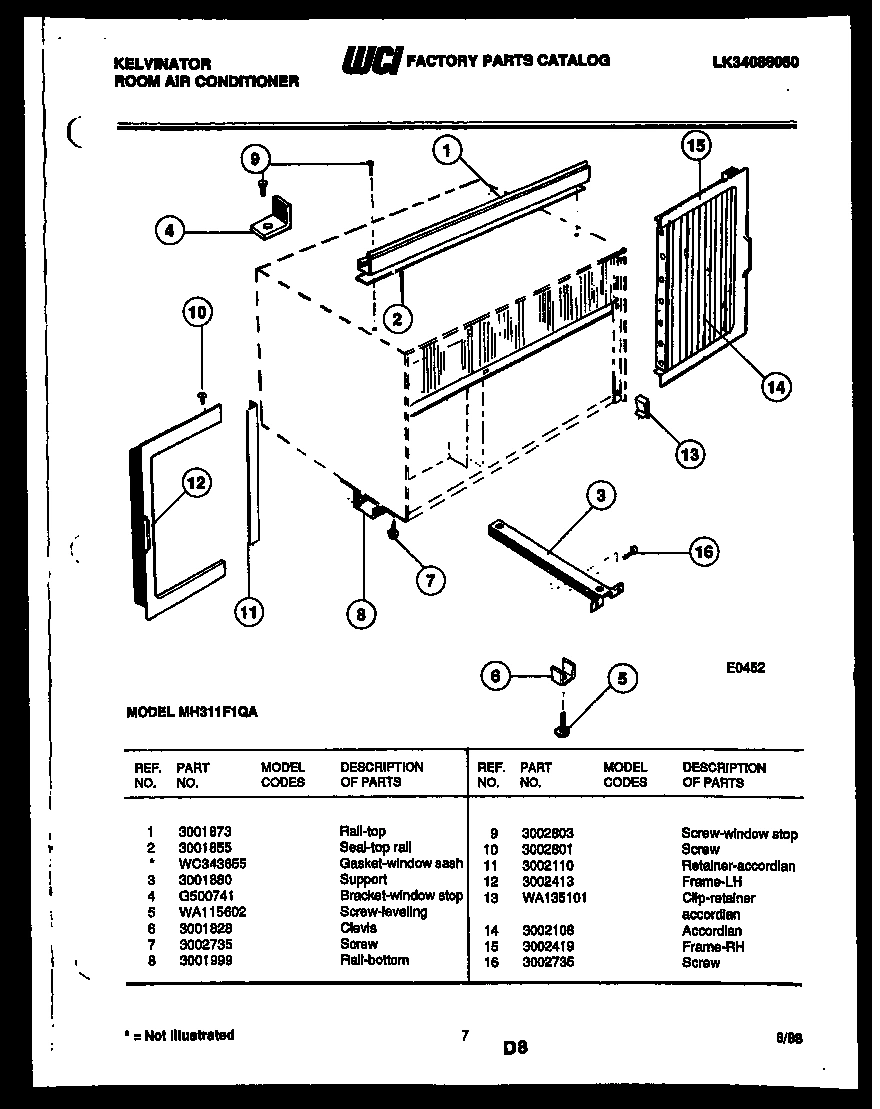

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH311F1QA ROOM AIR CONDITIONER
1
WCI 3018761 WCI 3018761 Contact Us For Availability
1
WCI 3002217 WCI 3002217 Contact Us For Availability
1
WCI 3012455 WCI 3012455 Contact Us For Availability
1
WCI 3018543 WCI 3018543 Contact Us For Availability
1
WCI 3001873 WCI 3001873 Contact Us For Availability
2
VERTICAL LOUVER AND LINK ASSEMBLY WCI 3002458 Contact Us For Availability
2
SCREW-MOUNTING MOTOR WCI 3001817 Contact Us For Availability
2
WCI 3002132 WCI 3002132 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
3
LINK-VERTICAL LH WCI 3002164 Contact Us For Availability
3
LOCKNUT WCI 3002952 Contact Us For Availability
3
WCI 3001848 WCI 3001848 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 3001880 WCI 3001880 Contact Us For Availability
4
LINK-VERTICAL RH WCI 3002165 Contact Us For Availability
4
SHROUD-CONDENSER WCI 3012011 Contact Us For Availability
4
WCI 3002127 WCI 3002127 Contact Us For Availability
4
OVERLOAD WCI 3002144 Contact Us For Availability
4
BRACKET-WINDOW STOP WCI G500741 Contact Us For Availability
5
CLIP-DETENT WCI 3001844 Contact Us For Availability
5
SEAL-SHROUD BOTTOM WCI 3018433 Contact Us For Availability
5
GASKET - TERMINAL CVR WCI 3211018 Contact Us For Availability
5
SCREW-LEVELING WCI WA115602 Contact Us For Availability
6
WCI 3001809 WCI 3001809 Contact Us For Availability
6
WCI 3002427 WCI 3002427 Contact Us For Availability
6
CAPILLARY TUBE-CUT TO 35`` WCI WA112109 Contact Us For Availability
6
COVER WCI 3211013 Contact Us For Availability
6
CLEVIS WCI 3001828 Contact Us For Availability
7
SCROLL-EVAPORATOR WCI 3002438 Contact Us For Availability
7
WCI 3002273 WCI 3002273 Contact Us For Availability
7
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
8
WCI 3018760 WCI 3018760 Contact Us For Availability
8
WCI 3002332 WCI 3002332 Contact Us For Availability
8
NUT - TERMINAL COVER WCI 3211017 Contact Us For Availability
8
RAIL-BOTTOM WCI 3001999 Contact Us For Availability
9
WCI 3001775 WCI 3001775 Contact Us For Availability
9
WCI 3002247 WCI 3002247 Contact Us For Availability
9
GASKET WCI 3211012 Contact Us For Availability
9
SCREW-WINDOW STOP WCI 3002803 Contact Us For Availability
10
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
10
WCI WC502007 WCI WC502007 Contact Us For Availability
10
WCI G321772 WCI G321772 Contact Us For Availability
10
WCI 3002801 WCI 3002801 Contact Us For Availability
10A
GROMMET-BASE DRAIN (NON-ILLUSTRATED) WCI 3014757 Contact Us For Availability
11
WCI WA331902 WCI WA331902 Contact Us For Availability
11
WCI WA264601 WCI WA264601 Contact Us For Availability
11
WCI 3002110 WCI 3002110 Contact Us For Availability
12
WCI 3002189 WCI 3002189 Contact Us For Availability
12
BLADE-FAN WCI 3002387 Contact Us For Availability
12
TUBE-DRAIN WCI 3001759 Contact Us For Availability
12
WCI 3002413 WCI 3002413 Contact Us For Availability
13
SCREW WCI 3017304 Contact Us For Availability
13
WCI 3002449 WCI 3002449 Contact Us For Availability
13
CLIP-RETAINER ACCORDIAN WCI WA135101 Contact Us For Availability
14
WRAPPER WCI 3018408 Contact Us For Availability
14
WCI 3001870 WCI 3001870 Contact Us For Availability
14
WCI 3002108 WCI 3002108 Contact Us For Availability
15
WCI 3002079 WCI 3002079 Contact Us For Availability
15
WCI 3002419 WCI 3002419 Contact Us For Availability
15A
SLEEVE-CONTROL BULB (NON-ILLUSTRATED) WCI 3002600 Contact Us For Availability
16
CLIP-SENSOR BULB WCI WA310003 Contact Us For Availability
16
WCI 3002735 WCI 3002735 Contact Us For Availability
17
SERVICE-CORD WCI G521779 Contact Us For Availability
18
CAPACITOR-DUAL WCI 3012047 Contact Us For Availability
19
WCI 3001770 WCI 3001770 Contact Us For Availability
× ![]()
