Model Electrolux MH309G1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

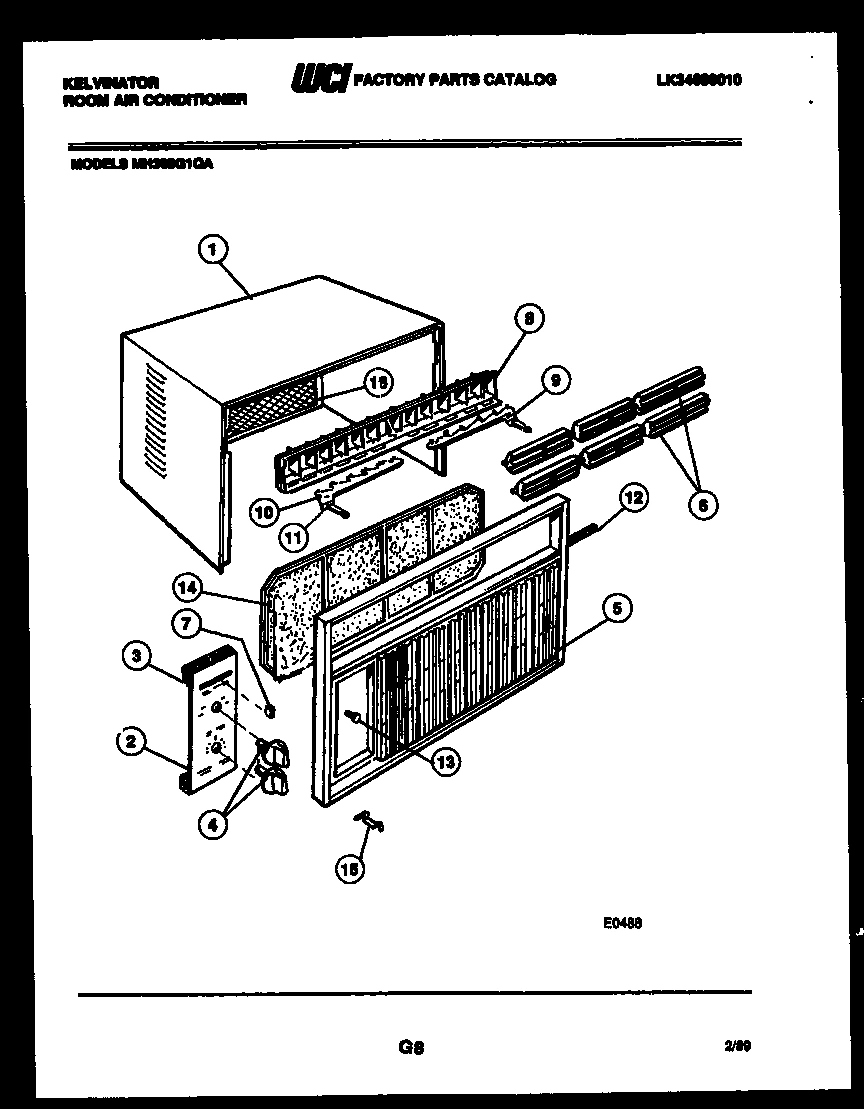

02 - CABINET PARTS

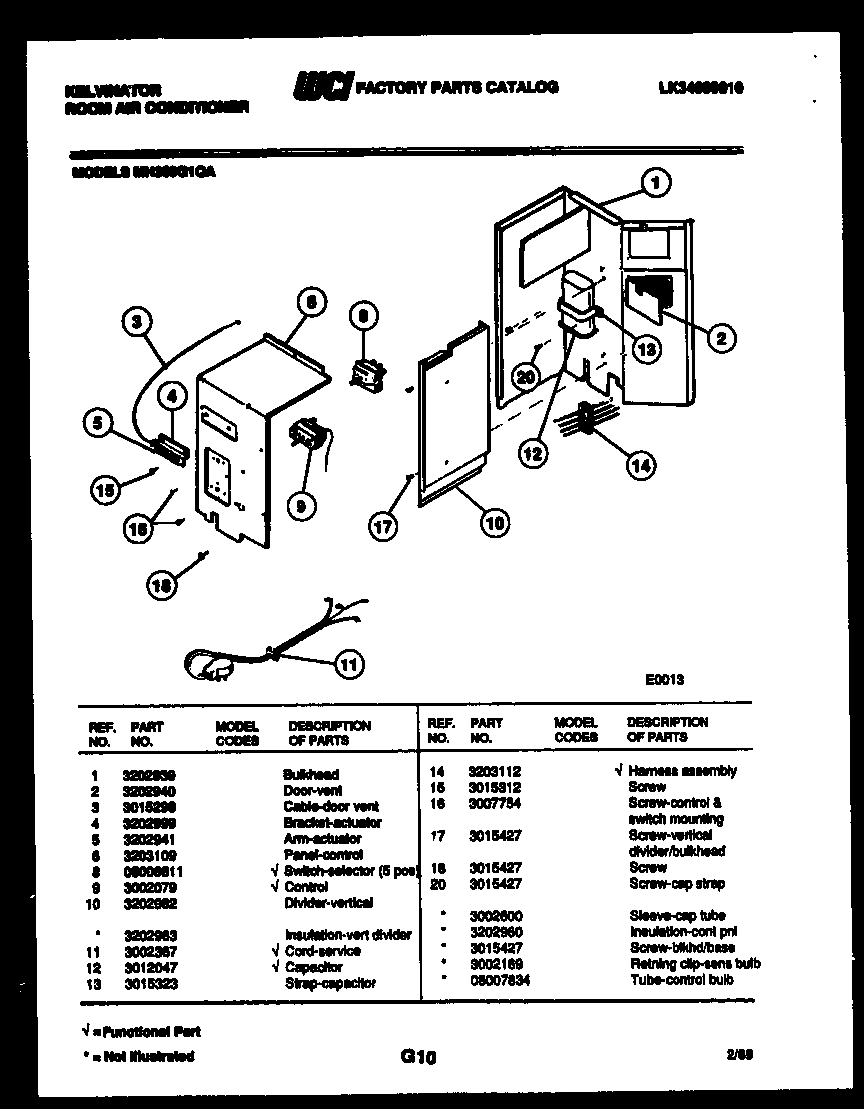

03 - ELECTRICAL PARTS

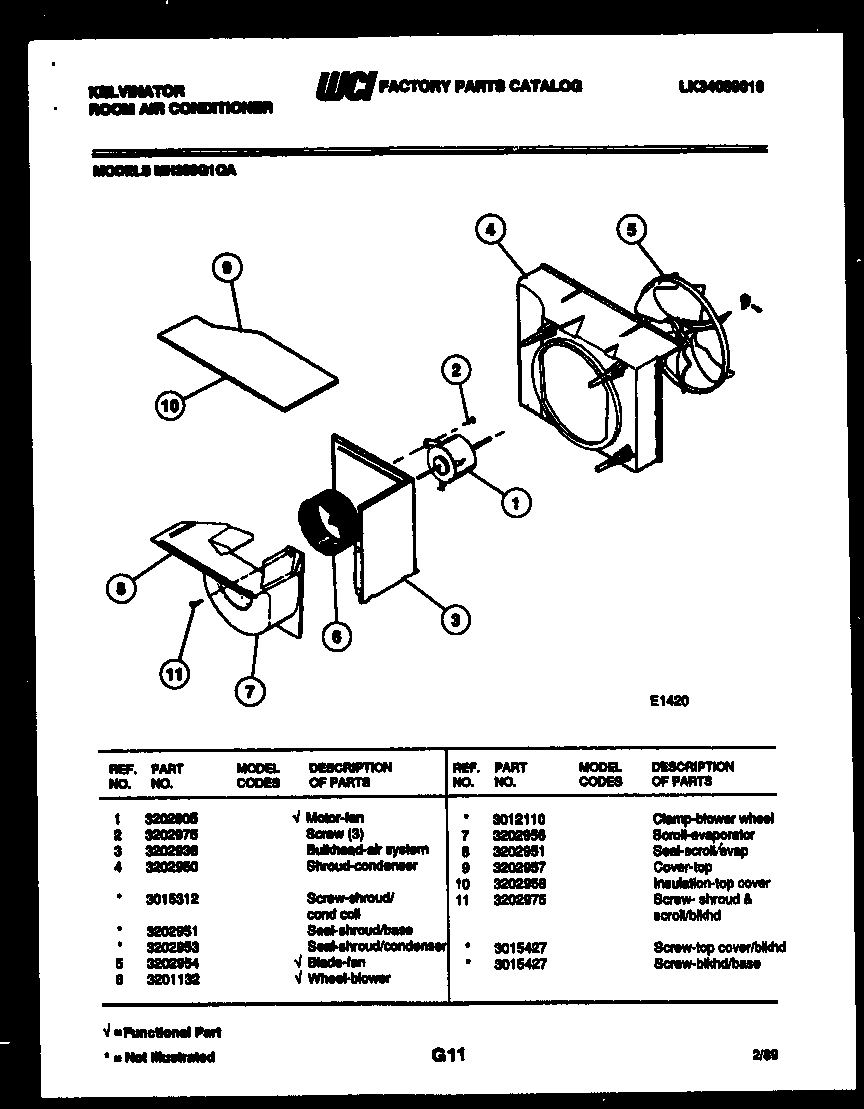

04 - AIR HANDLING PARTS

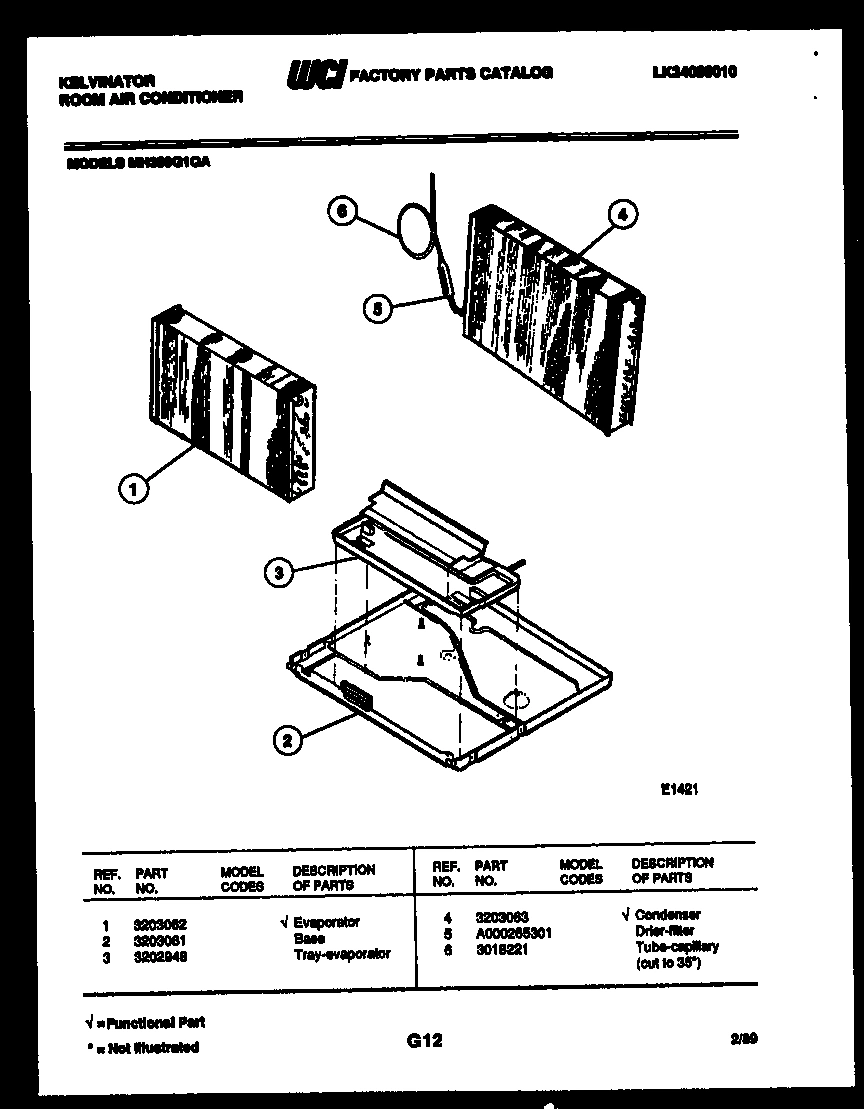

05 - UNIT PARTS

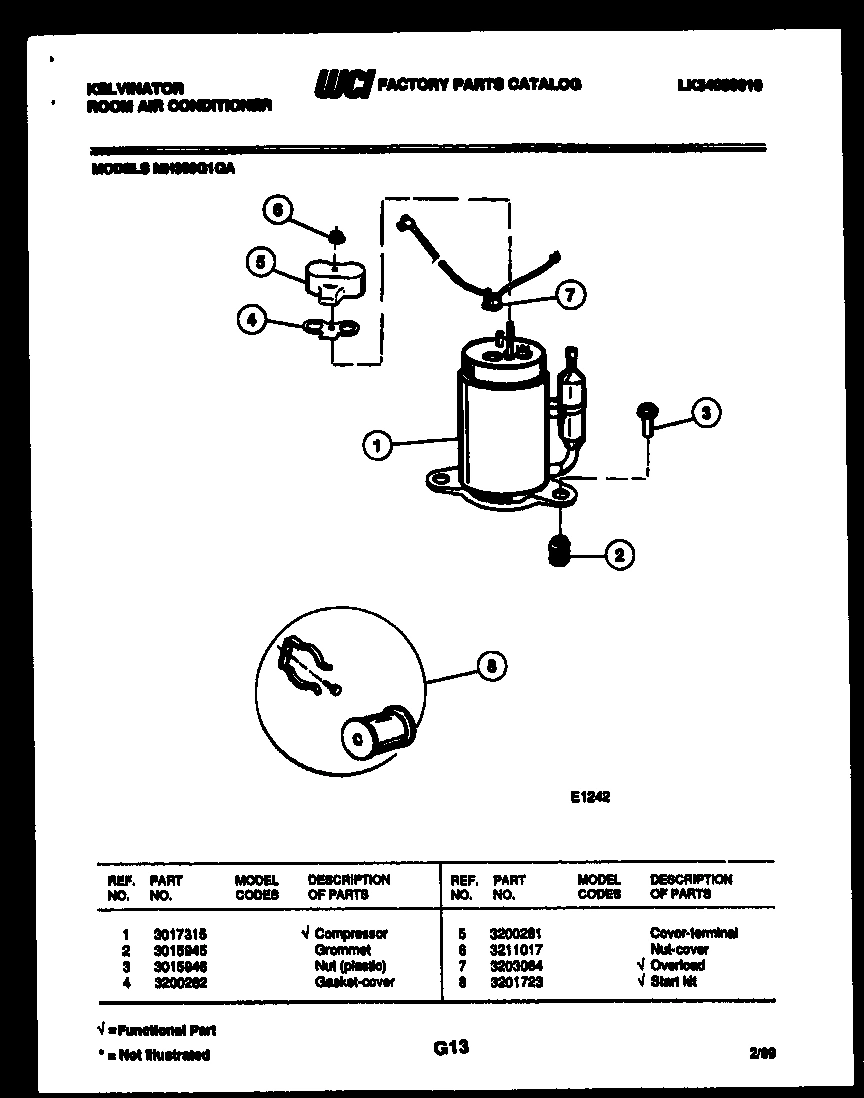

06 - COMPRESSOR

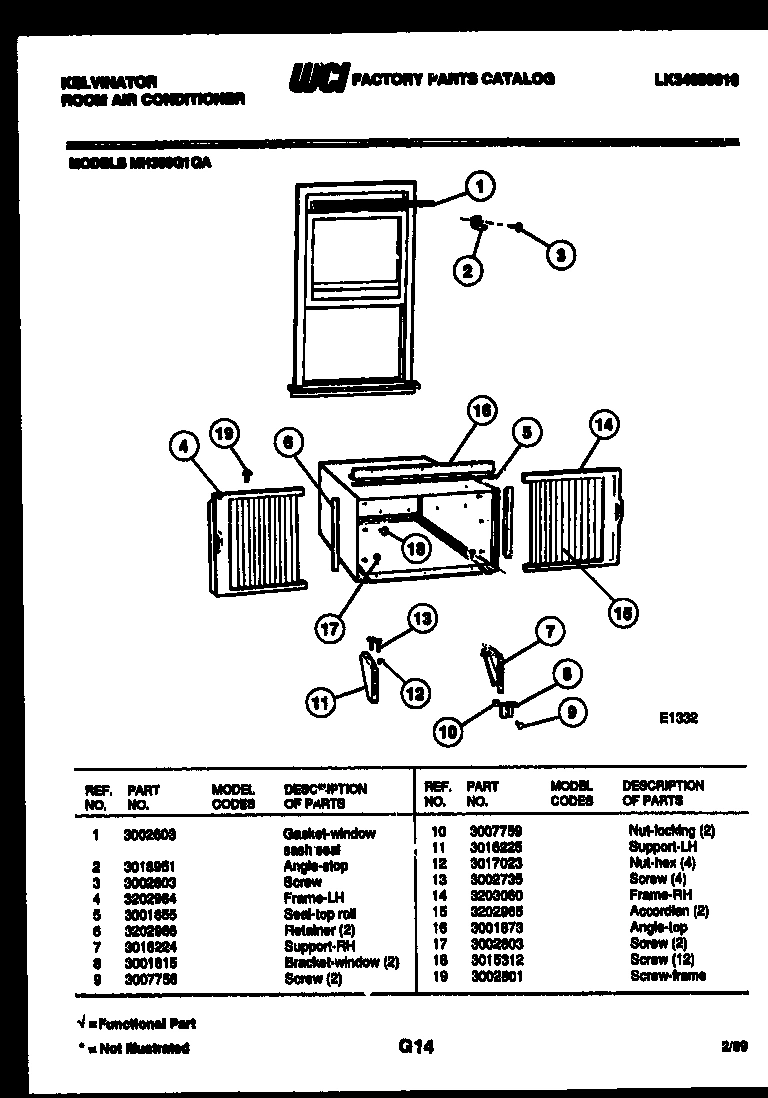

07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH309G1QA ROOM AIR CONDITIONER
*92412
NUT-FRONT RETNING SCREW WCI 08010928 Contact Us For Availability
*92416
SPACER-DIAL PLATE (2) WCI 3001775 Contact Us For Availability
*92416
WCI 3018407 WCI 3018407 Contact Us For Availability
*92458
WCI 3002600 WCI 3002600 Contact Us For Availability
*92462
INSULATION-CONT PNL WCI 3202960 Contact Us For Availability
*92465
RETNING CLIP-SENS BULB WCI 3002169 Contact Us For Availability
*92466
TUBE-CONTROL BULB WCI 08007834 Contact Us For Availability
1
WCI 3203257 WCI 3203257 Contact Us For Availability
1
WCI 3202939 WCI 3202939 Contact Us For Availability
1
WCI 3202805 WCI 3202805 Contact Us For Availability
1
WCI 3203062 WCI 3203062 Contact Us For Availability
1
WCI 3017315 WCI 3017315 Contact Us For Availability
2
DIAL PLATE WCI 3018760 Contact Us For Availability
2
WCI 3202940 WCI 3202940 Contact Us For Availability
2
WCI 3203061 WCI 3203061 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
3
WCI 3015298 WCI 3015298 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
WCI 3202948 WCI 3202948 Contact Us For Availability
3
NUT (PLASTIC) WCI 3015946 Contact Us For Availability
4
KNOB WCI A000331902 Contact Us For Availability
4
WCI 3202999 WCI 3202999 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 3203063 WCI 3203063 Contact Us For Availability
4
GASKET-COVER WCI 3200282 Contact Us For Availability
4
WCI 3202964 WCI 3202964 Contact Us For Availability
4C
SEAL-SHROUD CONDENSER (NON-ILLUSTRATED) WCI 3202953 Contact Us For Availability
5
WCI 3203264 WCI 3203264 Contact Us For Availability
5
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
5
WCI 3202954 WCI 3202954 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
6
LOUVER-HORIZONTAL WCI 3200343 Contact Us For Availability
6
WCI 3203109 WCI 3203109 Contact Us For Availability
6
WHEEL-BLOWER WCI 3201132 Contact Us For Availability
6
WCI 3018221 WCI 3018221 Contact Us For Availability
6
WCI 3211017 WCI 3211017 Contact Us For Availability
6
RETAINER (2) WCI 3202966 Contact Us For Availability
6A
WCI 3017319 WCI 3017319 Contact Us For Availability
6A
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
7
WCI 3002189 WCI 3002189 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 3203064 WCI 3203064 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
VERT. LOUVER & LINK ASSY WCI 3002458 Contact Us For Availability
8
SWITCH-SELECTOR (5 POS) WCI 08006811 Contact Us For Availability
8
SEAL-SCROLL/EVAP WCI 3202951 Contact Us For Availability
8
WCI 3201723 WCI 3201723 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
LINK-VERT LOUVER RH WCI 3002164 Contact Us For Availability
9
WCI 3002079 WCI 3002079 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
LINK- VERT LOUVER LH WCI 3002165 Contact Us For Availability
10
WCI 3202962 WCI 3202962 Contact Us For Availability
10
WCI 3202958 WCI 3202958 Contact Us For Availability
10
NUT-LOCKING (2) WCI 3007759 Contact Us For Availability
10A
INSULATION-VERT DIVIDER (NON-ILLUSTRATED) WCI 3202963 Contact Us For Availability
11
WCI 3001844 WCI 3001844 Contact Us For Availability
11
WCI 3002367 WCI 3002367 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 3018413 WCI 3018413 Contact Us For Availability
12
WCI 3012047 WCI 3012047 Contact Us For Availability
13
SCREW-FRONT LOCKING WCI 3017304 Contact Us For Availability
13
WCI 3015323 WCI 3015323 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
WCI 3001809 WCI 3001809 Contact Us For Availability
14
HARNESS ASSEMBLY WCI 3203112 Contact Us For Availability
14
WCI 3203060 WCI 3203060 Contact Us For Availability
14A
CLIP-FILTER (NON-ILLUSTRATED) WCI 3002170 Contact Us For Availability
15
CLIP-FRONT RETAINING WCI 3200446 Contact Us For Availability
15
ACCORDIAN (2) WCI 3202965 Contact Us For Availability
16
WCI 3203120 WCI 3203120 Contact Us For Availability
16
SCREW-CONTROL & SWITCH MOUNTING WCI 3007754 Contact Us For Availability
16
ANGLE-TOP WCI 3001873 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
19
SCREW-FRAME WCI 3002801 Contact Us For Availability
× ![]()
