Model Electrolux MH309F1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

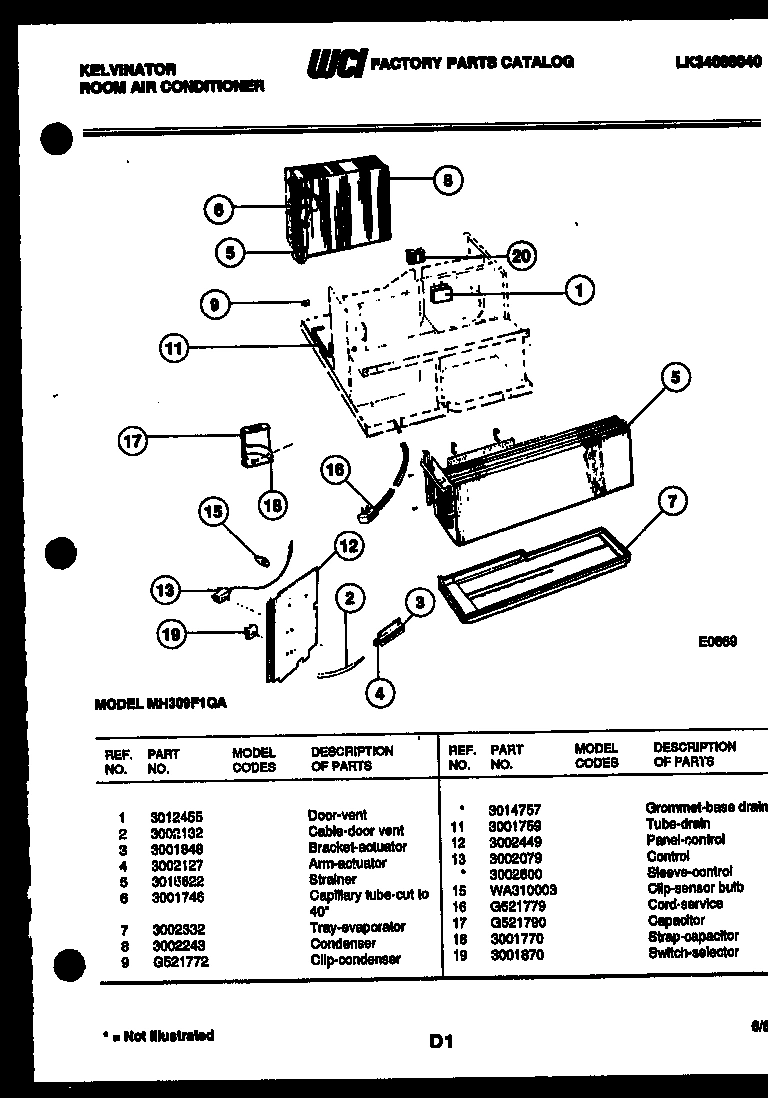

02 - CABINET PARTS
03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR

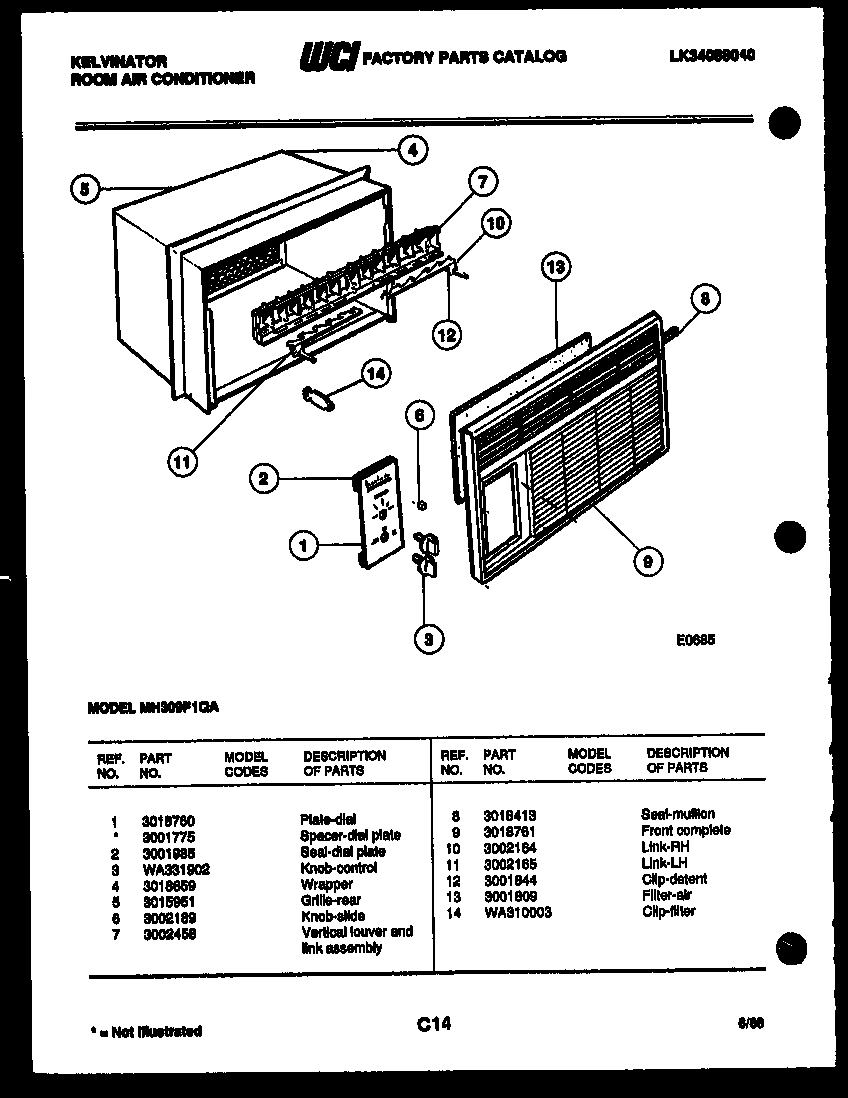

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH309F1QA ROOM AIR CONDITIONER
1
WCI 3018760 WCI 3018760 Contact Us For Availability
1
WCI 3012455 WCI 3012455 Contact Us For Availability
1
WCI 3002217 WCI 3002217 Contact Us For Availability
1
WCI 3018658 WCI 3018658 Contact Us For Availability
1
STOP-WINDOW WCI G500741 Contact Us For Availability
1A
SPACER-DIAL PLATE, ( NON-ILLUSTRATED) WCI 3001775 Contact Us For Availability
2
WCI 3001985 WCI 3001985 Contact Us For Availability
2
CABLE-DOOR VENT WCI 3002132 Contact Us For Availability
2
SCREW-FAN MOTOR MOUNTING WCI 3001817 Contact Us For Availability
2
BUSHING WCI G521815 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
WCI WA331902 WCI WA331902 Contact Us For Availability
3
WCI 3001848 WCI 3001848 Contact Us For Availability
3
SHROUD-CONDENSER WCI 3012012 Contact Us For Availability
3
WCI G521811 WCI G521811 Contact Us For Availability
3
WCI 3001875 WCI 3001875 Contact Us For Availability
4
WCI 3018659 WCI 3018659 Contact Us For Availability
4
WCI 3002127 WCI 3002127 Contact Us For Availability
4
WCI 3011965 WCI 3011965 Contact Us For Availability
4
HOLDER-OVERLOAD WCI G521813 Contact Us For Availability
4
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
5
WCI 3015951 WCI 3015951 Contact Us For Availability
5
CLIP-CONDENSER WCI 3002607 Contact Us For Availability
5
GROMMET WCI 3015945 Contact Us For Availability
5
WCI 3002419 WCI 3002419 Contact Us For Availability
6
WCI 3002189 WCI 3002189 Contact Us For Availability
6
CAPILLARY TUBE (CUT TO 40``) WCI 3001746 Contact Us For Availability
6
BLADE-FAN WCI G521795 Contact Us For Availability
6
NUT WCI 3015946 Contact Us For Availability
6
WCI 3002108 WCI 3002108 Contact Us For Availability
7
VERTICAL LOUVER AND LINK ASSEMBLY WCI 3002458 Contact Us For Availability
7
WCI 3002332 WCI 3002332 Contact Us For Availability
7
WCI 3018694 WCI 3018694 Contact Us For Availability
7
CLIP-RETAINER WCI WA135101 Contact Us For Availability
8
WCI 3018413 WCI 3018413 Contact Us For Availability
8
WCI 3002243 WCI 3002243 Contact Us For Availability
8
WCI 3002427 WCI 3002427 Contact Us For Availability
8
WCI 3001880 WCI 3001880 Contact Us For Availability
9
WCI 3018761 WCI 3018761 Contact Us For Availability
9
WCI G521772 WCI G521772 Contact Us For Availability
9
SCROLL-EVAPORATOR WCI 3002438 Contact Us For Availability
9
CLEVIS WCI 3001828 Contact Us For Availability
9A
GROMMET-BASE DRAIN (NON-ILLUSTRATED) WCI 3014757 Contact Us For Availability
10
LINK RH WCI 3002164 Contact Us For Availability
10
SCREW-LEVELING WCI WA115602 Contact Us For Availability
11
LINK LH WCI 3002165 Contact Us For Availability
11
TUBE-DRAIN WCI 3001759 Contact Us For Availability
11
WCI WA264601 WCI WA264601 Contact Us For Availability
11
SCREW WCI 3001806 Contact Us For Availability
12
CLIP-DETENT WCI 3001844 Contact Us For Availability
12
WCI 3002449 WCI 3002449 Contact Us For Availability
12
SUPPORT-BOTTOM WCI 3001999 Contact Us For Availability
13
WCI 3001809 WCI 3001809 Contact Us For Availability
13
WCI 3002079 WCI 3002079 Contact Us For Availability
13
NUT-FAN MOTOR MTG WCI 3002952 Contact Us For Availability
13
WCI 3002110 WCI 3002110 Contact Us For Availability
13A
SLEEVE-CONTROL (NON-ILLUSTRATED) WCI 3002600 Contact Us For Availability
14
WCI 3002418 WCI 3002418 Contact Us For Availability
15
CLIP-SENSOR BULB WCI WA310003 Contact Us For Availability
15
WCI 3002801 WCI 3002801 Contact Us For Availability
16
WCI G521779 WCI G521779 Contact Us For Availability
16
SCREW-HEX WCI 3017451 Contact Us For Availability
17
CAPACITOR WCI G521790 Contact Us For Availability
18
WCI 3001770 WCI 3001770 Contact Us For Availability
19
WCI 3001870 WCI 3001870 Contact Us For Availability
× ![]()
