Model Electrolux MH208H1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

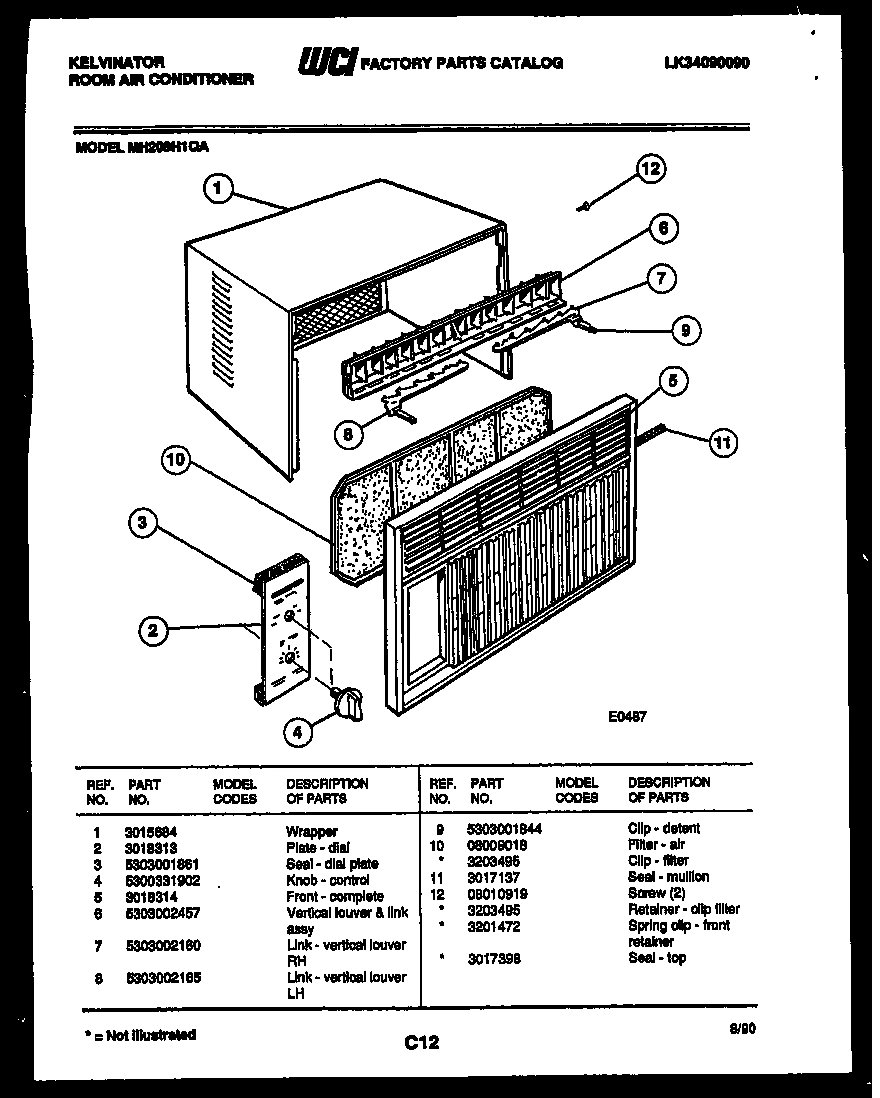

02 - CABINET PARTS
03 - ELECTRIC PARTS

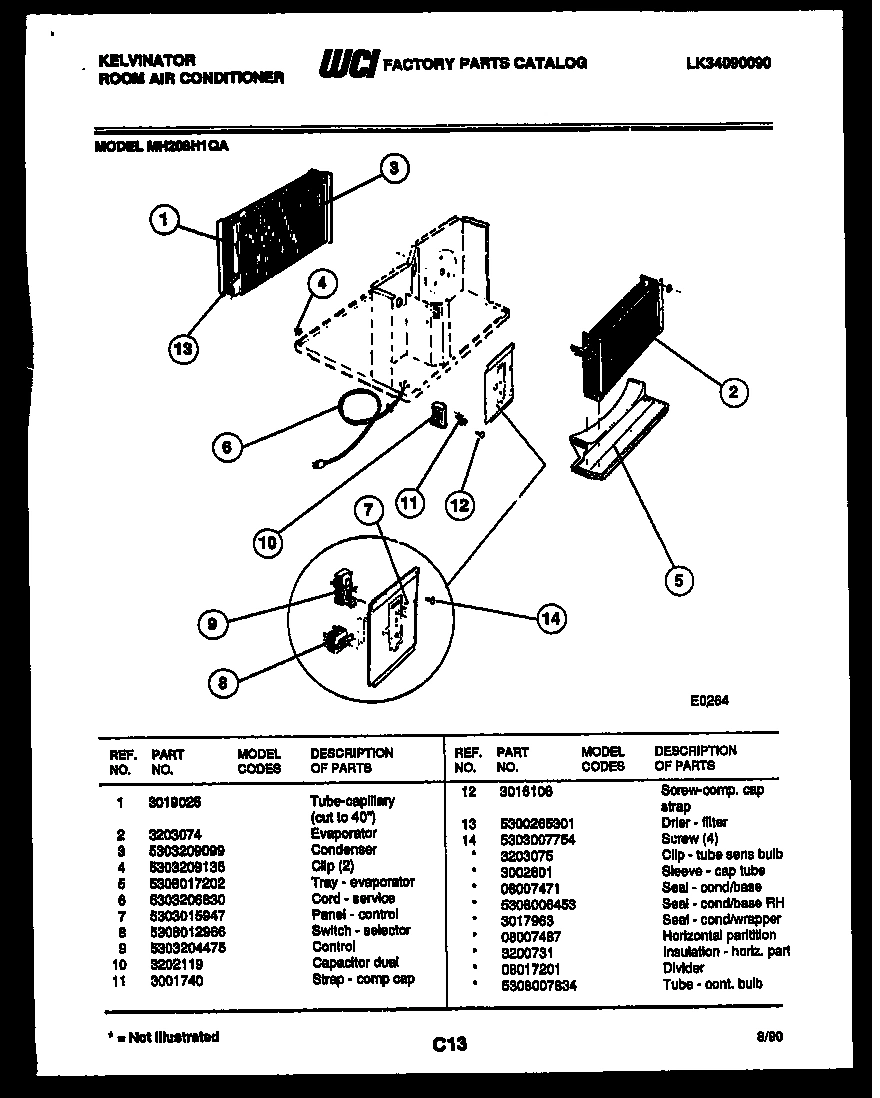

04 - AIR HANDLING PARTS
05 - COMPRESSOR
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH208H1QA ROOM AIR CONDITIONER
*17846
SPRING CLIP-FRONT RETAINER WCI 3201472 Contact Us For Availability
*17847
WCI 08007471 WCI 08007471 Contact Us For Availability
*17847
SLEEVE-CAP. TUBE WCI 3002601 Contact Us For Availability
*17847
CLIP-TUBE SENS BULB WCI 3203075 Contact Us For Availability
*17848
HORIZONTAL PARITITION WCI 08007487 Contact Us For Availability
*17848
SEAL-COND/WRAPPER WCI 3017963 Contact Us For Availability
*17848
INSULATION-HORIZ PART WCI 3200731 Contact Us For Availability
*17848
SEAL - COND/BASE RH WCI 5308006453 Contact Us For Availability
*17849
DIVIDER WCI 08017201 Contact Us For Availability
*17849
TUBE - CONT. BULB WCI 5308007834 Contact Us For Availability
*17851
WCI 08007475 WCI 08007475 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
TUBE-CAPILLARY (CUT TO 40``) WCI 3019025 Contact Us For Availability
1
WCI 5303016110 WCI 5303016110 Contact Us For Availability
1
WCI 5303202804 WCI 5303202804 Contact Us For Availability
1
RAIL-BOTTOM WCI 3203489 Contact Us For Availability
2
PLATE-DIAL WCI 3018313 Contact Us For Availability
2
WCI 3203074 WCI 3203074 Contact Us For Availability
2
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
RETAINER-ACCORDIAN (2) WCI 08013614 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
3
WCI 5303209099 WCI 5303209099 Contact Us For Availability
3
SEAL WCI 3002573 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
3
RAIL-TOP WCI 08007493 Contact Us For Availability
4
WCI 5300331902 WCI 5300331902 Contact Us For Availability
4
CLIP (2) WCI 5303209136 Contact Us For Availability
4
BLADE-FAN CONDENSER WCI 5308011112 Contact Us For Availability
4
GASKET-COVER WCI 3200282 Contact Us For Availability
4
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
5
WCI 3018314 WCI 3018314 Contact Us For Availability
5
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
5
WCI 5308010950 WCI 5308010950 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
FRAME-RH WCI 08013630 Contact Us For Availability
6
VERTICAL LOUVER & LINK ASSY WCI 5303002457 Contact Us For Availability
6
WCI 5303206830 WCI 5303206830 Contact Us For Availability
6
WCI 5308011040 WCI 5308011040 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
6
ACCORDIAN W/ RETAINER WCI 08013613 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 5303002160 Contact Us For Availability
7
WCI 5303015947 WCI 5303015947 Contact Us For Availability
7
WCI 3203072 WCI 3203072 Contact Us For Availability
7
CLIP - ACCORDIAN WCI 08012959 Contact Us For Availability
8
LINK VERTICAL LOUVER LH WCI 5303002165 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5308012966 Contact Us For Availability
8
CLIP-SHROUD/BLKHD WCI 3014764 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
WCI 3002801 WCI 3002801 Contact Us For Availability
9
CLIP-DETENT WCI 5303001844 Contact Us For Availability
9
CONTROL WCI 5303204475 Contact Us For Availability
9
WCI 5303209086 WCI 5303209086 Contact Us For Availability
9
FRAME-LH WCI 08013629 Contact Us For Availability
10
FILTER-AIR WCI 08009018 Contact Us For Availability
10
CAPACITOR-DUAL WCI 3202119 Contact Us For Availability
10
WCI 32111028 WCI 32111028 Contact Us For Availability
10A
CLIP-FILTER (NON-ILLUSTRATED) WCI 3203495 Contact Us For Availability
11
WCI 3017137 WCI 3017137 Contact Us For Availability
11
STRAP - COMP CAP WCI 3001740 Contact Us For Availability
11
SUPPORT-UNIT WCI 08012989 Contact Us For Availability
12
SCREW (2) WCI 08010919 Contact Us For Availability
12
SCREW-COMP. CAP WCI 3016106 Contact Us For Availability
12
SCREW (3) WCI 3002754 Contact Us For Availability
12
WCI 3002803 WCI 3002803 Contact Us For Availability
13
WASHER-SPACER (2) WCI 3002646 Contact Us For Availability
14
SCREW (4) WCI 5303007754 Contact Us For Availability
14
SCREW ADJUSTMENT WCI 08012954 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP-WINDOW WCI 5303211056 Contact Us For Availability
18
WCI 08016237 WCI 08016237 Contact Us For Availability
19
SCREW (2) WCI 3001806 Contact Us For Availability
20
WCI 3017451 WCI 3017451 Contact Us For Availability
× ![]()
