Model Electrolux MH205H1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

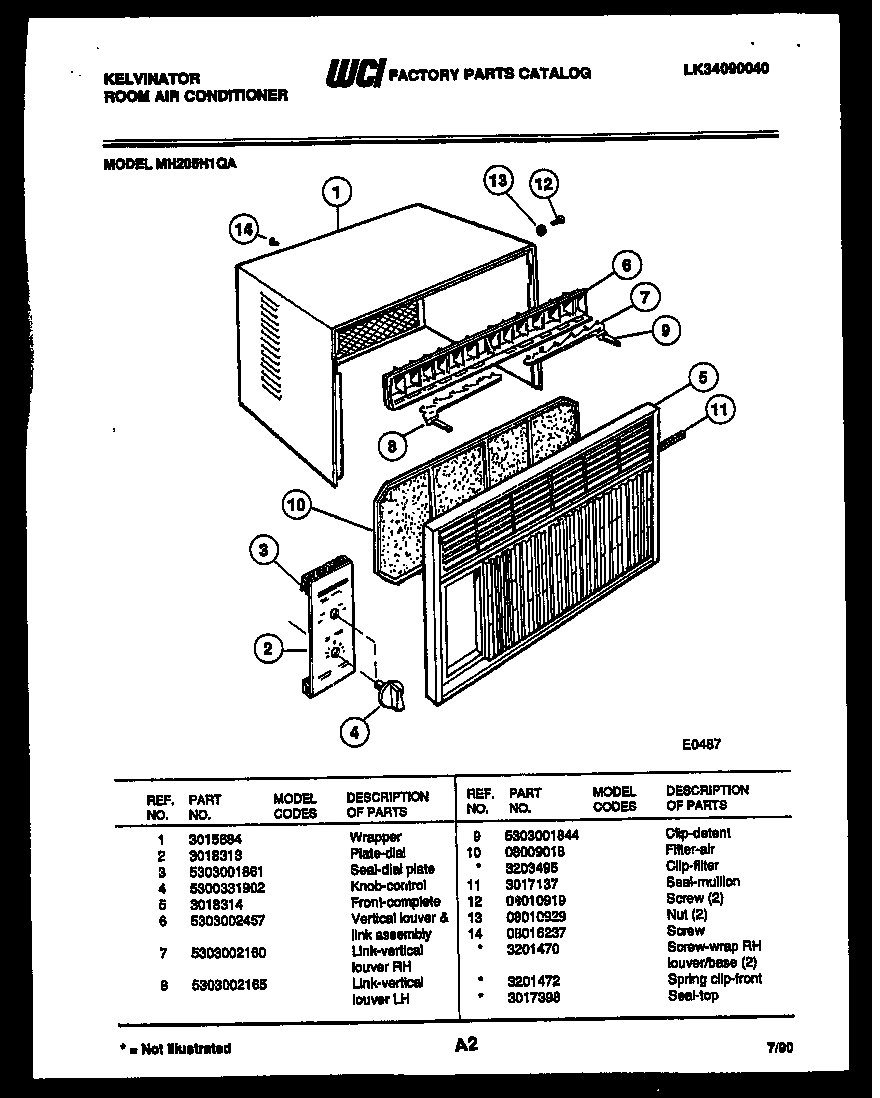

02 - CABINET PARTS

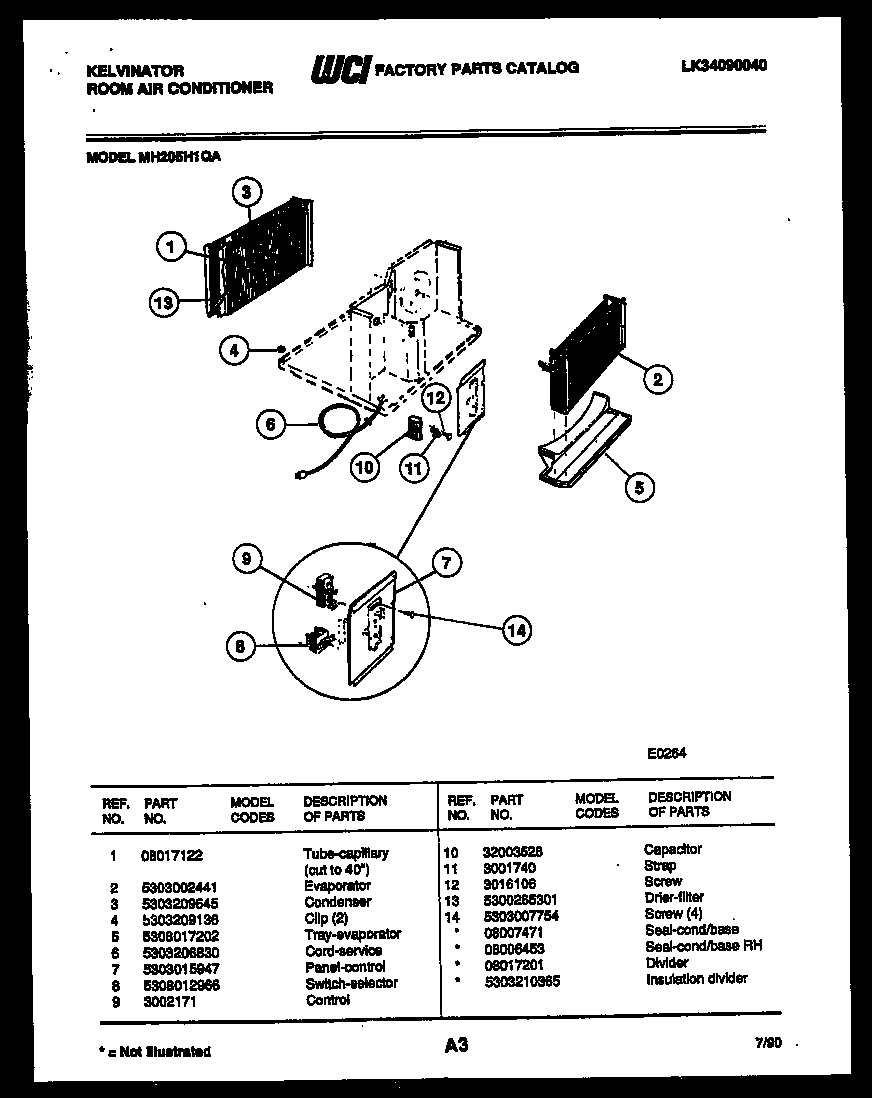

03 - ELECTRICAL PARTS

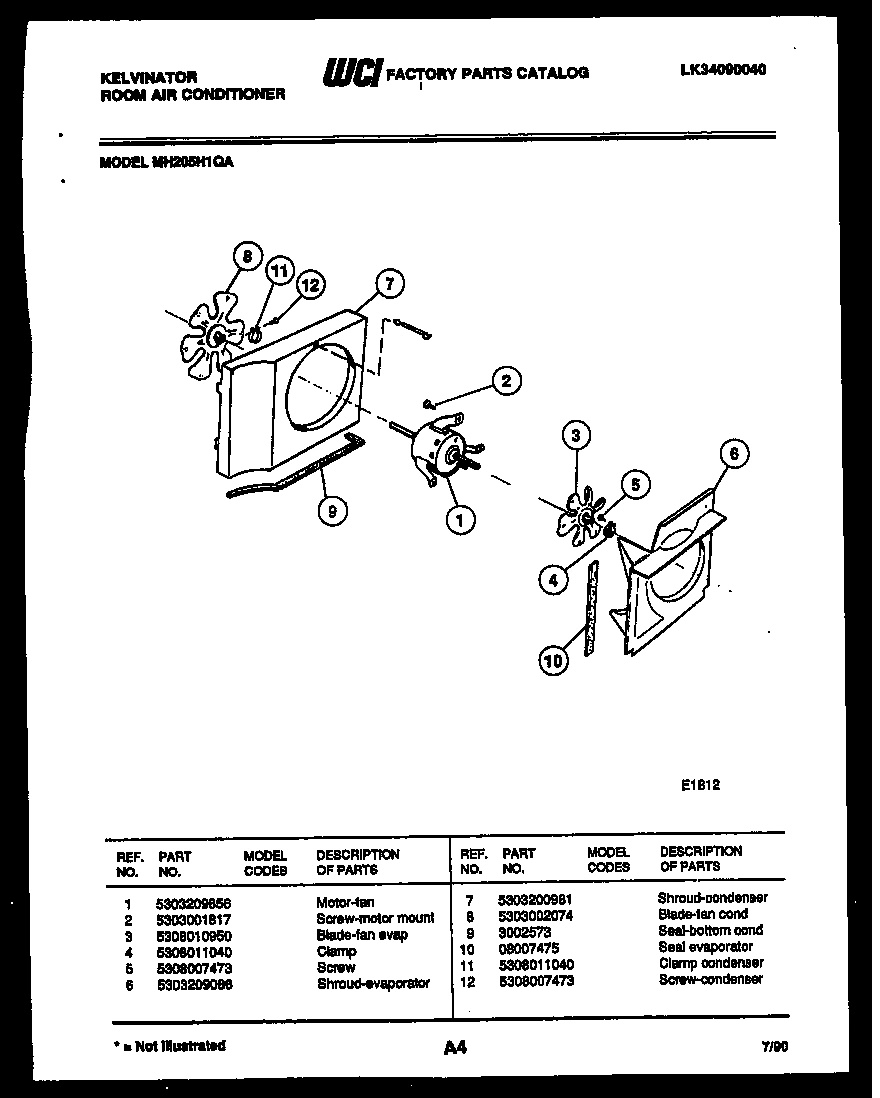

04 - AIR HANDLING PARTS

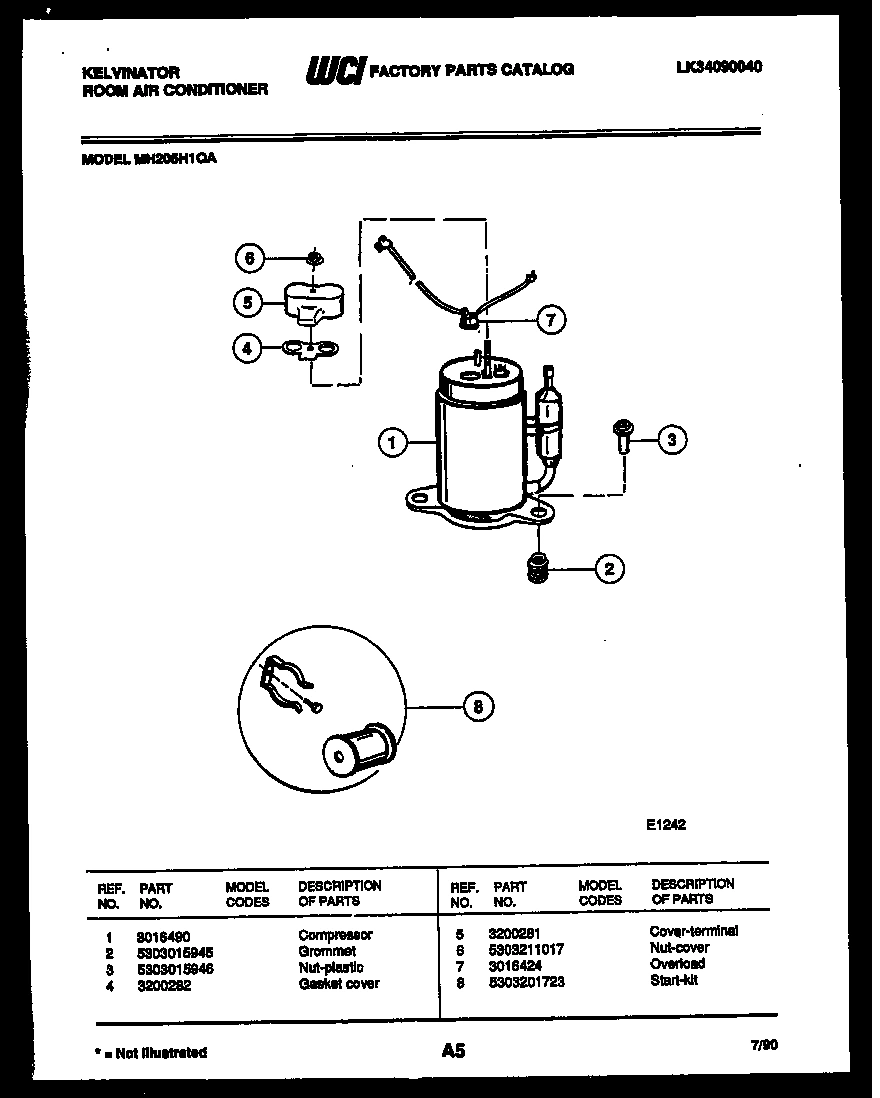

05 - COMPRESSOR

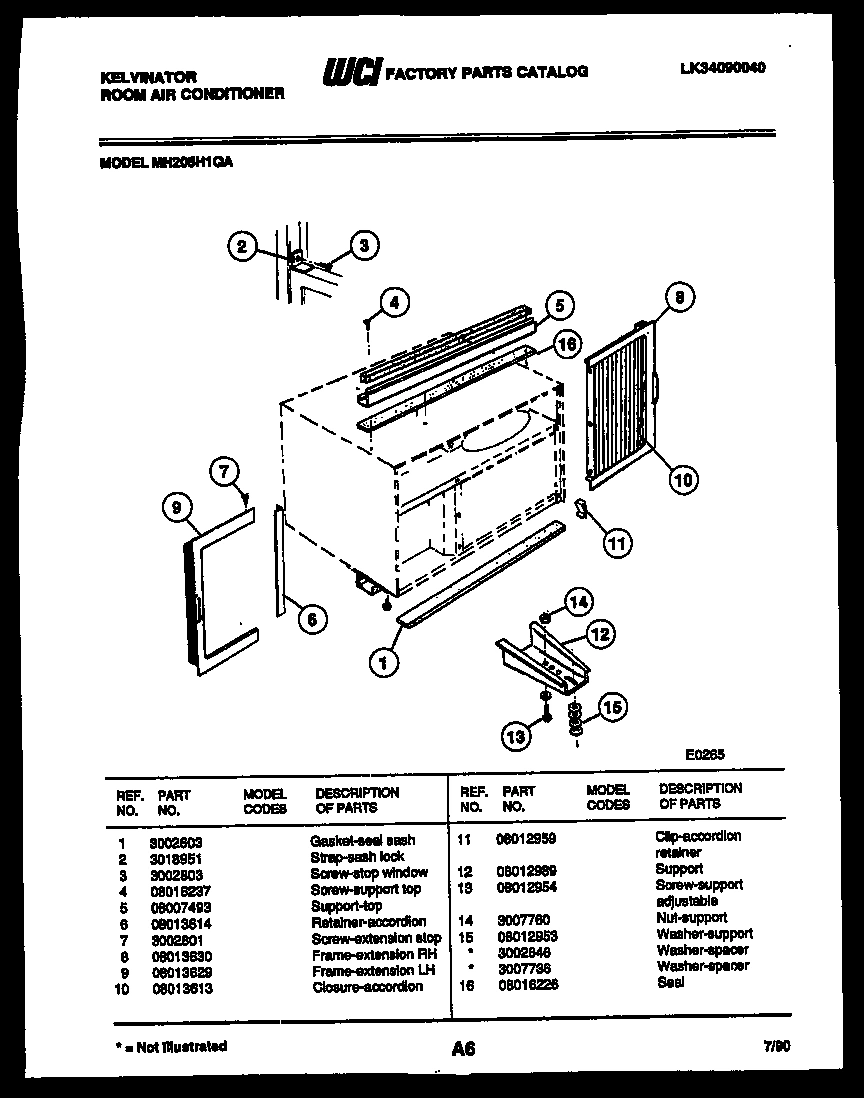

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux MH205H1QA ROOM AIR CONDITIONER
*17470
WCI 3017398 WCI 3017398 Contact Us For Availability
*17470
SCREW-WRAP RH LOUVER/BASE (2) WCI 3201470 Contact Us For Availability
*17470
SPRING CLIP-FRONT WCI 3201472 Contact Us For Availability
*17476
SEAL-COND/BASE RH WCI 08006453 Contact Us For Availability
*17476
WCI 08007471 WCI 08007471 Contact Us For Availability
*17477
DIVIDER WCI 08017201 Contact Us For Availability
*17477
INSULATION-DIVIDER WCI 5303210365 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
TUBE-CAPILLARY (CUT TO 40``) WCI 08017122 Contact Us For Availability
1
MOTOR-FAN WCI 5303209656 Contact Us For Availability
1
WCI 3016490 WCI 3016490 Contact Us For Availability
2
PLATE-DIAL WCI 3018313 Contact Us For Availability
2
WCI 5303002441 WCI 5303002441 Contact Us For Availability
2
SCREW-MOTOR MOUNT WCI 5303001817 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
STRAP-SASH LOCK WCI 3018951 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
3
WCI 5303209645 WCI 5303209645 Contact Us For Availability
3
WCI 5308010950 WCI 5308010950 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
3
SCREW-STOP WINDOW WCI 3002803 Contact Us For Availability
4
WCI 5300331902 WCI 5300331902 Contact Us For Availability
4
WCI 08016237 WCI 08016237 Contact Us For Availability
4
CLIP (2) WCI 5303209136 Contact Us For Availability
4
GASKET-COVER WCI 3200282 Contact Us For Availability
5
WCI 3018314 WCI 3018314 Contact Us For Availability
5
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
WCI 08007493 WCI 08007493 Contact Us For Availability
6
VERTICAL LOUVER & LINK ASSEMBLY WCI 5303002457 Contact Us For Availability
6
WCI 5303206830 WCI 5303206830 Contact Us For Availability
6
WCI 5303209086 WCI 5303209086 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
6
WCI 08013614 WCI 08013614 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 5303002160 Contact Us For Availability
7
WCI 5303015947 WCI 5303015947 Contact Us For Availability
7
WCI 5303200981 WCI 5303200981 Contact Us For Availability
7
WCI 3016424 WCI 3016424 Contact Us For Availability
7
SCREW-EXTENSION STOP WCI 3002801 Contact Us For Availability
8
LINK VERTICAL LOUVER LH WCI 5303002165 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5308012966 Contact Us For Availability
8
BLADE-FAN COND WCI 5303002074 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
FRAME-EXTENSION RH WCI 08013630 Contact Us For Availability
9
CLIP-DETENT WCI 5303001844 Contact Us For Availability
9
CONTROL WCI 3002171 Contact Us For Availability
9
SEAL-BOTTOM COND WCI 3002573 Contact Us For Availability
9
FRAME, EXTENSION, LH WCI 08013629 Contact Us For Availability
10
FILTER-AIR WCI 08009018 Contact Us For Availability
10
WCI 32003526 WCI 32003526 Contact Us For Availability
10
WCI 08007475 WCI 08007475 Contact Us For Availability
10
CLOSURE-ACCORDION WCI 08013613 Contact Us For Availability
10A
CLIP-FILTER (NON-ILLUSTRATED) WCI 3203495 Contact Us For Availability
11
WCI 3017137 WCI 3017137 Contact Us For Availability
11
WCI 3001740 WCI 3001740 Contact Us For Availability
11
CLAMP CONDENSER WCI 5308011040 Contact Us For Availability
11
CLIP, ACCORDION RETAINER WCI 08012959 Contact Us For Availability
12
SCREW (2) WCI 08010919 Contact Us For Availability
12
SCREW WCI 3016106 Contact Us For Availability
12
SUPPORT WCI 08012989 Contact Us For Availability
13
NUT (2) WCI 08010929 Contact Us For Availability
13
SCREW-SUPPORT ADJUSTABLE WCI 08012954 Contact Us For Availability
14
SCREW (4) WCI 5303007754 Contact Us For Availability
14
WCI 3007760 WCI 3007760 Contact Us For Availability
15
WCI 08012953 WCI 08012953 Contact Us For Availability
15A
WASHER-SPACER (NON-ILLUSTRATED) WCI 3002646 Contact Us For Availability
15B
WCI 3007736 WCI 3007736 Contact Us For Availability
16
WCI 08016226 WCI 08016226 Contact Us For Availability
× ![]()
