Model Whirlpool MH1170XSS1 Microwave Oven 1.7 Cu. Ft. – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION PARTS
06 - CABINET AND INSTALLATION PARTS

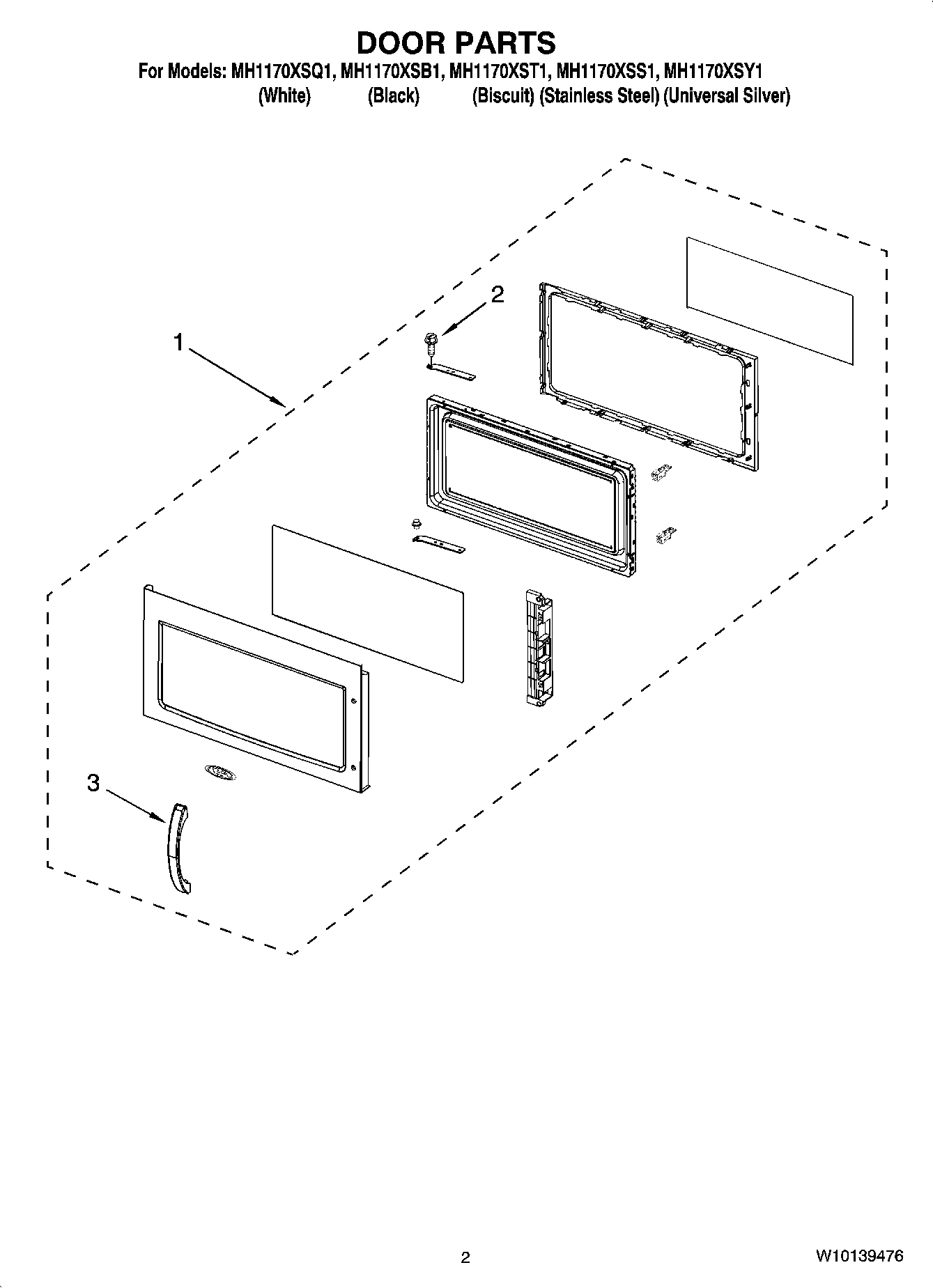

02 - DOOR PARTS

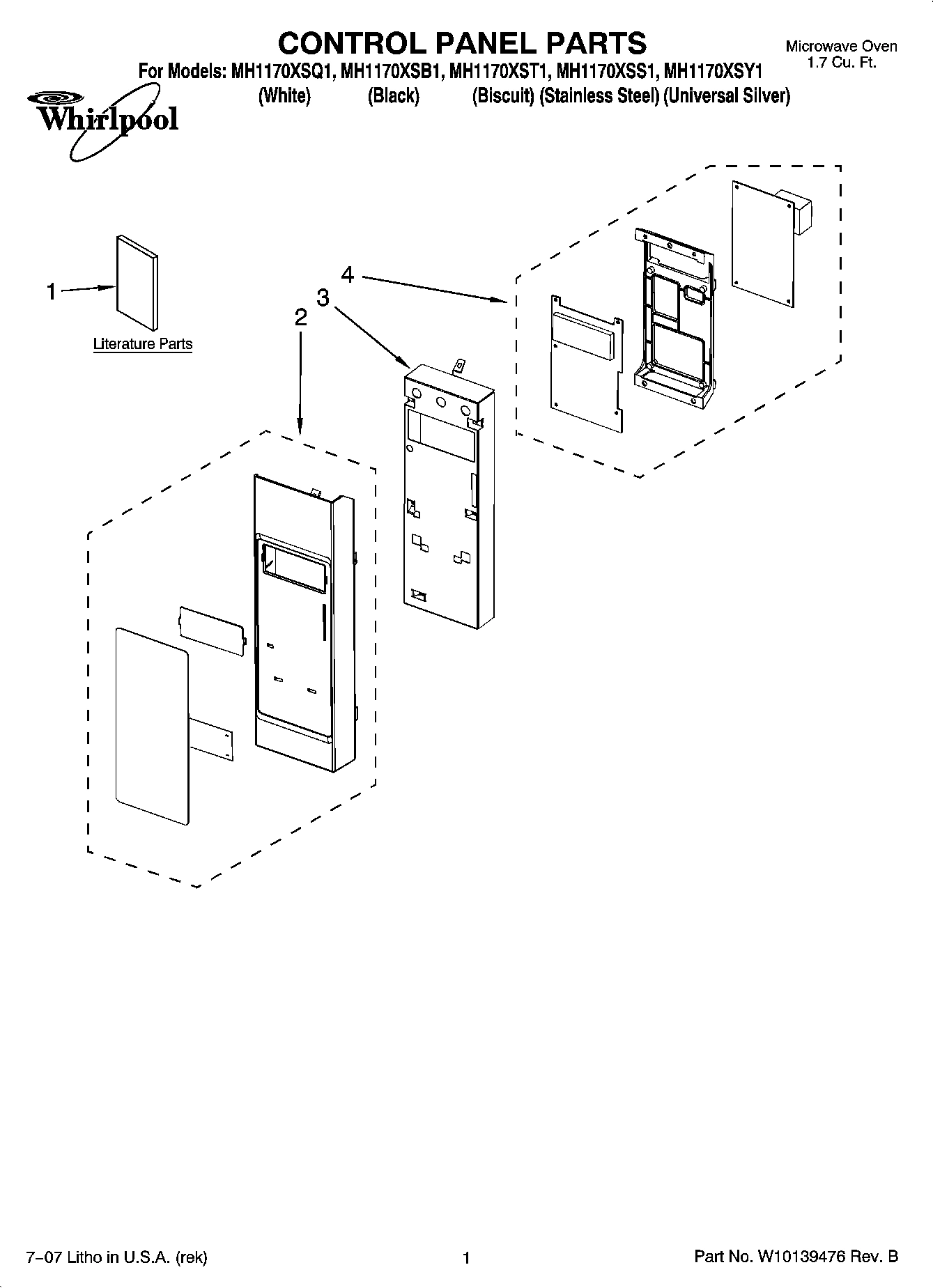

01 - CONTROL PANEL PARTS

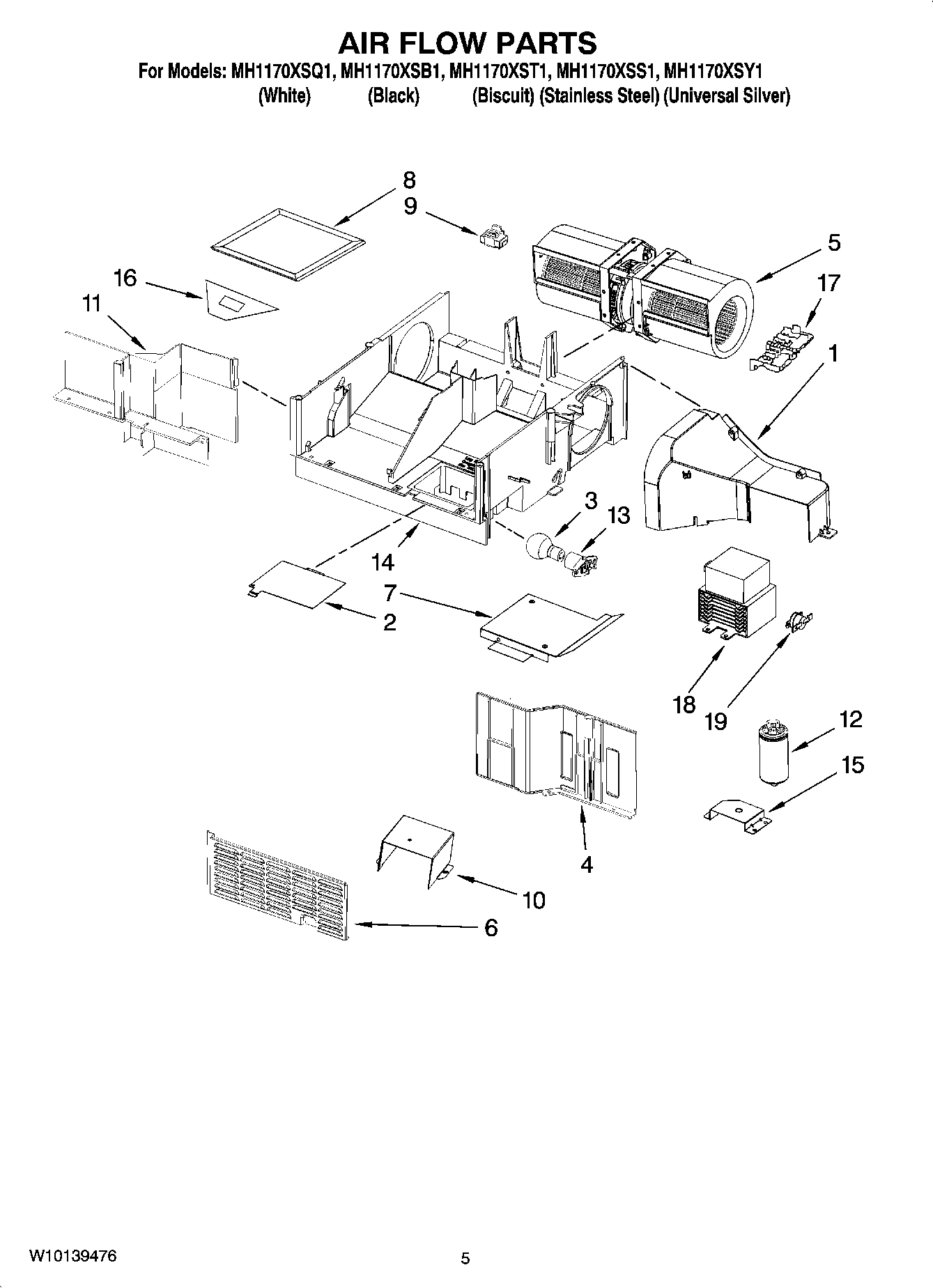

04 - AIR FLOW PARTS

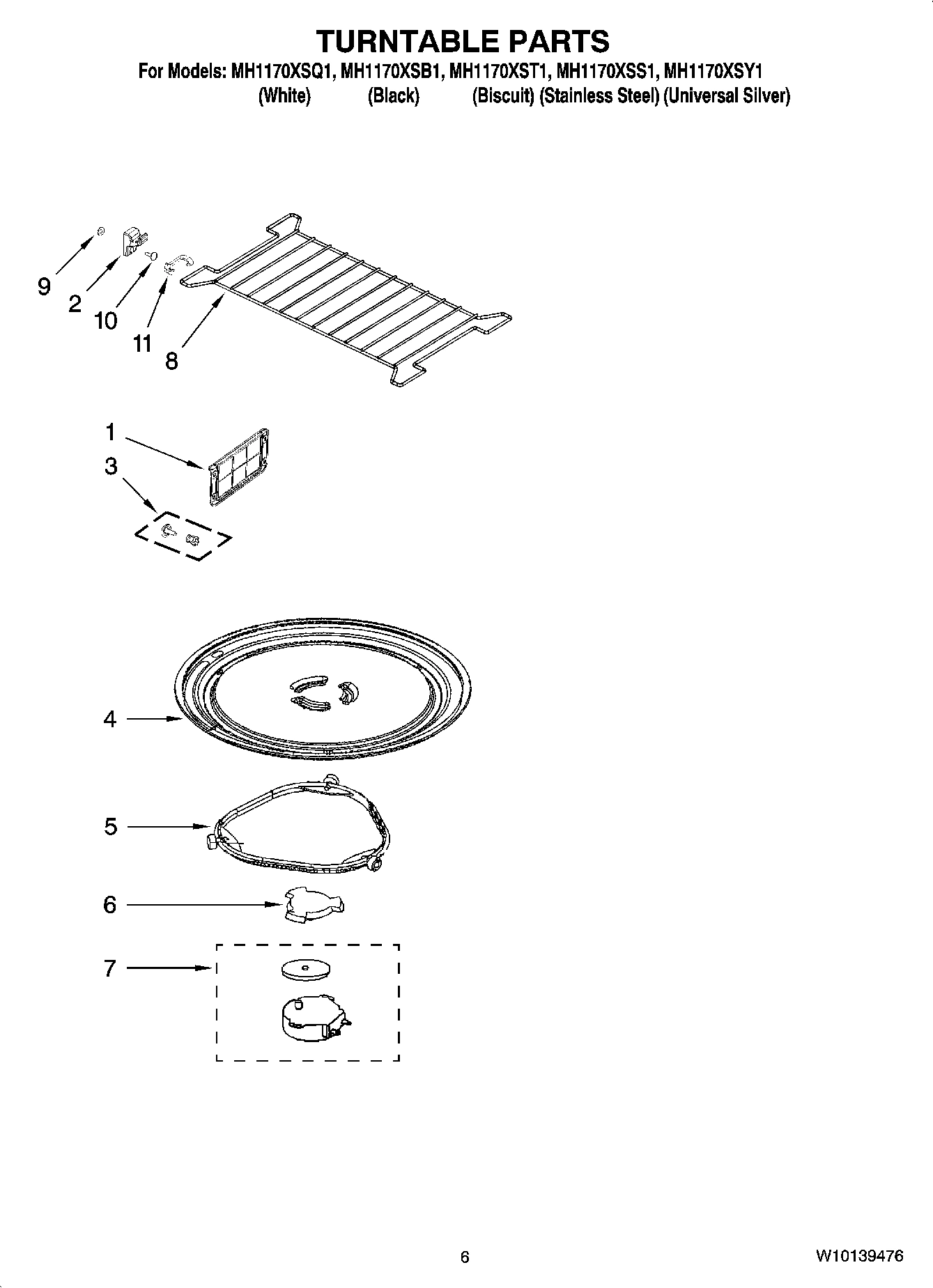

05 - TURNTABLE PARTS
Common parts from model Whirlpool MH1170XSS1 Microwave Oven 1.7 Cu. Ft.
Template, Upper WPL 8205871 Contact Us For Availability
Miscellaneous WPL ARI118028A Contact Us For Availability
Main Harness WPL W10107710 Contact Us For Availability
HV Trnsfrm Wr Assy WPL W10107740 Contact Us For Availability
Grnd Wire, Filter WPL W10107760 Contact Us For Availability
Harness Wire, NTC WPL W10107770 Contact Us For Availability
Hdlmp/TT Wire Assy WPL W10138804 Contact Us For Availability
1
COMPLETE DOOR (Stainless) WPL 8206396 Contact Us For Availability
1
COMPLETE DOOR (Biscuit) WPL 8206397 Contact Us For Availability
1
Deflector, Air WPL 8206340 Contact Us For Availability
1
Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability
1
COMPLETE DOOR (Silver) WPL 8206398 Contact Us For Availability
1
Cook Guide Label WPL 8205885 Contact Us For Availability
1
U & C Guide WPL W10110883 Contact Us For Availability
1
Tech Sheet WPL W10110890 Contact Us For Availability
2
Screw WPL 8206181 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8206362 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8206363 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8206365 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10139623 Contact Us For Availability
3
Handle (White) WPL W10114514 Contact Us For Availability
3
Handle (Black/Stainless) WPL W10114515 Contact Us For Availability
3
Handle (Biscuit) WPL W10114551 Contact Us For Availability
3
Bracket, Control WPL 8206361 Contact Us For Availability
3
Nails/Bushings (4 of each) WPL 8184549 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Microcomputer WPL 8206360 Contact Us For Availability
4
Cover, Side Inlet WPL 8206371 Contact Us For Availability
5
Case, Outer (White) WPL 8206337 Contact Us For Availability
5
Case, Outer (Black) WPL 8206338 Contact Us For Availability
5
Case, Outer (Biscuit) WPL 8206339 Contact Us For Availability
5
Motor, Fan Assy WPL W10114550 Contact Us For Availability
6
Grille, Vent (Universal Silver) WPL 8206393 Contact Us For Availability
6
Shield WPL W10107800 Contact Us For Availability
7
Plate, Damper WPL 8206336 Contact Us For Availability
10
Spring, Interlock WPL 8169438 Contact Us For Availability
10
SCREW WPL 8206618 Contact Us For Availability
10
Channel, Air WPL 8206625 Contact Us For Availability
11
Plate, Cam WPL 8183824 Contact Us For Availability
11
Air Guide WPL W10138800 Contact Us For Availability
12
Filter WPL 8206624 Contact Us For Availability
13
Holder, Lamp WPL 8169539 Contact Us For Availability
14
Base Plate, Air Guide WPL W10138799 Contact Us For Availability
15
Brkt-Mntg, Filter WPL 8206368 Contact Us For Availability
16
Socket, Motor Wire WPL W10117846 Contact Us For Availability
17
Cover, Terminal WPL W10110598 Contact Us For Availability
25
Transformer, H.V. WPL 8206343 Contact Us For Availability
× ![]()
