Model Maytag MGT8820DS06 RANGE/OVEN, GAS, DOUBLE – Common Parts & Diagrams
01 - COVER SHEET

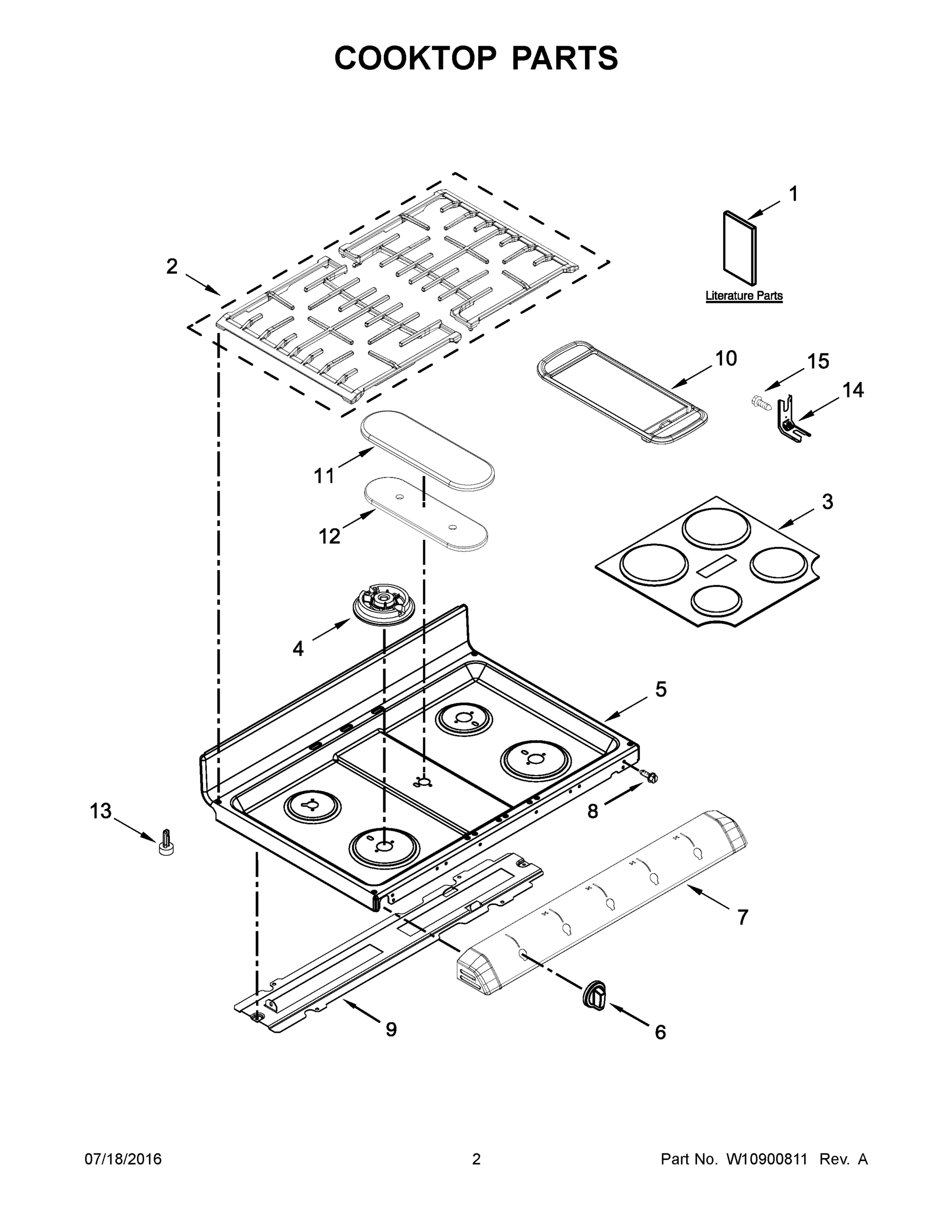

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - UPPER DOOR PARTS
07 - LOWER DOOR PARTS
08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGT8820DS06 RANGE/OVEN, GAS, DOUBLE
1
MAY W10526071 MAY W10526071 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK (LEFT)) MAY W10319109 Contact Us For Availability
1
MAY W10319002 MAY W10319002 Contact Us For Availability
1
MAY W10319038 MAY W10319038 Contact Us For Availability
1
MAY W10485720 MAY W10485720 Contact Us For Availability
1
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10665843 Contact Us For Availability
1
MAY W10179152 MAY W10179152 Contact Us For Availability
1A
MAY W10748897 MAY W10748897 Contact Us For Availability
1A
SUPPORT, BACKGUARD (BLACK (RIGHT)) MAY W10319111 Contact Us For Availability
1B
MAY W10647745 MAY W10647745 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
KIT, GRATES (BLACK) MAY W10655125 Contact Us For Availability
2
MAY W10638882 MAY W10638882 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
GLASS, INNER MAY W10272707 Contact Us For Availability
2
MAY W10638790 MAY W10638790 Contact Us For Availability
2
MAY W10631506 MAY W10631506 Contact Us For Availability
2A
HOLDER, ORIFICE (5K) (LEFT REAR) MAY W10638851 Contact Us For Availability
2B
HOLDER, ORIFICE (10K) (RIGHT FRONT) MAY W10638866 Contact Us For Availability
2C
HOLDER, ORIFICE (5K) (RIGHT REAR) MAY W10638853 Contact Us For Availability
2D
MAY W10638859 MAY W10638859 Contact Us For Availability
3
MAY W10299233 MAY W10299233 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY W10368614 MAY W10368614 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
MAY W10645182 MAY W10645182 Contact Us For Availability
3
MAY W10631503 MAY W10631503 Contact Us For Availability
4
HEAD, BURNER (17.5K) (LEFT FRONT) MAY W10406878 Contact Us For Availability
4
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
4
MAY W10546238 MAY W10546238 Contact Us For Availability
4
MAY W10330375 MAY W10330375 Contact Us For Availability
4
MAY W10292297 MAY W10292297 Contact Us For Availability
4
MAY W10612925 MAY W10612925 Contact Us For Availability
4
MAY W10631504 MAY W10631504 Contact Us For Availability
4A
HEAD, BURNER (6K) (LEFT REAR & RIGHT REAR) MAY W10406243 Contact Us For Availability
4B
HEAD, BURNER (RIGHT FRONT) MAY W10406797 Contact Us For Availability
4C
HEAD, BURNER (CENTER) MAY W10336094 Contact Us For Availability
5
MAY W10260169 MAY W10260169 Contact Us For Availability
5
MAY W10873166 MAY W10873166 Contact Us For Availability
5
MAY W10204718 MAY W10204718 Contact Us For Availability
5
MAY W10324643 MAY W10324643 Contact Us For Availability
5
MAY W10485723 MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
5
MAY W10274268 MAY W10274268 Contact Us For Availability
6
MAY W10650403 MAY W10650403 Contact Us For Availability
6
MAY W10324738 MAY W10324738 Contact Us For Availability
6
MAY W10319000 MAY W10319000 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
6
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
6
PLATE, INSULATION MAY W10339476 Contact Us For Availability
6A
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
7
MAY W10664102 MAY W10664102 Contact Us For Availability
7
MAY W10664073 MAY W10664073 Contact Us For Availability
7
MAY W10204705 MAY W10204705 Contact Us For Availability
7
MAY W10863342 MAY W10863342 Contact Us For Availability
7
MAY W10289077 MAY W10289077 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
7
MAY 4449154 MAY 4449154 Contact Us For Availability
8
MAY W10278697 MAY W10278697 Contact Us For Availability
8
VALVE (16K) (LEFT FRONT & RIGHT FRONT) MAY W10206288 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY W10677255 MAY W10677255 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
8
MAY 4448988 MAY 4448988 Contact Us For Availability
8A
VALVE (5K) (LEFT REAR & RIGHT REAR) MAY W10206287 Contact Us For Availability
8A
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8B
VALVE, FISH (CENTER) MAY W10298678 Contact Us For Availability
9
MAY W10518258 MAY W10518258 Contact Us For Availability
9
MAY W10776098 MAY W10776098 Contact Us For Availability
9
NUT, WING MAY 7103P030-60 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
9
MAY W10249980 MAY W10249980 Contact Us For Availability
10
MAY W10297135 MAY W10297135 Contact Us For Availability
10
INSULATION, WIRE COVER MAY W10309232 Contact Us For Availability
10
MAY W10315768 MAY W10315768 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
MAY 4449040 MAY 4449040 Contact Us For Availability
10
HINGE, DOOR (LEFT) MAY W10485731 Contact Us For Availability
10A
HINGE, DOOR (RIGHT) MAY W10485730 Contact Us For Availability
11
SET, FISH BURNER CAP (BLACK) MAY W10171140 Contact Us For Availability
11
MAY W10407912 MAY W10407912 Contact Us For Availability
11
MAY W10268558 MAY W10268558 Contact Us For Availability
11
MAY W10340464 MAY W10340464 Contact Us For Availability
12
BASE, BURNER (FISH BURNER ONLY) MAY W10333445 Contact Us For Availability
12
MAY W10342662 MAY W10342662 Contact Us For Availability
12
MAY W10777398 MAY W10777398 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
12A
MAY W10342661 MAY W10342661 Contact Us For Availability
13
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
13
MAY 7432P143-60 MAY 7432P143-60 Contact Us For Availability
13
MAY W10261387 MAY W10261387 Contact Us For Availability
13
MAY W10480830 MAY W10480830 Contact Us For Availability
14
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
14
MAY W10298865 MAY W10298865 Contact Us For Availability
14
MAY W10311326 MAY W10311326 Contact Us For Availability
14A
MAY W10272519 MAY W10272519 Contact Us For Availability
15
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
15
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
15
MAY W10292293 MAY W10292293 Contact Us For Availability
16
COVER, IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
16
MAY W10668728 MAY W10668728 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
ASSEMBLY, OUTLET FLUE (UPPER) MAY W10321446 Contact Us For Availability
17A
ASSEMBLY, OUTLET FLUE (LOWER) MAY W10321445 Contact Us For Availability
19
SCREW MAY 98017517 Contact Us For Availability
19
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
20
MAY W10272528 MAY W10272528 Contact Us For Availability
20
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
21
BRACKET, MANIFOLD REAR COVER MAY W10343062 Contact Us For Availability
21
MAY W10454648 MAY W10454648 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY W10357697 MAY W10357697 Contact Us For Availability
23
MAY 8273062 MAY 8273062 Contact Us For Availability
23
MAY W10683517 MAY W10683517 Contact Us For Availability
24
MAY W10524331 MAY W10524331 Contact Us For Availability
24
MAY W10318928 MAY W10318928 Contact Us For Availability
24A
MAY W10269069 MAY W10269069 Contact Us For Availability
25
MAY 7101P653-60 MAY 7101P653-60 Contact Us For Availability
25
MAY W10410463 MAY W10410463 Contact Us For Availability
25A
MAY W10410461 MAY W10410461 Contact Us For Availability
26
MAY W10295055 MAY W10295055 Contact Us For Availability
26
MAY W10538516 MAY W10538516 Contact Us For Availability
27
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
27
MAY W10272520 MAY W10272520 Contact Us For Availability
28
SADDLE, BRACKET MAY 98017516 Contact Us For Availability
28
MAY 311255 MAY 311255 Contact Us For Availability
29
SCREW MAY W10217535 Contact Us For Availability
29
MAY 8285593 MAY 8285593 Contact Us For Availability
30
HOLDER, ELECTRODE EXTENSION MAY W10324366 Contact Us For Availability
31
MAY W10636384 MAY W10636384 Contact Us For Availability
31
MAY W10626077 MAY W10626077 Contact Us For Availability
32
BRACKET, SPARK MODULE MAY W10319059 Contact Us For Availability
32
MAY W10626078 MAY W10626078 Contact Us For Availability
33
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
35
SCREW MAY 7101P502-60 Contact Us For Availability
36
ELECTRODE, SPARK (LEFT FRONT, LEFT REAR, RIGH MAY W10565365 Contact Us For Availability
36A
ELECTRODE, FISH (CENTER) MAY W10637673 Contact Us For Availability
37
MAY W10276466 MAY W10276466 Contact Us For Availability
38
MAY W10631502 MAY W10631502 Contact Us For Availability
39
SCREW MAY 7101P282-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
CLIP, WIRE MAY 8019P026-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SPARK MAY W10408058 Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
MAY W10745674 MAY W10745674 Contact Us For Availability
NI
MAY W10745683 MAY W10745683 Contact Us For Availability
NI
MAY W10324646 MAY W10324646 Contact Us For Availability
NI
MAY W10591270 MAY W10591270 Contact Us For Availability
NI
INSULATION, BACK (LOWER) MAY W10204081 Contact Us For Availability
NI
INSULATION, WRAPPER (UPPER) MAY W10318910 Contact Us For Availability
NI
INSULATION, WRAPPER (LOWER) MAY W10318911 Contact Us For Availability
NI
INSULATION, BACK (UPPER) MAY W10318918 Contact Us For Availability
NI
MAY W10344586 MAY W10344586 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
