Model Maytag MGT8800FZ00 RANGE/OVEN, GAS, FREESTANDING, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

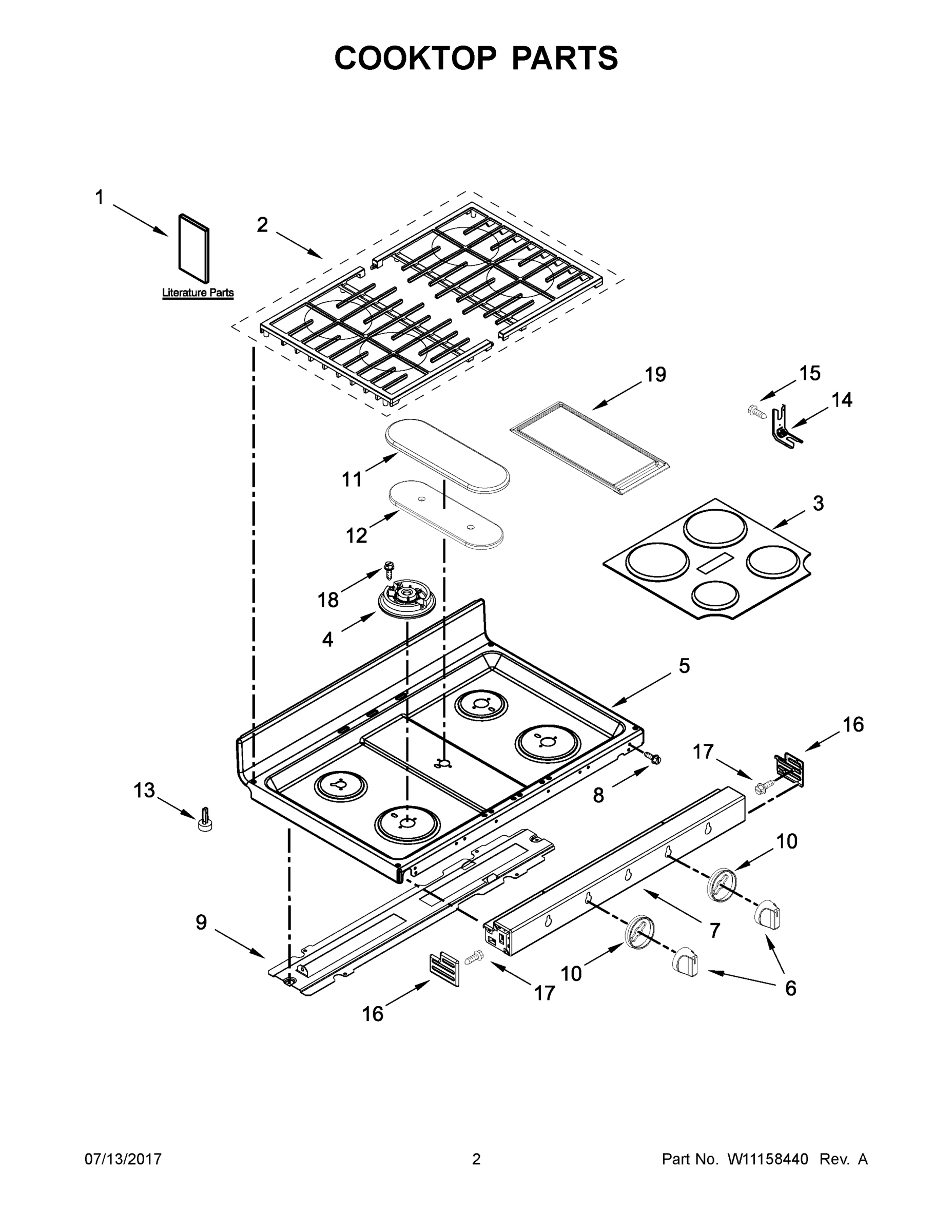

02 - COOKTOP PARTS

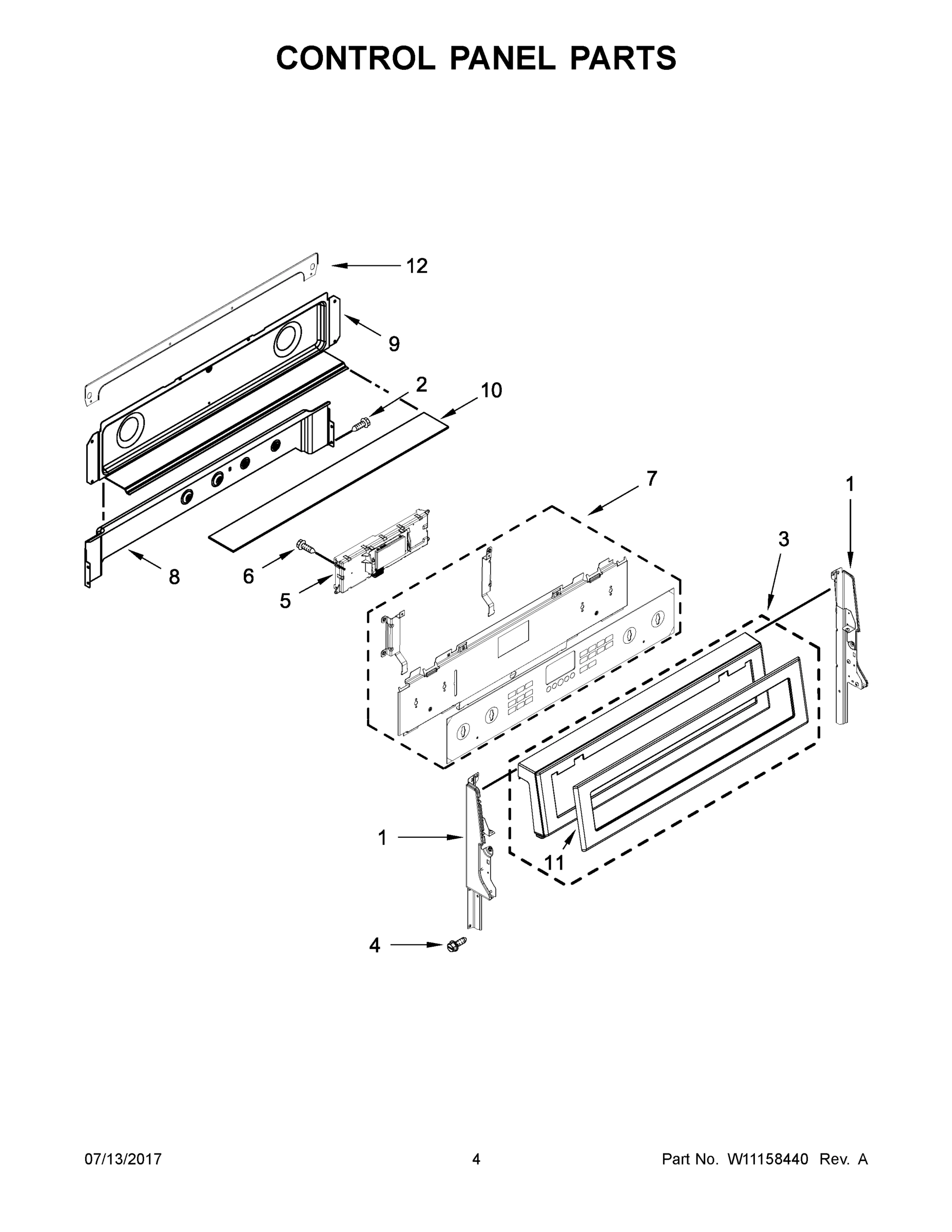

03 - CONTROL PANEL PARTS

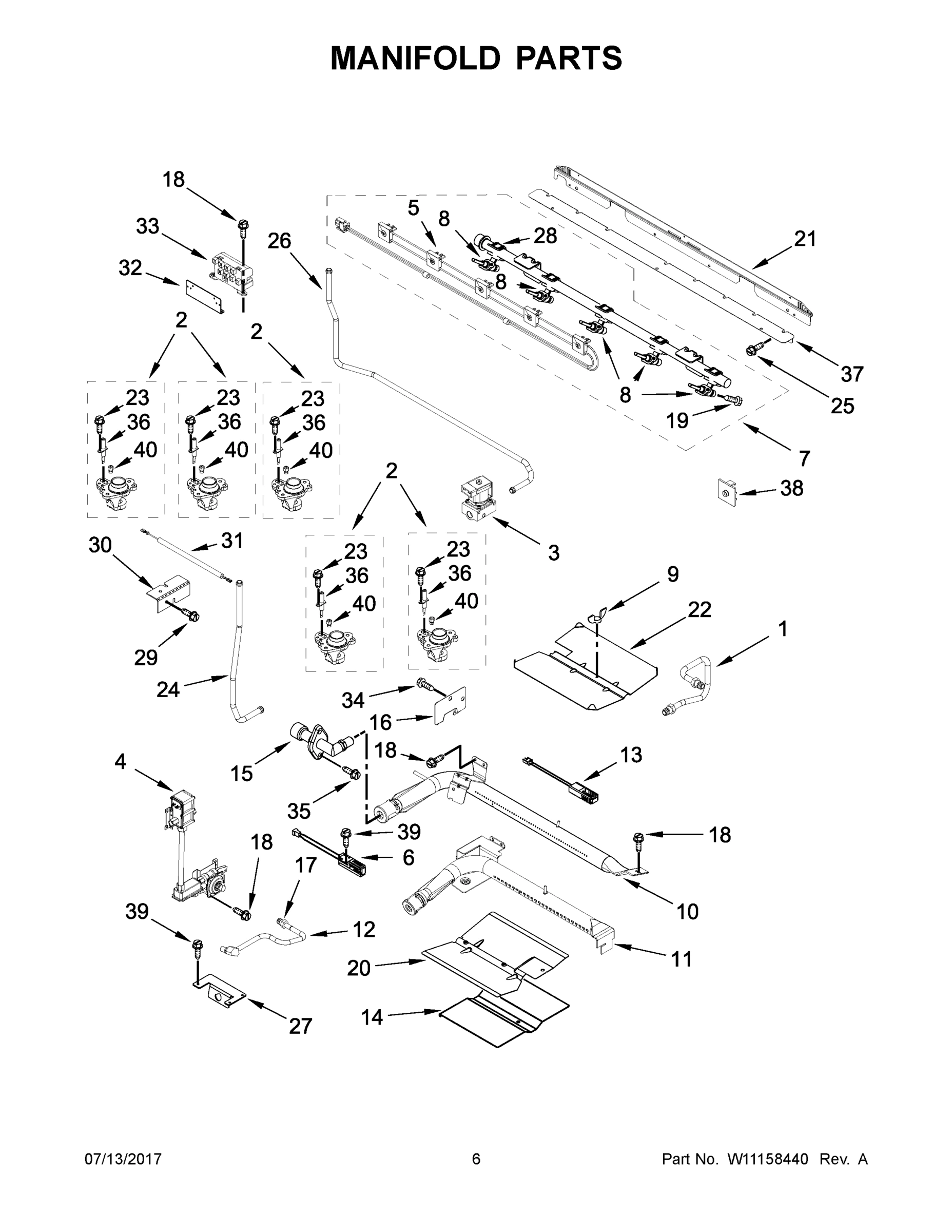

04 - MANIFOLD PARTS

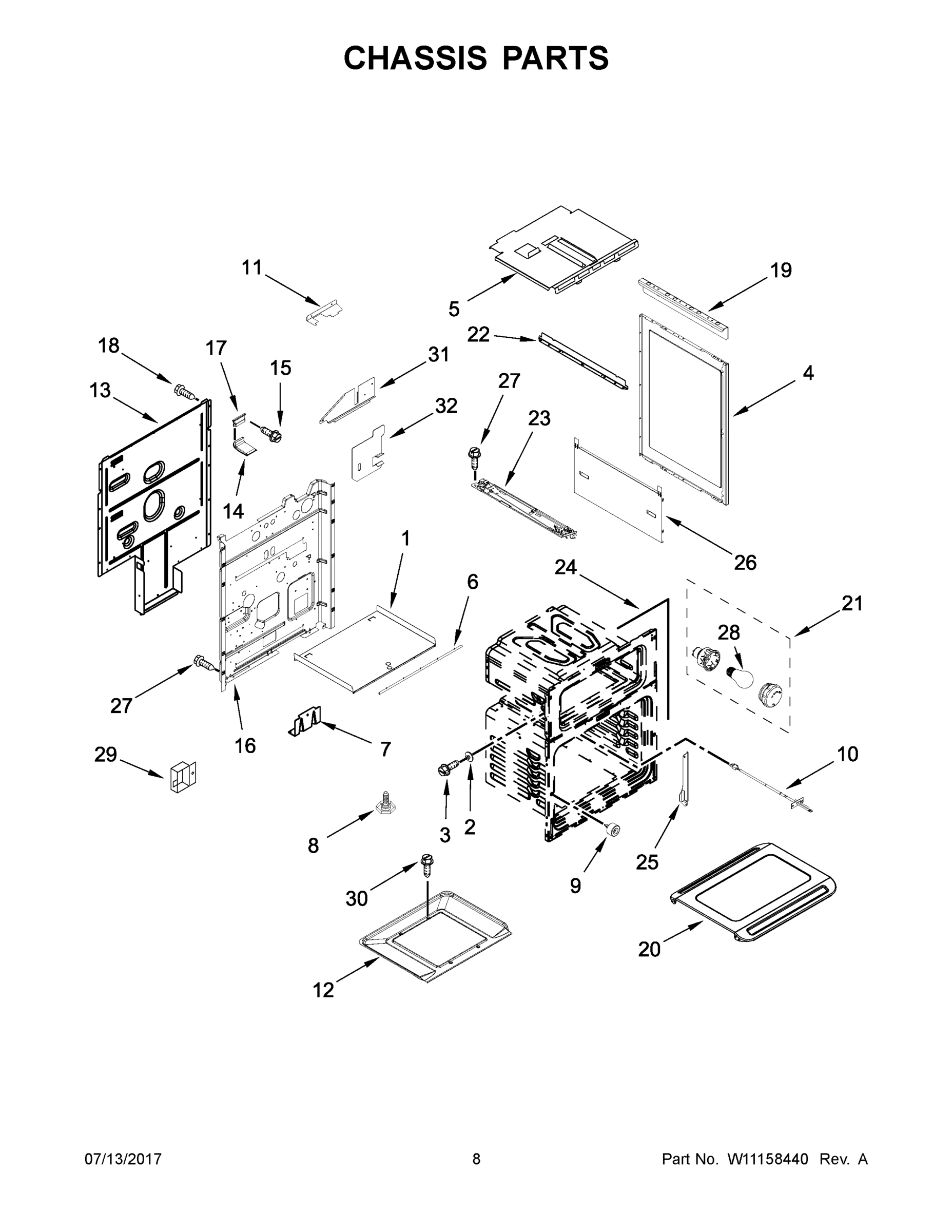

05 - CHASSIS PARTS

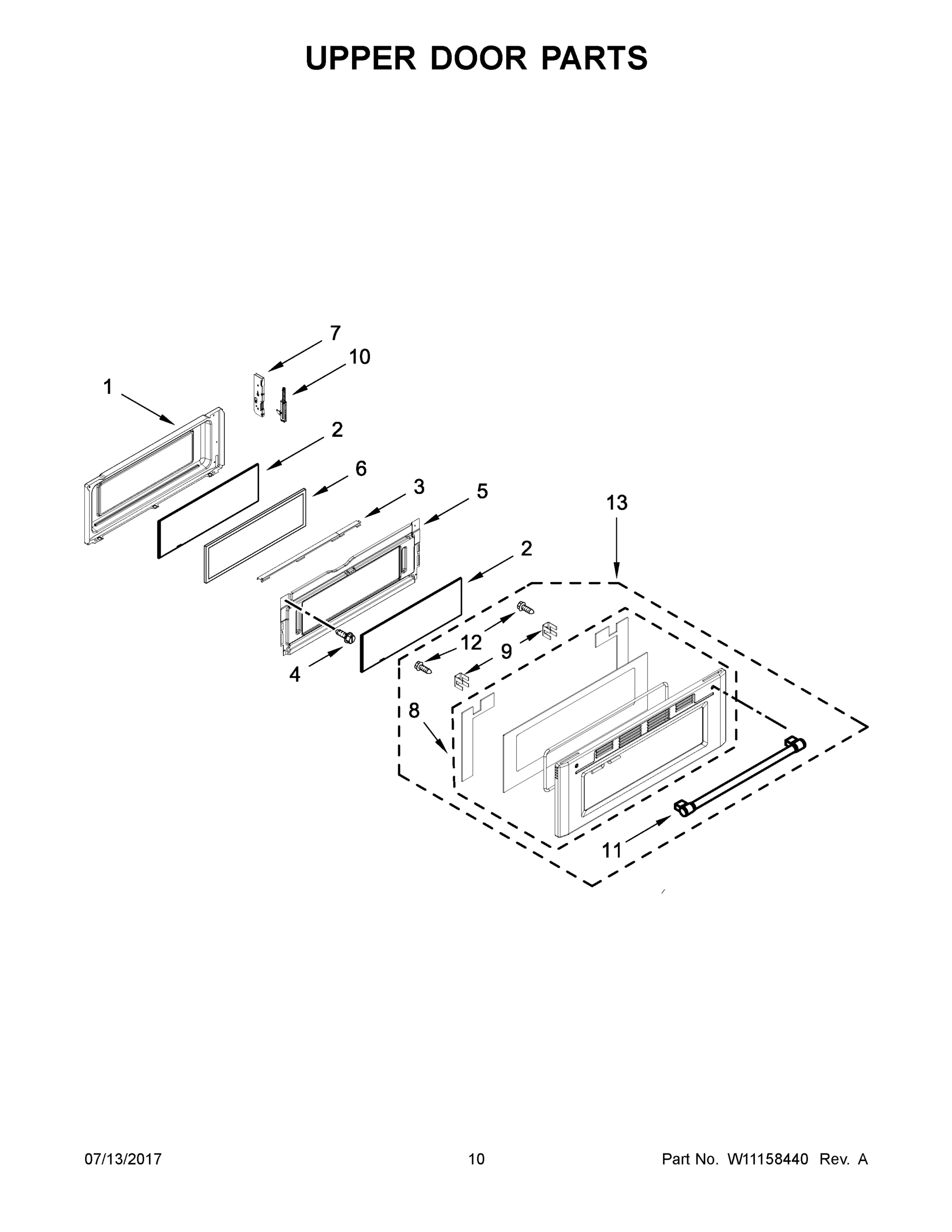

06 - UPPER DOOR PARTS

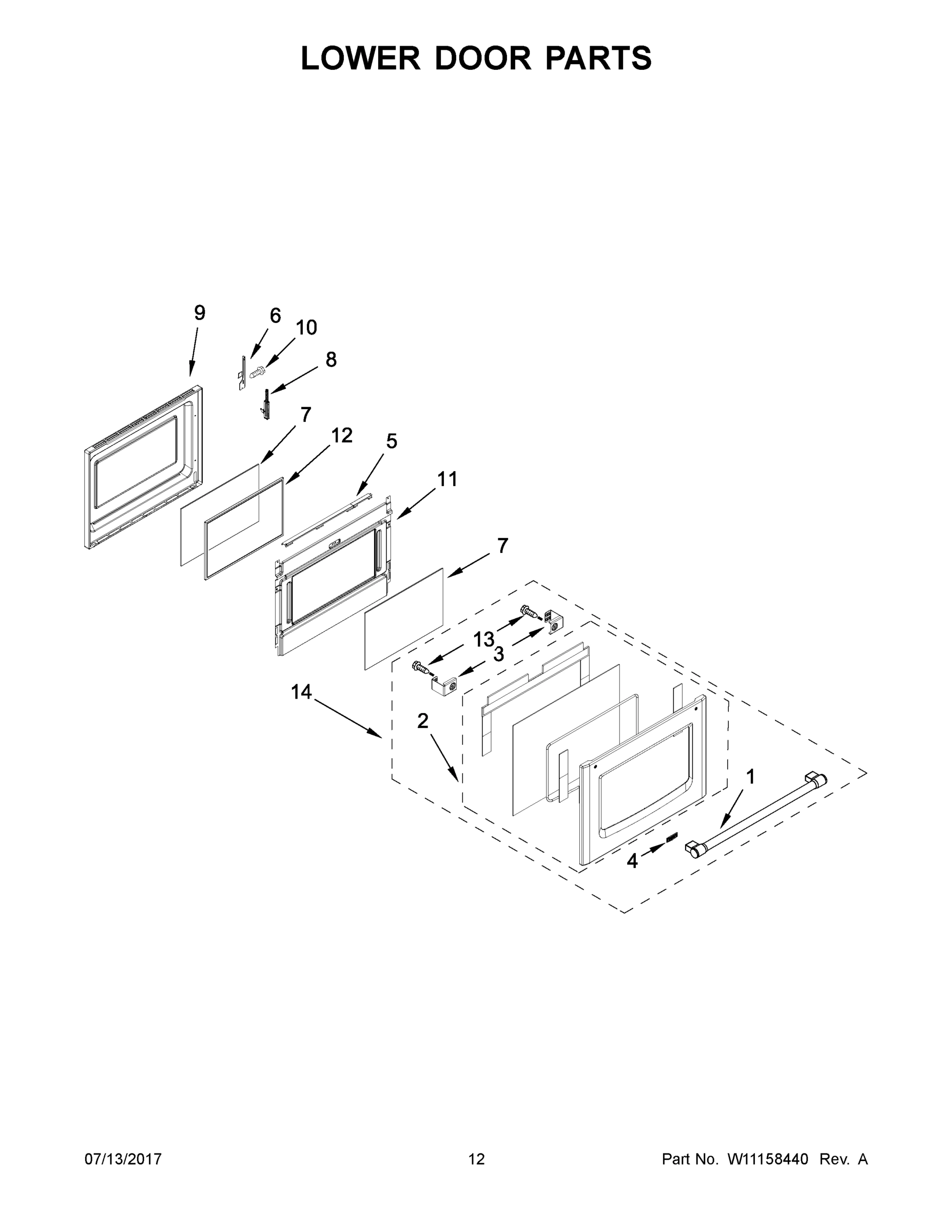

07 - LOWER DOOR PARTS

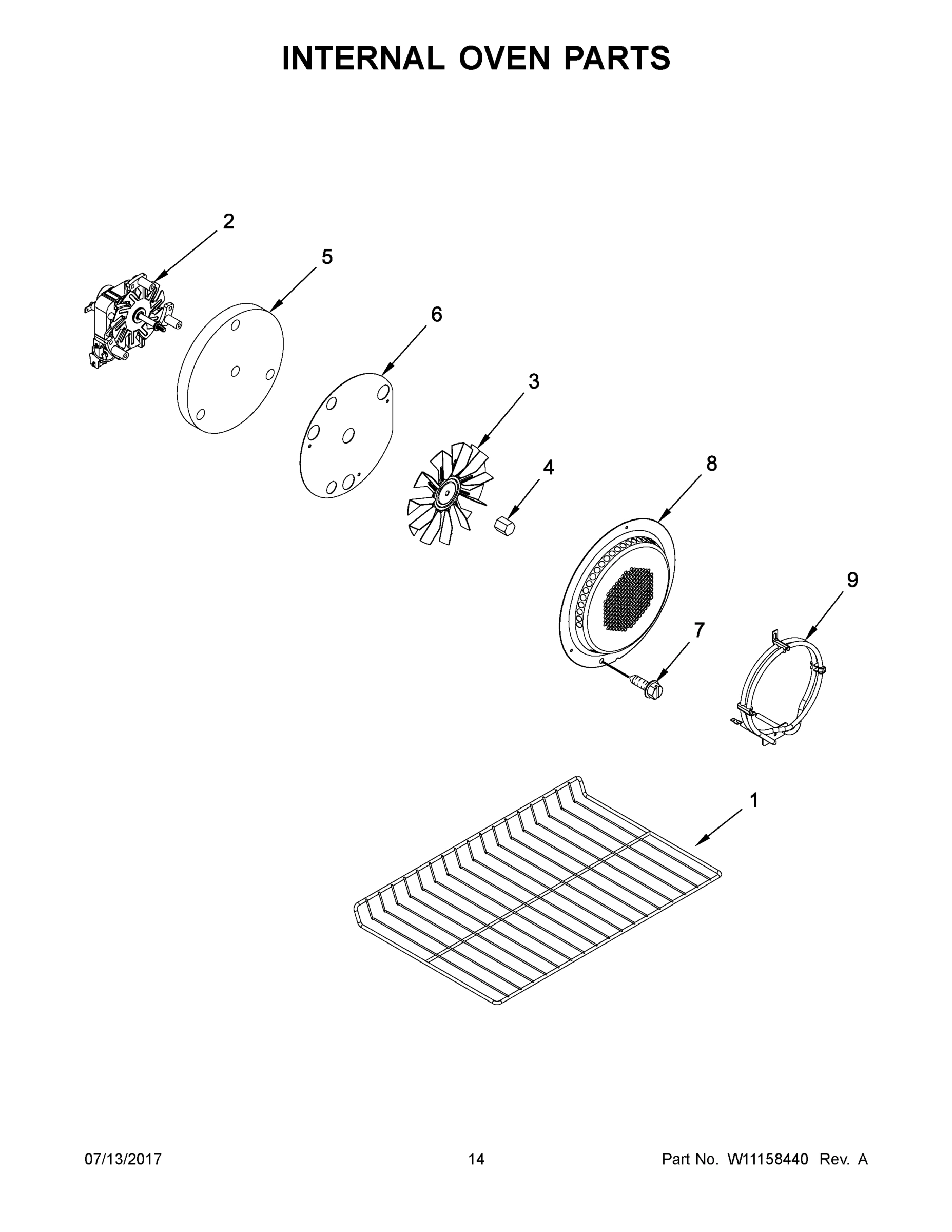

08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGT8800FZ00 RANGE/OVEN, GAS, FREESTANDING, DOUBLE, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10526071 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK (LEFT)) MAY W10319109 Contact Us For Availability
1
TUBING, BROIL MAY W10319002 Contact Us For Availability
1
SHIELD, GEMINI MAY W10319038 Contact Us For Availability
1
LINING, DOOR MAY W11051040 Contact Us For Availability
1
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10904974 Contact Us For Availability
1
RACK, OVEN MAY W10179152 Contact Us For Availability
1A
MAY W10912995 MAY W10912995 Contact Us For Availability
1A
SUPPORT, BACKGUARD (BLACK (RIGHT)) MAY W10319111 Contact Us For Availability
1B
SHEET, TECH MAY W10647745 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
KIT, GRATE MAY W10649701 Contact Us For Availability
2
HOLDER, ORIFICE (17K) (LEFT FRONT) MAY W10643268 Contact Us For Availability
2
SPACER, SIDE PANEL MAY W10237689 Contact Us For Availability
2
GLASS, INNER MAY W11099272 Contact Us For Availability
2
ASSEMBLY, DOOR (STAINLESS) MAY W10888810 Contact Us For Availability
2
MOTOR, CONVECTION MAY W10631506 Contact Us For Availability
2A
HOLDER, ORIFICE (5K) (LEFT REAR) MAY W10643269 Contact Us For Availability
2B
HOLDER, ORIFICE (7K) (CENTER) MAY W10643272 Contact Us For Availability
2C
HOLDER, ORIFICE (10K) (RIGHT FRONT) MAY W10643270 Contact Us For Availability
2D
HOLDER, ORIFICE (5K) RIGHT REAR) MAY W10643271 Contact Us For Availability
3
KIT, BURNER CAP (BLACK) MAY W10299236 Contact Us For Availability
3
ASSEMBLY, CONSOLE (STAINLESS) MAY W11024861 Contact Us For Availability
3
VALVE, SHUT OFF MAY W10368614 Contact Us For Availability
3
SCREW, SHOULDER MAY W10267456 Contact Us For Availability
3
FRAME, GLASS MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10575689 Contact Us For Availability
3
BLADE, FAN MAY W10631503 Contact Us For Availability
4
HEAD, BURNER (17.5K) (LEFT FRONT) MAY W10406878 Contact Us For Availability
4
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
4
VALVE/REGULATOR MAY W10546238 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10330375 Contact Us For Availability
4
SCREW MAY W10292297 Contact Us For Availability
4
BADGE MAY W10612925 Contact Us For Availability
4
NUT, ACORN MAY W10631504 Contact Us For Availability
4A
HEAD, BURNER (6K) (LEFT REAR & RIGHT REAR) MAY W10406243 Contact Us For Availability
4B
HEAD, BURNER (CENTER) MAY W10336094 Contact Us For Availability
4C
HEAD, BURNER (12.5K) (RIGHT FRONT) MAY W10406797 Contact Us For Availability
5
COOKTOP (BLACK) MAY W10260169 Contact Us For Availability
5
CONTROL MAY W10873166 Contact Us For Availability
5
HARNESS, SWITCH MAY W10664240 Contact Us For Availability
5
SUPPORT, INSULATION MAY W10324643 Contact Us For Availability
5
RETAINER, INSULATION MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
5
INSULATION, CONVECTION MOTOR MAY W10274268 Contact Us For Availability
6
MAY W10886658 MAY W10886658 Contact Us For Availability
6
IGNITOR, GAS MAY W10324738 Contact Us For Availability
6
GASKET, GEMINI OVEN SHIELD MAY W10319000 Contact Us For Availability
6
INSULATION, DOOR MAY W10321271 Contact Us For Availability
6
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
6
PLATE, INSULATION MAY W10339476 Contact Us For Availability
6A
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
7
PANEL, MANIFOLD (STAINLESS) MAY W10711043 Contact Us For Availability
7
MAY W10903066 MAY W10903066 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10806878 Contact Us For Availability
7
SUPPORT, LOWER OVEN MAY W10863342 Contact Us For Availability
7
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
7
SCREW MAY 4449154 Contact Us For Availability
8
SHIELD, VENT MAY W10278697 Contact Us For Availability
8
VALVE (10K) (LEFT FRONT & RIGHT FRONT) MAY W10718181 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
ASSEMBLY, DOOR (STAINLESS) MAY W10888651 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
8
COVER, FAN MAY 4448988 Contact Us For Availability
8A
VALVE (17K) (CENTER) MAY W10718180 Contact Us For Availability
8A
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8B
VALVE (5K) (LEFT REAR & RIGHT REAR) MAY W10718182 Contact Us For Availability
9
BRACKET, COOKTOP SUPPORT MAY W10518258 Contact Us For Availability
9
COVER, BACKGUARD MAY W10776098 Contact Us For Availability
9
NUT, WING MAY 7103P030-60 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
SPACER, VENT TRIM MAY W10575917 Contact Us For Availability
9
LINING, DOOR MAY W10272698 Contact Us For Availability
9
ELEMENT, CONVECTION (120 VAC) MAY W10249980 Contact Us For Availability
10
BEZEL MAY W10850043 Contact Us For Availability
10
INSULATION, WIRE COVER MAY W10309232 Contact Us For Availability
10
BURNER, BROILER MAY W10315768 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
SCREW MAY 4449040 Contact Us For Availability
10
HINGE, DOOR (LEFT) MAY W10485733 Contact Us For Availability
10A
HINGE, DOOR (RIGHT) MAY W10485732 Contact Us For Availability
11
SET, FISH BURNER CAP (BLACK) MAY W10171140 Contact Us For Availability
11
BURNER, BAKE MAY W10407912 Contact Us For Availability
11
COVER, LOWER WIRE MAY W10268558 Contact Us For Availability
11
RETAINER, INSULATION MAY W10340464 Contact Us For Availability
12
BASE, BURNER (FISH BURNER ONLY) MAY W10333445 Contact Us For Availability
12
COVER, WIRE FILLER MAY W10292689 Contact Us For Availability
12
ORIFICE, BAKE (UPPER) MAY W10342662 Contact Us For Availability
12
BOTTOM, OVEN DRIP MAY W10777398 Contact Us For Availability
12
INSULATION, DOOR MAY W10321285 Contact Us For Availability
12A
ORIFICE, BAKE (LOWER) MAY W10342661 Contact Us For Availability
13
GLIDE, MAIN TOP MAY 8016P022-60 Contact Us For Availability
13
IGNITOR, BAKE MAY 7432P143-60 Contact Us For Availability
13
COVER, MAIN WIRE MAY W10261387 Contact Us For Availability
13
SCREW MAY W10480830 Contact Us For Availability
13
MAY W10888652 MAY W10888652 Contact Us For Availability
14
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
14
SHIELD, BAKE MAY W10298865 Contact Us For Availability
14
ASSEMBLY, FLUE (UPPER) MAY W10311326 Contact Us For Availability
14
MAY W10888811 MAY W10888811 Contact Us For Availability
14A
ASSEMBLY, FLUE (LOWER) MAY W10272519 Contact Us For Availability
15
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
15
SCREW MAY 7101P434-60 Contact Us For Availability
15
FITTING, BROILER MAY W10292293 Contact Us For Availability
16
CAP, END (STAINLESS (LEFT)) MAY W10823301 Contact Us For Availability
16
COVER, IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
16
BACK, MAIN MAY W10668728 Contact Us For Availability
16A
CAP, END (STAINLESS (RIGHT)) MAY W10823299 Contact Us For Availability
17
SCREW MAY 7101P634-60 Contact Us For Availability
17
NUT, MOUNTING MAY 7103P195-60 Contact Us For Availability
17
ASSEMBLY, OUTLET FLUE (UPPER) MAY W10321446 Contact Us For Availability
17A
ASSEMBLY, OUTLET FLUE (LOWER) MAY W10321445 Contact Us For Availability
18
SCREW MAY 3368921 Contact Us For Availability
19
GRIDDLE MAY W10432544 Contact Us For Availability
19
SCREW, VALVE MAY W10295997 Contact Us For Availability
19
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
20
BAFFLE, BAKE MAY W10272528 Contact Us For Availability
20
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
21
BRACKET, MANIFOLD REAR COVER MAY W10343062 Contact Us For Availability
21
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
22
BAFFLE, BROIL BURNER MAY 3601F358-45 Contact Us For Availability
22
BRACKET, SIDE PANEL MAY W10357697 Contact Us For Availability
23
SCREW MAY 8273062 Contact Us For Availability
23
LOCK, REAR MOUNT MAY W10683517 Contact Us For Availability
24
TUBING (SUPPLY REGULATOR TO SHUTOFF) MAY W10524331 Contact Us For Availability
24
GASKET, OVEN DOOR (UPPER) MAY W10318928 Contact Us For Availability
24A
GASKET, OVEN DOOR (LOWER) MAY W10269069 Contact Us For Availability
25
SCREW MAY 7101P653-60 Contact Us For Availability
25
COVER, HINGE (LEFT) MAY W10410463 Contact Us For Availability
25A
COVER, HINGE (RIGHT) MAY W10410461 Contact Us For Availability
26
TUBING (SUPPLY SHUTOFF TO MANIFOLD) MAY W10642388 Contact Us For Availability
26
SHIELD, SIDE INSULATION MAY W10538516 Contact Us For Availability
27
SCREW MAY 7101P426-60 Contact Us For Availability
27
BRACKET, ORIFICE MAY W10272520 Contact Us For Availability
28
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
28
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
29
SCREW MAY W10217535 Contact Us For Availability
29
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
30
HOLDER, ELECTRODE EXTENSION MAY W10324366 Contact Us For Availability
31
EXTENSION, ELECTRODE MAY W10636384 Contact Us For Availability
31
COVER, INNER MAIN BACK MAY W10626077 Contact Us For Availability
32
BRACKET, SPARK MODULE MAY W10319059 Contact Us For Availability
32
COVER, OUTER MAIN BACK MAY W10626078 Contact Us For Availability
33
MODULE, SPARK MAY 7431P053-60 Contact Us For Availability
35
SCREW MAY 7101P502-60 Contact Us For Availability
36
ELECTRODE, SPARK (LEFT FRONT, LEFT REAR, RIGH MAY W10565365 Contact Us For Availability
36A
ELECTRODE, FISH (CENTER) MAY W10637673 Contact Us For Availability
37
BRACKET, MANIFOLD (BOTTOM) MAY W10276466 Contact Us For Availability
38
GROMMET, VALVE STEM MAY W10631502 Contact Us For Availability
39
SCREW MAY 7101P282-60 Contact Us For Availability
40
MAY W10639161 MAY W10639161 Contact Us For Availability
40A
MAY W10407673 MAY W10407673 Contact Us For Availability
40B
MAY W10324014 MAY W10324014 Contact Us For Availability
40C
MAY W10407675 MAY W10407675 Contact Us For Availability
NI
SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
WASHER, FIBER MAY 7109P084-60 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
CLIP, WIRE-WRAP NYLON MAY 8019P026-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SPARK MAY W10408058 Contact Us For Availability
NI
HARNESS, MAIN MAY W10745674 Contact Us For Availability
NI
HARNESS, SENSOR & LOCKS MAY W10745683 Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10853127 Contact Us For Availability
NI
INSULATION, ORIFI MAY W10324646 Contact Us For Availability
NI
MAY W10591270 MAY W10591270 Contact Us For Availability
NI
INSULATION, BACK (LOWER) MAY W10204081 Contact Us For Availability
NI
INSULATION, WRAPPER (UPPER) MAY W10318910 Contact Us For Availability
NI
INSULATION, WRAPPER (LOWER) MAY W10318911 Contact Us For Availability
NI
INSULATION, BACK (UPPER) MAY W10318918 Contact Us For Availability
NI
INSULATION, FLOOR MAY W10344586 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
