Model Maytag MGT8655XB03 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS
03 - MANIFOLD PARTS

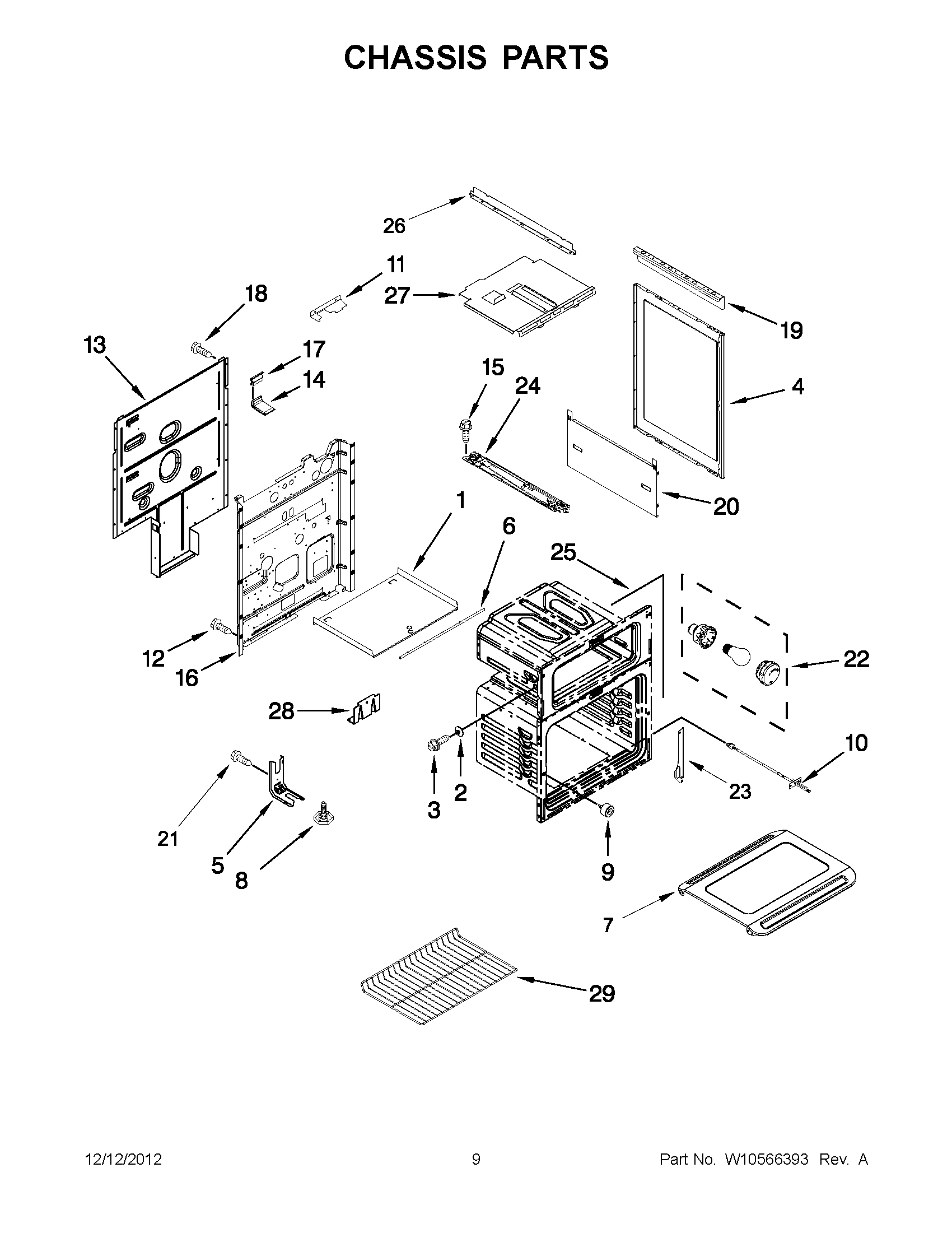

04 - CHASSIS PARTS
05 - UPPER DOOR PARTS

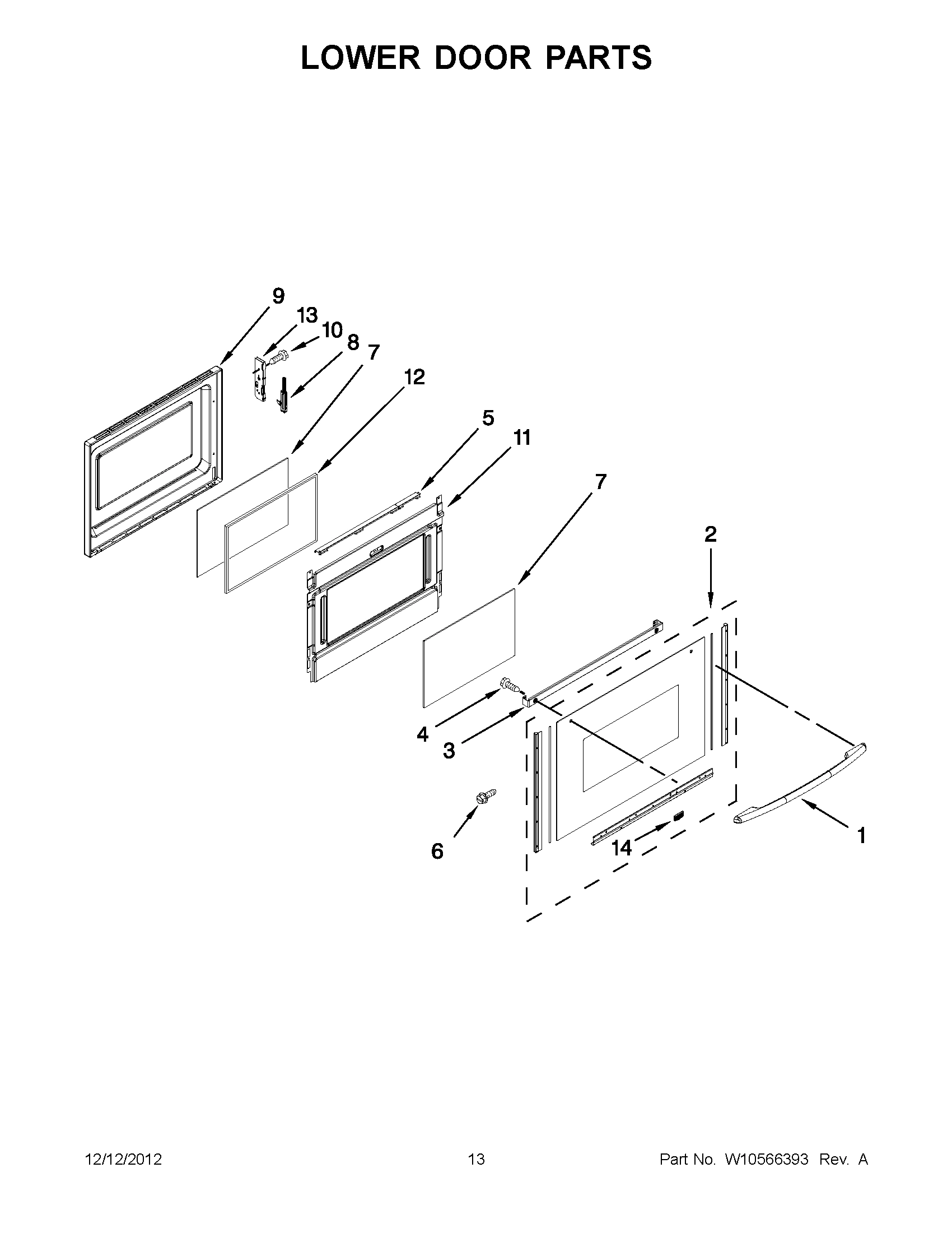

06 - LOWER DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGT8655XB03 ELECTRIC RANGE
1
TIPS, SAFER COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10311748 MAY W10311748 Contact Us For Availability
1
MAY W10430935 MAY W10430935 Contact Us For Availability
1
MAY W10526071 MAY W10526071 Contact Us For Availability
1
MAY W10319109 MAY W10319109 Contact Us For Availability
1
MAY W10319110 MAY W10319110 Contact Us For Availability
1
MAY W10319111 MAY W10319111 Contact Us For Availability
1
MAY W10319112 MAY W10319112 Contact Us For Availability
1
MAY W10319002 MAY W10319002 Contact Us For Availability
1
MAY W10319038 MAY W10319038 Contact Us For Availability
1
MAY W10485720 MAY W10485720 Contact Us For Availability
1
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
1
MAY W10323581 MAY W10323581 Contact Us For Availability
1
MAY W10323584 MAY W10323584 Contact Us For Availability
2
MAY W10338216 MAY W10338216 Contact Us For Availability
2
KIT, GRATES (WETSTONE) MAY W10338217 Contact Us For Availability
2
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
2
HOLDER, ORIFICE 5K (LEFT REAR) MAY W10273135 Contact Us For Availability
2
MAY W10273140 MAY W10273140 Contact Us For Availability
2
MAY W10296790 MAY W10296790 Contact Us For Availability
2
MAY W10319348 MAY W10319348 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
GLASS, INNER MAY W10272707 Contact Us For Availability
2
MAY W10346116 MAY W10346116 Contact Us For Availability
2
MAY W10346119 MAY W10346119 Contact Us For Availability
2
ASSEMBLY, GLASS DOOR (STAINLESS) MAY W10346126 Contact Us For Availability
3
MAY W10244447 MAY W10244447 Contact Us For Availability
3
KIT, BURNER CAP (WETSTONE) MAY W10244448 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10097270 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10097280 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY 9758382 MAY 9758382 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
MAY W10294695 MAY W10294695 Contact Us For Availability
4
BURNER HEAD, AUXILIARY (6K) (LEFT REAR) MAY W10406243 Contact Us For Availability
4
BURNER HEAD, RAPID (12K) (RIGHT FRONT & RIGHT MAY W10406797 Contact Us For Availability
4
MAY W10406878 MAY W10406878 Contact Us For Availability
4
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
4
MAY W10518493 MAY W10518493 Contact Us For Availability
4
MAY W10330375 MAY W10330375 Contact Us For Availability
4
MAY W10330376 MAY W10330376 Contact Us For Availability
4
SCREW MAY W10317886 Contact Us For Availability
5
MAY W10204725 MAY W10204725 Contact Us For Availability
5
MAY W10204726 MAY W10204726 Contact Us For Availability
5
MAY W10365420 MAY W10365420 Contact Us For Availability
5
MAY W10204717 MAY W10204717 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY W10485723 MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
6
MAY W10281279 MAY W10281279 Contact Us For Availability
6
MAY W10294792 MAY W10294792 Contact Us For Availability
6
MAY W10296917 MAY W10296917 Contact Us For Availability
6
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
6
MAY W10324738 MAY W10324738 Contact Us For Availability
6
MAY W10319000 MAY W10319000 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
7
MAY W10219239 MAY W10219239 Contact Us For Availability
7
MAY W10219240 MAY W10219240 Contact Us For Availability
7
MAY W10219242 MAY W10219242 Contact Us For Availability
7
ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK) MAY W10297177 Contact Us For Availability
7
ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS MAY W10297178 Contact Us For Availability
7
ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE) MAY W10321791 Contact Us For Availability
7
MAY W10204706 MAY W10204706 Contact Us For Availability
7
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
7
MAY W10277006 MAY W10277006 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
8
MAY W10278697 MAY W10278697 Contact Us For Availability
8
VALVE 5K (LEFT REAR) MAY W10206287 Contact Us For Availability
8
VALVE 16K (LEFT FRONT, RIGHT FRONT & RIGHT RE MAY W10206288 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY W10346058 MAY W10346058 Contact Us For Availability
8
MAY W10346060 MAY W10346060 Contact Us For Availability
8
ASSEMBLY, GLASS DOOR (STAINLESS) MAY W10346061 Contact Us For Availability
8
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
9
MAY W10364218 MAY W10364218 Contact Us For Availability
9
COVER, BACKGUARD MAY W10296773 Contact Us For Availability
9
WING NUT MAY 7103P030-60 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
10
MAY W10309232 MAY W10309232 Contact Us For Availability
10
MAY W10315768 MAY W10315768 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
MAY W10292297 MAY W10292297 Contact Us For Availability
11
MAY W10272526 MAY W10272526 Contact Us For Availability
11
MAY W10268558 MAY W10268558 Contact Us For Availability
11
MAY W10340464 MAY W10340464 Contact Us For Availability
12
MAY W10342661 MAY W10342661 Contact Us For Availability
12
MAY W10342662 MAY W10342662 Contact Us For Availability
12
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
12
MAY W10485730 MAY W10485730 Contact Us For Availability
12
MAY W10485731 MAY W10485731 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
MAY 7432P143-60 MAY 7432P143-60 Contact Us For Availability
13
BUMPER & SCREW MAY W10105790 Contact Us For Availability
13
MAY W10261387 MAY W10261387 Contact Us For Availability
13
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
14
MAY W10298865 MAY W10298865 Contact Us For Availability
14
MAY W10272519 MAY W10272519 Contact Us For Availability
14
MAY W10311326 MAY W10311326 Contact Us For Availability
14
BADGE (BLACK) MAY W10288004 Contact Us For Availability
15
MAY W10292293 MAY W10292293 Contact Us For Availability
15
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
16
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
16
MAY W10260580 MAY W10260580 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
ASSEMBLY, OUTLET FLUE LOWER MAY W10321445 Contact Us For Availability
17
ASSEMBLY, OUTLET FLUE UPPER MAY W10321446 Contact Us For Availability
18
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
18
MAY 4449040 MAY 4449040 Contact Us For Availability
19
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
20
MAY W10272528 MAY W10272528 Contact Us For Availability
20
SHIELD, SIDE INSULATION MAY W10253471 Contact Us For Availability
21
BRACKET, MANIFOLD REAR COVER MAY W10343062 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY W10512757 MAY W10512757 Contact Us For Availability
23
Screw MAY 7101P282-60 Contact Us For Availability
23
MAY W10410461 MAY W10410461 Contact Us For Availability
23
MAY W10410463 MAY W10410463 Contact Us For Availability
24
MAY W10295050 MAY W10295050 Contact Us For Availability
24
MAY W10471348 MAY W10471348 Contact Us For Availability
25
MAY W10269069 MAY W10269069 Contact Us For Availability
25
MAY W10318928 MAY W10318928 Contact Us For Availability
26
MAY W10295055 MAY W10295055 Contact Us For Availability
27
MAY W10272520 MAY W10272520 Contact Us For Availability
27
MAY W10324643 MAY W10324643 Contact Us For Availability
28
MAY 7101P653-60 MAY 7101P653-60 Contact Us For Availability
28
MAY W10260703 MAY W10260703 Contact Us For Availability
29
BRACKET, SPARK MODULE MAY W10319059 Contact Us For Availability
29
MAY W10179152 MAY W10179152 Contact Us For Availability
30
MAY W10276466 MAY W10276466 Contact Us For Availability
31
MAY W10407676 MAY W10407676 Contact Us For Availability
32
SCREW MAY 7101P502-60 Contact Us For Availability
33
MAY 7431P054-60 MAY 7431P054-60 Contact Us For Availability
34
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10324646 MAY W10324646 Contact Us For Availability
NI
MAY W10328517 MAY W10328517 Contact Us For Availability
NI
INSULATION, BACK LOWER MAY W10204081 Contact Us For Availability
NI
INSULATION, WRAPPER UPPER MAY W10318910 Contact Us For Availability
NI
INSULATION, WRAPPER LOWER MAY W10318911 Contact Us For Availability
NI
INSULATION, BACK UPPER MAY W10318918 Contact Us For Availability
NI
MAY W10344586 MAY W10344586 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10223553 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10225701 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
NI
MAY W10408058 MAY W10408058 Contact Us For Availability
× ![]()
