Model Maytag MGS8880DS0 GAS RANGE – Common Parts & Diagrams

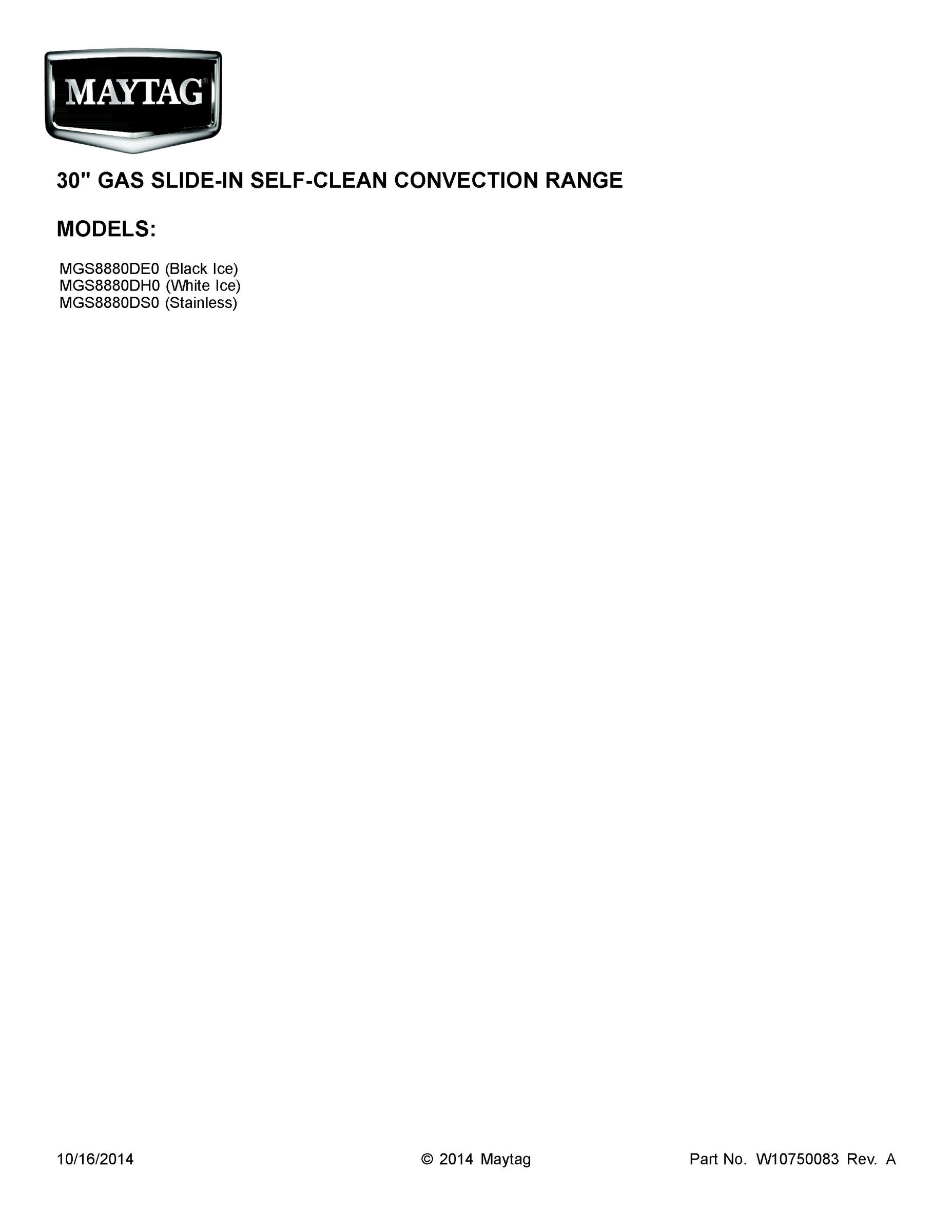

01 - COVER SHEET

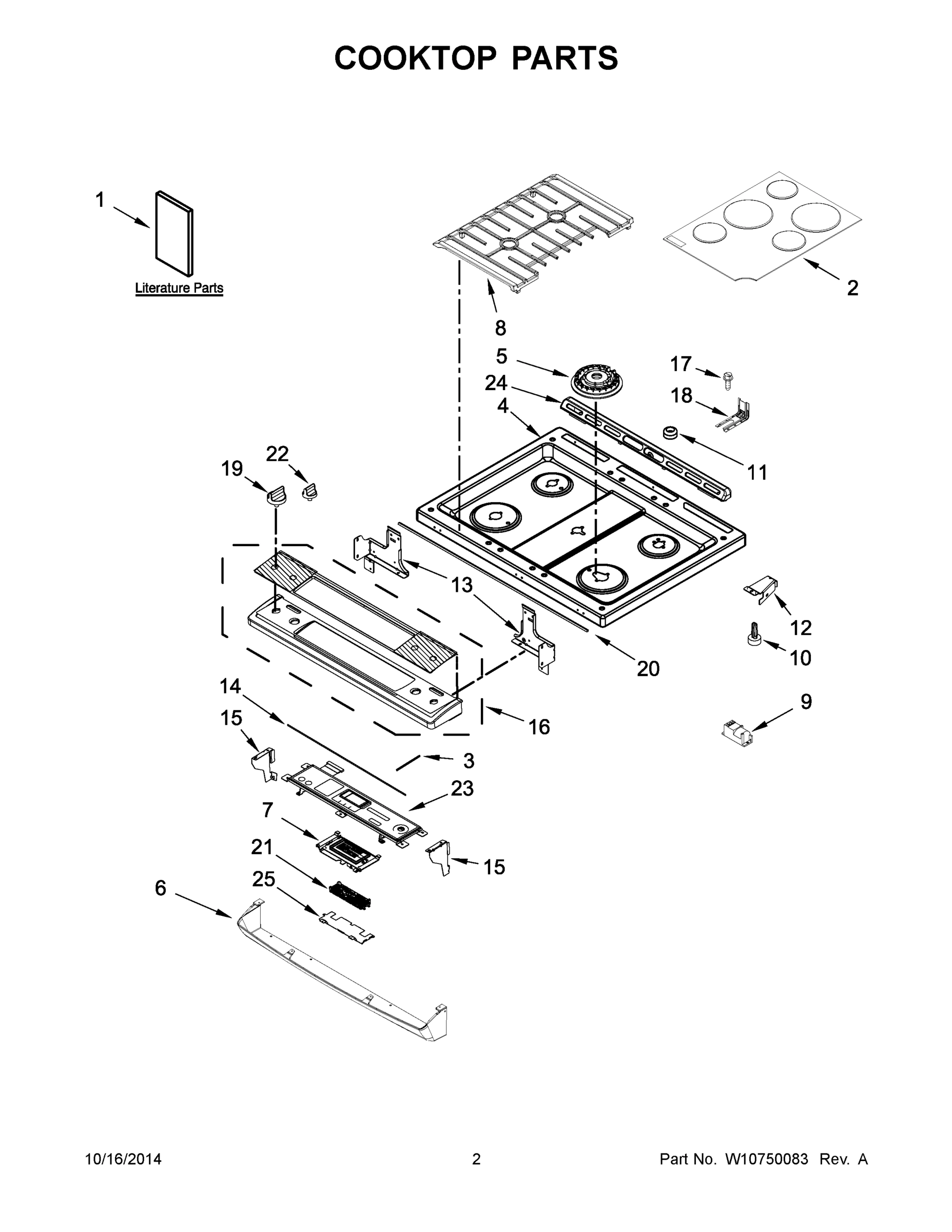

02 - COOKTOP PARTS

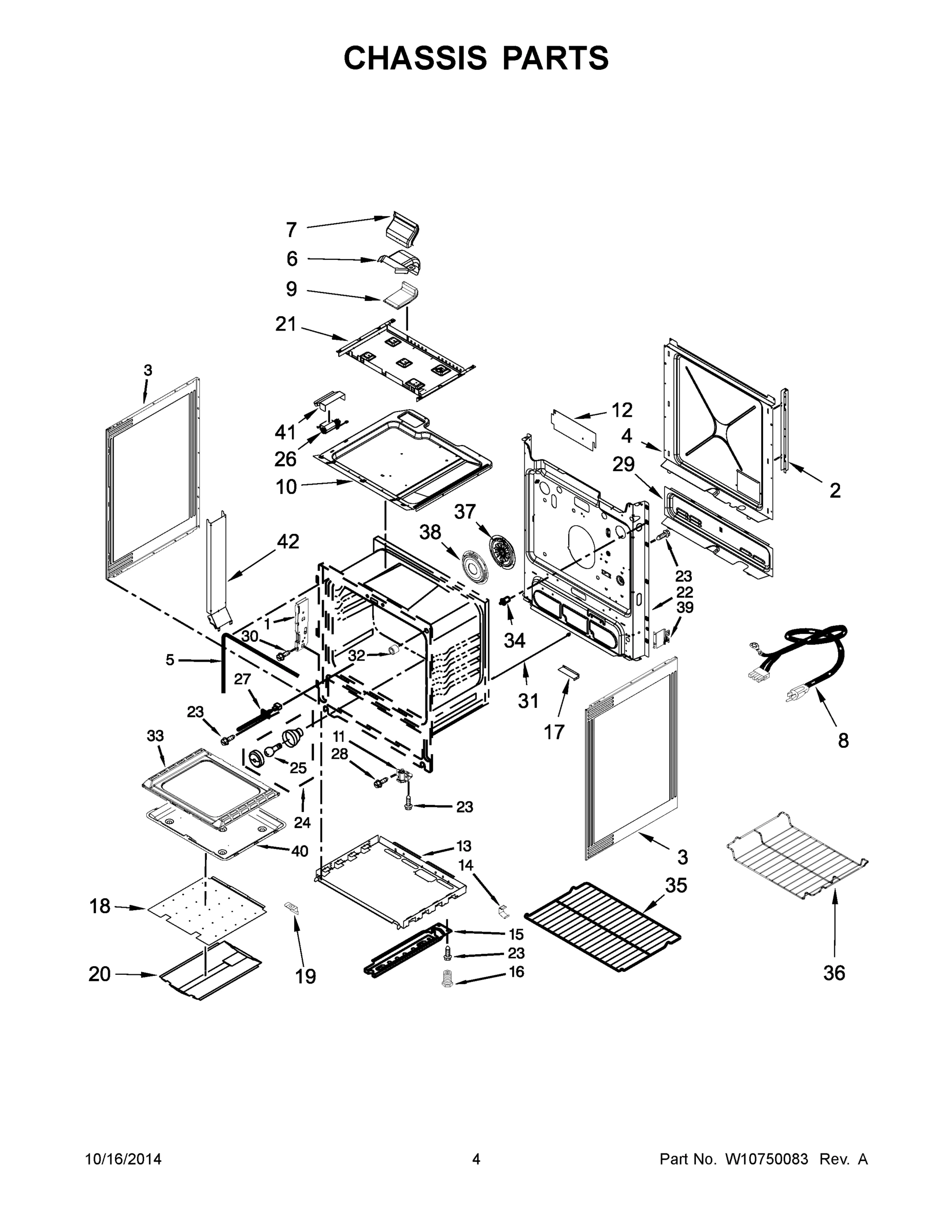

03 - CHASSIS PARTS

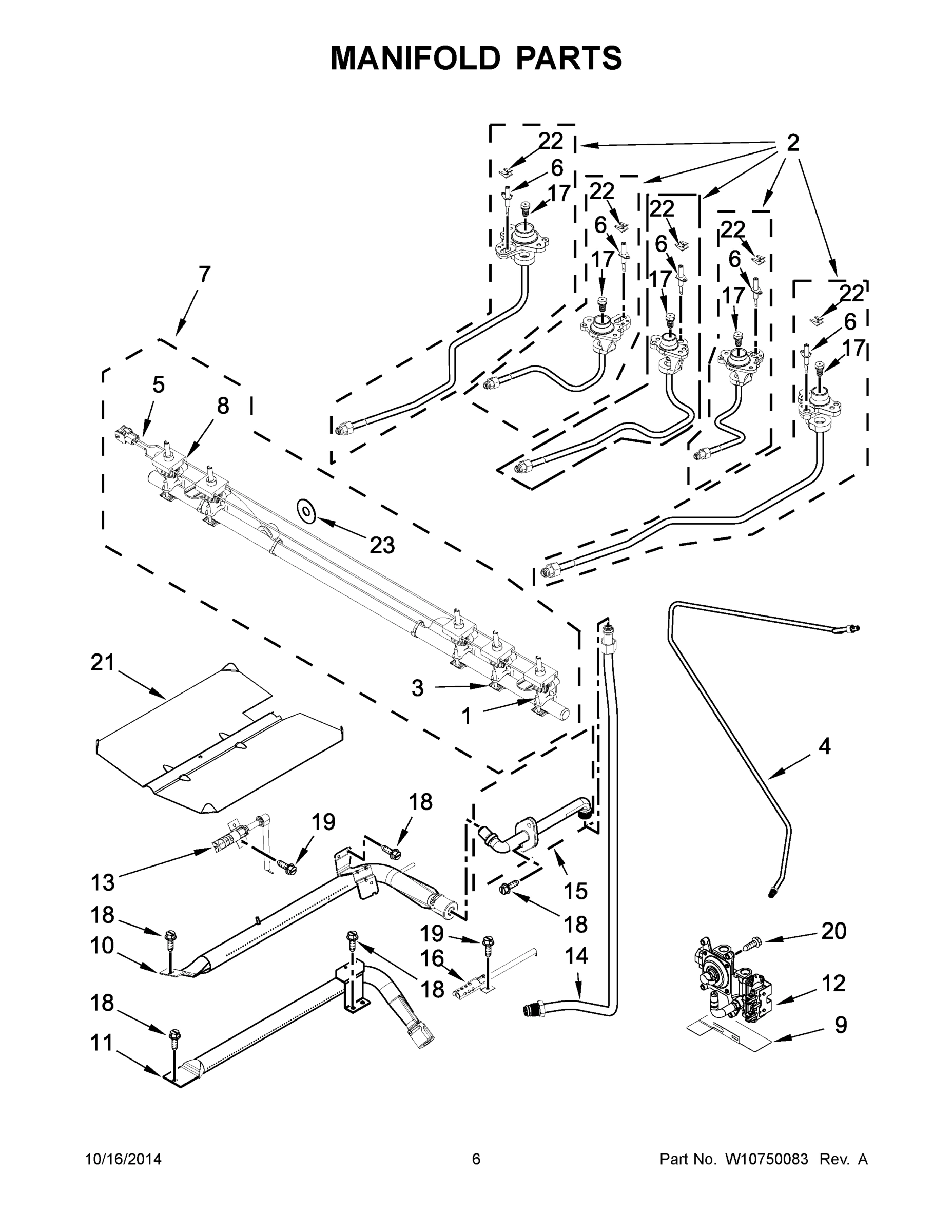

04 - MANIFOLD PARTS

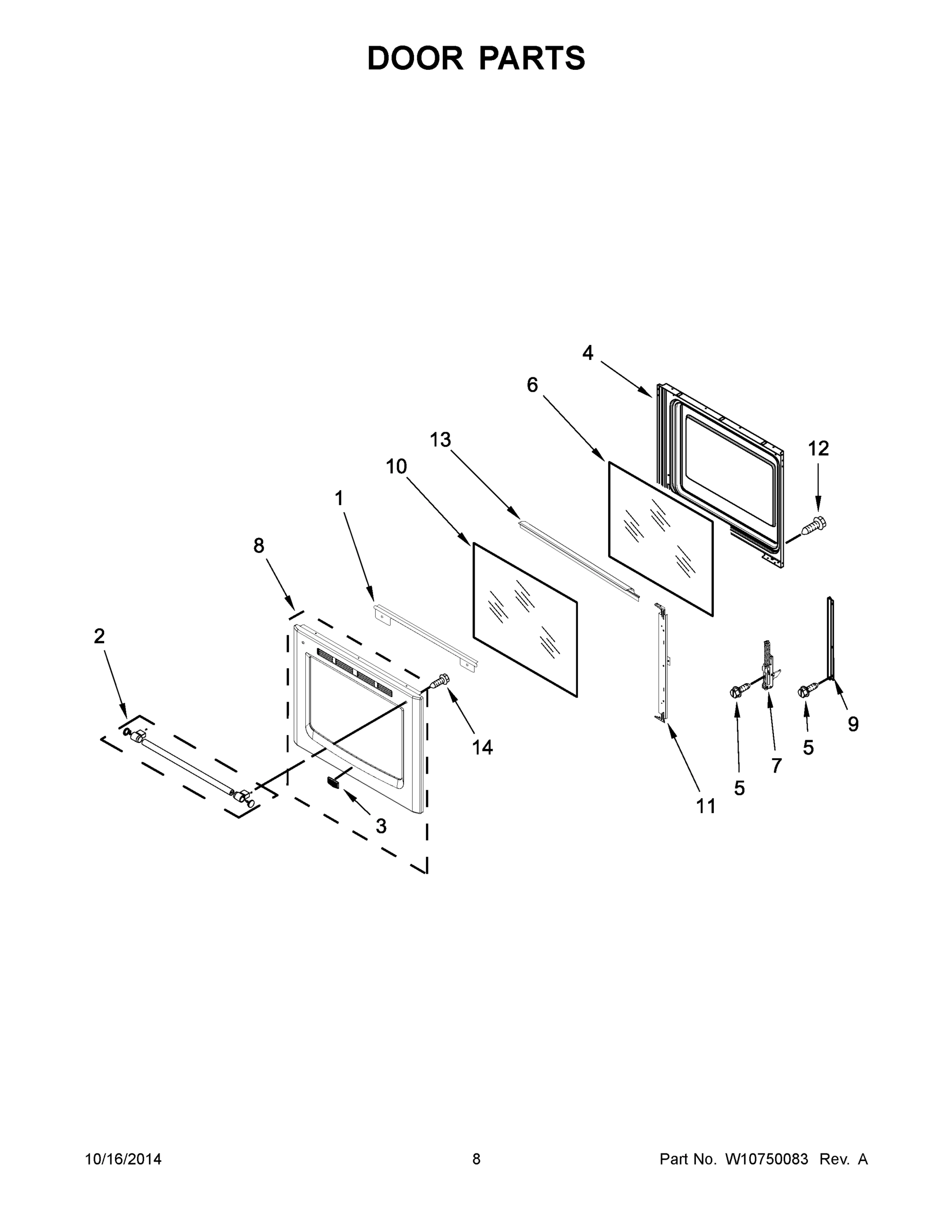

05 - DOOR PARTS

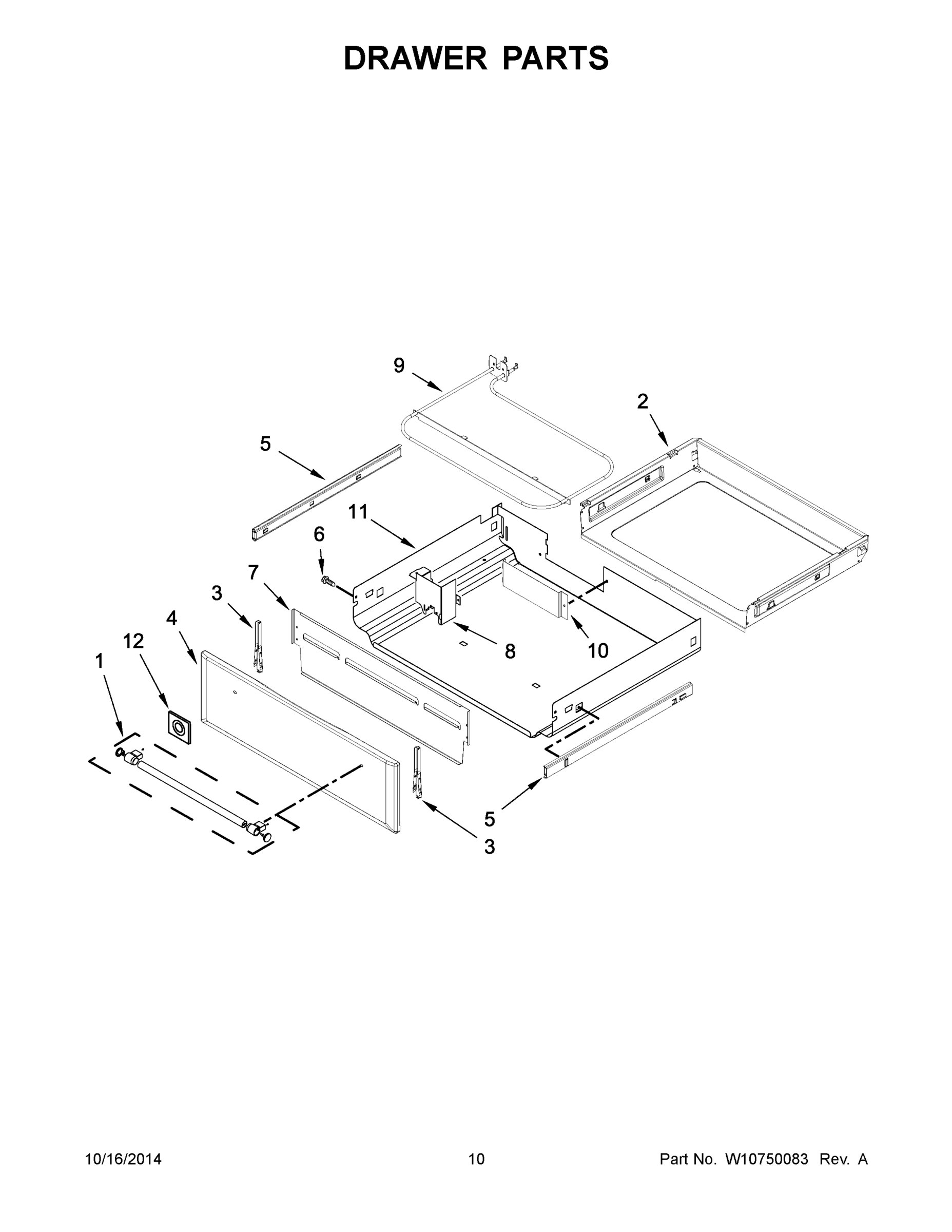

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGS8880DS0 GAS RANGE
1
INSTALLATION INSTRUCTIONS MAY W10665256 Contact Us For Availability
1
MAY W10289077 MAY W10289077 Contact Us For Availability
1
MAY W10246216 MAY W10246216 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1
ASSEMBLY, HANDLE (STAINLESS) MAY W10665831 Contact Us For Availability
1A
MAY W10722064 MAY W10722064 Contact Us For Availability
1A
MAY W10330075 MAY W10330075 Contact Us For Availability
1B
SHEET, TECH MAY W10665227 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10400066 MAY W10400066 Contact Us For Availability
1F
MAY W10400067 MAY W10400067 Contact Us For Availability
2
KIT, BURNER CAP (BLACK) MAY W10479988 Contact Us For Availability
2
MAY W10162241 MAY W10162241 Contact Us For Availability
2
ASSEMBLY, ORIFICE (LEFT FRONT) MAY W10552128 Contact Us For Availability
2
MAY W10663433 MAY W10663433 Contact Us For Availability
2A
MAY W10479987 MAY W10479987 Contact Us For Availability
2A
ASSEMBLY, ORIFICE (LEFT REAR) MAY W10552127 Contact Us For Availability
2B
ASSEMBLY, ORIFICE (RIGHT FRONT) MAY W10552126 Contact Us For Availability
2C
ASSEMBLY, ORIFICE (RIGHT REAR) MAY W10552125 Contact Us For Availability
2D
ASSEMBLY, ORIFICE (CENTER) MAY W10552129 Contact Us For Availability
3
MAY W10689102 MAY W10689102 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
MAY W10636267 MAY W10636267 Contact Us For Availability
3
MAY W10318026 MAY W10318026 Contact Us For Availability
3A
MAY W10575396 MAY W10575396 Contact Us For Availability
4
MAY W10474659 MAY W10474659 Contact Us For Availability
4
MAY W10289172 MAY W10289172 Contact Us For Availability
4
TUBE, SUPPLY MAY W10552140 Contact Us For Availability
4
MAY W10297318 MAY W10297318 Contact Us For Availability
4
MAY W10432481 MAY W10432481 Contact Us For Availability
4A
MAY W10474661 MAY W10474661 Contact Us For Availability
5
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10256028 Contact Us For Availability
5
MAY W10162385 MAY W10162385 Contact Us For Availability
5
MAY W10478601 MAY W10478601 Contact Us For Availability
5
MAY W10327235 MAY W10327235 Contact Us For Availability
5
MAY W10441804 MAY W10441804 Contact Us For Availability
5A
SPREADER, FLAME (RIGHT REAR & CENTER) MAY W10256025 Contact Us For Availability
5A
MAY W10441805 MAY W10441805 Contact Us For Availability
5B
MAY W10464795 MAY W10464795 Contact Us For Availability
6
PANEL, LOWER CONSOLE (BLACK) MAY W10570527 Contact Us For Availability
6
MAY W10162257 MAY W10162257 Contact Us For Availability
6
MAY W10496874 MAY W10496874 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
MAY 8533988 MAY 8533988 Contact Us For Availability
6A
PANEL, LOWER CONSOLE (WHITE) MAY W10570528 Contact Us For Availability
6A
MAY W10464799 MAY W10464799 Contact Us For Availability
6B
ELECTRODE (RIGHT FRONT & CENTER) MAY W10496870 Contact Us For Availability
6C
MAY W10496872 MAY W10496872 Contact Us For Availability
7
MAY W10603098 MAY W10603098 Contact Us For Availability
7
ASSEMBLY, FLUE MAY W10614920 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10475023 Contact Us For Availability
7
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
7
MAY W10324877 MAY W10324877 Contact Us For Availability
8
KIT, GRATE (BLACK) MAY W10432521 Contact Us For Availability
8
MAY W10624590 MAY W10624590 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10566042 Contact Us For Availability
8
ASSEMBLY, DOOR SKIN (BLACK) MAY W10655834 Contact Us For Availability
8
MAY W10634259 MAY W10634259 Contact Us For Availability
8A
MAY W10432522 MAY W10432522 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10566049 Contact Us For Availability
8A
ASSEMBLY, DOOR SKIN (WHITE) MAY W10655831 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR & CENTER) MAY W10566050 Contact Us For Availability
8B
ASSEMBLY, DOOR SKIN (STAINLESS) MAY W10655838 Contact Us For Availability
9
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
9
MAY W10311326 MAY W10311326 Contact Us For Availability
9
MAY W10224921 MAY W10224921 Contact Us For Availability
9
MAY W10294852 MAY W10294852 Contact Us For Availability
9
ELEMENT, WARM MAY W10323181 Contact Us For Availability
9A
MODULE, SPARK (0+2) MAY W10457998 Contact Us For Availability
10
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
10
MAY W10289168 MAY W10289168 Contact Us For Availability
10
MAY W10439242 MAY W10439242 Contact Us For Availability
10
MAY W10615599 MAY W10615599 Contact Us For Availability
10
MAY W10727084 MAY W10727084 Contact Us For Availability
11
MAY W10664705 MAY W10664705 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
MAY W10680035 MAY W10680035 Contact Us For Availability
11
MAY W10294851 MAY W10294851 Contact Us For Availability
11
MAY W10634260 MAY W10634260 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
MAY W10655485 MAY W10655485 Contact Us For Availability
12
MAY W10031780 MAY W10031780 Contact Us For Availability
12
MAY W10554066 MAY W10554066 Contact Us For Availability
12
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
MAY W10324262 MAY W10324262 Contact Us For Availability
13
MAY W10294853 MAY W10294853 Contact Us For Availability
13A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
14
MAY W10689101 MAY W10689101 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY W10306050 MAY W10306050 Contact Us For Availability
15
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10319134 MAY W10319134 Contact Us For Availability
15A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15B
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
16
MAY W10680369 MAY W10680369 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10333842 MAY W10333842 Contact Us For Availability
16A
MAY W10680370 MAY W10680370 Contact Us For Availability
16B
MAY W10680371 MAY W10680371 Contact Us For Availability
17
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
17
MAY W10655451 MAY W10655451 Contact Us For Availability
17
ORIFICE (LEFT FRONT) MAY W10657946 Contact Us For Availability
17A
MAY W10515054 MAY W10515054 Contact Us For Availability
17B
ORIFICE (RIGHT FRONT) MAY W10434277 Contact Us For Availability
17C
ORIFICE (RIGHT REAR) MAY W10657949 Contact Us For Availability
17D
MAY W10657947 MAY W10657947 Contact Us For Availability
18
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
18
MAY W10323077 MAY W10323077 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
19
MAY W10672075 MAY W10672075 Contact Us For Availability
19
MAY W10035900 MAY W10035900 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
20
MAY W10612719 MAY W10612719 Contact Us For Availability
20
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
20
MAY 3400016 MAY 3400016 Contact Us For Availability
21
MAY W10658114 MAY W10658114 Contact Us For Availability
21
BOX, BURNER MAY W10558276 Contact Us For Availability
21
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
22
MAY W10680397 MAY W10680397 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
22
CLIP, SPRING ELECTRODE MAY W10575401 Contact Us For Availability
23
MAY W10680394 MAY W10680394 Contact Us For Availability
23
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
23A
MAY W10680395 MAY W10680395 Contact Us For Availability
23B
MAY W10680396 MAY W10680396 Contact Us For Availability
24
MAY W10577781 MAY W10577781 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
24A
TRIM, VENT (WHITE) MAY W10636527 Contact Us For Availability
25
MAY W10558372 MAY W10558372 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY W10162259 MAY W10162259 Contact Us For Availability
27
MAY W10586204 MAY W10586204 Contact Us For Availability
28
MAY 3196169 MAY 3196169 Contact Us For Availability
29
COVER, WIRE MAY W10162249 Contact Us For Availability
31
MAY W10273192 MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
MAY W10211368 MAY W10211368 Contact Us For Availability
34
MAY W10627802 MAY W10627802 Contact Us For Availability
35
MAY W10531060 MAY W10531060 Contact Us For Availability
36
MAY W10289145 MAY W10289145 Contact Us For Availability
37
ASSEMBLY, CONVECTION MAY W10617484 Contact Us For Availability
38
MAY W10346154 MAY W10346154 Contact Us For Availability
39
MAY W10273002 MAY W10273002 Contact Us For Availability
40
MAY W10273204 MAY W10273204 Contact Us For Availability
41
MAY W10162255 MAY W10162255 Contact Us For Availability
42
MAY W10162254 MAY W10162254 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580228 MAY W10580228 Contact Us For Availability
NI
MAY W10580229 MAY W10580229 Contact Us For Availability
NI
MAY W10580265 MAY W10580265 Contact Us For Availability
NI
MAY W10580282 MAY W10580282 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W10598169 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
MAY W10162240 MAY W10162240 Contact Us For Availability
NI
MAY W10289173 MAY W10289173 Contact Us For Availability
NI
INSULATION, BURNER BOX MAY W10716764 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10566083 Contact Us For Availability
NI
KIT, BAKE & BROIL MAY W10566534 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 31463A MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN MAY 4396923 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (SPLIT) MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY W10432539 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL MAY W10432545 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) MAY W10655449 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINL MAY W10655450 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (BLACK) MAY W10675026 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (WHITE) MAY W10675027 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRI MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
Login and Registration Form
