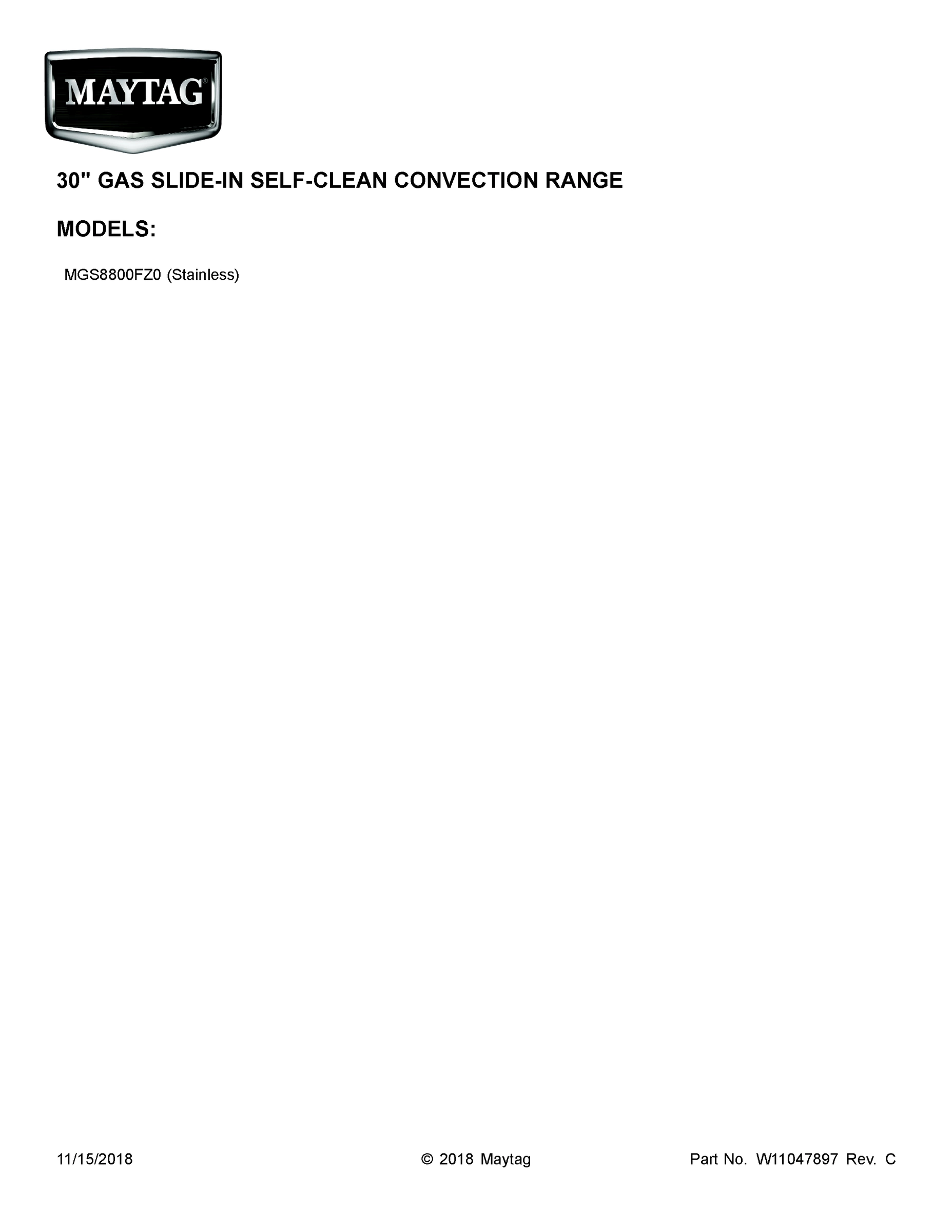

01 - COVER SHEET

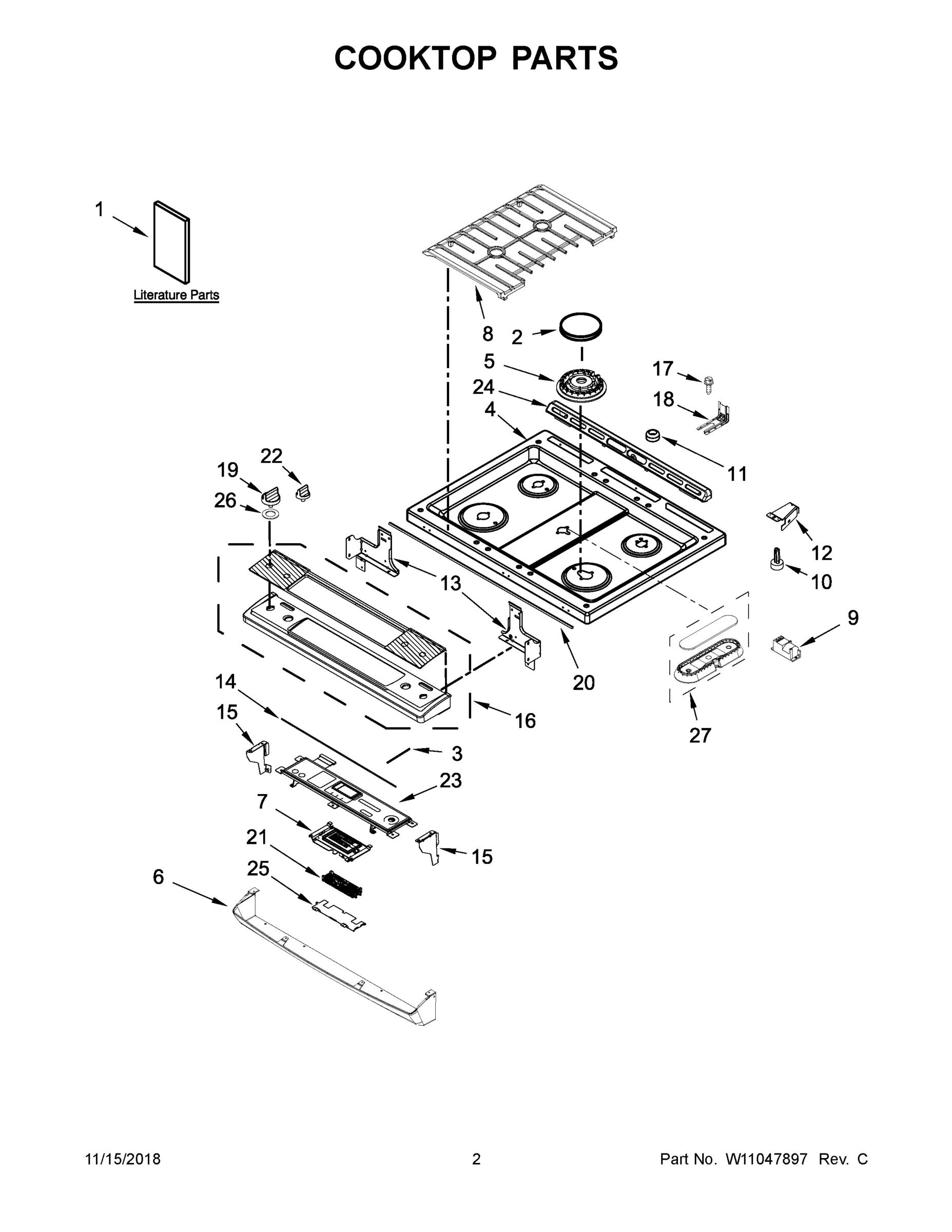

02 - COOKTOP PARTS
03 - CHASSIS PARTS
04 - MANIFOLD PARTS
05 - DOOR PARTS
06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGS8800FZ0 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W11124007 Contact Us For Availability
1
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
1
SCREW MAY W10246216 Contact Us For Availability
1
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
1
ASSEMBLY, HANDLE (STAINLESS) MAY W10834521 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W11123989 Contact Us For Availability
1B
SHEET, TECH MAY W10844271 Contact Us For Availability
1C
GUIDE, QUICK START (ENGLISH) MAY W10400066 Contact Us For Availability
1D
GUIDE, QUICK START (FRENCH) MAY W10400067 Contact Us For Availability
2
KIT, BURNER CAP (BLACK) MAY W10837262 Contact Us For Availability
2
CHANNEL, REAR MAY W10162241 Contact Us For Availability
2
ASSEMBLY, ORIFICE (LEFT FRONT) MAY W10552128 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
2A
ASSEMBLY, ORIFICE (LEFT REAR) MAY W10552127 Contact Us For Availability
2B
ASSEMBLY, ORIFICE (RIGHT FRONT) MAY W10552126 Contact Us For Availability
2C
ASSEMBLY, ORIFICE (RIGHT REAR) MAY W10552125 Contact Us For Availability
2D
ASSEMBLY, ORIFICE (CENTER) MAY W10836763 Contact Us For Availability
3
GASKET, CONSOLE SHORT MAY W10689102 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
BADGE MAY W10612925 Contact Us For Availability
3
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10884169 Contact Us For Availability
4
COVER, BACK MAY W10289172 Contact Us For Availability
4
TUBE, SUPPLY MAY W10552140 Contact Us For Availability
4
LINER, DOOR MAY W10826568 Contact Us For Availability
4
PANEL, DRAWER FRONT (STAINLESS) MAY W10865703 Contact Us For Availability
5
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W10256028 Contact Us For Availability
5
GASKET, DOOR MAY W10162385 Contact Us For Availability
5
HARNESS, SPARK SWITCH MAY W10478601 Contact Us For Availability
5
SCREW MAY W10327235 Contact Us For Availability
5
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
5A
SPREADER, FLAME (LEFT REAR) MAY W10464795 Contact Us For Availability
5A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
5B
SPREADER, FLAME (RIGHT REAR & CENTER) MAY W10256025 Contact Us For Availability
6
PANEL, LOWER CONSOLE (BLACK) MAY W10570527 Contact Us For Availability
6
DUCT, COOKTOP MAY W10162257 Contact Us For Availability
6
ELECTRODE (LEFT FRONT) MAY W10496874 Contact Us For Availability
6
GLASS, INNER MAY W10813616 Contact Us For Availability
6
SCREW MAY 8533988 Contact Us For Availability
6A
ELECTRODE (LEFT REAR) MAY W10464799 Contact Us For Availability
6B
ELECTRODE (RIGHT FRONT & CENTER) MAY W10496870 Contact Us For Availability
6C
ELECTRODE (RIGHT REAR) MAY W10496872 Contact Us For Availability
7
ASSEMBLY, DISPLAY MAY W10759327 Contact Us For Availability
7
ASSEMBLY, FLUE MAY W10614920 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10850515 Contact Us For Availability
7
HINGE, DOOR (ACTIVE) MAY W10885519 Contact Us For Availability
7
PANEL, INNER MAY W10748082 Contact Us For Availability
8
KIT, GRATE (BLACK) MAY W10432521 Contact Us For Availability
8
CORD, POWER MAY W10889764 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W10566042 Contact Us For Availability
8
ASSEMBLY, DOOR SKIN (STAINLESS) MAY W10883552 Contact Us For Availability
8
COVER, WIRE MAY W10634259 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR) MAY W10566049 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W10566050 Contact Us For Availability
8C
VALVE, GAS (CENTER) MAY W10850893 Contact Us For Availability
9
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
9
ASSEMBLY, FLUE (UPPER) MAY W11040249 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
9
ELEMENT, WARM MAY W10323181 Contact Us For Availability
9A
MODULE, SPARK (0+2) MAY W10457998 Contact Us For Availability
10
GLIDE, MAIN TOP MAY 8016P022-60 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
BURNER, BROILER MAY W10439242 Contact Us For Availability
10
SPACER, GLASS MAY W10813142 Contact Us For Availability
10
COVER, GAS VALVE MAY W10727084 Contact Us For Availability
11
BUMPER MAY W10664705 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
BURNER, BAKE MAY W10680035 Contact Us For Availability
11
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
11
ENCLOSURE, WARMING MAY W10634260 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
SHIELD, WIRE MAY W11117035 Contact Us For Availability
12
SCREW MAY W10031780 Contact Us For Availability
12
VALVE, REGULATOR MAY W10554066 Contact Us For Availability
12
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
IGNITER, BAKE MAY W10324262 Contact Us For Availability
13
LINER, DOOR SCOOP (BLACK) MAY W10613791 Contact Us For Availability
13A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
14
GASKET, CONSOLE MAY W10689101 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
15
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
FITTING, BROIL BURNER MAY W10583216 Contact Us For Availability
15A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15B
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
16
ASSEMBLY, CONSOLE (STAINLESS) MAY W10680371 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
17
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
17
GUARD, SPLASH MAY W11206138 Contact Us For Availability
17
ORIFICE (17K) (LEFT FRONT) MAY W10657946 Contact Us For Availability
17A
ORIFICE (5K) (LEFT REAR) MAY W10515054 Contact Us For Availability
17B
ORIFICE (1.8MM) (RIGHT FRONT) MAY W10434277 Contact Us For Availability
17C
ORIFICE (9.2K) (RIGHT REAR) MAY W10657949 Contact Us For Availability
17D
ORIFICE (8K) (CENTER) MAY W10657947 Contact Us For Availability
18
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
18
DIFFUSER, FLAME MAY W10323077 Contact Us For Availability
18
SCREW MAY 3196178 Contact Us For Availability
19
KNOB (STAINLESS) MAY W10876615 Contact Us For Availability
19
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
19
SCREW MAY 3196385 Contact Us For Availability
20
GASKET, CONSOLE/COOKTOP MAY W10612719 Contact Us For Availability
20
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
20
SCREW MAY 3400016 Contact Us For Availability
21
CONTROL, ELECTRONIC MAY W10759301 Contact Us For Availability
21
BURNER, BOX GAS MAY W10558276 Contact Us For Availability
21
BAFFLE, BROIL BURNER MAY 3601P336-45 Contact Us For Availability
22
KNOB, MINI (STAINLESS) MAY W10876616 Contact Us For Availability
22
CLIP, SPRING (ELECTRODE) MAY W10575401 Contact Us For Availability
23
ASSEMBLY, OVERLAY (STAINLESS) MAY W10888920 Contact Us For Availability
23
SEAL, SWITCH SHAFT MAY W10140571 Contact Us For Availability
24
TRIM, VENT (BLACK) MAY W10577781 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
26
BUSHING (BLACK) MAY W10739036 Contact Us For Availability
26
ASSEMBLY, COOLING FAN MAY W11190724 Contact Us For Availability
27
SPREADER, FLAME MAY W10298664 Contact Us For Availability
27
SENSOR MAY W10586204 Contact Us For Availability
28
SCREW MAY 3196169 Contact Us For Availability
29
COVER, WIRE MAY W10162249 Contact Us For Availability
31
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
BOTTOM, OVEN MAY W10211368 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
RACK, OVEN MAY W10531060 Contact Us For Availability
36
RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
37
ASSEMBLY, CONVECTION MAY W10874477 Contact Us For Availability
38
COVER, CONVECTION MAY W10346154 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
40
PAN, BAKE MAY W10273204 Contact Us For Availability
41
DUCT, COVER MAY W10162255 Contact Us For Availability
42
DUCT, COOLING MAY W10162254 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, KEYPAD MAY W10575120 Contact Us For Availability
NI
WIRE, GROUND MAY W10580229 Contact Us For Availability
NI
HARNESS, BAKE/WARM DRAWER MAY W10580265 Contact Us For Availability
NI
HARNESS, DISPLAY MAY W10598169 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10754419 Contact Us For Availability
NI
HARNESS, MAIN MAY W10911849 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
INSULATION, BACK MAY W10162240 Contact Us For Availability
NI
INSULATION, WRAP MAY W10289173 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10566083 Contact Us For Availability
NI
KIT, LP CONVERSION (BAKE/BROIL) MAY W10566535 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (SPLIT) MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY W10432539 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL MAY W10432545 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) MAY W10655449 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINL MAY W10655450 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (BLACK) MAY W10675026 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (WHITE) MAY W10675027 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, TRIM (STAINLESS) MAY W10675028 Contact Us For Availability
NI
ACCESSORY PARTS, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
