Model Maytag MGS5770ADQ GAS RANGE – Common Parts & Diagrams

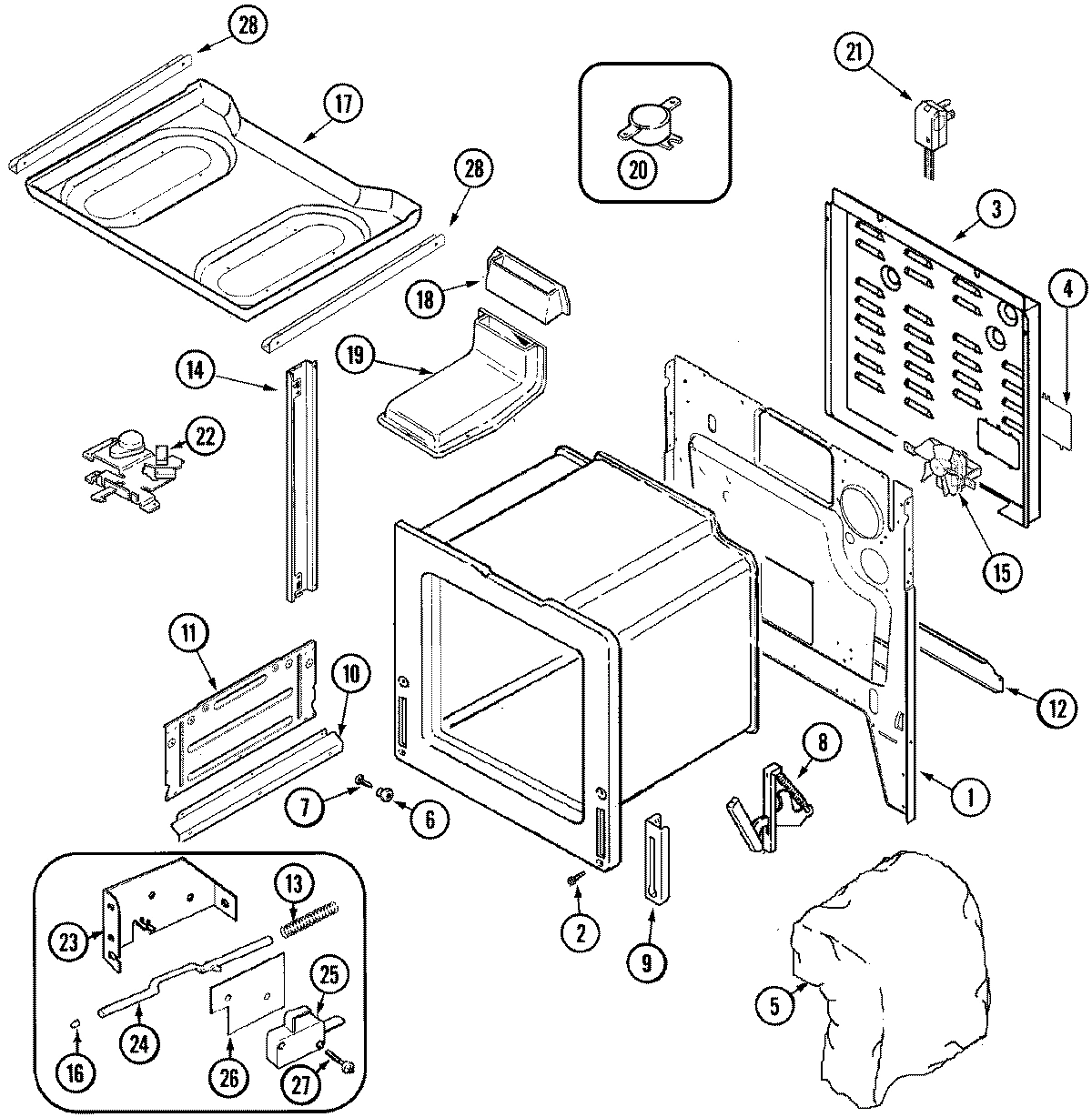

01 - BODY

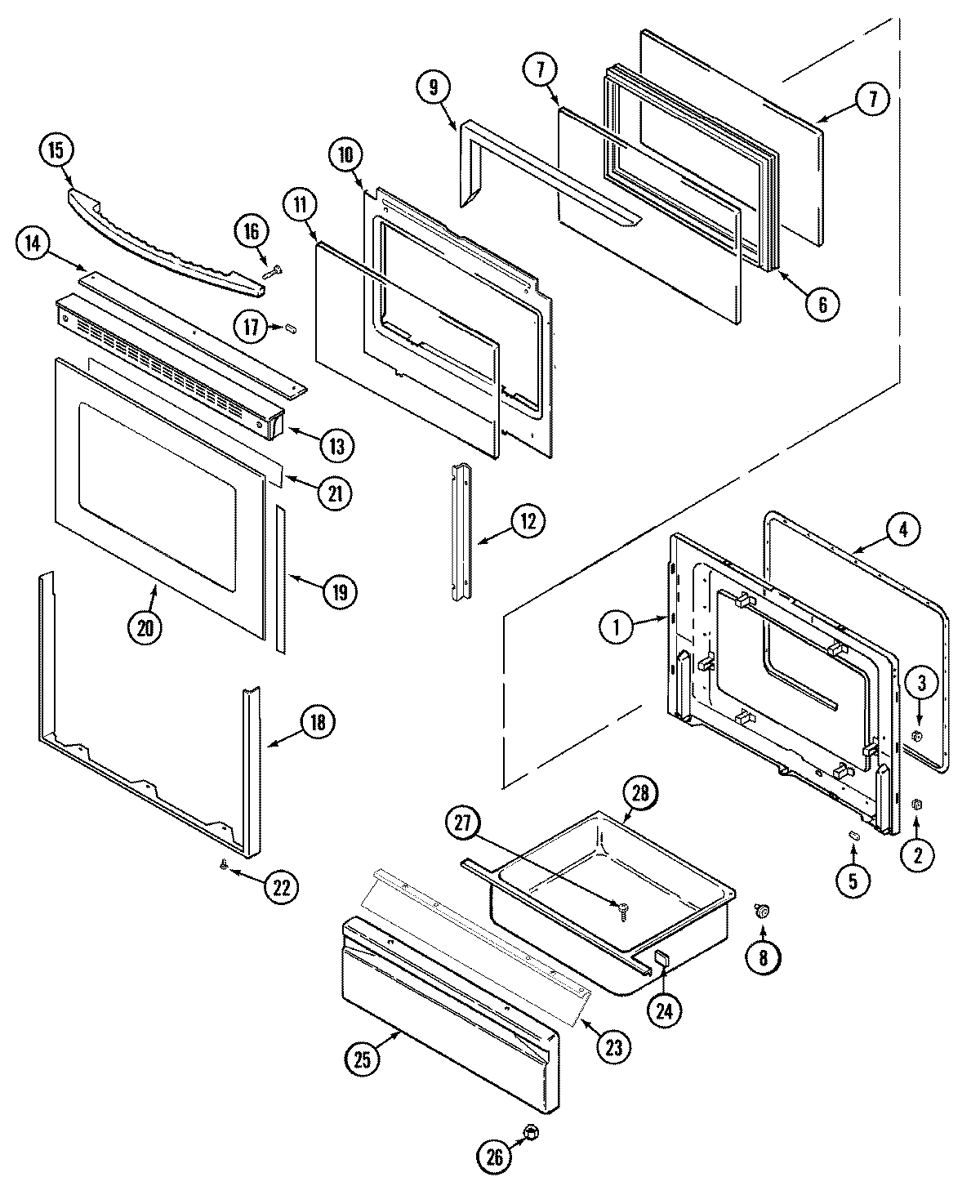

02 - DOOR/DRAWER

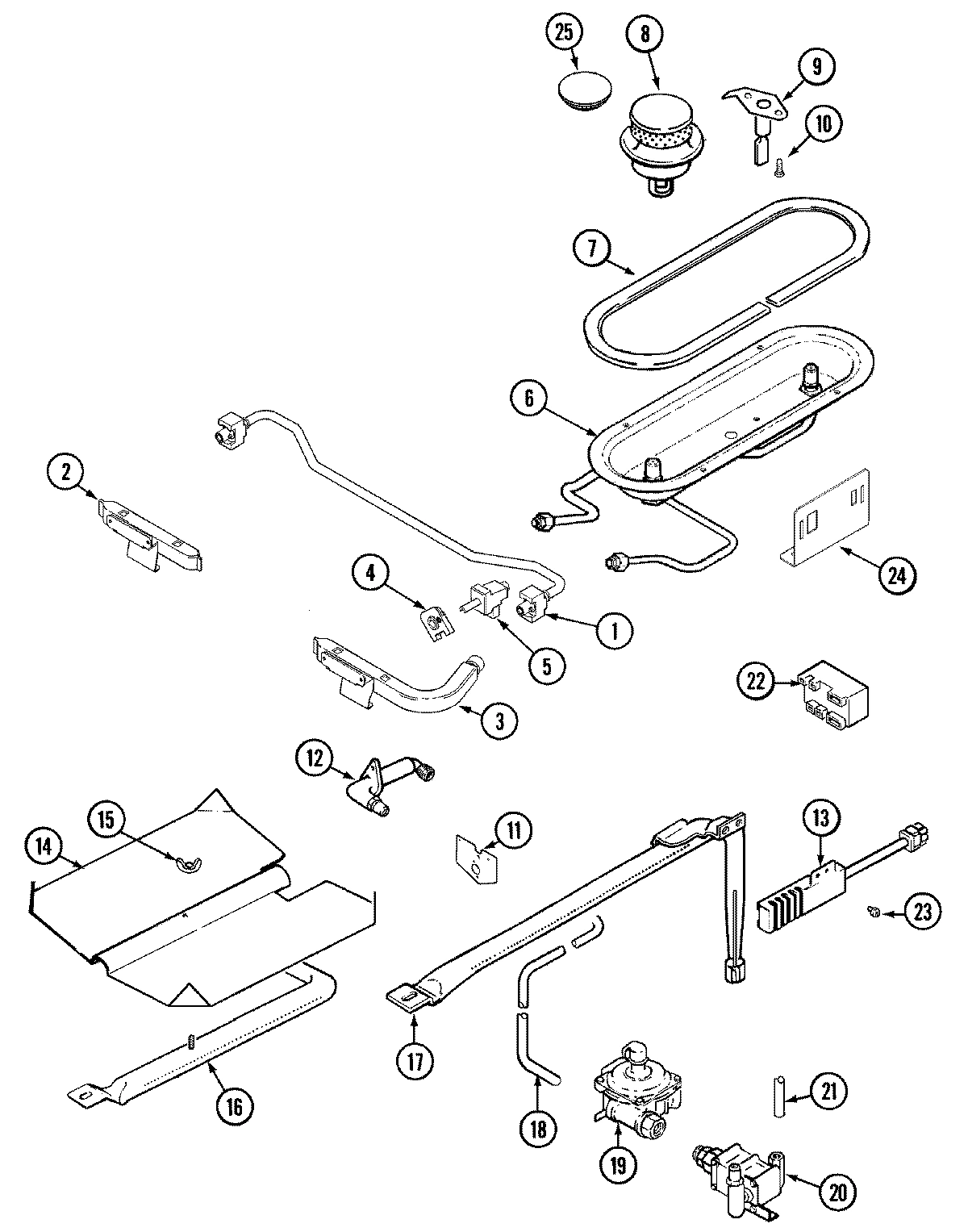

03 - GAS CONTROLS

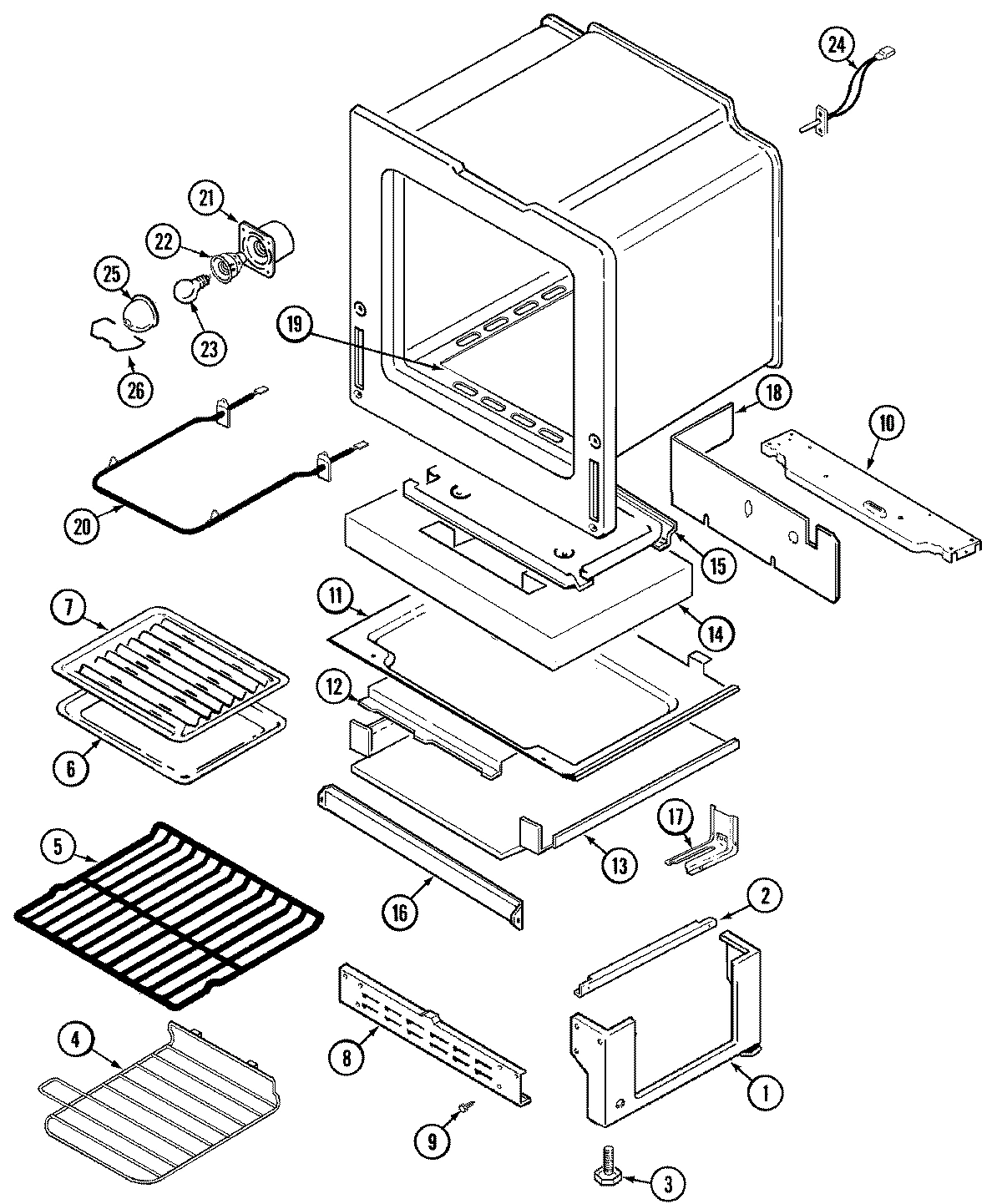

04 - OVEN/BASE

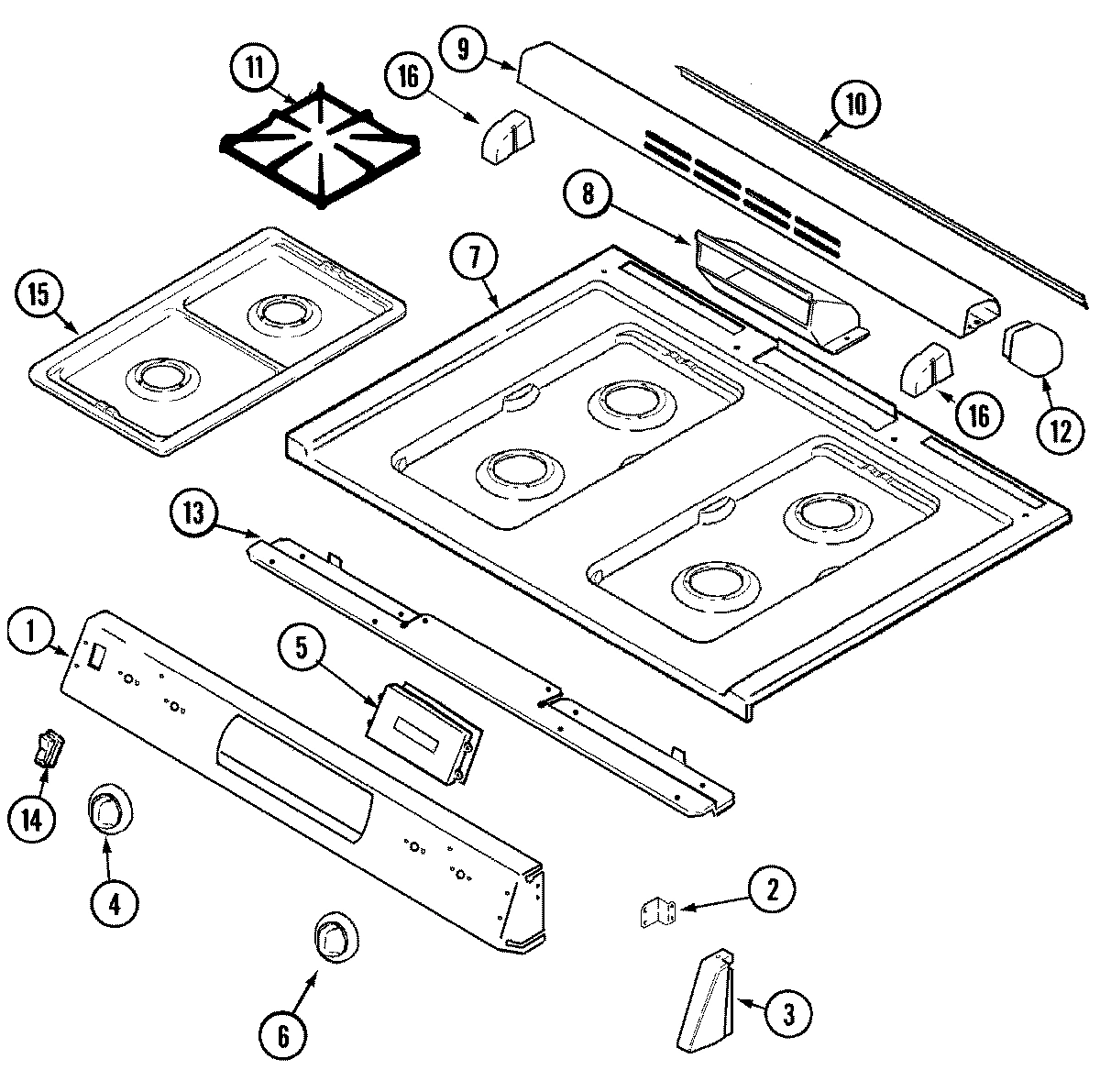

05 - TOP ASSEMBLY (ADQ)

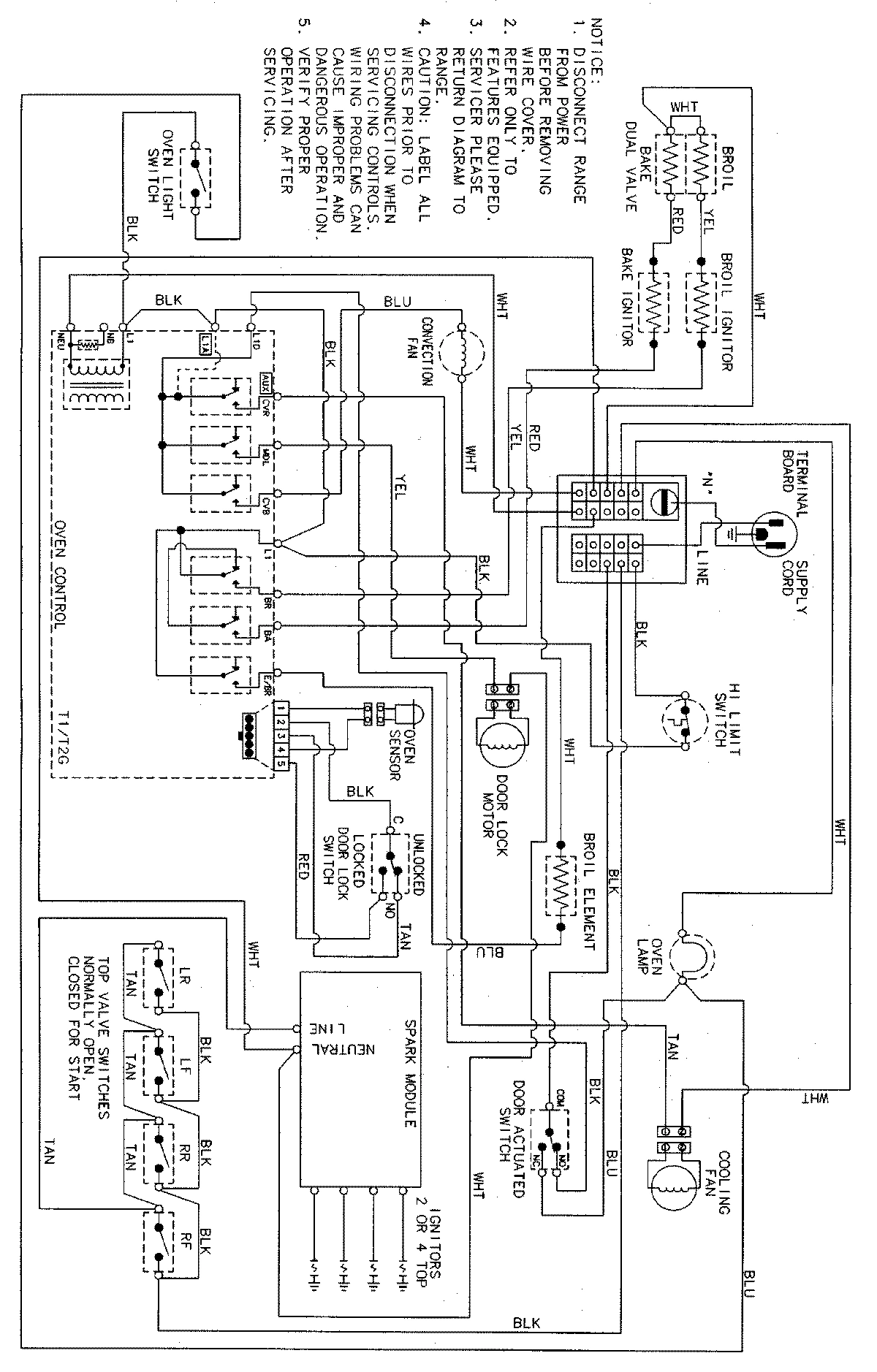

06 - WIRING INFORMATION
Common parts from model Maytag MGS5770ADQ GAS RANGE
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
MAY 74004298 MAY 74004298 Contact Us For Availability
1
MAY 74004299 MAY 74004299 Contact Us For Availability
1
MAY 74003405 MAY 74003405 Contact Us For Availability
1
MAY 74005012 MAY 74005012 Contact Us For Availability
2
MAY 74003643 MAY 74003643 Contact Us For Availability
2
MAY 74004411 MAY 74004411 Contact Us For Availability
2
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
2
MAY 74004186 MAY 74004186 Contact Us For Availability
2
MAY 74005671 MAY 74005671 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
3
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
3
MAY 74004412 MAY 74004412 Contact Us For Availability
3
MAY 74009536 MAY 74009536 Contact Us For Availability
3
MAY 74005013 MAY 74005013 Contact Us For Availability
3
MAY 74005014 MAY 74005014 Contact Us For Availability
4
MAY 74002533 MAY 74002533 Contact Us For Availability
4
MAY 74003590 MAY 74003590 Contact Us For Availability
4
MAY 74005010 MAY 74005010 Contact Us For Availability
5
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
5
MAY 74004302 MAY 74004302 Contact Us For Availability
5
MAY 74004303 MAY 74004303 Contact Us For Availability
5
MAY 74004409 MAY 74004409 Contact Us For Availability
5
MAY 74009530 MAY 74009530 Contact Us For Availability
5
MAY 74009535 MAY 74009535 Contact Us For Availability
5
MAY 74004316 MAY 74004316 Contact Us For Availability
5
MAY 74005206 MAY 74005206 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
6
MAY 74004304 MAY 74004304 Contact Us For Availability
6
MAY 74004306 MAY 74004306 Contact Us For Availability
6
MAY 74004366 MAY 74004366 Contact Us For Availability
6
MAY 74004413 MAY 74004413 Contact Us For Availability
6
MAY W10124350 MAY W10124350 Contact Us For Availability
6
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 74005011 MAY 74005011 Contact Us For Availability
7
MAY 74006056 MAY 74006056 Contact Us For Availability
7
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
7
MAY 74005016 MAY 74005016 Contact Us For Availability
8
MAY 74004079 MAY 74004079 Contact Us For Availability
8
MAY 74003966 MAY 74003966 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
9
MAY 74004410 MAY 74004410 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
9
MAY 74007016 MAY 74007016 Contact Us For Availability
9
MAY 74009450 MAY 74009450 Contact Us For Availability
9
MAY 74004289 MAY 74004289 Contact Us For Availability
9
MAY 74005324 MAY 74005324 Contact Us For Availability
10
MAY 74003648 MAY 74003648 Contact Us For Availability
10
MAY Y707113 MAY Y707113 Contact Us For Availability
10
MAY 74004167 MAY 74004167 Contact Us For Availability
10
MAY 7201P061-60 MAY 7201P061-60 Contact Us For Availability
11
MAY 74003765 MAY 74003765 Contact Us For Availability
11
GLASS, DOOR MAY 74003649 Contact Us For Availability
11
MAY 74004307 MAY 74004307 Contact Us For Availability
11
MAY 74004296 MAY 74004296 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 74004461 MAY 74004461 Contact Us For Availability
12
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
12
MAY 74004422 MAY 74004422 Contact Us For Availability
12
MAY 74004423 MAY 74004423 Contact Us For Availability
13
MAY 74005006 MAY 74005006 Contact Us For Availability
13
MAY 7432P075-60 MAY 7432P075-60 Contact Us For Availability
13
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
13
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
13
SUPPORT, MANIFOLD PANEL MAY 74004785 Contact Us For Availability
14
MAY 74005017 MAY 74005017 Contact Us For Availability
14
MAY 74004978 MAY 74004978 Contact Us For Availability
14
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
14
MAY 74009231 MAY 74009231 Contact Us For Availability
14
MAY 74003503 MAY 74003503 Contact Us For Availability
15
MAY 74004947 MAY 74004947 Contact Us For Availability
15
MAY 74004974 MAY 74004974 Contact Us For Availability
15
NUT, WING MAY 7103P030-60 Contact Us For Availability
15
PAN, BAKE BURNER MAY 74004465 Contact Us For Availability
15
MAY 74004996 MAY 74004996 Contact Us For Availability
16
MAY 74001631 MAY 74001631 Contact Us For Availability
16
MAY 74004076 MAY 74004076 Contact Us For Availability
16
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
16
MAY 74006057 MAY 74006057 Contact Us For Availability
17
MAY 74003960 MAY 74003960 Contact Us For Availability
17
MAY 74004826 MAY 74004826 Contact Us For Availability
17
MAY 74006045 MAY 74006045 Contact Us For Availability
17
GASKET, WINDOW MAY 790058 Contact Us For Availability
17
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
17
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
17
MAY 74002311 MAY 74002311 Contact Us For Availability
17
MAY 12001323 MAY 12001323 Contact Us For Availability
17
MAY 74004335 MAY 74004335 Contact Us For Availability
17
MAY 74005674 MAY 74005674 Contact Us For Availability
18
MAY 74004294 MAY 74004294 Contact Us For Availability
18
MAY 74005162 MAY 74005162 Contact Us For Availability
18
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
18
MAY 74004462 MAY 74004462 Contact Us For Availability
18
MAY 74003329 MAY 74003329 Contact Us For Availability
18
MAY 74004397 MAY 74004397 Contact Us For Availability
18
MAY 74004443 MAY 74004443 Contact Us For Availability
19
MAY 74002367 MAY 74002367 Contact Us For Availability
19
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
19
MAY 16010161 MAY 16010161 Contact Us For Availability
20
MAY 7403P249-60 MAY 7403P249-60 Contact Us For Availability
20
MAY 74005008 MAY 74005008 Contact Us For Availability
20
MAY 74007621 MAY 74007621 Contact Us For Availability
20
MAY 74003908 MAY 74003908 Contact Us For Availability
21
MAY 74004438 MAY 74004438 Contact Us For Availability
21
MAY 74006037 MAY 74006037 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
21
MAY 74004408 MAY 74004408 Contact Us For Availability
21
MAY 74003388 MAY 74003388 Contact Us For Availability
22
MAY 74005675 MAY 74005675 Contact Us For Availability
22
MAY 74004327 MAY 74004327 Contact Us For Availability
22
MAY 74003387 MAY 74003387 Contact Us For Availability
23
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
23
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
23
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
23
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
24
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
24
MAY 74004297 MAY 74004297 Contact Us For Availability
25
MAY 74001802 MAY 74001802 Contact Us For Availability
25
PANEL, DRAWER (BSQ) MAY 74004966 Contact Us For Availability
25
MAY 71003054 MAY 71003054 Contact Us For Availability
25
MAY 74003389 MAY 74003389 Contact Us For Availability
26
MAY 74001872 MAY 74001872 Contact Us For Availability
26
MAY 74003391 MAY 74003391 Contact Us For Availability
27
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
28
MAY 74005822 MAY 74005822 Contact Us For Availability
28
MAY 71003042 MAY 71003042 Contact Us For Availability
NI
MAY 15002577 MAY 15002577 Contact Us For Availability
× ![]()
