Model Maytag MGS5752BDW20 GAS RANGE – Common Parts & Diagrams

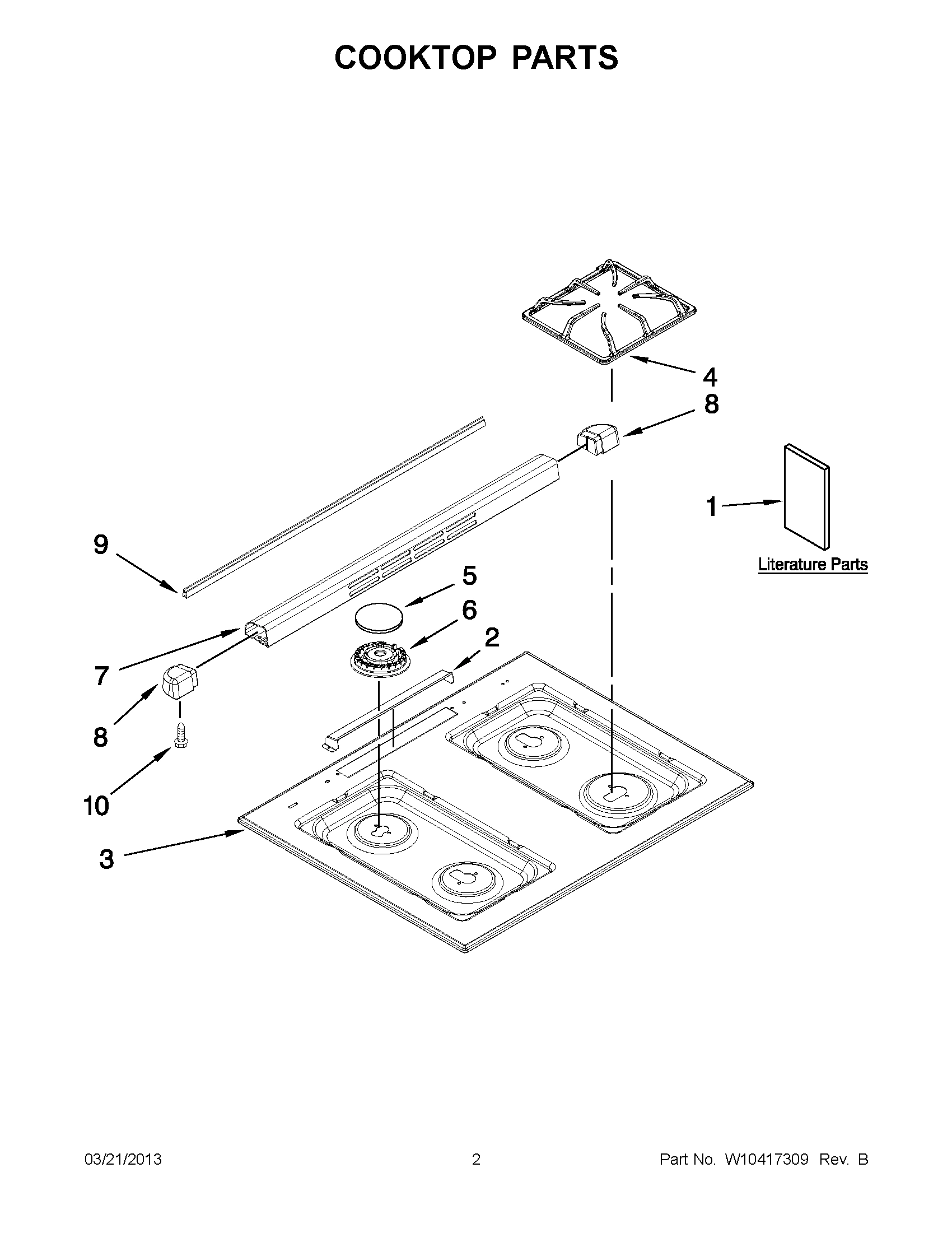

01 - COOKTOP PARTS

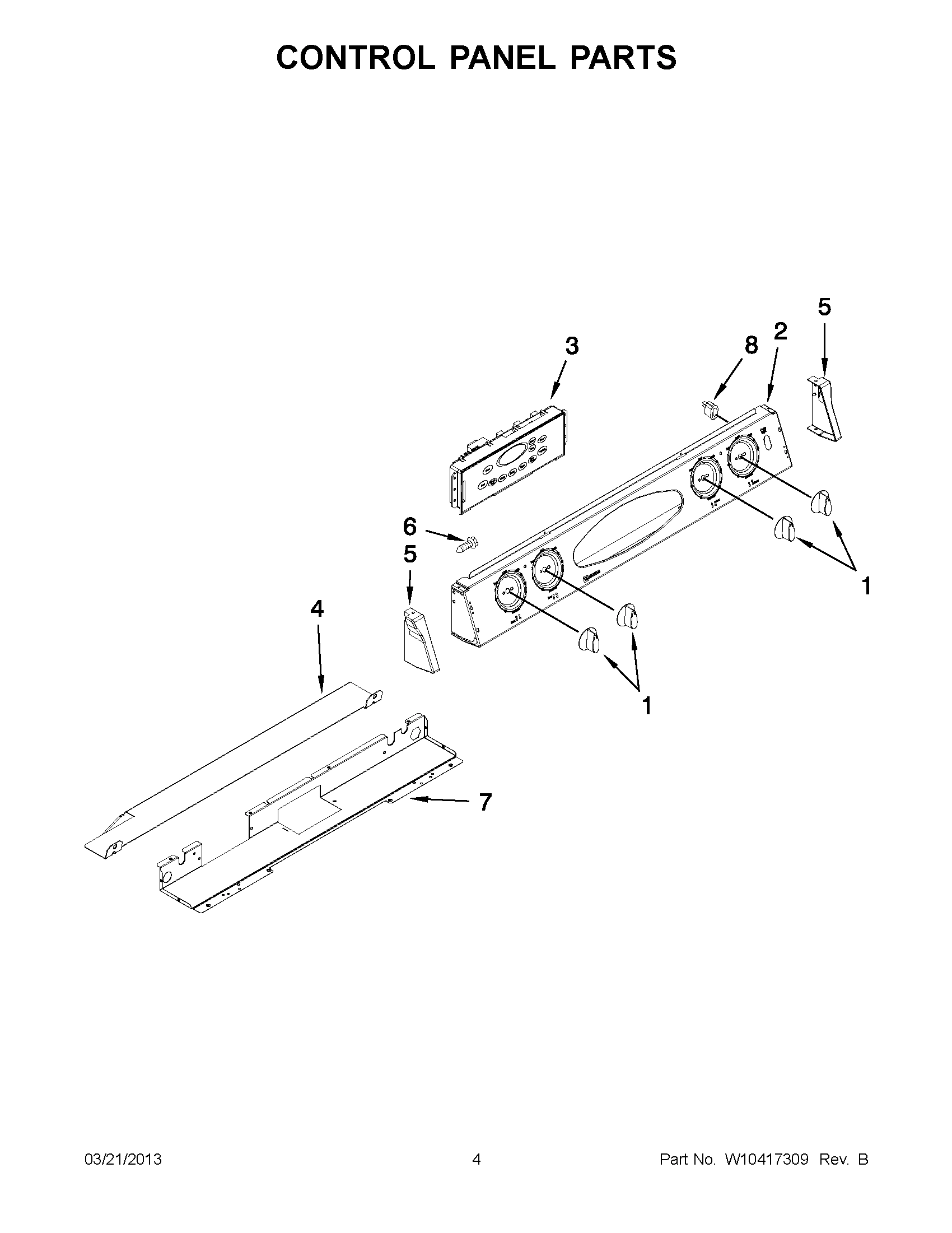

02 - CONTROL PANEL PARTS

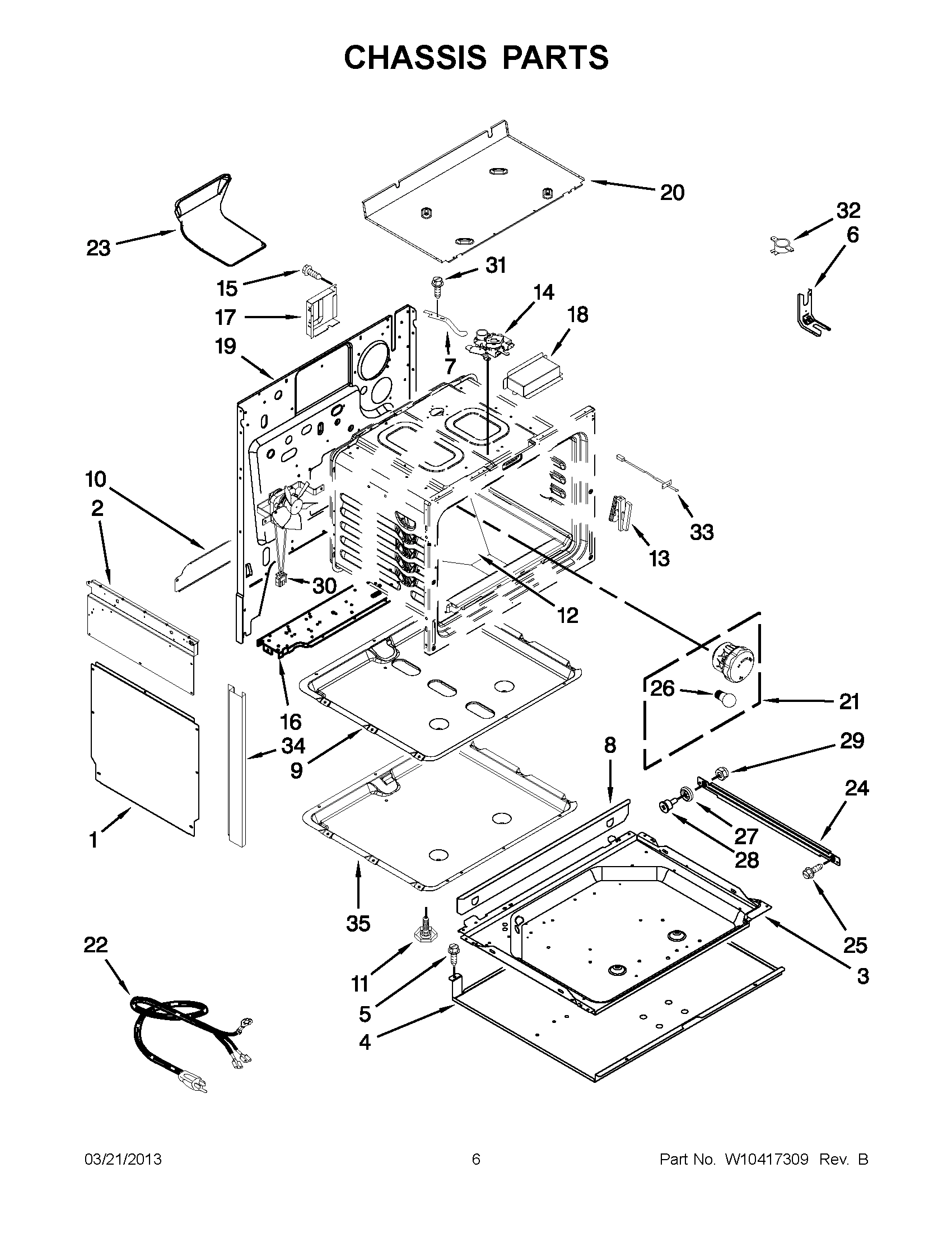

03 - CHASSIS PARTS

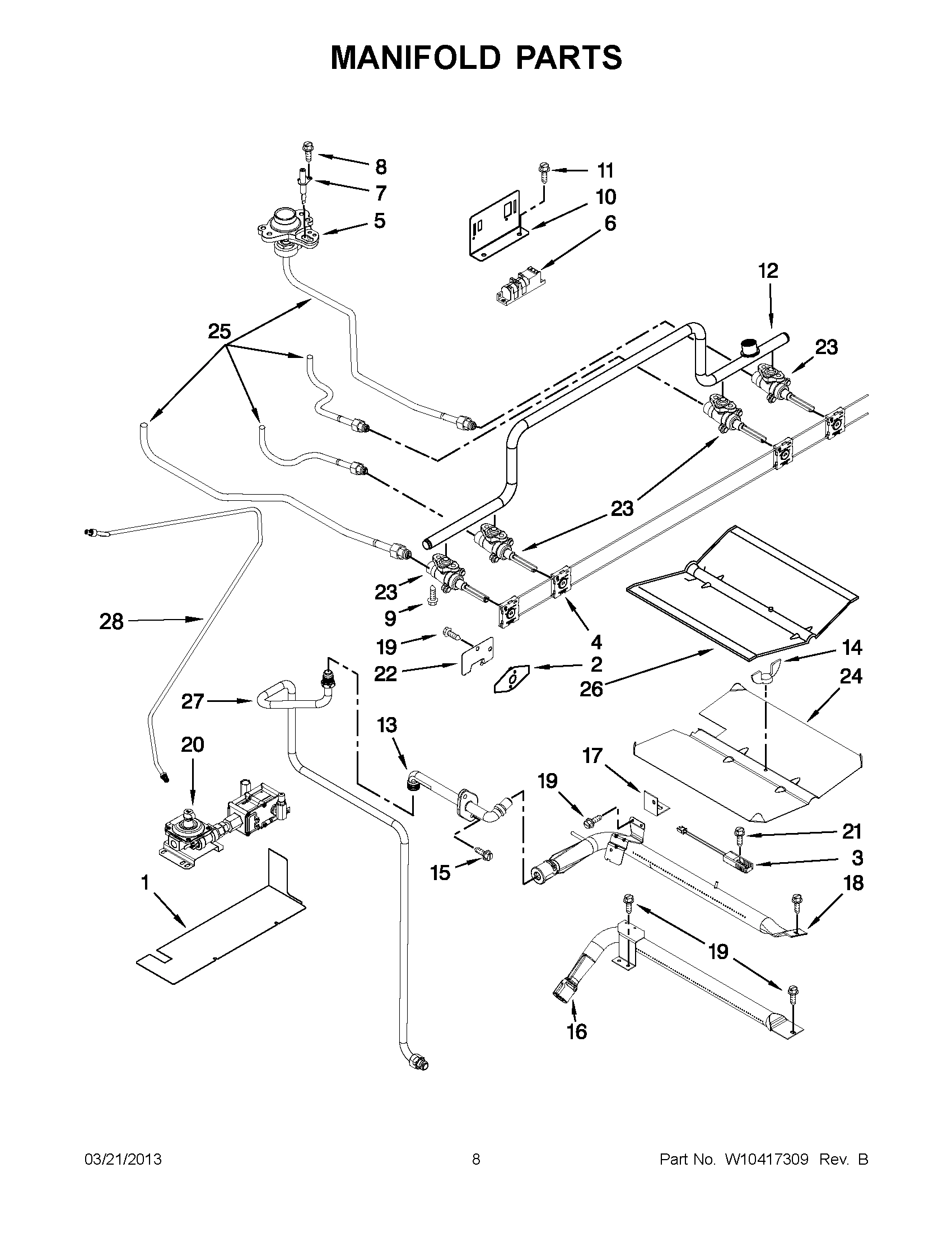

04 - MANIFOLD PARTS
05 - DOOR PARTS

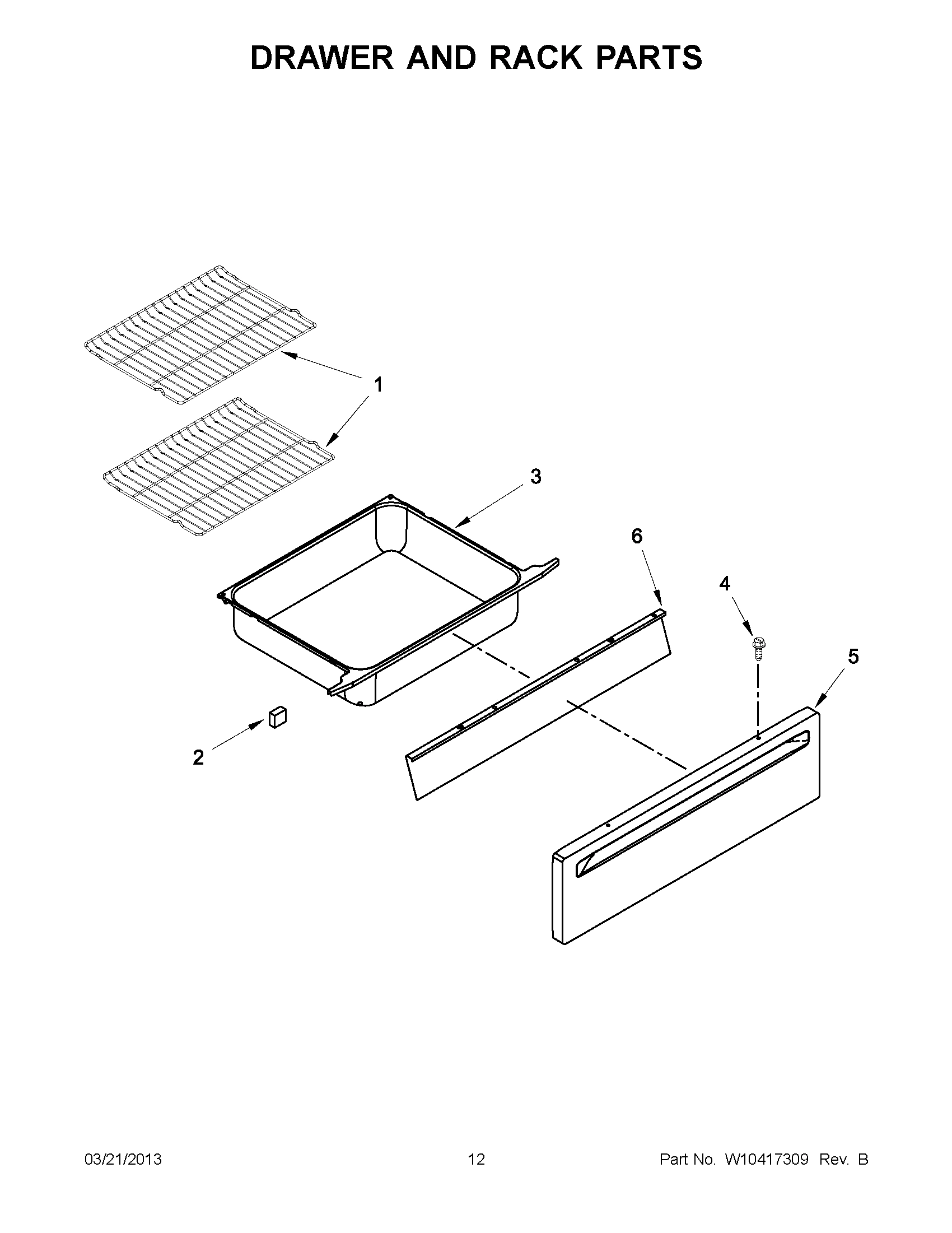

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGS5752BDW20 GAS RANGE
1
OWNERS MANUAL MAY 8113P762-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
KNOB (BLACK) MAY 7733P458-60 Contact Us For Availability
1
KNOB (WHITE) MAY 7733P460-60 Contact Us For Availability
1
SHIELD, LOWER MAY 3604F416-51 Contact Us For Availability
1
MAY W10271712 MAY W10271712 Contact Us For Availability
1
MAY 3608F141-70 MAY 3608F141-70 Contact Us For Availability
1
MAY 3608F141-71 MAY 3608F141-71 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
2
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
2
MAY W10312523 MAY W10312523 Contact Us For Availability
2
MAY W10312525 MAY W10312525 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY 3605F269-45 MAY 3605F269-45 Contact Us For Availability
2
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
2
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
2
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
3
COOKTOP (BLACK) MAY W10202566 Contact Us For Availability
3
MAY W10204437 MAY W10204437 Contact Us For Availability
3
MAY 5701M887-60 MAY 5701M887-60 Contact Us For Availability
3
MAY 5701M888-60 MAY 5701M888-60 Contact Us For Availability
3
RETAINER, INSULATION MAY 3804F245-51 Contact Us For Availability
3
IGNITOR, ELECTRIC IGNITION MAY 7432P106-60 Contact Us For Availability
3
SCREW MAY 7101P681-60 Contact Us For Availability
3
DRAWER, STORAGE MAY 3405F033-80 Contact Us For Availability
4
GRATE, BURNER (GRAY) MAY 7518P201-60 Contact Us For Availability
4
GRATE, BURNER (BLACK) MAY 7518P249-60 Contact Us For Availability
4
MAY 3604F421-51 MAY 3604F421-51 Contact Us For Availability
4
SHIELD, WARMING DRAWER MAY 3604F326-45 Contact Us For Availability
4
HARNESS, SWITCH MAY W10165136 Contact Us For Availability
4
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
4
MAY 7701P517-60 MAY 7701P517-60 Contact Us For Availability
5
KIT, BURNER CAP (BLACK) MAY W10218223 Contact Us For Availability
5
KIT, BURNER CAP (GRAY) MAY W10237940 Contact Us For Availability
5
CAP, END (WHITE (RIGHT HAND)) MAY 7726P332-60 Contact Us For Availability
5
CAP, END (WHITE (LEFT HAND)) MAY 7726P333-60 Contact Us For Availability
5
CAP, END (BLACK (RIGHT HAND)) MAY 7726P400-60 Contact Us For Availability
5
CAP, END (BLACK (LEFT HAND)) MAY 7726P401-60 Contact Us For Availability
5
Screw (Black) MAY 7101P633-60 Contact Us For Availability
5
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
HOLDER, ORIFICE (12K) (RIGHT FRONT) MAY 7527P082-60 Contact Us For Availability
5
HOLDER, ORIFICE (9.2K) (LEFT FRONT & RIGHT RE MAY 7527P083-60 Contact Us For Availability
5
HOLDER, ORIFICE (5K) (LEFT REAR) MAY 7527P084-60 Contact Us For Availability
5
PANEL,DRAWER FRONT (BLACK) MAY 2416F059-70 Contact Us For Availability
5
MAY 2416F059-71 MAY 2416F059-71 Contact Us For Availability
6
BURNER HEAD, AUXILIARY (6K) MAY W10406243 Contact Us For Availability
6
BURNER HEAD, RAPID (12K) MAY W10406797 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
Module, Spark MAY 7431P064-60 Contact Us For Availability
6
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
6
LINING, DOOR MAY 2404F030-51 Contact Us For Availability
7
COVER, VENT (BLACK) MAY 7724P197-60 Contact Us For Availability
7
COVER, VENT (WHITE) MAY 7724P198-60 Contact Us For Availability
7
MAY 3807F729-51 MAY 3807F729-51 Contact Us For Availability
7
LEVER, LOCK ARM (BLACK) MAY 8009P031-60 Contact Us For Availability
7
LEVER, LOCK ARM (GRAY) MAY 8009P035-60 Contact Us For Availability
7
MAY 7432M126-60 MAY 7432M126-60 Contact Us For Availability
7
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
8
END CAP, VENT (GRAY (RIGHT HAND)) MAY 7726P300-60 Contact Us For Availability
8
END CAP, VENT (GRAY (LEFT HAND)) MAY 7726P301-60 Contact Us For Availability
8
END CAP, VENT (BLACK (RIGHT HAND)) MAY 7726P396-60 Contact Us For Availability
8
END CAP, VENT (BLACK (LEFT HAND)) MAY 7726P397-60 Contact Us For Availability
8
SWITCH, ROCKER (WHITE) MAY 7403P926-60 Contact Us For Availability
8
SWITCH, ROCKER (BLACK) MAY 7403P985-60 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
MAY 8273062 MAY 8273062 Contact Us For Availability
8
Screw MAY 7101P208-60 Contact Us For Availability
9
MAY 7201P143-60 MAY 7201P143-60 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
10
SCREW MAY 7101P634-60 Contact Us For Availability
10
EXTENSION, MAIN BACK MAY 3826F066-51 Contact Us For Availability
10
Support, Spark Module MAY 3807F752-45 Contact Us For Availability
11
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
11
MAY W10162384 MAY W10162384 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
MAY W10165140 MAY W10165140 Contact Us For Availability
12
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
13
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
13
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
FITTING, BROILER MAY 7507P407-60 Contact Us For Availability
14
ASSEMBLY, LATCH MAY 8002P094-60 Contact Us For Availability
14
WING NUT MAY 7103P030-60 Contact Us For Availability
14
Glass, Inner MAY 7902P436-60 Contact Us For Availability
15
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
15
SCREW MAY 7101P502-60 Contact Us For Availability
15
GLASS, DOOR (WHITE) MAY 7902P736-60 Contact Us For Availability
15
GLASS, DOOR (BLACK) MAY 7902P797-60 Contact Us For Availability
16
SUPPORT, REGULATOR VALVE MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
TRIM, DOOR BOTTOM (BLACK) MAY 3807F708-70 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) MAY 3807F708-71 Contact Us For Availability
17
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
17
SUPPORT, BAKE BURNER MAY 3807F480-45 Contact Us For Availability
17
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
18
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
18
BURNER, BROILER MAY 7505P293-60 Contact Us For Availability
18
TRIM, DOOR SIDE (BLACK (RIGHT HAND)) MAY 3608F116-70 Contact Us For Availability
18
TRIM, DOOR SIDE (WHITE (RIGHT HAND)) MAY 3608F116-71 Contact Us For Availability
18
TRIM, DOOR SIDE (BLACK (LEFT HAND)) MAY 3608F117-70 Contact Us For Availability
18
TRIM, DOOR SIDE (WHITE (LEFT HAND)) MAY 3608F117-71 Contact Us For Availability
19
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
20
MAY 4011F491-51 MAY 4011F491-51 Contact Us For Availability
20
VALVE, SAFETY MAY 7501P231-60 Contact Us For Availability
21
ASSEMBLY, LIGHT MAY 7407P182-60 Contact Us For Availability
21
Screw MAY 7101P282-60 Contact Us For Availability
22
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
22
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
23
VENT, GAS MAY 8026P095-60 Contact Us For Availability
23
MAY W10290839 MAY W10290839 Contact Us For Availability
23
VALVE, BURNER (9.2K) (LEFT FRONT, RIGHT FRONT MAY W10300198 Contact Us For Availability
24
MAY W10182835 MAY W10182835 Contact Us For Availability
24
BAFFLE, BROIL BURNER MAY 3601F307-45 Contact Us For Availability
25
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
25
TUBE, BURNER (RIGHT FRONT) MAY W10322981 Contact Us For Availability
25
TUBE, BURNER (LEFT FRONT) MAY W10322982 Contact Us For Availability
25
TUBE, BURNER (RIGHT REAR) MAY W10322983 Contact Us For Availability
25
TUBE, BURNER (LEFT REAR) MAY W10322984 Contact Us For Availability
26
BAFFLE, BAKE BURNER MAY 3601F239-45 Contact Us For Availability
27
MAY W10272883 MAY W10272883 Contact Us For Availability
27
TUBING, BROILER FITTING TO VALVE MAY 7506P301-60 Contact Us For Availability
28
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
28
MAY W10239288 MAY W10239288 Contact Us For Availability
29
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
30
MAY W10317679 MAY W10317679 Contact Us For Availability
31
SCREW MAY 7101P230-60 Contact Us For Availability
32
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
33
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
34
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
34
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
35
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P451-60 MAY 7002P451-60 Contact Us For Availability
NI
INSULATION, OVEN WRAP MAY 7002P471-60 Contact Us For Availability
NI
MAY 7507P405-60 MAY 7507P405-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
REFINISHING MATERIAL, INSULATION (2-1/2`` X 2 MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
REFINISHING MATERIAL, INSULATION (1-1/2`` X 2 MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR LOCK MANU MAY 5171P526-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY 5171P540-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY 5171P718-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SPARK MAY W10173467 Contact Us For Availability
× ![]()
