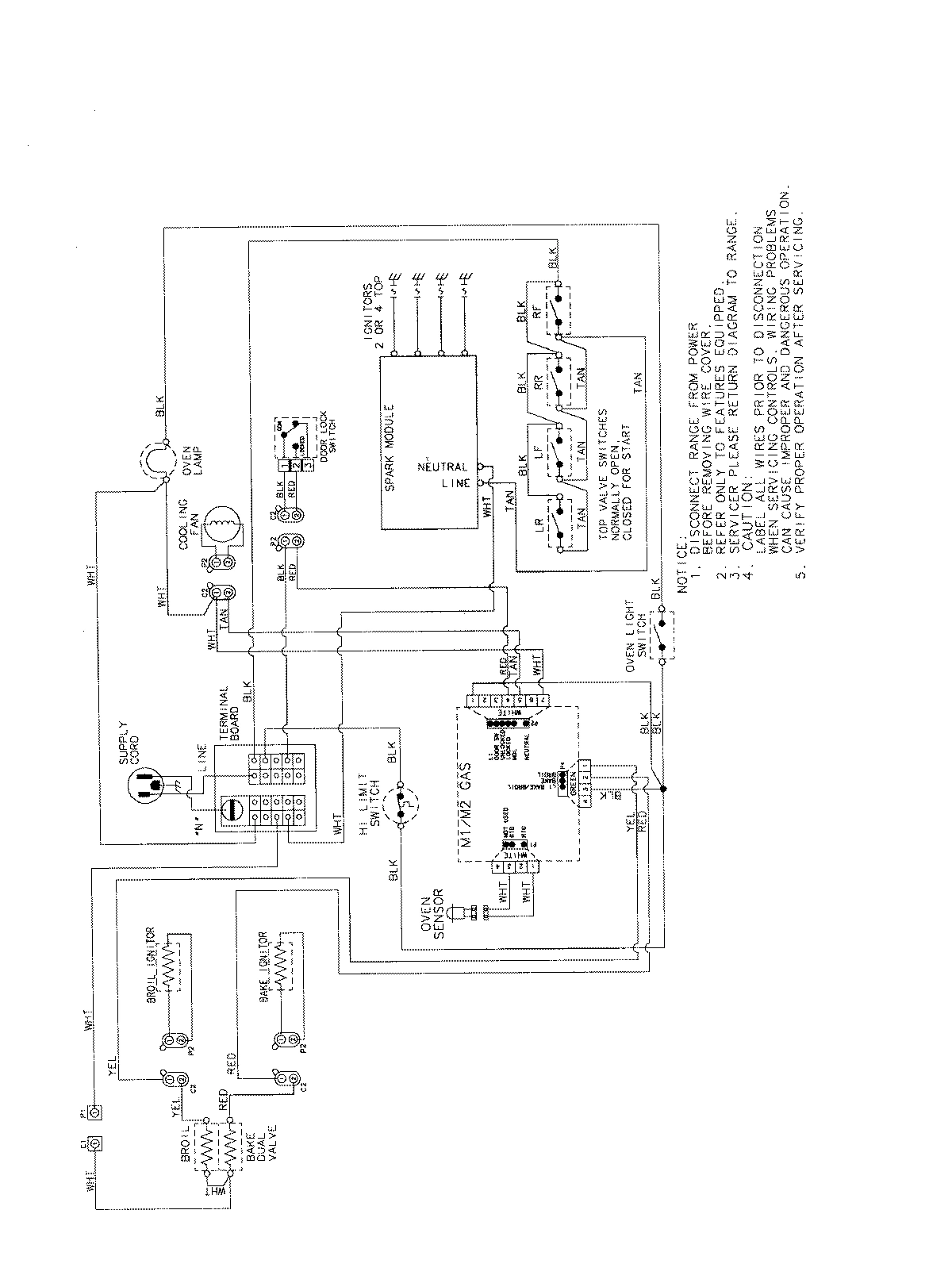

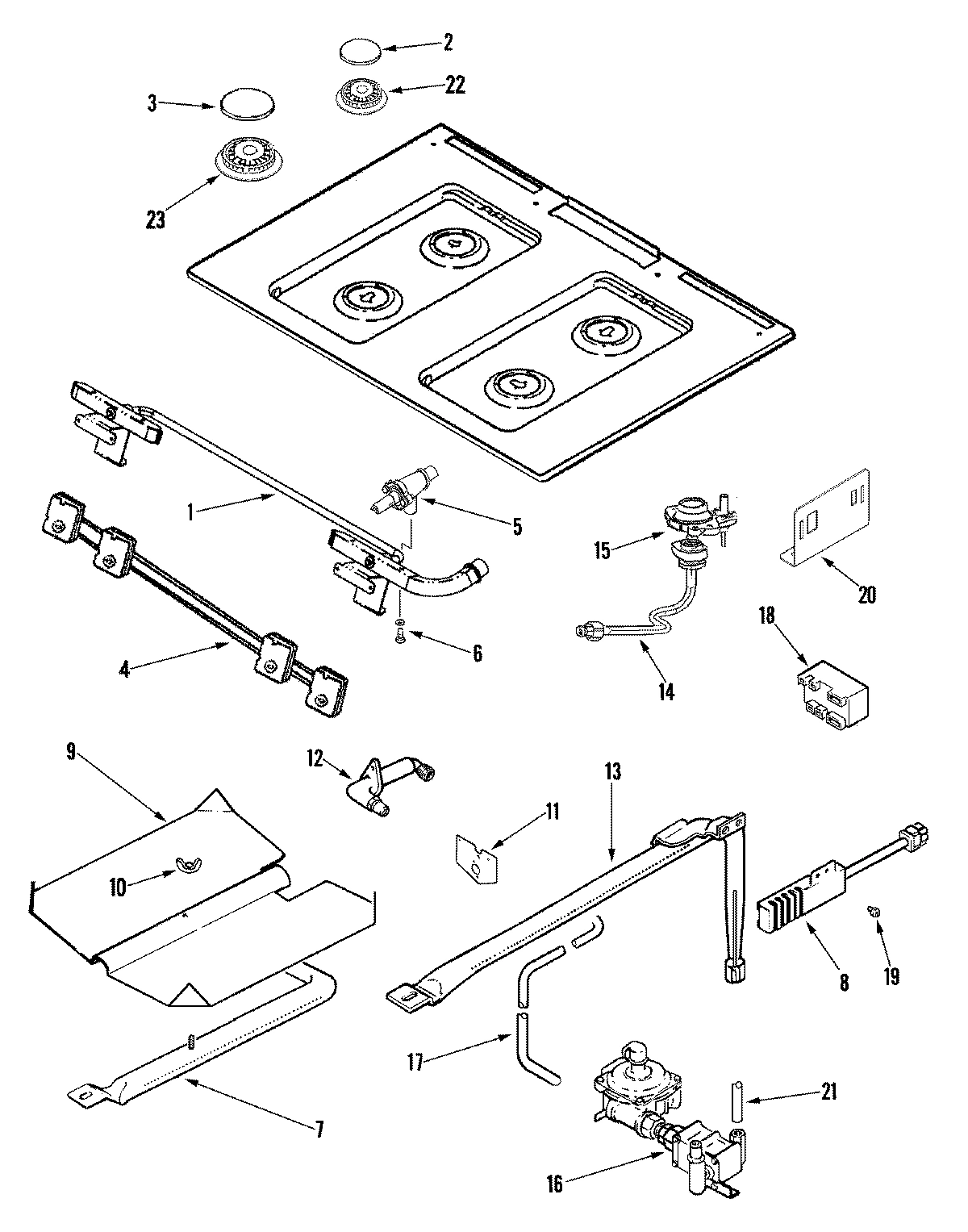

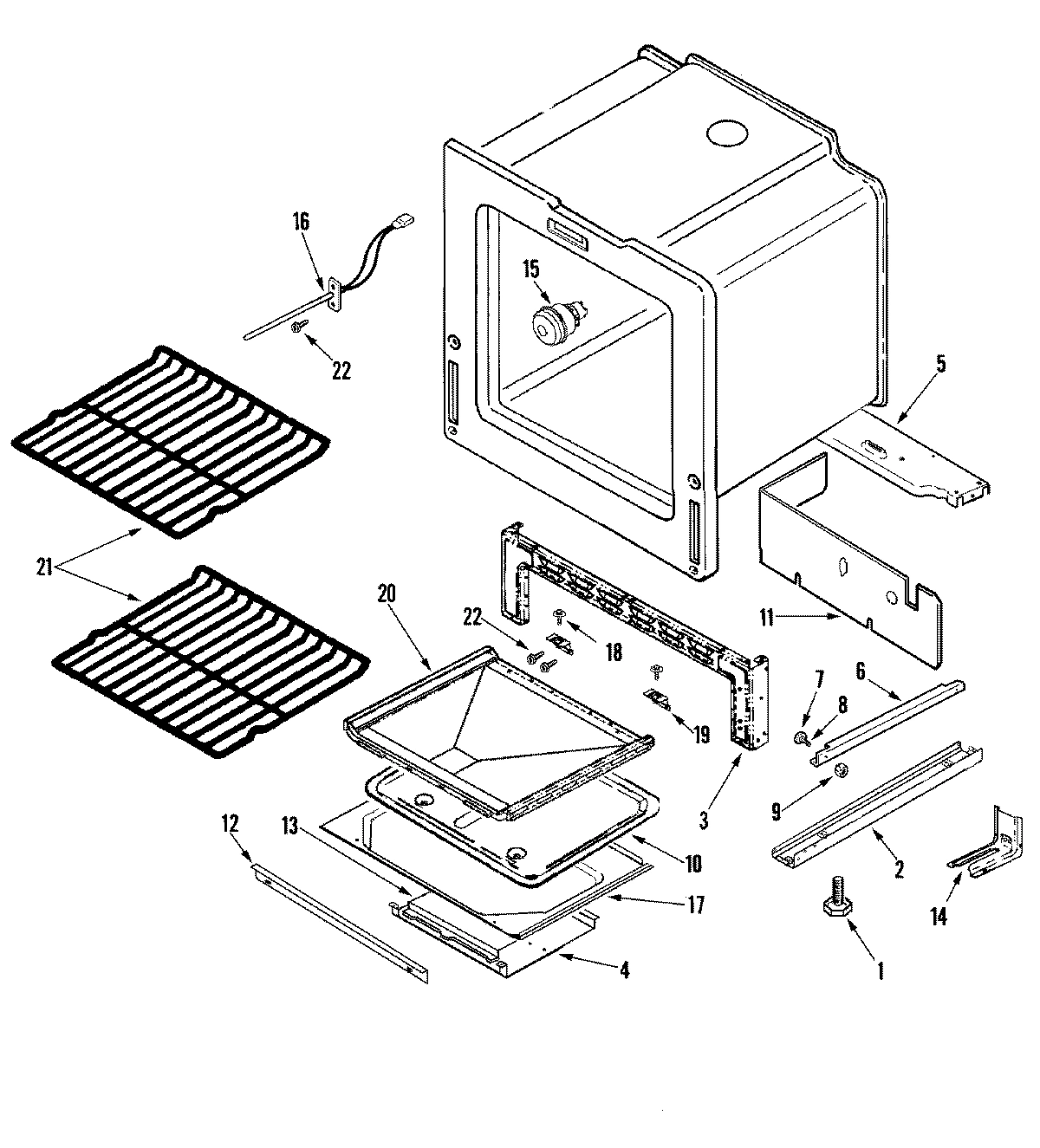

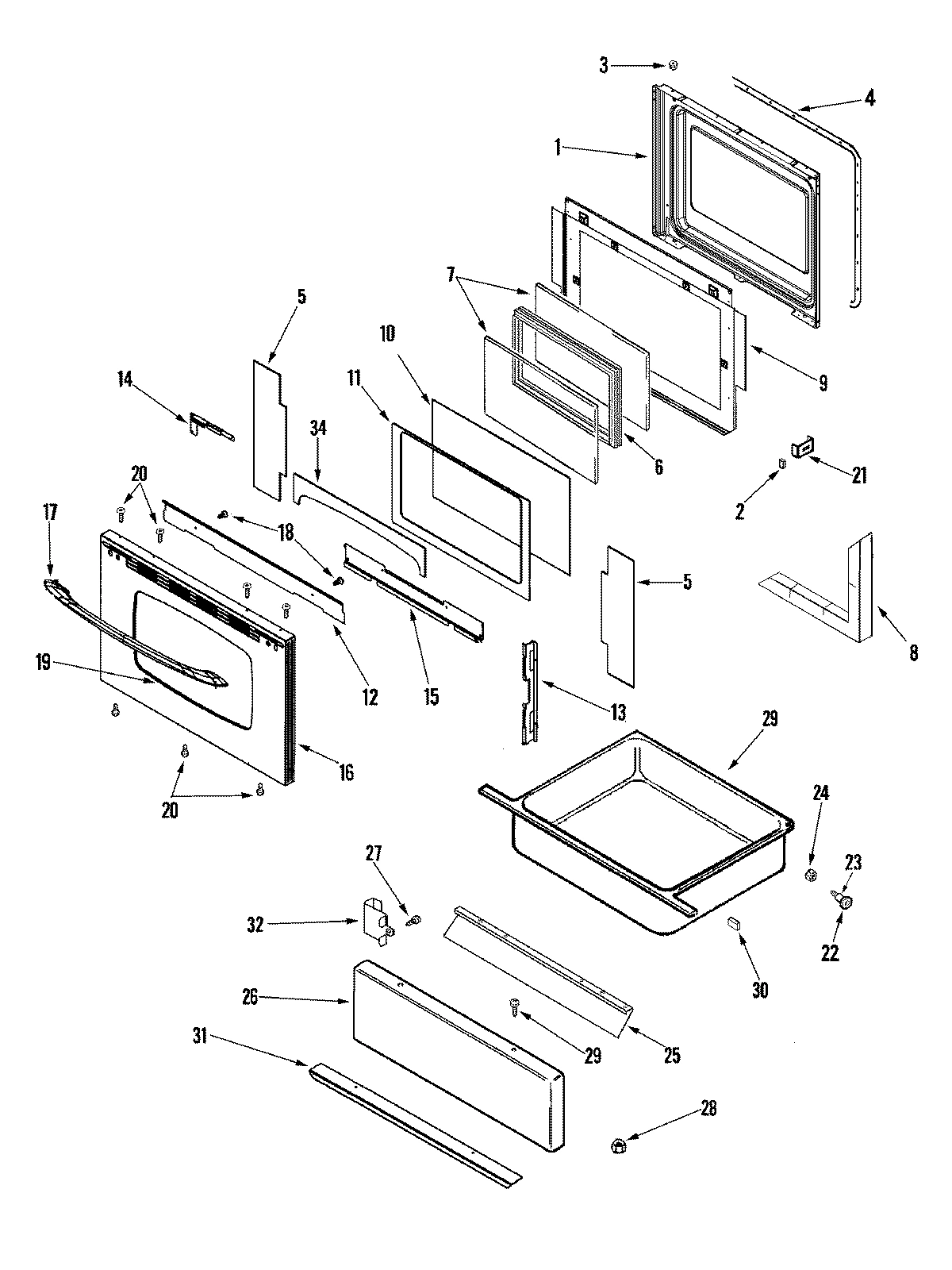

Model Maytag MGS5752BDS GAS RANGE – Common Parts &amp; Diagrams

1

MAY 74010978 MAY 74010978 Contact Us For Availability

1

MAY 74003642 MAY 74003642 Contact Us For Availability

1

MAY 74010965 MAY 74010965 Contact Us For Availability

1

MAY 8113P499-60 MAY 8113P499-60 Contact Us For Availability

1

MAY 8113P594-60 MAY 8113P594-60 Contact Us For Availability

1

MAY 8113P762-60 MAY 8113P762-60 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

2

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

2

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $3.82

2

MAY 74010826 MAY 74010826 Contact Us For Availability

2

MAY 74010967 MAY 74010967 Contact Us For Availability

2

MAY 74011306 MAY 74011306 Contact Us For Availability

2

MAY 74011350 MAY 74011350 Contact Us For Availability

2

MAY 74011352 MAY 74011352 Contact Us For Availability

3

WP74007925 Whirlpool Burner Cap Backorder WPL WP74007925 $51.81

3

CAP, END (BLK-RT) MAY 74010834 Contact Us For Availability

3

CAP, END (BLK-LT) MAY 74010835 Contact Us For Availability

3

NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability

3

PEDESTAL, FRONT MAY 74010882 Contact Us For Availability

3

MAY 74010966 MAY 74010966 Contact Us For Availability

4

74010974 Whirlpool Black Knob Backorder WPL 74010974 $28.80

4

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $50.16

4

MAY 74010915 MAY 74010915 Contact Us For Availability

4

MAY 74006591 MAY 74006591 Contact Us For Availability

4

MAY 74010890 MAY 74010890 Contact Us For Availability

5

W10173467 Whirlpool Wire Harness Backorder WPL W10173467 $24.85

5

WP5701M887-60 Whirlpool Electronic Control Bo Backorder WPL WP5701M887-60 $342.87

5

MAY 74010979 MAY 74010979 Contact Us For Availability

5

INSULATION, FOIL MAY 74011048 Contact Us For Availability

5

MAY 74009451 MAY 74009451 Contact Us For Availability

5

MAY 74009452 MAY 74009452 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability

6

7403P985-60 Whirlpool Rocker Switch (Black) Backorder WPL 7403P985-60 $34.86

6

MAY 74011053 MAY 74011053 Contact Us For Availability

6

FRAME, GLASS MAY 74003644 Contact Us For Availability

6

MAY 74009416 MAY 74009416 Contact Us For Availability

6

RUNNER, DRAWER MAY 74003565 Contact Us For Availability

6

MAY 12002708 MAY 12002708 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas Backorder WPL 74003645 $86.34

7

MK71FILLS Whirlpool Filler Kit Backorder WPL MK71FILLS $43.48

7

MAY 74010970 MAY 74010970 Contact Us For Availability

7

MAY 74004076 MAY 74004076 Contact Us For Availability

8

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $33.43

8

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $2.51

8

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

8

MAY UXA1100AAP MAY UXA1100AAP Contact Us For Availability

9

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

9

MAY 74010946 MAY 74010946 Contact Us For Availability

9

MAY 74009502 MAY 74009502 Contact Us For Availability

9

MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability

9

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE MAY W10124350 Contact Us For Availability

9

MAY 74011434 MAY 74011434 Contact Us For Availability

MAY 7201P061-60 MAY 7201P061-60 Contact Us For Availability

GLASS, DOOR (INNER/COATED) MAY 74010231 Contact Us For Availability

NUT, WING MAY 7103P030-60 Contact Us For Availability

PAN, BAKE BURNER MAY 74004465 Contact Us For Availability

MAY 74009133 MAY 74009133 Contact Us For Availability

MAY 74010042 MAY 74010042 Contact Us For Availability

MAY 74004307 MAY 74004307 Contact Us For Availability

COVER, VALVE/REGULATOR MAY 74005465 Contact Us For Availability

MAY 74004365 MAY 74004365 Contact Us For Availability

MAY 74010925 MAY 74010925 Contact Us For Availability

MAY 74011049 MAY 74011049 Contact Us For Availability

MAY 74010901 MAY 74010901 Contact Us For Availability

BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability

MAY 74003960 MAY 74003960 Contact Us For Availability

SHIELD, CONTROL MAY 74010846 Contact Us For Availability

RETAINER, GLASS SUPPORT MAY 74011050 Contact Us For Availability

MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability

MAY 74006574 MAY 74006574 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability

MAY 74011051 MAY 74011051 Contact Us For Availability

MAY 74011052 MAY 74011052 Contact Us For Availability

MAY 74010910 MAY 74010910 Contact Us For Availability

MAY 74010911 MAY 74010911 Contact Us For Availability

MAY 74010912 MAY 74010912 Contact Us For Availability

MAY 74010913 MAY 74010913 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

WPW10407680 Whirlpool Orifice Holder Backorder WPL WPW10407680 $39.36

MAY 74007215 MAY 74007215 Contact Us For Availability

HOLDER, ORIFICE (9.2K) MAY 74010909 Contact Us For Availability

HOLDER, ORIFICE (12K) MAY 74010961 Contact Us For Availability

LAMP ASSEMBLY MAY 74010885 Contact Us For Availability

16

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $19.87

16

MAY 74010232 MAY 74010232 Contact Us For Availability

16

MAY W10130932 MAY W10130932 Contact Us For Availability

WP7701P526-60 Whirlpool Door Handle Backorder WPL WP7701P526-60 $130.12

MAY 74004408 MAY 74004408 Contact Us For Availability

RETAINER, BOTTOM INSULATION MAY 74009480 Contact Us For Availability

INSULATION, OVEN BOTTOM MAY 74010986 Contact Us For Availability

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $77.78

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $2.51

MODULE, SPARK (4+0) MAY 7431P064-60 Contact Us For Availability

Module, Spark (4+0) MAY 8215557 Contact Us For Availability

19

WP74009029 Whirlpool Door Gasket Backorder WPL WP74009029 $56.33

19

SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability

19

MAY 74010812 MAY 74010812 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.59

WP2205F054-19 Whirlpool Oven Bottom Backorder WPL WP2205F054-19 $380.64

Support, Spark Module MAY 3807F752-45 Contact Us For Availability

SUPPORT, SPARK MODULE MAY 74007020 Contact Us For Availability

21

WPW10282492 Whirlpool Oven Rack In Stock WPL WPW10282492 $39.71

21

CLIP, DOOR MAY 7112P034-60 Contact Us For Availability

21

MAY 74010944 MAY 74010944 Contact Us For Availability

22

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

22

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

22

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $14.18

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $29.61

23

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

25

LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability

26

MAY 74009840 MAY 74009840 Contact Us For Availability

26

PANEL, DRAWER GAS (STL) MAY W10160943 Contact Us For Availability

27

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

28

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

29

DRAWER, STORAGE MAY 74008333 Contact Us For Availability

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

31

HANDLE, DRAWER (STL) MAY 74009841 Contact Us For Availability

31

HANDLE, DRAWER (STL) MAY W10180296 Contact Us For Availability

33

MAY 74010896 MAY 74010896 Contact Us For Availability

34

MAY 74008859 MAY 74008859 Contact Us For Availability

NI

MAY 15003722 MAY 15003722 Contact Us For Availability
